1 ZOTAC ZBOX pico
ZOTAC ZBOX pico
User’s Manual
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means, except by the purchaser for
backup purposes, without the express written permission of ZOTAC.
Products and corporate names mentioned in this manual may be registered
trademarks or copyrights of their respective companies, and are used for
identication purposes only. All trademarks are the property of their respective
owners.
Every effort has been made to ensure the contents of this manual are correct
and up to date. However, the manufacturer makes no guarantee regarding the
accuracy of its contents, and reserves the right to make changes without prior
notice.
ZOTAC ZBOX pico 2
Table of Contents
Product specications ---------------------------------------------------------------------------------- 3
Safety information ---------------------------------------------------------------------------------------- 4
Setting up your system ------------------------------------------------------------------------------- 4
Care during use ---------------------------------------------------------------------------------------- 4
Welcome ----------------------------------------------------------------------------------------------------- 5
Package contents -------------------------------------------------------------------------------------- 5
Port Layout-------------------------------------------------------------------------------------------------- 6
How to disable the ring LED indicator ------------------------------------------------------------- 8
Mounting the ZOTAC ZBOX pico to an LCD monitor---------------------------------------- 10
Getting started with Windows 8.1 with Bing --------------------------------------------------- 12
Using your ZOTAC ZBOX pico---------------------------------------------------------------------- 16
Conguring a wireless connection --------------------------------------------------------------- 16
Conguring an Ethernet connection------------------------------------------------------------- 16
Using a static IP ---------------------------------------------------------------------------------- 16
Using a dynamic IP (PPPoE connection) -------------------------------------------------- 17
Conguring audio output via an HDMI device ------------------------------------------------ 18
Conguring Windows 8.1 micro SD/SDHC/SDXC Support-------------------------------- 19
Recovering Windows 8.1 (from internal system image) ----------------------------------- 21
Recovering Windows 8.1 (from external recovery DVD)----------------------------------- 22
3 ZOTAC ZBOX pico
Product specications
Product Dimensions
• 115.5mm x 66mm x 19.2mm
Processor
• Intel Atom Z3735F (quad-core, 1.33 GHz)
• Burst speed up to 1.83 GHz
Graphics processor
• Intel HD graphics
Memory
• 2GB DDR3L-1333 memory
USB ports
• Three USB 2.0 ports
Storage
• 32GB/64GB eMMC
• Expandable via micro SD/SDHC/SDXC
Networking
• 10/100Mbps Ethernet
Wireless networking
• 802.11n Wi-Fi
• Bluetooth 4.0
Operating System
• Windows 8.1 with Bing, 32-bit
ZOTAC ZBOX pico 4
Safety information
Your ZOTAC ZBOX pico is designed and tested to meet the latest standards of safety for
information technology equipment. However, to ensure your safety, it is important that you read
the following safety instructions.
Setting up your system
Read and follow all instructions in the documentation before you operate your system.
Do not use this product near water or a heat source such as a radiator.
Set up the system on a stable surface with the provided stand. Never use the system
alone without the stand.
Openings on the chassis are for ventilation. Do not block or cover these openings. Make
sure you leave plenty of space around the system for ventilation. Never insert objects of
any kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0℃ and 35℃.
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still ows. Always
unplug all power, modem, and network cables from the power outlets before cleaning the
system.
If you encounter the following technical problems with the product, unplug the power cord
and contact a qualied service technician or your retailer.
¾The power cord or plug is damaged.
¾Liquid has been spilled into the system.
¾The system does not function properly even if you follow the operating instructions.
¾The system was dropped or the cabinet is damaged.
¾The system performance changes.
5 ZOTAC ZBOX pico
Welcome
Congratulations on your purchase of the ZOTAC ZBOX pico. The following illustration displays
the package contents of your new ZOTAC ZBOX pico. Please contact your retailer If any of the
below items are damaged or missed.

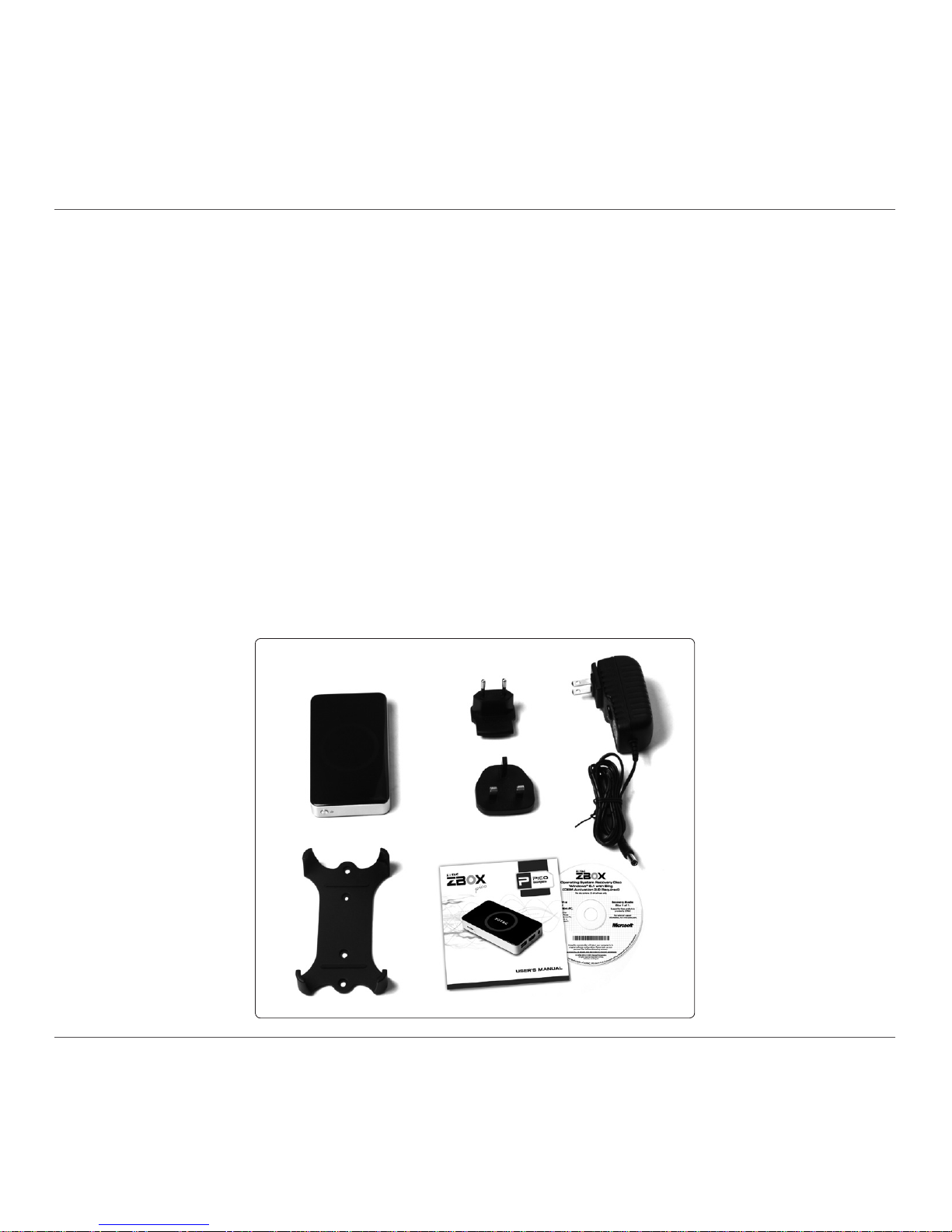

Package contents
• 1 x ZOTAC ZBOX pico
• 1 x Mounting bracket
• 2 x Mount screws
• 1 x AC adapter
• 1 x OS Recovery DVD (optional)
• 1 x Warranty Card
• 1 x User Manual
• 1 x Quick Start Guide
ZOTAC ZBOX pico 6

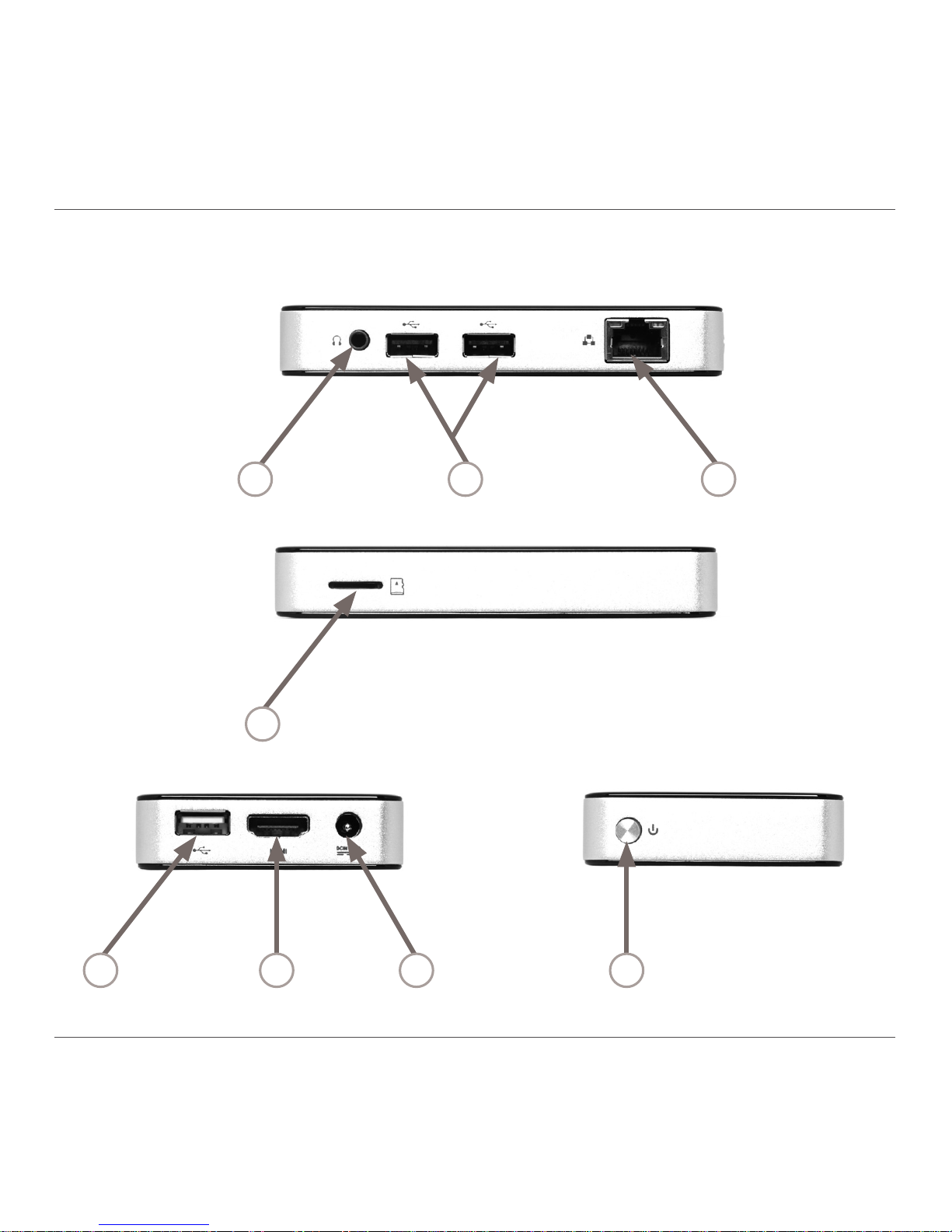

Port Layout
12 3
4
526
Power button
7
7 ZOTAC ZBOX pico
1. Headphone/analog audio output (3.5mm)
The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal
to amplied speakers or headphones.
2. USB 2.0 ports
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,
mice, cameras and external hard disk drives.
3. Ethernet port
The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a
local network.
4. MicroSD memory card slot
The built-in memory card reader supports Micro SD/SDHC/SDXC cards to expand the
storage capabilities of the ZOTAC ZBOX pico.
5. HDMI output
The HDMI (High Denition Multimedia Interface) output supports a Full HD 1080p
displays such as an HDTV or monitor.
6. Power input (DC 5V, 3A)
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the mini-PC. To prevent damage to
the mini-PC, always use the supplied power adapter.
7. Power button
The power button turns the system ON and OFF.
Note 1: The power adapter may get warm or hot when in use. Do not cover the adapter and keep it away from your body.
Note 2: Due to the unique design, some connectors are placed upside down.
ZOTAC ZBOX pico 8
How to disable the ring LED indicator
1. Turn on the ZBOX pico mini-PC, then press <Delete> to enter the BIOS SETUP
UTILITY.

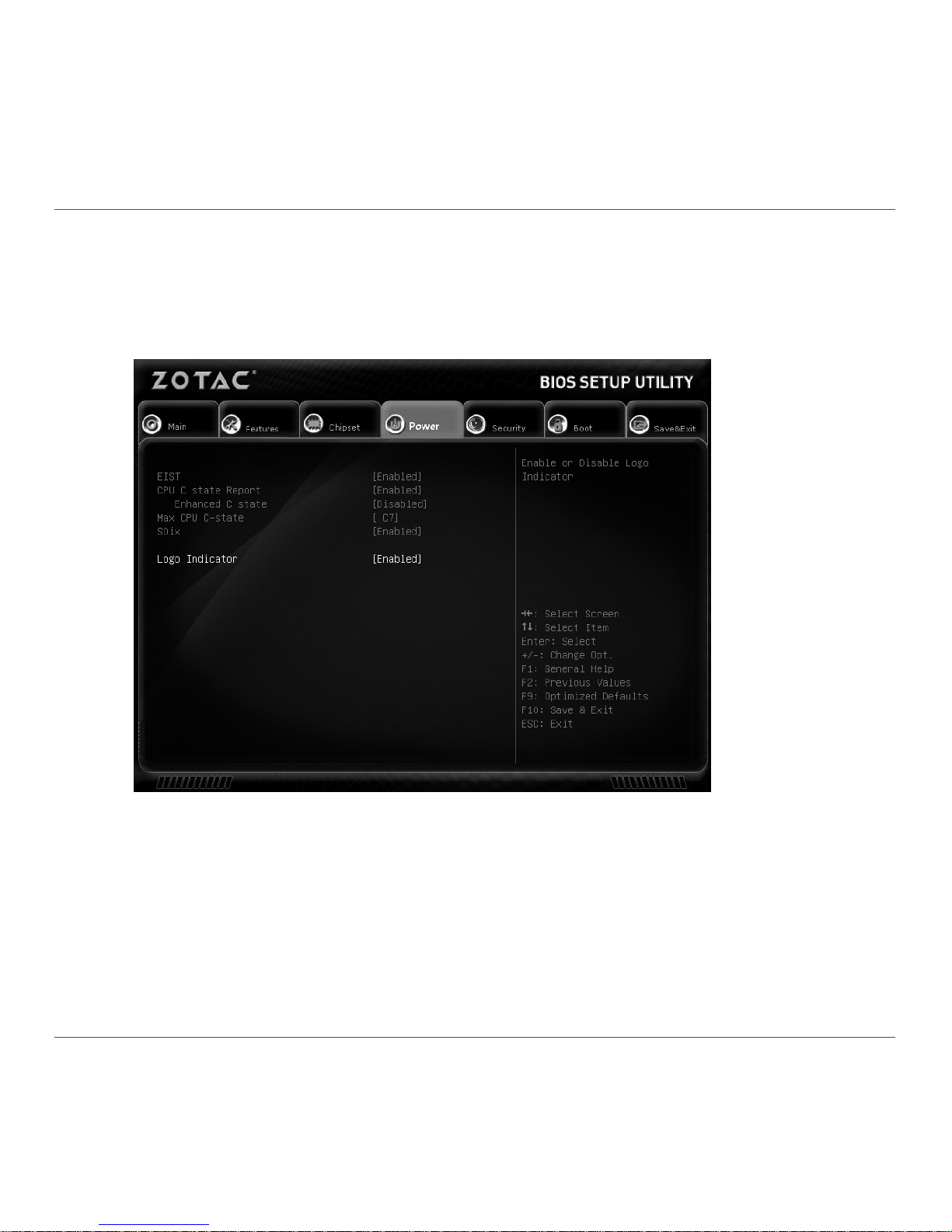

2. Use the arrow keys to navigate to the Power menu and select Logo Indicator.
9 ZOTAC ZBOX pico

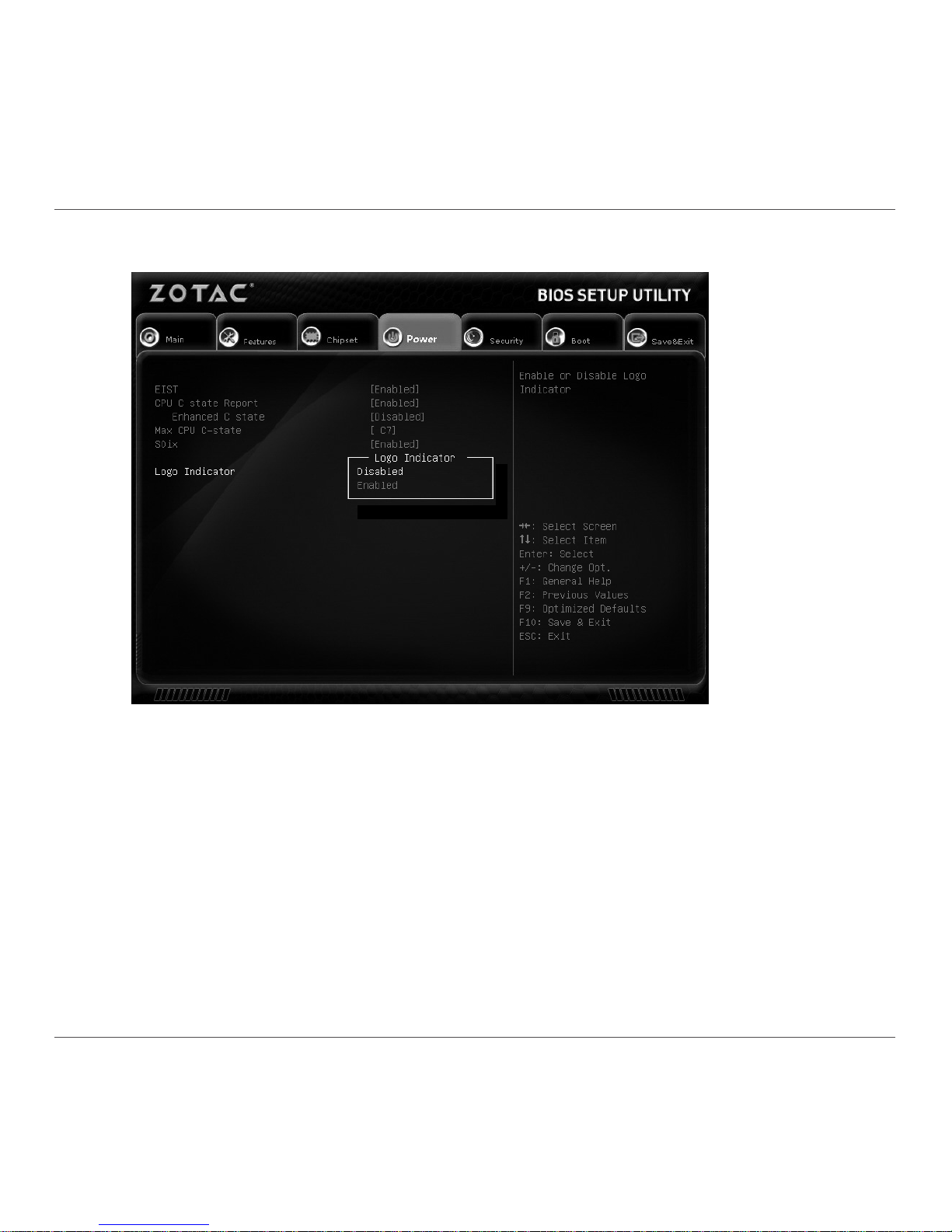

3. Press <Enter> and select Disabled.
4. Press F10 to save the conguration and exit. The PC will reboot.
