1

MF93D

Let’s go

Getting started with your device.

ZTE CORPORATION

NO. 55, Hi-tech Road South, ShenZhen, P.R.China

Postcode: 518057

2

LEGAL INFORMATION

Copyright © 2013 ZTE CORPORATION.

All rights reserved.

No part of this publication may be excerpted, reproduced,

translated or utilized in any form or by any means, elec-

tronic or mechanical, including photocopying and micro-

lm, without the prior written permission of ZTE Corpora-

tion.

The manual is published by ZTE Corporation. We re-

serve the right to make modications on print errors or

update specications without prior notice.

Version No. : R1.0

Edition Time : 2013.12

NOTE:

Do not use the device in an enclosed environment or

where heat dissipation is poor. Prolonged work in such

space may cause excessive heat and raise ambient

temperature, which may lead to automatic shutdown of

the device for your safety. In the case of such event, cool

the device in a well-ventilated place before turning on for

normal use.

3

Getting to Know Your Device

Appearance

The following gure is only for your reference. The actual

product may be different.

External Antenna Connector

Micro USB Port

OLED Screen

Power Switch

(U)SIM Card Slot

RESET Button / microSD Card Slot

WPS Button

4

NOTES:

• microSD logo is a trademark of SD-3C, LLC.

• Please use the original external antenna if neces-

sary.

Indicators

When the device is powered on, the following icons will

appear on the OLED screen, with the corresponding indi-

cates listed in the table below:

Icon Indication

Network signal strength.

2G/3G/4G

Network type. 2G, 3G, 4G icon will ap-

pear on the OLED screen according to

the network being connected.

Connect to the Internet automatically.

Connect to the Internet manually.

Roaming network indication.

New message received.

5

Wi-Fi Status and number of the connect-

ed users.

Battery power indication.

Connection Scenario

Your device supports two methods to go to Internet and

supports multi-clients for surfing on the Internet at the

same time. The following gure is only for your reference.

• 4G Mode: Use your (U)SIM card to access the Inter-

net.

• Internet Wi-Fi Mode: Your device will connect to

other WLAN device (hotspot device, wireless router,

etc.) via Wi-Fi to access the Internet. The WLAN de-

vice has already connected to the Internet.

6

NOTE:

The subnet must be deferent between your device and

other WLAN device.

Installing Your Device

1. Insert the SIM card.

7

2. Insert the microSD card.

1) Open the microSD card cover.

NOTE:

Do not pull the cover rudely, as it is connected with the

device.

2) Insert the microSD card into the microSD slot. The

following picture shows the correct inserting direc-

tion. You will hear a click when the microSD card

locks in place.

3) Close the microSD card cover.

8

Connecting to Your Device

Via Wi-Fi

1. Power on your device directly. It will take 1~2 min-

utes to initialize.

2. Use your normal Wi-Fi application on the client to

search for the available wireless networks.

NOTE: Please set the client to obtain an IP address

automatically referring to the chapter “Conguring Your

PC”, and then the client will get an IP address like

“192.168.0.100”.

9

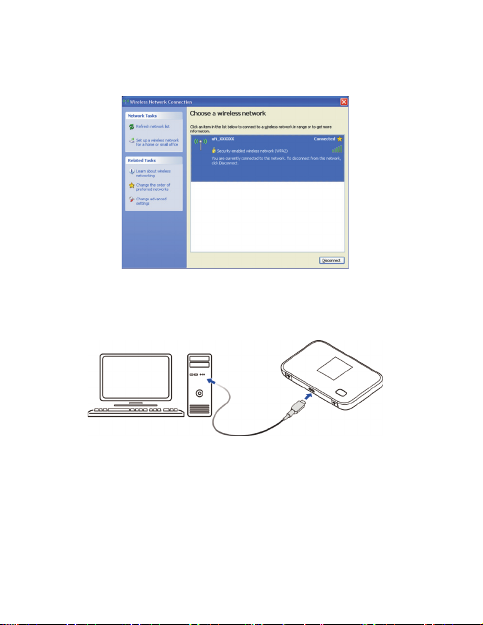

3. Select the SSID of your device, and then click Con-

nect. The following picture is only for your reference.

4. Input the password, and then click Connect.

NOTE:

• There may require the password for Wi-Fi connec-

tion, please check the label on your device to get the

default.

• Double press the WPS button, and then the SSID

and Wi-Fi key will display on the OLED screen.

10

5. Wait a moment, and then the client will connect to

your device successfully.

Via USB Cable

1. Connect to the device.

2. Power on your device.

3. The OS detects and recognizes new hardware and

nishes the installation automatically.

NOTE: If the Windows operating system does not launch

installation automatically, you can run the installation pro-
