ZyXEL Communications AG-225H Manuale utente

AG-225H

802.11a/b/g/pre-n Wi-Fi Finder & USB Adapter

Quick Start Guide

(For Windows XP/2000, Vista, Mac OS X*)

Version 1.3

December 2006

ZyXEL AG-225H Quick Start Guide

Important Note

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

ZyXEL AG-225H Quick Start Guide

Wi-Fi Finder Mode

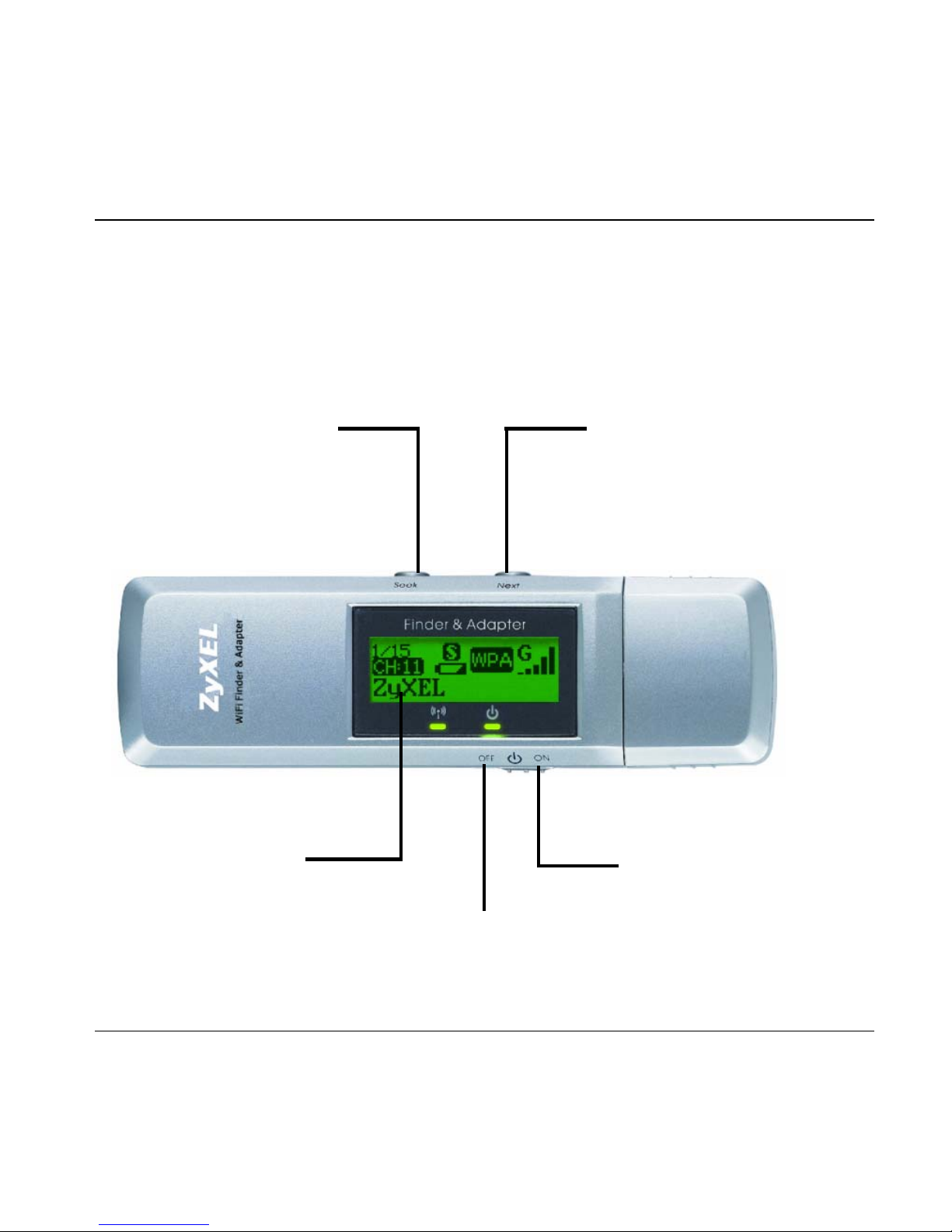

1. User Interface

NEXT Button

Scroll down to the

next network entry.

SEEK Button

Search network

(Site Survey).

Power OFF Switch

Switch left to power

off the Wi-Fi Finder.

LCM Description

(See next page) Power ON Switch

Switch right to power

on the Wi-Fi Finder.

ZyXEL AG-225H Quick Start Guide

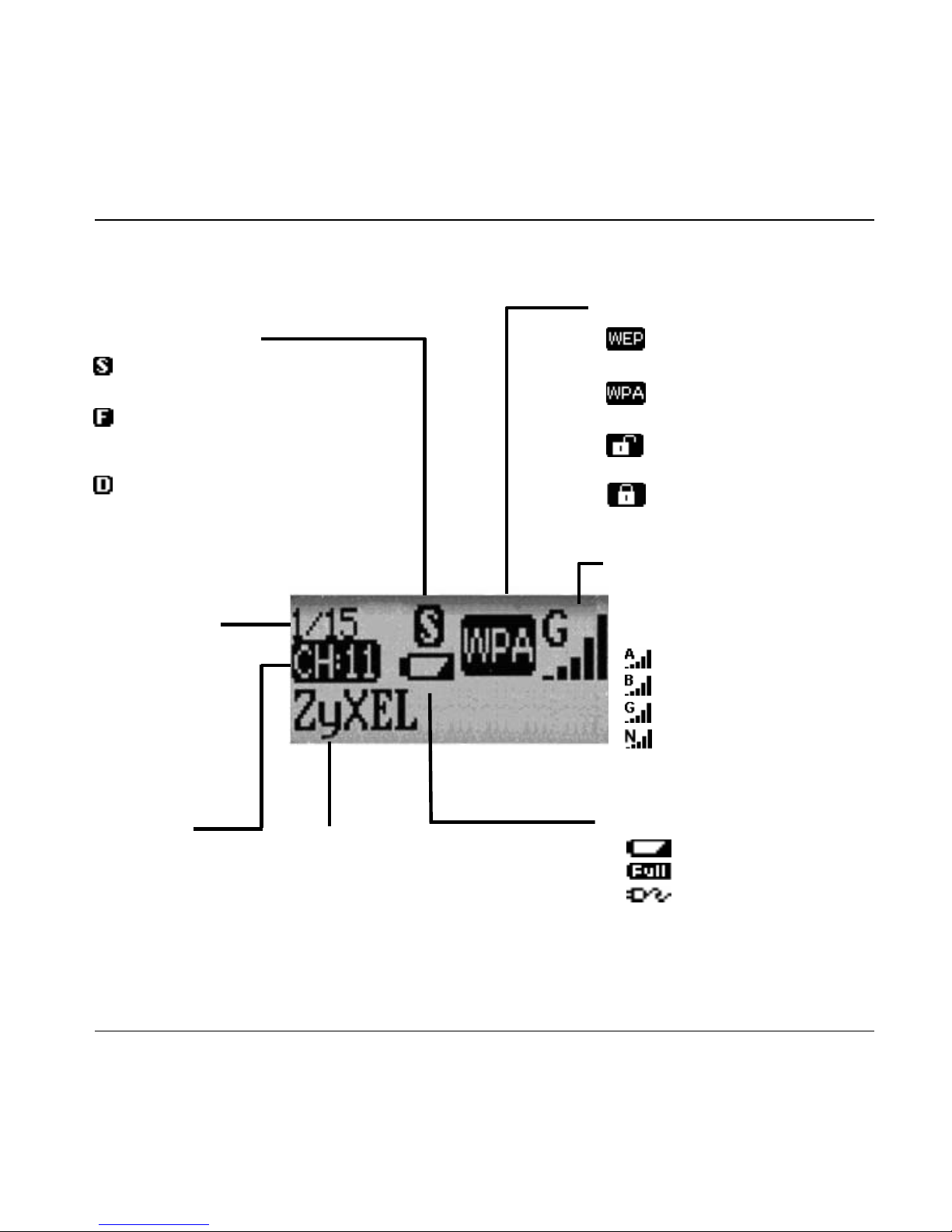

2. LCM Description

Security Information

Displays when WEP security is

enabled.

Displays when WPA or WPA2

security is enabled.

Displays when Wireless security is

disabled (no security).

Displays when n-mode WEP,

WPA, or WPA2 security is enable.

Entr

Display the current

entry of the detected

Access Points. Users

can detect up to 15

networks at one time.

Channel

Display the radio

channel of the

detected network.

Detect Mode

Display up to 15 detected networks

in the order of the signal strength.

Display the detected networks

without any security setting (free

hot spot).

Display the dedicated network you

choose to use.

SSID

The SSID identifies the Service Set

to the network users detect. When

the length of SSID is longer than 12

characters, it will be scrolled

horizontally.

Battery Status

Display Low Battery

Display Full Battery

Display Battery is charging

Signal

This displays the wireless standard

and signal strength of the selected

network.

802.11a mode at 5 GHz band

802.11b mode at 2.4 GHz band

802.11g mode at 2.4 GHz band

802.11n (pre-n) mode at 2.4 GHz

band

ZyXEL AG-225H Quick Start Guide

3. Basic Operation

1. Power on ZyXEL AG-225H.

2. The ZyXEL AG-225H will automatically detect the available wireless

networks in 6~7 seconds.

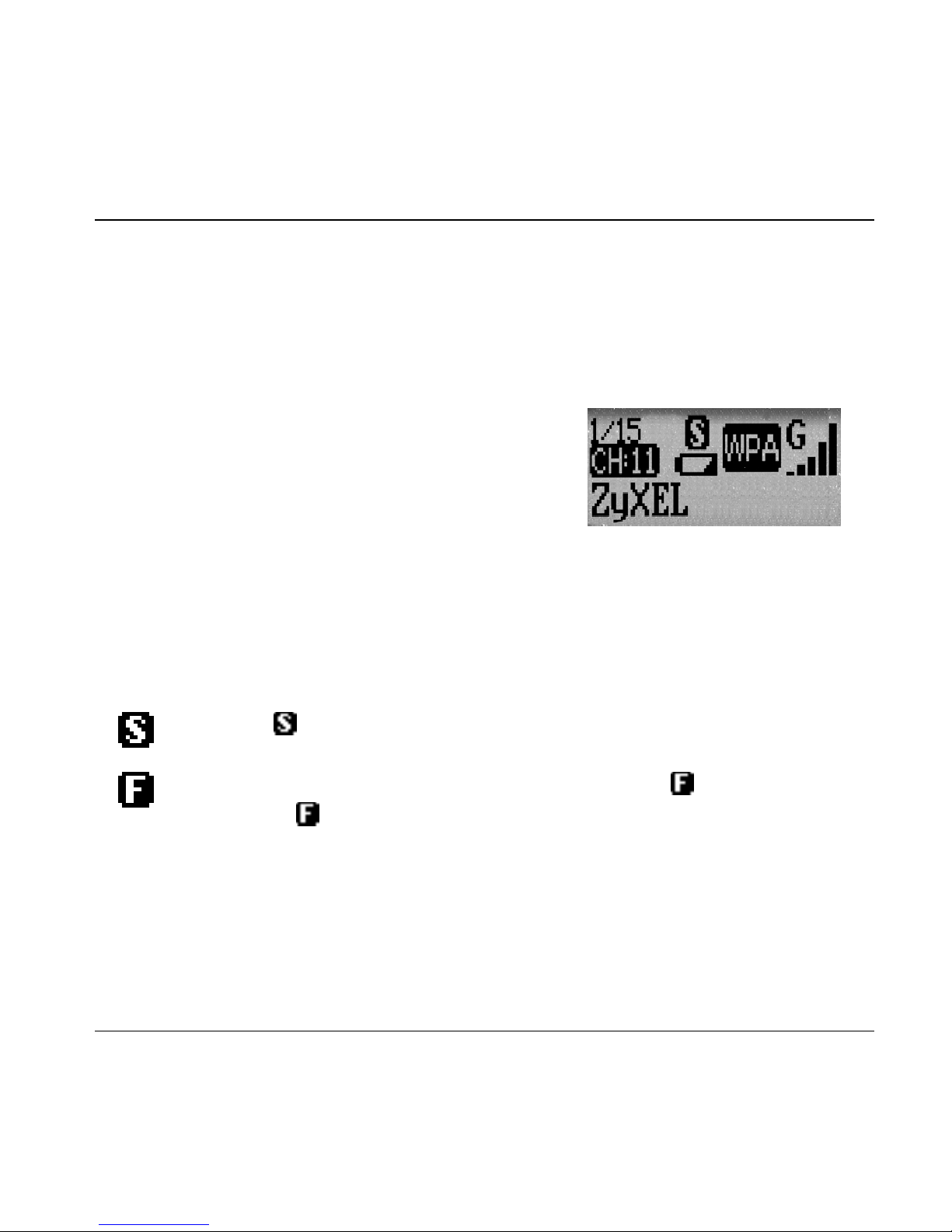

3. The site survey information will be

displayed on the LCM including the SSID,

channel, signal strength, wireless network

protocol (IEEE802.11a/b/g/pre-n), and the

type of wireless security/encryption (WEP

or WPA)

4. Push NEXT button to see more Access Points you have detected.

For Advanced Features of the AG-225H, there are totally 3 modes to choose:

Mode mode is set by default for most users to detect the Wi-Fi

networks.

Mode

(Free Mode) Hold SEEK button for 1 second to switch to mode.

In mode, push SEEK button to detect the free hot spots or

available WLAN that you can connect to the Access Point

without any security setting.

ZyXEL AG-225H Quick Start Guide

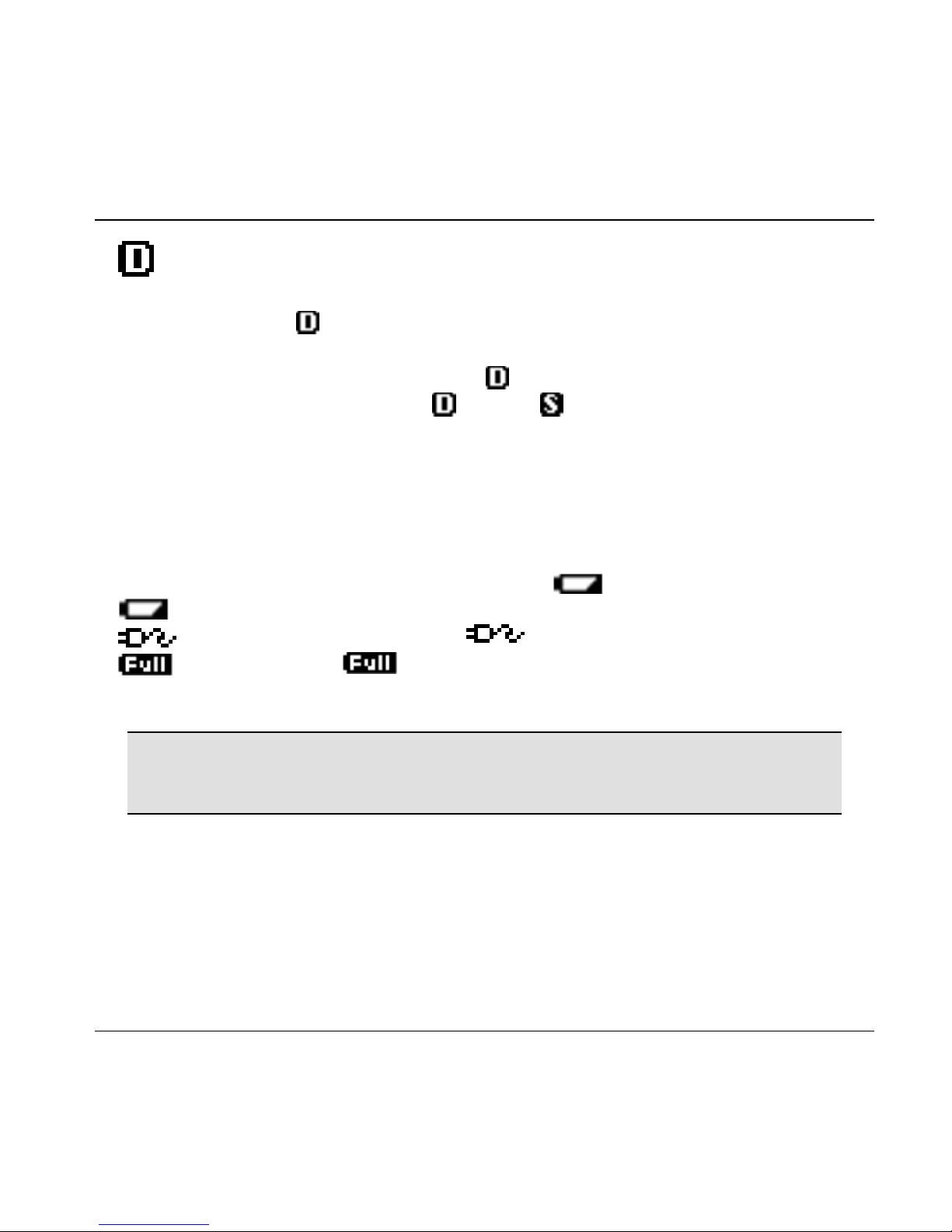

Mode When you need to connect the specific Aceess Point and lock

on it, push NEXT button to select the desired Aceess Point.

To dedicate tracking a certain AP, hold “SEEK” button to swith

to mode.

Then push SEEK button once again to periodically do the site

survey automatically in mode. By doing so, the modes can

be changed from mode to mode.

When ZyXEL AG-225H Wi-Fi Finder is not used for 1~2 minutes, the device will

enter into the power saving mode untill you push the SEEK button again for

searching the Access Points.

Charging

When low power icon appears , recharge the AG-225H

with your USB port on your laptop or desktop PC.

The LCM will display when the device is charging and

display when the device finishs charging.

)To save power, switch off the AG-225H when not using Wi-Fi

Finder function.

ZyXEL AG-225H Quick Start Guide

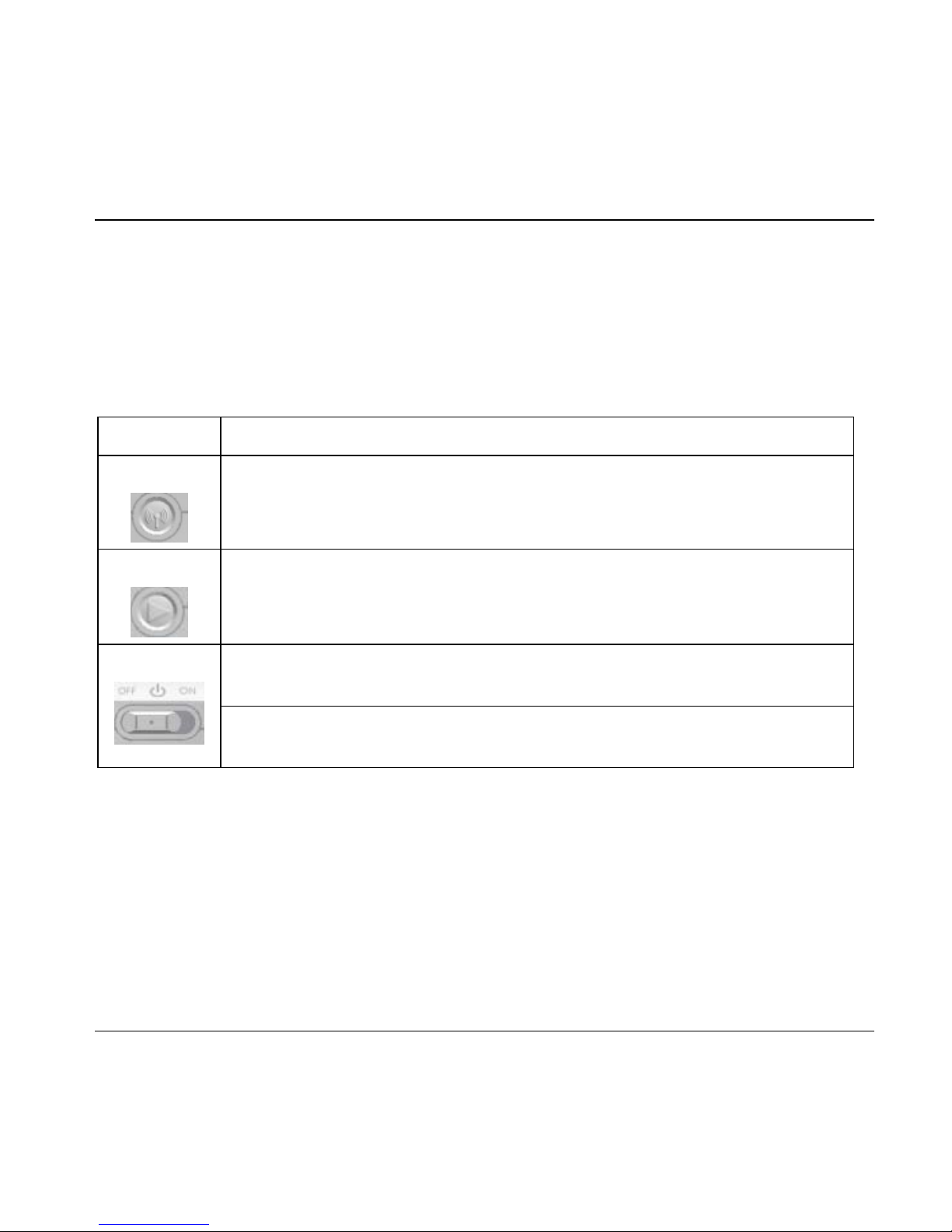

4. Button Display

The following table describes the Buttons on the ZyXEL AG-225H when using the Wi-

Fi Finder function.

BUTTON DESCRIPTION

SEEK

Push SEEK button to detect wireless networks in the area.

Push NEXT button to see the detected wireless networks.

Switch right to power ON the ZyXEL AG-225H Wi-Fi Finder mode.

OFF/ON

Switch left to power OFF the ZyXEL AG-225H Wi-Fi Finder mode.

ZyXEL AG-225H Quick Start Guide

5. LED Display

The following table describes the LEDs on the AG-225H when using Wi-Fi Finder

Mode.

LED COLOR STATUS DESCRIPTION

On The AG-225H is powered on.

Green Off The AG-225H is either powered off or entering into

Power Saving Mode.

On The AG-225H is detecting available wireless networks

Green Off The AG-225H is not actively detecting wireless

networks.

The following table describes the LEDs on the AG-225H when using Adapter Mode.

LED COLOR STATUS DESCRIPTION

On The AG-225H is powered.

Green Off The AG-225H is powered off.

On The AG-225H is connected with an AP/Router.

Blinking The AG-225H is receiving or sending data.

Green

Off The AG-225H is not receiving or sending data.

ZyXEL AG-225H Quick Start Guide

Windows XP/2000 Installation

1. Installation Requirements

Before installation, make sure you have the following requirements.

•Pentium II 300MHz or above

•A minimum of 20 MB available hard disk space

•A minimum of 64 MB RAM

•A CD-ROM drive

•An available USB port (for best performance USB2.0 is required)

•Windows XP or Windows 2000 Operating Systems

2. Install the Software

The installation procedures are similar for all supported Windows versions. Windows

XP screen shots are shown unless otherwise specified.

)Install the ZyXEL Utility before you insert ZyXEL AG-225H.

1. Insert the support CD into the CD-ROM drive on your computer.

ZyXEL AG-225H Quick Start Guide

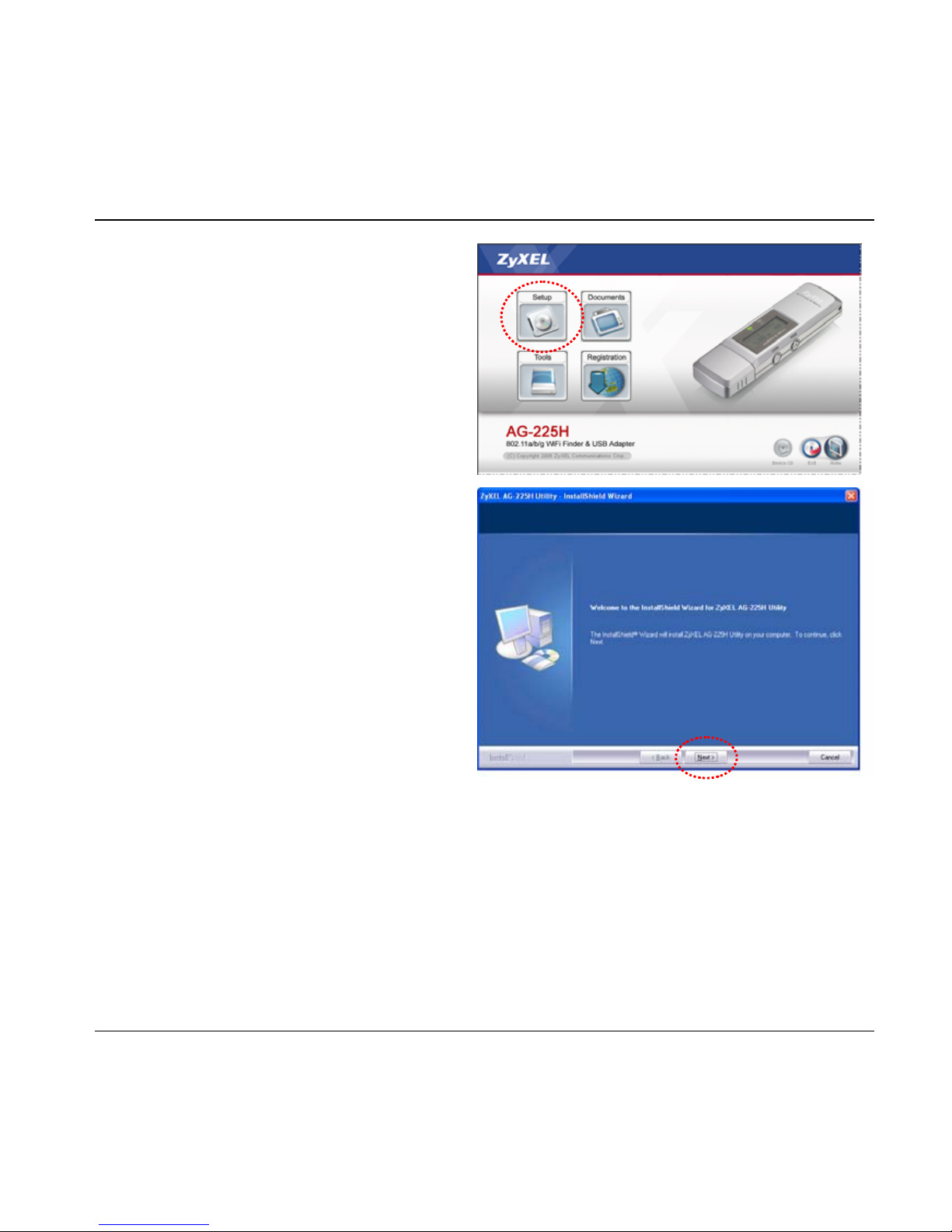

2. Click Setup to install the ZyXEL

Utility and driver.

If this screen does not display,

locate and double-click

autorun.exe on the support CD.

3. When the Welcome screen

displays, click Next.
