ZyXEL Communications OMNI.NET LITE Manuale utente

Omni.Net Lite

ISDN Terminal Adapter

Quick Start Guide

3/2005

Version 1.1

English

Deutsch

Contents

English...................................................................................... 1

Deutsch................................................................................... 17

English

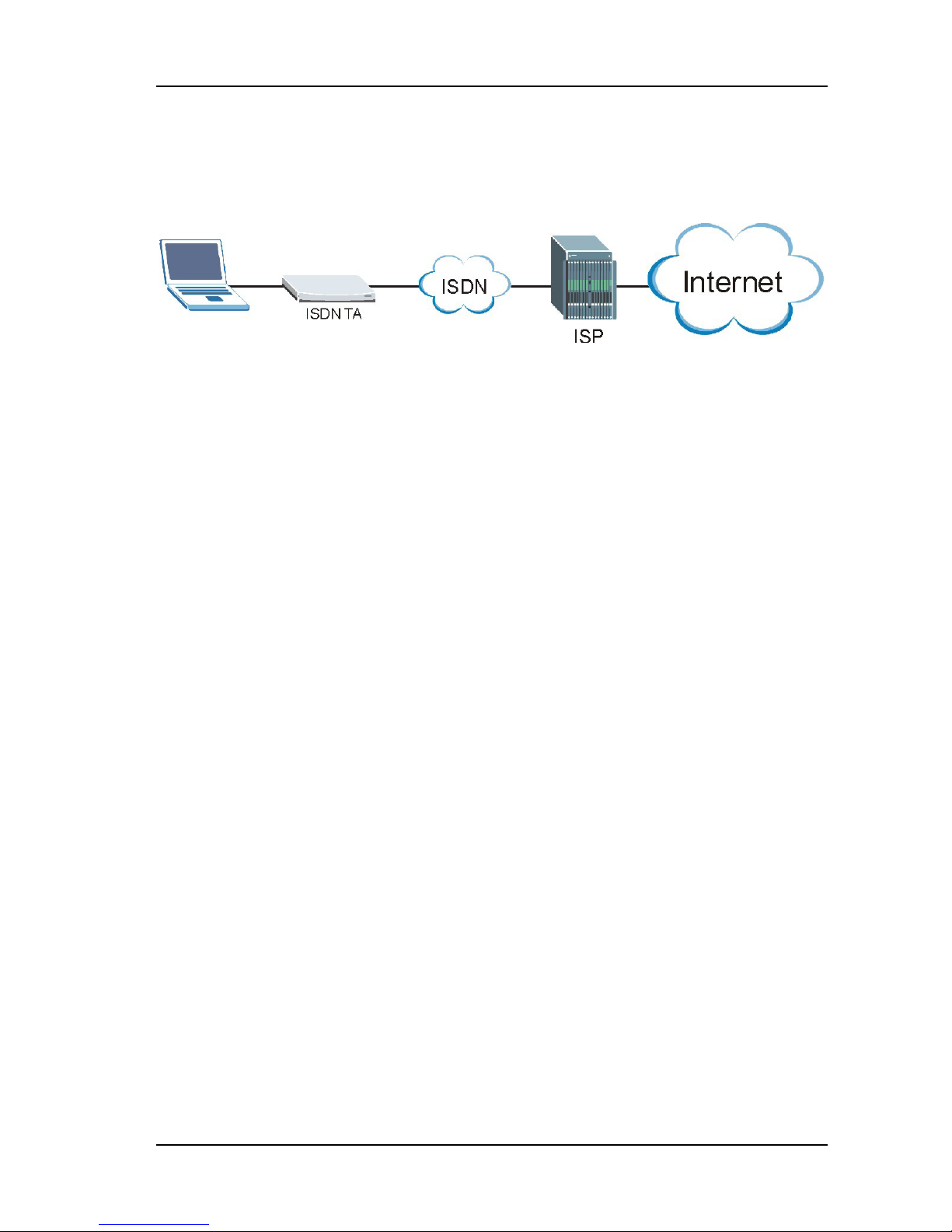

Overview

This guide shows you how to connect and access the Internet through your

ISDN Terminal Adapter (TA). You should have an Internet account already

set up.

1. Make the hardware connections.

2. Check top panel LEDs for proper hardware operation.

3. Install your TA driver on your computer to configure the TA.

4. Create a dial-up connection.

5. Dial up a connection.

Installation Requirements

To install the TA, you will need the following:

• Microsoft Windows 95, Windows 98 SE (Second Edition), Windows

Me, Windows 2000 or Windows XP

• 20MB of free disk space for the driver

• A computer with a 25-pin serial port

• An RS-232 cable

• RJ-11 and/or RJ-45 cables

1 Making Hardware Connections

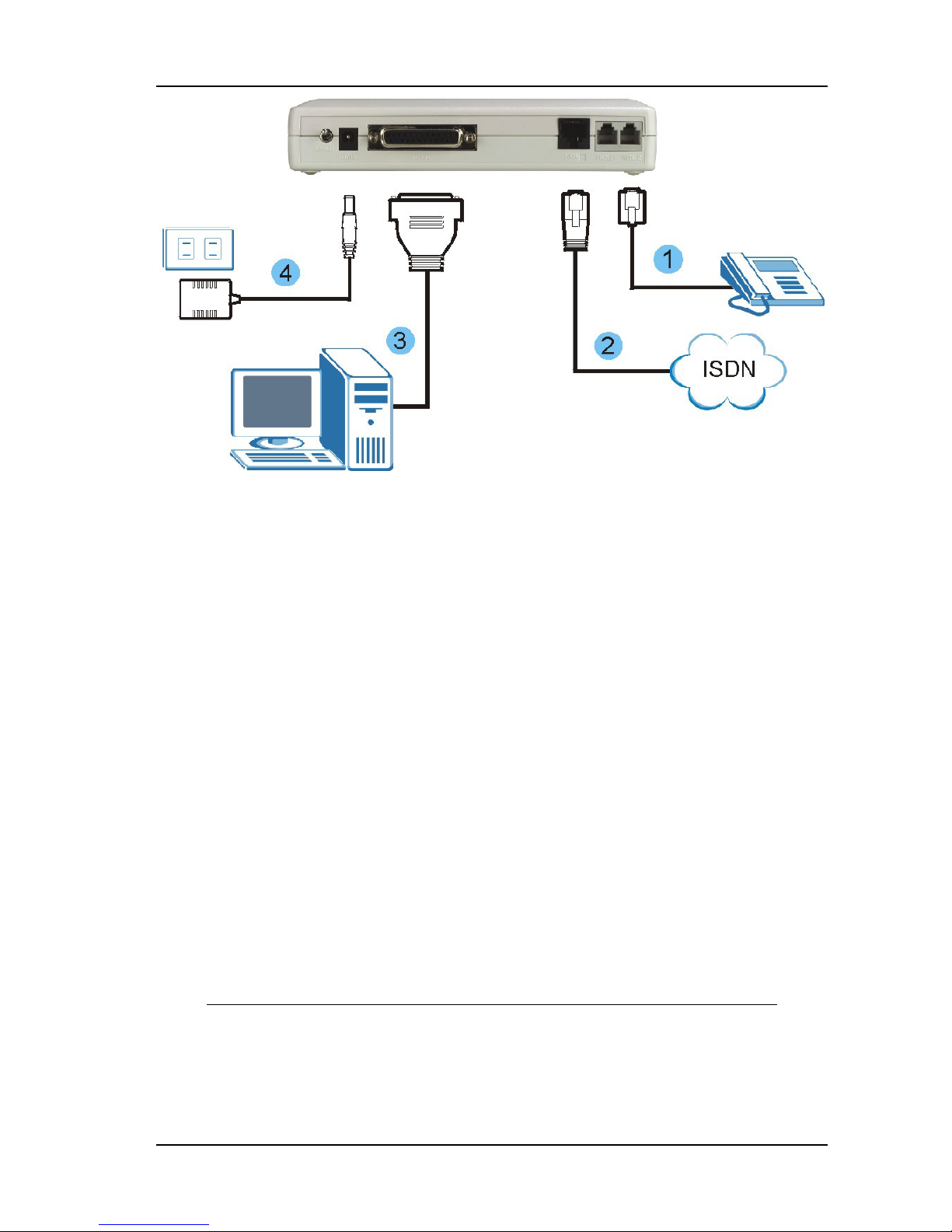

1. Connect your analog phone device(s) to the PHONE 1 and/or PHONE 2

port(s) using RJ-11 cable(s).

2. Connect the TA to the ISDN network using the included ISDN cable.

Connect one end of the RJ-45 cable to the port labeled ISDN and the

other to the ISDN wall jack and/or the NT-1 device. See your User’s

Guide for more information.

3. Connect the female end of the RS-232 cable to the TO DTE port and the

other end to the serial port (such as COM1 or COM2) on your computer.

4. Connect to a power source using the included 16V AC power adaptor.

5. Turn the TA on by flipping the power switch up.

English

2 Checking the Top Panel LEDs

Once you have completed all of the installation steps above, turn on the TA.

The TA starts performing system testing, where you should see a series of

LED lights blinking. After this cycle is complete, the PWR and CTS LEDs

should stay on.

If the system testing fails, the LNK LED flashes.

If you have a communication program loaded and active (connected to the

same serial port as your TA), the DTR LED should be on after the system

testing. See your User’s Guide for detailed LED descriptions.

3 Driver Installation

Follow the steps below to install the TA driver that comes with the included

CD. Screens for Windows XP are shown in this guide unless otherwise

specified. The steps in Windows XP refer to the classic start menu and classic

view.

Be sure your computer is already turned on before connecting the RS-232

cable from your TA to your computer. The plug and play function of

Windows detects your new device and shows an installation wizard as shown.

Your computer should automatically detect your new

hardware and display the installation wizard. If it does

not, you may go to Section 3.2 to install your driver

manually. If this does not work, disconnect the RS-232

English

cable and restart your computer, then plug the RS-232

cable back in.

3.1 Plug and Play Installation

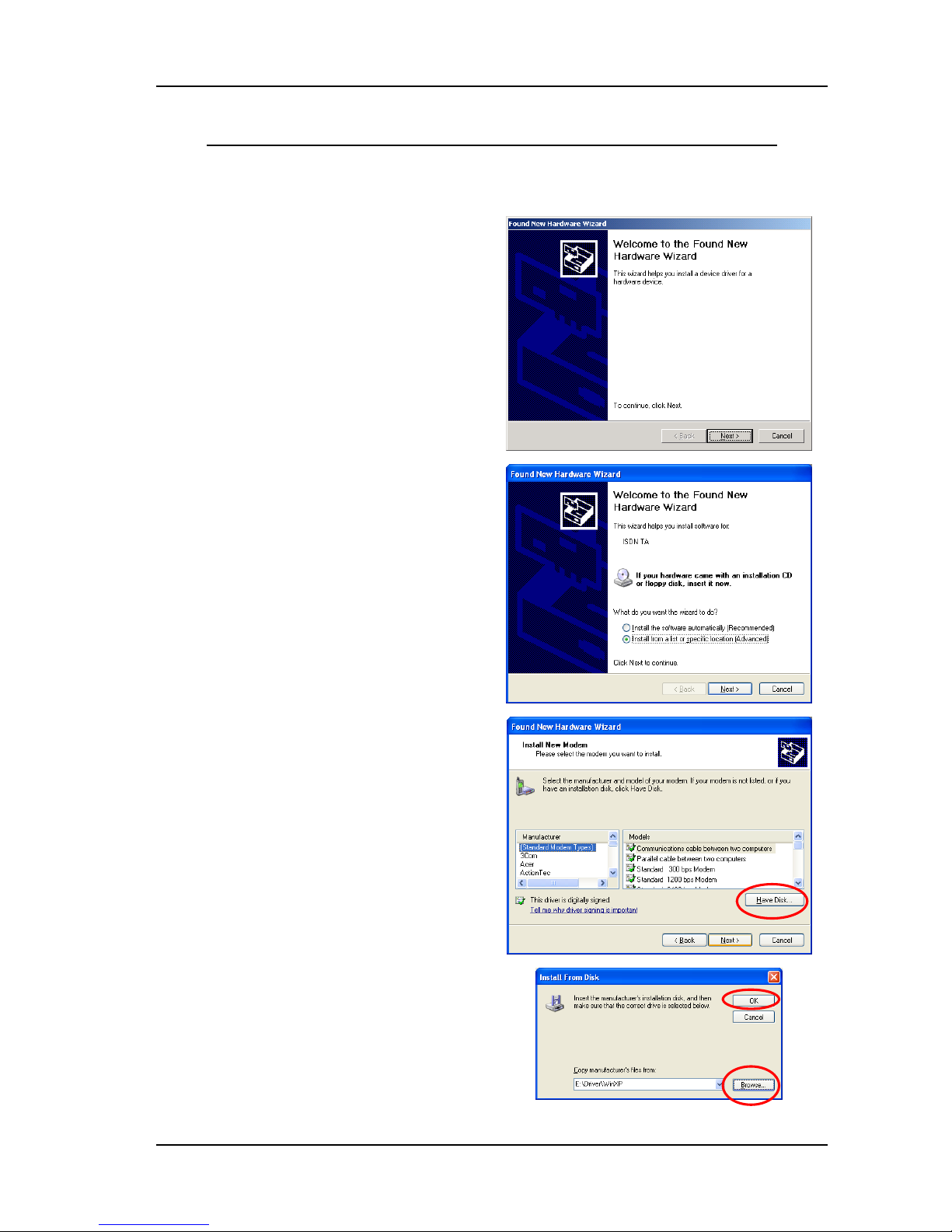

1. Windows 95/98 SE/Me/2000:

The following screen displays

if Windows detects the TA.

Click Next to continue.

2. Click Next to allow Windows

to display and install from a

list of all the drivers or the

specific location.

3. Insert the included CD into

your CD-ROM drive, click

Have Disk ... and then Browse

to find the INF file in the

Driver folder.

Click OK to return to the

Install From Disk screen and

then click OK to go back to the

Found (Add) New Hardware

Wizard screen.

English

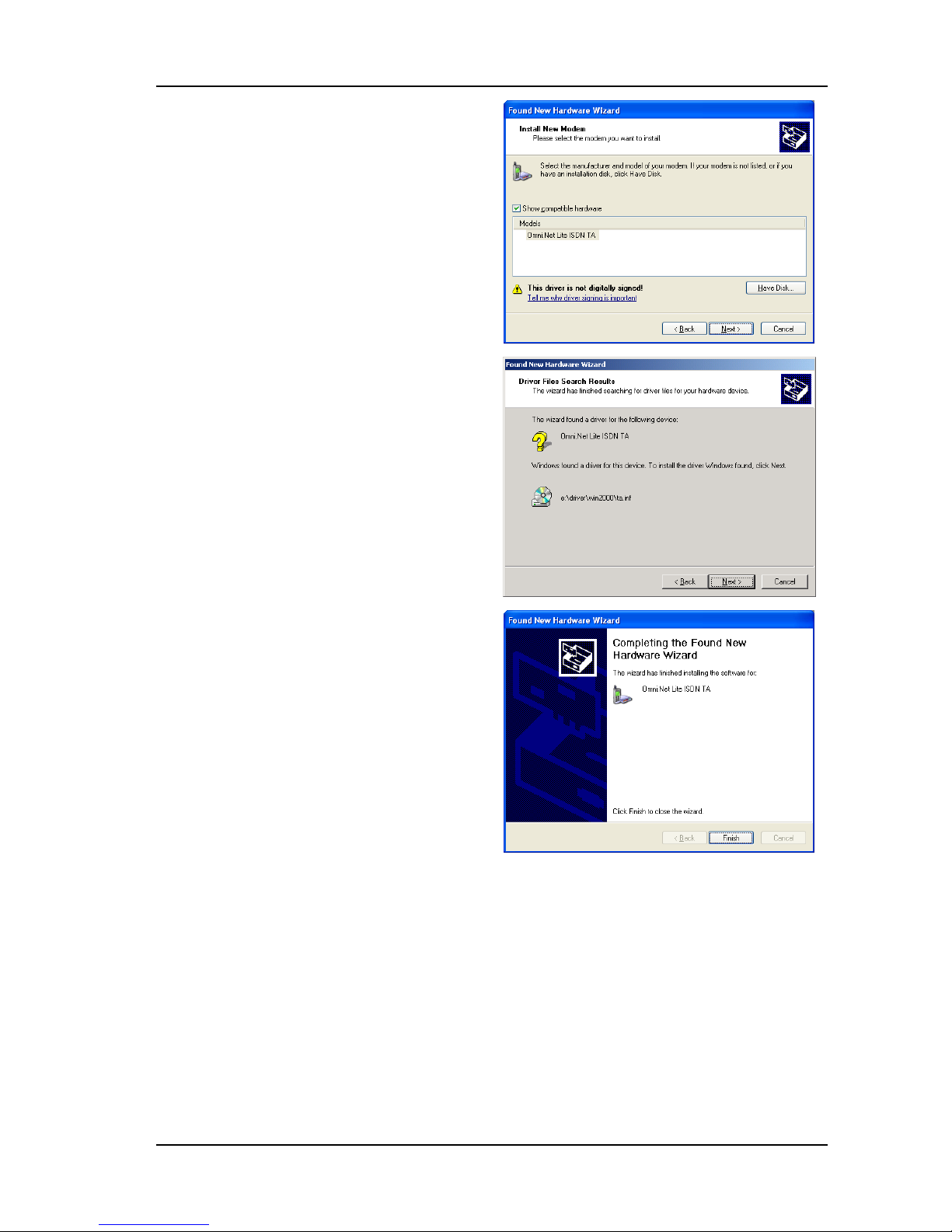

4. Click Next to continue.

5. Windows 95/98 SE/Me/2000:

The installation wizard has

found the location of your TA

driver. Click Next to continue.

6. Click Finish to complete the

driver installation.

3.2 Manual Installation

1. Be sure your TA is turned on.

2. Windows XP/2000: Click Start, Settings, Control Panel. Double-click

the Phone and Modem Options icon.

Windows 98 SE/Me: Click Start, Settings, Control Panel. Double-click

the Modems icon.

English

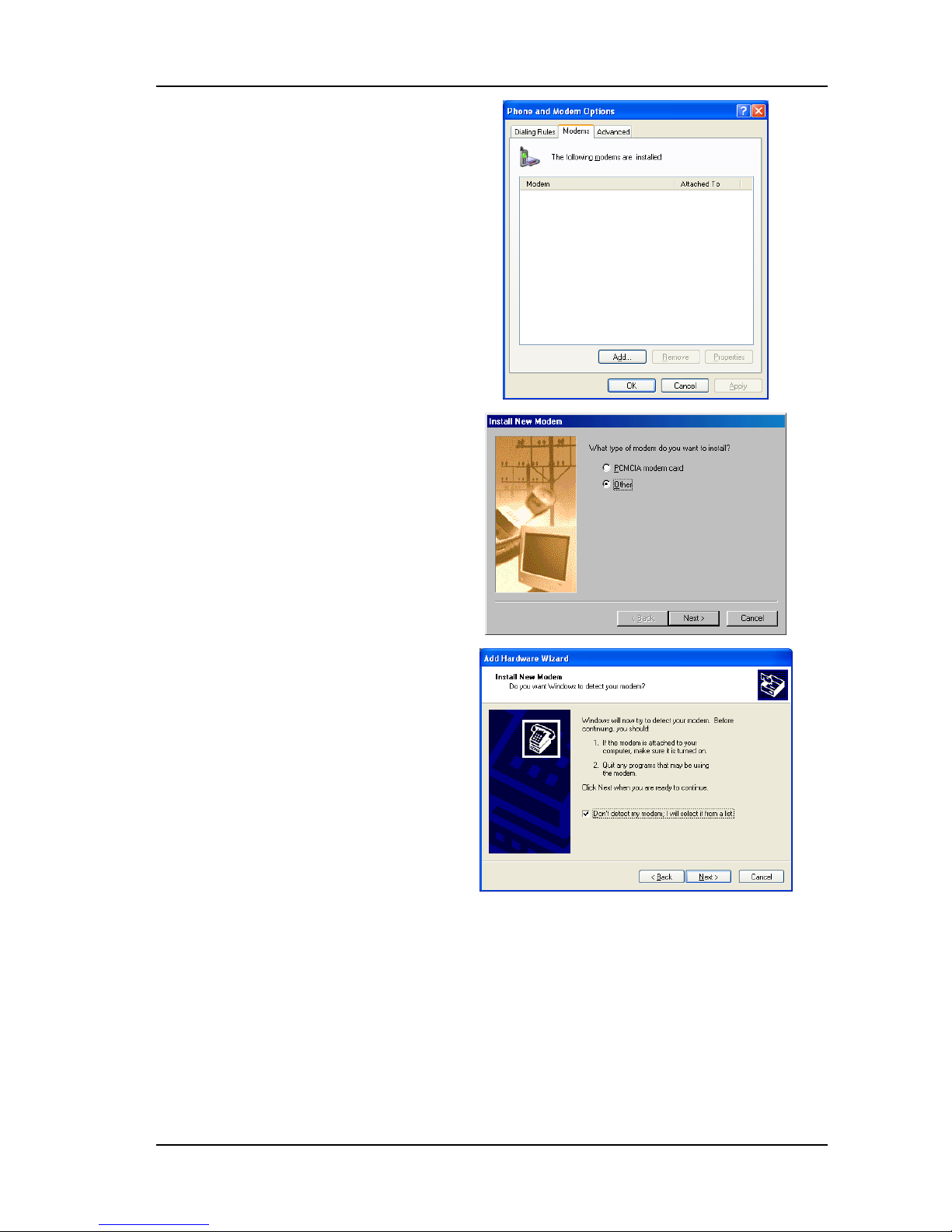

3. Windows XP/2000: Click

the Modems tab and the

Add button.

4. Windows 98 SE: Select

Other and click Next.

5. Select Don’t detect my

modem; I will select it

from a list and click

Next to continue.

6. Follow steps 3 and 4 in Section 3.1.

English

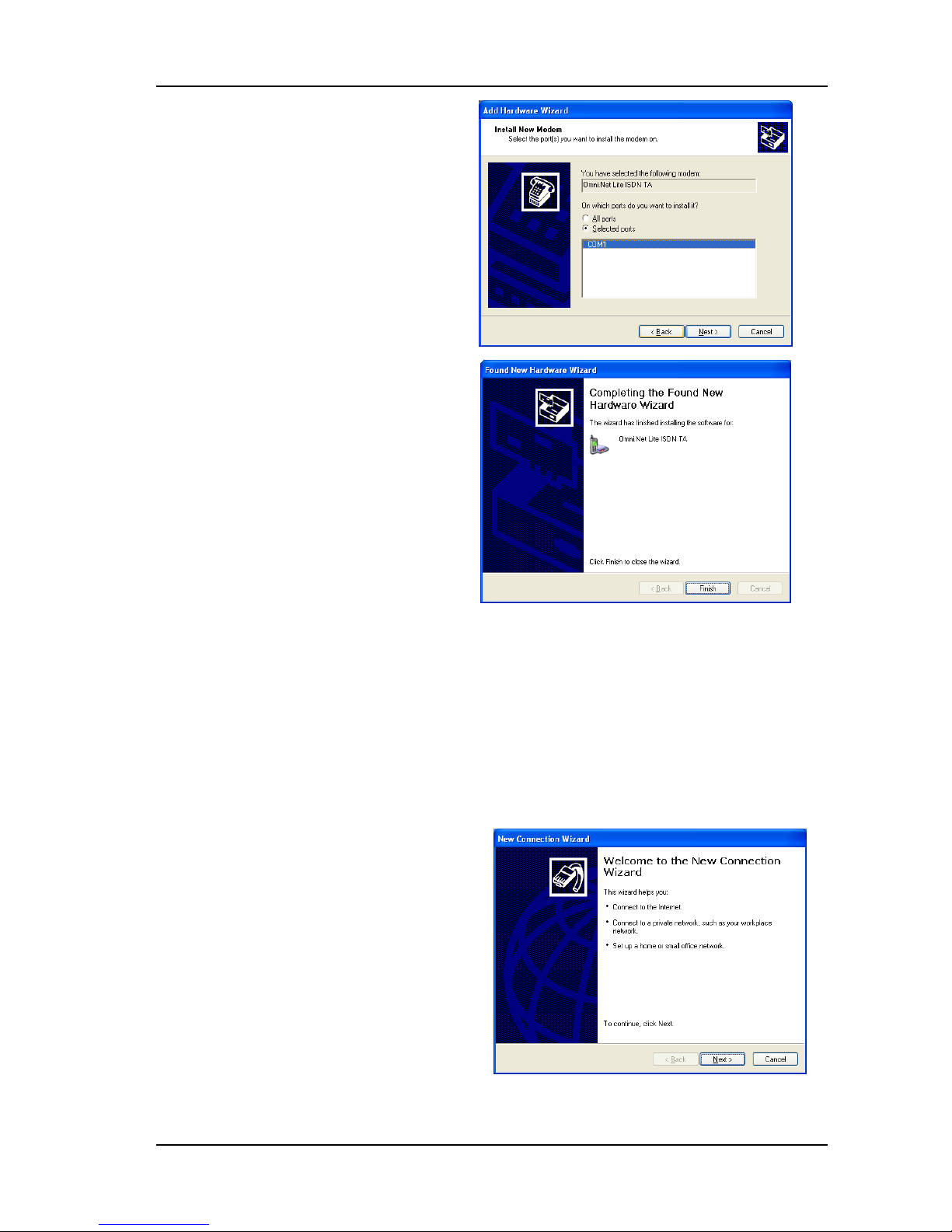

7. Select which modem and

which port you want to

install and click Next.

8. Click Finish to complete

the driver installation.

4 Creating a New Dial-up Connection

Follow this procedure to set up your dial-up networking connection. Use the

information from your ISP to fill in the wizard screens.

Windows XP

1. Click Start, Programs, Accessories, Communications, New

Connection Wizard.

2. Click Next to continue.

English

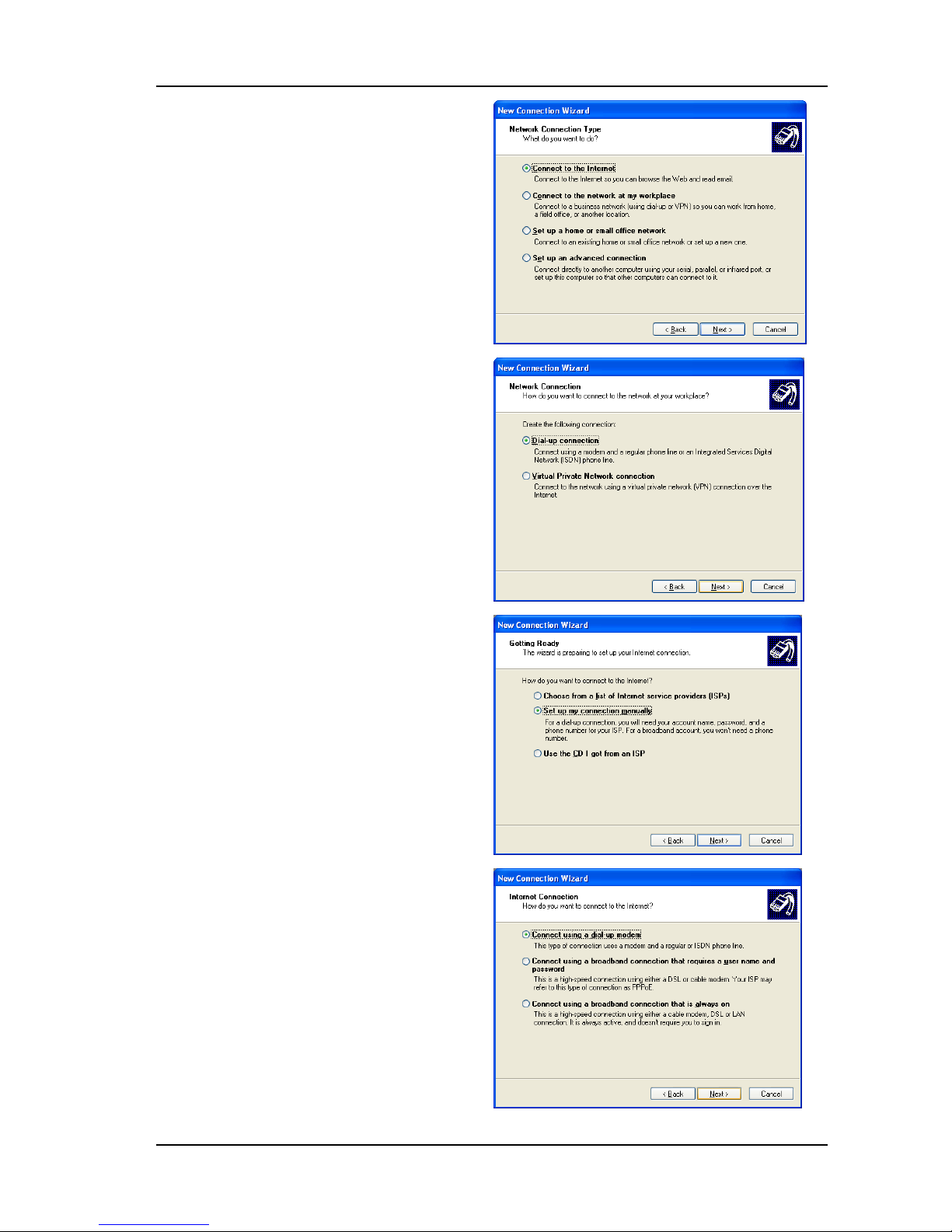

3. Select Connect to the

Internet and click Next.

4. Select Dial-up connection and

click Next.

5. Select Set up my connection

manually and click Next.

6. Select Connect using a dial-

up modem and click Next.

English

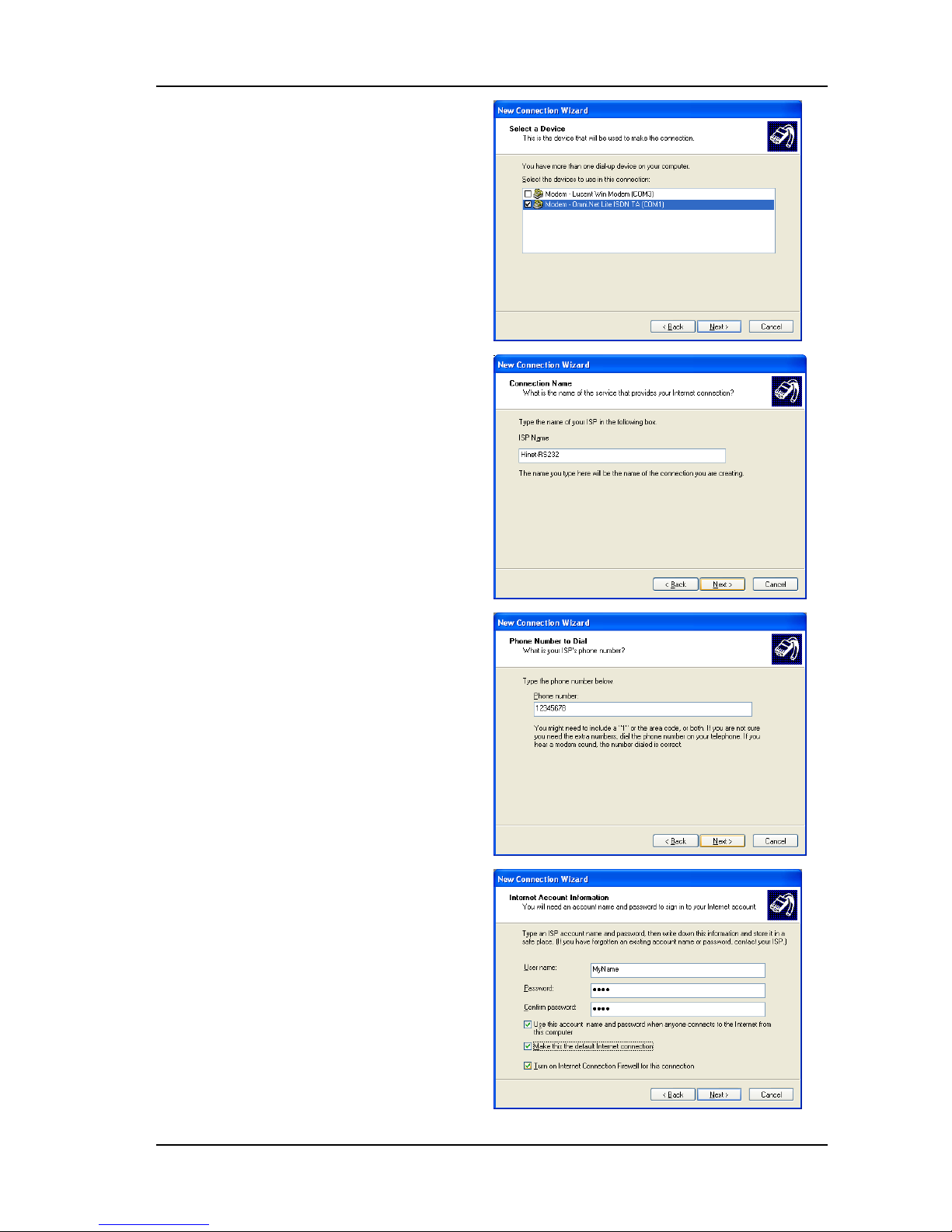

7. Select your TA name and click

Next.

8. Enter the name of your ISP for

identification purposes and

click Next.

9. Enter the phone number of

your ISP. Click Next.

10. Enter the user name and

password that your ISP gave

you and click Next.
