Comet 3356P

User’s Manual

Version 1.0

ZyXEL

ACCESSING THE INTERNET AND INTRANET

Get other manuals https://www.bkmanuals.com

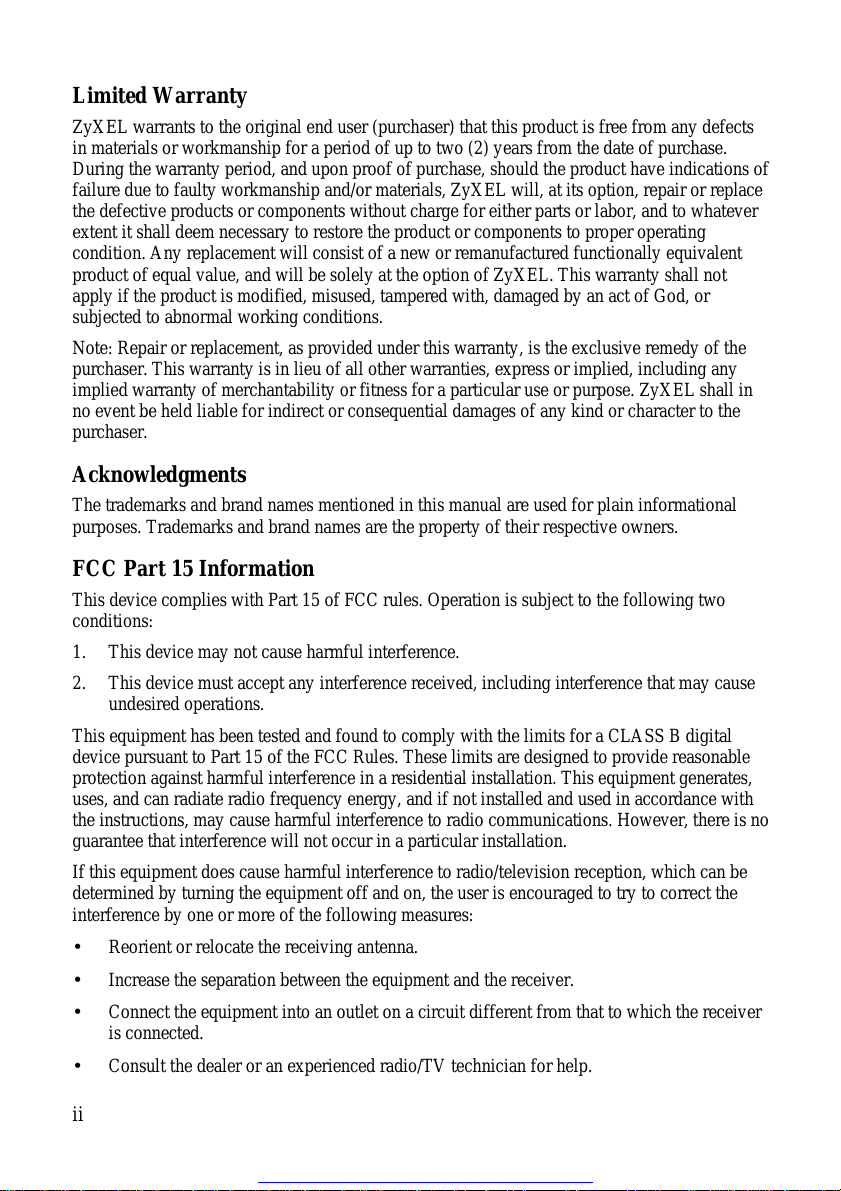

Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects

in materials or workmanship for a period of up to two (2) years from the date of purchase.

During the warranty period, and upon proof of purchase, should the product have indications of

failure due to faulty workmanship and/or materials, ZyXEL will, at its option, repair or replace

the defective products or components without charge for either parts or labor, and to whatever

extent it shall deem necessary to restore the product or components to proper operating

condition. Any replacement will consist of a new or remanufactured functionally equivalent

product of equal value, and will be solely at the option of ZyXEL. This warranty shall not

apply if the product is modified, misused, tampered with, damaged by an act of God, or

subjected to abnormal working conditions.

Note: Repair or replacement, as provided under this warranty, is the exclusive remedy of the

purchaser. This warranty is in lieu of all other warranties, express or implied, including any

implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in

no event be held liable for indirect or consequential damages of any kind or character to the

purchaser.

Acknowledgments

The trademarks and brand names mentioned in this manual are used for plain informational

purposes. Trademarks and brand names are the property of their respective owners.

FCC Part 15 Information

This device complies with Part 15 of FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operations.

This equipment has been tested and found to comply with the limits for a CLASS B digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio/television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Get other manuals https://www.bkmanuals.com

iii

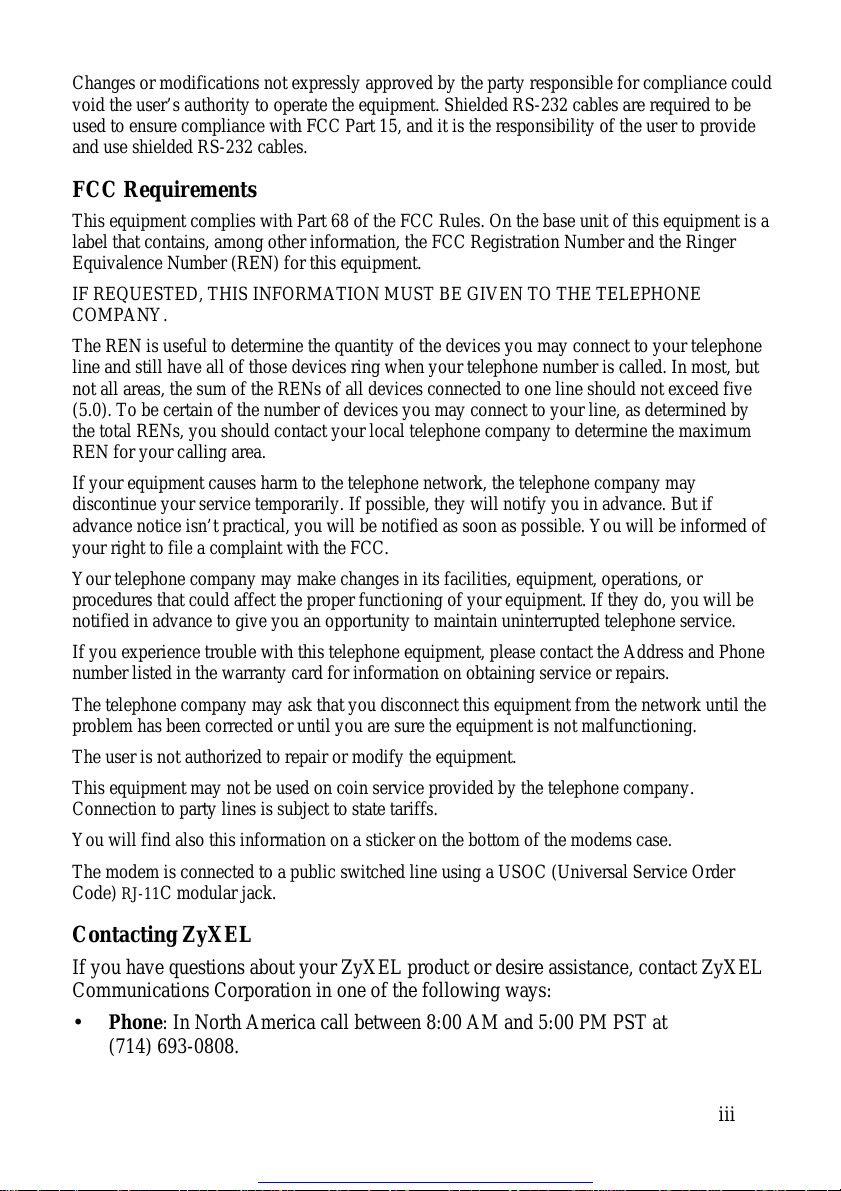

Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment. Shielded RS-232 cables are required to be

used to ensure compliance with FCC Part 15, and it is the responsibility of the user to provide

and use shielded RS-232 cables.

FCC Requirements

This equipment complies with Part 68 of the FCC Rules. On the base unit of this equipment is a

label that contains, among other information, the FCC Registration Number and the Ringer

Equivalence Number (REN) for this equipment.

IF REQUESTED, THIS INFORMATION MUST BE GIVEN TO THE TELEPHONE

COMPANY.

The REN is useful to determine the quantity of the devices you may connect to your telephone

line and still have all of those devices ring when your telephone number is called. In most, but

not all areas, the sum of the RENs of all devices connected to one line should not exceed five

(5.0). To be certain of the number of devices you may connect to your line, as determined by

the total RENs, you should contact your local telephone company to determine the maximum

REN for your calling area.

If your equipment causes harm to the telephone network, the telephone company may

discontinue your service temporarily. If possible, they will notify you in advance. But if

advance notice isn’t practical, you will be notified as soon as possible. You will be informed of

your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or

procedures that could affect the proper functioning of your equipment. If they do, you will be

notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If you experience trouble with this telephone equipment, please contact the Address and Phone

number listed in the warranty card for information on obtaining service or repairs.

The telephone company may ask that you disconnect this equipment from the network until the

problem has been corrected or until you are sure the equipment is not malfunctioning.

The user is not authorized to repair or modify the equipment.

This equipment may not be used on coin service provided by the telephone company.

Connection to party lines is subject to state tariffs.

You will find also this information on a sticker on the bottom of the modems case.

The modem is connected to a public switched line using a USOC (Universal Service Order

Code) RJ-11C modular jack.

Contacting ZyXEL

If you have questions about your ZyXEL product or desire assistance, contact ZyXEL

Communications Corporation in one of the following ways:

•Phone: In North America call between 8:00 AM and 5:00 PM PST at

(714) 693-0808.

Get other manuals https://www.bkmanuals.com

Outside North America, you can dial +886-3-5783942 EXT 252 between 8:00AM

and 5:00PM Taiwan time (GMT +8:00).

•Fax: ZyXEL in North America: (714) 693-8811 or Taiwan: +886-3-5782439.

•E-mail:

•Sales inquiries: [email protected] in North America.

[email protected].tw outside North America.

•Technical support: [email protected] in North America.

[email protected].tw outside North America.

•Product information: Visit our site on the World Wide Web:

http://www.zyxel.com.

•FTP: Information , such as ZyXEL software and ROM updates for North America

can be found at this FTP address: ftp.zyxel.com

For European versions and related files, use the address: ftp.zyxel.co.at

•Postal Service: You can send written communications at the following address:

ZyXEL Communications Corporation

6, Innovation Road II, Science-Based Industrial Park

Hsinchu, Taiwan 300, ROC

ZyXEL Communications Inc.

4920 E. La Palma Avenue

Anaheim, CA92807, USA

Get other manuals https://www.bkmanuals.com

Table of Contents

Limited Warranty ii

FCC Part 15 Information ii

FCC Requirements iii

Contacting ZyXEL iii

1 Introduction 1

Unpacking Your Modem 1

Hardware Overview 1

Required Equipment 1

2 Installation 3

Windows 95 3

Windows 3.1 & Windows for Workgroups 3

DOS 3

Windows NT 4.0 4

3 Basic Modem Operation 5

Understanding AT Commands 5

Using the Windows 95 Hyper Terminal Program 5

Dialing and Answering Techniques 6

Dialing using the ATD Command 6

Auto-Answer and Hook Controls 7

Making Your First Connection 7

Quick Tips when issuing AT Commands 7

Modem Result Codes 9

Viewing S Register Values 9

Changing S Register Values 9

Non-Volatile Memory 9

Get other manuals https://www.bkmanuals.com

Storing Phone Numbers 9

Dialing Stored Phone Numbers 10

Saving Settings and User Profiles 10

Default Modem Settings for PC’s 10

4 AT Command Set Summaries 13

Basic AT Command Set 13

Extended AT& Command Set 15

Extended AT\ Command Set 16

Extended AT% Command Set 16

Extended AT- Command Set 17

5 Status Registers & Result Codes 19

Result Code Options 21

Get other manuals https://www.bkmanuals.com

Introduction 1

1 Introduction

Congratulations on the purchase of your Comet 3356P Type II PCMCIA card, one of

ZyXEL's premier high-performance products. The Comet is world renown for its

ability to maintain ultra high speeds and clear, quality connections while

communicating around the globe.

Unpacking Your Modem

Before you proceed, check all items you received with your modem against this list to

make sure nothing is missing. The complete package should include:

•One Comet 3356P.

•One detachable interface cable with RJ-11 cable and plug.

•One FAX & Data Communication software package.

•One INF file disk for Windows 95 and Windows NT 4.x.

Hardware Overview

The Comet is an intelligent high-speed fax /modem which can be used as both a

send/receive fax machine and a data modem. When connecting to another modem/fax,

the modem automatically negotiates the fastest speed possible. The PC Card

FAX/MODEM is designed to work with most of the popular fax/modem

communication software packages. Some software packages will control and

configure the fax/modem for you automatically, however, they are usually only useful

to those who need the modem to perform special tasks. AT commands can also be

used to control the fax/modem manually.

Required Equipment

Make sure you have the additional equipment below before proceeding with

Installation:

•An IBM compatible PC or notebook with PCMCIA type II slot and 386SX or

better CPU.

•PCMCIA Socket Service and Card Service drivers. (These drivers are usually

included with the computer. If not, check with your computer dealer.)

•A telephone line with RJ-11 connector.

•Data and/or Fax communication software.

Get other manuals https://www.bkmanuals.com

2 Introduction

Get other manuals https://www.bkmanuals.com

Installation 3

2 Installation

This chapter describes installation for Windows 95, Windows 3.1, Windows for

Workgroups, and DOS. You can jump directly to the installation procedure for your

particular environment.

Windows 95

1. Insert the Comet into a free PCMCIA slot.

2. Power on your computer and start Windows 95.

3. Windows 95 will display the New Hardware Found dialog box. Select Driver

from disk provided by hardware manufacturer, and click OK.

4. Enter the path A:\, and insert the Fax/Modem PC Card INF file disk. Windows 95

will install the modem driver autmatically.

5. Connect the FAX/MODEM interface cable and hook up the RJ-11 plug to the

telephone line outlet.

6. Restart Windows 95 and the new settings will take affect.

Windows 3.1 & Windows for Workgroups

Make sure Card Service and Socket Service drivers have been installed in your

computer. If the drivers have not been installed contact your computer dealer.

1. Insert the Comet into a free PCMCIA slot.

2. Power on your computer and start Windows.

3. If you hear an alert sound skip to step 5. If not continue.

4. Use a PCMCIA utility to set your COM port and IRQ information. A PCMCIA

utility should have been included with your computer. If not contact your dealer.

5. Install the FAX/MODEM application program that came with your Comet.

6. Connect the FAX/MODEM interface cable and connect the RJ-11 cable to the

telephone line outlet.

7. Restart Windows and the new settings will take affect.

DOS

Make sure Card and Socket Service drivers have been installed in your computer. If

the drivers have not been installed contact your computer dealer.

1. Insert the Comet into a free PCMCIA slot.

Get other manuals https://www.bkmanuals.com

4 Installation

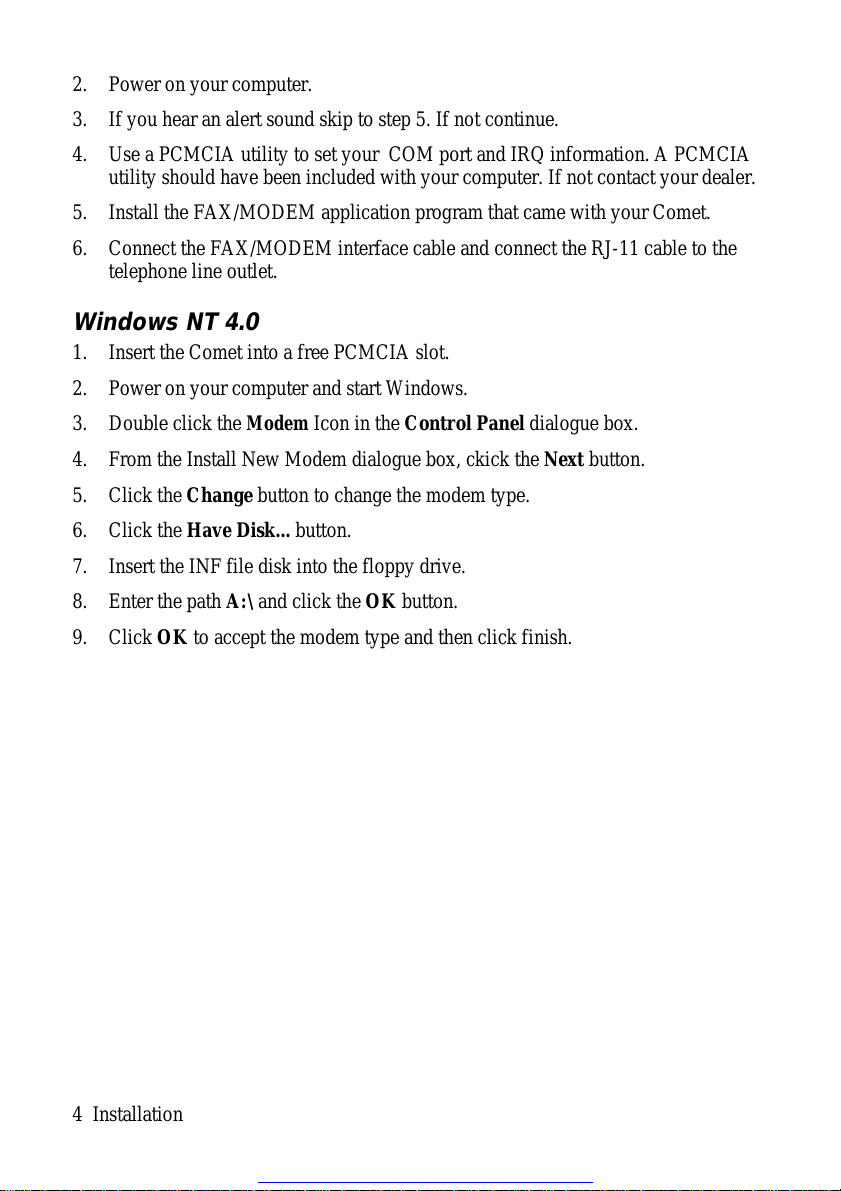

2. Power on your computer.

3. If you hear an alert sound skip to step 5. If not continue.

4. Use a PCMCIA utility to set your COM port and IRQ information. A PCMCIA

utility should have been included with your computer. If not contact your dealer.

5. Install the FAX/MODEM application program that came with your Comet.

6. Connect the FAX/MODEM interface cable and connect the RJ-11 cable to the

telephone line outlet.

Windows NT 4.0

1. Insert the Comet into a free PCMCIA slot.

2. Power on your computer and start Windows.

3. Double click the Modem Icon in the Control Panel dialogue box.

4. From the Install New Modem dialogue box, ckick the Next button.

5. Click the Change button to change the modem type.

6. Click the Have Disk... button.

7. Insert the INF file disk into the floppy drive.

8. Enter the path A:\ and click the OK button.

9. Click OK to accept the modem type and then click finish.

Get other manuals https://www.bkmanuals.com

Indice

Altri manuali ZyXEL Communications Scheda di rete

ZyXEL Communications

ZyXEL Communications G-102 Manuale utente

ZyXEL Communications

ZyXEL Communications Prestige 2602H Series Manuale utente

ZyXEL Communications

ZyXEL Communications ZyAIR G-160 Manuale utente

ZyXEL Communications

ZyXEL Communications AG-320 Manuale utente

ZyXEL Communications

ZyXEL Communications G-162 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL TURBO CARD Manuale utente

ZyXEL Communications

ZyXEL Communications M-102 Manuale di istruzioni

ZyXEL Communications

ZyXEL Communications NWD-170N Guida di riferimento

ZyXEL Communications

ZyXEL Communications Ethernet Extension Card EEC1020 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL ZyAIR B-120 Manuale utente

ZyXEL Communications

ZyXEL Communications AG-120 Guida di riferimento

ZyXEL Communications

ZyXEL Communications G-102 Manuale utente

ZyXEL Communications

ZyXEL Communications G-162 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyAir G-100 Manuale utente

ZyXEL Communications

ZyXEL Communications G-120 Manuale utente

ZyXEL Communications

ZyXEL Communications M-302 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL ZyAIR B-220 Manuale utente

ZyXEL Communications

ZyXEL Communications M-102 Manuale utente

ZyXEL Communications

ZyXEL Communications G-120 Manuale utente

ZyXEL Communications

ZyXEL Communications GLC1320G-55 Manuale

ZyXEL Communications

ZyXEL Communications ZYAIR G-162 V2 Manuale utente

ZyXEL Communications

ZyXEL Communications AG-120 Manuale di istruzioni

ZyXEL Communications

ZyXEL Communications SAM1316-22 Manuale utente

ZyXEL Communications

ZyXEL Communications NWD-270N Manuale utente

Manuali Scheda di rete popolari di altre marche

FirstComm

FirstComm OBiWiFi5G Manuale utente

Sun Microsystems

Sun Microsystems Interface Adapter Manuale utente

TRENDnet

TRENDnet TU2-ETG Manuale utente

YASKAWA

YASKAWA SI-EN3 Manuale utente

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuale utente

Belkin

Belkin F5D7050 Manuale utente

3Com

3Com EtherLink 3C509B Manuale utente

TRENDnet

TRENDnet TEG-PCITX Manuale utente

Cisco

Cisco MC16E Manuale utente

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuale utente

TwinMOS

TwinMOS Booming Manuale utente

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuale utente

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuale utente

National Instruments

National Instruments NI 9234 Manuale utente

Hama

Hama 49276 Manuale utente

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuale operativo

Compaq

Compaq Wireless LAN 100 Manuale utente

Bose

Bose PowerMatch Dante Manuale utente
