ZyXEL Communications STB-2105 Manuale utente
www.zyxel.com
IP Set-Top Box
Firmware v1.10
Edition 1, 06/2010
STB-2105
Copyright 2010
ZyXEL Communications Corporation
2

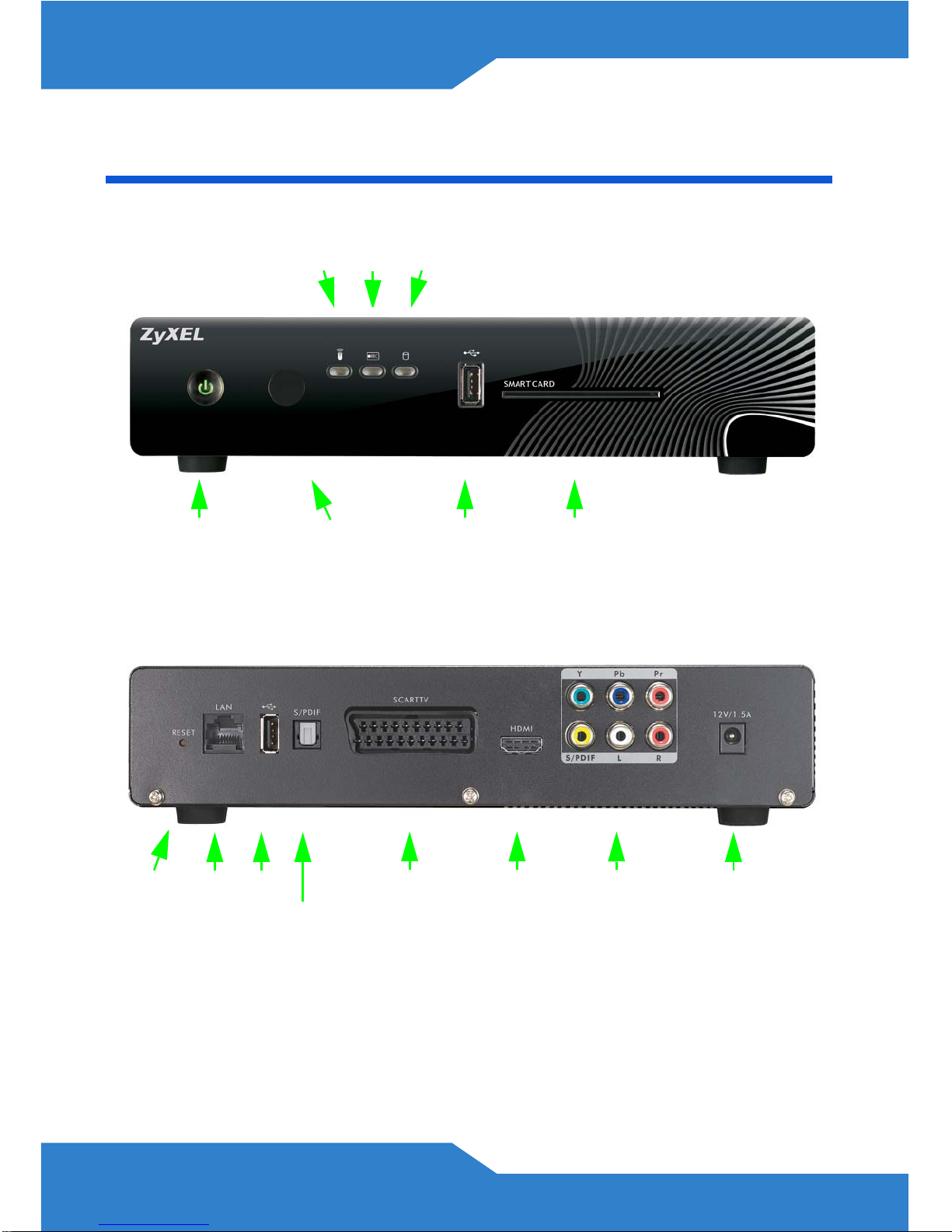

Device Panels
POWER LED/
ON-OFF BUTTON
RESET LAN USB HDMI A/V
IR RECEIVER
PVR HDD
SCARTTV
S/PDIF
12V/1.5A
LED LED
REMOTE
LED
USB SMART CARD*
*Reserved for future use.
ENGLISH
3
Overview
The STB-2105 is a set-top box that connects your television to the
Internet. Use the STB-2105 to watch Internet television (IPTV) or Video
on Demand (VOD) on your regular TV.
How It Works
Your STB-2105 IP Set-Top Box (A) connects to your Internet
access device (B); this can be a broadband router, a cable modem,
and so on, as long as it provides connectivity to the Internet. Your
television set (C) is also connected to the STB-2105, and programs
are selected with the remote control (D).
A
B
C
D
4

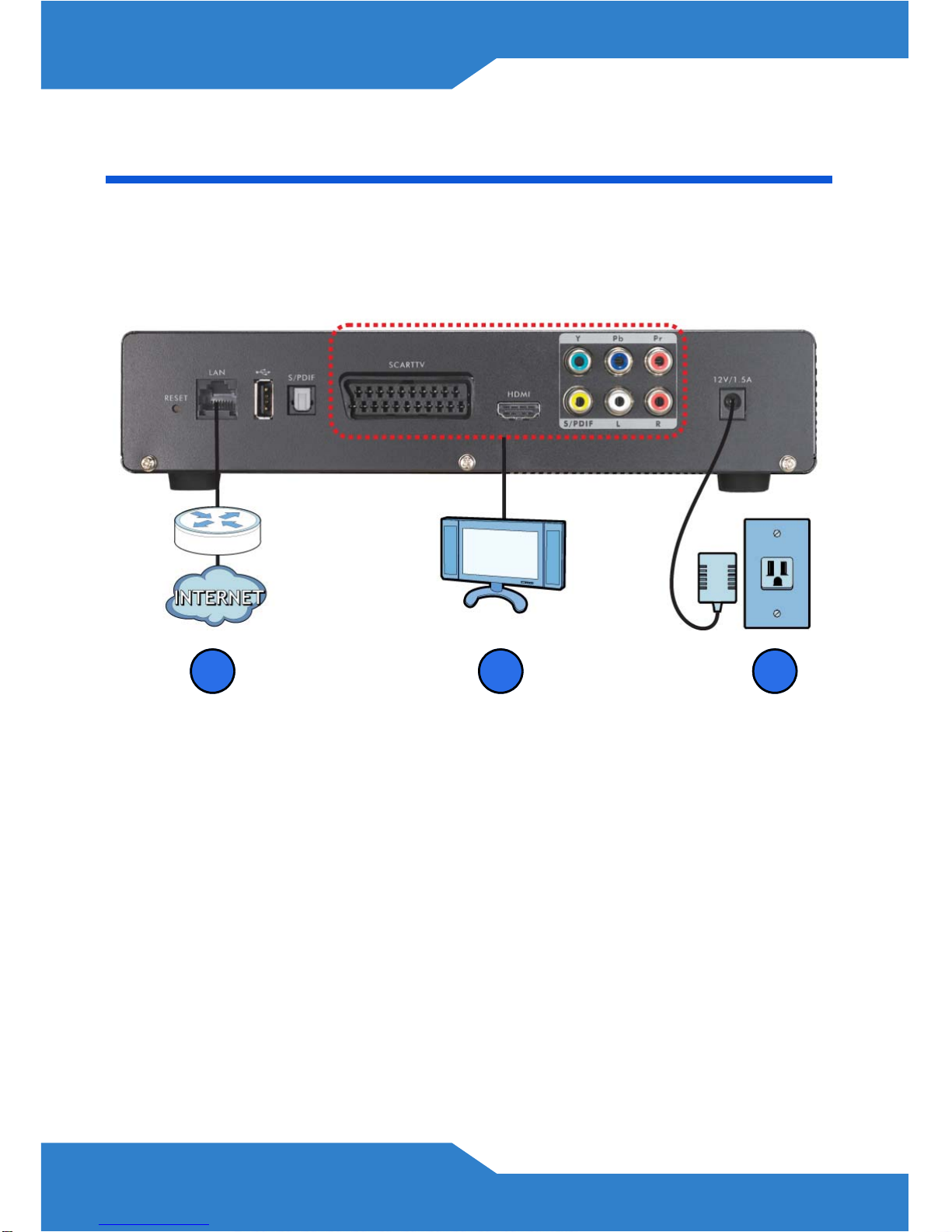

Hardware Connections
Take the following steps to set up your STB-2105’s hardware
connections. Use either the cables that came with your STB-2105, or
those that came with your TV or Internet access device.
1. Connect your TV (and audio system, if required) to the STB-2105’s
audiovisual ports using either the included cables or those that came
with your TV. Refer to the next figure for some example connections.
2. Connect your Internet access device (such as a broadband modem or
router) to the STB-2105’s LAN port.
3. Using the included power adaptor, connect the STB-2105’s power
port to a suitable power source.
12 3
ENGLISH
5
The STB-2105 has a variety of options for connecting your TV (and
audio system). Use the hardware connections best suited to your
equipment; the following figure shows some examples.
a. composite video / audio output
b. hdmi video / audio output
c. component video
d. scart video
e. s/pdif audio
6
Turn On the STB-2105
Once you have made the hardware connections, take the following steps
to start up the STB-2105:
1. Turn your television on. Change it to the channel or setting you
normally use to watch videos or DVDs. For example, select the
“VIDEO” input option, or press the “AV” button (look at the
documentation that came with your TV if you are not sure what to do).
2. Press the ON-OFF button on the STB-2105.
The Power LED on the front of the STB-2105 lights up. It blinks while
the STB-2105 is starting up, then shines steadily green once the
STB-2105 is ready (this may take a little while).
If the Power LED does not behave as expected, first check
the STB-2105’s connections. Make sure that the power is on
and the Internet access device is working. If this does not
help, restart the STB-2105 (switch it off, then on using the
ON-OFF). If the problem persists, contact your vendor.
If the Remote LED blinks, that means the STB-2105 is receiving a
signal from the remote control.
When recording a program, the PVR LED shines a steady red.
The HDD LED flashes green when the built-in hard disk drive is
reading or writing data, such as when recording a show, receiving
information from your IPTV service provider, or loading graphics and
information into your IPTV portal page.
ENGLISH
7
3. A start-up picture displays on the television.
When the STB-2105 has successfully started up, the Home screen
for your IPTV portal displays.
Your STB-2105 is ready to use!
The IPTV portal screens used in this Quick Start Guide are
only examples - the actual screens for your service are
created and maintained by your IPTV provider.
EXAMPLE
8
The Remote Control
Before you first use the remote control, take the following steps to insert
two AAA-size batteries.
1. Press the battery cover release catch in and lift the cover off.
2. Press the batteries into the compartment. The negative (-) end of
each battery should be at the end of the slot that has a spring.
3. Replace the cover.
Quick Reference
The following picture shows your STB-2105’s remote control, and
identifies the buttons you need to use in this Quick Start Guide.
See the Remote Control Reference on page 14 for more details.
ENGLISH
9
Live TV and Movies
The STB-2105 allows you to select the TV channels and Video on
Demand (VOD) services you want to watch from your service provider.
Use the remote control to navigate the menu system.
When the STB-2105 is ready to use, the Home menu displays. Use the
HOME key on the remote control to return to this menu at any time.
1. Select the Live TV or Movies menu item (use the navigator’s and
keys, and the OK key).
EXAMPLE
10
For Live TV, the channel selection menu displays.
For Movies, the available movies menu appears.
EXAMPLE
EXAMPLE
