ZyXEL Communications ES-108

ES-108P

Ethernet Switch

User’s Guide

Version 1.0

12/2004

ES-108P User’s Guide

Interference Statements and Warnings

FCC Interference Statement

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operations.

FCC Warning

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

CE Mark Warning

This is a class B product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Taiwanese BCIQ A Warning Certifications

Refer to the product page

at www.zyxel.com.

ES-108P User’s Guide

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is

free from any defects in materials or workmanship for a period of up to

two (2) years from the date of purchase. During the warranty period and

upon proof of purchase, should the product have indications of failure due

to faulty workmanship and/or materials, ZyXEL will, at its discretion,

repair or replace the defective products or components without charge for

either parts or labor and to whatever extent it shall deem necessary to

restore the product or components to proper operating condition. Any

replacement will consist of a new or re-manufactured functionally

equivalent product of equal value, and will be solely at the discretion of

ZyXEL. This warranty shall not apply if the product is modified, misused,

tampered with, damaged by an act of God, or subjected to abnormal

working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive

remedy of the purchaser. This warranty is in lieu of all other warranties,

express or implied, including any implied warranty of merchantability or

fitness for a particular use or purpose. ZyXEL shall in no event be held

liable for indirect or consequential damages of any kind of character to the

purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center

for your Return Material Authorization number (RMA). Products must be

returned Postage Prepaid. It is recommended that the unit be insured when

shipped. Any returned products without proof of purchase or those with an

out-dated warranty will be repaired or replaced (at the discretion of

ZyXEL) and the customer will be billed for parts and labor. All repaired

or replaced products will be shipped by ZyXEL to the corresponding

return address, Postage Paid. This warranty gives you specific legal rights,

and you may also have other rights that vary from country to country.

ES-108P User’s Guide

Contents

ENGLISH........................................................................................5

DEUTSCH ......................................................................................8

FRANÇAIS ................................................................................... 11

ESPAÑOL ....................................................................................14

ITALIANO .....................................................................................17

中文............................................................................................... 21

ENGLISH

Getting to Know Your Switch

Introduction

The switch is a multi-port switch that can be used to build high-

performance switched networks. The switch is a store-and-forward device

that offers low latency for high-speed networking. The switch is designed

for SOHO (Small Office Home Office) businesses.

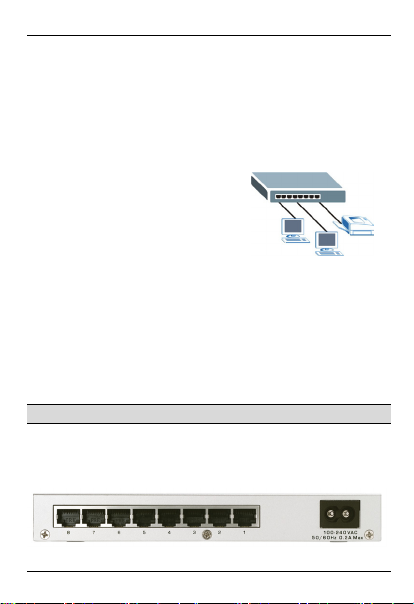

Standalone Workgroup Application

The switch can be used as a standalone

switch to which computers, servers and a

printer are directly connected to form a

small workgroup.

Hardware Installation

The switch is suitable for an office environment where it can be placed on

a desktop.

1. Make sure the switch is clean and dry.

2. Set the switch on a smooth, leveled and sturdy flat space strong

enough to support the weight of the switch and the connected cables.

Make sure there is a power outlet nearby.

Do not block the ventilation holes.

Rear Panel Connection

The RJ-45 ports and the power port are located on the rear panel.

ENGLISH

RJ-45 Auto-negotiating Ports

Your switch comes with eight 10Base-T/100Base-TX RJ-45 ports. These

ports are auto-negotiating and auto-crossover.

An auto-negotiating port can detect and adjust to the optimum Ethernet

speed (10/100Mpbs) and duplex mode (full duplex or half duplex) of the

connected device.

An auto-crossover (auto-MDI/MDI-X) port automatically works with a

straight-through or crossover Ethernet cable.

Make sure the cable length between connections does not

exceed 100 meters (328 feet).

Power

Use the supplied power cable to connect your switch to a power source.

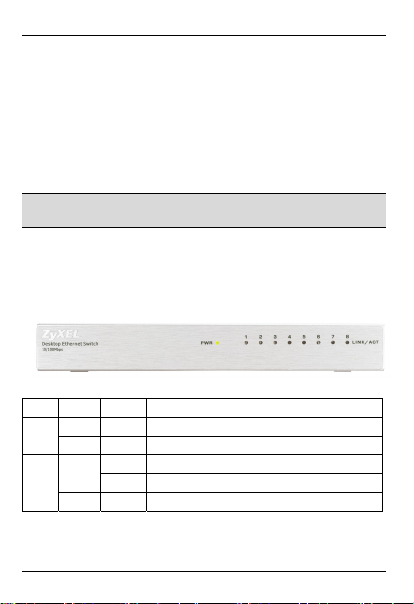

Front Panel LEDs

The following table describes the front panel LEDs.

LED COLOR STATUS DESCRIPTION

PWR Green On The switch is on and receiving power.

Off The switch is not receiving power.

Green On The port is connected to an Ethernet network.LINK/

ACT Blinking The port is receiving or transmitting data.

Off The port is not connected to an Ethernet network.

ENGLISH

Product Specifications

Standard

IEEE 802.3 10BASE-T Ethernet,

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE802.3x Flow Control and Back-pressure

Protocol CSMA/CD

Technology Store-and-Forward switching architecture

Transfer Rate 14,880 pps for 10Mbps

148,800 pps for 100Mbps

Connector RJ-45; Auto-MDIX on all ports

MAC Address 1K Mac address table

Memory Buffer 768 Kbytes

Network Cable

(Up to 100m or

328ft)

10BASE-T: 100Ω2-pair UTP/STP Cat. 3, 4, 5

100BASE-TX: 100Ω2-pair UTP/STP Cat. 5

LED Per port: LINK/ACT

Per unit: PWR

Power Supply Internal power output 100-240 VAC 3.3V 2A

Temperature Operating: 0º C to 50º C (32º F a 122º F)

Storage: -30º C to 60º C (22º F a 140º F)

Humidity

(Non-condensing)

Operating: 10% to 90%

Storage: 20% to 95%

Dimension 194 mm (L) x 85 mm (W) x 25 mm (H)

EMI & Safety FCC Class B, CE, C-Tick

DEUTSCH

Lernen Sie Ihren Switch kennen

Einführung

Der Switch ist ein Multi-Port Switch für den Aufbau von Switched

Netzwerken hoher Leistung. Der Switch ist ein Speicher- und

Übermittlungsgerät mit tiefer Verzögerungsrate für High-Speed-

Netzwerke. Der Switch ist für das Kleinbüro/Heimbüro entwickelt

worden.

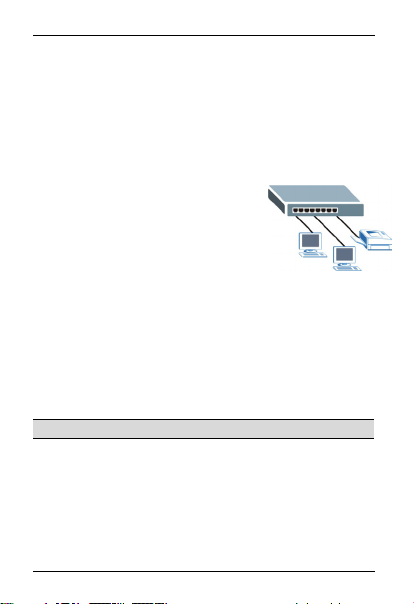

Standalone Workgroup Anwendung

Der Switch kann als Standalone-Switch

direkt mit Computern, Servern und

Printservern zu einer kleinen Arbeitsgruppe

verbunden werden.

Installation der Hardware

Der Switch eignet sich für Büroanwendungen und kann auf einen

Schreibtisch gestellt werden..

1. Der Switch muss sauber und trocken sein.

2. Stellen Sie den Switch auf eine weiche, ebene und stabile Fläche,

die das Gewicht des Switch und der Verbindungskabel tragen

kann. Sorgen Sie dafür, dass ein Stromanschluss in der Nähe ist.

Verdecken Sie nicht die Ventilationsöffnungen

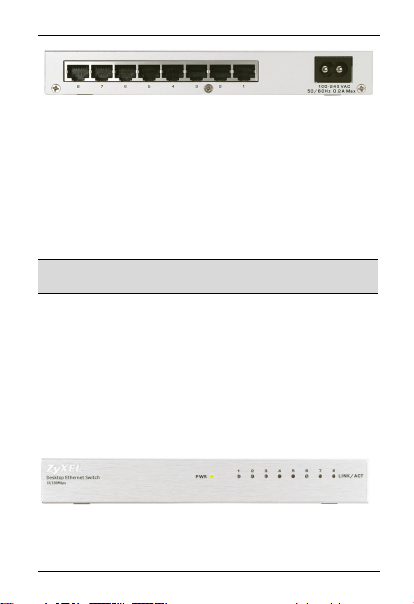

Rückwand Anschlüsse

Die RJ-45 Ports und die Stromanschlussbuchse befinden sich auf der

Rückwand des Switchs.

DEUTSCH

RJ-45 Auto-Negotiating Ports

Der ES-108P enthält acht 10Base-T/100Base-TX RJ-45 Ports. Incl.

Auto-MDI/MDX, die die Verwendung von Cross-Over Kabeln

überflüssig macht.

Die Auto-Sensing Funktion erkennt und justiert die optimale

Geschwindigkeit (10/100 Mbps) und den Duplex Modus des

angeschlossenen Netzwerk Gerätes automatisch. Dies erleichtert die

Installation des Switches erheblich.

Vergewissern Sie sich, dass die Kabellängen wischen den

Verbindungen nicht mehr als 100 Meter betragen.

Stromanschluss

Verwenden Sie den mitgelieferten Stromadapter, um den Switch mit

dem Stromnetz zu verbinden. Zusätzliche Information finden Sie auf

der Etikette des Stromadapters.

Frontplatten-LEDs

Die LEDs an der Frontplatte zeigen den Echtzeit-Staus des Switchs

an.

DEUTSCH

LED FARBE STATUS BESCHREIBUNG

PWR Grün An Der Switch ist am Strom angeschlossen und

eingeschaltet

Aus Der Switch ist nicht am Strom angeschlossen.

LINK/ACT Grün An Der Port ist mit dem Ethernet-Netzwerk verbunden.

Aus Der Port ist nicht mit dem Ethernet-Netzwerk

verbunden.

Blinkend Der Port empfängt/sendet Daten.

Produktspezifikationen

Standard

IEEE 802.3 10BASE-T Ethernet,

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE802.3x Flow Control und Back-pressure

Protokoll CSMA/CD

Technologie Store-and-Forward switching-Architektur

Transferrate 14.880 pps bei 10 Mbps

148.800 pps bei 100 Mbps

Anschluss RJ-45; Auto-MDIX an allen Ports

MAC-Adresse 1K Mac-Adresstabelle

Speicherpuffer 768 Kbytes

Netzwerkkabel

(bis 100 m)

10BASE-T: 100 Ω2-adrig UTP / STP Cat. 3, 4, 5

100BASE-TX: 100 Ω2-adrig UTP / STP Cat. 5

LED Pro Port: LINK/ACT

Pro Gerät: PWR

Stromversorgung 100-240 VAC 3.3V 2A

Betriebstemperatur 0 °C bis 50 °C (32º F bis 122º F)

Lagertemperatur -30º C to 60º C (22º F a 140º F)

Betriebsluftfeuchtigkeit 10 % bis 90 % (nicht kondensierend)

Lagerfeuchtigkeit 20% to 95% (nicht kondensierend)

Abmessungen 194 x 85 x 25 mm (L x B x H)

EMI & Sicherheit FCC Class B, CE, C-Tick

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ZyXEL Communications Interruttore

ZyXEL Communications

ZyXEL Communications ES3500 Series Manuale utente

ZyXEL Communications

ZyXEL Communications XGS4700 Series Manuale utente

ZyXEL Communications

ZyXEL Communications MES-3728 Manuale utente

ZyXEL Communications

ZyXEL Communications GS-105A Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL Dimension ES-2724 Manuale utente

ZyXEL Communications

ZyXEL Communications NSW Series Manuale utente

ZyXEL Communications

ZyXEL Communications DIMENSION ES-1016A Manuale utente

ZyXEL Communications

ZyXEL Communications GS1200-5HP v2 Manuale utente

ZyXEL Communications

ZyXEL Communications ONU-6040B-21 Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension ES-3024 Manuale utente

ZyXEL Communications

ZyXEL Communications NWA-3160 Manuale utente

ZyXEL Communications

ZyXEL Communications XGS2220 Series Manuale utente

ZyXEL Communications

ZyXEL Communications GS-105A Manuale utente

ZyXEL Communications

ZyXEL Communications GS-105B v2 Manuale utente

ZyXEL Communications

ZyXEL Communications ES-2108 Manuale di istruzioni

ZyXEL Communications

ZyXEL Communications Dimension ES-105A Guida di riferimento

ZyXEL Communications

ZyXEL Communications ETHERNET SWITCHES ES-1016 Manuale utente

ZyXEL Communications

ZyXEL Communications ES1100-8HP-240W Manuale utente

ZyXEL Communications

ZyXEL Communications MES-2110 Manuale utente

ZyXEL Communications

ZyXEL Communications GS1100 Series Manuale utente

ZyXEL Communications

ZyXEL Communications XGS1930 series Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension ES-108P Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL Dimension ES-2108PWR Manuale di istruzioni

ZyXEL Communications

ZyXEL Communications MGS3700-12C Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente

ZyXEL Communications ES-108 - Manuale utente

Manuali Interruttore popolari di altre marche
