Absima SR2S Manuale utente
2.4GHz 2 Channel Radio Control System
Model: SR2S
www.absima.com
2.4GHz 2 Channel remote system
Model: SR2S
You also can contact our service center:
www.absima.com
2.4GHz 2 Channel remote system
Model: SR2S
3. The special symbols
Do not use this product in bad weather such as rainy or thundering
to assure the safety of you and others.
Before you use the product, please make sure the movement of server
are corresond with the direction of joystick. If inconsistent, please adjsut
before use.

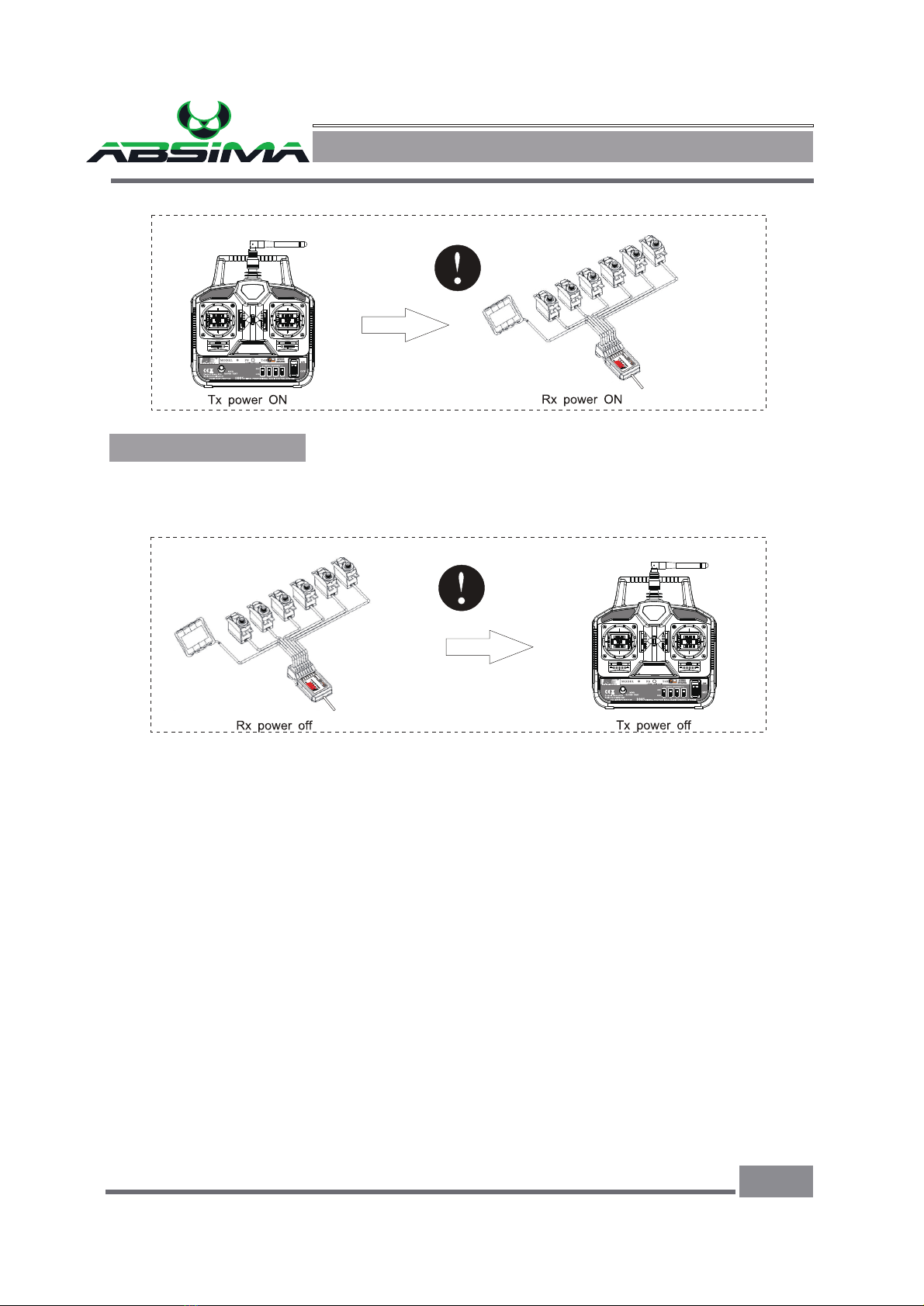

First switch on the radio (red light or flashing means low battery),
finally connect the receiver.
The sequence to shut down is, first turn off the receiver power and
then the transmitter power.
If the above operations are reverse, it might lead to uncontrolled
movement and cause accidents.
4
2.4GHz 2 Channel remote system
Model: SR2S
5. Transmitter parameters
Channels: 2
Frequency band: 2.4GHz
Power resource: 1.5V*8 „AA“ battery
Program type: AFHDS
Modulation type: GFSK
RF power: <20 dbM
Static current: <250mA
Size: 189x97x218mm
Weight: 575g
Color: black
Antenna length: 26mm
Channel: 3
Frequency band: 2.4GHz
Program type: AFHDS
Modulation type: GFSK
Failsafe function: yes
Size: 35x21x12mm
Weight: 10g
Voltage: 4,8V - 6,6V
6. Receiver parameters
2.4GHz 2 Channel remote system
Model: SR2S

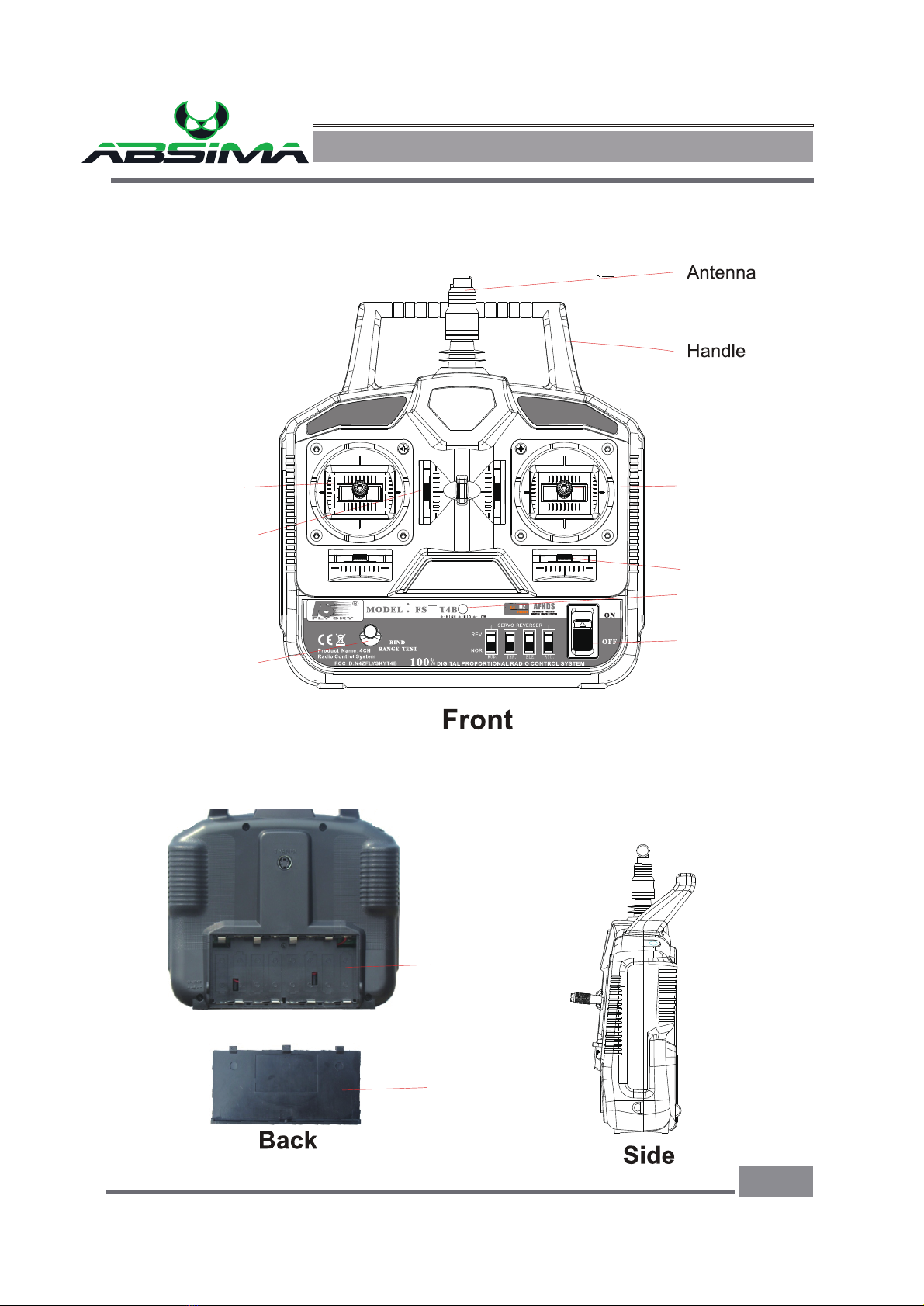

7. Each part of the transmitter
Throttle/Brake
Stick
Throttle/Brake
Trim
BIND knob
Steering stick
Steering trim
Power inidcator
light
Power switch
Battery
box
Battery
cover
5
6
2.4GHz 2 Channel remote system
Model: SR2S
8. Receiver and servo connection
Channel 1: Steering servo
Channel 2: Speed controller
Channel 3: Battery connection for gas powered models
BIND/VCC: BIND process
7
2.4GHz 2 Channel remote system
Model: SR2S
9. 2.4GHz Operation notes
It use digital transmission mode, and this prevent outside interference effective
active and passive.
9.01 Matching (code)
Our products are well matched in the factory, you don´t need to match by yourself. If you
are going to match the receiver with another transmitter or you have to connect a new
receiver or transmitter, please follow the following steps:

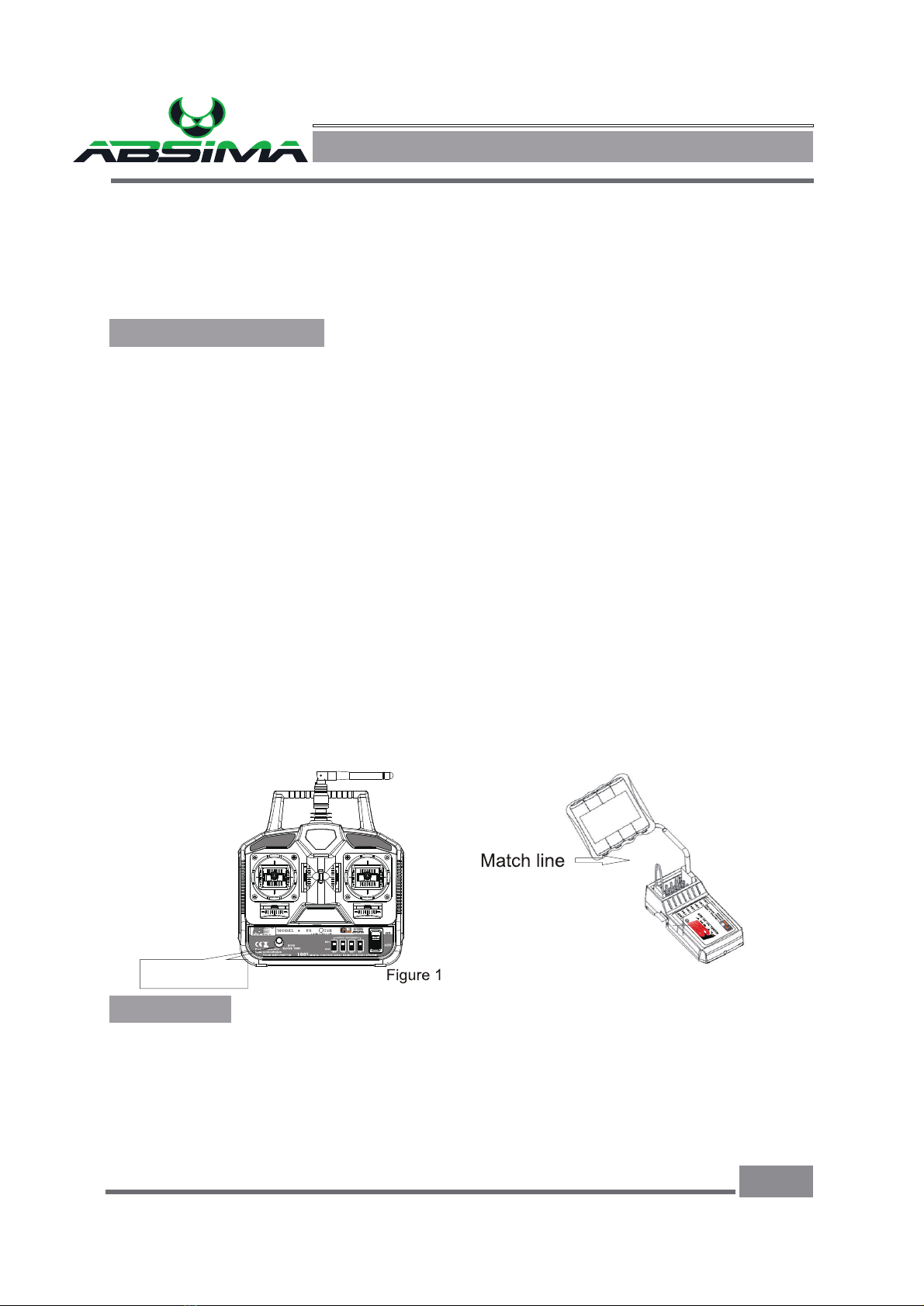

1. Install the battery to the 2.4GHz transmitter and shut it down.
2. Insert the matching lines to the channel „BIND/VCC“ port of the receiver.
3. Switch on the ESC or connect a receiver battery to channel 3, at the same time the red
LED is flashing and this means the receiver is in the BIND mode.
4. Press and hold the „BIND“ button on the transmitter and switch on the power supply.
5. Observe the LED on the receiver. If the LED stops flashing, the binding process was
successful.
6. Release the „BIND“ button on the transmitter and take out the matching line.
7. Install the servo for testing
8. If the test fails, please repeat the action above.
BIND button
9.02 Switch on
1. Connect every servo.
2. Switch on the transmitter.
3. Switch on the ESC or power supply.
4. Receiver LED light solid.
5. Finish and use.
2.4GHz 2 Channel remote system
Model: SR2S
8
Switch on
9.03 Switch off
1. Cut off the ESC or receiver power supply.
2. Cut off the transmitter power supply.
Switch off
2.4GHz 2 Channel remote system
Model: SR2S
9
10. Failsafe
Fail safe function – digital protection against radio interference. The safety electronic can detect reception of
a “false” or incomplete radio signal. E.g. due to a low transmitter battery or environmental radio interference which
reach the model, or if the model is out of the transmitter range. For protection against damage, servo
switches to the brake position and the model stops.
Setup:
1. Turn on the power of transmitter.
2. Connect power supply to receiver; LED on receiver should be solid.
3. Control the throttle trigger to make servo to “brake” or “stop” mode and remain for a while.
5. Setup is complete.
Testing:
1. Turn on the power of transmitter.
2. Connect power supply to receiver.
4. Servo which controlled by fail safe should go to brake modus automatically.
5. In case can be complete step by step with the above action, means setting is correct.
4. Press set up button on receiver. LED on receiver should flash. Should flash for 3 sec.
ABSIMA GMBH
GIBITZENHOFSTRASSE 127A
D- 90443 NUERNBERG
GERMANY
www.absima.com
