Acer AR385 F1 Specifications

AR385 F1 Product Overview

The AcerAR385 F1 is a dual socket 2U server for space-conscious users who demand the highest

performance and utmost expansion capability. Offering low power consumption and a

comprehensive suite of management features, the Acer AR385 F1 delivers optimized

price/performance for enterprise deployments.

Product Front View

Product Inside View

24 x ECC DDR3 1066/1333 MHz registered or unbuffered memory slots

2 x AMD Opteron™series processors supporting up to 12-cores per processors

2 x 720 W 80 PLUS®gold-level efficient hot-swap power supplies (1+1 redundant)

Hot-plug redundant system cooling fans

2 x USB 2.0 Front-mounted connectors

Power button, System ID button, LED indicators (Power, HDD activity, LAN 1-4 status, system

ID/status/fault), video port

Support for up to sixteen 2.5” or six 3.5” hot-plug SATA or SAS hard disk drives

1 x Slim-line Optical drive bay and 1 5.25” Tape drive bay

7 x PCI Express®slots

Acer AR385 F1 Specifications

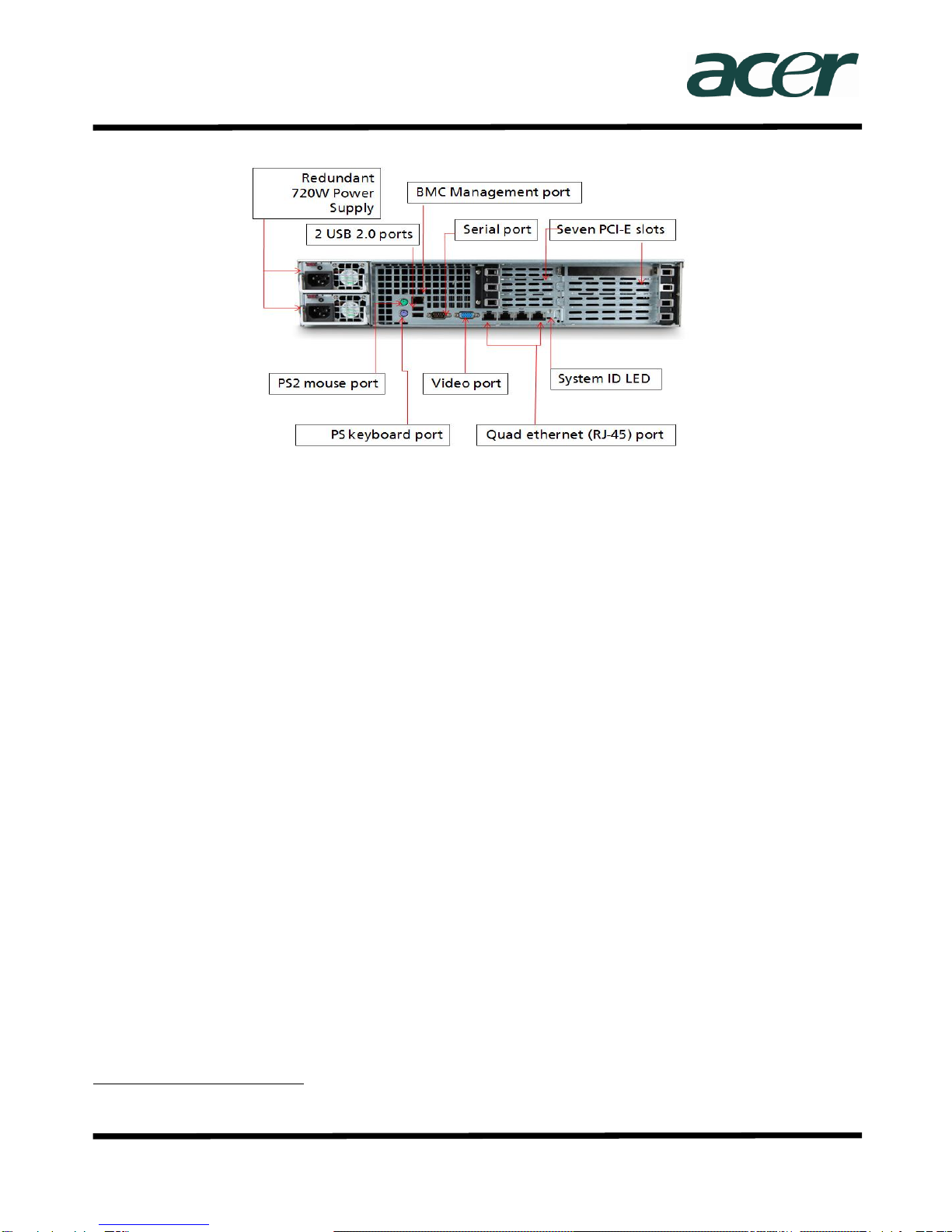

Product Rear View

PS2 keyboard connector

PS2 mouse connector

2 x USB 2.0 connectors

Management IPMI LAN connector

COM (Serial) connector

Video connector

4 x Gigabit LAN connectors

ID LED

What's New

NewAMD Opteron™6100 series processors

2 x 720 W 80PLUS®gold-level efficient power supply units (1+1 redundant, hot-pluggable)

DDR3 memory

Product Specifications

Processors and Chipset

Up to two AMD Opteron™6100 series processors

Chipset: AMD SR5690/SP5100

Memory1

Memory capacity:

Registered DIMM: 2, 4, 8, 16 GB2

Unbufferred DIMM: 2, 4 GB

Up to 192 GB registered DIMMs when fully populated with 3 DIMMs per channel in 24 slots

Up to 64 GB unbuffered DIMMs when fully populated with 2 DIMMs per channel in 16 slots

Network Controllers

2 X Integrated Intel® 82576EB dual-port Gigabit Ethernet Controller (4 ports total)

Mixed use of registered memory and unbuffered ECC memory not supported

16 GB memory modules available by special request only

Acer AR385 F1 Specifications

Storage

Hard disk form factor: 2.5” or 3.5”

Type: SAS/ SATA/ SSD with hot plug capability

HDD Capacity (enterprise level):

3.5” SAS HDD capacity: 300 GB, 450 GB, 600 GB

3.5” SATA HDD capacity: 250 GB, 500 GB, 1TB, 2TB

2.5” SAS HDD capacity: 73 GB, 146 GB, 300 GB, 450 GB, 600 GB

2.5” SATA HDD capacity: 150 GB, 300 GB, 500 GB

2.5” SSD capacity: 32 GB and 64 GB

3.5” Maximum capacity:

Up to 12 TB SATA(2 TB 3.5" x 6 HDDs)

Up to 3.6 TB SAS (600 GB 3.5” x 6 HDDs)

2.5” Maximum capacity:

Up to 8 TB SATA(500 GB 2.5" x 16 HDDs)

Up to 9.6 TB SAS (600 GB 2.5” x 16 HDDs)

Storage Controllers

Integrated AMD®SP5100 Chipset Serial ATA host controller with RAID 0, 1, 10 support

Optional PCIe®4-port/8-port and 16-port 6Gb/s SAS RAID card (standard on some models)

Expansion slots

Three full height PCI-E 2.0 x16 slots (with x8 link; left)

One low profile PCI-E 2.0 x4 slot (right)

Two low profile PCI-E 2.0 x4 slots (with x2 link; right)

Management

Acer Smart Server Manager

System ID LED buttons, System Health LED

Acer Smart Console for server management and KVM over IP remote management

Deployment/Serviceability

Acer Smart Setup

BIOS Update Tool

IPMI Firmware Update Tool

Operating Systems

Windows®Server®2008

Windows®Server®2008 R2

Windows®Server®2003

Red Hat®Enterprise Linux 5

SuSE®Linux Enterprise Server 11

VMware ESXi™4

VMware ESX™4

Acer AR385 F1 Specifications

Input/output interface

Front

One Power/off button

LED indicators: power, HDD activity, LAN port 1 through 4, and ID

Two USB 2.0 ports

One VGA port

Rear

PS2 keyboard port

PS2 mouse port

Two USB 2.0 ports

Four RJ-45 ports (quad Gigabit NIC) with activity and link indicators

RJ-45 port (dedicated for management NIC) with activity and link indicators

Serial (DB-9) port

SVGA (DB-15) port

ID LED

Optical drive

Slim-line SATA DVD/RW

Optional 5.25” tape drive

Chassis/Form Factor

2U rack optimized

Power Supply

1 Power Supply Standard, 2nd optional

Up to 2 x 720 W 80 PLUS®Gold-level efficient hot-swap power supplies (1+1 redundant)

Regulatory Compliant Standards

EMC

FCC (Class A)

CE (Class A)

BSMI (Class A)

Safety

UL/cUL

CB

Nemko/GS

Acer AR385 F1 Specifications

Technical Specifications

Dimensions

(with bezel)

438.4 mm (W) x 705 mm (D) x 88.1 mm (H) ( 17.3 x 27.8 x 3.5 inches)

Form factor

2U rack optimized with cable arms included

Weight

(approximate)

Maximum

(All component slots and sockets

fully installed)

39 kg (88.1 lbs)

Minimum

(One HDD, power supply, and

processor installed)

28.5 kg (62.8 lbs)

BTU rating

Maximum

3276 BTU/hr

System inlet

temperature

Operating

10° - 35° C (50° - 95° F) at sea level with an

altitude derating of 1° C per 305 m (1.8° F per

1000 ft.) above sea level to a maximum of 3050 m

(10,000 ft.) no direct sustained sunlight.

Maximum rate of change is 10°C/hr (18°F/hr).

The upper limit depends the type and number

of options installed. System performance may

be reduced if operating with a fan fault or

above 30°C (86°F).

Non-operating

-40° - 70° C (-40° - 158° F) Maximum rate of

change is 20°C/hr (36°F/hr).

Relative humidity

(non-condensing)

Operating

8 - 90 % relative humidity (Rh), 28° C (82.4° F)

maximum wet bulb temperature, non-condensing

Non-operating

5 - 95 % relative humidity (Rh), 38.7° C (101.7° F)

maximum wet bulb temperature, non-condensing

Acoustic noise

Listed are the declared A-weighted sound power levels (LWAd) and declared

average bystander positionA-weighted sound pressure levels (LpAm) when the

product is operating in a 21° C ambient environment. Noise emissions were

measured in accordance with ISO 7779.

Idle

LWAd: 6.4 BA/ LpAm: 45.8 dBA

Operating

LWAd: 7.2 BA/ LpAm: 53.6 dBA

Emissions

classification

(EMC)

FCC rating

Class A

Normative standards

EN55022, EN 61000-3-2, EN 61000-3-3, CISPR

22 Class A

Power supply

Rated Steady –state power

720 W

Maximum Peak Power

728 W

BTU rating

2456.64 BTU/hr at 100 - 240 VAC

Acer AR385 F1 Specifications

Standard Features

Processors

AMD Opteron™processor (12-Core)

6174 (2.2G, L2-3MB, L3-12M, FSB 3200, 45nm 12 cores, G34 socket, D1)

6172 (2.1G, L2-3MB, L3-12M, FSB 3200, 45nm 12 cores, G34 socket, D1)

AMD Opteron™processor (8-Core)

6136 (2.4G, L2-3MB, L3-12M, FSB 3200, 45nm 8 cores, G34 socket, D1)

6128 (2.0G, L2-3MB, L3-12M, FSB 3200, 45nm 8 cores, G34 socket, D1)

AMD Opteron™processor (low-voltage)

6128HE (2.0G, L2-3MB, L3-12M, FSB 3200, 45nm 8 cores, G34 socket, D1)

Chipset

AMD SR5690/SP5100

Memory3

Type

DDR3 1066/1333 MHz registered memory

DDR3 1066/1333 MHz unbuffered ECC memory

DIMM sockets

Capacity

Registered DIMM: 2 / 4 / 8 / 16 GB4

Unbuffered ECC DIMM: 2 / 4 GB

Maximum capacity

Registered DIMM: 192 GB

Unbuffered DIMM: 64 GB

Note: AMD’s chipset architecture limits quad rank 16GB to

one DIMM per channel

Memory protection

ECC, Online Spare Mode

Network controller

Integrated dual Intel® 82576EB Gigabit Ethernet Controller (quad ports)

Mixed use of registered memory and unbuffered ECC memory not supported.

16 GB memory modules available by special request only

Acer AR385 F1 Specifications

Expansion slots

The primary I/O bus for the main board is PCIe Gen2. The following table lists the characteristics

of the PCI-E bus segments.

PCI express Bus Segment Characteristics of PCI Express Topology

Expansion Slot #

# of

slots

Type

Bus

Width1

Vol.

Con.

Width

Location

Length

PCIe

PCIe Gen 2

3.3V

x16

Left

Full height

PCIe

PCIe Gen 2

3.3V

Right

Low profile

PCIe

PCIe Gen 2

3.3V

Right

Low profile

NOTE:

1. Indicates the number of physical electrical lanes running to a PCIe® connector.

2. Default bus assignment (in decimal). Inserting cards with PCI™ bridges may alter the actual bus assignment

number.

3. Slots are enumerated differently based on the operating system. Microsoft® operating systems enumerate Device

ID by bus starting from the lowest bus to the highest.

Storage controller

AMD®SP5100 SATA controller

Integrated Serial ATA

controller

Simultaneous drive

transfer channels

6 channels

Transfer rate

synchronous (maximum

theoretical)

3 Gb/s per channel

Data transfer method

Non-RAID mode

RAID mode (Adaptec®RAID driver)

Drive support

Serial ATA

Data transfer modes

Legacy mode

Combined mode

Protocol

Serial ATA

Feature

NCQ (Native Command Queuing)

AHCI (Advanced Host Controller Interface)

RAID levels supported

0, 1, 10

RAID features

Supports multiple logical volumes

Supports setup through ROM based array

configuration utility installation scripting

NOTE: This controller requires the software RAID

driver to support hot-plug functions.

RAID OS support

Windows Server®2003

Windows Server®2008

Windows Server®2008 R2

Red Hat®Enterprise Linux 5.4

Novell®SuSE®Linux Enterprise Server 11

VMWare ESXi™4

VMWare ESX™4

Acer AR385 F1 Specifications

Two Embedded dual-

port Gigabit server

adapter (Intel 82576EB)

quad port total

Network interface

10Base-T

100Base-TX

1000Base-TX

Compatibility

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3u 100Base-TX

Data transfer method

Four lane (x4), 100 MHz PCI Express reference clock

Network transfer rate

10Base-T (half-duplex)

10 Mb/s

10Base-T (full-duplex)

20 Mb/s

100Base-TX (half-duplex)

100 Mb/s

100Base-TX (full-duplex)

200 Mb/s

1000Base-TX (half- and full-duplex)

2000 Mb/s

Connector

RJ-45

Cable support

CAT 5e wire

Virtualization

acceleration

Intel I/O Acceleration Technology

Virtual Machine Device Queues (VMDq)

PCI-SIG SR-IOV implementation

Manageability

NC-SI SMBus, PXE, iSCSI boot

Storage

Maximum

internal storage

Hard disk drive

Up to 6 hot-pluggable 3.5" SATA/SAS HDD

Up to 16 hot-pluggable 2.5” SATA/SAS/SSD HDD

3.5” Maximum capacity

2.5” Maximum capacity

Up to 12 TB SATA

Up to 3.6 TB SAS

Up to 8 TB SATA

Up to 9.6 TB SAS

Up to 1 TB SSD

Acer AR385 F1 Specifications

Drive Support –Optical and Hard Disk Drive

Optical Drive Support

Drive

Quantity

Supported

Bay

Supported

Required Controller

Slim type SATA DVD/RW

Optical Drive

Up to 1

Integrated SATA controller

Acer AR385 F1 Specifications

Hard Disk Drive Support

Tape Backup Drive Support

Drive

Quantity

Supported

Bay

Supported

Required Controller

2.5” SATA/SAS/SSD

hard drives

Up to 16

0 - 15

Integrated SATA controller for up to 4

SATA HDD’s

4-port SAS RAID card for up to 4

SAS/SATA/SSD HDD’s*

8-port SAS RAID cards for up to 8

SAS/SATA/SSD HDD’s*

16-port SAS RAID card for up to 16

SAS/SATA/SSD HDD’s

3.5” SATA/SAS hard

drives

Up to 6

0 - 5

Integrated SATA controller for up to 4

SATA HDD’s

4-port SAS RAID card for up to 4

SAS/SATA/SSD HDD’s*

8-port SAS RAID card for up to 6

SAS/SATA HDD’s*

*standard on some models

NOTE: Transfer rates of drives are dependent on the maximum transfer rate supported by the

host bus adapter (HBA) or controller.

Drive

Bay Supported

Required Controller

LTO-3 1U SAS Rackmount (external) Tape

Drive kit

External

SAS card

LTO-4 1U SAS Rackmount (external) Tape

Drive kit

External

SAS card

160/320 GB, DAT320, 5.25”, internal half

height, USB interface

Internal USB 2.0 ports

80/160 GB, DAT160, 5.25”, internal half

height, USB interface

Internal USB 2.0 ports

36/72 GB, DAT72 (DDS Gen-5), 5.25”,

internal half height, USB interface

Internal USB 2.0 ports

Altri manuali per AR385 F1

Indice

Altri manuali Acer Server

Acer

Acer Altos R5250 Series Manuale utente

Acer

Acer AR360 F1 Series Manuale utente

Acer

Acer AW2000h-AW170h Manuale utente

Acer

Acer AcerAltos 21000 Manuale elenco delle parti

Acer

Acer Altos 350 Manuale utente

Acer

Acer 930 Manuale utente

Acer

Acer Altos S700 Series Manuale utente

Acer

Acer AT350 F3 Manuale utente

Acer

Acer Altos G520 series Manuale utente

Acer

Acer Altos R520 M2 Manuale utente

Acer

Acer Altos G5450 Series Manuale utente

Acer

Acer Altos G701 Manuale utente

Acer

Acer AT110 F2 Manuale utente

Acer

Acer Altos 19000PRO4 Manuale elenco delle parti

Acer

Acer Extensa 500 Manuale elenco delle parti

Acer

Acer Altos R360 F2 Manuale di istruzioni

Acer

Acer AR320 Manuale utente

Acer

Acer AT310 F2 Manuale utente

Acer

Acer AR385 F1 Manuale utente

Acer

Acer AR180 F1 Series Manuale utente

Acer

Acer Altos G530 Series Guida all'installazione

Acer

Acer AC100 Manuale utente

Acer

Acer Altos R720 Series Manuale utente

Acer

Acer AR320 F2 Manuale utente

Manuali Server popolari di altre marche

HP AlphaServer ES47 Manuale utente

Dell

Dell PowerEdge R410 Manuale utente

PowerNAS

PowerNAS CMA Manuale utente

Supero

Supero FatTwin F617R3-FT Manuale utente

MSI

MSI P1-109N-L70 Manuale utente

Dell

Dell PowerEdge XE9640 Manuale

Dell

Dell PS4100 Istruzioni di montaggio

EtroVISION

EtroVISION EV3151 Manuale utente

NEC

NEC Express5800/T110j Manuale utente

HP ProLiant Gen9 Manuale utente

Compaq

Compaq ProLiant 3000 Manuale

Dell

Dell PowerEdge 3YPMN Manuale utente

iRobo

iRobo IPC2U Manuale utente

Nortel

Nortel 1000 Con?guration guide Manuale utente

Asus

Asus AP7500 Manuale operativo e di manutenzione

Avid Technology

Avid Technology AirSpeed 5000 Manuale utente

HP Integrity rx2600 Guida all'installazione

Milestone

Milestone Husky IVO 350T Manuale utente
