Avid Technology AirSpeed 5000 Manuale utente

1. Connections

A picture of the back of the recorder chassis is shown below with connection points.

Video/SDI

Input

Video/SDI

Output

VGA

Output

USB Mouse

and Keyboard

Connectors

AC

Power

The Video input/SDI BNC should be connected to the output of the syste that is to be recorded fro .

The Video output/SDI BNC should be connected to a onitor for test purposes.

2. Boot the Recorder

If the recorder does not power up after plugging in the power cords then switch on the power by

pushing the power switch as shown below.

The syste should take few inutes to boot up into Windows 7.

3. Unzip the customer diagnostic tool Airspeed5000Test.zip

After unzipping the zip file go to the folder that that it was unzipped too and run the

Airspeed5000Test.exe.

Airspeed Customer Dia nostic tool

4. iagnostic Test Page

The following page should appear.

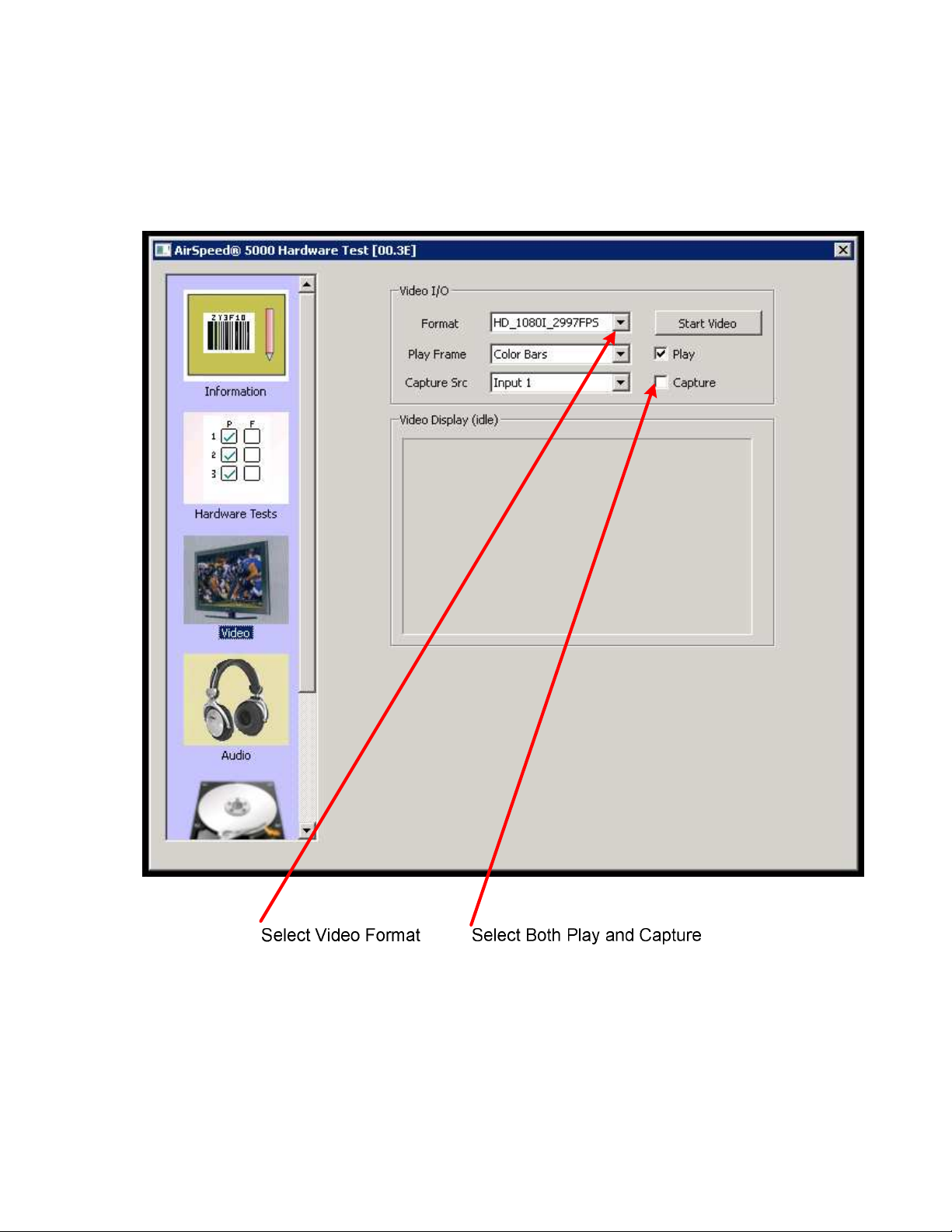

5. Select Video Format

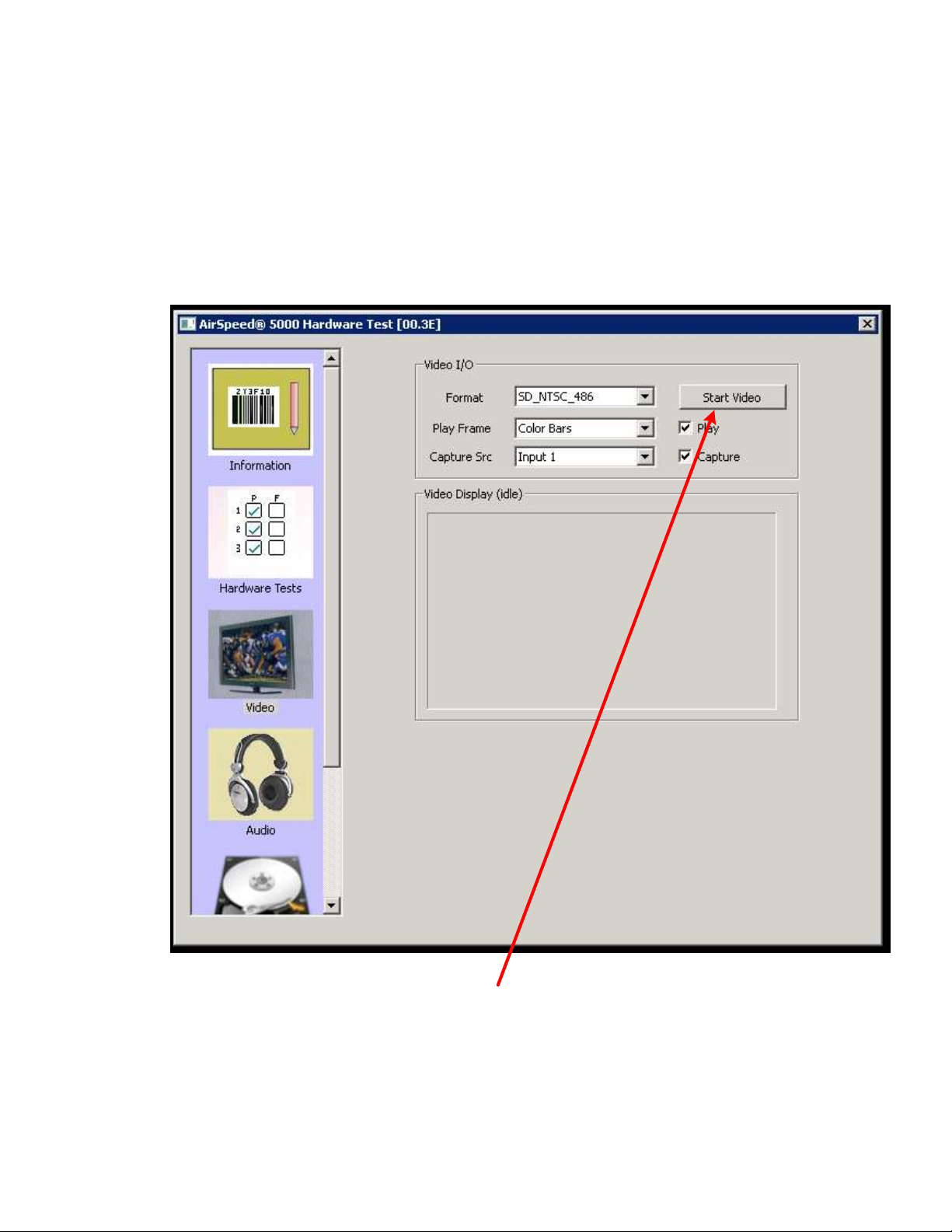

6. Set Video Format

Notice that SD_NTSC_485 has been selected as the video for at for both play and capture.

After selecting the Start Video button color base should appear on the SDI output BNC. This sets

the Video IO to standard definition or SMPTE 259M.

Select Start Video

Next select the stop video button.

7. Select the Record Tool

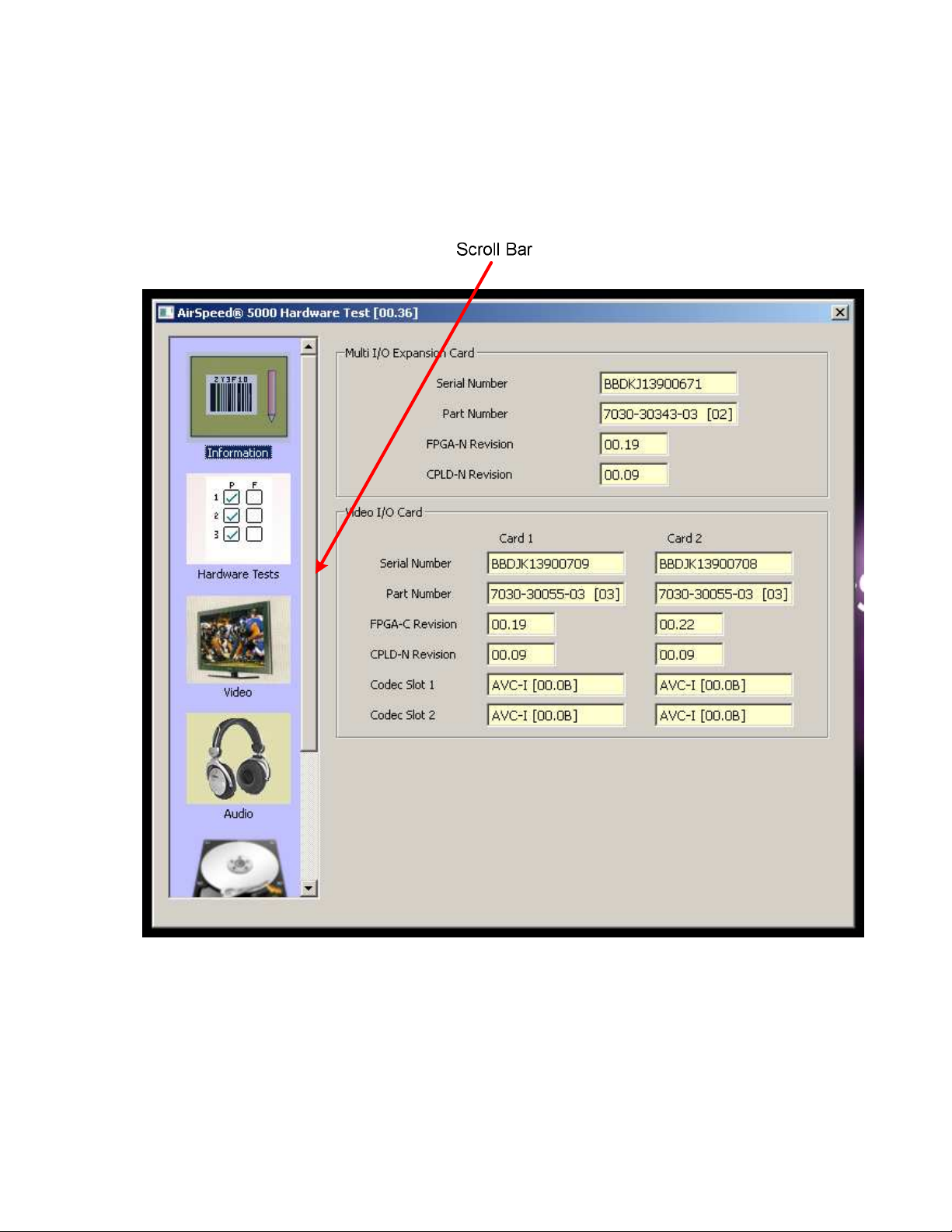

Use the scroll bar and scroll down to “SDI Raw Rec/Play” icon as shown below:

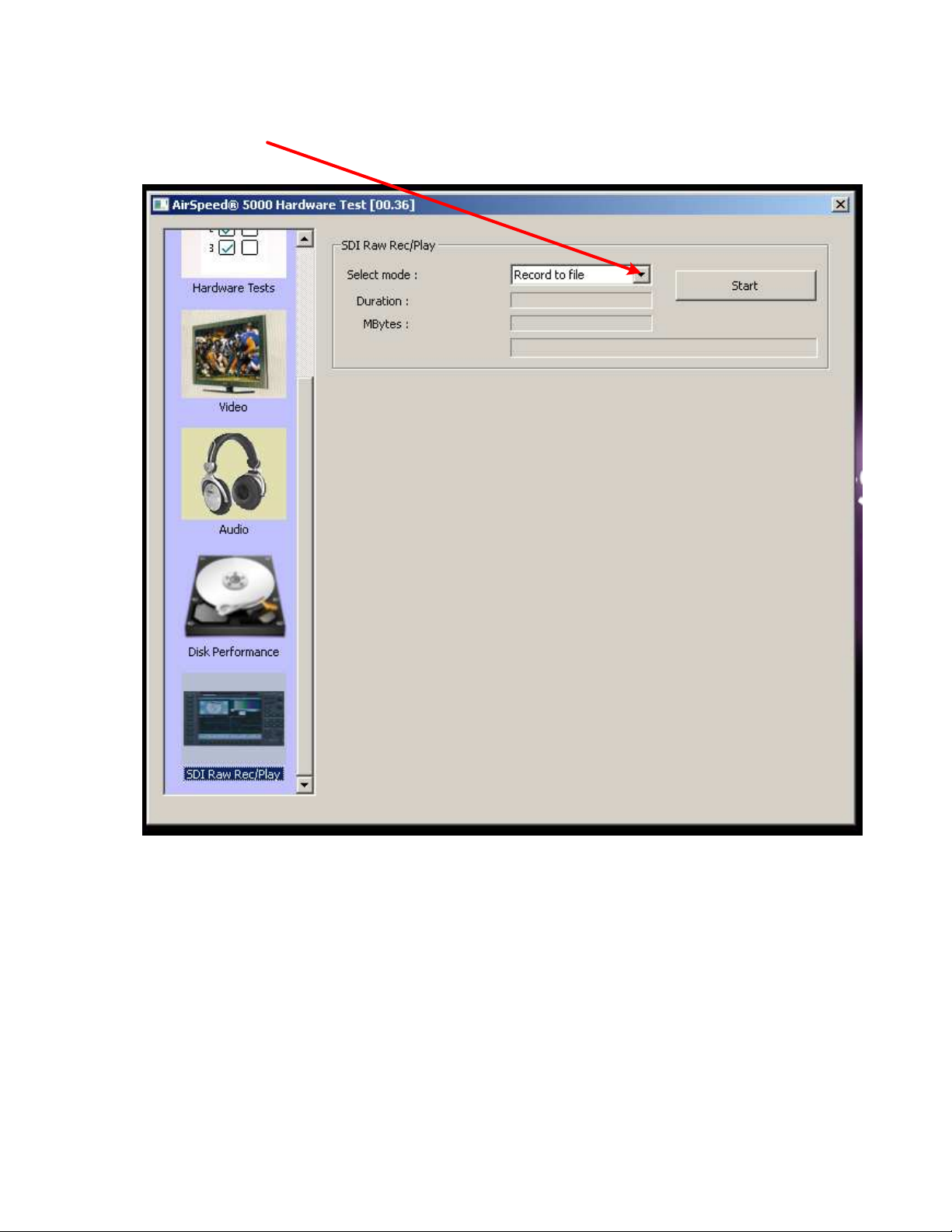

Select the “SDI Raw Rec/Play” icon and the following screen should appear:

Select ““Rec/Play pass-thru”

Select “Rec/Play pass-thru” as shown in the above pulldown and the following screen should

appear:

At this point select the start button and the output of the recorder should show what is connected

to the input of the recorder, this is to confir that the syste is receiving a valid video/SDI input

signal and able to loop it through to the output.

The next step is to stop the video/SDI loop through by selecting the “Stop SDI” button as shown

below:
