ADF Web HD67626-A1 Manuale utente
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 1 of 27
User Manual
Revision 1.000
English
S7comm / SNMP Agent - Converter
(Order Code: HD67626-A1)
for Website information:
http://www.adfweb.com/? roduct=HD67626
for rice information:
http://www.adfweb.com/? rice=HD67626-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others S7comm devices, see also the following links:
S7comm from/to …
www.adfweb.com? roduct=HD67618 (Modbus TCP S ave)
www.adfweb.com? roduct=HD67619 (PROFIBUS S ave)
www.adfweb.com? roduct=HD67620 (IEC61850 Server)
www.adfweb.com? roduct=HD67621 (Seria )
www.adfweb.com? roduct=HD67622 (Modbus S ave)
www.adfweb.com? roduct=HD67623 (CAN)
www.adfweb.com? roduct=HD67624 (CANopen)
www.adfweb.com? roduct=HD67625 (DeviceNet S ave)
www.adfweb.com? roduct=HD67627 (EtherNet/IP S ave)
www.adfweb.com? roduct=HD67628 (KNX)
www.adfweb.com? roduct=HD67629 (MQTT)
www.adfweb.com? roduct=HD67630 (BACnet S ave)
www.adfweb.com? roduct=HD67631 (Ethernet)
www.adfweb.com? roduct=HD67632 (OPC UA Server)
www.adfweb.com? roduct=HD67633 (PROFINET S ave)
www.adfweb.com? roduct=HD67D39 (LoRaWAN)
www.adfweb.com? roduct=HD67E28 (S7comm)
Do you have an your customer protocol?
See the following links:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
Use
r Manual
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 2 of 27
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
USE OF COM OSITOR SW67626 11
NEW ROJECT / O EN ROJECT 12
SOFTWARE O TIONS 13
SET COMMUNICATION 15
S7COMM ACCESS 17
SET SNM ACCESS 20
MIB FILE 21
U DATE DEVICE 22
MECHANICAL DIMENSIONS 24
ORDERING INFORMATIONS 25
ACCESSORIES 25
DISCLAIMER 26
OTHER REGULATIONS AND STANDARDS 26
WARRANTIES AND TECHNICAL SU ORT 27
RETURN OLICY 27
Pagina 2 di 27
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision
Date Author
Chapter
Description
1.000 11/03/2021 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 3 of 27
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 4 of 27

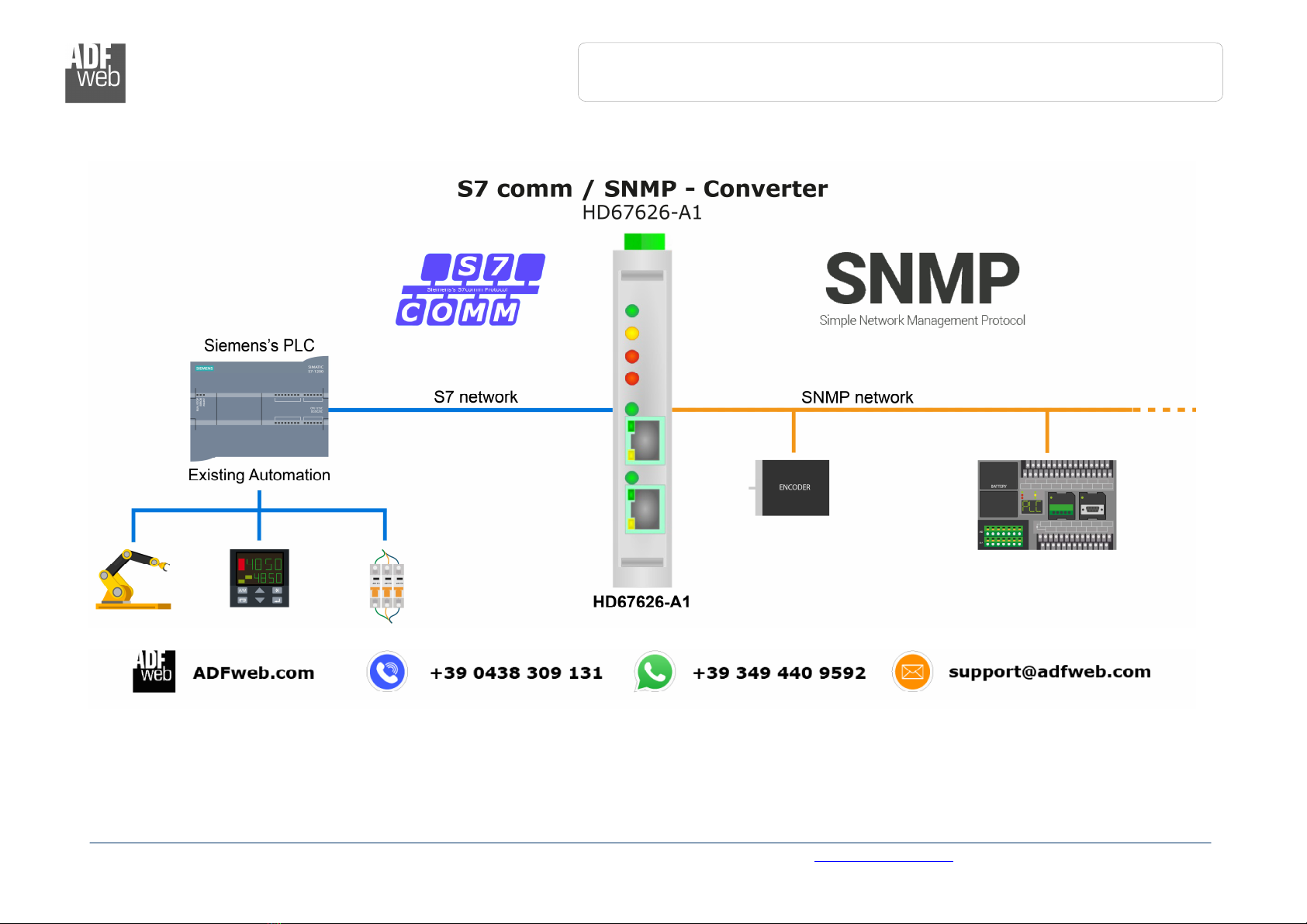

EXAMPLE OF CONNECTION:
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 5 of 27

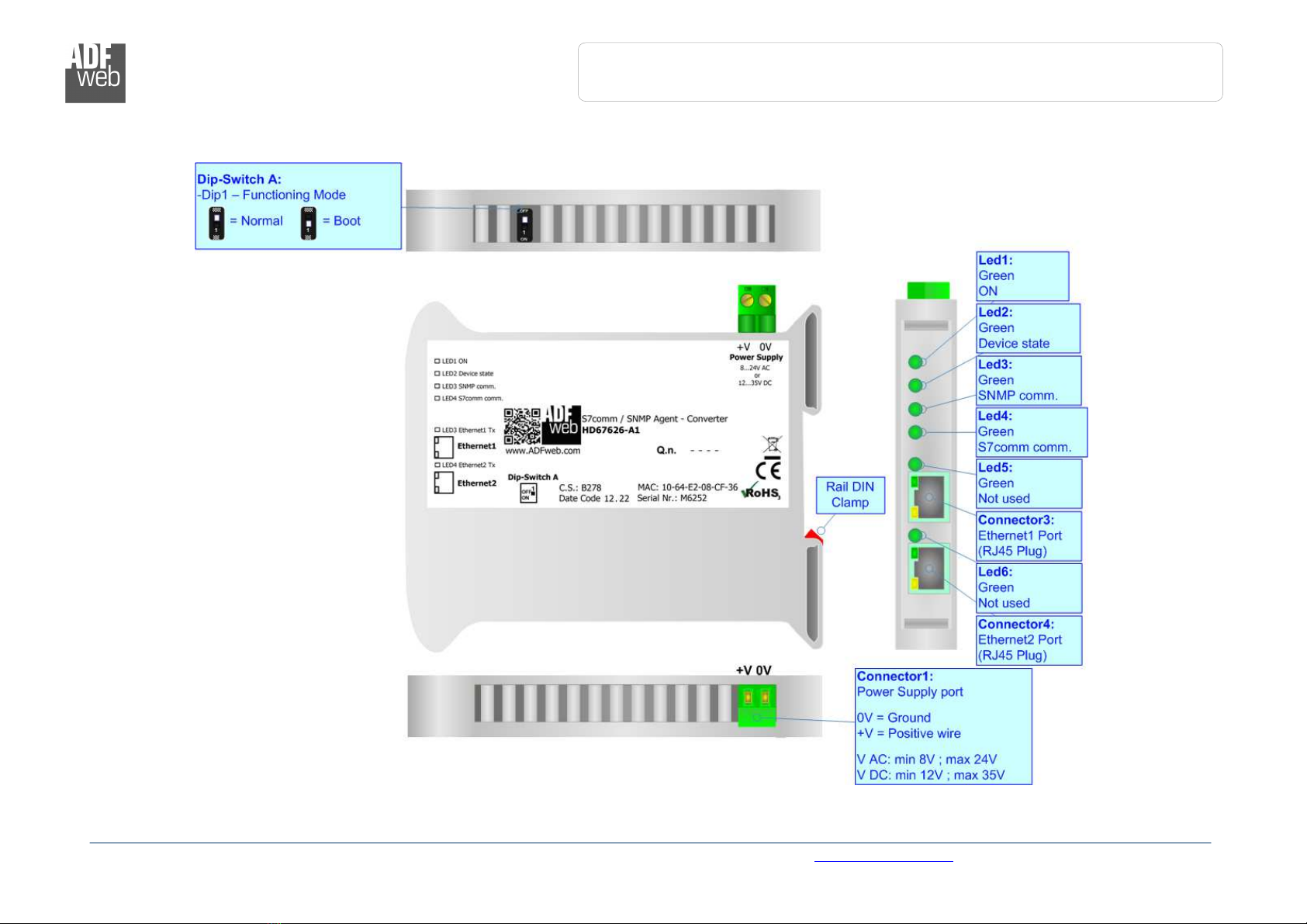

CONNECTION SCHEME:
Figure
1
: Connection scheme for HD67
626
-
A1
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 6 of 27
CHARACTERISTICS:
The HD67626-A1 is a S7comm / SNM Agent Converter.
It allows the following characteristics:
Two-directional information between S7comm and SNM ;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67626 software on your C in order to perform the following:
Define the parameter of the SNM ;
Define the parameter of the S7comm;
Define the S7comm requests to send to the S7comm servers;
Define the SNM OIDs in read and write;
Export the MIB file;
Update the device.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 7 of 27
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67626-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67626-A1 4
Caution: Not reverse the po arity power
HD67626-A1
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 8 of 27
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 9 of 27
LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: SNM communication
(green) Blinks when a SNM response is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: S7comm communication
(green) Blinks when a S7comm response is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
5: Not used (green) OFF B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
6: Not used (green) OFF B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 10 of 27
ETHERNET:
The Ethernet connection must be made using Connector3 or Connector4 of HD67626-A1 with at least a Category 5E cable. The maximum
length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is recommended
the use of a cross cable.
