STARTUP MANUAL

PCM-3724

PC/104 48-bit Digital I/O Module

Before installation, please make sure that you have:

If anything is missing or damaged, contact your

distributor or sales representative immediately.

For more detailed information on this product,

please refer to the PCM-3724 User Manual on the

CD-ROM (PDF format).

Documents\Hardware Manuals\PCM\PCM-3724

FCC Class A

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residen-

tial area is likely to cause interference in which case the

user is required to correct interference at his own expense.

This product has passed the CE test for environmental spec-

ifications when shielded cables are used for external wiring.

We recommend the use of shielded cables. This kind of

cable is available from Advantech. Please contact your local

supplier for ordering information.

The PCM-3724 is a PC/104-standard DI/O module which

attaches to the piggyback connector on your CPU card or

PC/104 CPU module. The PCM-3724's two Intel 8255 PPI

compatible chips provide 48 bits of parallel digital input/

output. Buffered inputs and outputs offer high driving

capacity.The module's 48 bits are divided into six 8-bit I/O

ports: A0, B0, C0, A1, B1 and C1. You can configure each

port as either an input or output in software.

Base Address Selection (SW1)

Switch SW1 sets the module's base (beginning)

address. Valid base addresses range fromHex 000 to

Hex 3F0. We set the PCM-3724 for a base address

of Hex 300 at the factory. If you need to adjust it to

some other address range, set switch SW1 as shown

below:

Packing List Switch and Jumper Settings

• PCM-3724 Module • Driver CD

• Startup Manual

User Manual

Declaration of Conformity

Overview

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com/support/

This startup manual is for PCM-3724.

Part No. 2003724111 2nd Edition

June 2011

2 Startup Manual

Interrupt Settings (JP1, JP2)

Jumpers JP1 and JP2 control the IRQ levels, as shown:

Note:

You must set each I/O line to a different interrupt level.

Interrupt Level (JP3, JP4)

Jumpers JP3 and JP4 select the trigger edge (rising or

falling) for I/O lines PC00 and PC10, respectively.

Jumper settings appear below:

Interrupt Mode (JP5, JP6)

Jumpers JP5 controls interrupt line PC00, and jumper

JP6 controls interrupt line PC10. The DIS setting for

each jumper disables the corresponding line's interrupt

capability. The INT setting enables the line's interrupt

capability. The EXT setting allows you to enable and

disable control by external interrupt.

Software Installation

Hardware Installation

After the device driver installation is completed, you

can now go on to install the PCM-3724 module on your

computer.

Please follow the steps below to install the module on

your system:

1. Touch the metal part on the surface of your

computer to neutralize the static electricity that

might be in your body.

2. Plug your card into a PC/104 slot. Use of excessive

force must be avoided; otherwise the card might get

damaged.

Installation

Startup Manual 3

PIN Assignments

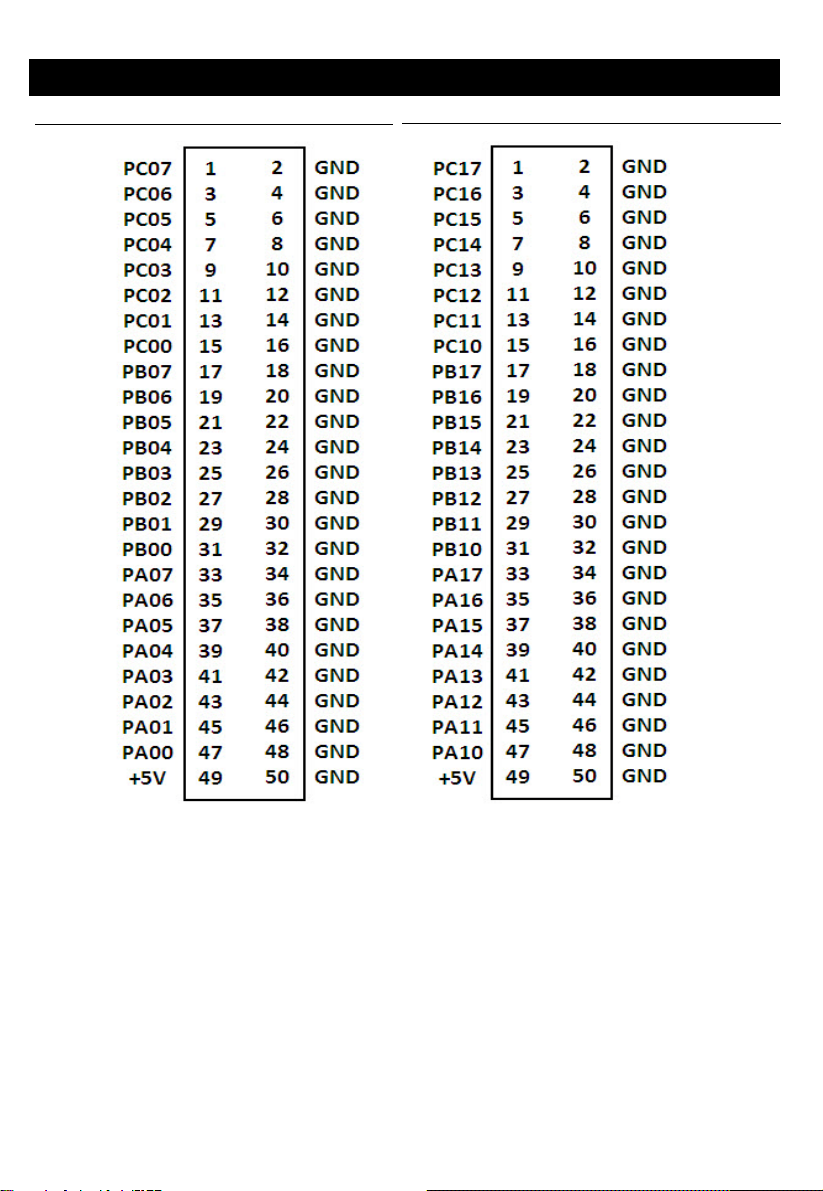

J3 - Port 1 J4 - Port 2
