Advantech AIMB-308 Manuale di installazione e funzionamento

AIMB-308 Startup Manual 1

AIMB-308 Proprietary Motherboard

with 12th Gen Intel

Core

i CPU Socket (LGA 1700)

Startup Manual

Specications

Packing List

For more information on this and other Advantech prod-

ucts, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website at:

https://www.advantech.com/support

This manual is for the AIMB-308 series Rev.A1.

Part No. 2041030800 1st Edition

Printed in China July 2022

Standard Functions

• CPU: LGA 1700 12th Gen Intel ® Core™ i9/i7/i5/i3/Cel-

eron/Pentium

• BIOS: AMI 256Mbit SPI BIOS

• Chipset: Intel®H610E PCH

• System Memory: Dual DDR4 3200 MHz, 32GB per 288-

pin slot without ECC function. Max. capacity to be 64GB

• SATA interface: Three on-board Serial ATA 3.0 connec-

tors support data transmission rates up to 600 MB/s.

All three SATA 3.0 support Advanced Host Controller

Interface (AHCI) technology

• PCIe slot: One PCIe x16 and one PCIe x4 expansion slot

• USB 3.2/2.0: Dual USB 3.2 Gen1 and dual 2.0 on both

rear and front side

Graphic Interface

• Chipset: CPU integrated graphics controller

• Display port: Resolution up to 4096x2304 @60Hz

refresh rate

• HDMI: Resolution up to 4096x2160 @30Hz refresh rate

Ethernet Interface

• Interface: 10/100/1000 Mbps

• Controller: (LAN1) Intel®I219-V; (LAN2) Intel®I226-V

Mechanical and Environmental Specs.

• Dimensions (L x W): 290.2 x 207.5 mm

• Power supply Voltage: +12V, +5Vsb

• Operating temperature: 0 ~ 40 °C (32 ~ 105 °F)

• Weight of board: 0.526 kg (1.16 lbs)

Before you begin installing your card, please make sure that

the following items have been shipped:

• AIMB-308

• Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

2 AIMB-308 Startup Manual

The board has a number of jumpers that allow you to

congurethesystemtosuittheapplication.Thetablebelow

lists the function of each jumper and connector.

Connector/Jumper List

Label Function

ATX_P1 12V main power connector ( for

system and CPU)

ATX_P2 12V power connector ( for MB or

add-on card )

ATX_P3 PW ok/on and +5Vsb for MB

CPUFAN1 CPU fan connector (4-pin)

COM1 ~ COM2 Serial port:RS-232 (9-pin header)

DIMMA1 Channel A DIMM1

DIMMB1 Channel B DIMM1

GPIO1 8 bit GPIO from super I/O

PCIE1 PCIe x16 slot (Gen4 x16 link)

PCIE2 PCIe x4 slot (Gen3 x4 link)

NVME1 M.2 2280 M-key socket (Gen3

x2 link)

mSATA1 mSATA

PSON1 AT/ATX model selector

JFP1 Power switch/reset connector

JFP2 External speaker/HDD LED con-

nector/SMBus connector

JFP3

Suspend: fast glash ( ATX/AT )

System on: on ( ATX/AT)

Systemo󰀨:o󰀨(ATX/AT)

JWDT1 Watchdog timer

JOBS1 OBS alarm

ESPI1 Debug card header

JSMB1 NL ( VRTT FW update pin header )

JCASE1 Instruction switch connetor

JCMOS1 CMOS clear

JME1 Intel®ME update

SPI_TPM2 TPM module header

USB2A1 USB 2.0 port ( internal Type-A)

USB3C3 USB 3.2 Gen1 port

USB3C4 USB 3.2 Gen1 port

USB2C4 2 x USB 2.0 port

SATA 4 ~ 6 Serial ATA 3.0 power 1~3

SATAPWR4~6 Serial ATA power connector 1~3

SYSFAN1 System fan1

SMB1 ~ SMB2 PCIe x4 SMBus connection

selector

SMB3 ~ SMB4 PCIe x16 SMBus connection

selector

AUDIO1 Audio connector (Line-out, Mic-in )

LAN2_USB3C1 2 x LAN1/USB 3.2 (Gen1)

LAN1_USB2C2 2 x LAN2/USB 2.0

HDMI1 + DP1 HDMI connector and Display con-

nector1

JCMOS1: CMOS Clear

JME1: Intel ME Update

Closed Pins Result

1-2 *Keep CMOS data

*Enable ME update

2-3

Clear CMOS data

Disable ME update

* Default

*Keep CMOS data Clear CMOS data

*Enable ME update Disable ME update

JWDT1+JOBS1: Watchdog Timer Output

Closed Pins

Result

2-4, 8-10 Watchdog timer disable (2-4)

OBS beep (8-10)

4-6, 8-10 *Watchdog timer reset (4-6)

OBS beep (8-10)

* Default

Watchdog timer disable (2-4) *Watchdog timer reset (4-6)

OBS beep (8-10) OBS beep (8-10)

1 2 3

Jumpers and Connectors Jumpers and Connectors (Cont.)

AIMB-308 Startup Manual 3

SMB1 and SMB3 (Clock), SMB2 and SMB4 (Data):

PCIe SMBus Connection Setting

Closed Pins

Result

1-2 *Enable PCIe SMBus connection

2-3 Disable PCIe SMBus connection

* Default

*Enable PCIe SMBus connection Disable PCIe SMBus connection

Note! Both SMB1 and SMB2 jumpers should be

switched to the same setting, either 1-2 closed

or 2-3 closed.

Caution! The computer is supplied with a battery-powered

real-time clock circuit. There is a danger of ex-

plosion if battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by the manufacturer. Discard used batteries ac-

cording to manufacturer’s instructions.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Jumpers and Connectors (Cont.) Declaration of Conformity

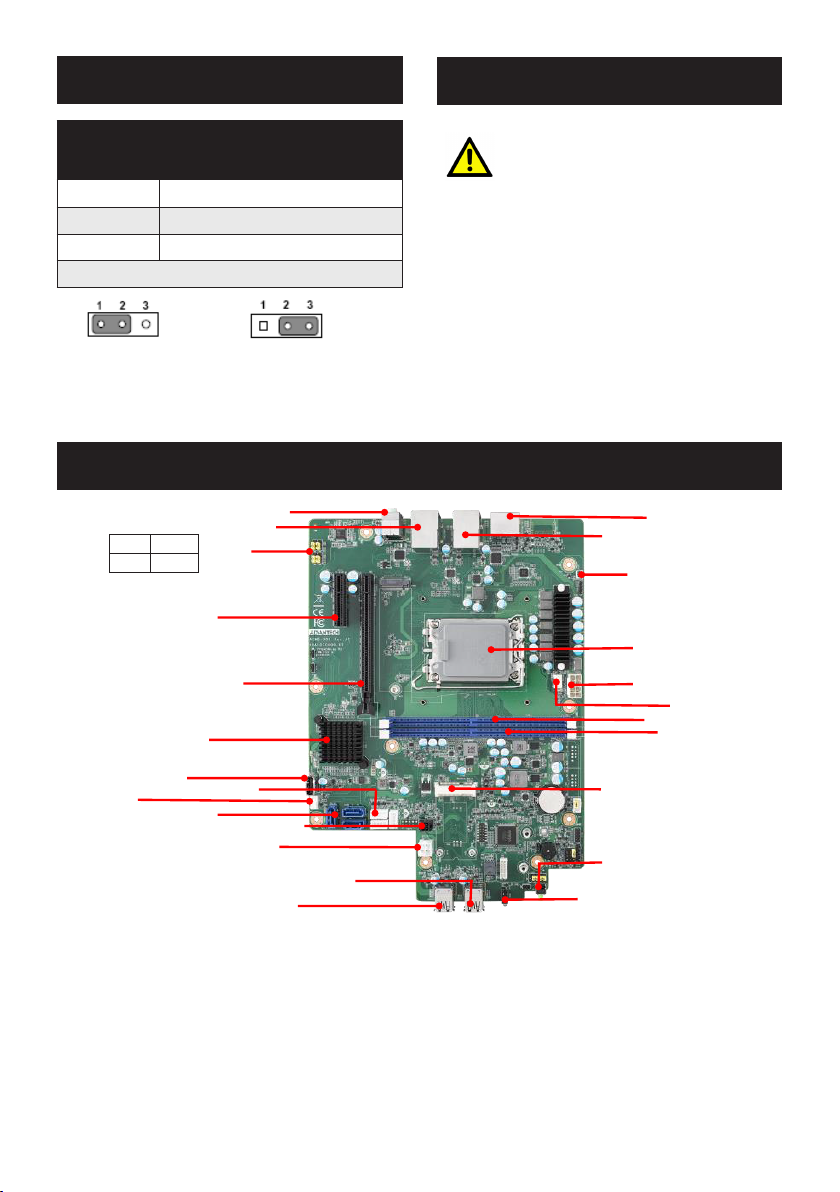

Figure 1: Board Layout: Jumper and Connector Locations

Intel LGA 1700 Core

i9/i7/i5/i3

ATX_P1 (for CPU/SYS)

ATX_P2(for MB/add-on card)

ATX_P3

SATA 4~6

SATAPWR 4~6

SYSFAN1

USB2A1(type-A)

PCH

PCIe1

PCIe2

SMB1~4

SMB2 SMB1

SMB4 SMB3

AUDIO1

LAN2_USB3C1 LAN1_USB2C2

HDMI1 + DP1

CPUFAN1

DIMMA1

DIMMB1

mSATA

PWR on/oﬀ

switch

LED

USB3C3

USB2C4

Intrusion switch

Board Layout
