PCE-7129/5129/5029 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 x PCE-7129/5129/5029 PICMG 1.3 Single Host Board

2. 1 x PCE-7129/5129/5029 Startup Manual

3. 1 x CD with utility

4. 1 x Serial ATA HDD data cables

5. 1 x Serial ATA HDD power cables

6. 1 x COM port cable kit

7. 1 x 2-port USB cable kit

8. 1 x Keyboard and mouse Y cable

9. 1 x Jumper package

10. 1 x Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of PCE-7129/5129/5029,

please refer to the user manual in the enclosed

CD-ROM (in PDF format).

Note 2: Acrobat Reader is required to view any PDF

le. Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

PCE-7129/5129/5029 LGA1151 Intel®CoreTM i7/i5/i3/

Pentium®/Xeon®(PCE-7129) PICMG 1.3 Single Host

Board with (ECC) DDR4/M.2 (2280)/Dual GbE LAN

Startup Manual

General

• LGA1151 6th and 7th Intel®Core™ i7/i5/i3/Pentium®/

Xeon®

• BIOS: AMI 128 Mb SPI BIOS

• Chipset:

- PCE-7129: Intel® C236

- PCE-5129: Intel® Q170

- PCE-5029: Intel® H110

• System memory:

- PCE-7129: Supports dual channel DDR4 1866/2133

16GB per DIMM with ECC; Max. capacity is up to 32GB

- PCE-5129/5029: Supports dual channel DDR4

1866/2133 16GB per DIMM without ECC; Max. capacity

is up to 32GB

Note1: Please select Intel® ECC supported processor to

enable ECC function.

Note2: Supports DDR4 1024M x 8 memory technology.

• SATA Ports:

- PCE-7129/5129 supports 5 SATA3.0 ports with SW Raid

0,1,5,10.

- PCE-5029 supports 4 SATA3.0 ports without Raid

function.

• M.2 Ports: PCE-7129/5129 supports M.2 2280 type M

module and compatible to both SATA3.0 and PCI Express

3.0 standard.

• Serial ports: Two RS-232 with pin headers

Note: PCE-5029VG SKU feature 1*pin header and 1* rear

COM port.

• Keyboard/mouse connector: Supports one standard

PS/2 keyboard and mouse connector and one external

6-pin header.

• Watchdog timer: 255 level timer intervals

• USB 2.0: PCE-7129/5129/5029: 7 * USB 2.0 (Pin-

header*2+USB Type-A*1+, 4 on backplane)

• USB 3.0:

- PCE-7129/5129: 5 * USB 2.0 (Pin-header*4+Rear USB

3.0 * 1)

- PCE-5029: 3 * USB 2.0 (Pin-header*2+Rear USB 3.0

* 1)

• GPIO: One programmable 8-bit GPIO pin-header

VGA Interface

• Chipset: Intel®HD Graphics

• Shared system memory is subject to OS

Ethernet Interface

• Chipset supports:

- LAN 1: I219LM(PCE-7129/5129); I219V(PCE-5029)

- LAN 2: I210AT(PCE-7129); I210AT (PCE-5129/5029)

• Connection: 2 on-board RJ-45 connectors with LED indica-

tors

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://www.advantech.tw/support

This manual is for the PCE-7129/5129/5029 Series

Rev. A3.

Part No. 2001512912

Printed in China

3rd Edition

October 2022

2 PCE-7129/5129/5029 Startup Manual

Mechanical and Environmental

• Dimensions: (L x W): 338 x 122 mm

• Power supply voltage: +12 V, +5 V, +3.3 V, +5 V

• Power requirements:

- CPU: Processor: Intel

Core™ i7-6700

- Memory: 2 DDR4 2133 8 GB DIMMs

- Voltage: +12 V, +5 V, +3.3 V, +5 V

, 12 V,-5 V

- Current: 2.64 A, 1.23 A, 0.19 A, 0.09 A, 0.06 A, 0 A

- Operating temperature: 0 ~ 60 °C (depending on CPU)

• Weight: 0.5 kg (weight of board)

The board has a number of jumpers that allow you to con-

gure your system to suit your application. The table below

lists the function of each of the jumpers and connectors.

Connectors

Label Function

USB3_1 USB3 port1

LAN1 Intel® I219LM(PCE-7129/5129); Intel®

I219V(PCE-5029)

LAN2 Intel® I210AT(PCE-7129); Intel® I210AT

(PCE-5129/5029)

VGA1 VGA connector

KBMS1 External PS/2 keyboard and mouse

connector

KBMS2 Internal PS/2 keyboard and mouse

connector

HDAUD1 Advantech HD audio module expansion

pin-header

LPC1 LPC module expansion pin-header

Sysfan1 4 PIN fan power connector for support-

ing PWM or DC fan

LANLED1 LANLED

USB11 USB port 10

USB45 USB port 4, 5

USB3_45 USB3 port 4, 5

USB3_23 USB3 port 2,3

COM1 RS-232 (9-pin Box Header)

COM2 RS-232 (9-pin Box Header)

LPT1 Parallel port

SATA0 /

NGFF1 SATA port 0 or PCIex4

SATA 1~5 SATA Port 1 ~ 5

SPI_CN1 CMOS ash jig pin-header

SPI1 CMOS ROM

DP1 Display port pin-header 1

Jumpers and Connectors

DP2 Display port pin-header 1

JCMOS1 Clear CMOS

JME1 Clear ME

JFP1 + JFP2 Power Switch / Reset connector / Exter-

nal speaker / SATA HDD LED connector

JFP3

(Keyboard

Lock and

Power LED)

Power LED

Suspend: Fast ash (ATX/AT)

System On: ON (ATX/AT)

System O󰀨: OFF (ATX/AT)

CPUFAN1 CPU FAN Power connector

SYSFAN1

System FAN Power Connector for 1

system FAN

JCASE1 Case Open pin-header

JCASEOP_

SW1

Case Open switch for always open or

BAT1 Button battery socket

BAT2 External battery connector

GPIO1 GPIO pin header (SMD pitch-2.0 mm)

DIMMA1 Memory connector channel A

DIMMB1 Memory connector channel B

Jumpers

Label Function

JCMOS1 CMOS clear

JME1 Clear ME data

JWDT1 Watchdog timer output selection

JOBS1 SIO Monitor Alarm

JCMOS1/JME1: Clear CMOS/ME data

Closed Pins Result

1-2 Keep CMOS/ME data (Default)

2-3 Clear CMOS/ME data

123

Specications(Cont.)

JumpersandConnectors(Cont.)

PCE-7129/5129/5029 Startup Manual 3

H/Wmonitoralarm(JOBS1) 

Function Jumper Setting

Closed Enable OBS alarm (Default)

Open Disable OBS alarm

JWDT1: Watchdog timer output option

Closed Pins Result

1-2 Reserved

2-3 System reset (Default)

The drivers for PCE-7129/5129/5029 are located on the

software installation CD. Please click through the folder and

follow the screen instructions to install them.

1 2 3

Board Layout

Software Installation

Caution! The computer is supplied with a battery-powered

real-time clock circuit. There is a danger of

explosion if the battery is incorrectly replaced.

Replace only with the same or equivalent type

recommended by the manufacturer. Discard

used batteries according to the manufacturer’s

instructions.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference;

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

JumpersandConnectors(Cont.)

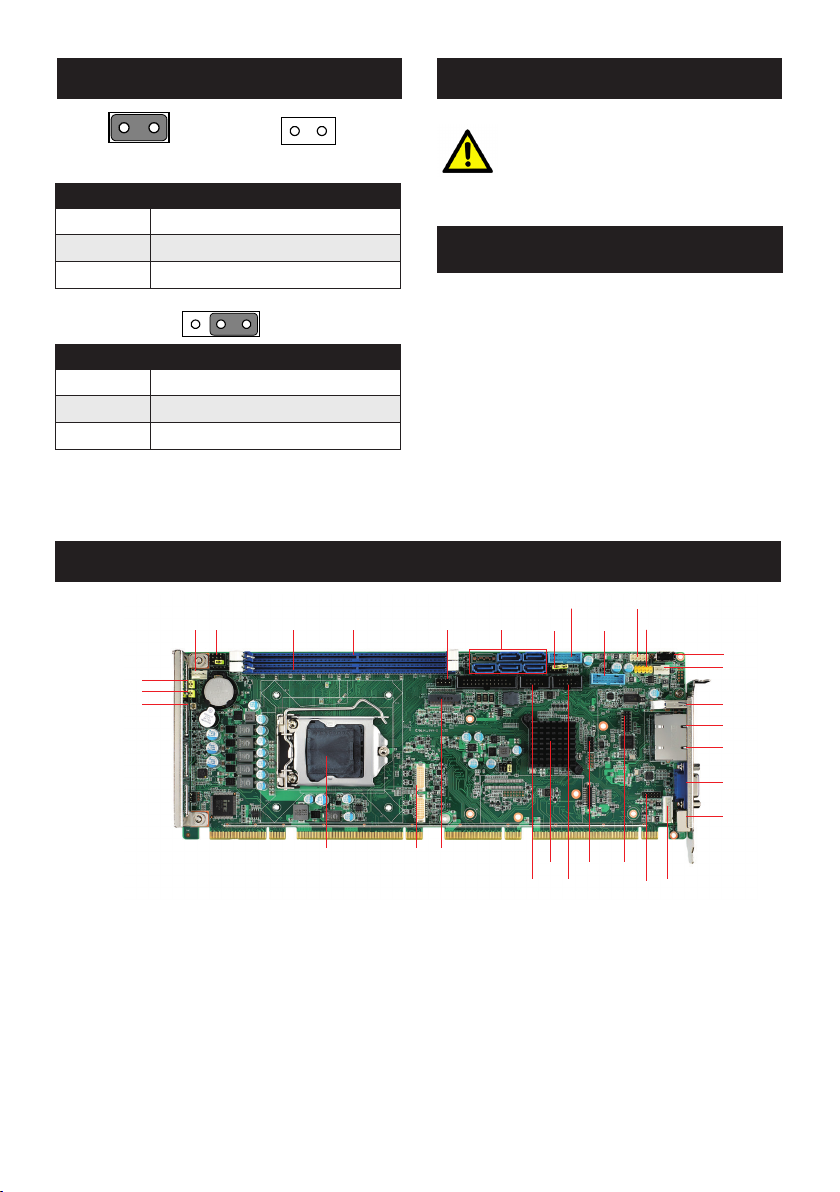

Figure 1: Board Layout: Jumper and Connector Locations

Note: *PCE-5029VG SKU features one rear COM port and one internal pin-header COM port.

*PCE-5029 supports 4 SATA ports (SATA0~4) and one internal USB 3.0 pin-header.

*PCE-5029 doesn’t feature NGFF(M.2).

*PCE-5029 supports 1 DP port.

USB11

USB45

USB3_45

USB3_23

USB3_1

LAN2

LAN1

LANLED1

VGA1

DP 1

DP 2

JIR1

JWDT1

JOBS1

SATA 1~5SPI1_CNDIMM A1 DIMM B1

JFP1~3CPUFAN1

JCASEOP_SW1

JCASE1

BAT2

CPU1 NGFF1

SATA0

COM

OM1

PCH1 GPIO1 LPC1

HDAUDIO1

KBMS1

KBMS2

SYSFAN1

Declaration of Conformity

Closed Open
