Advantech SPC-530 Manuale utente

SPC-530

Rackmount Server PC

User's Manual

This document is copyrighted, April 2000, by Advantech Co., Ltd. All rights are reserved. Advantech

Co., Ltd. reserves the right to make improvements to the products described in this manual at any time

withoutnotice.

No part of this manual may be reproduced, copied, translated or transmitted in any form or by any

means without the prior written permission of Advantech Co., Ltd. Information provided in this manual

is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its

use, nor for any infringements of the rights of third parties which may result from its use.

Acknowledgments

SPC-530MB, SPC-530BP, SPC-530MB-U2C, SPC-530BP-U2C series and PCA-6120P4,

PCA-6119P7, PCA-6119P17, PCA-6120DP4, PCA-6118DP7 series are trademarks of Advantech Co.,

Ltd.

NOTE:

The information in this document is provided for reference only. Advantech does not assume any liability arising

out of the application or use of the information or products described herein. This manual is subject to change

without notice.

Part No. 2002053000 1st Edition

Printed in Taiwan April 2000

Contents

Chapter 1 General Information...................................................................1

1.1 Introduction................................................................................................................. 1

1.2 Model list ................................................................................................................... 1

1.3 Specifications ............................................................................................................ 1

1.4 Dimensions................................................................................................................ 4

Chapter 2 System Setup .............................................................................5

2.1 Removingthecover.................................................................................................... 5

2.2 Removingthehandles ................................................................................................ 6

2.3 Thecoolingfans ......................................................................................................... 6

2.5 Temperaturesetting.................................................................................................... 7

2.4 Installingthediskdrives.............................................................................................. 7

2.6 Installingthepowersupplyunit .................................................................................... 8

AppendixA Backplanes (Optional)................................................................................... 9

Appendix B Exploded Diagrams.................................................................................... 12

AppendixC SafetyInstructions....................................................................................... 14

SPC-530 User's Manual 1

Chapter 1 General Information

1.1 Introduction

The SPC-530MB / SPC-530BP, the PC/AT-compatible computer, is designed for high-reliability applica-

tions. Not only easily installed and maintained in mission critical applications and harsh environments, it

is also a high-end rackmount fault-resilient server PC. The SPC-530BP can be fitted with a 20-slot

PC-bus compatible passive backplane. The SPC-530MB can be fitted with an ATX motherboard. Both

the SPC-530BP and SPC-530MB provide one 400-watt ATX redundant power supply and three

hot-swap cooling fans. They accept up to six front-access half-height disk drives.

The SPC-530BP / SPC-530MB features an advanced fault detection and alarm notification system to

monitor its own hardware status. If your PC system shuts down without advance warning, this can be

dangerous and may cause considerable loss.

1.2 Model list

emaNledoMenalpkcaB paws-toH,tnadnudeR USPCD-CAXTAttaw-004 ediW2artlUISCS elbac/wdraCDIAR segdirtraCksiD stes5x

PB035-CPSenalpkcabevissaptols-02SEY--------

BM035-CPS rofecapsehtevreseR(*** )draobrehtomXTA SEY--------

C2U-PB035-CPSenalpkcabevissaptols-02SEYSEYSEY

C2U-BM035-CPS rofecapsehtevreseR(*** )draobrehtomXTA SEYSEYSEY

1.3 Specifications

•Construction: Heavy-duty steel chassis

•Disk drive capacity: Five half-height front-access drives (vertical), and one half-height drive (hori-

zontal)

•Cooling system: Three 86 CFM cooling fans inside the chassis

•Controls: Power On/Off switch on power supply module in front panel. Alarm reset button, ATX soft

switch and system reset button on the front panel

•Indicators: Bicolor LEDs (green and red) for power failure, fan failure and overheating. LED

indicator (green) for system power On/Off

•Buzzer: One buzzer for audio alarm / volume control on board

•Dimensions: 19" (W) x 8.75" (H) x 26" (D), 482 mm (W) x 222 mm (H) x 660 mm (D)

•Net weight: SPC-530MB / SPC-530BP: 46.2 lb (21 kg)

The SPC-530BP-U2C and SPC-530MB-U2C include five disk cartridges installed in vertical disk drive

space. There is one horizontal disk drive space reserved for other storage drives such as a CD-ROM

drive.

2SPC-530 User's Manual

•Paint color: Front panel: Pantone Black 4C 2X; Chassis: Brushed finish, Ni

•Operating temperature: 0 to 50o C (32 to 122o F)

•Relative humidity: 20 to 90%

•CE compliant

Hot-swap AC-DC 400-watt ATX redundant power supply (RPS-400ATX)

•Output rating: 400 watts (max.)

•Input voltage: 90 to 132 VAC or 180 to 264 VAC @ 47 ~ 63 Hz, switchable

•Output voltages: +5 V @ 42 A, +3.3 V @ 20 A, +12 V @ 14 A, -5 V @ 1 A, -12 V @ 1 A

+5 Vsb @ 0.75 A (+5 V / +3.3 V; Total: 210 watts)

•Minimum load: +5 V @ 2 A, +3.3 V @ 0.3 A, +12 V @ 0.5 A

•MTBF: 100,000 hours at 25o C, 70% load

•Safety: UL/C-UL/TUV/CE approved

Passive backplane options (for SPC-530BP / SPC-530BP-U2C)

emaNledoMenalpkcaBtnemgeSrepstolS)s(tnemgeS

4P0216-ACPGMCIP1/ICP4/ASI51elgniS

7P9116-ACPGMCIP1/ICP7/ASI11elgniS

71P9116-ACPGMCIP1/ICP71/ASI1elgniS

RAID card features (only for SPC-530BP-U2C / SPC-530MB-U2C)

The SPC-530 is available with a RAID to PCI host interface. This gives users numerous extra features.

(For more details, please refer to our RAID manual, under SPC-530BP-U2C / SPC-530MB-U2C)

• One/Two Ultra2 Wide SCSI (68-pin) channel(s) on-board

• Automatic bad sector reassignment, Bad Sector Management

• Built-inSCSI terminator

• RAID 0, 1 (0+1), 3, 5

• Auto-rebuilding

• Hot-spare drive operation

• Diskhot-swapping

• Self-diagnostics

• Complete OS support: MS-DOS, Windows 95/98, Windows NT, NetWare, OS/2, SCO UnixWare,

Sun Solaris and Linux

SPC-530 User's Manual 3

Fault detection and alarm notification

•Power failure: This operates only when you have installed the redundant power supply

(RPS-400ATX). If either of the two power modules fails, the dedicated LED (PWR) changes color

from green to red, and an audio alarm also sounds. The dedicated LED remains red for the failed

power module until it is fixed.

•Fan failure: If any of the three cooling fans fails, the dedicated LED changes color from green to

red, and an audio alarm also sounds. The dedicated LED remains red for the failed fan until it is fixed.

The fan assembly can be hot-swapped if any fan fails.

•High temperature: If the chassis interior temperature exceeds 65o C (149o F) (standard setting), the

LED changes color from green to red, and an audio alarm also sounds. The LED remains red until the

temperature drops below 63o C.

•Temperature select: The temperature threshold can be adjusted to one of four readings, by setting

the switch on the alarm board: 65o C (default setting), 55o C, 70o C and 75o C.

•Audible alarm: A buzzer on board is activated (continous beep) as soon as a malfunction is detected,

and sounds until the alarm reset button is pressed. The alarm reset button is on the front panel.

However, the alarm indicator will stay red until the fault condition is resolved.

•Self-test: Press the alarm reset button for 8 seconds, and the alarm board will self-test automatically

for all functions. The alarm board can also monitor the temperature's sensor IC. If the sensor has

failed, or there is no connection, the buzzer will sound a " Beep x Beep x ..." alarm.

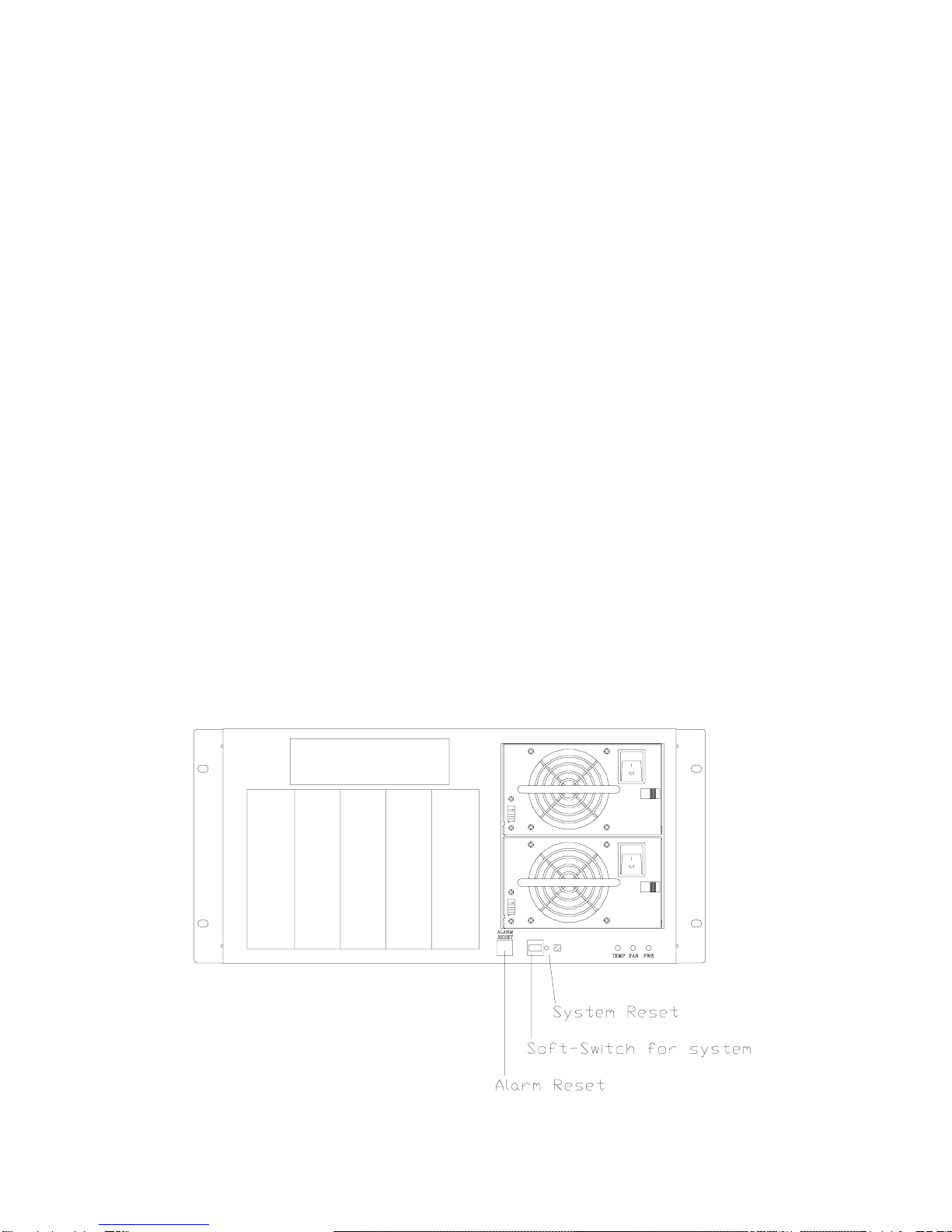

Controls for the system

The SPC-530 series' front panel provides one soft switch and one system reset button to re-boot the PC

system. See the following figure:

4SPC-530 User's Manual

1.4 Dimensions Unit = mm

SPC-530BP (Can be fitted with a 20-slot backplane)

SPC-530MB (Can be fitted with a 12" x 13" motherboard)

SPC-530 User's Manual 5

2.1 Removing the cover

Chapter 2 System Setup

The SPC-530 series is an ATX-compatible computer designed for industrial applications. This rugged

chassis meets the EIA RS-310C 19" rackmount standard.

Setting up your SPC-530 series requires only a screwdriver and a small amount of time. Before you

begin, you should also gather together all of the cards you plan to install, as well as the disk drives you

plan to use.

WARNING:Disconnect all power from the chassis before you install

the CPU cards. Unplug the power cord from the wall,

Do not just turn off the power switch. If you are not sure

what to do, take the job to an experienced professional.

2.1 Removing the cover

There are screws near the top, along the sides, and on the rear to secure the cover to the chassis.

Remove them, and then you can lift the cover free of the chassis. See Figure 2.1 below:

6SPC-530 User's Manual

2.2 Removing the handles

The handles and mounting ears for the front panel can be removed as follows. Please see Figure 2.2

below:

2.3 The cooling fans

There are three cooling fans inside the chassis. To replace or service the fans, open the top cover as in

Figure 2.1. Loosen the thumbscrews, and pull out the whole fan assembly. Please refer to Figure 2.3

below:

2.3 Cooling fans

2.2 Removing the handles

SPC-530 User's Manual 7

2.4 Removing the disk drive bay

2.4 Installing the disk drives

1. Open the top cover as in Figure 2.1. There is one independent disk drive bay on the front of the

chassis. Remove the four outer screws which mount the drive bay to the chassis. Slide the drive bay

toward the rear of the chassis, and lift it free of the chassis. See Figure 2.4 below.

2. Remove the front cover of the drive bay, and insert the drives into their proper locations in the drive

bay. See Figure 2.5.

2.5 Inserting the drives into the drive bay

2.5 Temperature setting

If the chassis interior temperature exceeds 65o C (149o F) (default setting), the LED changes color from

green to red. There is also an audio alarm. The LED remains red until the temperature drops below

63o C.

The default of the "RF_JMP" is PIN1-2: ON, which enables redundant power detection.

Temperature can also be selected (via SW1) on the alarm board inside the chassis:

SW1

1 2 TEMP

OFF OFF 65o C

OFF ON 55o C

ON OFF 70o C

ON ON 75o C

2.6 Alarm board
