AEMC instruments AmpFlex Manuale utente

WITH AEMC

INSTRUMENTS

CURRENT MEASUREMENT PROBES

AmpFlex®

Flexible

AC Current Probe

ENGLISH

User Manual

No part of this documentation may be reproduced in any form or by any means (including electronic

storage and retrieval or translation into any other language) without prior agreement and written consent

from Chauvin Arnoux®, Inc., as governed by United States and International copyright laws.

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

15 Faraday Drive • Dover, NH 03820 USA

Tel: (800) 945-2362 or (603) 749-6434 • Fax: (603) 742-2346

This documentation is provided “as is,” without warranty of any kind, express, implied, or otherwise.

Chauvin Arnoux®󰀨

but does not warrant the accuracy or completeness of the text, graphics, or other information contained

in this documentation. Chauvin Arnoux®, Inc. shall not be liable for any damages, special, indirect,





user of the documentation has been advised of the possibility of such damages.

Chauvin Arnoux®, Inc.

d.b.a AEMC®Instruments

www.aemc.com

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments



using standards and instruments traceable to

international standards.

We guarantee that at the time of shipping your

instrument has met the instrument’s published



An NIST traceable certicate may be requested

at the time of purchase, or obtained by returning

the instrument to our repair and calibration

facility, for a nominal charge.

The recommended calibration interval for this

instrument is 12 months and begins on the date of

receipt by the customer. For recalibration, please

use our calibration services. Refer to our repair and

calibration section at www.aemc.com.

Serial #:

Catalog #:

Model #:

ll in the appropriate date as indicated:

Date Received:

Date Calibration Due:

TABLE OF CONTENTS

1. INTRODUCTION..................................................................5

1.1 PRECAUTIONS FOR USE ................................................ 6

1.2 RECEIVING YOUR SHIPMENT................................................ 6

1.3 PACKAGING............................................................................... 6

2. PRODUCT FEATURES.......................................................7

2.1 DESCRIPTION ........................................................................... 7

2.2 AMPFLEX® ..............................................................................................................................................8

2.3 FEATURES ................................................................................. 9

2.4 ACCESSORIES.......................................................................... 9

2.5 STANDARD MODELS ............................................................. 10

3. OPERATION ...................................................................... 11

3.1 MAKING MEASUREMENTS WITH THE AMPFLEX®.......... 11

3.2 TIPS FOR MAKING PRECISE MEASUREMENTS .............. 12

3.3 TYPICAL RESPONSE CURVES ............................................ 15

4. SPECIFICATIONS ............................................................. 17

4.1 COMMON SPECIFICATION.................................................... 18

4.1.1 Electrical............................................................................ 18

 ........................................... 18

 ................................................ 19

 ....................................................... 19

...................................................... 20

 ........................................................ 20

4.2 INSTRUMENT COMPATIBILITY ............................................ 20

5. MAINTENANCE ................................................................ 21

5.1 BATTERY REPLACEMENT..................................................... 21

5.2 CLEANING ............................................................................... 21

5.3 REPAIR AND CALIBRATION ................................................. 22

5.4 TECHNICAL ASSISTANCE .................................................... 22

5.5 LIMITED WARRANTY............................................................. 23

5.5.1 Warranty Repairs.............................................................. 23

AmpFlex®Flexible AC Current Probes - User Manual 5

1. INTRODUCTION

Thank you for purchasing an AEMC®Instruments AmpFlex®Flexible AC

Current Probe.

For the best results from your instrument and for your safety, you must read the

enclosed operating instructions carefully and comply with the precautions for use.



Symbols and Denitions



CAUTION - Risk of Danger! Indicates a WARNING. Whenever this symbol

is present, the operator must refer to the user manual before operation

Refers to a type B current sensor. Application or withdrawal not authorized

on conductors carrying dangerous voltages. Type B current sensor as per

IEC 61010-2-032

Indicates Important information to acknowledge

This product complies with the Low Voltage & Electromagnetic Compatibility

European directives

The -



Safety, Electromagnetic Compatibility, and the Restriction of Hazardous

Substances.

In the European Union, this product is subject to a separate collection

system for recycling electrical and electronic components in accordance with

directive WEEE 2012/19/EU

Denition of Measurement Categories (CAT)

CAT IV: Corresponds to measurements performed at the primary electrical

supply (< 1000 V).

Example: primary overcurrent protection devices, ripple control units,

and meters.

CAT III: Corresponds to measurements performed in the building installation

at the distribution level.

Example: hardwired equipment in xed installation and circuit

breakers.

CAT II: Corresponds to measurements performed on circuits directly

connected to the electrical distribution system.

Example: measurements on household appliances and portable tools.

6 AmpFlex®Flexible AC Current Probes - User Manual

1.1 PRECAUTIONS FOR USE

These safety warnings are provided to ensure the safety of personnel and proper

operation of the instrument.

■Read the instruction manual completely and follow all the safety information

before attempting to use or service this instrument.

■Wear protective clothing and gloves as required.

■Use caution on any circuit: potentially high voltages and currents may be

present and may pose a shock hazard.

■

exceed the max voltage ratings given.

■Safety is the responsibility of the operator. The AmpFlex®must be used only



■ALWAYS de-energize the circuit before wrapping the AmpFlex®around bare

conductors, bus bars, or near live parts. Do not wrap on live conductors.

■ALWAYS connect the electronic module to the display device before wrapping

the AmpFlex®around the sample being tested.

■ALWAYS inspect the module, sensor, sensor cable, and output terminals prior

to use. Replace any defective parts immediately. Use only factory parts.

■NEVER use the AmpFlex®on electrical conductors rated above



1.2 RECEIVING YOUR SHIPMENT

Upon receiving your shipment, make sure that the contents are consistent with

the packing list. Notify your distributor of any missing items. If the equipment



distributor at once, giving a detailed description of any damage.

1.3 PACKAGING

Your AmpFlex®shipment consists of the following items:

■Flexible probe with electronic module.

■User manual.

■9 V battery.

AmpFlex®Flexible AC Current Probes - User Manual 7

2. PRODUCT FEATURES

2.1 DESCRIPTION

The AmpFlex®



conductors where standard clamp-on probes could not be used. In particular, it

can be installed in tight spaces, around breaker panels, around cable bundles,

around wide or large bus bars, or even wrapped around irregular shapes. The

Shape Memory feature enables the user to “pre-shape” the sensor before

inserting it between or around conductors. This feature facilitates closing,

󰀨



The AmpFlex®is lightweight and does not use magnetic cores like standard

transformers. The transformation principle is based on an air core. It presents

virtually no load to the system under test, has a low phase shift, has excellent

frequency response, and cannot be damaged by overloads.



The AmpFlex®meets EN 61010-1, is CE marked, and is designed with materials

and components to meet international agency standards.

The AmpFlex®has an mV output proportional to the current measured for

direct readings on DMMs, data loggers, oscilloscopes, and power or harmonic

meters. TRMS measurements are taken when connected to a TRMS meter.

The AmpFlex®is insensitive to DC currents and only the AC component of the

measured signal is measured.



of 24 in, 36 in, and 48 in lengths. Consult the factory for custom lengths, ranges

and/or features.

8 AmpFlex®Flexible AC Current Probes - User Manual

2.2 AMPFLEX®

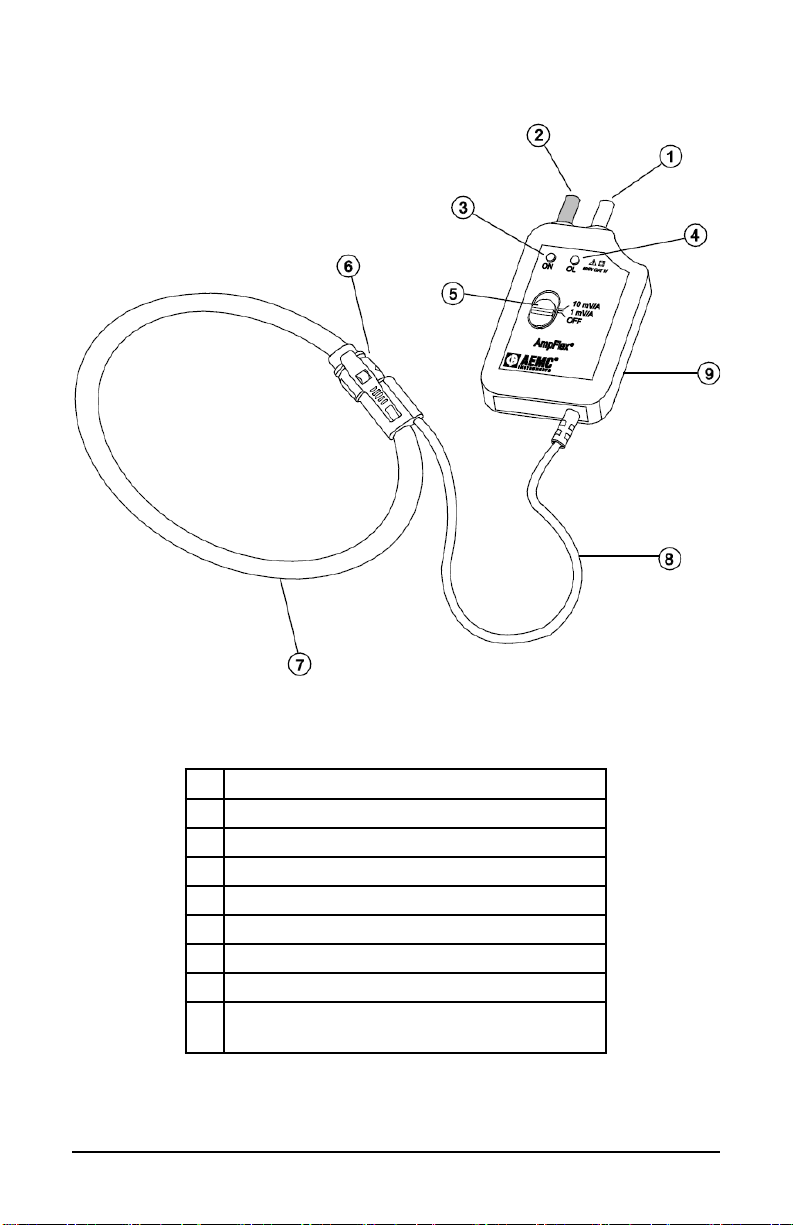

Figure 1

1. Positive: Red Banana Plug (+).

2. Common: Black Banana Plug (-).

3. Power ON Indicator (Green LED).

4. Overload Indicator (Red LED).

5. Range Selection Switch.

6. AmpFlex®Connector/Latch.

7. Flexible Sensor (Diameter 0.5 in, 12.5 mm).

8. Lead from Sensor to Module (6.5 ft, 2 m).

9. Electronic Module - Descriptive Label on

Back Case (range, model, etc.)

AmpFlex®Flexible AC Current Probes - User Manual 9

2.3 FEATURES

■Models to measure from 0.5 A to 30,000 A

■Accuracy: 1 % of reading.

■TRMS measurements when connected to a TRMS instrument.

■No core saturation or damage if overloaded.

■Overrange LED for measurement circuitry.

■

■Waterproof sensor.

■9 V battery for typical 150 h continuous operation.

■Shape Memory for custom pre-shaping of sensor before use (no drooping).

■Very high frequency response.

■Low phase shift for power.

■Insensitive to DC, measures only AC component on DC + AC signals.

■Excellent linearity.

■Lightweight.

2.4 ACCESSORIES

Banana (Female) / BNC (Male) Adapter ........................................Cat. # 2118.46

For connection of the AmpFlex®to SLII Models L101, L102, L562,

BNC terminals on scopes and other displaying instruments.

10 AmpFlex®Flexible AC Current Probes - User Manual

2.5 STANDARD MODELS

Model Measurement

Range Output Sensor

Length

Max

Conductor

Size

Cat. #

300-24-2-10 30/300 A 100/10 mV/A 24 in

(610 mm)

8 in

(190 mm) 2112.88

300-120-2-10 30/300 A 100/10 mV/A 120 in

(3048 mm)

38 in

(965 mm) 2113.39

1000-24-1-1 1000 A 1 mV/A 24 in

(610 mm)

8 in

(190 mm) 2112.39

1000-24-2-1 100/1000 A 10/1 mV/A 24 in

(610 mm)

8 in

(190 mm) 2112.98

1000-36-2-1 100/1000 A 10/1 mV/A 36 in

(910 mm)

11 in

(290 mm) 2113.00

3000-24-1-1 3000 A 1 mV/A 24 in

(610 mm)

8 in

(190 mm) 2112.46

3000-36-1-1 3000 A 1 mV/A 36 in

(910 mm)

11 in

(290 mm) 2112.48

3000-24-2-1 300/3000 A 10/1 mV/A 24 in

(610 mm)

8 in

(190 mm) 2113.05

3000-36-2-1 300/3000 A 10/1 mV/A 36 in

(910 mm)

11 in

(290 mm) 2112.00

3000-48-2-1 300/3000 A 10/1 mV/A 48 in

(1220 mm)

15 in

(390 mm) 2112.01

6000-36-2-0.1 600/6000 A 1/0.1 mV/A 36 in

(910 mm)

11 in

(290 mm) 2113.21

30000-24-2-0.1 3000/30,000 A 1/0.1 mV/A 24 in

(610 mm)

8 in

(190 mm) 2113.33

3000-36-2-0.1 3000/30000 A 1/0.1 mV/A 36 in

(910 mm)

11 in

(290 mm) 2113.35

All AmpFlex®models are designed to be used with recorders or power analyzers

with a voltage AC input. A scale factor may need to be entered into the recorder

to display the exact value.

Custom lengths and ranges are available.

Altri manuali per AmpFlex

Indice

Altri manuali AEMC instruments Strumento di misura

AEMC instruments

AEMC instruments A196-24-BK Manuale utente

AEMC instruments

AEMC instruments MN185 Manuale utente

AEMC instruments

AEMC instruments 6240 Manuale utente

AEMC instruments

AEMC instruments AmpFlex 193-24-BK Manuale utente

AEMC instruments

AEMC instruments SR701 Manuale utente

AEMC instruments

AEMC instruments OX5042 Manuale utente

AEMC instruments

AEMC instruments PowerPad IV 8345 Manuale utente

AEMC instruments

AEMC instruments 6505 Manuale utente

AEMC instruments

AEMC instruments MN134 Manuale utente

AEMC instruments

AEMC instruments 5050 Istruzioni operative e di sicurezza

AEMC instruments

AEMC instruments SR601 Manuale utente

AEMC instruments

AEMC instruments 1510 Manuale utente

AEMC instruments

AEMC instruments MN213 Manuale utente

AEMC instruments

AEMC instruments Simple Logger AmpFlex AL24-2500 Manuale utente

AEMC instruments

AEMC instruments JM852 Manuale utente

AEMC instruments

AEMC instruments SIMPLE LOGGER L100 Manuale utente

AEMC instruments

AEMC instruments 6550 Manuale utente

AEMC instruments

AEMC instruments AmpFlex 193-24-BK Manuale utente

AEMC instruments

AEMC instruments MN290 Manuale utente

AEMC instruments

AEMC instruments MD304 Manuale utente

AEMC instruments

AEMC instruments 6536 Manuale utente

AEMC instruments

AEMC instruments MN379T Manuale utente

AEMC instruments

AEMC instruments CA7027 Manuale utente

AEMC instruments

AEMC instruments MR525 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
