Agilent Technologies PlateLoc Manuale utente

Original Instructions

This guide contains the following topics:

•“About this guide” on page 2

•“Safety information” on page 2

•“Getting started” on page 4

•“Sealing microplates” on page 12

•“Touchscreen menus and commands” on page 19

G5585B PlateLoc Thermal Microplate Sealer

Quick Guide

About this guide

2G5585B PlateLocThermal Microplate Sealer Quick Guide

About this guide

This guide summarizes the operator instructions in the PlateLoc Thermal Microplate

Sealer User Guide.

This guide assumes that the PlateLoc Sealer is installed correctly. For installation

details, see the PlateLoc Thermal Microplate Sealer User Guide.

Firmware version

This guide documents PlateLoc firmware version 6.2.0.

Where to find the user documentation

You can access the user guides for Agilent Automation Solutions products in the

following ways:

•Visit the online VWorks Knowledge Base at www.agilent.com/chem/askb.

If you are using the VWorks software, select Help > Knowledge Base or press F1 to

open the locally installed help system. Or, select Start > Agilent Technologies >

VWorks Knowledge Base from the Windows desktop.

•Download a pdf from www.agilent.com.

Contacting Agilent Technologies

Web: https://www.agilent.com

Contact page: https://www.agilent.com/en/contact-us/page

Documentation feedback: [email protected]

Safety information

Before using the PlateLoc Sealer

Make sure that you are properly trained in:

•General laboratory safety

•The correct and safe operation of the PlateLoc Sealer

•The correct and safe operation of lab automation systems or components used in

combination with the PlateLoc Sealer

If you are the person in your organization responsible for training others on the

PlateLoc Sealer and you have a safety question, contact Technical Support.

Safety standards

The PlateLoc Sealer complies with the applicable EU Directives and bears the CE mark.

See the Declaration of Conformity for compliance details.

Safety information

G5585B PlateLocThermal Microplate Sealer Quick Guide

General precautions

For the general safety precautions, the intended product use statement, and the list of

safety labels, see the Automation Solutions Products General Safety Guide.

Chemical hazards

WARNING

To avoid potential injury, do not use chemicals that have low flash points in the

PlateLoc Sealer. Such chemicals include reagents that are used in radioactive

scintillation proximity assays (SPAs) and solvents, including alcohols.

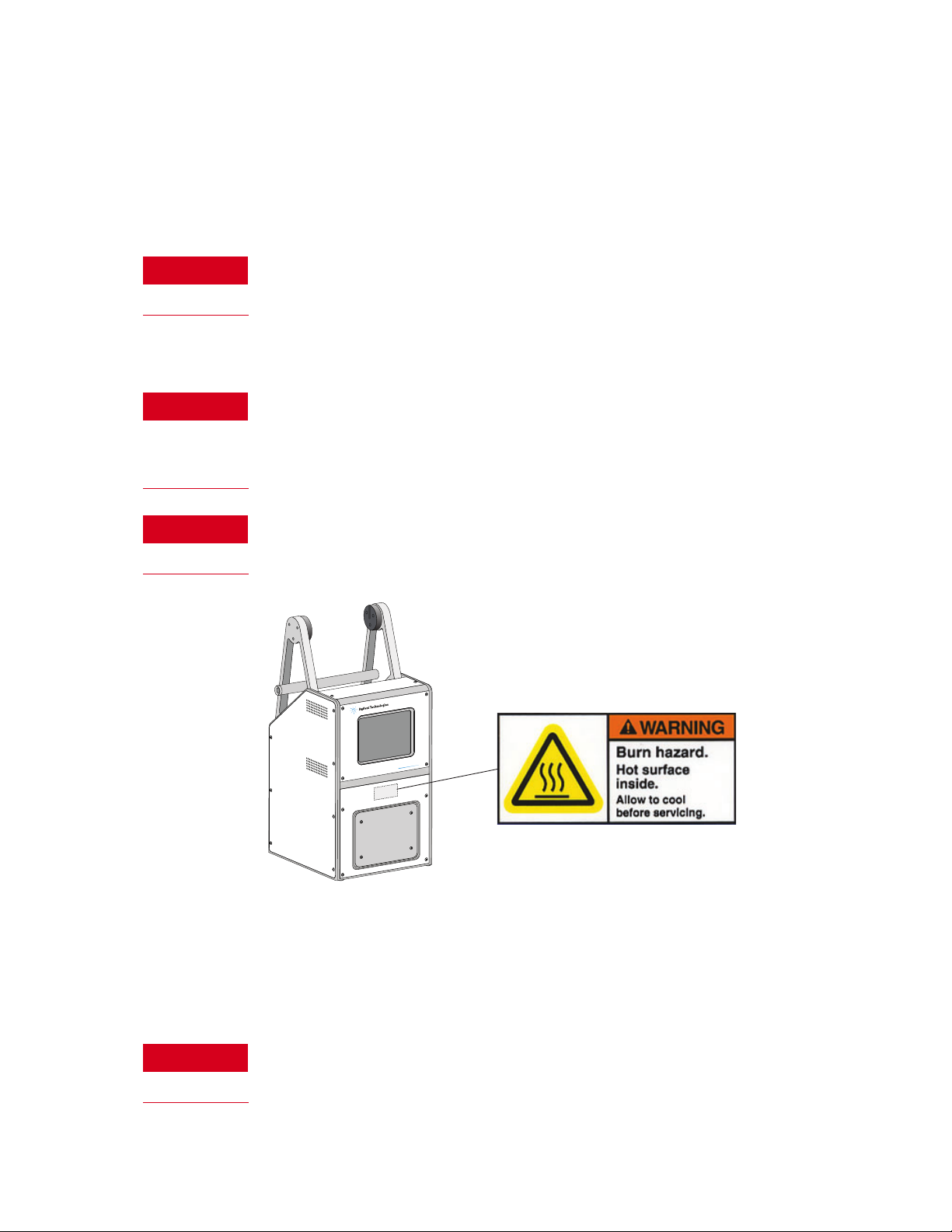

High-temperature hazard

WARNING

The hot surfaces in the PlateLoc Sealer can cause a burn injury. Do not touch the

PlateLoc Sealer or pry open the door while it is in operation. Use care when

accessing the PlateLoc Sealer interior after the device is warmed up. Do not reach

into the PlateLoc Sealer when it is warmed up to a high temperature. Do not touch

the hot plate with your bare hands.

WARNING

A freshly sealed microplate might still be hot from the sealing process. To prevent

potential injury, use caution when removing a sealed microplate from the PlateLoc

Sealer.

Moving-parts hazards

The PlateLoc Sealer contains moving parts that can cause injury. Under normal

operating conditions, the PlateLoc Sealer is designed to protect you from the moving

parts. The door sensor is designed so that the seal cycle cannot start unless the door is

closed.

WARNING

Do not disable the door sensor or attempt to access the interior of the device through

any other openings. Exposure to the moving parts, such as the heated metal plate

(hot plate) or the seal-cutting blade can cause severe injuries.

PlateLoc

Getting started

4G5585B PlateLocThermal Microplate Sealer Quick Guide

Gas hazards

WARNING

Working with open, charged air lines can result in injury. Turn off the compressed air

line when disconnecting or reconnecting the PlateLoc Sealer. Contact your facilities

department or Agilent Technical Support with questions about setting up the air line.

WARNING

Gas-Purging PlateLoc only. Argon is an odorless, colorless, and nontoxic gas that

can cause rapid suffocation by displacing air. Use the Gas-Purging PlateLoc only in a

well-ventilated lab area. Turn off the argon gas source when the product is not in use.

Getting started

Turning on and turning off the power

Before turning on the PlateLoc Sealer, make sure:

•The lab requirements are met.

•You have properly installed the PlateLoc Sealer.

•You are trained in the proper operation of the PlateLoc Sealer.

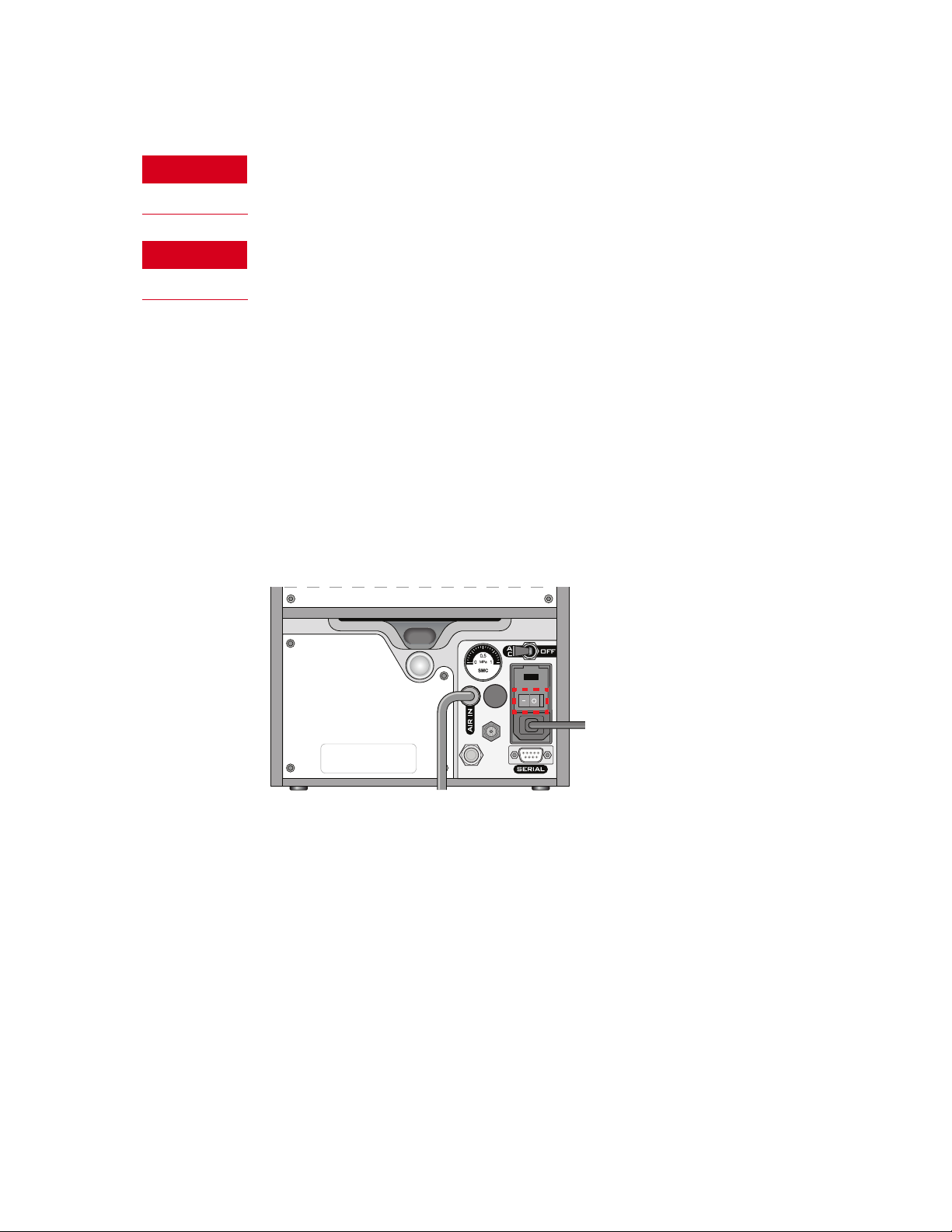

The on/off switch is on the back of the PlateLoc Sealer.

To turn on the PlateLoc Sealer:

Press the on/off switch to the on position (I).

If you have not yet turned on the air, the touchscreen displays the Insufficient Air

Pressure error message. See “Turning on and turning off the air” on page 5. If you have

not yet connected the air supply to the PlateLoc Sealer, see the PlateLoc Thermal

Microplate Sealer User Guide.

To turn off the PlateLoc Sealer:

Press the on/off switch to the off position (o). The touchscreen turns off.

00191

PlateLoc

connections

00191

PlateLoc

connections

Lower gripper to load seal

Getting started

G5585B PlateLocThermal Microplate Sealer Quick Guide

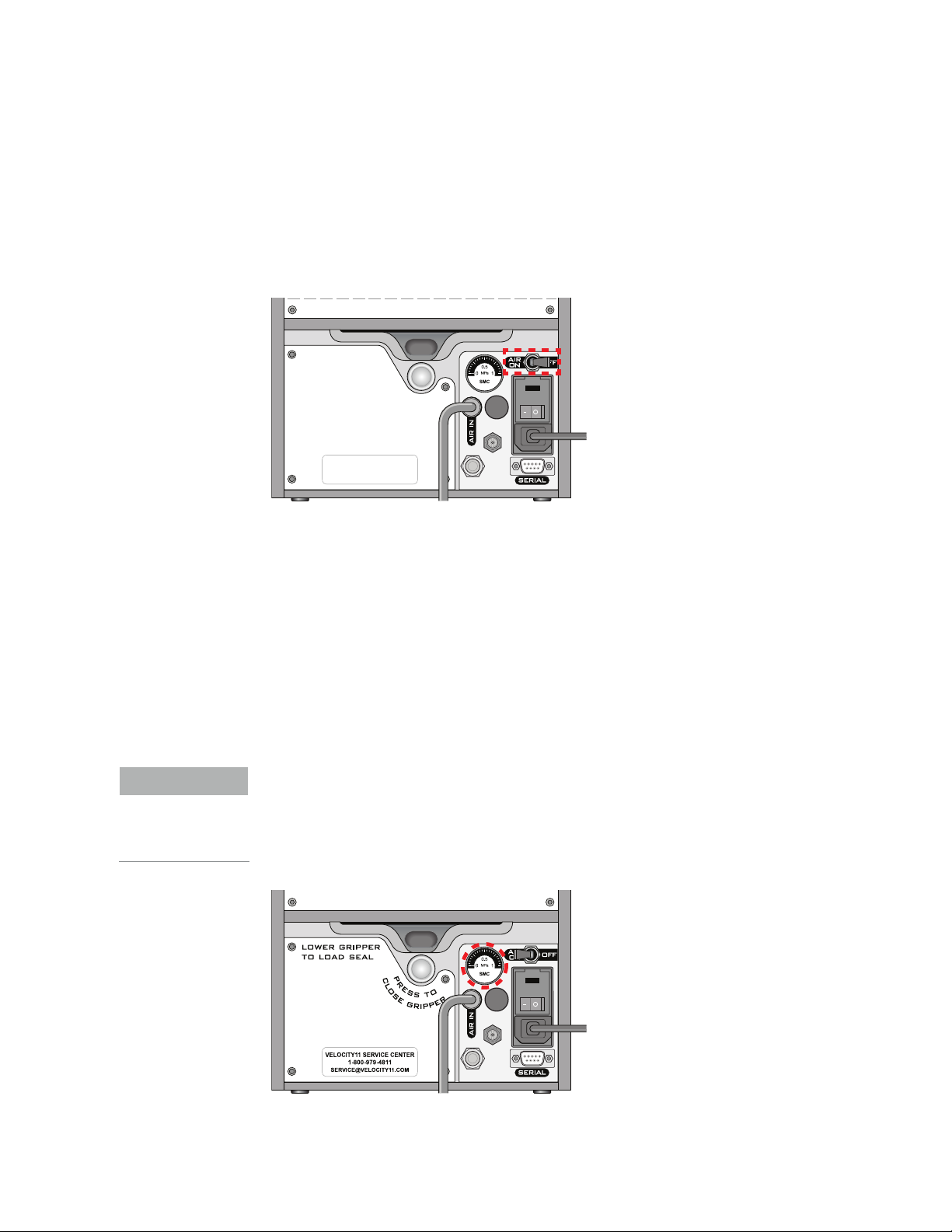

Turning on and turning off the air

Before turning on the air, make sure:

•You have properly installed the PlateLoc Sealer.

•The air is turned on at the source (house, cylinder, or pump) and the air pressure

and flow rate meet the PlateLoc Sealer requirements.

•The PlateLoc Sealer is turned on.

The AIR ON/OFF switch is on the back of the PlateLoc Sealer.

To turn on the air:

Push the AIR ON/OFF switch to the ON position.

When you turn on the air, the PlateLoc Sealer door opens. If this is the first time you are

turning on the air, you must remove the packing foam inside the sealing chamber

before you can use the device.

To check that air is flowing into the device:

Check the pressure gauge on the back of the PlateLoc Sealer. If air is flowing into the

device, the gauge should show a non-zero pressure value.

If the gauge shows 0 psi, check the air tubing connections and the connections at the

source (house, cylinder, or pump).

IMPORTANT

The pressure reading on the back of the PlateLoc Sealer might be different from the

value shown on the touchscreen. The pressure gauge on the back of the PlateLoc

Sealer should be used to determine the presence of air flow only. To check the air

pressure inside of the device, view the air pressure information displayed on the

touchscreen.

00191

PlateLoc

connections

00191

PlateLoc

connections

Lower gripper to load seal

00191

PlateLoc

connections

00191

PlateLoc

connections

Getting started

6G5585B PlateLocThermal Microplate Sealer Quick Guide

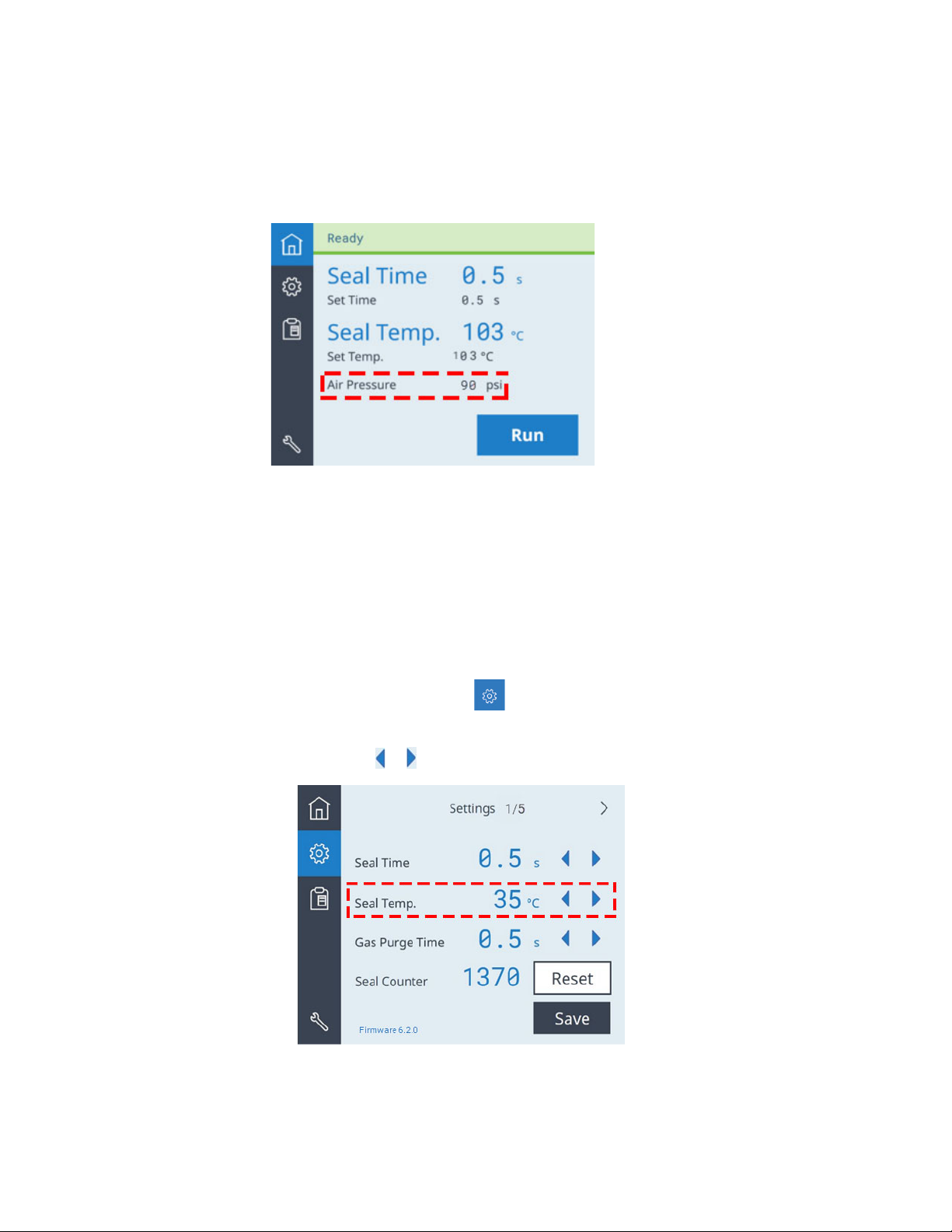

Checking the internal air pressure

To check the internal air pressure:

On the touchscreen Home page, locate the Air Pressure readout. The regulated air

pressure should be approximately 0.599–0.62 MPa (87–90 psi).

To turn off the air:

Push the AIR ON/OFF switch to the OFF position.

Loading and unloading a roll of seal

Make sure you have the supplied seal-loading card.

To warm up or cool down the PlateLoc Sealer:

1On the touchscreen, press to display the Settings pages.

2Set the Seal Temp to a value from 30 to 40 °C.

Note: Press or to adjust the value down or up in 0.5 °C increments.

3Press Save to save the new Seal Temp value.

Getting started

G5585B PlateLocThermal Microplate Sealer Quick Guide

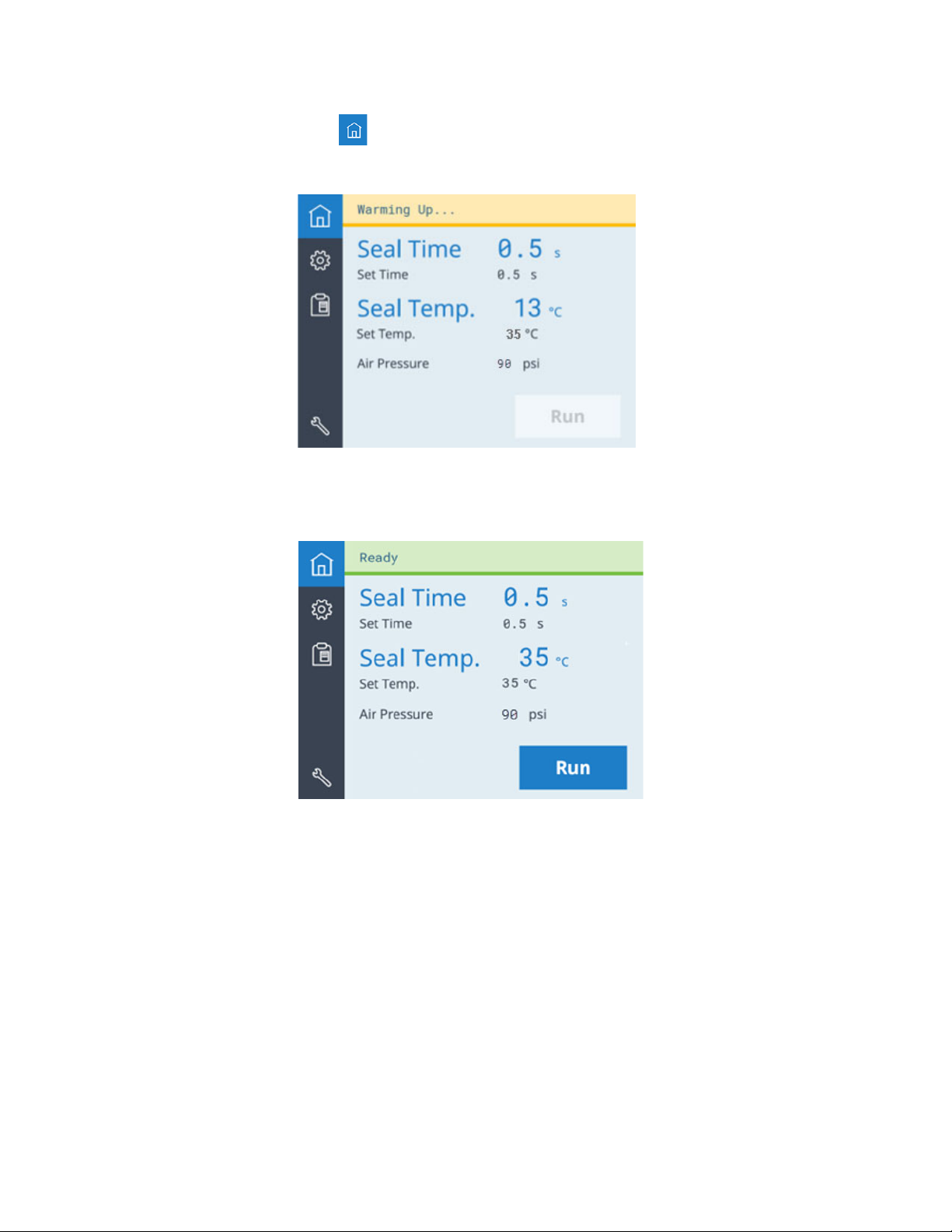

4Press to return to the Home page. A status message appears at the top of the

page, indicating that the PlateLoc Sealer is warming up or cooling down to the new

set temperature.

5Wait for the PlateLoc Sealer to warm up or cool down to the set temperature.

The Home page displays the Ready message and the Run button is available when

the temperature is within the set range.

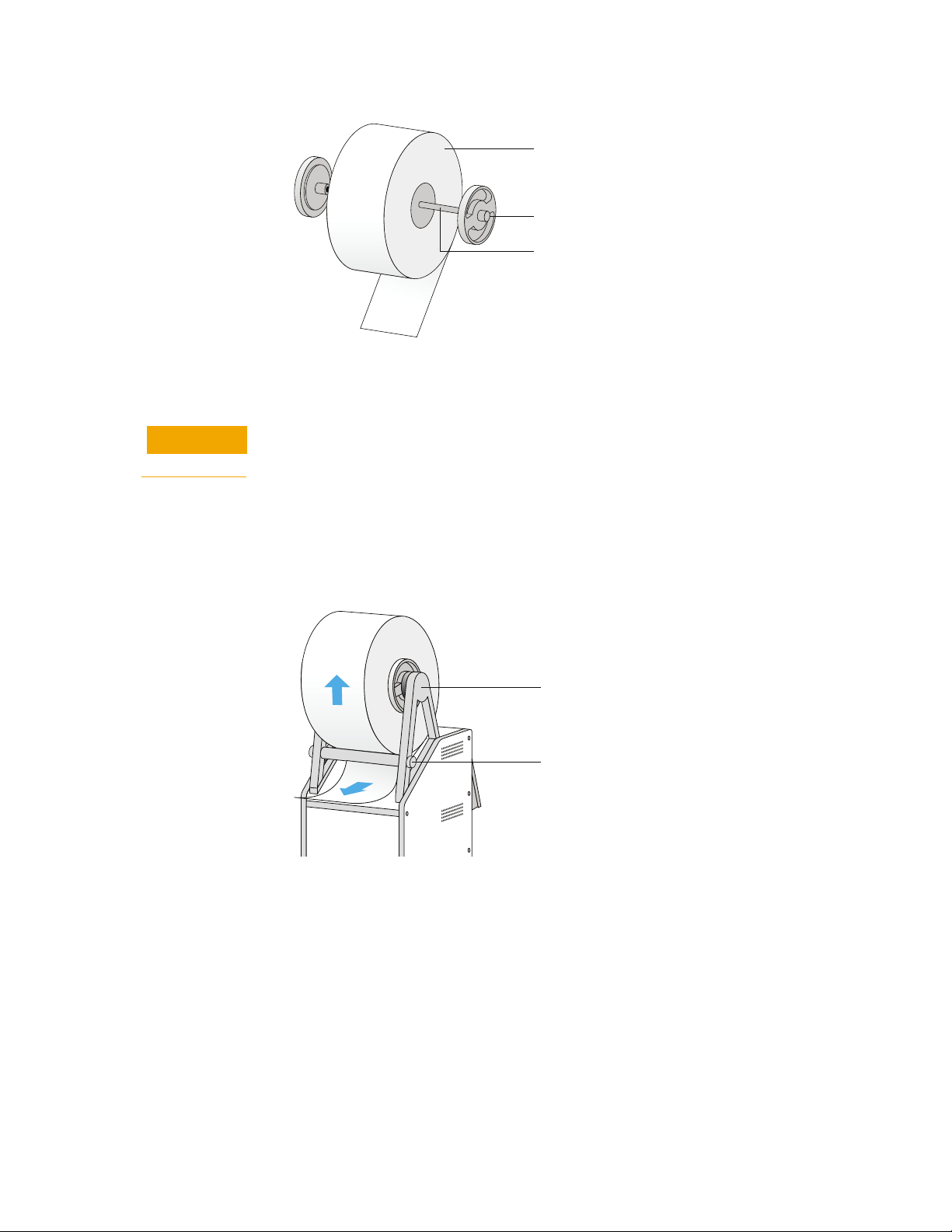

To assemble a roll of seal on the axle and hubs:

1Remove the seal roll (1), seal-roll hubs (2), and axle (3) from their packaging. See the

following figure.

2Screw one of the hubs onto the axle.

3Place the axle through the hole at the center of the seal roll. Make sure the hub fits

snugly against the roll.

4Screw the second hub onto the axle so that the roll is firmly secured between both

hubs.

Getting started

8G5585B PlateLocThermal Microplate Sealer Quick Guide

5Using scissors, cut off any wrinkled or torn material from the end of the seal so that

the end of the seal has a clean, straight edge.

CAUTION

The PlateLoc Sealer will not seal microplates properly if the seal is wrinkled or torn.

To mount the seal roll on the seal-roll supports:

1Orient the roll, and set the assembled seal roll onto the seal-roll supports (1) as

shown in the following figure. Notice that the end of the seal material rolls out from

under the roll.

2Pull the seal from under the cross-beam (2), as the following figure shows.

To insert the seal into the PlateLoc Sealer:

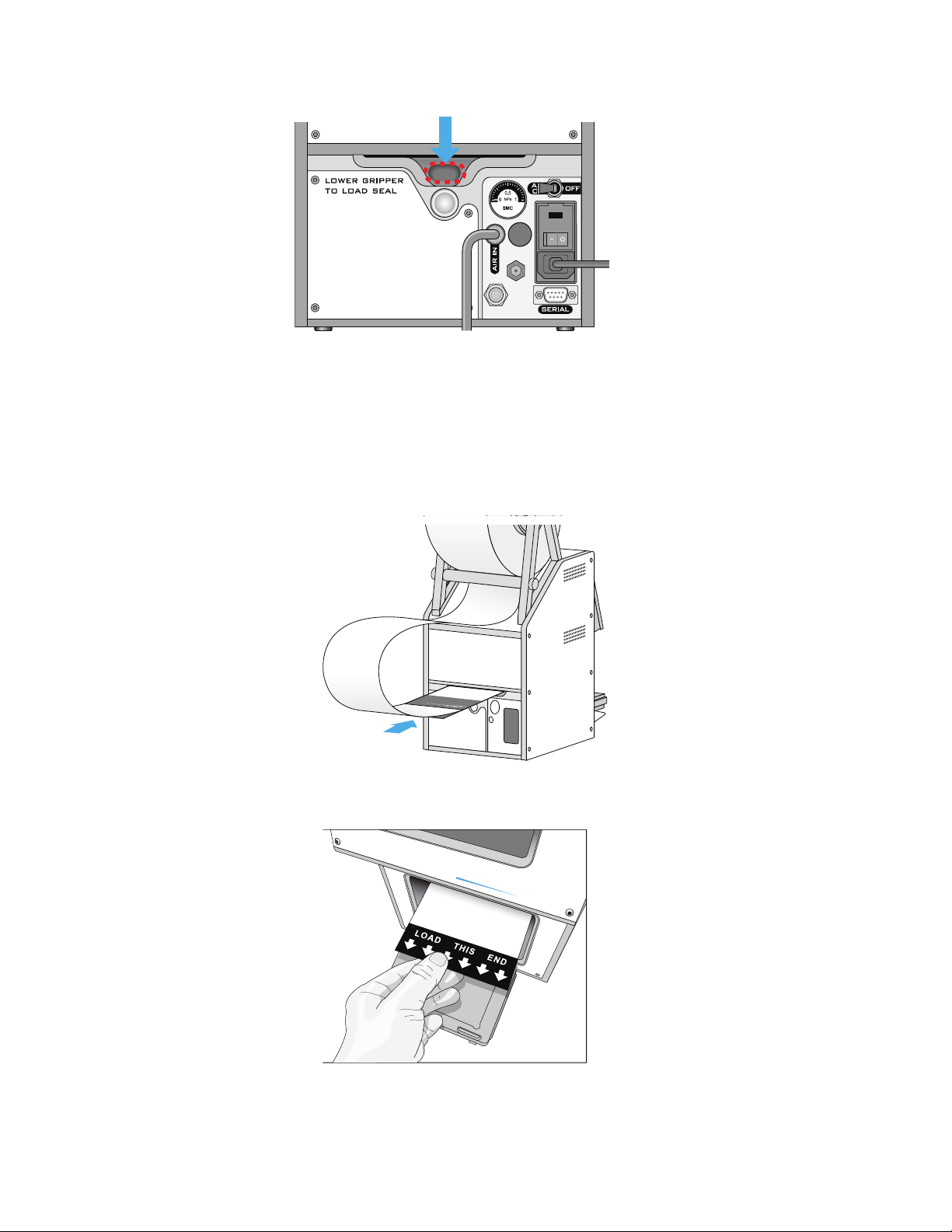

1On the back of the PlateLoc Sealer, push down the red recessed open-gripper

button until it clicks.

Pressing the button opens the seal gripper inside the device.

00195

PlateLoc

seal roll

Getting started

G5585B PlateLocThermal Microplate Sealer Quick Guide

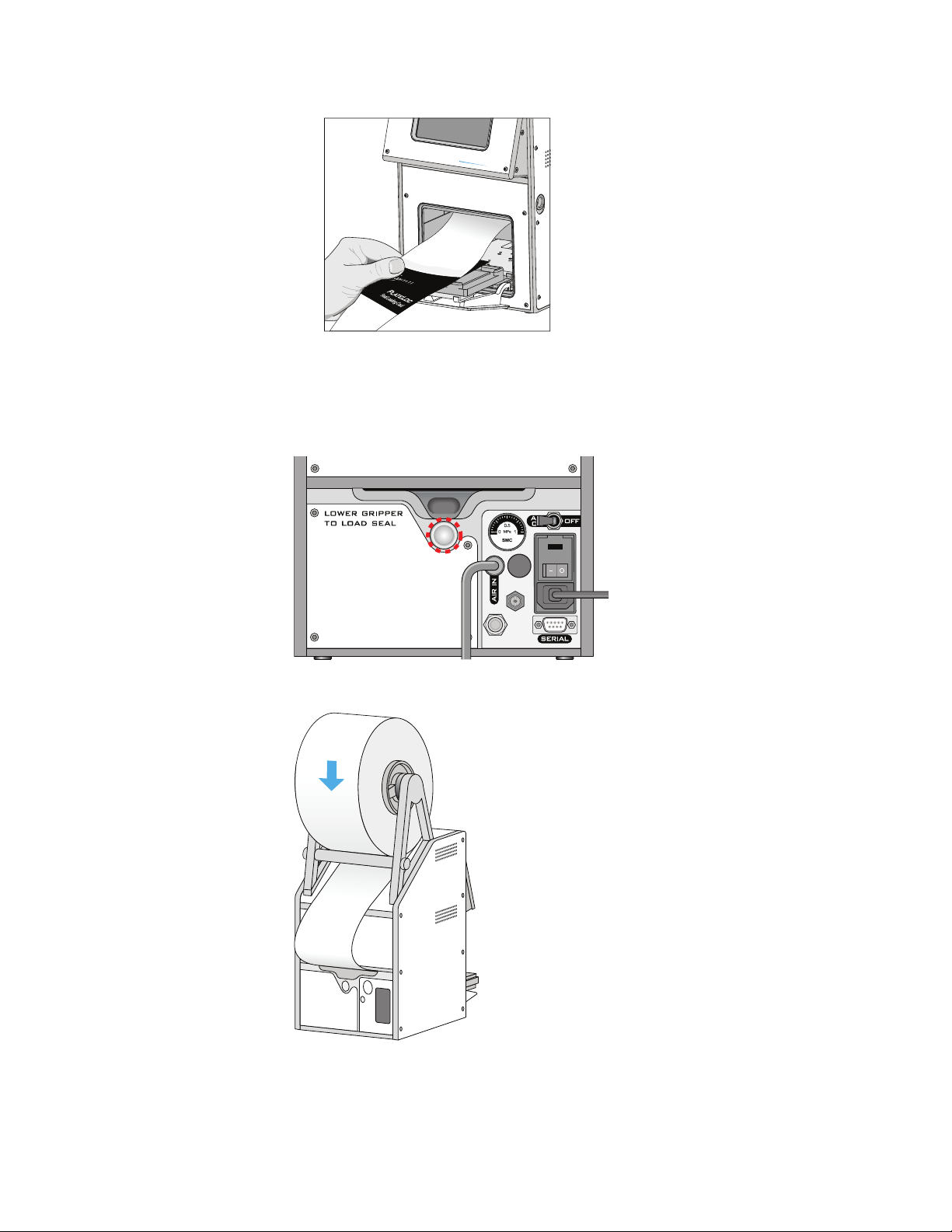

2Remove the strip of paper that covers the adhesive on the end of the seal-loading

card.

3Follow the instructions on the card to:

aAttach the end of the seal to the card.

bInsert the card into the seal entry slot on the back of the PlateLoc Sealer.

cPush the card into the PlateLoc Sealer until it protrudes beyond the chamber

doorway at the front of the device.

dPull the card through the PlateLoc Sealer so that the end of the seal is past the

plate stage.

00191

PlateLoc

connections

00191

PlateLoc

connections

00203

PlateLoc

remove loading card

PlateLoc

Getting started

10 G5585B PlateLocThermal Microplate Sealer Quick Guide

4While maintaining the alignment of the seal with the plate stage, press the silver

close-gripper button on the back of the PlateLoc Sealer until it clicks. The red open-

gripper button pops back up.

Pressing the silver button closes the gripper and holds the seal in place inside the

device.

5Turn the seal roll to remove excess slack in the seal.

6Load a plate stage on the plate-stage support.

7Load a spare microplate on the plate stage.

00210

PlateLoc

Loading card removal

PlateLoc

00191

PlateLoc

connections

00191

PlateLoc

connections

00193

Altri manuali per PlateLoc

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Agilent Technologies Attrezzature da laboratorio

Agilent Technologies

Agilent Technologies AriaMx Manuale di istruzioni

Agilent Technologies

Agilent Technologies QuickSwap G3185B Manuale

Agilent Technologies

Agilent Technologies BenchCel Microplate Handler Manuale utente

Agilent Technologies

Agilent Technologies 8890 Foglio di istruzioni

Agilent Technologies

Agilent Technologies agilent 7683B Istruzioni per l'installazione e il funzionamento

Agilent Technologies

Agilent Technologies Agilent 7700 Series ICP-MS Istruzioni operative

Agilent Technologies

Agilent Technologies Magnis NGS Prep System Manuale utente

Agilent Technologies

Agilent Technologies IMG-500 Manuale utente

Agilent Technologies

Agilent Technologies 6890N Istruzioni operative

Agilent Technologies

Agilent Technologies 1290 infinity Manuale utente

Agilent Technologies

Agilent Technologies AssayMAP Bravo Platform Manuale utente

Agilent Technologies

Agilent Technologies E5850A Manuale utente

Agilent Technologies

Agilent Technologies 1100 Series Manuale utente

Agilent Technologies

Agilent Technologies 1200 series Manuale utente

Agilent Technologies

Agilent Technologies G1960-60470 Manuale utente

Agilent Technologies

Agilent Technologies 1260 Infinity II Manuale utente

Agilent Technologies

Agilent Technologies N2727A Manuale utente

Agilent Technologies

Agilent Technologies 5110 ICP-OES Manuale utente

Agilent Technologies

Agilent Technologies 7890B Manuale utente

Agilent Technologies

Agilent Technologies ZORBAX Series Manuale utente

Agilent Technologies

Agilent Technologies 1290 infinity Manuale utente

Agilent Technologies

Agilent Technologies Bravo Platform Manuale utente

Agilent Technologies

Agilent Technologies 8890 Manuale utente

Agilent Technologies

Agilent Technologies PSG Series Manuale utente

Manuali Attrezzature da laboratorio popolari di altre marche

Qiagen

Qiagen DML 3000 Manuale utente

Queensgate

Queensgate NANOSCAN OP400 Manuale di programmazione

Conviron

Conviron GEN1000-GE Manuale utente

Parr Instrument

Parr Instrument 4560 Manuale di istruzioni

IKA

IKA IC control Manuale utente

Integra

Integra DOSE IT Manuale utente

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuale utente

NI PXI-5422 Manuale

Collomix

Collomix Aqix Manuale utente

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuale utente

Ocean Insight

Ocean Insight FLAME-NIR+ Manuale utente

Parker

Parker ALIGN-MG-NA Manuale utente

BD 644787 Manuale utente

DENTAURUM

DENTAURUM Compact Megaplus Manuale utente

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuale utente

VWR

VWR SAS Super IAQ Manuale utente

illumina

illumina MiSeqDx Manuale utente

Yamato

Yamato BM510 Manuale utente
