Agilent Technologies 4418B Manuale utente

Agilent Technologies

Agilent

E4418B Power Meter

Service Guide

REPRODUCTION AND DISTRIBUTION OF THIS

TECHNICAL MANUAL IS AUTHORIZED FOR

GOVERNMENT PURPOSES.

_________________________________________________________________

Power Meter Service Guide

This Power Meter Service Guide for the Agilent Technologies Model E4418B Power

Meter being delivered under U.S. Navy Contract Number N00104-07-R-DC15 has been

modified to comply with the requirements of that contract.

Manual Part Number E4418-90064

August 2007

REPRODUCTION AND DISTRIBUTION

OF THIS TECHNICAL MANUAL IS

AUTHORIZED FOR GOVERNMENT

PURPOSES.

See the Service Guide For Safety

Information, Warranties, and Regulatory

information.

©Copyright Agilent Technologies 2007

AGILENT TECHNOLOGIES INC

DIVISION TMO CUSTOMER BUSINESS CENTER

9780 S MERIDIAN BLVD

ENGLEWOOD CO 80112 –5910

Agilent Technologies E4418B

Power Meter

Legal Information

Agilent E4418B/E4419B Service Guide iii

Legal Information

Notice

Information contained in this document is subject to change without notice. Agilent

Technologies makes no warranty of any kind with regard to this material, including,

but not limited to, the implied warranties of merchantability and fitness for a

particular purpose. Agilent Technologies shall not be liable for errors contained

herein or for incidental or consequential damages in connection with the furnishings,

performance, or use of this material. No part of this document may be photocopied,

reproduced, or translated to another language without the prior written consent of

Agilent Technologies.

Certification

Agilent Technologies certifies that this product met its published specifications at the

time of shipment from the factory. Agilent Technologies further certifies that its

calibration measurements are traceable to the United States National Institute of

Standards and Technology, to the extent allowed by the Institute’s calibration facility,

and to the calibration facilities of other International Standards Organization

members.

This manual may contain references to HP or Hewlett-Packard. Please note that 

Hewlett-Packard's former test and measurement, semiconductor products and 

chemical analysis businesses are now part of Agilent Technologies. To reduce 

potential confusion, the only change to product numbers and names has been in the 

company name prefix: where a product number/name was HP XXXX the current 

name/number is now Agilent XXXX. For example, model number HP8648 is now 

model number Agilent 8648.

Errata

Legal Information

iv Agilent E4418B/E4419B Service Guide

Limitation of Warranty

The foregoing warranty shall not apply to defects resulting from improper or

inadequate maintenance by Buyer, Buyer-supplied software or interfacing,

unauthorized modification or misuse, operation outside of the environmental

specifications for the product, or improper site preparation or maintenance. NO

OTHER WARRANTY IS EXPRESSED OR IMPLIED. AGILENT

TECHNOLOGIES SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusive Remedies

THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND EXCLUSIVE

REMEDIES. AGILENT SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER

BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.

Equipment Operation

Agilent E4418B/E4419B Service Guide v

Equipment Operation

Warnings and Cautions

This guide uses warnings and cautions to denote hazards.

WARNING A warning calls attention to a procedure, practice or the like, which, if

not correctly performed or adhered to, could result in injury or the loss

of life. Do not proceed beyond a warning until the indicated conditions

are fully understood and met.

Caution A caution calls attention to a procedure, practice or the like which, if not

correctly performed or adhered to, could result in damage to or the

destruction of part or all of the equipment. Do not proceed beyond a caution

until the indicated conditions are fully understood and met.

Personal Safety Considerations

WARNING This is a Safety Class I product (provided with a protective earthing

ground incorporated in the power cord). The mains plug shall only be

inserted in a socket outlet provided with a protective earth contact. Any

interruption of the protective conductor, inside or outside the

instrument, is likely to make the instrument dangerous. Intentional

interruption is prohibited.

If this instrument is not used as specified, the protection provided by the

equipment could be impaired. This instrument must be used in a normal

condition (in which all means of protection are intact) only.

No operator serviceable parts inside. Refer servicing to qualified

personnel. To prevent electrical shock, do not remove covers.

For continued protection against fire hazard, replace the line fuse(s)

only with fuses of the same type and rating (for example, normal blow,

time delay, etc.). The use of other fuses or material is prohibited.

Equipment Operation

vi Agilent E4418B/E4419B Service Guide

General Safety Considerations

WARNING Before this instrument is switched on, make sure it has been properly

grounded through the protective conductor of the ac power cable to a

socket outlet provided with protective earth contact.

Any interruption of the protective (grounding) conductor, inside or

outside the instrument, or disconnection of the protective earth terminal

can result in personal injury.

Caution Any adjustments or service procedures that require operation of the

instrument with protective covers removed should be performed only by

trained service personnel.

Markings

The CE mark shows that the product complies with all the

relevant European legal Directives (if accompanied by a

year, it signifies when the design was proven.

This is the symbol of an Industrial Scientific and Medical

Group 1 Class A product.

The CSA mark is a registered trademark of the Canadian

Standards Association.

External Protective Earth Terminal.

While this is a Class I product, provided with a protective

earthing conductor in a power cord, an external protective

earthing terminal has also been provided. This terminal is for

use where the earthing cannot be assured. At least an 18AWG

earthing conductor should be used in such an instance, to

ground the instrument to an assured earth terminal.

ISM

Group 1

Class A

Equipment Operation

Agilent E4418B/E4419B Service Guide vii

IEC 1010-1 Compliance

This instrument has been designed and tested in accordance with IEC Publication

1010-1 +A1:1992 Safety Requirements for Electrical Equipment for Measurement,

Control and Laboratory Use and has been supplied ina safe condition. The instruction

documentation contains information and warnings which must be followed by the

user to ensure safe operation and to maintain the instrument in a safe condition.

Statement of Compliance

This product has been designed and tested for compliance with IEC 60529 (1989)

Degrees of Protection Provided by Enclosures (IP Code). Level IPx4 is attained if,

and only if, the carry case (Agilent part number 34141A) is fitted.

User Environment

This product is designed for use in a sheltered environment (avoiding extreme

weather conditions) in accordance with Pollution Degree 3 defined in IEC 60664-1,

with the carry case (Agilent part number 34141A) fitted over the instrument.

The product is suitable for indoor use only, when this carry case is not fitted.

Installation Instructions

To avoid unnecessary over-temperature conditions, while this carry case is fitted do

not apply an ac mains supply voltage, only operate your power meter from the battery

pack.

List of Related Publications

viii Agilent E4418B/E4419B Service Guide

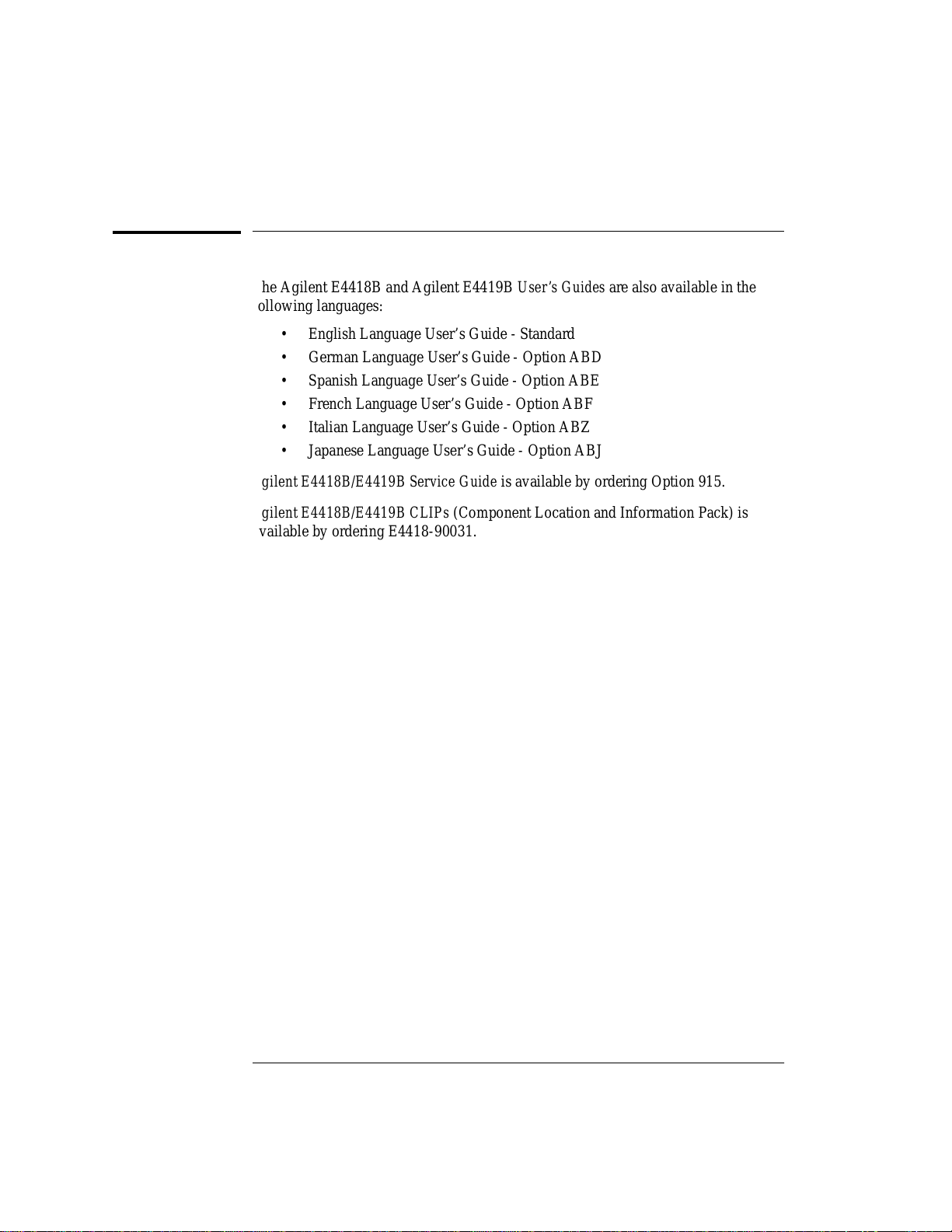

List of Related Publications

The Agilent E4418B and Agilent E4419B User’s Guides are also available in the

following languages:

• English Language User’s Guide - Standard

• German Language User’s Guide - Option ABD

• Spanish Language User’s Guide - Option ABE

• French Language User’s Guide - Option ABF

• Italian Language User’s Guide - Option ABZ

• Japanese Language User’s Guide - Option ABJ

Agilent E4418B/E4419B Service Guide is available by ordering Option 915.

Agilent E4418B/E4419B CLIPs (Component Location and Information Pack) is

available by ordering E4418-90031.

Agilent E4418B/E4419B User's Guide E4418-90065

Agilent E4418B/E4419B Programming Guide E4418-90066

Agilent E4418B Component Level Information Package E4418-90031

Agilent E4418B Documentation CD E4418-90063
