Agilent Technologies 2000 X-Series Manuale utente

Agilent InfiniiVision

2000 X-Series

Oscilloscopes

User's Guide

2 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide

Notices

No part of this manual may be reproduced in

any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Agilent

Technologies, Inc. as governed by United

States and international copyright laws.

Manual Part Number

75015-97045

Edition

Sixth edition, April 2013

Printed in Malaysia

Agilent Technologies, Inc.

1900 Garden of the Gods Road

Colorado Springs, CO 80907 USA

Warranty

The material contained in this docu-

ment is provided “as is,” and is sub-

ject to being changed, without notice,

in future editions. Further, to the max-

imum extent permitted by applicable

law, Agilent disclaims all warranties,

either express or implied, with regard

to this manual and any information

contained herein, including but not

limited to the implied warranties of

merchantability and fitness for a par-

ticular purpose. Agilent shall not be

liable for errors or for incidental or

consequential damages in connec-

tion with the furnishing, use, or per-

formance of this document or of any

information contained herein. Should

Agilent and the user have a separate

written agreement with warranty

terms covering the material in this

document that conflict with these

terms, the warranty terms in the sep-

arate agreement shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of a

U.S. Government prime contract or subcon-

tract, Software is delivered and licensed as

“Commercial computer software” as

defined in DFAR 252.227-7014 (June 1995),

or as a “commercial item” as defined in FAR

2.101(a) or as “Restricted computer soft-

ware” as defined in FAR 52.227-19 (June

1987) or any equivalent agency regulation or

contract clause. Use, duplication or disclo-

sure of Software is subject to Agilent Tech-

nologies’ standard commercial license

terms, and non-DOD Departments and

Agencies of the U.S. Government will

receive no greater than Restricted Rights as

defined in FAR 52.227-19(c)(1-2) (June

1987). U.S. Government users will receive

no greater than Limited Rights as defined in

FAR 52.227-14 (June 1987) or DFAR

252.227-7015 (b)(2) (November 1995), as

applicable in any technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a haz-

ard. It calls attention to an operat-

ing procedure, practice, or the like

that, if not correctly performed or

adhered to, could result in damage

to the product or loss of important

data. Do not proceed beyond a

CAUTION notice until the indicated

conditions are fully understood and

met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could result

in personal injury or death. Do not

proceed beyond a WARNING

notice until the indicated condi-

tions are fully understood and

met.

Print History

75015-97000, January 2011

75015-97011, February 2011

75015-97012, June 2011

75015-97023, March 2012

75015-97034, July 2012

75015-97045, April 2013

Trademarks

Java is a U.S. trademark of Sun Microsys-

tems, Inc.

Sun, Sun Microsystems, and the Sun Logo

are trademarks or registered trademarks of

Sun Microsystems, Inc. in the U.S. and other

countries.

Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide 3

InfiniiVision 2000 X-Series Oscilloscopes—At a Glance

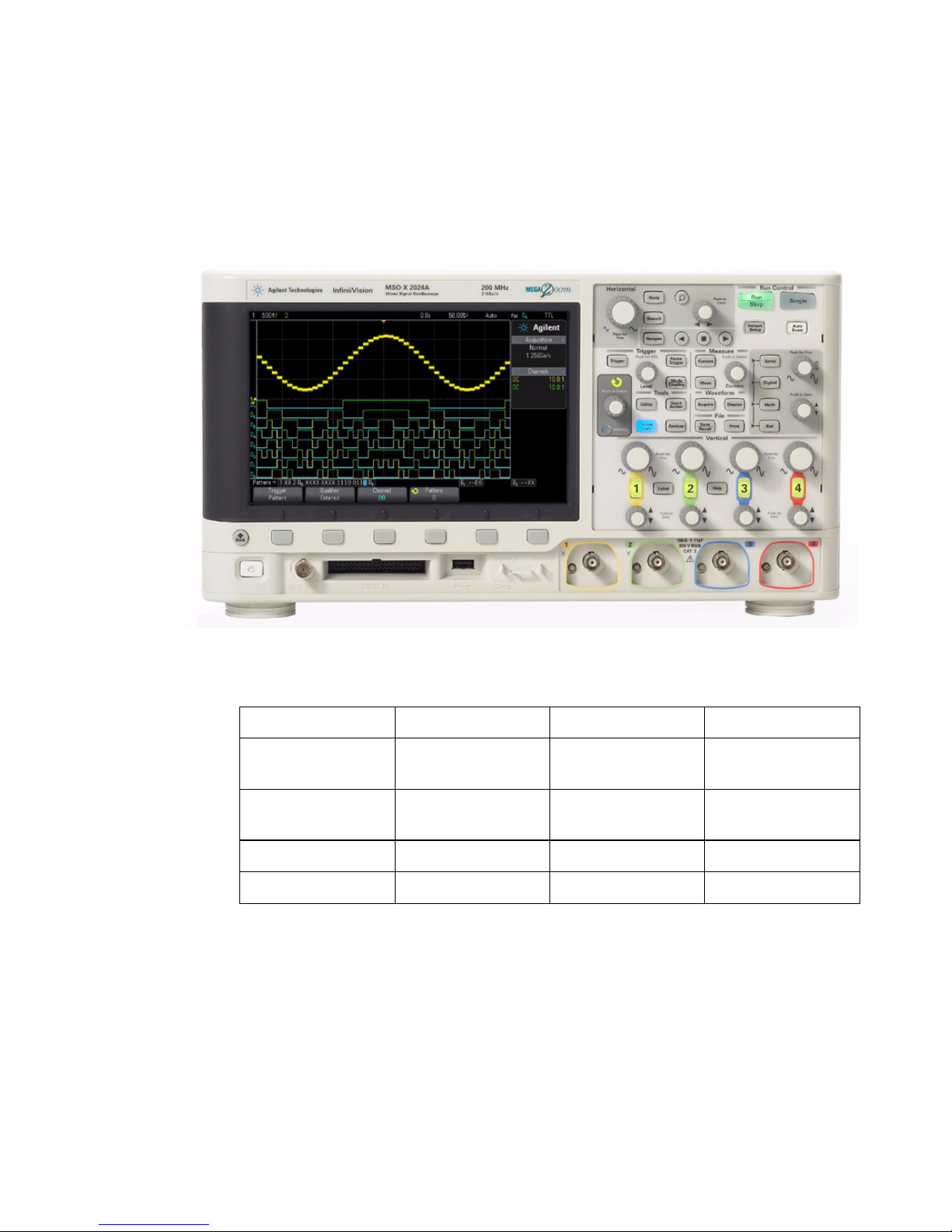

The Agilent InfiniiVision 2000 X- Series oscilloscopes deliver these features:

• 70 MHz, 100 MHz, and 200 MHz bandwidth models.

• 2- and 4- channel digital storage oscilloscope (DSO) models.

• 2+8- channel and 4+8-channel mixed- signal oscilloscope (MSO) models.

Table 1 2000 X-Series Model Numbers, Bandwidths

Bandwidth 70MHz 100MHz 200MHz

2-Channel + 8 Logic

Channels MSO

MSO-X 2002A MSO-X 2012A MSO-X 2022A

4-Channel + 8 Logic

Channels MSO

MSO-X 2004A MSO-X 2014A MSO-X 2024A

2-Channel DSO DSO-X 2002A DSO-X 2012A DSO-X 2022A

4-Channel DSO DSO-X 2004A DSO-X 2014A DSO-X 2024A

4 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide

An MSO lets you debug your mixed- signal designs using analog signals

and tightly correlated digital signals simultaneously. The 8 digital

channels have a 1 GSa/s sample rate, with a 50 MHz toggle rate.

•8.5inchWVGAdisplay.

• Interleaved 2 GSa/s or non- interleaved 1 GSa/s sample rate.

• 100 Kpts per channel MegaZoom IV acquisition memory for the fastest

waveform update rates, uncompromised. Upgradeable to 1 Mpts per

channel.

• All knobs are pushable for making quick selections.

• Trigger types: edge, pulse width, pattern, and video.

• Serial decode/trigger options for: CAN/LIN, I2C/SPI, and UART/RS232.

There is a Lister for displaying serial decode packets.

Digital channels and serial decode cannot be on at the same time. The

[Serial] key takes precedence over the [Digital] key. Serial triggers can be

used when digital channels are on.

• Math waveforms: add, subtract, multiply, and FFT.

• Reference waveforms (2) for comparing with other channel or math

waveforms.

• Many built- in measurements.

• Built- in license- enabled waveform generator with: sine, square, ramp,

pulse, DC, noise.

• USB ports make printing, saving and sharing data easy.

• Optional LAN/VGA module for connecting to a network and displaying

the screen on a different monitor.

• Optional GPIB module.

• A Quick Help system is built into the oscilloscope. Press and hold any

key to display Quick Help. Complete instructions for using the quick

help system are given in “Access the Built-In Quick Help" on page 42.

For more information about InfiniiVision oscilloscopes, see:

"www.agilent.com/find/scope"

Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide 5

In This Guide

This guide shows how to use the InfiniiVision 2000 X-Series oscilloscopes.

When unpacking and using the

oscilloscope for the first time, see:

•Chapter 1, “Getting Started,” starting on page 21

When displaying waveforms and

acquired data, see:

•Chapter 2, “Horizontal Controls,” starting on page 45

•Chapter 3, “Vertical Controls,” starting on page 59

•Chapter 4, “Math Waveforms,” starting on page 67

•Chapter 5, “Reference Waveforms,” starting on page

•Chapter 6, “Digital Channels,” starting on page 85

•Chapter 7, “Serial Decode,” starting on page 105

•Chapter 8, “Display Settings,” starting on page 111

•Chapter 9, “Labels,” starting on page 117

When setting up triggers or changing

how data is acquired, see:

•Chapter 10, “Triggers,” starting on page 123

•Chapter 11, “Trigger Mode/Coupling,” starting on

page 145

•Chapter 12, “Acquisition Control,” starting on page 153

Making measurements and analyzing

data:

•Chapter 13, “Cursors,” starting on page 169

•Chapter 14, “Measurements,” starting on page 179

•Chapter 15, “Mask Testing,” starting on page 199

•Chapter 16, “Digital Voltmeter,” starting on page 211

When using the built-in waveform

generator, see:

•Chapter 17, “Waveform Generator,” starting on page

215

When saving, recalling, or printing,

see:

•Chapter 18, “Save/Recall (Setups, Screens, Data),”

starting on page 227

•Chapter 19, “Print (Screens),” starting on page 239

When using the oscilloscope's utility

functions or web interface, see:

•Chapter 20, “Utility Settings,” starting on page 245

•Chapter 21, “Web Interface,” starting on page 265

For reference information, see: •Chapter 22, “Reference,” starting on page 281

When using licensed serial bus

triggering and decode features, see:

•Chapter 23, “CAN/LIN Triggering and Serial Decode,”

starting on page 299

•Chapter 24, “I2C/SPI Triggering and Serial Decode,”

starting on page 315

•Chapter 25, “UART/RS232 Triggering and Serial

Decode,” starting on page 335

6 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide

TIP

Abbreviated instructions for pressing a series of keys and softkeys

Instructions for pressing a series of keys are written in an abbreviated manner. Instructions

for pressing [Key1], then pressing Softkey2, then pressing Softkey3 are abbreviated as

follows:

Press [Key1]> Softkey2 > Softkey3.

The keys may be a front panel [Key] or a Softkey. Softkeys are the six keys located directly

below the oscilloscope display.

Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide 7

Contents

InfiniiVision 2000 X-Series Oscilloscopes—At a Glance 3

In This Guide 5

1 Getting Started

Inspect the Package Contents 21

Install the Optional LAN/VGA or GPIB Module 24

Tilt the Oscilloscope for Easy Viewing 24

Power-On the Oscilloscope 25

Connect Probes to the Oscilloscope 26

Maximum input voltage at analog inputs 26

Do not float the oscilloscope chassis 26

Input a Waveform 27

Recall the Default Oscilloscope Setup 27

Use Auto Scale 28

Compensate Passive Probes 29

Learn the Front Panel Controls and Connectors 30

Front Panel Overlays for Different Languages 37

Learn the Rear Panel Connectors 39

Learn the Oscilloscope Display 41

Access the Built-In Quick Help 42

8 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide

2 Horizontal Controls

To adjust the horizontal (time/div) scale 46

To adjust the horizontal delay (position) 47

Panning and Zooming Single or Stopped Acquisitions 48

To change the horizontal time mode (Normal, XY, or Roll) 49

XY Time Mode 50

To display the zoomed time base 52

To change the horizontal scale knob's coarse/fine adjustment

setting 54

To position the time reference (left, center, right) 54

Searching for Events 55

To set up searches 55

Navigating the Time Base 56

To navigate time 56

To navigate search events 56

To navigate segments 57

3 Vertical Controls

To turn waveforms on or off (channel or math) 60

To adjust the vertical scale 61

To adjust the vertical position 61

To specify channel coupling 61

To specify bandwidth limiting 62

To change the vertical scale knob's coarse/fine adjustment

setting 62

To invert a waveform 63

Setting Analog Channel Probe Options 63

Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide 9

To specify the channel units 64

To specify the probe attenuation 64

To specify the probe skew 65

4MathWaveforms

To display math waveforms 67

To perform a transform function on an arithmetic operation 68

To adjust the math waveform scale and offset 69

Units for Math Waveforms 69

Math Operators 70

Add or Subtract 70

Multiply or Divide 71

Math Transforms 72

FFT Measurement 72

5 Reference Waveforms

To save a waveform to a reference waveform location 81

To display a reference waveform 82

To scale and position reference waveforms 83

To adjust reference waveform skew 83

To display reference waveform information 84

To save/recall reference waveform files to/from a USB storage

device 84

6 Digital Channels

To connect the digital probes to the device under test 86

Probe cable for digital channels 86

Acquiring waveforms using the digital channels 89

10 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide

To display digital channels using AutoScale 89

Interpreting the digital waveform display 90

To change the displayed size of the digital channels 91

To switch a single channel on or off 92

To switch all digital channels on or off 92

To switch groups of channels on or off 92

To change the logic threshold for digital channels 92

To reposition a digital channel 93

To display digital channels as a bus 94

Digital channel signal fidelity: Probe impedance and

grounding 97

Input Impedance 98

Probe Grounding 100

Best Probing Practices 102

To replace digital probe leads 102

7 Serial Decode

Serial Decode Options 105

Lister 106

Searching Lister Data 108

8 Display Settings

To adjust waveform intensity 111

To set or clear persistence 113

To clear the display 114

To select the grid type 114

To adjust the grid intensity 115

Altri manuali per 2000 X-Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Agilent Technologies Apparecchiature di prova

Agilent Technologies

Agilent Technologies 4072A Advanced Manuale utente

Agilent Technologies

Agilent Technologies 93000 SOC Series Guida all'installazione

Agilent Technologies

Agilent Technologies InfiniiVision 2000 X-Series Manuale

Agilent Technologies

Agilent Technologies InfiniiVision 6000 Series Manuale utente

Agilent Technologies

Agilent Technologies N9360A Manuale del proprietario

Agilent Technologies

Agilent Technologies e6601a Istruzioni per l'installazione e il funzionamento

Agilent Technologies

Agilent Technologies 1100 Series Manuale utente

Agilent Technologies

Agilent Technologies N4419B Manuale utente

Agilent Technologies

Agilent Technologies 54810A Manuale utente

Agilent Technologies

Agilent Technologies InfiniiVision 5000 Series Manuale utente

Agilent Technologies

Agilent Technologies E1852B Manuale utente

Agilent Technologies

Agilent Technologies 5530 Manuale utente

Agilent Technologies

Agilent Technologies 85056K Manuale utente

Agilent Technologies

Agilent Technologies Infiniium 90000 Q-Series Manuale utente

Agilent Technologies

Agilent Technologies InfiniiVision 7000A Series Manuale

Agilent Technologies

Agilent Technologies 85052B Manuale

Agilent Technologies

Agilent Technologies InfiniiVision 4000 X-Series Manuale utente

Agilent Technologies

Agilent Technologies N9360A Manuale utente

Agilent Technologies

Agilent Technologies 16047E Manuale operativo

Agilent Technologies

Agilent Technologies N9360A Manuale del proprietario

Agilent Technologies

Agilent Technologies InfiniiVision 6000 Series Manuale utente

Agilent Technologies

Agilent Technologies InfiniiVision 4000 X Series Manuale utente

Agilent Technologies

Agilent Technologies InfiniiVision 3000 X-Series Manuale

Agilent Technologies

Agilent Technologies 1142A Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente

Rohde & Schwarz

Rohde & Schwarz RTA4000 Manuale utente

Ritmix

Ritmix RAT-701 Manuale utente
