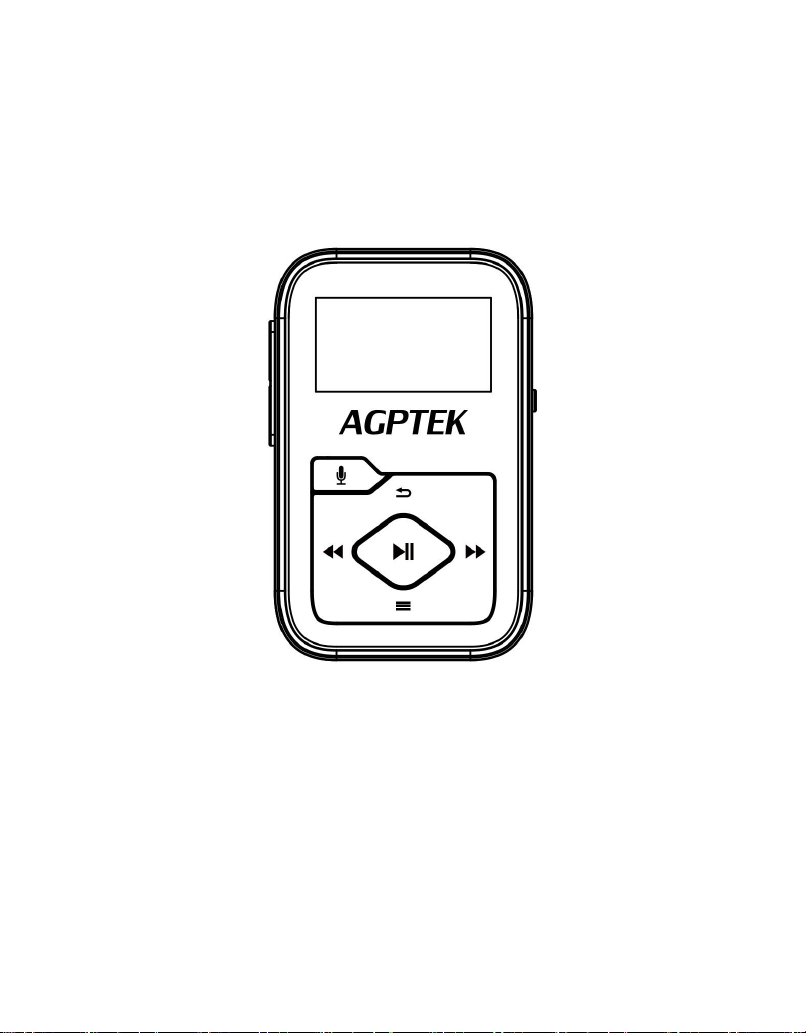

AGPtek B07 Manuale utente

AGPTEK

User Manual

B07 MUSIC PLAYER

English(01/11)

Deutsch(12/24)

Francais(25/37)

日本語(38/47)

CONTENT

English

Important Notice................................................................................... 1

Product Overview...................................................................................2

Main Functions...................................................................................... 3

Help and Troubleshooting.................................................................... 9

Specifications....................................................................................... 11

Deutsch

Wichtige Hinweise...............................................................................12

Produktübersicht..................................................................................13

Hauptfunktionen................................................................................. 14

Hilfe und Fehlerbehebung.................................................................. 22

Technische Daten.................................................................................24

Francais

Avis Important..................................................................................... 25

Présentation du Produit...................................................................... 26

Fonctions Principales........................................................................... 27

Aide et Dépannage..............................................................................34

Spécifications....................................................................................... 37

日本語

ご使用前に............................................................................................ 38

各部名前.............................................................................................. 39

主な機能...............................................................................................40

故障排除.............................................................................................. 45

仕様...................................................................................................... 47

Important Notice

Thank you for purchasing AGPTEK Music Player. Please

read the manual carefully before using the product.

Specifications are subject to change without prior

notice.

Charge the Player

• Charge by computer USB port.

• Use 5V/500mA charger (Charger not included).

Connect to the PC & Download audio files

1. Open the Windows Explorer or "This PC".

2. Using the USB cable, connect the player to a USB

port on your PC.

3. Open the new "AGP-B07" folder under "This PC".

4. Copy files to the "AGP-B07" in which you want

them to play.

5. In the left sidebar, right-click the "AGP-B07 " folder

and select "Eject" from the menu.

6. Wait until the computer confirms a safe ejection

before you unplug the USB cable.

7. Note: Please do not disconnect the USB plug

during file transferring. It may cause malfunction

of the player and the files.

Product Overview

Buttons and Controls

1. Vol+

2. Vol-

3. Card slot

4. USB interface

5. Earphone jack

6. Clip

7. Repeat all

8. Shuffle

9. Recordings

10.Previous/Fast backward

11.Up/Menu/Screen-lock

12.Next/Fast forward

13.Back

14.Enter/Play/Pause/Power on(off)

Basic Operation

•Power on/off. Hold the button to turn on/off

the player.

•Screen lock. Hold down the button to lock

screen and all the buttons will be unavailable.

Repeat the above steps to unlock.

•Screen Display. Press any button to activate screen.

•Browse item. On home menu or list menu, press

button / to browse item, press button to

enter.

• Back. When on any interface, press to go back;

hold down to back to home menu directly.

•Recordings. When on any interface, press the

button to access to Recordings, except on

Bluetooth interface.

•Play modes. Move the button to up to enter into

Repeat all ; Move the button to down to

access Shuffle . (Unavailable when playing

recordings, so it defaults to Repeat all .)

Main Functions

Home Menu

The home menu is the starting point of each

application. There are 7 functions on the home menu:

Music/Record/FM Radio/E-Book/Folder/Settings/

Bluetooth.

Music

Find the icon on home menu with button to

access to its function. A related list will show:

•Resume (Now playing).

•All songs.

•Artists/Albums/Genres.

•Playlists. There are 3 default playlists on the player:

Playlist[1]/[2]/[3].

•Update Playlists. Update music files.

•Local folder/Card folder. View music file in the local

folder or card folder. Note: These functions only

available when memory card inserted.

Play the music.

While it’s on music playing interface, hold down the

button to fast forward, press to skip to next track;

hold down the button to fast rewind, press to play

the previous track. Press button to play/pause.

Press the side buttons +/- to adjust volume.

Back mainmenu/Playback settings/Sound

settings/Add to playlist/Remove from

playlist/Delete/Bookmarks.

While it’s on music playing interface, tap button

to access to the submenu. Press button / to

select items or adjust value; press button to enter

or confirm.

1. Back mainmenu. Choose to go to home menu.

2. Playback settings.

A. “Play mode”. Choose repeat mode: Normal,

Repeat 1, Repeat all, Repeat folder.

B. “Shuffle”. Choose to turn on/off shuffle mode.

C. “Replay settings”. A-B repeat mode.

Replay Mode. Set A-B repeat period. Press button

to confirm the starting time A when A is flashing.

Then press button to set the ending time B when

B is flashing. The passage from time A to B will be

repeated automatically. The icon for A-B indication

will appear on the screen. Press button again to

back to normal playback.

a. Replay times. Set the replay times from 1 to 10.

b. Replay gap. Set the replay gap from 1 to 10

(seconds).

3. Sound settings. Choose to set Equalizer, Speed

Variable.

A. Equalizer.

B. Speed Variable. Adjust the playback speed from

-8(slowest) to +8(fastest).

4. Add to playlist/Remove from playlist. Choose to

add to or remove from the 3 existing playlist.

5. Delete. Choose to delete the song that is playing

now.

6. Bookmarks. Choose to add bookmark for the song

that is playing now, or go to/delete the bookmark

you added.

Record

The first method: Press the button to access

Recordings when on any interface.

The second method: Find the icon on home menu

with button to access to its function. A related list

will show:

•Record voice. Press button to start voice

recording, press again to pause. Press the button

and choose “Yes” to save the recording file.

•Recordings lib. Find the saved recordings in

Recordings>Recordings library. While it’s on

recording playing interface, Press button and

choose “Delete” to delete.

•Storage. Choose to store your recordings in

internal or external memory. Confirm your

selection with button . (Only available when TF

card inserted)

•Record Format/Record settings. Choose the record

format between MP3 (32/64/128/192kbps)/WAV

(512/768/1024/1536kbps).

FM Radio

Find the icon on Home menu with the button

to access to its function. A related list will show:

•Presets. All the saved stations will be listed here.

•Manual tune/Auto tune. When choose “Auto tune”,

the searched stations will be saved in “Presets”

automatically.

•FM radio recordings. View the radio recording files.

The radio recordings will also be saved in

Recordings> Recordings lib.

Start FM radio recording/Save to preset/Clear

preset/Auto tune/Tuner region.

While it’s on radio playing interface, press button

to switch among preset stations, press the button

/ to find tune stations. Press button to access

to its submenu which includes:

1. Start FM radio recording. Press button to

pause/continue, press and select “Yes” to save

the recording file.

2. Save to/Clear preset/Auto tune.

3. "Tuner Region". Choose from Common/European/

Japan Band as needed.

4. FM recordings.

E-Book

Find the icon on Home menu with the button

to access to its function. While it’s on text playing

interface, press button / to turn the pages; press

the button to play automatically, press again to

stop; press to enter its submenu and set your

preference, including Play settings (set auto playback

interval: 2-30s), Delete ebook, etc. Note: Only

supports txt format.

Folder

Find the icon on Home menu with the button

to access to its function. All of the files in the player

will be listed. If the Micro SD card is inserted, you can

choose to go to Local folder or Card folder.

Settings

Find the icon on Home menu with the button

to access to its function. A related list will show,

including:

•Language. Choose display language.

•Date and time. Choose “Set Date” to set date

format and date. To set date, press to switch

among year|month|date, press button / to

adjust the value of year|month|date and confirm

with button . Set time under “Set Time” and

adjust the time in the same way.

•Shutdown settings. “Timed shutdown”. The device

will shut down automatically when reaches the set

time; “Auto off”. When there is no operation on

the device, the device will shut off automatically

when reaches the set time.

•Display settings. Set Backlight timer, Brightness,

and Screen protection.

•Ear protection. Choose to turn On/Off its function.

When turning on the ear protection, the original

volume of playing music is 12, maximum up to 16,

aimed at protecting your ears.

•Information. Check player information and disk

space about your player.

•Format device/Factory settings. Format the device

or restore to factory default settings. Note: Before

formatting the device, please backup the file so as

not to lose any files.

Bluetooth

Find the icon on Home menu with the button

to access to its function. A related list will show,

including Bluetooth on/off, Search for devices, Device

List. Select the device you want to connect/disconnect,

and then press to connect/disconnect.

After successfully connected, this player is ready to

play music or FM radio by Bluetooth headphones,

Bluetooth speaker, etc.
