AirLive WH-9200AP Manuale utente

ual Radio Dual Band 108 Mbps Outdoor AP

-9200

WH-9200AP

lish

Česky

Deutsch

Español

Ελληνικός

Français

...............

.................

..............

...........

.............

Italiano

Magyar

Polski

Português

Русский

Slovensky

...............

.............

.........

.............

...........

119

106

Table of Contents

List of Languages

132

145

WH-9200AP English

Declaration of Conformity

We, Manufacturer/Importer

OvisLink Corp.

5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan

Declare that the product

Dual Radio Dual Band 108 Mbps Outdoor AP

AirLive WH-9200AP

is in conformity with

In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive

Clause Description

EN 301 893 v1.4.1 (2005-03) Broadband Radio Access Network(BRAN); 5GHz high performance RLAN; Harmonized EN Covering essential

requirements of Article 3.2 of the R&TTE Directive.

EN 300 328 v1.7.1(2006-10) Electromagnetic compatibility and Radio spectrum matters (ERM); Wideband transmission equipment operating in the

2.4GHz ISM band and using spread spectrum modulation techniques; Part 1: technical Characteristics and test

conditions Part2：Harmonized EN covering Essential requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 v1.6.1 (2005-09)

EN 301 489-17 V1.2.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic compatibility(EMC) standard for

radio equipment and Services; Part 17：Specific conditions for wideband data and HIPERLAN equipment

EN 50385:2002 Product standard to demonstrate the Compliance of radio base stations and Fixed terminal stations for wireless

Telecommunication System with the Basic restrictions or the reference levels related to human exposure to radio

Frequency electromagnetic fields ( 110 MHz –40 GHz ) - General public

EN 60950-1:2001/A11:2004 Safety for information technology equipment including electrical business equipment

■CE marking

Manufacturer/Importer

Signature：

Name ： Albert Yeh

Position/ Title : Vice President

Date： 2008/10/17

English

2 WH-9200AP

English

Note on the FCC standard

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences

when the equipment is operating in a commercial area. This equipment generates uses and may radiate radio

frequency energy, and if not installed in accordance with the user guide, may cause interference in the

transmission of radio communications. If operating in a residential area, it is probable this equipment will cause

harmful interference, in which case the user will be required to try to correct this interference using his own

means.

Note on CE Marking

This is a Class B product. In a residential area this product may cause radio interference, in which case the user

can be required to take the appropriate measures. OvisLink Corp. hereby declares that AirLive WH-9200AP

meets the basic requisites of directive 99/05/CE, and is therefore liable for the accuracy of these data:

OvisLink Corp.

5F, No.6 Lane 130,

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: +886-2-2218-6888

Warranties

This product has undergone various quality controls to ensure proper operation.

This product is covered by a two-year warranty for countries inside European Union. For other countries, the

warranty period is one year only. In the event of any manufacturing fault or breakdown, it will be repaired by

OvisLink Corp. Please contact your supplier for details on the procedure to follow. This warranty shall not be

applicable in the event of damage caused by improper use of the product, accidents, faulty handling or

manipulation nor any future incompatibility with third party products.

English

WH-9200AP English

English

Hardware Installation

4 WH-9200AP

English

Plug Ethernet cable to the PoE

“P + DATA OUT” jack of the

injector

Plug the power cord of adaptor into

the injector “POWER IN” port.

Plug the LAN Ethernet

cable to the port “DATA

IN” of the injector.

English

WH-9200AP English

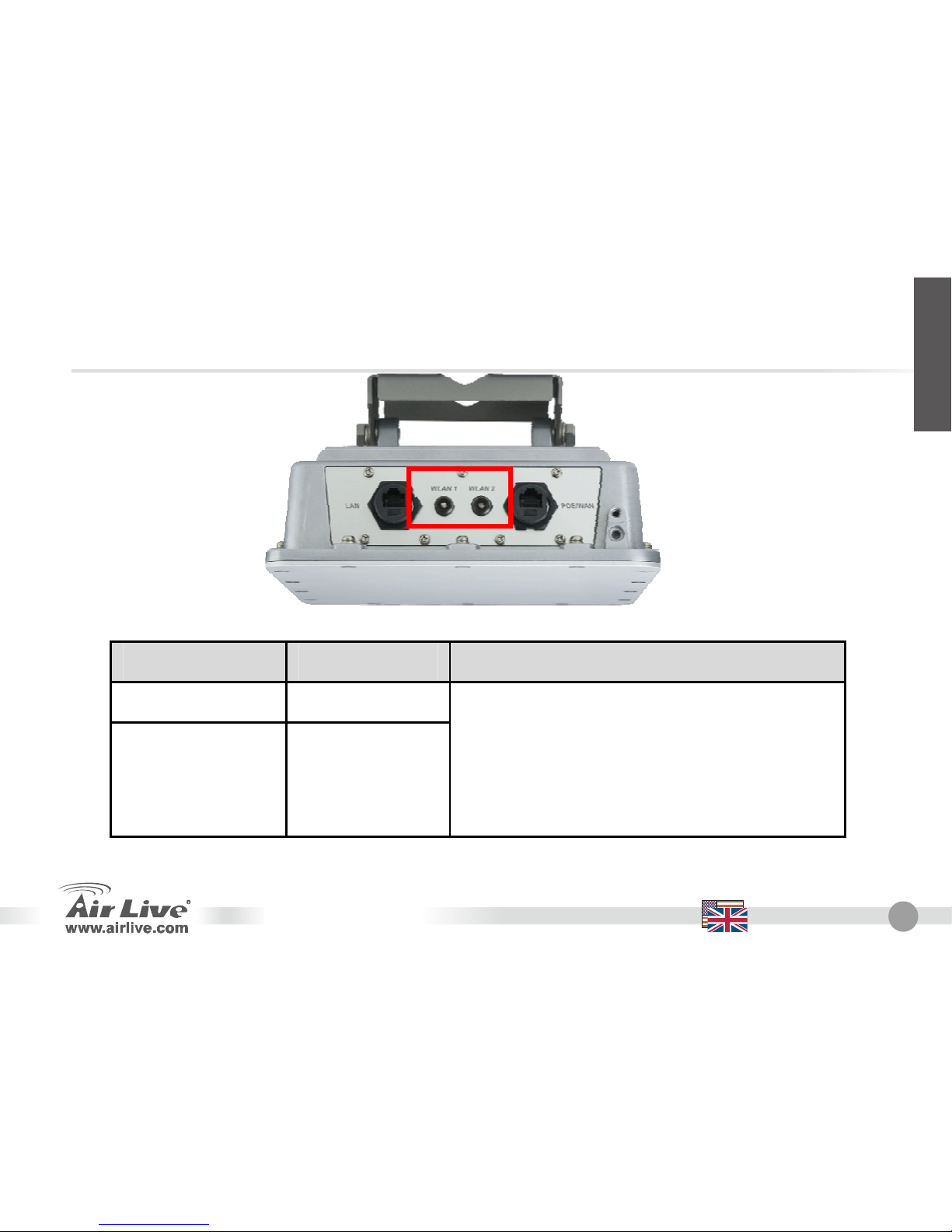

Display Color Description

WLAN 1 Blue

WLAN 2 Green

No Connection: Off

Low Signal: Flash per second

Better Signal: Flash every 2 seconds

Best Signal: Steady On

English

6 WH-9200AP

English

Install Antenna

The WH-9200AP has two Radios, both with N-Type

Female Connector for outdoor antenna. Radio 1 is

802.11a only and Radio 2 is 802.11a/b/g. You can

configure in the web interface and select suitable

antennas for your application.

Antenna 2 Antenna 1

English

WH-9200AP English

Important Information

zThe AP mode’s default IP address is 192.168.1.1

zThe default Subnet Mask is 255.255.255.0

zThe default is set to Dual AP mode.

zThe default password is airlive

zThe default SSID is AirLive1 with channel “Auto” on WLAN1, AirLive2 with channel “Auto” on WLAN2

zThe default DHCP client is Disabled

Configuration Steps

Please install your network cards first before the AP

Screw-in antennas (clockwise) into the Antenna connector

Connect the power and LAN cable to the back

Use your wireless card to do a site survey, default SSIDs are “AirLive1” and “AirLive2” with channel

“Auto” for both wireless interfaces.

If you need to change AP’s configuration, please follow the procedure below:

The AP mode’s default IP address is 192.168.1.1. Please make sure your computer IP is in

the same subnet as the AP (i.e. 192.168.1.x)

Open the web browser and enter 192.168.1.1.

Enter the Password airlive.

English

8 WH-9200AP

English

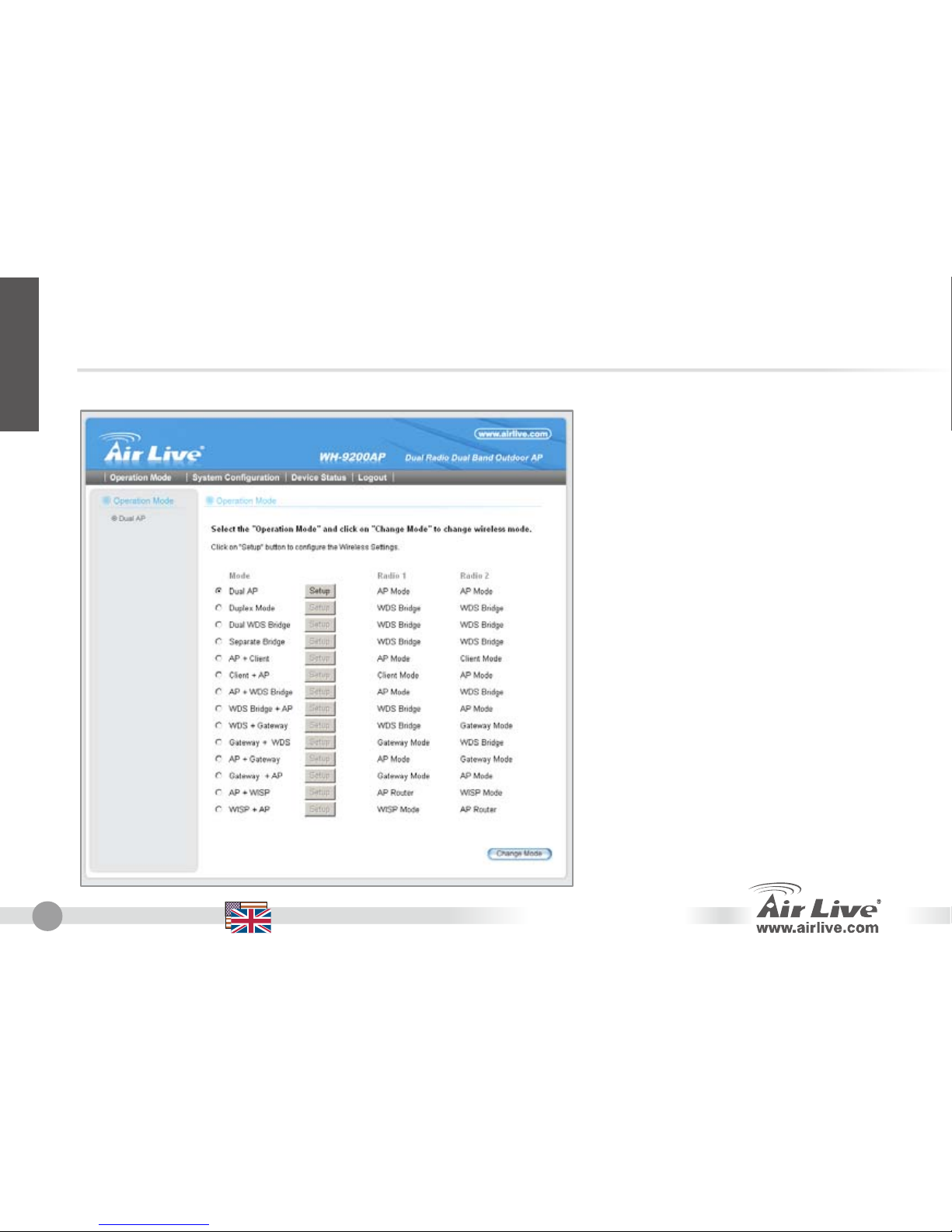

Wireless Settings

There are 14 Operation Modes in the Wireless Settings.

To change operational mode,

please go to Setup Wizard and

click on “Operational Mode”,

select desired operation mode

and click on “Change Mode” to

validate.

After reboot, the device changes

its operation mode as selected

configuration, the parameter

display changes according to

Operational Mode.

Each wireless interface of any

operational mode can be

configured separately. In following

sections, each mode is presented

under a single interface, which is

applicable for all operational

modes.

English
