Allen-Bradley 1492-IFM40F-3 Manuale utente

WARNING

AVERTISSEMENT

WARNUNG

AVVERTENZA

ADVERTENCIA

To prevent electrical shock, disconnect from power source before installing or servicing. FM Class 1, Div.2 requires

device installation in a tool-accessible enclosure compliant with ANSI/ISA S82.

Avant le montage et la mise en service, couper l'alimentation secteur pour éviter toutes décharges. FM Classe 1, Div. 2

nécessite l'installation de l'équipement dans une armoire accessible aux interventions, conforme à ANSI/ISA S82.

Vor Installations- oder Servicearbeiten Strom-versorgung unterbrechen, um Elektroschocks zu vermeiden. FM-Klasse

1, Gruppe 2 erfordert die Installation des Gerätes in einem Gehäuse, das für Werkzeuge zugänglich ist und den

Anforderungen gemäß ANSI/ISA S82 entspricht.

Per prevenire infortuni, togliere tensione prima dell’installazione o manutenzione. FM Classe 1, Divisione 2 richiede

l'installazione del dispositivo in un alloggiamento con capacità di accesso per strumenti conforme allo standard

ANSI/ISA S82.

Desconéctese de la corriente eléctrica, antes de la instalación o del servicio, a fin de impedir sacudidas eléctricas. El

requisito de FM (Factory Mutual) Clase 1, Div. 2, establece que el dispositivo debe instalarse en un envolvente que

permita la introducción y uso de herramientas y cumpla con la norma ANSI/ISA S82.

Sensor Interface Modules

Modules d'interface de capteurs

Sensor-Schnittstellenmodule

Moduli di interfaccia per sensori

Módulos dulos de interface de sensor

(Cat 1492-IFM20F-3, -IFM40F-3, -IFM20D24-3, -IFM40D24-3)

1492-EAJ35

35 mm DIN Rail

199-DR1

1492-DR4

1492-DR7

Adhesive Label Card. Provides terminal wiring identification.

Carte étiquette adhésive. Identifie le câblage des bornes.

Aufklebbare Etiketten zur Kennzeichnung der Klemmenverdrahtung.

Scheda etichette adesive. Fornisce l'identificazione del cablaggio dei terminali.

Tarjeta de etiquetas adhesivas. Proporciona identificación de cableado del terminal.

Status Indicator LEDs.

LED indicateurs d'état.

Status-LED-Anzeigen.

LED indicatori di stato.

Indicadores LED de estado.

=Field-side Terminal

= Borne extérieure

= Feldseitiger Terminal

= Terminale lato-campo

= Terminal de campo

(IFM20...)

(IFM40...)

(IFM20...)

(IFM40...)

= Connector Pin

= Broche de connexion

= Steckerstift

= Pin del connettore

= Pasador de conector

Module Identification Area.

Identification du module.

Modulkennzeichnungsbereich

Area per l'identificazione del modulo

Area de identificación del módulo.

Lower = A

Middle = B

Upper = C

PN-23245

DIR 40063-259 (Version 11)

Printed in U.S.A.

(2)

1492-IFM20F-3 1492-IFM20D24-3 1492-IFM40F-3

I/O Module

Module E/S

E/A-Modul

Modulo I/O

Módulo de E/S

I/O Module

Module E/S

E/A-Modul

Modulo I/O

Módulo de E/S

Cable Matrix

Matrice des câbles

Kabelmatrix

Matrice cavi

Matriz de cables

1492-IFM40D24-3

1746-IB32 1492-CABLEH 1492-CABLEH

1746-IV32 1492-CABLEH 1492-CABLEH

1756-IB32 1492-CABLEZ 1492-CABLEZ

TC-IDD321 1492-HWCABZ 1492-HWCABZ

1756-IV32 1492-CABLEZ 1492-CABLEZ

1769-IQ32 1492-CABJ69 1492-CABJ69

1769-IQ32T 1492-CABLEH 1492-CABLEH

1771-IBN 1492-CABLEJ 1492-CABLEJ

1771-IVN 1492-CABLEK 1492-CABLEK

Cables are available in 0.5m, 1.0m, 2.5m and 5.0m lengths

(005=0.5m, 010=1.0m, 025 = 2.5m, 050=5.0m).

Custom length cables also available. Contact local Sales Office

for more information.

Câbles disponibles en 0,5m, 1,0m, 2,5m et 5,0m de longueur

(005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).

Câbles sur mesure à la demande. Contactez e bureau le plus proche.

Verfügbare Kabellängen 0,5m, 1,0m, 2,5m und 5,0m

(005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).

Anwenderspezifizifische Längen stehen ebenfalls zur Verfügung.

Kontaktieren Sie bitte Ihr lokales Vertriebsbüro für weitere Informationen.

I cavi sono disponibili in lunghezze di 0,5m, 1,0m, 2,5m e 5,0m

(005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).

Sono disponibili anche cavi su misura. Per ulteriori informazioni,

contattare l’ufficio vendite locale.

Cables disponibles en longitudes de 0,5m, 1,0m, 2,5m, 5,0m

(005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).

Hay disponibles cables de varias longitudes. Para más información

comuníquese con la oficina de ventas.

Cable is limited for use within the control panel unless it is run

through conduit. Cable is ITC (Instrumentation Tray Cable) rated.

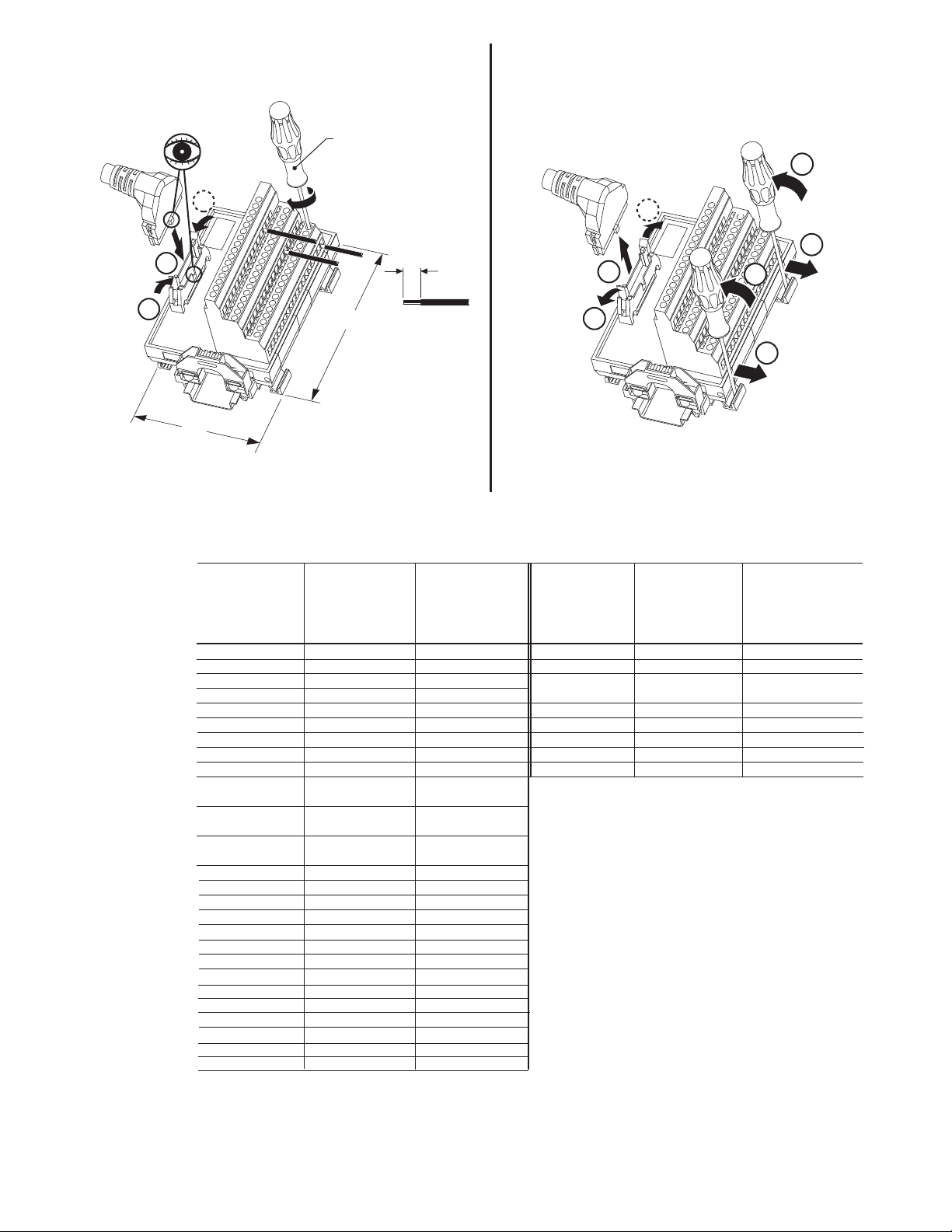

Installation

Montage

Installation

Montaggio

Instalación

Removal

Retrait

Entfernen

Smontaggio

Extracción

#22-#12 AWG

(0.2-4 mm2)

Cu only

Cu seulement

nur Cu

Solo Cu

Cu solamente

0.32 in

(8 mm)

1492-N90

3.5-4.5 lb-in

(0.38-0.50 Nm)

PN-23245

DIR 40063-259 (Version 11)

1746-IA16 1492-CABLEA

1746-IB16 1492-CABLEB 1492-CABLEB

1746-IC16 1492-CABLEB

1746-IG16 1492-CABLEE

1746-IH16 1492-CABLEB

1746-IN16 1492-CABLEB 1492-CABLEB

1746-ITB16 1492-CABLEB 1492-CABLEB

1746-ITV16 1492-CABLEB 1492-CABLEB

1746-IV16 1492-CABLEB 1492-CABLEB

1756-IA16 1492-CABLEX

TC-IDA161 1492-HWCABX

1756-IB16 1492-CABLEX 1492-CABLEX

TC-IDD161 1492-HWCABX 1492-HWCABX

1756-IC16 1492-CABLEX

TC-IDE161 1492-HWCABX

1756-IN16 1492-CABLEX 1492-CABLEX

1756-IV16 1492-CABLEX 1492-CABLEX

1769-IA16 1492-CABA69

1769-IQ16 1492-CABB69 1492-CABB69

1769-IQ16F 1492-CABB69 1492-CABB69

1771-IAD 1492-CABLEF

1771-IBD 1492-CABLEF 1492-CABLEF

1771-ICD 1492-CABLEF 1492-CABLEF

1771-IGD 1492-CABLEF

1771-IND 1492-CABLEF

1794-IB16 1492-CABA94

1794-IB8 1492-CABA94

1794-IV16 1492-CABA94

 

(3)

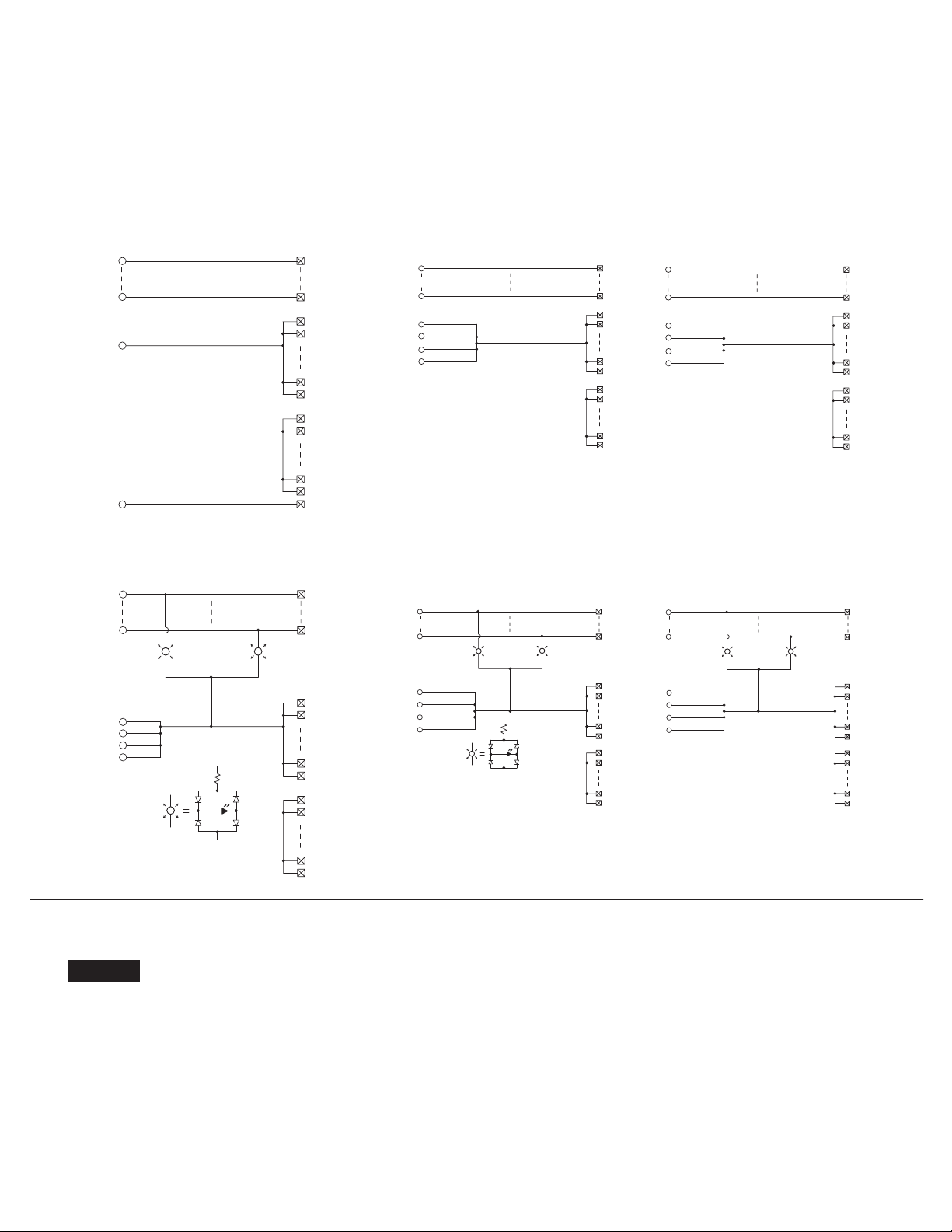

Pinout

Brochage

Anschlußbelegung

Disposizione

dei piedini

Esquema de pins

1492-IFM20F-3 (Series B)

C16

B17

B18

A16

A17

A18

1492-IFM20D24-3

C16

B17

B18

A17

A18

1492-IFM40F-3

C16

B17

B18

A17

A18

C16

B17

B18

A17

A18

TB1 TB2

(odd) (even) 

1492-IFM40D24-3

C16

B17

B18

A17

A18

C16

B17

B18

A17

A18

TB1 TB2

(odd) (even) 

LED Circuit

Circuit du LED

LED-Stromkreis

Circuito del LED

LED Circuit

Circuit du LED

LED-Stromkreis

Circuito del LED



Odd

Impair

Ungerade

Dispari

Impar

Even

Pair

Gerade

Pari

Par



Odd

Impair

Ungerade

Dispari

Impar

Even

Pair

Gerade

Pari

Par

I/O Wiring Data

NOTICE Wiring information for your I/O module, AIFM module and cable (e.g. wiring diagram and pinouts)are available online at www.rockwellautomation.com/en/e-tools.

To obtain information follow this procedure.

1) In the Catalog Number BOX at the above online site type in the catalog number of the IFM, AIFM, etc. module you are using and click on Submit.

2) At the next screen displayed, click on the Modify key (lower left of screen).

3) Click on the areas that indicate NO SELECTION and enter your specific configuration information (e.g. I/O platform, I/O MODULE, ETC.).

NOTE: To obtain the wiring diagram, you must select th Pre-Wired Cable Connector selection.

4) Configure your 1492 cable by filing in the NO SELECTION areas.

5) Click on the ACCEPT key for the configured 1492 cable. At the next screen click on ACCEPT for the 1492 module.

6) The next screen (Configuration Results) displays the results of your specific configuration. The "supplementary Documents" column contains I/O wiring information

for the configuration (e.g. I/O Wiring Diagrams).

PN-23245

DIR 40063-259 (Version 11)

1492-IFM20F-3

1492-IFM20D24-3

1492-IFM40F-3

1492-IFM40D24-3

2 Amps 12 Amps

0-132V AC/DC

10-30V AC/DC

0-60V AC/DC

10-30V AC/DC

N/A

2.0mA

N/A

2.0 mA

Indicator Circuit Current

Courant circuit voyants

Strom, Anzeigeschaltkreis

Corrente circuito indicatori

Intensidad del circuito

de indicadores

Current/Circuit

Courant/Circuit

Strom/Schaltkreis

Corrente/circuito

Intensidad/circuito

Current/Module

Courant/Module

Strom/Modul

Corrente/modulo

Intensidad/módulo

Voltage

Tension

Spannung

Tensione

Voltaje

Catalog No.

Référence

Bestell-Nr.

N. Catalogo

Referencia

1492-IFM20F-3

1492-IFM20D24-3

1492-IFM40F-3

1492-IFM40D24-3

Reference Publications: Refer to 1770-4.1 and appropriate PLC I/O module installation manual.

Specifications

Spécifications

Technische Daten

Specifiche

Especificaciones

Operating Humidity

Humidité relative

Betriebsluftfeuchtigkeit

Umidità di esercizio

Humedad operativa

4.33 in. (110 mm) W

3.27 in. (83 mm) H

2.78 in (70.5 mm) D

8.27 in. (210 mm) W

3.27 in. (83 mm) H

2.78 in (70.5 mm) D

0.77 lb.

351 g.

1.2 lb.

560 g.

5 - 95% 

cULus (File: E10314, Guide No. NRAG)

Suitable for use in Class 1 Div 2 Groups A,

B, C and D Hazardous and Non-Hazardous

Locations.

Temperature Code = T3C at 60°C 

CE: Compliant for all applicable directives

FM Class 1 Div 2 Groups A, B, C and D

Temperature Rating T3C = 60°C (J.I. 3000590,

all except relay modules)

0° C - 60° C

Dimensions

Abmessungen

Dimensioni

Dimensiones

Standards

Normes

Standards

Standard

Estándares

Catalog No.

Référence

Bestell-Nr.

N. Catalogo

Referencia

Operating Temperature Range

Plage températures de fonctionnement

Betriebstemperaturbereich

Limiti temperatura di funzionamento

Rango de temperatura de funcionamient

Approx. Shipping Weight

Poids d'embarquement approximatif

Ungefähres Versandgewicht

Peso approssimativo del carico

Peso aproximado al momento de

embarque

Maximum Recurring Peak Voltage 

Tension de crele réurrente maximale

Maximale periodische Hochstspannung

Tensione massima di cresta ricorrente

Voltaje de cresta iterativo máximo

600 Vp 

For transients > 600 Vp use a UL recognized suppression device rated at 2.5 kV withstand.

Pour des transitoires > 600 Vp utilisez un dispositif de suppression certifié UL à 2,5 kV nominal de tenue.

Für Einschaltstöße > 600 Vp verwenden Sie einen UL anerkannten Entstörer, der bewertet wurde bei 2,5 kV standzuhalten.

Per transitori > 600 Vp usare dispositivo di soppressione riconosciuto da UL capace di sopportare 2,5 kV.

Para transitorios > 600 Vp use un dispositivo de supresión reconocido UL clasificado con 2,5 kV.

Non-condensing

Sans condensation

Nicht kondensierend

Senza condensa

sin condensación

Power, input and output (I/O) wiring must be in accordance with Class I Division 2 wiring methods - Artticle 501-10(B)(1) of the National Electrical Code.

WARNING Explosion Hazard - substitution of components may impair suitability for Class I Division 2.

Explosion Hazard - Do Not Disconnect Equipment unless power has been switched off or the area is known to be Non-Hazardous.

PN-23245

DIR 40063-259 (Version 11)

Printed in U.S.A.

SURGE SUPPRESSION follow the literature recommendations of the PLC module being used.

La section SUPPRESSION DES SURTENSIONS se trouve à la suite de la littérature qui contient les recommandations relatives au module PLC utilisé.

ÜBERSPANNUNGSSCHUTZ Bitte beachten Sie die Dokumentationsempfehlungen für das jeweils benutzte SPS-Modul.

Per la SOPPRESSIONE DEI PICCHI TEMPORANEI, seguire le istruzioni riportate nella documentazione in dotazione al Modulo PLC utilizzato.

SUPRESIÓN DE SOBRETENSIÓN, siga las recomendaciones indicadas en la documentación del módulo PLC respectivo.

Questo manuale è adatto per i seguenti modelli

Altri manuali Allen-Bradley Unità di controllo

Allen-Bradley

Allen-Bradley 1794-OB16 Manuale utente

Allen-Bradley

Allen-Bradley ControlLogix 1756-OF6CI Manuale utente

Allen-Bradley

Allen-Bradley CompactLogix EtherNet/IP 1768-EWEB Manuale utente

Allen-Bradley

Allen-Bradley MicroLogix 1200 Manuale utente

Allen-Bradley

Allen-Bradley 1203 Series Manuale utente

Allen-Bradley

Allen-Bradley DeviceNet 1747-SDN/B Manuale utente

Allen-Bradley

Allen-Bradley Bulletin 160 DeviceNet Manuale utente

Allen-Bradley

Allen-Bradley 1336 PLUS II Manuale utente

Allen-Bradley

Allen-Bradley 1794-IA8 Manuale utente

Allen-Bradley

Allen-Bradley ArmorBlock 1732E-16CFGM12M12LDR Manuale di istruzioni

Allen-Bradley

Allen-Bradley 1492-AIFM16-F-5 Manuale utente

Allen-Bradley

Allen-Bradley 1771-OG Manuale utente

Allen-Bradley

Allen-Bradley ControlNet 1786-RPFM Manuale utente

Allen-Bradley

Allen-Bradley C Series Manuale utente

Allen-Bradley

Allen-Bradley 1492-CM1771-LD007 Manuale utente

Allen-Bradley

Allen-Bradley 1747-SN Manuale utente

Allen-Bradley

Allen-Bradley 1791-16BC Manuale utente

Allen-Bradley

Allen-Bradley ControlLogix 1756-OV32E Manuale utente

Allen-Bradley

Allen-Bradley CENTERLINE 2100 Manuale utente

Allen-Bradley

Allen-Bradley 1769-OF8C Manuale utente

Allen-Bradley

Allen-Bradley ControlLogix DeviceNet C Series Manuale utente

Allen-Bradley

Allen-Bradley ControlLogix 1756-OX8I Manuale utente

Allen-Bradley

Allen-Bradley 1771-OW Manuale utente

Allen-Bradley

Allen-Bradley PowerFlex 755 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
