Allied Telesis AT-x230-10GP Manuale utente
C613-04072-00 REV A
AT-x230-10GP
AT-AR3050S
AT-AR4050S
Rack Mount Installation Guide
x230-10GP
CONSOLE
RS-232
SD
FAULT
POWER
SD
1000LINKACT10/100LINKACT PDONPDERR MAXCURRENT
SFP
9
10
246
8
1357
MAC Address Label
CLASS1
LASERPRODUCT
CONSOLE
SD
SD
FAUL
T
PWR
FNC1
FNC2
RESET
12345678 21
BYPASS
2121
USB
HA
FDXHDXCOL
READYFAUL
T
READYFAUL
T
MASTERSTANDBY
ETH
SFP
AR3050S
1000LINK ACT 100LINK ACT
AR3050S
CLASS1
LASERPRODUCT
CONSOLE
SD
SD
FAUL
T
PWR
FNC1
FNC2
RESET
12345 678 2 1
BYPASS
2121
USB
HA
FDXHDXCOL
READYFAUL
T
READYFAUL
T
MASTERSTANDBY
ETH
SFP
AR4050S
1000LINKACT 100LINK ACT
Copyright 2015 Allied Telesis, Inc.
All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesis,
Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names,
company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective
owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document
without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied
Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited
to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has
been advised of, known, or should have known, the possibility of such damages.
AT-x230-10GP and AT-x230-18GP Rack Mount Installation Guide
3
Contents
Installation ......................................................................................................................................................... 7
Contents of AT-RKMT-J15 for the device .................................................................................................... 8
Installing a device in an equipment rack ...................................................................................................... 9
AT-x230-10GP and AT-x230-18GP Rack Mount Installation Guide
4
5
Figures
Figure 1: Removing the rubber feet from the device ........................................................................................................... 10
Figure 2: Installing the tray chassis in a 19-inch equipment rack ........................................................................................ 11
Figure 3: pulling out the tray ................................................................................................................................................ 11
Figure 4: Aligning the faceplate with the edge of the tray.................................................................................................... 12
Figure 5: Aligning the faceplate 60mm off the edge of the tray ........................................................................................... 13
Figure 6: Returning the tray ................................................................................................................................................ 13
6
AT-x230-10GP, AT-AR3050S and AT-AR4050S Rack Mount Installation Guide
8
Contents of AT-RKMT-J15 for the device
The AT-RKMT-J15 rack mount kit can be purchased from your Allied
Telesis dealer. The rack mount kit should contain the following items:
If any item is missing, contact your Allied Telesis dealer for assistance.
1 main unit (tray chassis)
4 M4x6mm truss head screws
AT-x230-10GP, AT-AR3050S and AT-AR4050S Rack Mount Installation Guide
9
Installing a device in an equipment rack
Before installing
the device
Observe the following requirements before installing your device in an
equipment rack:
Verify that the rack is safely secured and will not tip over. Devices
in a rack should be installed starting at the bottom, with the heavier
devices near the bottom of the rack.
Ensure that there is a power outlet for the switch that is close to the
device and is easily accessible.
Ensure that the position of the device in the rack will provide easy
access to the device’s ports. This will make it easier to connect and
disconnect cables, as well as view the device’s LEDs.
Verify that the air flow around the device and through its vents on
the side and rear will not be restricted, so that the device can
maintain adequate cooling.
Do not place objects on top of the device.
Do not expose the device to moisture or water.
Ensure that the rack is in a dust-free environment.
Be sure to use dedicated power circuits or power conditioners to
supply reliable electrical power to the network devices.
Note
This product is non-compatible with L-shaped connector power
cable (AT-PWRCBL-J01L/J01R).
AT-x230-10GP, AT-AR3050S and AT-AR4050S Rack Mount Installation Guide
10
How to install the
device
You will need an AT-RKMT-J15 rack mount kit to install one or two side-
by-side devices in a 19-inch equipment rack. The rack mount kit can be
purchased from your Allied Telesis dealer.
To install a device in the equipment rack, follow these steps:
1. If rubber feet are attached to the base of the device, place the unit
upside down on a level, secure surface.

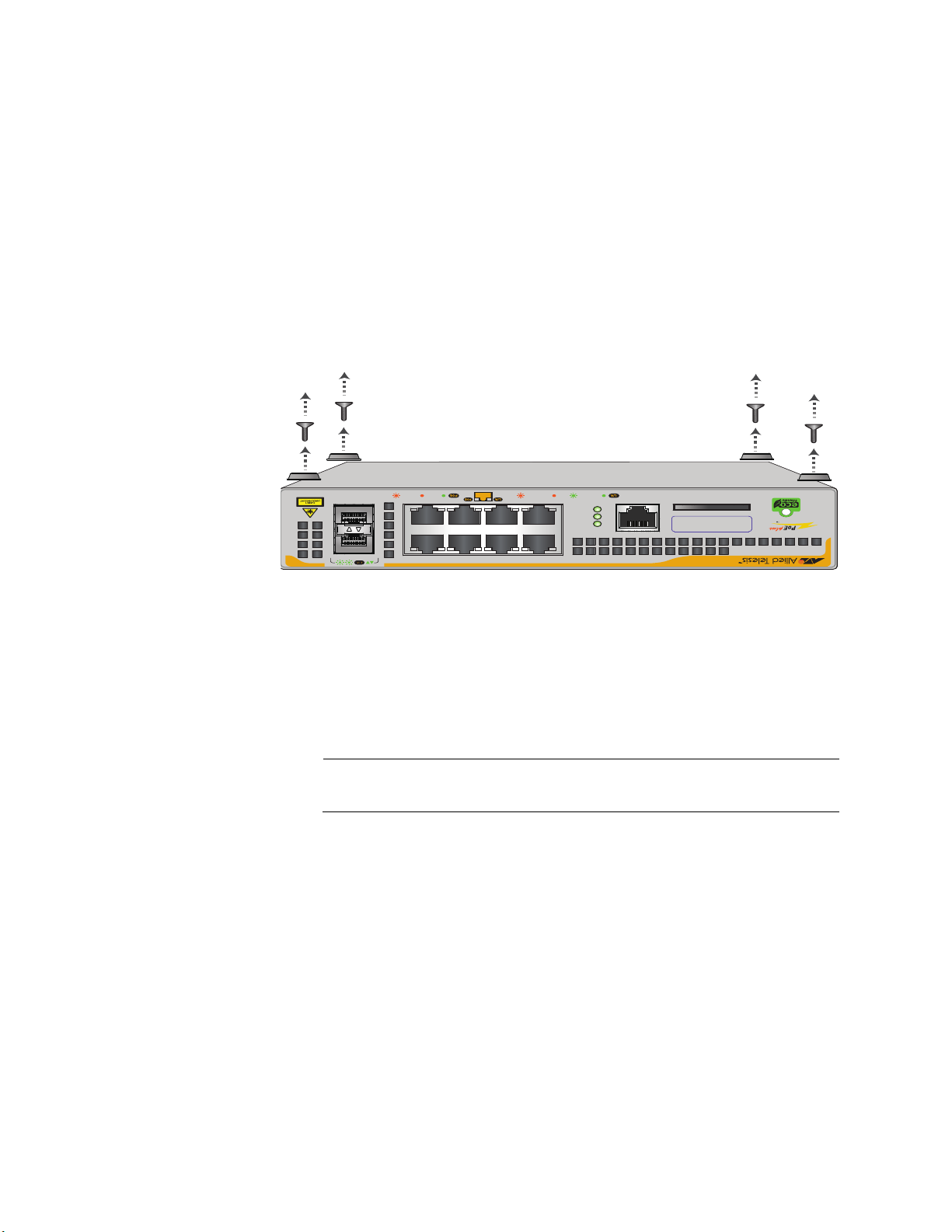

2. Remove the rubber feet with a screwdriver (Figure 1).
FIGURE 1. REMOVING THE RUBBER FEET FROM THE DEVICE
x230-10GP
CONSOLE
RS-232
SD
FAULT
POWER
SD
1000 LINK ACT 10/100 LINK ACT PD ON PD ERR MAX CURRENT
SFP
9
10
24 68
1357
MAC Address Label
3. Turn the device back over.
4. Installing the tray chassis in a 19-inch equipment rack (Figure 2)
Mount the tray chassis to a desired location in a 19-inch equipment
rack using four equipment rack screws. The rack screws are supplied
with the equipment rack.
Note
At the time of installation, do not loosen the tray fixing screws.
