Altos BrainSphere R185 F5 Manuale utente

Altos BrainSphere™ R185 F5

User Guide

Revision 1.0

System setup

System notes

Thank you for purchasing your Altos server. This user guide is intended as a reference for

experienced server technicians and helps detail many of the features available in Altos

servers. For more detailed information about any component or software solution, you

may consult the technical specifications or the user manual for that application.

Note: Before opening or removing any components

please contact your local certified Altos service

representative

Warning: Any parts or components damaged

during replacement by a non-certified technician

are not covered by the warranty. For details,

please consult the warranty guide from your system.

System Component Identification

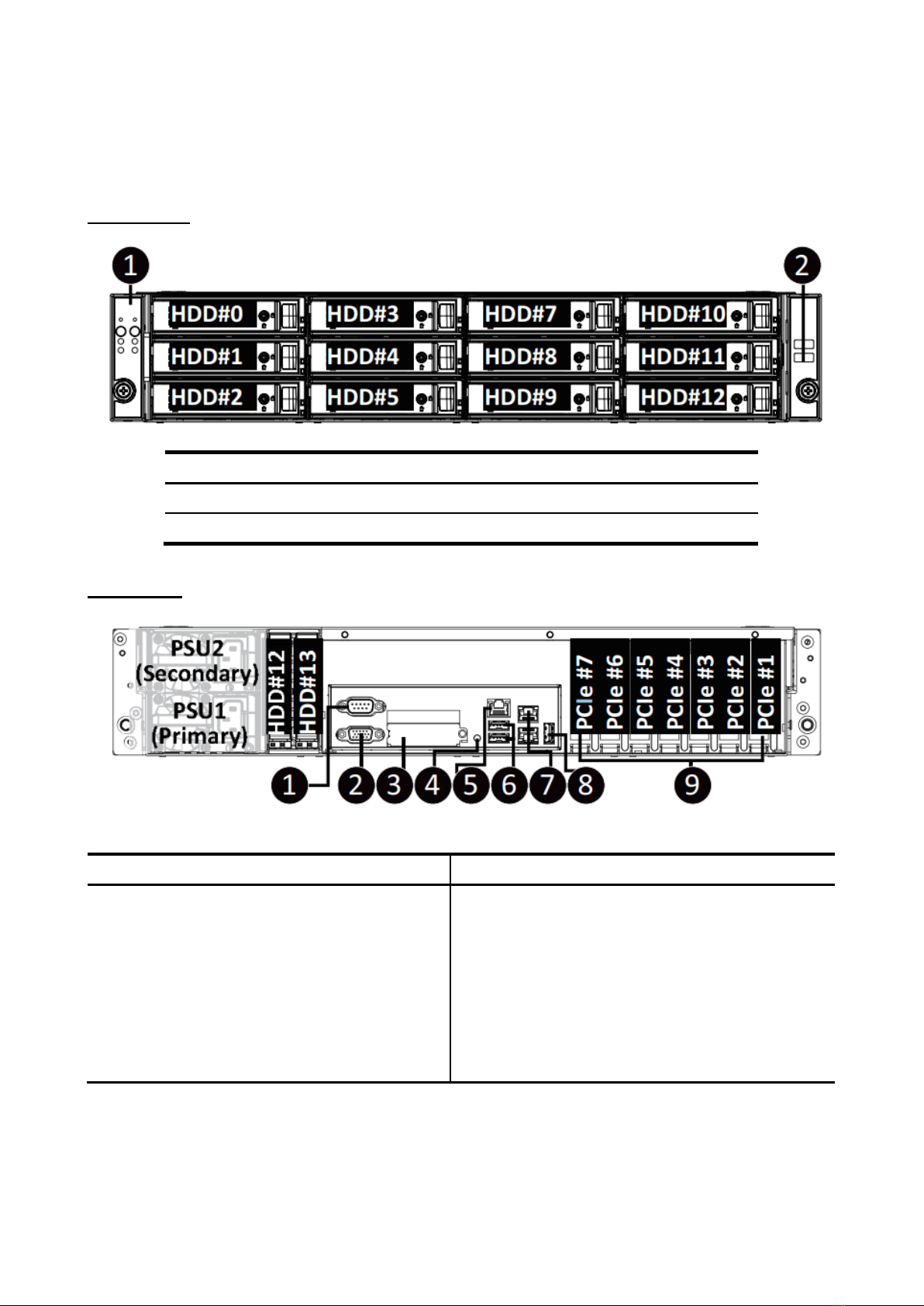

Altos BrainSphere™R185 F5 (LFF SKU):

Front View:

No.

Description

Front USB 3.0 Ports

Front Panel LEDs and Buttons

Rear View:

No.

Description

No.

Description

Serial Port

10/100/1000 Server management LAN

port

VGA Port

USB 3.0 Port x 2

Mezzanine Card Slot (Option/OCP

V2.0 Card)

GbE LAN Port x 2

ID Button

USB 3.0 Port

PCIe Card Slot

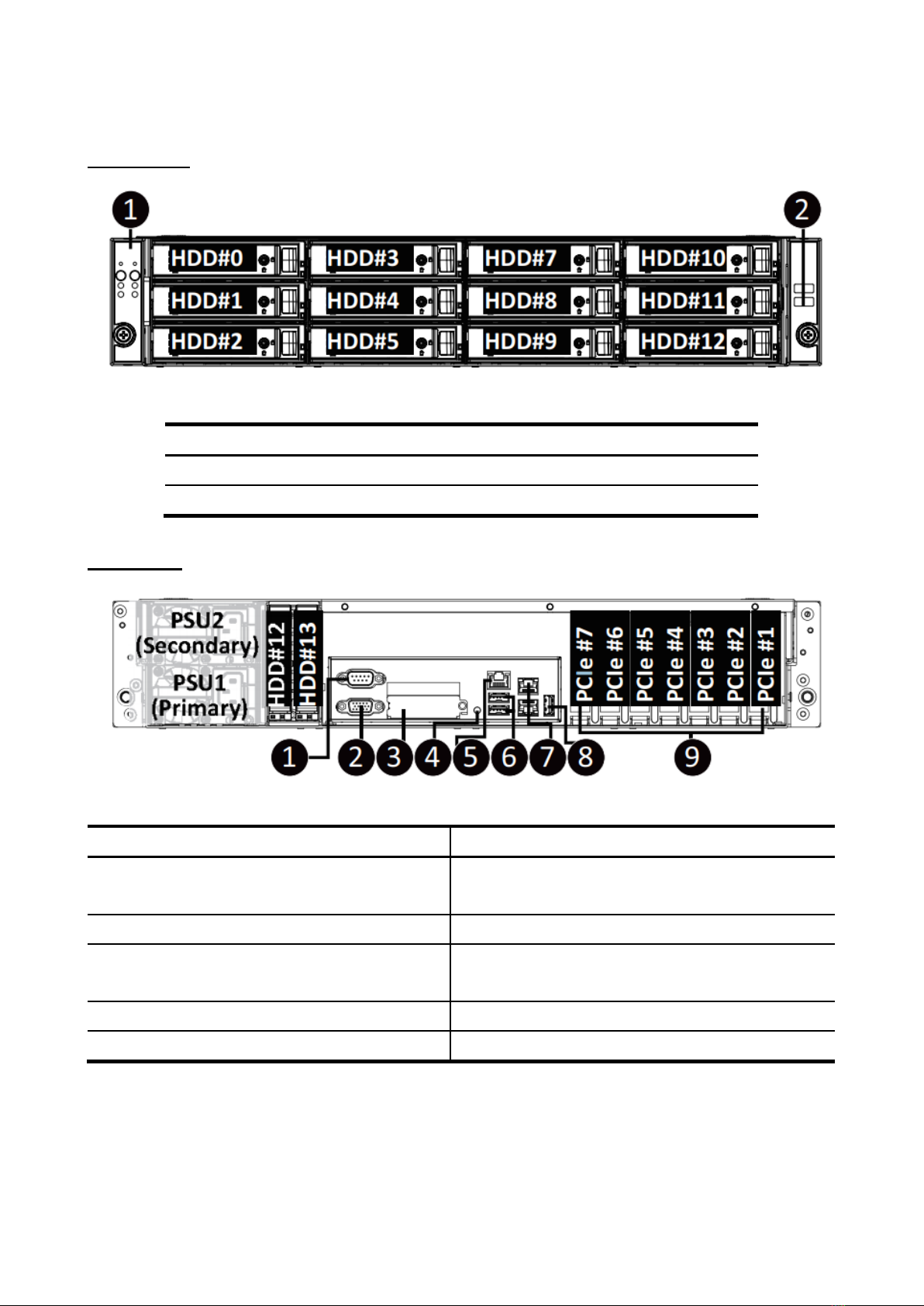

Altos BrainSphere™R185 F5 (SFF SKU):

Front View:

No.

Description

Front USB 3.0 Port

Front Panel LEDs and Buttons

Rear View:

No.

Description

No.

Description

Serial Port

10/100/1000 Server management LAN

port

VGA Port

USB 3.0 Port x 2

Mezzanine Card Slot (Option/OCP

V2.0 Card)

GbE LAN Port x 2

ID Button

USB 3.0 Port

PCIe Card Slot

System controls and indicators

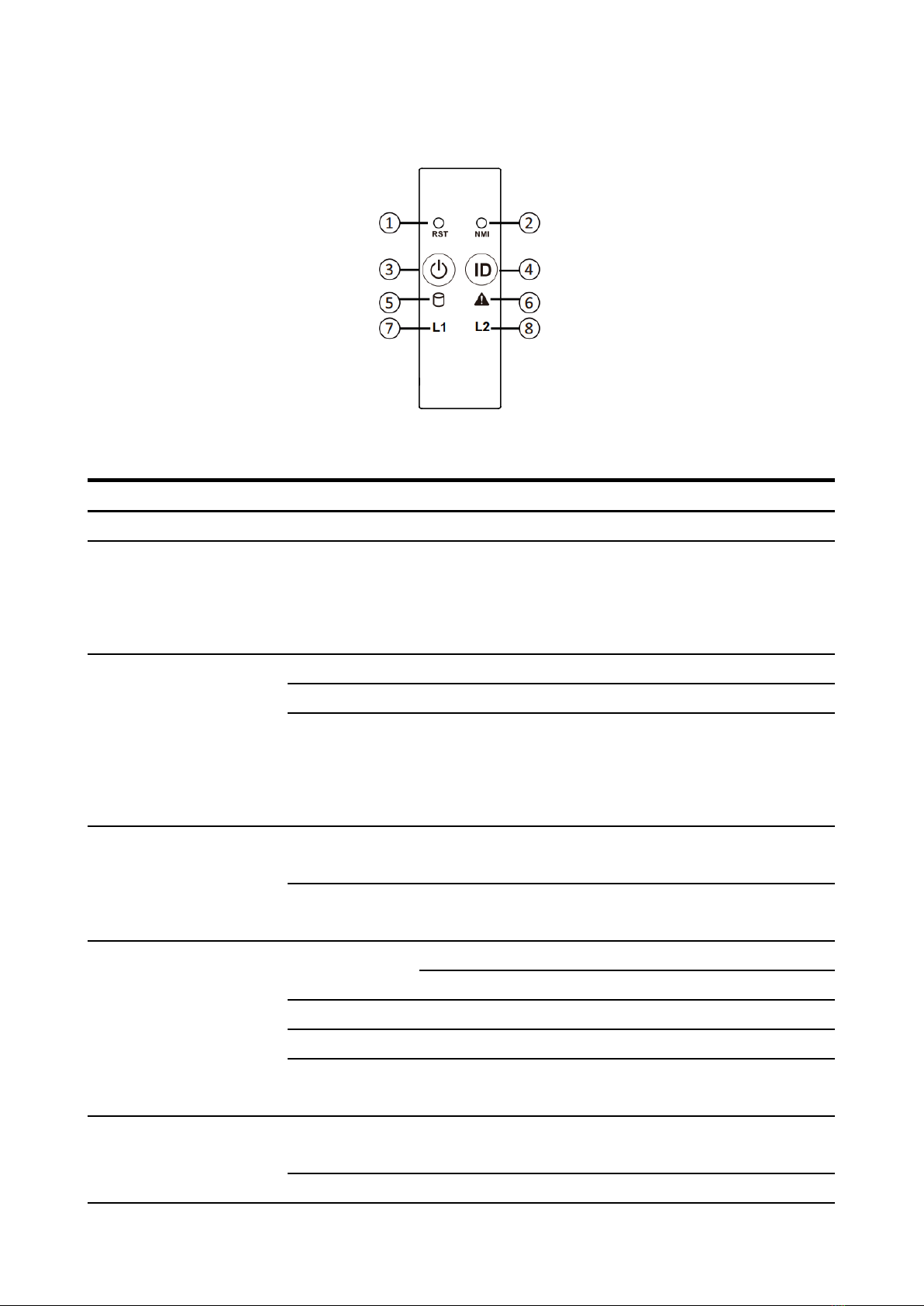

Altos BrainSphere™ R185 F5 (LFF SKU) front panel LEDs and Buttons:

No.

Name

Color

Status

Description

Reset Button

Press this button to reset the system.

NMI button

Press this button for the server to

generate a NMI to the processor. If

multiple-bit ECC errors occur, the server

will effectively be halted.

Power button

with LED

Green

Indicates the system is powered on.

Green

Blink

System is in ACPI S1 state (sleep mode).

N/A

Off

• System is not powered on or in ACPI

S5 state (power off)

• System is in ACPI S4 state (hibernate

mode)

ID Button with

Blue

Indicates the system identification is

active.

N/A

Off

Indicates the system identification is

disabled.

HDD Status

LED

Green

Indicates accessing the HDD.

Blink

Indicates accessing the HDD

Amber

Indicates HDD error.

Green/Amber

Blink

Indicates HDD rebuilding.

N/A

Off

Indicates no HDD access or no HDD

error.

System Status

LED

Green

Indicates system is operating

normally.

No.

Name

Color

Status

Description

Amber

Indicates a critical condition, may

include:

•System fan failure

•System temperature

Blink

Indicates non-critical condition,

may include:

•Redundant power module failure

•Temperature and voltage issue

•Chassis intrusion

N/A

Off

Indicates system is not ready, may

include:

•POST error

•NMI error

•Processor or terminator is

missing

LAN1 Active/

Link LED

Green

Indicates a link between the system and

the network or no access

Green

Blink

Indicates data transmission or receiving

is occuring.

N/A

Off

Indicates no data transmission or

receiving is occuring.

LAN2 Active/

Link LED

Green

Indicates a link between the system and

the network or no access.

Green

Blink

Indicates data transmission or receiving

is occuring.

N/A

Off

Indicates no data transmission or

receiving is occuring.

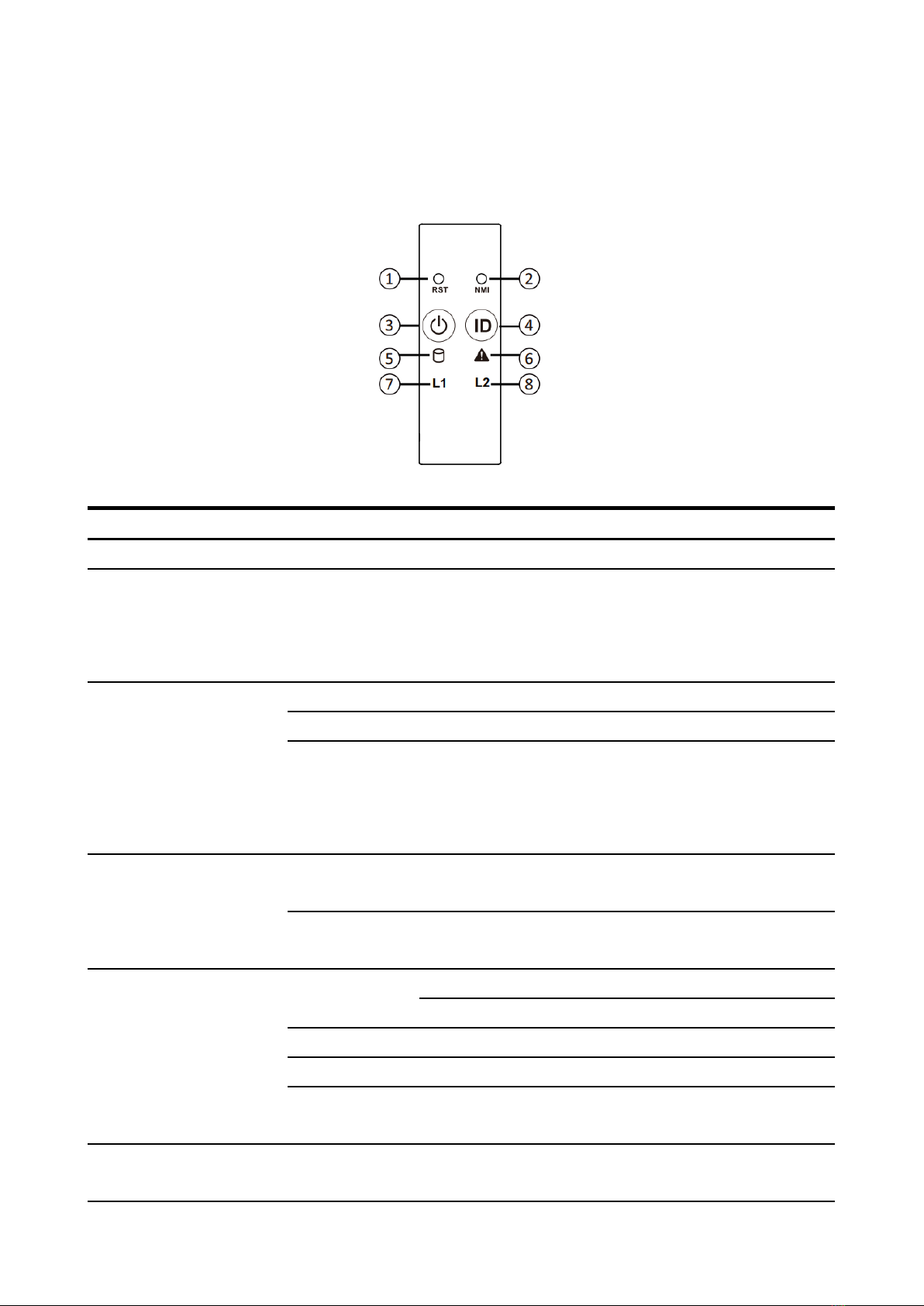

Altos BrainSphere™ R185 F5 (SFF SKU) front panel LEDs and Buttons:

No.

Name

Color

Status

Description

Reset Button

Press this button to reset the system.

NMI button

Press this button for the server to

generate a NMI to the processor. If

multiple-bit ECC errors occur, the server

will effectively be halted.

Power button

with LED

Green

Indicates the system is powered on.

Green

Blink

System is in ACPI S1 state (sleep mode).

N/A

Off

• System is not powered on or in ACPI

S5 state (power off)

• System is in ACPI S4 state (hibernate

mode)

ID Button with

Blue

Indicates the system identification is

active.

N/A

Off

Indicates the system identification is

disabled.

HDD Status

LED

Green

Indicates accessing the HDD.

Blink

Indicates accessing the HDD

Amber

Indicates HDD error.

Green/Amber

Blink

Indicates HDD rebuilding.

N/A

Off

Indicates no HDD access or no HDD

error.

System Status

LED

Green

Indicates system is operating

normally.

Amber

Indicates a critical condition, may

No.

Name

Color

Status

Description

include:

•System fan failure

•System temperature

Blink

Indicates non-critical condition,

may include:

•Redundant power module failure

•Temperature and voltage issue

•Chassis intrusion

N/A

Off

Indicates system is not ready, may

include:

•POST error

•NMI error

•Processor or terminator is

missing

LAN1 Active/

Link LED

Green

Indicates a link between the system and

the network or no access

Green

Blink

Indicates data transmission or receiving

is occuring.

N/A

Off

Indicates no data transmission or

receiving is occuring.

LAN2 Active/

Link LED

Green

Indicates a link between the system and

the network or no access.

Green

Blink

Indicates data transmission or receiving

is occuring.

N/A

Off

Indicates no data transmission or

receiving is occuring.

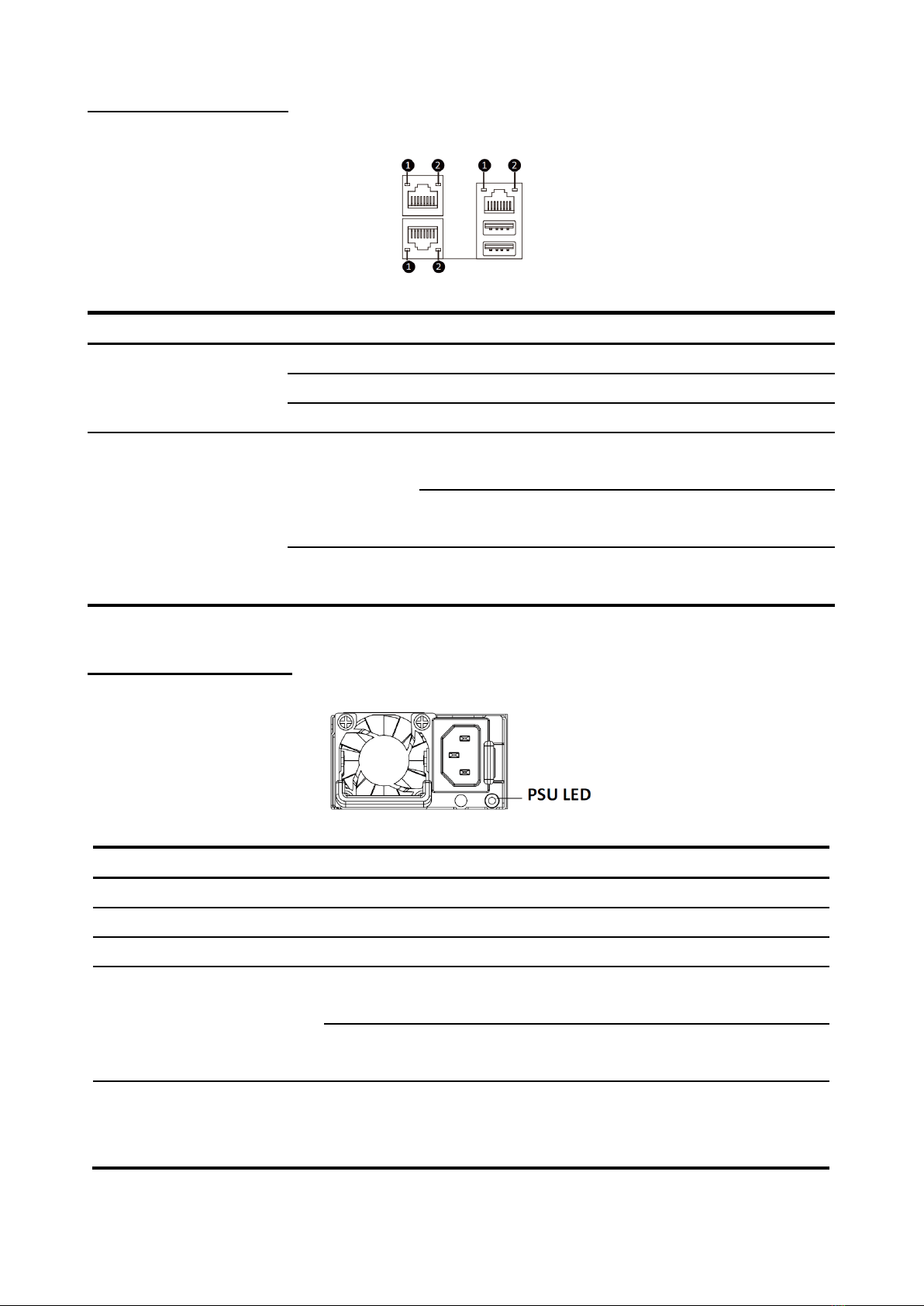

Rear System LAN LEDs:

No.

Name

Color

Status

Description

1GbE Speed

LED

Yellow

1 Gbps data rate

Green

100 Mbps data rate

N/A

Off

10 Mbps data rate

1GbE

Link/Activity

LED

Green

Link between system and

network or no access

Blink

Data transmission or receiving is

occurring

N/A

Off

No data transmission or receiving is

occurring.

Power Supply Unit LED:

State

Description

OFF

No AC power to all power supplies

0.5Hz Green Blinking

AC present / only standby on / Cold redundant mode

2Hz Green Blinking

Power supply firmware updating mode

Amber

AC cord unplugged or AC power lost; with a second power

supply in parallel still with AC input power

Power supply critical event causing shut down: failure,

OCP, OVP, fan failure and UVP

0.5Hz Amber Blinking

Power supply warning events where the power supply

continues to operate: high temp, high power, high current

and slow fan

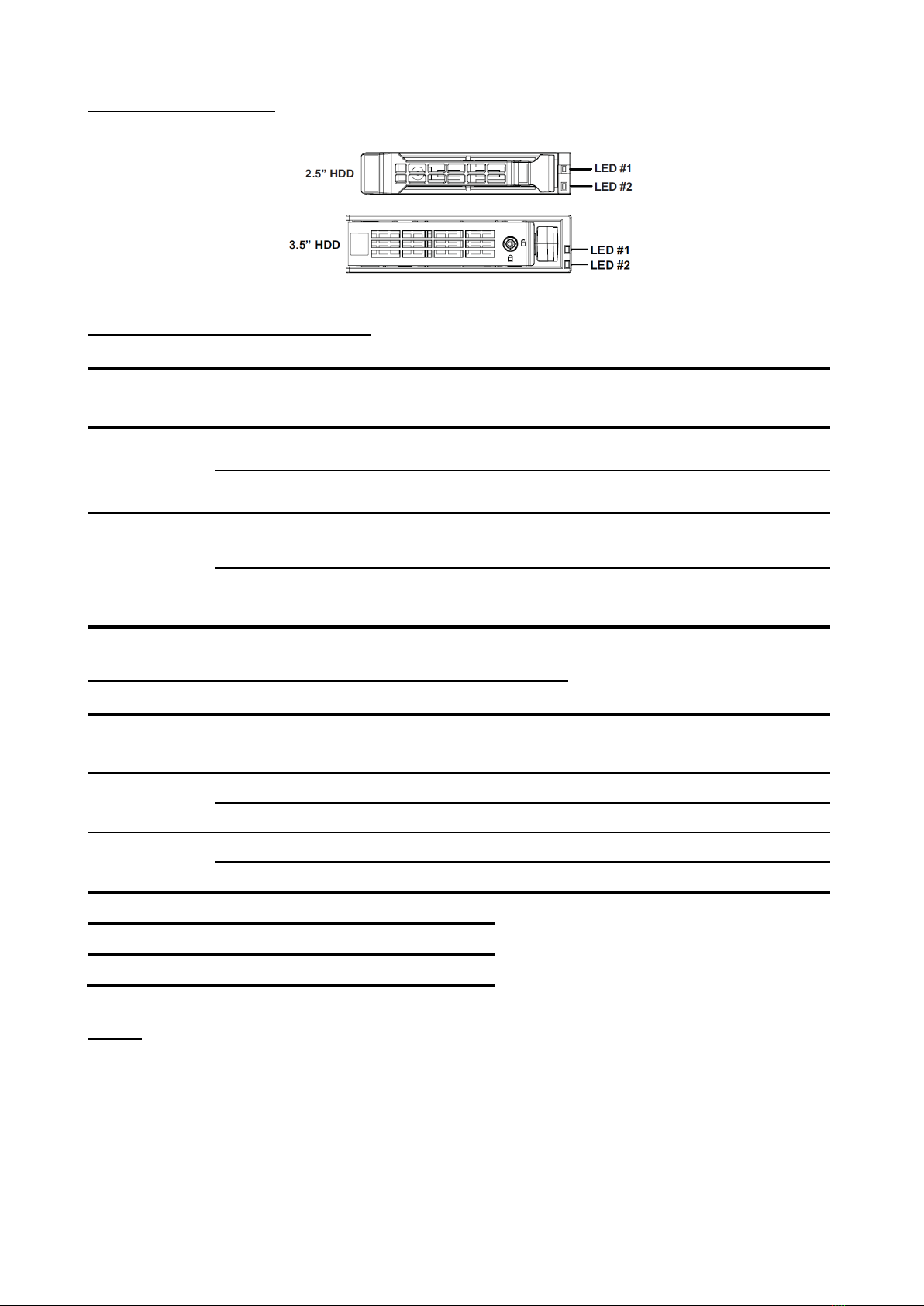

Hard Disk Drive LEDs:

No RAID configuration (via HBA):

SKU

LED #1

Locate

HDD

Fault

Rebuilding

HDD Access

HDD Present

(No Access)

Disk LED

(LED on Back

Panel)

Green

ON (*1)

OFF

BLINK (*2)

OFF

Amber

OFF

Removed

HDD Slot

(LED on Back

Panel)

Green

ON (*1)

OFF

Amber

OFF

RAID configuration (via HW RAID Card or SW RAID Card)

SKU

LED #1

Locate

HDD

Fault

Rebuilding

HDD Access

HDD Present

(No Access)

Disk LED

Green

OFF

BLINK (*2)

OFF

Amber

OFF

BLINK (2Hz)

OFF

Removed

HDD Slot

Green

ON (*1)

OFF

(*3)

Amber

OFF

(*3)

LED #2

HDD Present

No HDD

Green

OFF

NOTE:

*1: Depends on HBA/Utility Spec.

*2: Blink cycle depends on HDD's activity signal.

*3: If HDD is pulled out during rebuilding, the disk status of this HDD is regarded as

faulty.
