AMD MD740 Manuale utente
MB740
AMD Geode NX
Mini-ITX Motherboard
USER’S MANUAL
Version 1.0
ii MB740 User’s Manual
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
AMD is a trademark of Advanced Micro Devices, Inc.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
MB740 User’s Manual iii
Table of Contents
Introduction.......................................................1
Product Description.............................................................1
Checklist..............................................................................2
MB740 Specifications.........................................................3
Board Dimensions...............................................................4
Installations.......................................................5
Installing the CPU...............................................................6
Installing the Memory.........................................................7
Setting the Jumpers .............................................................8
Connectors on MB740 ......................................................11
BIOS Setup.......................................................21
Drivers Installation......................................41
SIS 741CX Chipset VGA Driver ......................................42
SIS Chipset Ethernet Driver..............................................45
Realtek Gigabit Ethernet Driver........................................46
Realtek AC97 Codec Driver .............................................47
Appendix...........................................................49
A. I/O Port Address Map...................................................49
B. Interrupt Request Lines (IRQ)......................................50
C. Watchdog Timer Configuration....................................52
D. Digital I/O Sample Code..............................................56

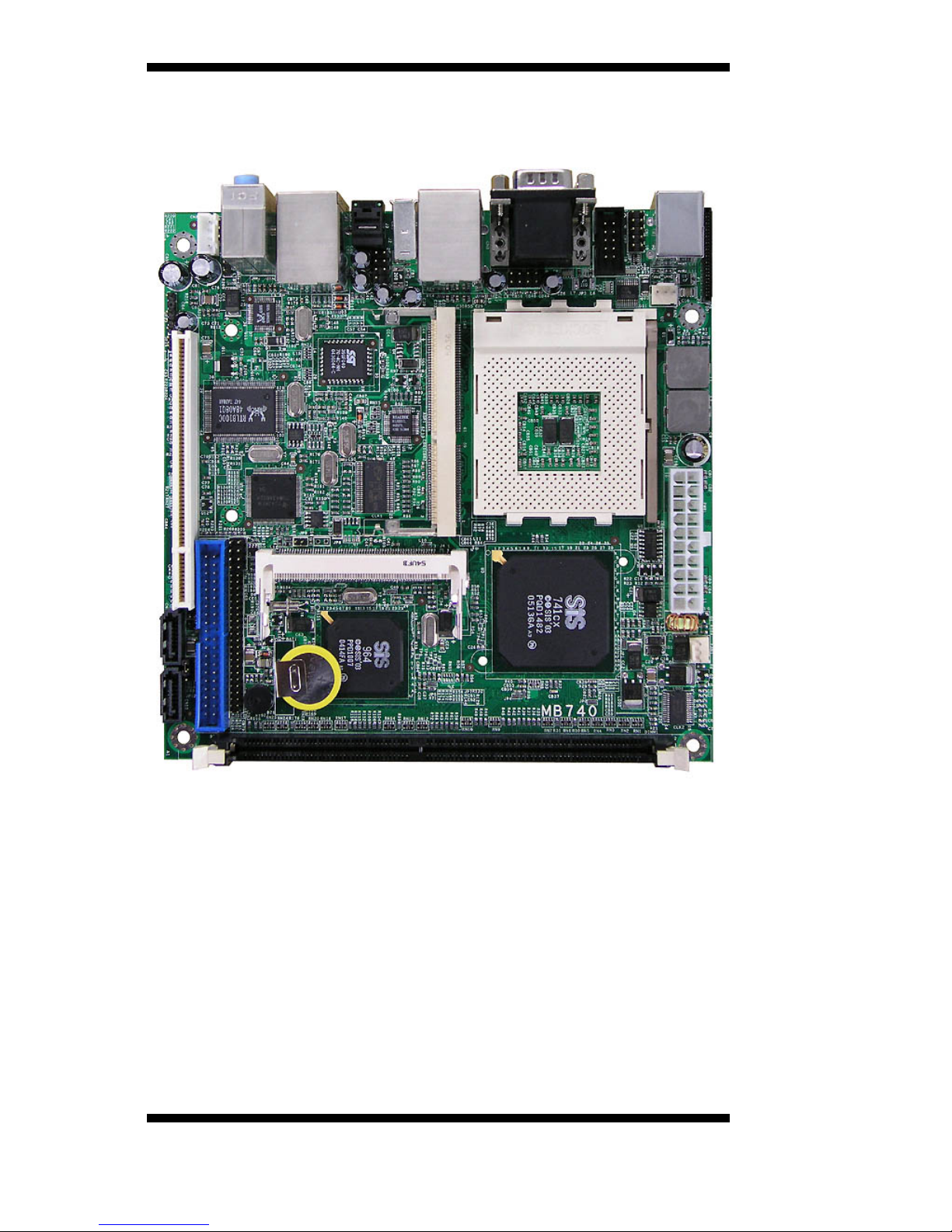

THE MB740 MINI ITX MOTHERBOARD
iv MB740 User’s Manual
INTRODUCTION
MB740 User’s Manual 1
Introduction
Product Description
The MB740 Mini ITX board incorporates a Socket A processor socket that
supports AMD Geode NX series processors that support processor speed up to
1.4GHz. With the SIS 741CX chipset, it delivers maximum performance for
demanding thin client or embedded applications that require silent system
operation. With a higher processor speed and active cooling, it is best suited for
demanding applications such as graphics and point of sales systems. The board
comes with integrated chipset VGA and Ethernet controllers. Optionally
provided is a Realtek Gigabit Ethernet and daughter cards for CRT2/TMDS or
LVDS/TV out interface.
Features
Socket A for AMD Geode NX processor
Up to 1.4GHz speed, 133MHz FSB
DDR DIMM x 1, max. 1GB, DDR266/333
Onboard 10/100 and Optional Realtek 8110S Gigabit LAN
Integrated SiS 741CX CRT VGA
Optional CRT2/DVI, optional LVDS/TV out
2 x SATA, 6 x USB 2.0, 2 x COM, watchdog timer
Digital I/O, optional 1394, 1x PCI, 1x Mini PCI
Dimensions of the board are 170mm x 170mm. Optional daughter cards include
IBA140-301 support CRT2/DVI and IBA140-302 supporting LVDS/TV out.
INTRODUCTION
2MB740 User’s Manual
Checklist
Your MB740 package should include the items listed below.
•The MB740 AMD Geode Mini-ITX motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Cable kit (40-pin IDE, Serial port, Serial ATA)
440
INTRODUCTION
MB740 User’s Manual 3
MB740 Specifications
[
Features Socket A for AMD Geode NX processor
Up to 1.4GHz speed, 133MHz FSB
DDR DIMM x 1, max. 1GB, DDR266/333
Onboard 10/100 and Optional Realtek 8110S Gigabit LAN
Integrated SiS 741CX CRT VGA
Optional CRT2/DVI, optional LVDS/TV out
2 x SATA, 6 x USB 2.0, 2 x COM, watchdog timer
Digital I/O, optional 1394, 1x PCI, 1x Mini PCI
System
CPU Socket A (462-pin) for AMD Geode, up to 1.4GHz
(NX1250 = 667MHz, NX1500 = 1GHz, NX1750 =1.4GHz)
System Memory DDR DIMM x 1, max. 1GB, DDR333
System Chipset SiS 741CX + SiS 964
BIOS Award 4Mbit
Watchdog Timer 256 levels
SSD Optional CF socket (on solder side via IDE2)
H/W Monitor Yes
Expansion Slot 1 PCI, 1 Mini PCI, 1 MicroAGP
Graphics
VGA Controller SiS 741CX integrated for CRT
VGA Memory Shared memory; Max. 64MB
LCD / TV-out / DVI /
CRT2 Optional SiS 302LV MicroAGP card (IBA140-302)
supports 18/24-bit dual channel LVDS and TV out;
Optional SiS 301 MicroAGP card (IBA140-301)
supports DVI/CRT2 interface
Ethernet
Controller SiS 964 built-in 10/100 and Optional Realtek
RTL8110S-32 Gigabit LAN
Multi I/O
Chipset SiS 964, ITE 8705
2x IDE (UDMA33/66/100), 1x FDD, 1x KB, 1x Mouse; 2x
RS-232, 2x SATA
USB 4 ports on board
Pin header for 2 additional ports (USB 2.0)
Audio SiS 964 built-in audio + AC97 codec, SPDIF support;
2W+2W volume amplifier
Others 1394, ATX power connector
Mechanical and Environmental
Dimensions 170mm x 170mm
INTRODUCTION
Board Dimensions
4MB740 User’s Manual
INSTALLATIONS
MB740 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the MB740 in order to set up a workable system. The
topics covered are:
Installing the CPU........................................................................ 6
Installing the Memory.................................................................. 7
Setting the Jumpers...................................................................... 8
Connectors on MB740............................................................... 11
INSTALLATIONS
Installing the CPU
The MB740 board supports a Socket A processor socket for AMD NX
Series processors.
The Socket A processor socket comes with a lever to secure the
processor. Raise this lever to about a 90°angle to allow the insertion of
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, return the
lever to the lock position. Refer to the figures below.
After you have installed the processor into the socket, check if the
jumpers for the CPU type and speed are correct.
NOTE: Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
6MB740 User’s Manual
