SpeedDome®Ultra

Drone III Fixed Camera

Installation Guide

ADSDUD Series

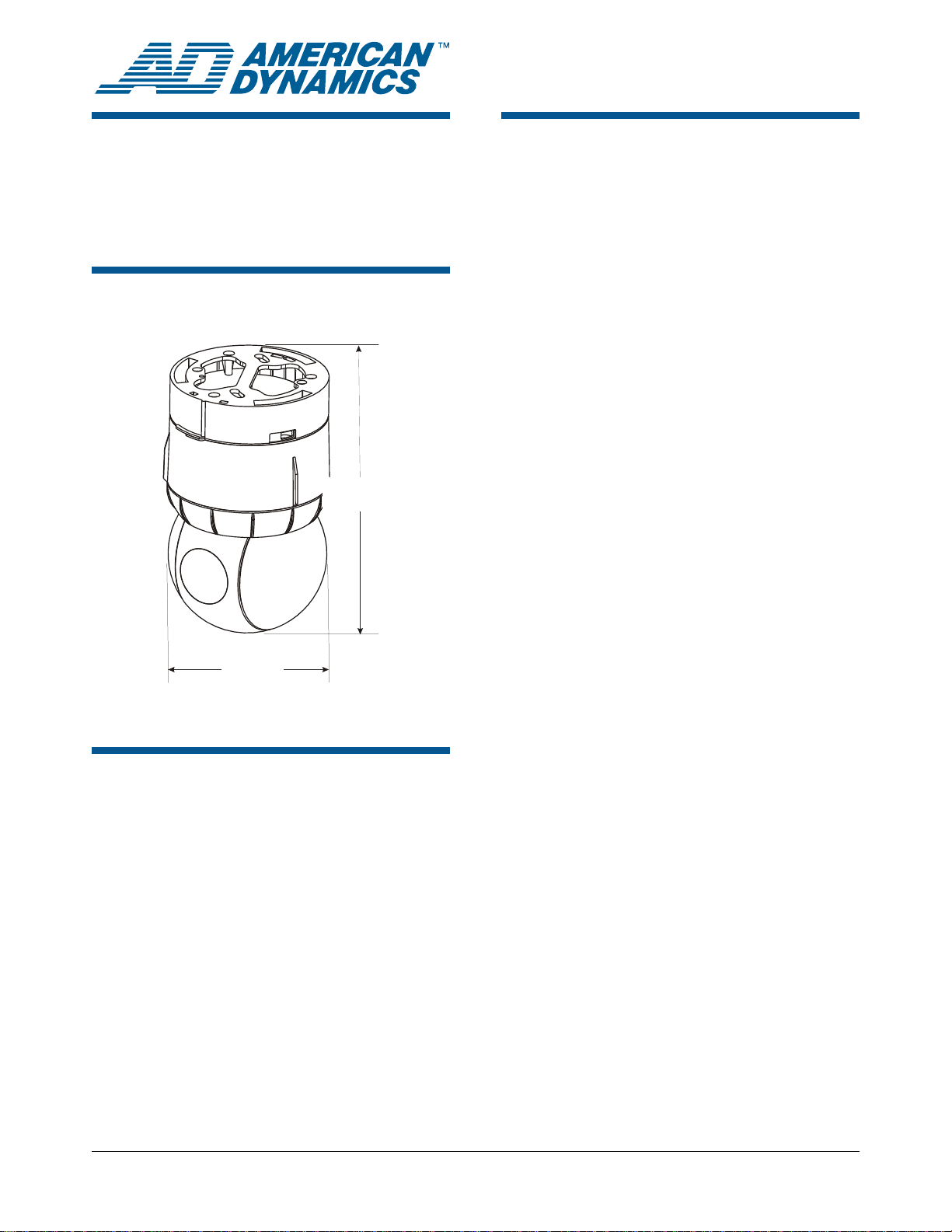

Figure 1. SpeedDome Ultra Drone III

Contents

About the Product.................................................. 1

Installation Procedure............................................ 2

Exploded View....................................................... 4

Parts Lists.............................................................. 5

Declarations .......................................................... 5

About the Product

The SpeedDome Ultra Drone III system (Figure 1)

is a fixed camera housed inside the SpeedDome

Ultra chassis. Two camera types and three

different lenses are available:

•NTSC 540 TVL camera (60 Hz)

•PAL 540 TVL camera (50 Hz)

•3.8-9.5mm Auto Iris, F1.3 IR aspherical lens

•2.5-6mm Auto Iris, F1.3 IR aspherical lens

•9-22 mm F1.6 Auto Iris, IR lens

Each camera has manually positioned pan (360°

travel) and tilt (90°), automatic iris adjustment, and

manually set zoom and focus. The drone comes

fully assembled and is simple to install.

IMPORTANT! If you are using a VM96 video

controller and the SpeedDome Ultra Drone III

camera dome is one of the following, perform the

associated action:

205 mm

8 in.

120 mm

4.7 in.

0.6 kg

1.45 lbs

•A New Drone: Reset the VM96 to update the

configuration form to a fixed camera.

•A Replacement Drone for the SpeedDome

Ultra camera dome: Delete the SpeedDome

Ultra configuration form as explained in the

VM96 Administrator’s Manual 8000-0756-05.

Then, reset the VM96 to update the

configuration form to a fixed camera.

SPEEDDOME ULTRA DRONE III FIXED CAMERA 8200-0581-01, REV. A

INSTALLATION GUIDE 1 of 6

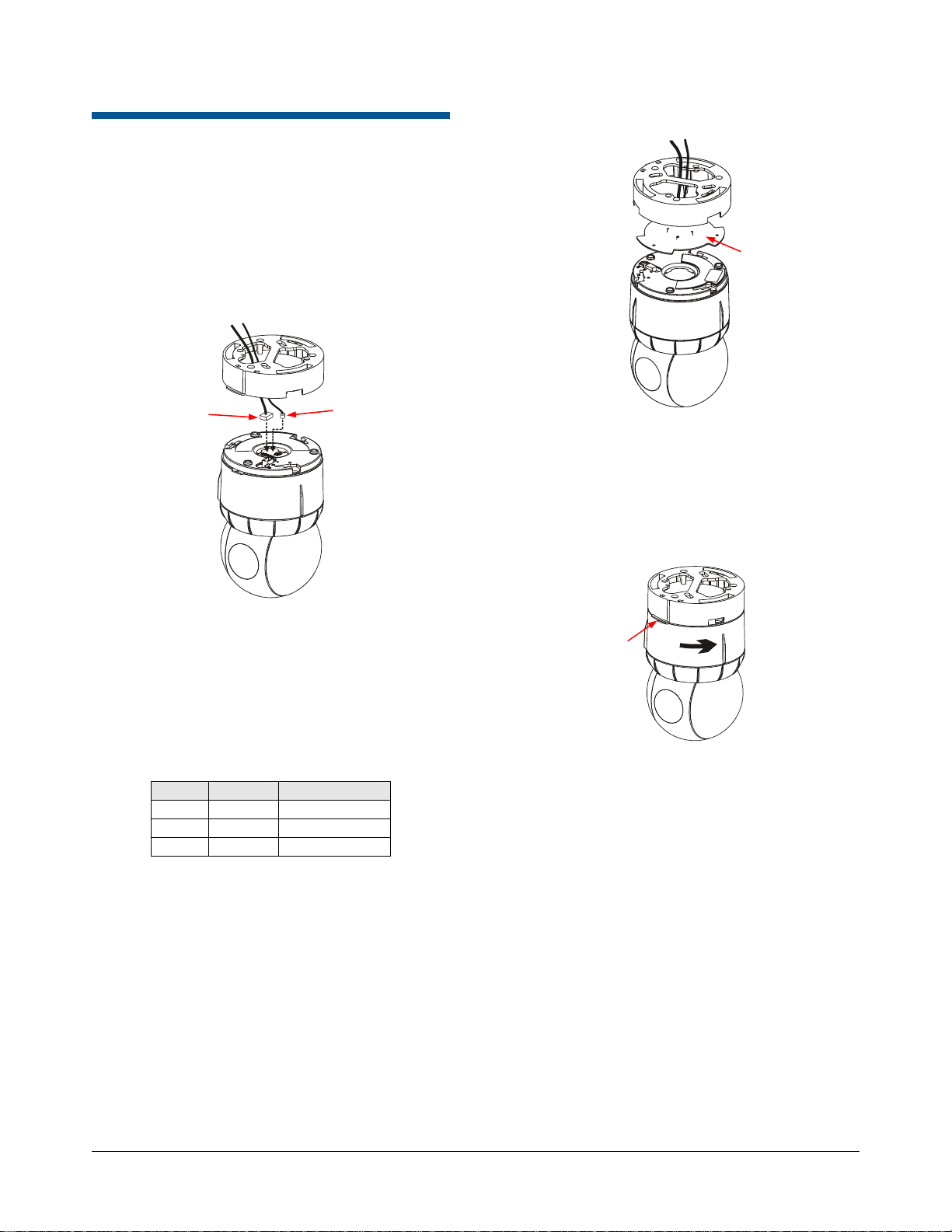

Installation Procedure

Configure the Camera

To configure the camera, do either A or B:

A. Direct Cable (Pigtail) Configuration

Figure 2. Attaching the Dome Cables

1. Connect the video coaxial-wire connector to

the camera dome (Figure 2).

2. Connect the three-wire power connector to the

camera dome (Figure 2).

Refer to Table 1 for the pinout arrangement of

the I/O board connector.

Table 1. I/O Board Connector (P8)

Pin Color Designation

1 Black 24Vac

2 Red Ground

3 White 24Vac

3. Attach the camera dome to the base. Refer to

Attach the Dome to the Base for instructions.

B. I/O Board Configuration

1. Ensure the I/O board is properly seated in the

dome base (Figure 3).

2. Attach the camera dome to the base. Refer to

Attach the Dome to the Base for instructions.

Figure 3. I/O Board Exploded View

I/O Board

Video

Connector

Power

Connector Attach the Dome to the Base

1. Align the yellow alignment dot on the dome’s

cap with the yellow arrow and alignment dot on

the base (Figure 4).

Figure 4. Attaching the Dome to the Base

Alignment

Tabs and

Dots

2. Mate the housing and eyeball assembly to the

base, and turn it counterclockwise until you

hear a click.

Note: This is a fixed camera; no communication

data lines are required.

Remove the Slot Cover

1. If necessary, tilt the eyeball to access the slot

cover containing the lens.

2. Unsnap the slot cover by gently tugging it away

from the eyeball (Figure 5 on page 3). You can

now access the camera set screw.

SPEEDDOME ULTRA DRONE III FIXED CAMERA 8200-0581-01, REV. A

INSTALLATION GUIDE 2 of 6

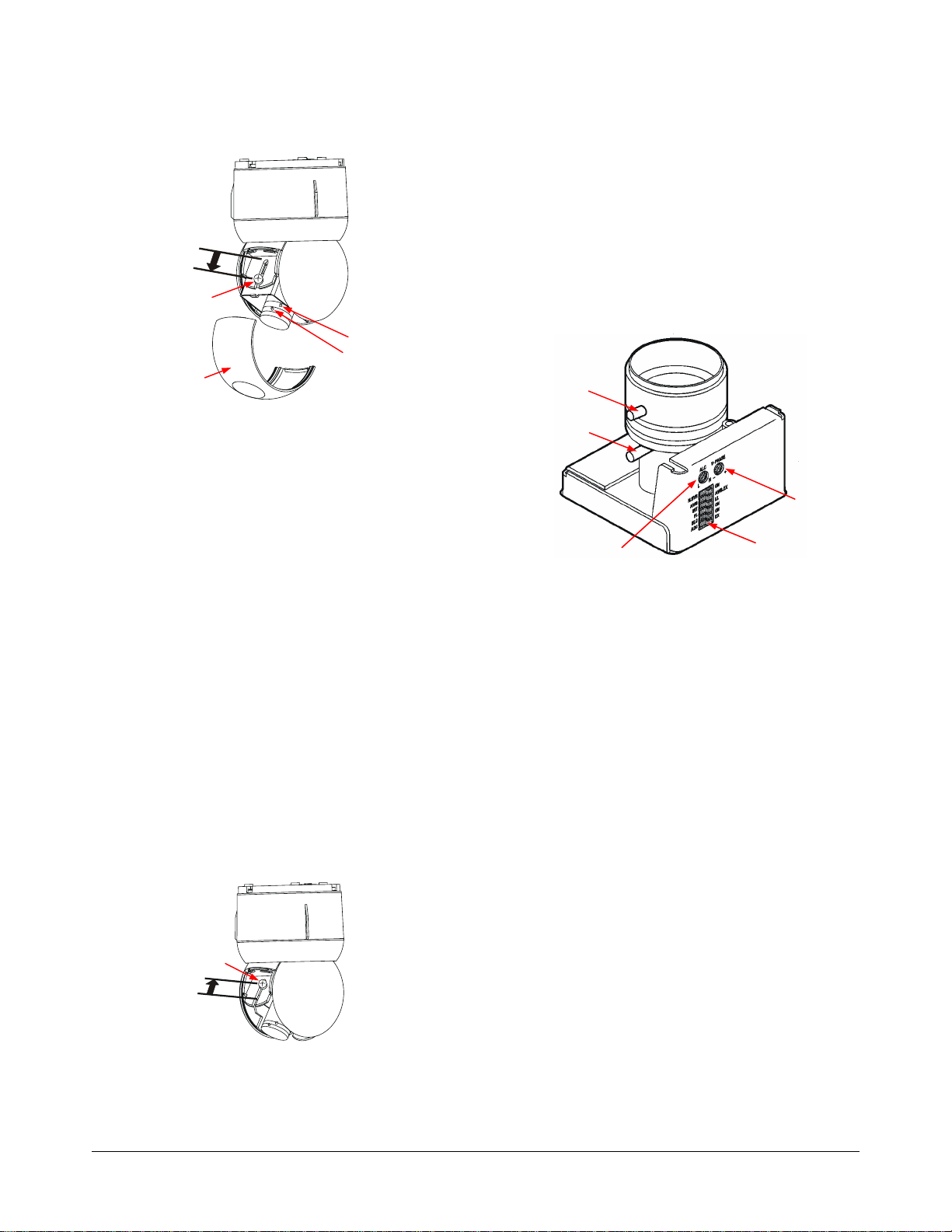

Figure 5. Removing the Slot Cover and

Adjusting the Camera

Adjust the Camera Settings

To make lens adjustments:

1. Loosen the set screw (Figure 5), and gently

pull the camera out until the screw reaches the

front end of the slot. Retighten the set screw.

2. Adjust the camera as follows:

a. Attach a hand-held video monitor to the

video cable entering the mounting base, or

have a second person view the remote

monitor while you adjust the camera.

b. Adjust the pan and tilt to point the camera

at a target, and then adjust the zoom and

focus, as desired.

c. Combine the zoom and focus ring

adjustments to achieve the desired view.

3. Loosen the set screw, and push the camera in

until the screw contacts the rear end of the slot

(Figure 6).

4. Retighten the set screw.

Figure 6. Repositioning the Camera

Adjust the ADSDUDH-Series

Camera

If you are using an ADSDUDH-series camera,

adjust the camera as described in this section.

Note: Be sure to also follow the directions for

making the mechanical lens adjustments that are

described in the previous section, Adjust the

Camera Settings.

Set Screw

Zoom

Focus

Figure 7. ADSDUDH-Series Camera

Slot Cover Focus

uste

Field of View

(Zoom)

Adjuster

ALC Adjustment DIP Switches

V-PHASE

Adjustment

To adjust the ADSDUDH-series camera, make the

appropriate DIP switch settings:

•Low light mono mode (N.SVR / ON) – When

ON, the camera operates in monochrome mode

in reduced lighting.

•Auto White Balance (AWB / AWB.EX)

−AWB: Camera operates in the normal Auto

White Balance range (2700K – 11000K)

−AWB.EX: Camera runs in the extended Auto

White Balance range (2000K – 18000K)

•Line Lock (LL / INT)

−LL: In this mode, V-Phase is adjusted to

compensate for connected power supply

differences

−INT: Camera operates with INTernal sync

•Flickerless Mode (FL / ON): When ON,

camera reduces flicker in the image under

fluorescent lighting.

Set Screw

•Back Light Compensation (BLC) – When ON,

BLC improves the camera response to strong,

unwanted lighting effects behind the subject.

•Low Light Sensitivity (AGC-EX) – When set to

EX, sensitivity in low light is increased.

SPEEDDOME ULTRA DRONE III FIXED CAMERA 8200-0581-01, REV. A

INSTALLATION GUIDE 3 of 6

Focus and Field of View (Zoom) Adjustments:

Twist the appropriate levers on the side of the

varifocal camera.

Vertical Phase Adjustment: When using an AC

power supply, this adjustment aligns the camera

phase with the power supply phase.

ALC (Iris) Adjustment: This is set at the factory

and does not normally require adjustment.

However, if required:

1. Move the AGC DIP switch to the EX (OFF)

position.

2. View the camera output on a monitor and use

a screwdriver to adjust the ALC dial.

3. Move the AGC DIP switch to the AGC (ON)

position when the ALC adjustment is

completed.

Reattach the Slot Cover

1. Ensure that the slot cover tongue and grooves

already attached to the dome are centered

over the yoke tabs.

2. Reattach the slot cover by mating the tongue

and grooves together and gently pressing until

you feel a snap (Figure 8).

WARNING: The tongue and grooves must be

centered over the tabs of the yoke. Failure to

properly attach the cover could result in the

cover falling off during operation. Pull on the

cover to ensure it is securely fastened.

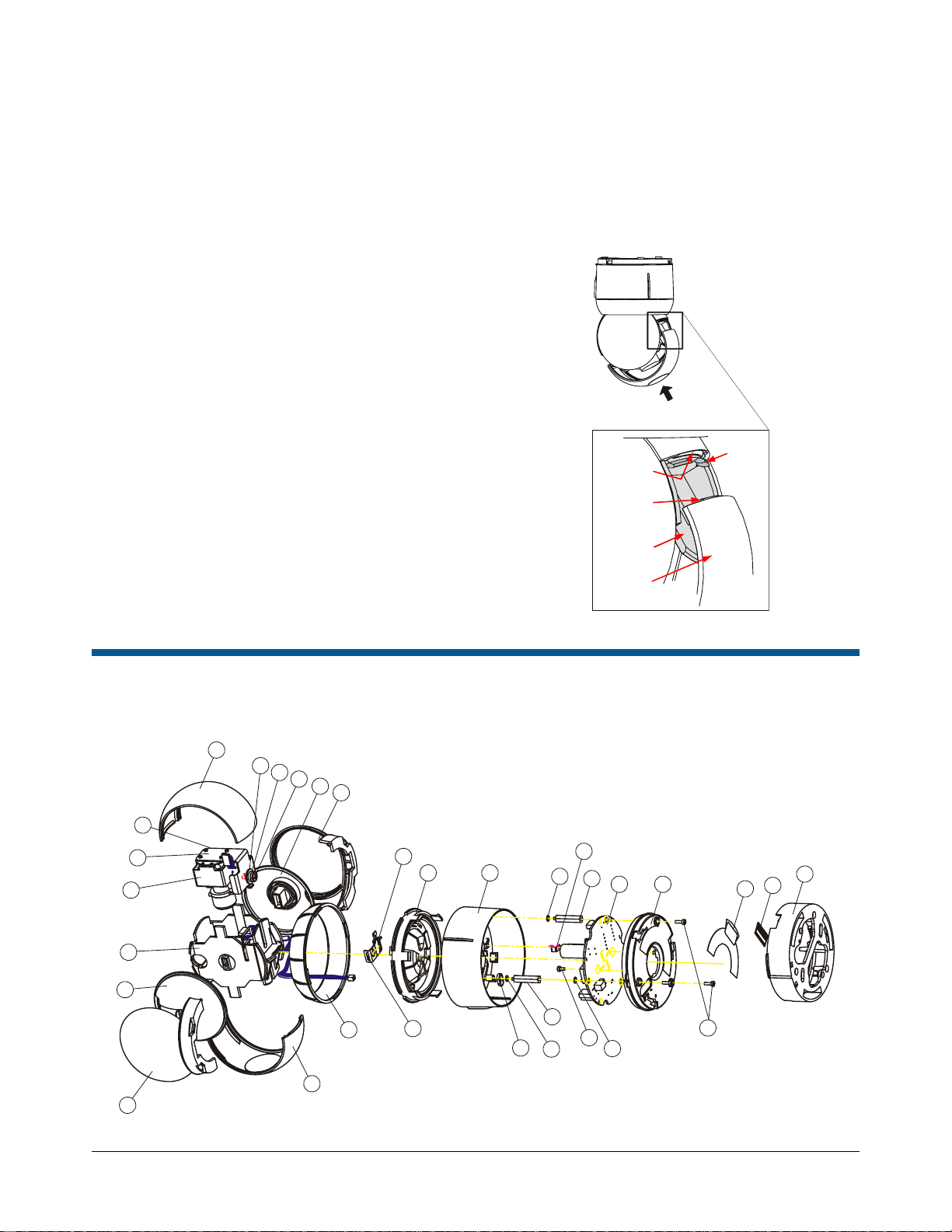

Figure 8. Reattaching the Slot Cover

Gently Push

Groove

Tongue

Yoke

Slot

Cove

Tabs

Exploded View

Figure 9. SpeedDome Ultra Drone III Exploded View

3456

789 10

12 13 14 15 16 17

SPEEDDOME ULTRA DRONE III FIXED CAMERA 8200-0581-01, REV. A

INSTALLATION GUIDE 4 of 6

Parts Lists

Table 2. SpeedDome Ultra Drone III

No. Description Qty Part Number

— SpeedDome Ultra Drone III

2.5-6 mm NTSC 1 0101-0166-01

— SpeedDome Ultra Drone III

3.8-9.5 mm NTSC 1 0101-0166-02

— SpeedDome Ultra Drone III

9-22 mm NTSC 1 0101-0166-03

— SpeedDome Ultra Drone III

2.5-6 mm PAL 1 0101-0166-04

— SpeedDome Ultra Drone III

3.8-9.5 mm PAL 1 0101-0166-05

— SpeedDome Ultra Drone III

9-22 mm PAL 1 0101-0166-06

1 Cover, Slot, w/o lens 1 0500-8037-01

2 Washer, FL, Type B, Reg,

SS, ¼” 1 *

3 Washer, LK, Split, Reg, Zn,

#14 1 *

4 Screw, ¼ x 20 1 *

ssembly, Bearing, Lens

Carriage, Drone 1 *

6 Bracket, Yoke 2 0500-8038-01

7 Tie, Cable, Nylon, 3.25 3 *

8 Bearing 1 *

9 Housing, Ultra Dome 1 0500-7255-02

10 Washer 3 *

11 Clip, Stop 1 *

12 Standoff, M3x33 3 *

ssembly, PCB 1 0312-2204-01

14 Cap 1 0505-1224-01

15 Label, Regulatory 1 *

16 Label, Certification 1 *

17 Base 1 0500-7257-02

18 Screw, M3x10 3 *

19 Screw, M3x6 3 *

20 Clip, Stress 1 *

21 Ring, Trim, Ultra 1 *

22 Cover, Slot, w/Lens Assy 1 0404-0353-01

ssembly, Bearing, Lens

Carriage, Drone 1 *

24 Yoke, Ultra Dome 1 0500-7258-01

25 Camera, w/Cable Assy 1 See Board

Cameras table

ssembly, Bearing, Lens

Carriage, Drone 1 *

* Note: Contact your technical support representative for

information on this part.

Table 3. Board Cameras

No. Description Qty Part Number

— 2.5-6 mm NTSC 1 2003-0053-01

— 3.8-9.5 mm NTSC 1 2003-0053-02

— 9-22 mm NTSC 1 2003-0053-03

— 2.5-6 mm PAL 1 2003-0053-04

— 3.8-9.5 mm PAL 1 2003-0053-05

— 9-22 mm PAL 1 2003-0053-06

Declarations

Regulatory Compliance

EMC...............................................47 CFR, Part 15

EN 300 330

EN 301 489

RSS 210

Safety......................................................... UL 1950

CSA C22.2 No 950

EN 60950-1

REGULATORY PRODUCT NAME:

REG ID/TYPE=VP SDU

FCC COMPLIANCE: This equipment complies with Part 15

of the FCC rules for intentional radiators and Class A digital

devices when installed and used in accordance with the

instruction manual. Following these rules provides reasonable

protection against harmful interference from equipment

operated in a commercial area. This equipment should not be

installed in a residential area as it can radiate radio frequency

energy that could interfere with radio communications, a

situation the user would have to fix at their own expense.

EQUIPMENT MODIFICATION CAUTION: Equipment

changes or modifications not expressly approved by

Sensormatic Electronics Corporation, the party responsible for

FCC compliance, could void the user's authority to operate the

equipment and could create a hazardous condition.

See “About the Product” on page 1.

WARRANTY DISCLAIMER: Sensormatic Electronics

Corporation makes no representation or warranty with respect

to the contents hereof and specifically disclaims any implied

warranties of merchantability or fitness for any particular

purpose.

NOTICE: The information in this manual was current when

published. The manufacturer reserves the right to revise and

improve its products. All specifications are therefore subject to

change without notice.

SPEEDDOME ULTRA DRONE III FIXED CAMERA 8200-0581-01, REV. A

INSTALLATION GUIDE 5 of 6

LIMITED RIGHTS NOTICE: For units of the Department

of Defense, all documentation and manuals were developed at

private expense and no part of it was developed using

Government Funds. The restrictions governing the use and

disclosure of technical data marked with this legend are set

forth in the definition of “limited rights” in paragraph (a) (15)

of the clause of DFARS 252.227.7013. Unpublished - rights

reserved under the Copyright Laws of the United States.

TRADEMARK NOTICE: American Dynamics and

Sensormatic are trademarks or registered trademarks of

Sensormatic Electronics Corporation. Other product names

mentioned herein may be trademarks or registered trademarks

of Sensormatic or other companies.

manual may not be copied, photocopied, reproduced,

translated or reduced to any electronic medium or machine-

readable form, in whole or in part, without prior written

consent of Sensormatic Electronics.

WJM_7/2006

SPEEDDOME ULTRA DRONE III FIXED CAMERA 8200-0581-01, REV. A

INSTALLATION GUIDE 6 of 6

Altri manuali per SpeedDome Ultra Drone III

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics SpeedDome Ultra VII Manuale utente

American Dynamics

American Dynamics AD715LS Series Manuale del proprietario

American Dynamics

American Dynamics ADCPBW Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuale utente

American Dynamics

American Dynamics ADC 660N Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics ADC 660P Manuale utente

American Dynamics

American Dynamics Tyco ADC520 Series Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra III Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics illustra 600 Manuale utente

American Dynamics

American Dynamics Illustra 625 PTZ Manuale utente

American Dynamics

American Dynamics DeltaDome II Istruzioni per l'installazione e il funzionamento

American Dynamics

American Dynamics Tyco Discover Series Manuale utente

American Dynamics

American Dynamics ADC522WP Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics RASIPPS-1 Manuale utente

American Dynamics

American Dynamics ADC523PIR Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VII EIS Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Optima LT Manuale

American Dynamics

American Dynamics SensorRail AD2079 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Drone II Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
