8200-0206-07 Rev. A

ADC522WP

B/W CCTV CAMERA

OPERATING INSTRUCTIONS

Note: All ADC520/ADC720 Series cameras ship with a 120VAC to 12VDC UL listed power supply with a

6-foot (1.8m) cord. 12VDC cameras will not line-lockand are not recommended for use in a matrix

switcher environment.

1. Please use a regulated 12VDC power adaptor to operate this unit. The power tolerance of this unit

is 12VDC

10% (10.8VDC~13.2VDC); a power input of more than 13.2VDC will damage this unit.

2. The video output (BNC connector) of this unit should only be connected to a non-powered device.

Please check the wiring of the video output before applying power to this unit. If the power is applied

through the video output cable, the unit will be damaged.

CAUTION

8200-0206-07 Rev. A

Thank you for choosing this high quality camera, before connecting or operating this product, please read all

of these instructions.

Specifications

Pick-up Element 1/3” B/W CCD image sensor

Number of Pixels 510(H) x 492(V) <EIA> / 500(H) x 582(V) <CCIR>

Resolution 380 TV lines

Minimum Illumination 0.25 Lux / F2.0; 0 Lux (10 meter IR ON)

S/N Ratio >46dB (AGC MAX)

Electronic Shutter 1/60(1/50) to 1/100,000 sec.

Gamma Correction 0.45

AGC Yes

Standard Board Lens F4.0mm / F2.0

Lens Angle (Diagonal) 82°

Video Output 1.0 Vp-p composite, 75 ohms (Ω)

Power Source 12VDC + 10%

Current Consumption 90 mA (IR OFF), 245 mA (IR ON)

Water Resistance IP 57

IR LED 12 units Infrared LED

Effective Range Over 10 Meters

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Dimension (mm) 64.6 (Ø) x 105 (L)

Weight 550 g

Use only a regulated 12VDC power adaptor to operate this unit. If the input voltage is greater than 12VDC it

may reduce the IR LED lifetime. If the voltage is less than 12VDC it may reduce the IR LED effective

distance.

General

This B/W CCD video camera employs a B/W charge coupled device solid-state imaging device that provides

extremely long life and high reliability. The camera offers excellent reproducibility with low lag and high burn

resistance. It is not subject to distortion from magnetic fields and functions reliably across a wide

temperature range.

Features

• 1/3” B/W CCD image sensor

• 380 TV lines.

• 0.25 Lux / F2.0, 0 Lux (10 meter IR ON).

• Water Resistance: IP57

• IR LED: 12 units Infrared LED

• Effective Range: Over 10 Meters

• Automatic IR trigger-on under low illumination

• Automatic IR off under normal illumination

WARNING

At close range, Infrared light can seriously damage a person's vision. Install this Illuminator in such a

manner as to provide a minimum safety zone of 1.22m (4ft) between the Illuminator and the closest possible

human contact.

SERVICE WARNING

DO NOT LOOK DIRECTLY INTO AN OPERATIONAL IR ILLUMINATOR

Since IR light is invisible to the human eye, the only method of verifying a malfunctioning IR illuminator is to

observe the picture at the video output location.

8200-0206-07 Rev. A

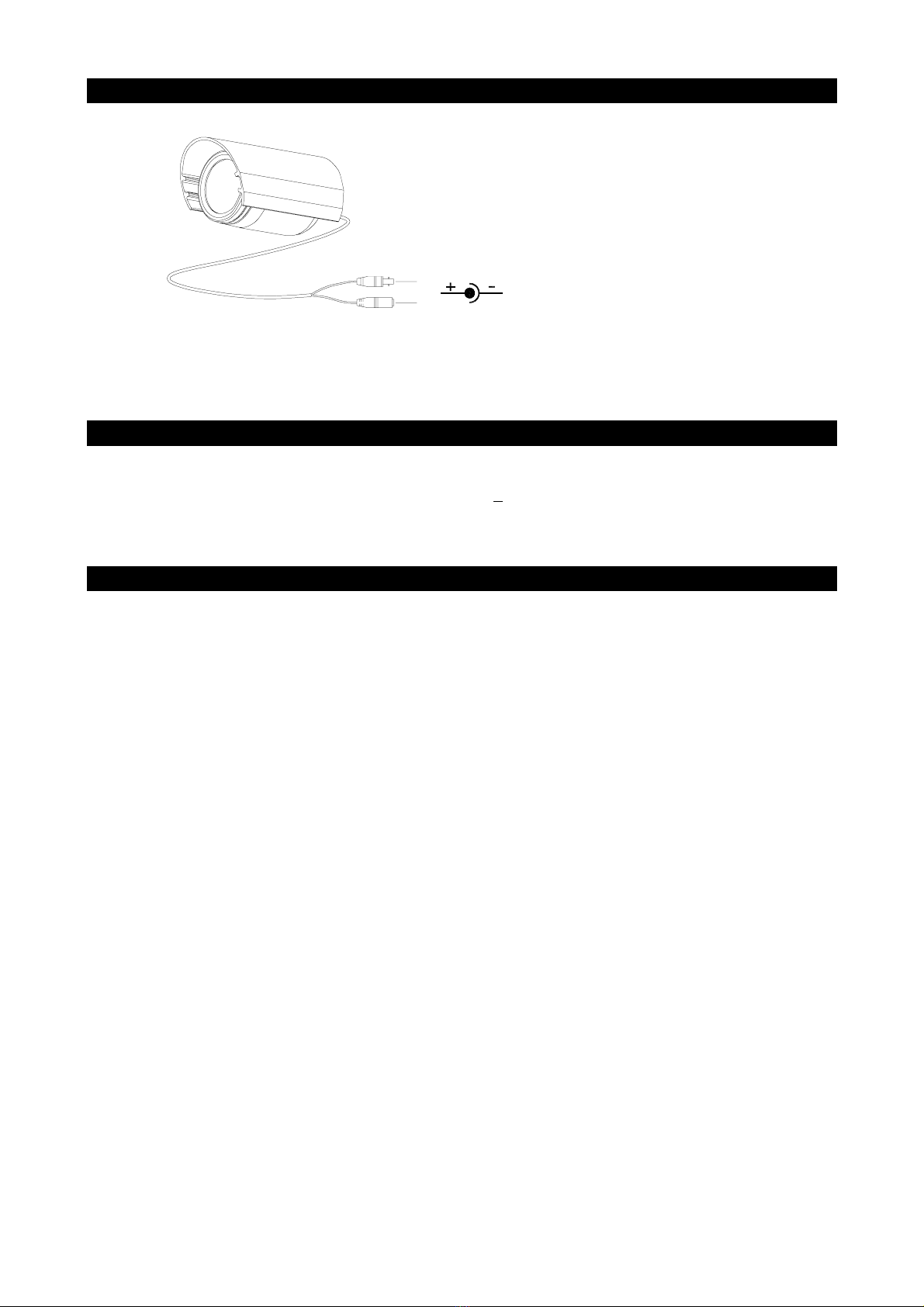

Major operating controls and functions

1. 12VDC Input Terminal

2. Video Output Connector (VIDEO OUT)

Connections

1. Connect the video terminal of the camera (VIDEO) and the video input terminal of the video monitor with

a 75-ohm coaxial cable.

2. Connect the power terminal of the camera to a 12VDC + 10% regulated power supply.

Standard Accessories

Bracket—quantity 1

Instruction manual—quantity 1

Warning -- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Canadian ICES-003 and part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

American Dynamics

Tyco Safety Products

6600 Congress Ave.

Boca Raton, Florida 33487

Telephone: 561-912-6000
