American Dynamics SpeedDome Optima LT Manuale utente

Over 175 SpeedDome programmable

dome cameras keep tabs on major

traffic arteries throughout central

Florida. From Orlando to Tampa

and out to Cape Canaveral,

American Dynamics domes put

state transportation officials front

and center at the scene of an

accident or suspicious activity.

Video feeds supply key information

to law enforcement and news

media during emergency situations

and daily commutes.

SpeedDomes, Drones,

Controllers &Accessories

—

SpeedDome Ultra 8:

Equipped with wide dynamic range, true Day/Night

and Electronic Image Stabilization (EIS), SpeedDome

Ultra 8 with 35x and 540 TVL allows users to see

farther and clearer than ever before. A 12x digital

magnifier with 35x optical zoom yields a total zoom

of 420x. This series also features privacy zones,

on-screen programming, alarm inputs and DirectSet

for fast access to the most frequently used functions.

A choice of black or white camera assemblies is

available.

SpeedDome Ultra 8 with 22x delivers excellent

color images in scenes as dim as .02 lux. This series

combines 22x optical zoom and 11x digital zoom for

242x total zoom and has low-light capability of .004

lux. Like the SpeedDome Ultra 8 with 35x, this series

also includes DirectSet, privacy zones, on-screen

programming and alarm inputs.

SpeedDome Optima:

Powered with 22x optical zoom and 11x digital

zoom for a total of 242x zoom, SpeedDome Optima

delivers high quality color images. The series includes

an alarm imput, 96 user-programmable presets three

patterns, and a pre-wired harness for easy installation and

servicing. Compatible with any American Dynamics

controller or matrix/switcher controller system,

Optima is available in outdoor models only.

SpeedDome Optima LT:

SpeedDome Optima LT includes the same features

as a standard dome — all for an impressively low

price. Optima LT renders high quality color images

and offers up to 242x zoom (22x optical and

11x digital zoom), 96 user-programmable presets and

three patterns. It is compatible with most American

Dynamics controllers or matrix/switcher controller

systems and designed for indoor use only.

peedDome programmable dome cameras give you a comprehensive view that you

simply cannot get from a fixed camera. Our technology delivers the details of your

target, zooming in or out in less than a second to capture the image you need the instant an alarm

goes off. Our innovative Zoom-Adjusted Programming (ZAP) lets you pan, tilt and zoom in every

direction, automatically adjusting the pan and tilt speed in proportion to the zoom. Additional

features enable you to conduct a virtual patrol of your facility whether or not someone is manning

the controls. Auto-focus with manual override renders a clear picture every time. From the most

distant corner of a parking garage to the maze of hallways throughout a building, SpeedDome

programmable dome cameras take you everywhere you need to see.

SpeedDomes

www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

SpeedDomes, Drones, Controllers & Accessories

—

C H O O S E A D O M E T H A T I S R I G H T F O R Y O U

SpeedDomes

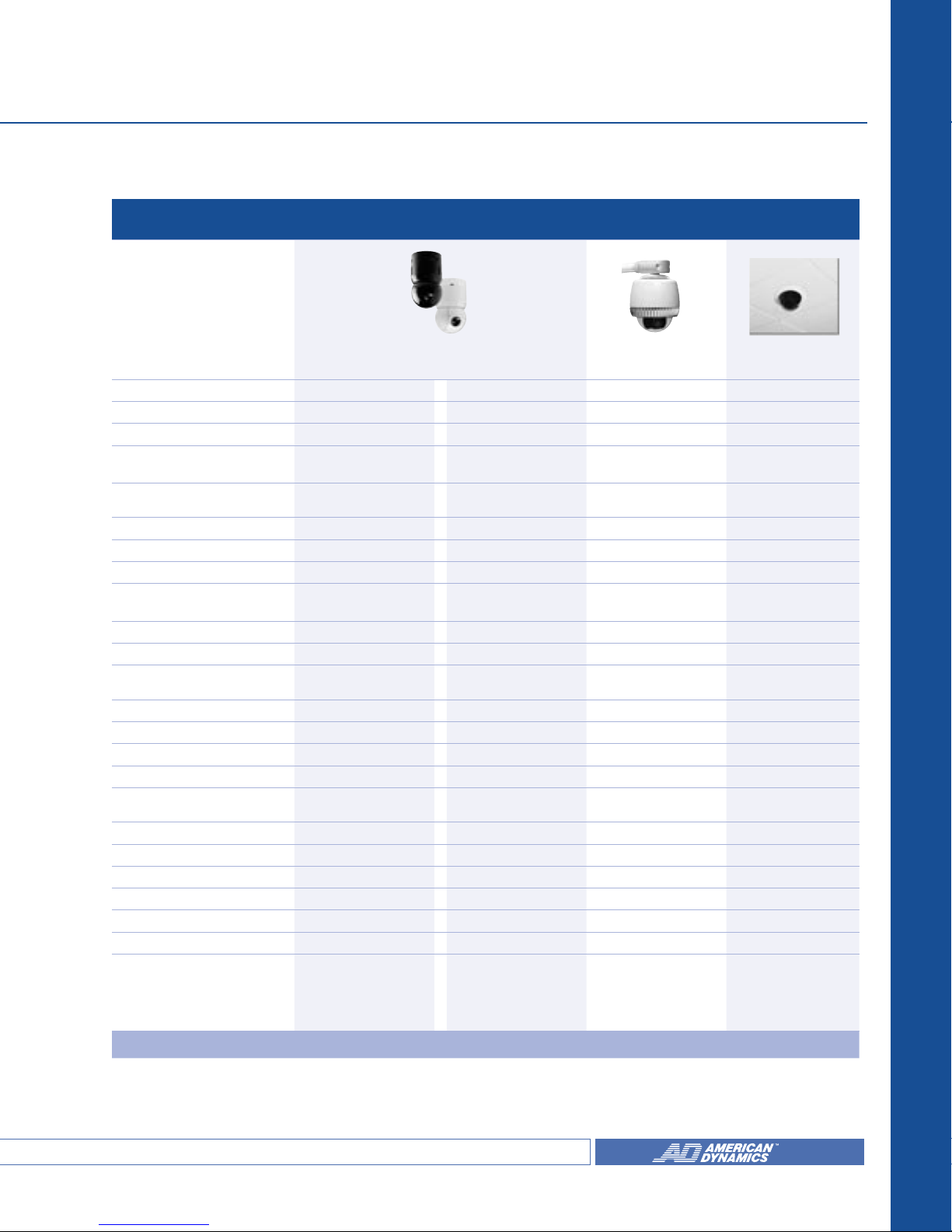

DOME COMPARISON TABLE

SpeedDome

Ultra 8 SpeedDome

Optima

(Outdoor)

Optical Zoom

35x 22x

22x

Total Zoom

420x 242x

242x

Digital Zoom

12x 11x

11x

CCD Imager

1/4", 540 lines

(CCD center)

1/4", 470 lines

(CCD center)

1/4

, 470 lines

(CCD center)

1/4

, 470 lines

(CCD center)

Minimum Illumination

(20IRE, AGC)

0.24 lux (Color)

0.021 lux (B/W IR mode) 0.3 lux (Color) 1.5 lux (Color) 1.5 lux (Color)

Day/Night

Yes No

Wide Dynamic Range

Yes No

Electronic Image Stabilization

Yes No

Programmable Presets

Up to 96

(controller dependent)*

Up to 96

(controller dependent)*

Up to 96

(controller dependent)*

Up to 96

(controller dependent)*

Freeze-Frame on Presets

Yes Yes

Programmable Patterns

16 16

Preset, Area, Pattern Naming

Up to 19 characters

(user-defined)

Up to 19 characters

(user-defined)

Privacy Zones

Up to 8 Up to 8

Direction Indicato

rs Yes Yes

Programmable Sequences

16 16

Auto Home Position

Yes Yes

Yes

Alarm Inputs & Outputs

Up to 4 inputs/outputs,

base/housing dependent

Up to 4 inputs/outputs,

base/housing dependent

one

Auto Focus/Iris

Yes Yes

yes

Yes

Zoom Adjusted Programming

Yes Yes

yes

Yes

Password Protection

Yes Yes

I/O Memory Base

Yes No

Lens Focal Length

3.4 to 119 mm 4 to 88 mm

4 to 88 mm

Lens Maximum Aperture

f1.4 f1.6

f1.6

Communication Protocols*

RS-422/RS-485,

Manchester, SensorNet,

AD UTC

RS-422/RS-485,

Manchester, SensorNet,

AD UTC

RS-422/RS-485,

Manchester &

SensorNet

Manchester, SensorNet

& Simplex

RS-422/RS-485

Reference Page Numbers 23-26 23-26 27-28 27-28

Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

* Refer to chart on p. 29.

SpeedDome

Optima LT

(Indoor)

1 C H O O S E F E A T U R E S T H A T M A K E A D I F F E R E N C E

SpeedDome Ultra 8

* Contact your sales representative for details on competitors’ protocol support.

22x series:

• 22x optical zoom with 11x digital magnifier

(242x total zoom)

• Advanced digital signal processing (DSP)

CCD camera

• Freeze frame on presets (user-selectable

on/off)

• Open shutter to capture images in very

low directional light

• Select from two housing/eyeball assembly

colors: black or white

• Continuous auto focus

• Zoom adjusted programming

• Dome usage statistics

• Password protection

• Integrated Unshielded Twisted Pair (UTP)

simplifies wiring and installation

• Store presets and patterns with I/O base

memory

• Supports SensorNet, RS-422, Manchester,

AD UTC, NTCIP and select competitor’s

protocols*

• Dome-generated on-screen text including

direction indicators

• Up to eight privacy zones

• Programmable presets, patterns and area

names

• DirectSet feature provides fast access to

the most frequently used dome features

• Up to 96 presets (controller dependent)

• Alarm inputs and outputs

• Automatic home position

• Automatic proportional flip and automatic

gain control, line-lock and white balance

(user-selectable on/off)

35x series; includes ALL the features (listed left)

PLUS the following:

• 35x optical zoom with 12x digital magnifier

(420x total zoom)

• Wide dynamic range

• Day/night color-to-monochrome mode

• Electronic Image Stabilization (EIS)

• Dimensions:

Height: 205 mm (8 in)

Diameter: 120 mm (4.7 in)

• Weight:

Housing and Eyeball: 1.18 kg (2.6 lbs)

Base (with I/O board): .16 kg (.35 lbs)

SEE IN THE DARK

Penetrate beyond the

visible light spectrum with

the infrared capability of

SpeedDome Ultra 8. This

powerful feature enables

you to capture black & white

images in scenes so dark that

light is undetectable to the

human eye. Get the best of

both worlds with a

programmable dome camera

that renders excellent color

video during daylight and

automatically switches to

monochrome when the lights

go out.

www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

SpeedDomes, Drones, Controllers & Accessories

—

2 O R D E R I N G O P T I O N S

1. EACH COMPONENT INDIVIDUALLY

camera module, mounting base, mount, housing and bubble.

2. A PRE-CONFIGURED DOME KIT, which includes the

following components:

 aCamera Module (Color with Day/Night mode)

 bI/O Board Mounting Base (if applicable)

 cMounts

1) Hard Ceiling, 2) 2'x2' Drop Ceiling or 3) Long Wall

 dHousings

1) Top hat housing for indoor applications

2) Environmental housing for outdoor applications

 eBubbles (smoked or clear)

A NOTE ABOUT THE DOME ASSEMBLY:

A dome assembly is comprised of two

individual components:

1. Camera Module

2. I/O Board

Mounting Base

We offer an I/O Board

Mounting Base which

makes installation as easy as

screwing in a lightbulb with

just three simple steps:

1) Connect the composite

cables for power, communication

and video to the I/O PC board

in the mounting base.

2) Secure the

mounting

base to

the ceiling or desired location.

3 & 4) Connect the housing

and eyeball assembly to the

base by aligning the cap and

base tabs, and then turning

the housing clockwise until you

hear a click. Once the housing

is secured, only the florescent

dot will be seen.

5) Dome is mounted and

ready-to-go. Wait a few

seconds for dome to begin

its homing routine. This

mounting base supports four

alarm inputs and three alarm

outputs.

SpeedDome Ultra 8

aCamera Module bI/O Board Mounting Base

cMounts

3) Long Wall (Outdoor)

2) 2' x 2' Drop Ceiling

(Indoor)

1) Hard Ceiling (Indoor)

dHousings

1) Top Hat (Indoor) 2) Indoor & Outdoor

eBubbles

Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

Smoked

Gold*

Silver*

Clear

* Indoor use only.

SpeedDome Ultra 8

SELECTION GUIDE

3 S E L E C T A M O D E L

4SELECT A

MODEL

3SELECT A

DOME FINISH

2SELECT A

ZOOM

BLACK

WHITE

35x

(includes 540 TVL, WDR,

Day/Night & EIS)

22x

35x

(includes 540 TVL, WDR,

Day/Night & EIS)

22x

BLACK

WHITE

BLACK

WHITE

BLACK

WHITE

1SELECT YOUR

ENVIRONMENT

INDOOR

OUTDOOR

Dome assembly*

Camera module only

5SELECT YOUR ACCESSORIES

> Housings &Bubbles: pp. 31-32

> Mounts: pp. 33-36

> Controllers: p. 39

> J-Boxes: p. 40

> Installation/Removal tool: p. 42

> Power supplies: p. 92

www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

ADSDU835ION

ADSDU835IOP

ADSDU835WION

ADSDU835WIOP

ADSDU822ION

ADSDU822IOP

ADSDU822WION

ADSDU822WIOP

ADSDU835N

ADSDU835P

ADSDU835W N

ADSDU835W P

ADSDU822N

ADSDU822P

ADSDU822W N

ADSDU822W P

* Includes camera module and mounting base

Note: N = NTSC and P = PAL

SpeedDomes, Drones, Controllers & Accessories

—

SpeedDome Ultra 8

3 S E L E C T A M O D E L 3 S E L E C T A M O D E L — D O M E K I T S

SELECTION GUIDE

SMOKED

NONE

SMOKED

NONE

SMOKED

NONE

SMOKED

NONE

CLEAR

4SELECT A

BUBBLE

3SELECT A

ZOOM

2SELECT A

MOUNT

35x

(includes 540 TVL, WDR,

Day/Night & EIS)

22x

HARD CEILING

2'x2' DROP CEILING

35x

(includes 540 TVL, WDR,

Day/Night & EIS)

22x

5SELECT A MODEL1SELECT YOUR

ENVIRONMENT

INDOOR

(includes 1/0 base,

and Top Hat housing)

ADSDU835IHSN

ADSDU835IHSP

ADSDU835IHN

ADSDU835IHP

ADSDU822IHS N

ADSDU822IHS P

ADSDU822IHN

ADSDU822IHP

ADSDU835I2X2S N

ADSDU835I2X2S P

ADSDU835I2X2N

ADSDU835I2X2P

ADSDU822I2X2S N

ADSDU822I2X2S P

ADSDU822I2X2N

ADSDU822I2X2P

ADSDU835OPC N

ADSDU835OPC P

ADSDU822OPC N

ADSDU822OPC P

ADSDU835OPC W N

ADSDU835OPCWP

ADSDU822OPCWN

ADSDU822OPCWP

35x

(includes 540 TVL, WDR,

Day/Night & EIS)

22x

> Housings &Bubbles: pp. 31-32

> Mounts: pp. 33-36

> Controllers: p. 39

> J-Boxes: p. 40

> Installation/Removal tool: p. 42

> Power supplies: p. 92

6SELECT YOUR ACCESSORIES

Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

Note: N = NTSC and P = PAL

ORDER SEPARATELY

(see page 36)

LONG - WALL

OUTDOOR 35x

(includes 540 TVL, WDR,

Day/Night & EIS)

22x

• Color camera with up to 242x zoom

(22x optical, 11x digital)

• 470+ lines horizontal resolution

• Zoom adjusted programming

• Auto focus and auto iris

• Auto white balance

• Automatic gain control

• Line-lock

• Supports Manchester, SensorNet and

Simplex RS-422 protocols

• Integrated Unshielded Twisted Pair (UTP)

simplifies wiring and installation

• Up to 96 user-definable presets

• Three user-definable patterns

• Power-on functional tests

• LED diagnostics

• Easy to install and service

• Priced comparably to a PTZ, with

more features and easier to install

• Stepper motors with micro-step control

• Automatic home position

• In-ceiling series dimensions:

Total: 301 x 190.5 mm (11.9 x 7.5 in)

Above ceiling: 207.4 x 190.5 mm

(8.2 x 7.5 in)

Below ceiling: 92.7 x 178 mm

(3.65 x 7 in)

• In-ceiling series weight: 2.5 kg (5.5 lbs)

• Integral housing series dimension:

303 x 243.5 mm (11.9 x 9.6 in)

• Integral housing series weight: 2.7 kg (6.1 lbs)

1 C H O O S E F E A T U R E S T H A T M A K E A D I F F E R E N C E

FROM BOX TO

CEILING IN 15

MINUTES

SpeedDome Optima LT goes

from box to ceiling in as little

as 15 minutes. Everything

you need to install it in a

hard ceiling, including the

bubble and trim ring, comes

in one package. The housing

features an integrated

aluminum top hat enclosure

and plenum cap with swing-out

tabs that grasp ceiling

material for a secure hold.

www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

2 O R D E R A P R E - C O N F I G U R E D D O M E K I T

CONTENTS OF

A DOME KIT:

aColor Camera Module

bHousing

cBubble (smoked or clear)

aColor Camera Module bHousings cBubbles

In-ceiling

(Indoor)

Pendant

(Indoor/Outdoor) Smoked Clear

SpeedDome Optima &

SpeedDome Optima LT

SpeedDomes, Drones, Controllers & Accessories

—

Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

4SELECT A MODEL3SELECT A BUBBLE

2SELECT A HOUSING1SELECT YOUR

ENVIRONMENT

SELECTION GUIDE

3 S E L E C T A M O D E L — D O M E K I T S

OPTIMA

(OUTDOOR)

NTSC: RASONPC

PAL: RASOPPC-1

NTSC: RASONPS

PAL: RASOPPS-1

NTSC: RASELH C

PAL: RASELH C - 1

NTSC: RASELH S

PAL: RASELHS-1

NTSC: RASELP C

PAL: RASELPC-1

NTSC: RASELP S

PAL: RASELP S - 1

OPTIMA LT

(INDOOR)

Available in

pendant mount

version only

IN-CEILING

PENDANT

CLEAR

SMOKED

CLEAR

SMOKED

CLEAR

SMOKED

> Mounts: pp. 33-36

> Controllers: p. 39

> J-Boxes: p. 40

> Other accessories: p. 42

> Power supplies: p. 92

5SELECT YOUR ACCESSORIES

SpeedDome Optima &

SpeedDome Optima LT

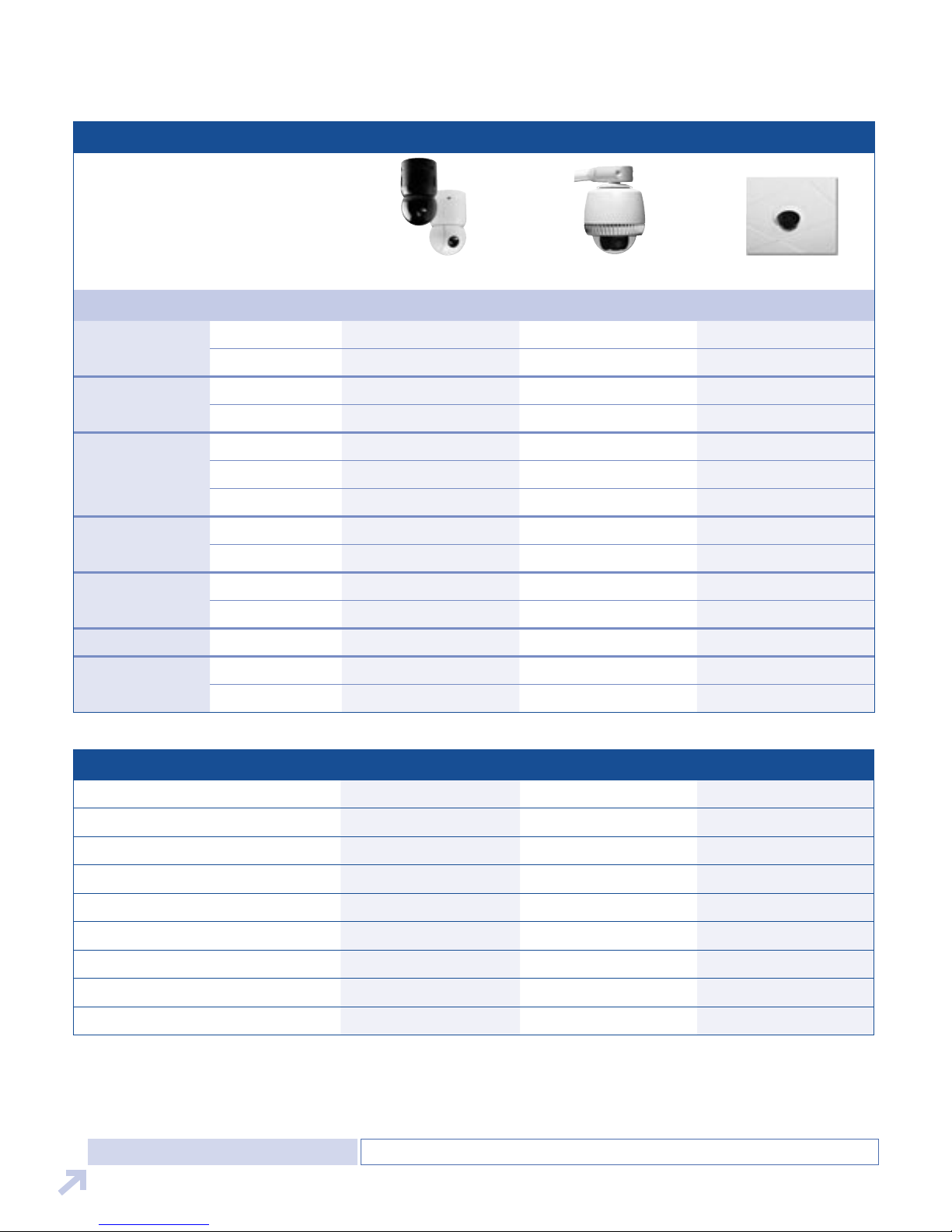

NUMBER OF PRESETS PER DOME

SpeedDome

Ultra 8 SpeedDome

Optima

SpeedDome

Optima LT

Controller, DVR or

Matrix Switcher

Protocol

Number of Presets

ADTT16E SensorNet 96 96 96

RS-422* 94 96 96

MegaPower LT AD-UTC 96 96 96

SensorNet 96 96 96

MegaPower 48 Plus SensorNet 96 96 96

Manchester 64 64 64

RS-422 96 96 96

MegaPower 3200 Manchester** 64 64 64

RS-422†60 60 60

Intellex SensorNet‡96 96 96

RS-422§96 96 96

EDVR RS-422 (Simplex) 10 96 96

Third party interfaces RS-485 96 N/A N/A

RS-422 96 N/A N/A

www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary

from photos. Not all products include all features. Availability varies by region; contact your sales rep.

SUPPORTED PROTOCOLS

RS-485/RS-422 Yes Yes Yes, Simplex only

NTCIP Yes No No

SensorNet Yes Yes Yes

Manchester Yes Yes Yes

AD-UTC Yes No No

Pelco Coaxitron Yes No No

Pelco “P” Yes No No

Panasonic UTC Yes No No

Vicon RS-422 Yes No No

* Using SensorNet-to-RS-422 converter (model number RCSN422).

* * Using Manchester code distributor (model number AD2091).

† Using RS-422 code distributor (model number AD2083-02C).

‡ Using USB CCTV Control Module (Model number ADACSNET).

§ Requires USB to RS-422 adaptor.

Altri manuali per SpeedDome Optima LT

Questo manuale è adatto per i seguenti modelli

132

Indice

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics ADCA330 Manuale utente

American Dynamics

American Dynamics SpeedDome RHODULP-01 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Drone III Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics ADC520D Manuale utente

American Dynamics

American Dynamics ADC520D Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics AD715LS Series Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Optima LT Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics ADSDUHOC Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Drone III Manuale utente

American Dynamics

American Dynamics ADC780 Manuale utente

American Dynamics

American Dynamics illustra 600 Istruzioni operative originali

American Dynamics

American Dynamics ADCA330CN Manuale utente

American Dynamics

American Dynamics ADC780 Istruzioni per il montaggio

American Dynamics

American Dynamics SpeedDome Optima LT Manuale

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale

American Dynamics

American Dynamics ADODHCL Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Drone II Manuale utente

American Dynamics

American Dynamics ADCA7BWO7RP Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
