Illustra Flex Series

1MP & 3MP Bullet

Quick Start Guide

8200-1027-06 B0

Illustra Flex 1MP & 3MP Bullet

Notice

Please read this manual thoroughly and save it for future use before attempting to connect or operate this unit.

The information in this manual was current when published. The manufacturer reserves the right to revise and

improve its products. All specifications are therefore subject to change without notice.

Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or

reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of

American Dynamics

6600 Congress Avenue

Boca Raton, FL 33487 U.S.A.

Customer Service

Thank you for using American Dynamics products. We support our products through an extensive worldwide

network of dealers. The dealer through whom you originally purchased this product is your point of contact if you

need service or support. Our dealers are empowered to provide the very best in customer service and support.

Dealers should contact American Dynamics at (800) 507-6268 or (561) 912-6259 or on the Web at

www.americandynamics.net.

Trademarks

The trademarks, logos, and service marks displayed on this document are registered in the United States [or

other countries]. Any misuse of the trademarks is strictly prohibited and Tyco Security Products. will

aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal

prosecution wherever necessary. All trademarks not owned by Tyco Security Products. are the property of their

respective owners, and are used with permission or allowed under applicable laws.

Product offerings and specifications are subject to change without notice. Actual products may vary from photos.

Not all products include all features. Availability varies by region; contact your sales representative.

Illustra Flex 1MP & 3MP Bullet

Table of Contents

WARNING ....................................................................................................................................................... 4

Preface............................................................................................................................................................ 5

1. Product Overview................................................................................................................................... 6

1.1 Physical Characteristics...................................................................................................................... 6

2. Installation and Connection ............................................................................................................... 9

2.1 Unpack Everything.............................................................................................................................. 9

2.2 Installation........................................................................................................................................... 9

2.2.1 Checking Appearance............................................................................................................. 9

2.2.2 Mounting the camera............................................................................................................. 10

2.2.3 Connecting the Wires.............................................................................................................11

2.2.4 Adjusting the Camera Position.............................................................................................. 12

2.2.5 Adjusting the zoom & focus (vari-focal) / default & reset button ........................................... 12

2.2.6 Adjusting the Sun shield hood............................................................................................... 13

2.2.7 Network Topology.................................................................................................................. 13

2.2.8 System Requirements........................................................................................................... 14

2.3 Connection........................................................................................................................................ 15

2.3.1 Default IP address................................................................................................................. 15

2.3.2 Connecting from a computer & Viewing Preparation............................................................ 15

2.4 Using the illustra Connect Tool to Manage Cameras........................................................................ 18

Illustra Flex 1MP & 3MP Bullet

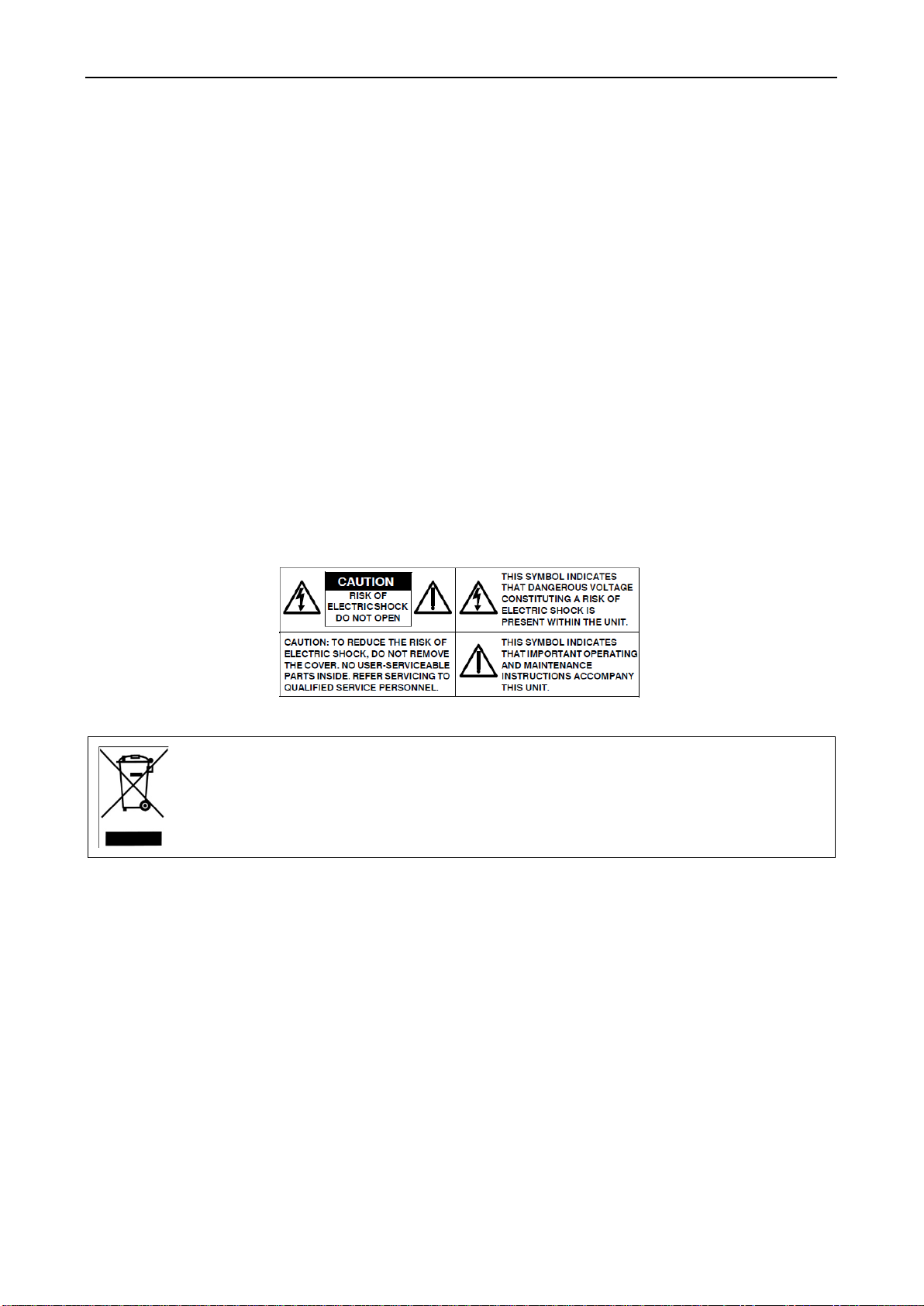

WARNING

This unit operates at AC 24V/ PoE.

Installation and service should be performed only by qualified and experienced technicians and comply

with all local codes and rules to maintain your warranty.

To reduce the risk of fire or electric shock, do not expose the product to rain or moisture.

Wipe the camera with a dry soft cloth. For tough stains, slightly apply with diluted neutral detergent and

wipe with a dry soft cloth.

Do not apply benzene or thinner to the camera, which may cause the surface of the unit to be melted or

lens to be fogged.

Avoid aligning the lens to very bright objects (example, light fixtures) for long periods of time.

Avoid operating or storing the unit in the following locations:

Extremely humid, dusty, or hot/cold environments (recommended operating temperature: -40˚C to

+50˚C) (PoE does not support heater.)

Close to sources of powerful radio or TV transmitters

Close to fluorescent lamps or objects with reflections

Under unstable or flickering light sources

WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this product

(applicable in the European Union and other European countries with separate collection

systems). This product should be disposed of, at the end of its useful life, as per applicable

local laws, regulations, and procedures.

Illustra Flex 1MP & 3MP Bullet

Preface

This guide is designed as a reference for the installation and manipulations of the unit including the camera’s

features, functions, and detailed explanation of the menu tree. The reader is supposed to be able to get

following information in the guide.

Product Overview:the main functions and system requirements of the unit.

Installation and Connection:instructions on unit installation and wire connections.

Administration and Configuration:the main menu navigation and controls explanations.

Illustra Flex 1MP & 3MP Bullet

1. Product Overview

1.1 Physical Characteristics

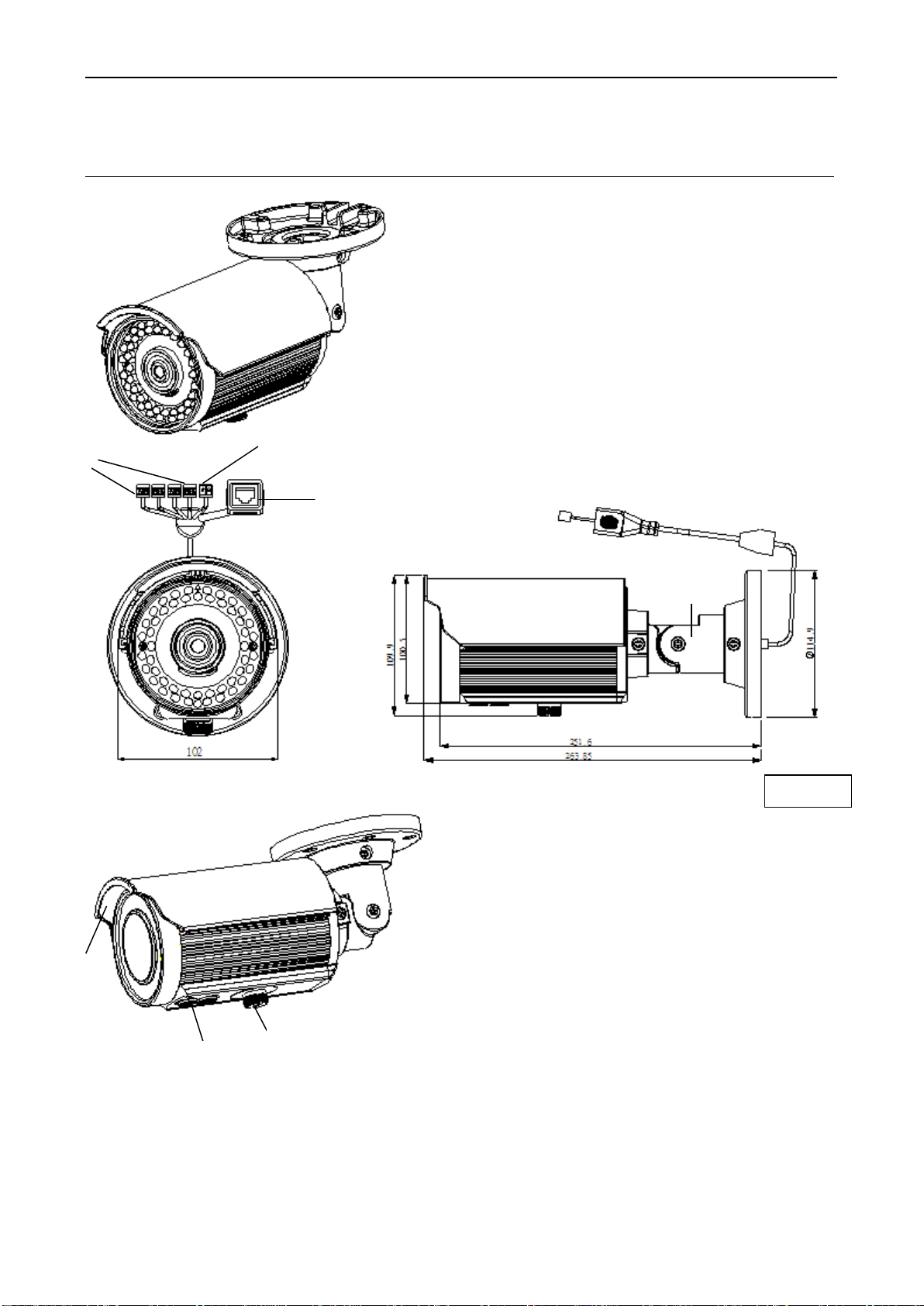

FIGURE 1-1: PHYSICAL DIMENSION &PICTORIAL INDEX*

* Refer to table 1-1 for definitions

Unit: mm

Illustra Flex 1MP & 3MP Bullet

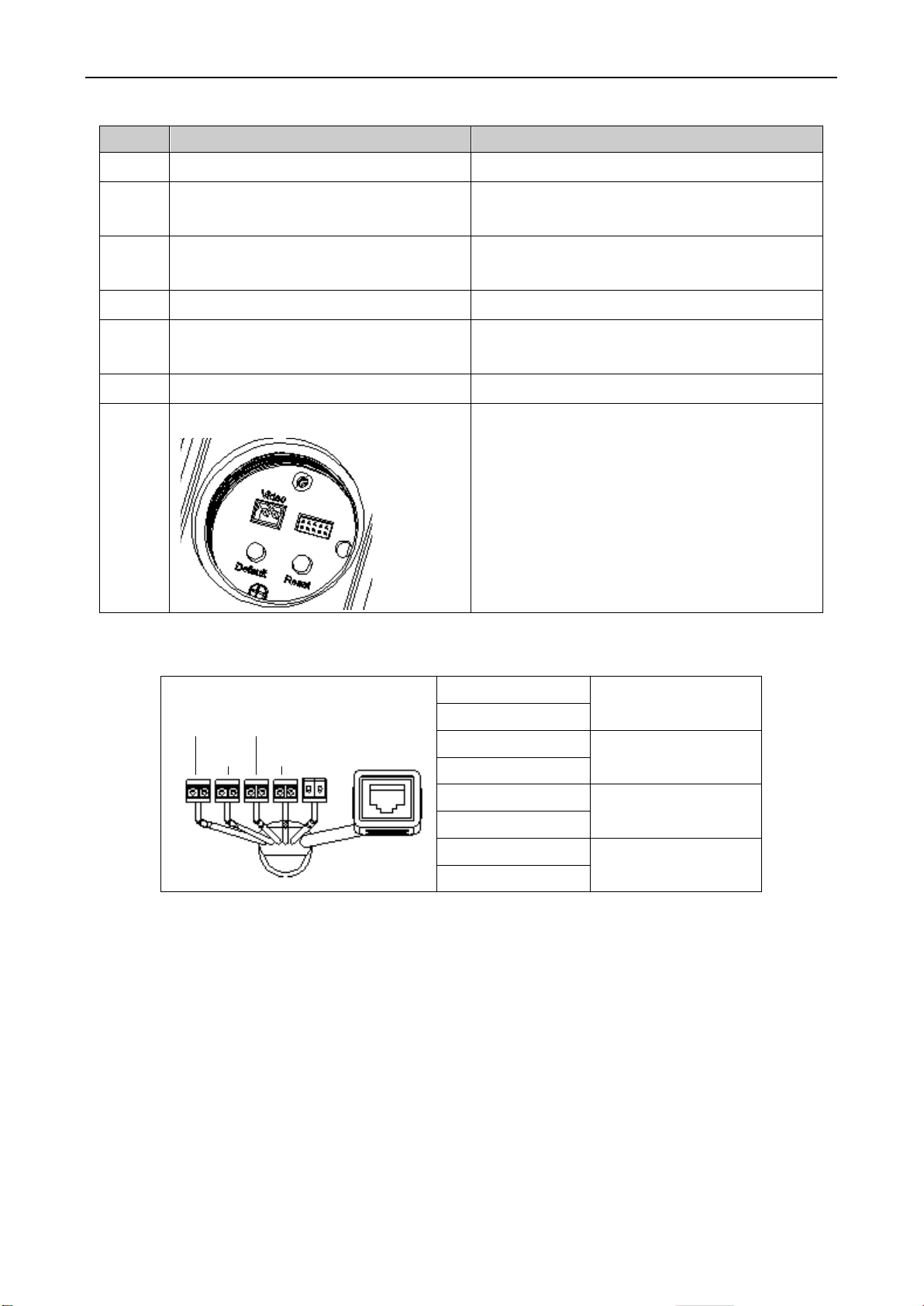

TABLE 1-1: PICTORIAL INDEX DEFINITION

Index #

Name

Description

1 I/O Connector To connect Input/ Output devices

2 Power Connector Connects to the external power source at

AC 24V only

3 RJ-45 Ethernet Connector/ PoE To insert the RJ-45 cable for network connection

as well as PoE (Power over Ethernet)

4 Mount bracket To connects the Mount.

5 Sun shield To minimize the effects of rain and sunlight on

image quality.

6 Externally adjustable focal length & focus To adjust the Near/Far and Tele/Wide controls

Reset button and Default button

a. Default: To Reset all settings of the unit to

factory default by pressing for 5 seconds

b. Reset: system restart

c. Video out

TABLE 1-2: I/O CONNECTOR DEFINITIONS 1/2

Purple (Signal)Audio in

Green (GND)

Yellow (Signal)Audio out

Orange (GND)

Blue (Signal)Alarm out

Brown (COM)

Red (Signal)Alarm in

Black (GND)

Au/O AO

Au/I AI

Illustra Flex 1MP & 3MP Bullet

TABLE 1-3: PIN DEFINITIONS 2/2

Default Return to factory default by press button

for 5 seconds

Reset System restart

Video Out To output video signal

Caution When rotated the knob to remove the default/reset cover, please tighten the screw to avoid

water leaking after adjustment.

Note Connectors and field wiring terminals for external Class 2 circuits provided with marking

indicating minimum Class of wiring to be used. Class 2 shall be marked adjacent to the field

wiring terminals.

Illustra Flex 1MP & 3MP Bullet

2. Installation and Connection

2.1 Unpack Everything

Check everything in the packing box matches to the order form and the packing slip. In addition to this guide,

items below are included in the packing box.

One Network IR Bullet Camera

One 2-pin terminal block for power input

One CD containing Illustra Connect, user manual and quick installation guide

One printed quick installation guide

One monitor out cable

One mounting template

Six screw anchors

Six screws

Please contact your dealer if any item missing.

2.2 Installation

Following tools might help you complete the installation:

a drill

screwdrivers

wire cutters

2.2.1 Checking Appearance

When first unboxing, please check whether if there is any visible damage to appearance of the unit and its

accessories. The protective materials used for the packaging should be able to protect the unit from most of

accidents during transportation.

Please remove the protective part of the unit when every item is checked in accordance with the list

in 2.1 Unpacking Everything.

Illustra Flex 1MP & 3MP Bullet

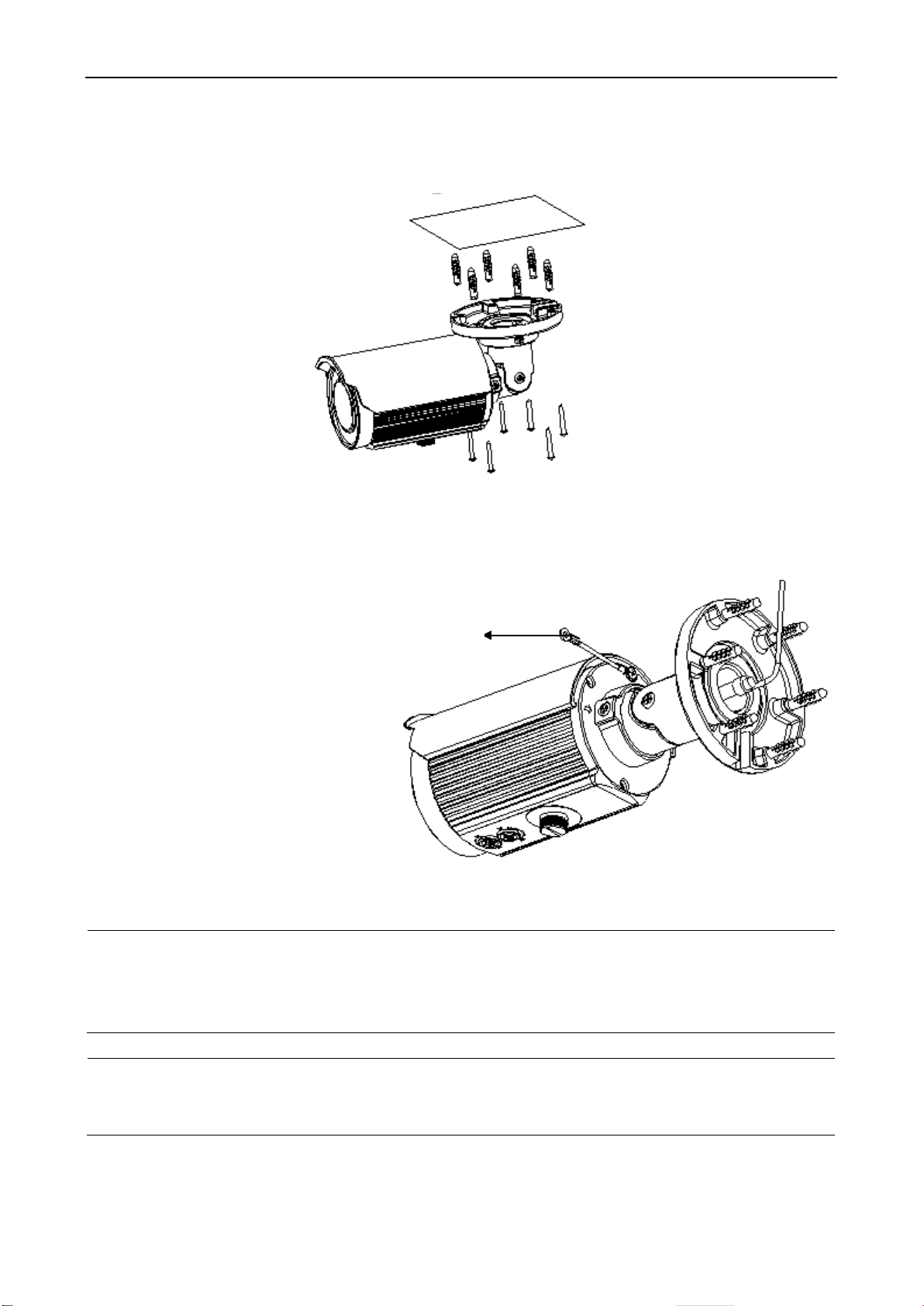

2.2.2 Mounting the camera

1. Affix the mounting template to the desired location, knock in 6 plastic anchors after hole drilling and then

lock in 6 self-tapping screws to fasten the camera.

FIGURE 2-1: MOUNTING THE CAMERA

2. Mount the unit onto the ceiling/wall and fasten it securely.

FIGURE 2-2: MOUNTING THE CAMERA

Warning

Depending on the material of mounting surface, different screws and anchors than those

supplied may be required. To prevent the unit from falling off, ensure that it is mounted to a

firm place (ceiling slab or channel) using a safety wire strong enough to withstand the total

weight of the unit. (Pay also attention to the finishing at the end of the wire.)

Caution

Safety wire must be connected with one end the wall/ceiling and the other to the safety-cord

screw of the unit. By cabling so, it is possible to prevent the unit from accidental falling in a

sudden at any time.

Safety wire (fall prevention wire, not supplied)
