Camera Dome

Installation and Service

Manual

SpeedDome*

Camera Dome

Installation and Service Manual

8000-1715-01, Rev. A

WLG 1O/97

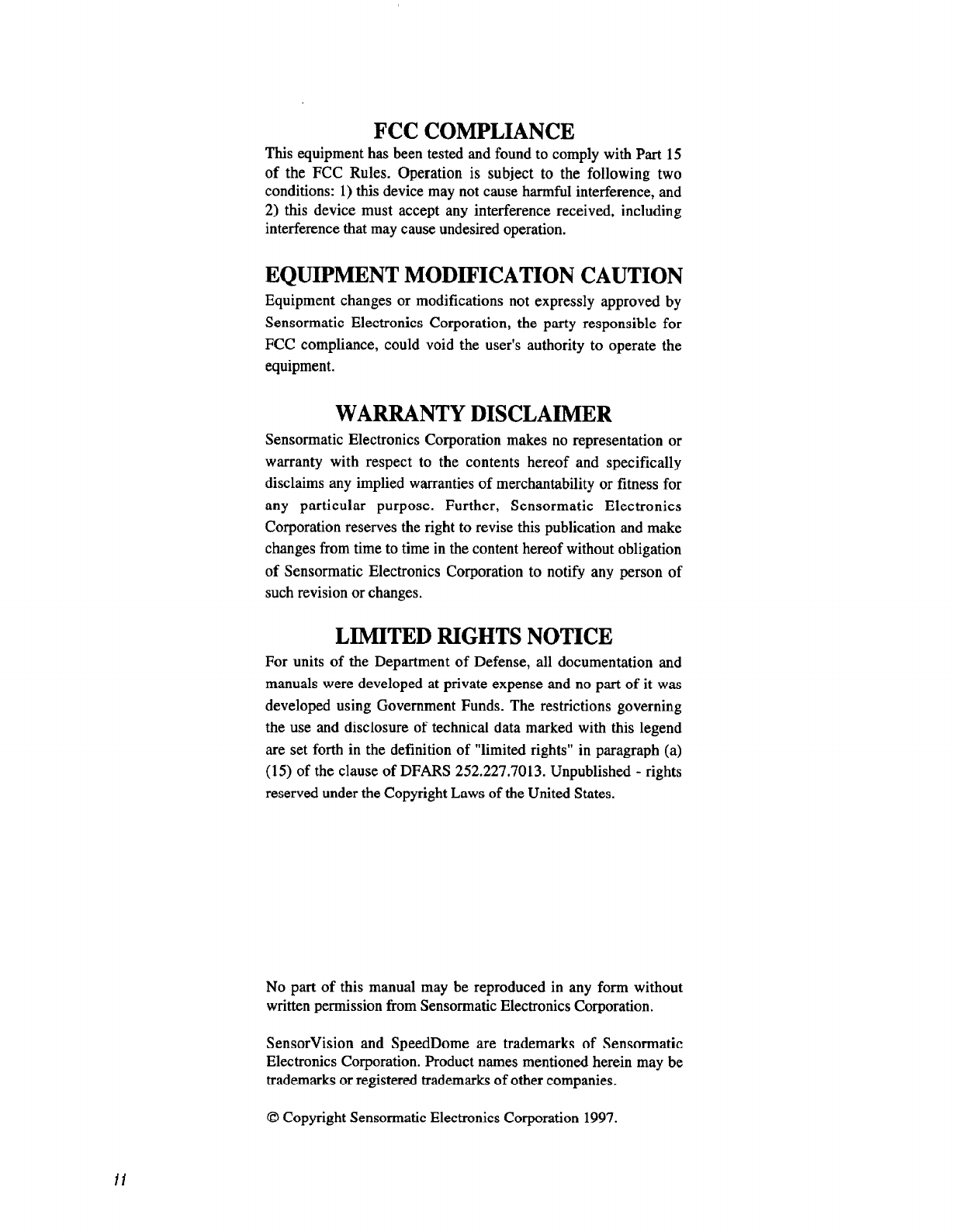

FCC COMPLIANCE

This equipment has been tested and found to comply with Part 15

of the FCC Rules. Operation is subject to the following two

conditions: 1) this device may not cause harmful interference, and

2) this device must accept any interference received, including

interference that may cause undesired operation.

EQUIPMENT MODIFICATION CAUTION

Equipment changes or modifications not expressly approved by

Sensormatic Electronics Corporation, the party responsible for

FCC compliance, could void the user’s authority to operate the

equipment.

WARRANTY DISCLAIMER

Sensormatic Electronics Corporation makes no representation or

warranty with respect to the contents hereof and specifically

disclaims any implied warranties of merchantability or fitness for

any particular purpose. Further, Sensormatic Electronics

Corporation reserves the right to revise this publication and make

changes from time to time in the content hereof without obligation

of Sensormatic Electronics Corporation to notify any person of

such revision or changes.

LIMITED RIGHTS NOTICE

For units of the Department of Defense, all documentation and

manuals were developed at private expense and no part of it was

developed using Government Funds. The restrictions governing

the use and disclosure of technical data marked with this legend

are set forth in the definition of “limited rights” in paragraph (a)

(15) of the clause of DFARS 252.227.7013. Unpublished - rights

reserved under the Copyright Laws of the United States.

No part of this manual may be reproduced in any form without

written permission from Sensormatic Electronics Corporation.

SensorVision and SpeedDome are trademarks of Sensormatic

Electronics Corporation. Product names mentioned herein may be

trademarks or registered trademarks of other companies.

0 Copyright Sensormatic Electronics Corporation 1997.

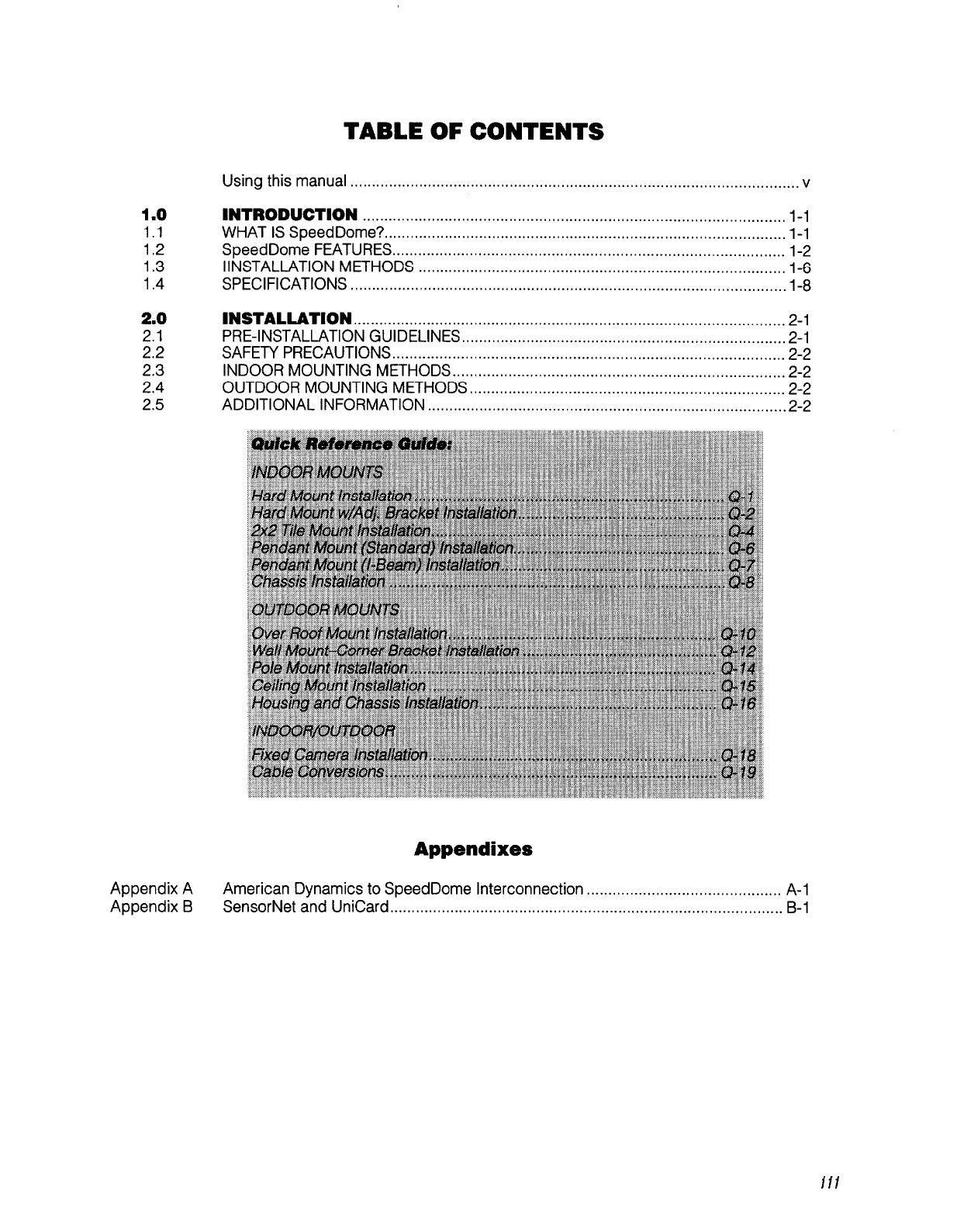

1.0

1.1

1.2

1.3

1.4

2.0

2.1

2.2

2.3

2.4

2.5

Using this manual ........................................................................................................ v

INTRODUCTION ..................................................................................................

l-l

WHAT IS SpeedDome?. ............................................................................................ 1-l

SpeedDome FEATURES.. ......................................................................................... l-2

IINSTALLATION METHODS ..................................................................................... l-6

SPECIFICATIONS ..................................................................................................... l-8

INSTALLATION.. .................................................................................................. 2-l

PRE-INSTALLATION GUIDELINES.. ........................................................................ .2-l

SAFETY PRECAUTIONS ........................................................................................... 2-2

INDOOR MOUNTING METHODS.. ........................................................................... 2-2

OUTDOOR MOUNTING METHODS.. ....................................................................... 2-2

ADDITIONAL INFORMATION.. ................................................................................ .2-2

Appendix A

Appendix B

Appendixes

American Dynamics to SpeedDome Interconnection ............................................. A-l

SensorNet and UniCard.. ......................................................................................... B-l

iii

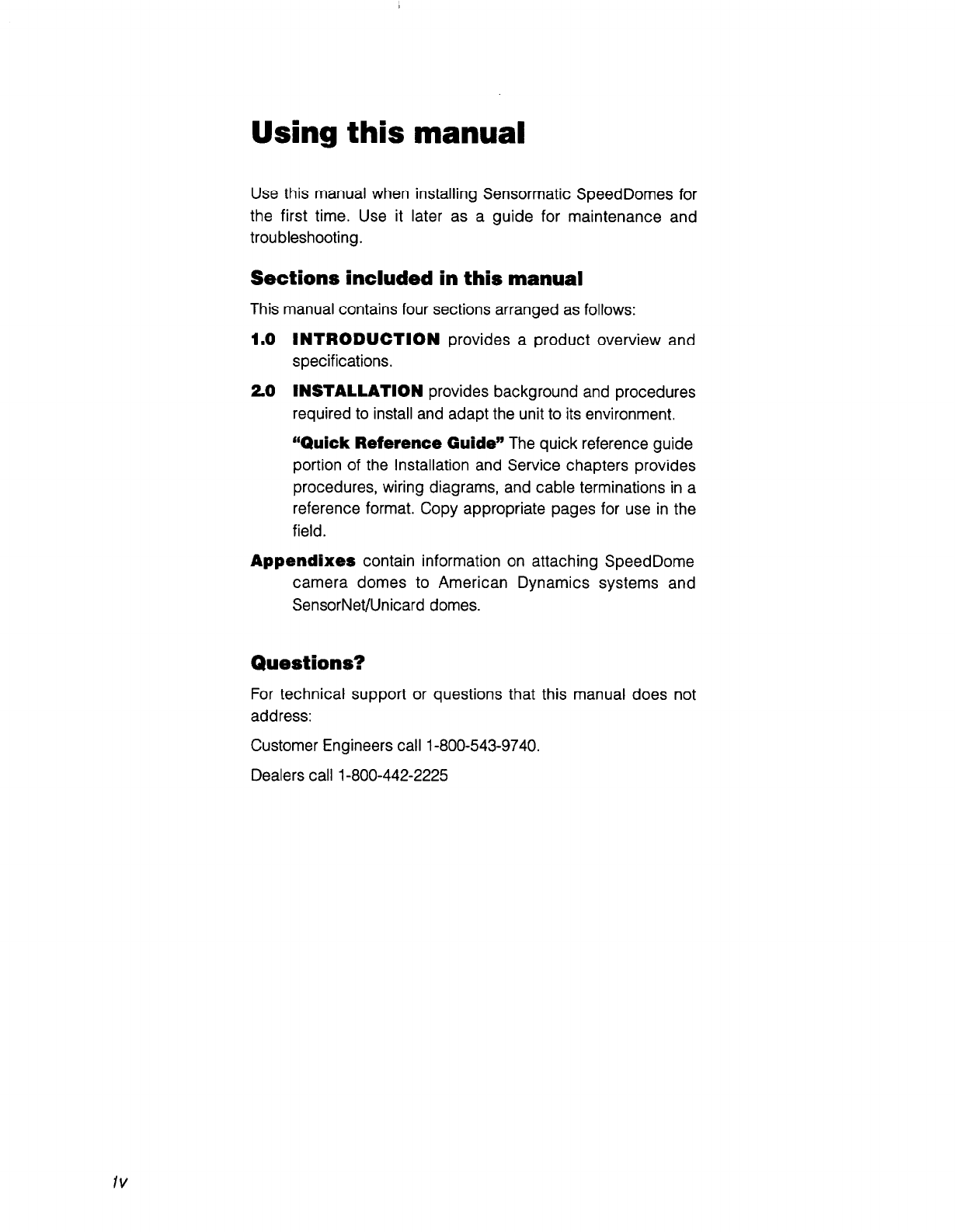

Using this manual

Use this manual when installing Sensormatic SpeedDomes for

the first time. Use it later as a guide for maintenance and

troubleshooting.

Sections included in this manual

This manual contains four sections arranged as follows:

1.0 INTRODUCTION

provides a product overview and

specifications.

INSTALLATION

provides background and procedures

required to install and adapt the unit to its environment.

Wuick Reference Guide”

The quick reference guide

portion of the Installation and Service chapters provides

procedures, wiring diagrams, and cable terminations in a

reference format. Copy appropriate pages for use in the

field.

Appendixes

contain information on attaching SpeedDome

camera domes to American Dynamics systems and

SensorNeWnicard domes.

Questions?

For technical support or questions that this manual does not

address:

Customer Engineers call l-800-543-9740.

Dealers call l-800-442-2225

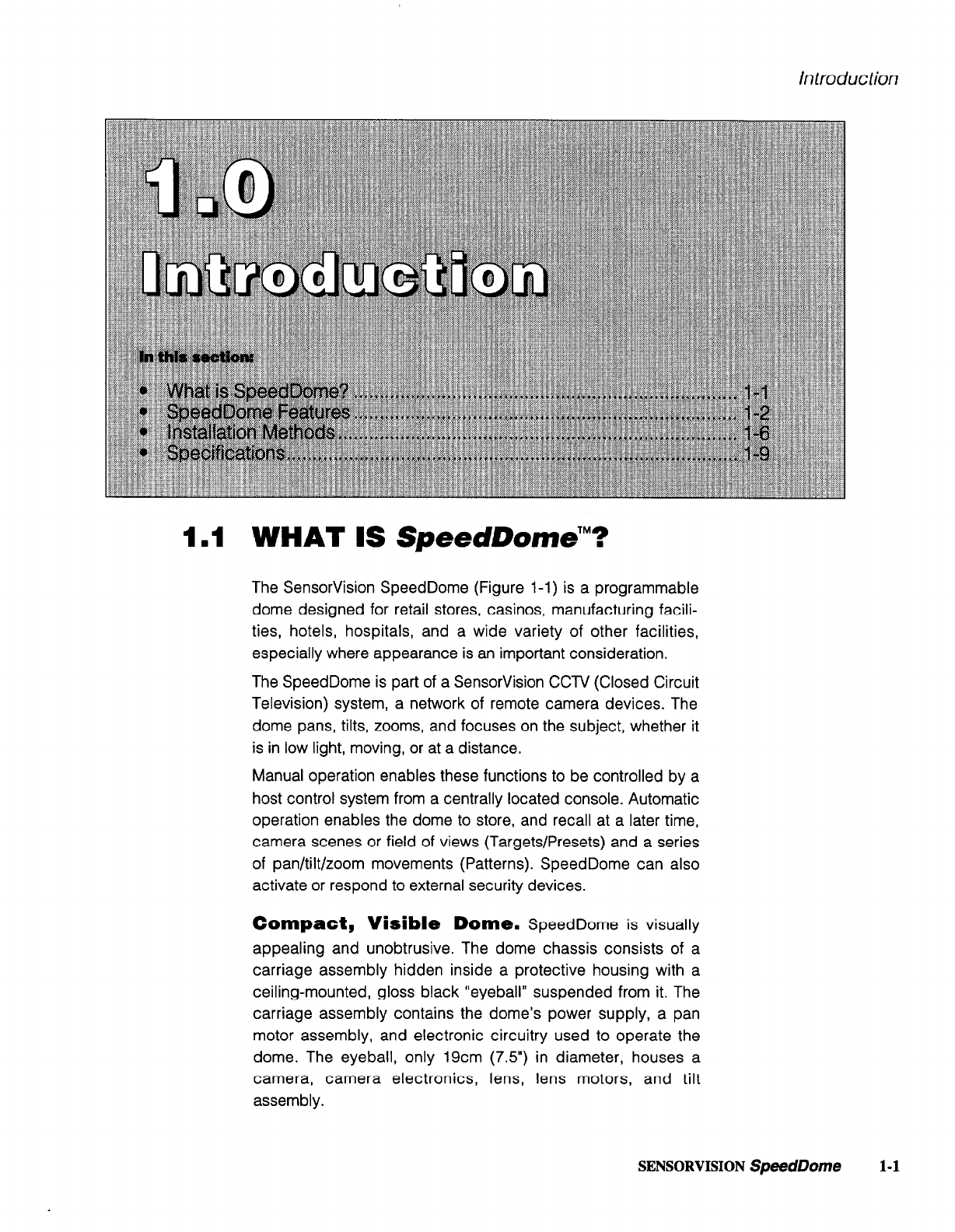

Introduction

1.1 WHAT IS

SpeedDome’“?

The SensorVision SpeedDome (Figure l-l) is a programmable

dome designed for retail stores, casinos, manufacturing facili-

ties, hotels, hospitals, and a wide variety of other facilities,

especially where appearance is an important consideration.

The SpeedDome is part of a SensorVision CCTV (Closed Circuit

Television) system, a network of remote camera devices. The

dome pans, tilts, zooms, and focuses on the subject, whether it

is in low light, moving, or at a distance.

Manual operation enables these functions to be controlled by a

host control system from a centrally located console. Automatic

operation enables the dome to store, and recall at a later time,

camera scenes or field of views (Targets/Presets) and a series

of pan/tilt/zoom movements (Patterns). SpeedDome can also

activate or respond to external security devices.

Compact, Visible Dome.

SpeedDome is visually

appealing and unobtrusive. The dome chassis consists of a

carriage assembly hidden inside a protective housing with a

ceiling-mounted, gloss black “eyeball” suspended from it. The

carriage assembly contains the dome’s power supply, a pan

motor assembly, and electronic circuitry used to operate the

dome. The eyeball, only 19cm (7.5”) in diameter, houses a

camera, camera electronics, lens, lens motors, and tilt

assembly.

SENSORVISION SpeedDome l-l

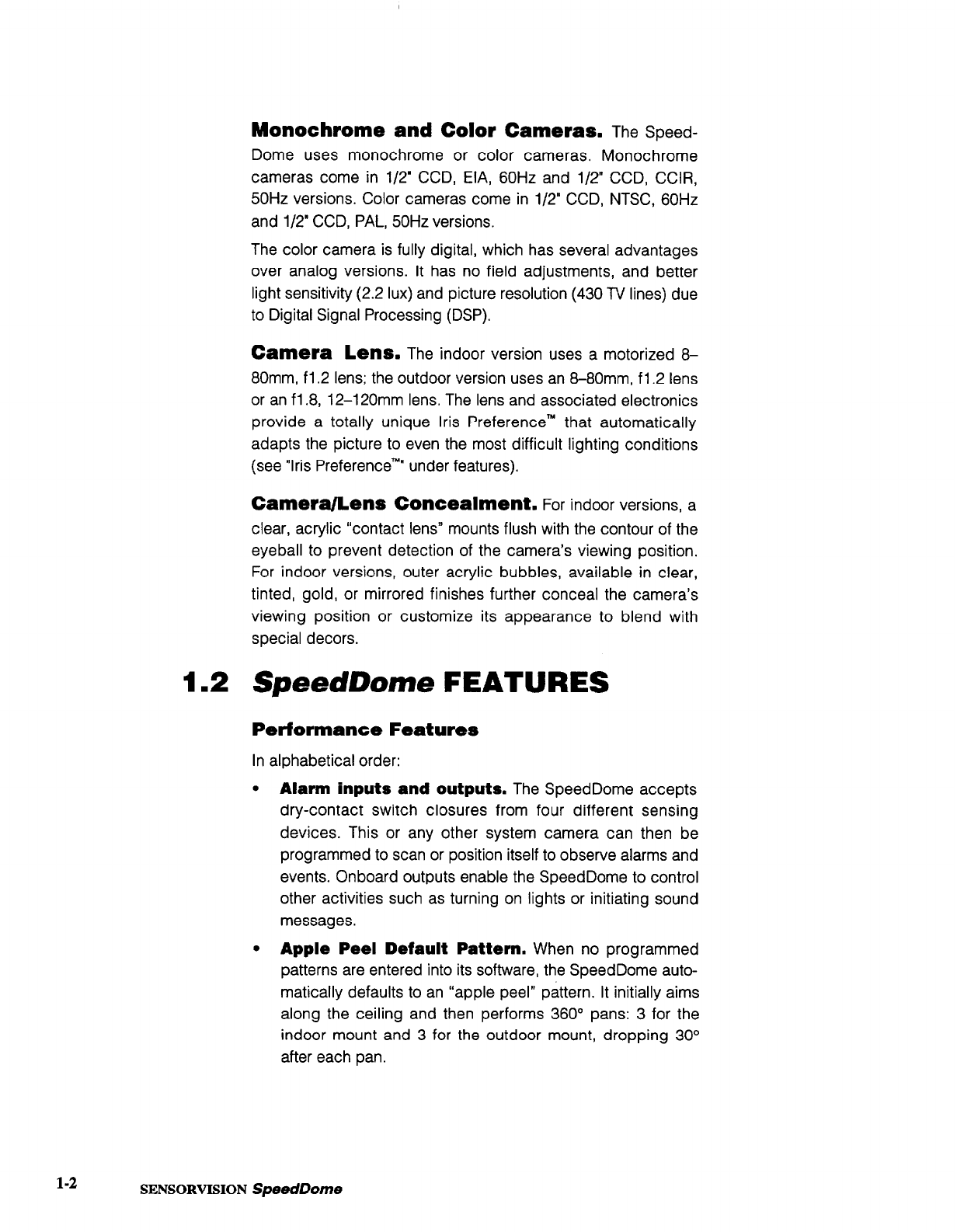

Monochrome and Color Cameras.

The Speed-

Dome uses monochrome or color cameras. Monochrome

cameras come in l/2’ CCD, EIA, 60Hz and l/2” CCD, CCIR,

50Hz versions. Color cameras come in l/2” CCD, NTSC, 60Hz

and l/2” CCD, PAL, 50Hz versions.

The color camera is fully digital, which has several advantages

over analog versions. It has no field adjustments, and better

light sensitivity (2.2 lux) and picture resolution (430 TV lines) due

to Digital Signal Processing (DSP).

Camera Lens.

The indoor version uses a motorized 8-

80mm, fl.2 lens; the outdoor version uses an &80mm, fl.2 lens

or an fl.8, 12-120mm lens. The lens and associated electronics

provide a totally unique Iris Preferencel that automatically

adapts the picture to even the most difficult lighting conditions

(see “Iris Preference’“” under features).

Camera/Lens Concealment.

For indoor versions, a

clear, acrylic “contact lens” mounts flush with the contour of the

eyeball to prevent detection of the camera’s viewing position.

For indoor versions, outer acrylic bubbles, available in clear,

tinted, gold, or mirrored finishes further conceal the camera’s

viewing position or customize its appearance to blend with

special decors.

1.2 SpeedDome FEATURES

Performance Features

In alphabetical order:

Alarm inputs and outputs. The SpeedDome accepts

dry-contact switch closures from four different sensing

devices. This or any other system camera can then be

programmed to scan or position itself to observe alarms and

events. Onboard outputs enable the SpeedDome to control

other activities such as turning on lights or initiating sound

messages.

Apple Peel Default Pattern. When no programmed

patterns are entered into its software, the SpeedDome auto-

matically defaults to an “apple peel” pattern. It initially aims

along the ceiling and then performs 360” pans: 3 for the

indoor mount and 3 for the outdoor mount, dropping 30”

after each pan.

1-2 SENSORVISION

SpeedDome

Introduction

SENSORVISION SpeedDome 1-3

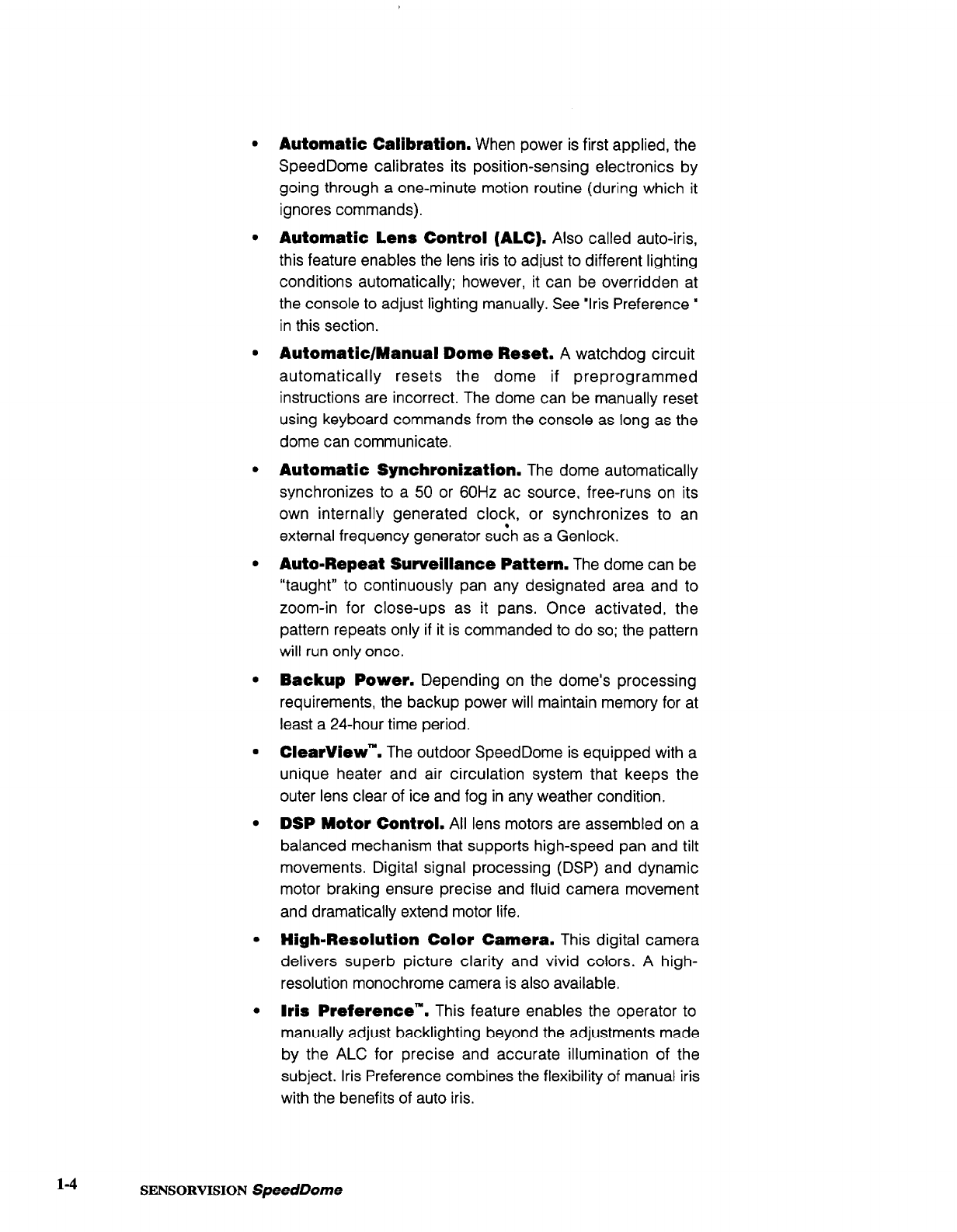

Automatic Calibration.

When power is first applied, the

SpeedDome calibrates its position-sensing electronics by

going through a one-minute motion routine (during which it

ignores commands).

Automatic Lens Control (AN).

Also called auto-iris,

this feature enables the lens iris to adjust to different lighting

conditions automatically; however, it can be overridden at

the console to adjust lighting manually. See ‘Iris Preference ’

in this section.

Automatic/Manual Dome Reset.

A watchdog circuit

automatically resets the dome if preprogrammed

instructions are incorrect. The dome can be manually reset

using keyboard commands from the console as long as the

dome can communicate.

Automatic Synchronization.

The dome automatically

synchronizes to a 50 or 60Hz ac source, free-runs on its

own internally generated clock, or synchronizes to an

external frequency generator su;h as a Genlock.

Auto-Repeat Surveillance Pattern.

The dome can be

“taught” to continuously pan any designated area and to

zoom-in for close-ups as it pans. Once activated, the

pattern repeats only if it is commanded to do so; the pattern

will run only once.

Backup Power.

Depending on the dome’s processing

requirements, the backup power will maintain memory for at

least a 24-hour time period.

ClearVIew”.

The outdoor SpeedDome is equipped with a

unique heater and air circulation system that keeps the

outer lens clear of ice and fog in any weather condition.

DSP Motor Control.

All lens motors are assembled on a

balanced mechanism that supports high-speed pan and tilt

movements. Digital signal processing (DSP) and dynamic

motor braking ensure precise and fluid camera movement

and dramatically extend motor life.

High-Resolution Color Camera.

This digital camera

delivers superb picture clarity and vivid colors. A high-

resolution monochrome camera is also available.

Iris Preference”.

This feature enables the operator to

manually adjust backlighting beyond the adjustments made

by the ALC for precise and accurate illumination of the

subject. Iris Preference combines the flexibility of manual iris

with the benefits of auto iris.

1-4 SENSORVISION

Sp?edDOme

introduction

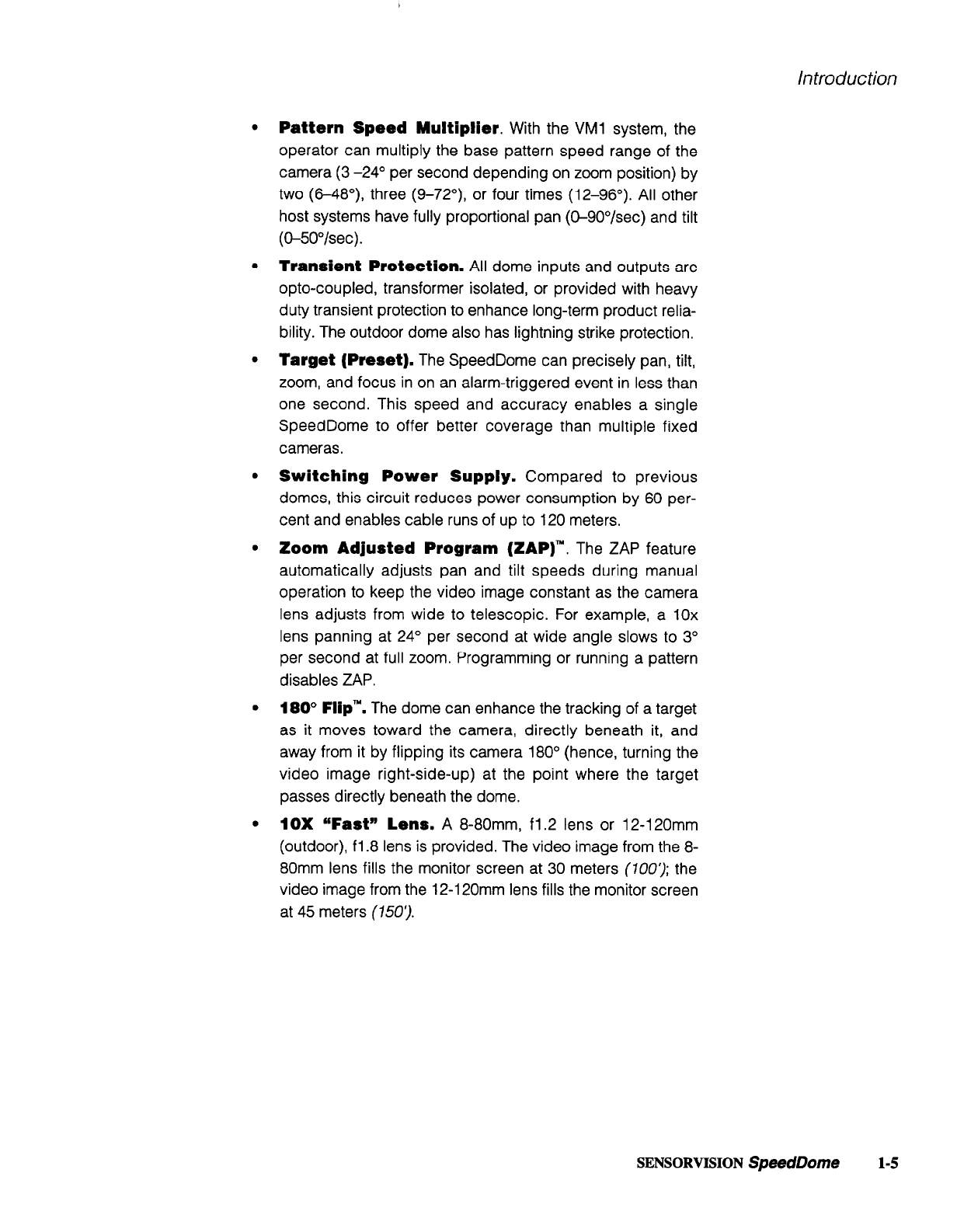

Pattern Speed Multiplier. With the VMl system, the

operator can multiply the base pattern speed range of the

camera (3 -24” per second depending on zoom position) by

two (6-48”) three (g-72”) or four times (12-96”). All other

host systems have fully proportional pan (&90”/sec) and tilt

(0-50”lsec).

Transient Protection. All dome inputs and outputs are

opto-coupled, transformer isolated, or provided with heavy

duty transient protection to enhance long-term product relia-

bility. The outdoor dome also has lightning strike protection.

Target (Preset). The SpeedDome can precisely pan, tilt,

zoom, and focus in on an alarm-triggered event in less than

one second. This speed and accuracy enables a single

SpeedDome to offer better coverage than multiple fixed

cameras.

Switching Power Supply. Compared to previous

domes, this circuit reduces power consumption by 60 per-

cent and enables cable runs of up to 120 meters.

Zoom Adjusted Program (ZAP)“. The ZAP feature

automatically adjusts pan and tilt speeds during manual

operation to keep the video image constant as the camera

lens adjusts from wide to telescopic. For example, a 10x

lens panning at 24” per second at wide angle slows to 3”

per second at full zoom. Programming or running a pattern

disables ZAP.

180” Flip’“. The dome can enhance the tracking of a target

as it moves toward the camera, directly beneath it, and

away from it by flipping its camera 180” (hence, turning the

video image right-side-up) at the point where the target

passes directly beneath the dome.

10X “Fast” Lens. A 8-80mm, fl.2 lens or 12-120mm

(outdoor), fl.8 lens is provided. The video image from the 8-

80mm lens fills the monitor screen at 30 meters (700’); the

video image from the 12-l 20mm lens fills the monitor screen

at 45 meters (750’).

SENSORVISION SjXed~OfF?t?

1-5

Altri manuali per IP speedDome Ultra 8

Questo manuale è adatto per i seguenti modelli

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics SensorRail AD2079 Manuale utente

American Dynamics

American Dynamics illustra 600 Istruzioni operative originali

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale

American Dynamics

American Dynamics ADC780 Manuale utente

American Dynamics

American Dynamics ADC733 Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics ADSDUPIHC Manuale utente

American Dynamics

American Dynamics AD715LS Series Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Optima Manuale utente

American Dynamics

American Dynamics Tyco Discover Series Manuale utente

American Dynamics

American Dynamics ADODHCL Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics AD615 Manuale utente

American Dynamics

American Dynamics Illustra 1MP Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale

American Dynamics

American Dynamics ADC720D Manuale utente

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra III Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Illustra 625 PTZ Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Manuale

American Dynamics

American Dynamics ADCIPE3712OCN Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
