FEATURES

The ADC531 and ADC531X black & white

1/3-inch CCD cameras are an excellent choice

for general purpose applications. Featuring

sensitivity of 0.1 lux, along with automatic

electronic shutter and automatic gain control,

the camera will operate in a wide range of

lighting conditions. For more extreme lighting

conditions, the camera also supports the use of

DC-type or EE-type auto iris lenses.

With 380 lines of resolution and aperture

correction, the camera delivers clean, sharp

pictures. Additionally, the camera features

phase adjustable line-lock for “roll-free”

switching and a fully isolated power supply

enabling multiple cameras to be connected to a

single 24 VAC source. This isolation also helps

eliminate ground loops.

These cameras are sensitive to infrared light

and are suitable for use in covert surveillance

applications in conjunction with

IR illuminators.

ADC531 and ADC531X

1/3-INCH BLACK & WHITE CCD CAMERA

•1/3-inch interline black &

white CCD

•380 TV lines resolution

•0.1 lux low light

sensitivity

•Sensitive to IR

illumination

•Supports DC-type or

EE-type auto iris lenses

•CS lens mount with

C adapter included

•Aperture correction

•Automatic electronic

shutter

•Automatic gain control

•Automatic backlight

compensation

•Phase adjustable line-lock

•24 VAC input

•Internal isolation

transformer

•Low power consumption

www.americandynamics.net

SPECIFICATIONS

Model Numbers

ADC531 . . . . . . . . . . . . . . . . . . . . .Camera EIA RS-170

ADC531X . . . . . . . . . . . . . . . . . . . .Camera CCIR

Operational

Imager . . . . . . . . . . . . . . . . . . . . . . .Interline transfer 1/3-inch CCD array

Video Output . . . . . . . . . . . . . . . . .1.0 Vp-p / 75 Ω, composite

Active Pixel Count

EIA . . . . . . . . . . . . . . . . . . . . . . . .512 (H) x 492 (V) pixels

CCIR . . . . . . . . . . . . . . . . . . . . . .512 (H) x 582 (V) pixels

Minimum Scene

Illumination . . . . . . . . . . . . . . .0.1 lux (f1.2 lens)

Horizontal Resolution . . . . . .380 TV lines

Light Compensation

Modes . . . . . . . . . . . . . . . . . . . . . . .Automatic electronic shutter, On/Off

(EIA 1/60 -1/100,000 sec)

(CCIR 1/50 - 1/100,000 sec)

Auto Iris Drive . . . . . . . . . . . . . . . .DC or EE-type

Backlight Compensation . . . . . .On/Off selectable

Aperture Correction . . . . . . . . . . .Yes

Synchronization Modes . . . . . . .Line-lock with phase adjustment

S/N Ratio . . . . . . . . . . . . . . . . . . . .-50 dB

Controls

AES/ELC . . . . . . . . . . . . . . . . . . . . .On/Off

BLC . . . . . . . . . . . . . . . . . . . . . . . . . .On/Off

Back Focus . . . . . . . . . . . . . . . . . . .Self locking adjustment screw

Auto Iris . . . . . . . . . . . . . . . . . . . . .DC/EE-type, switchable

DC Iris . . . . . . . . . . . . . . . . . . . . . . .Level control

AGC . . . . . . . . . . . . . . . . . . . . . . . . .On/Off

V-Phase . . . . . . . . . . . . . . . . . . . . . .Level control

Connectors

Composite Video . . . . . . . . . . . . . .BNC

Auto Iris

EE-type . . . . . . . . . . . . . . . . . . . . .Screw terminals

DC-type . . . . . . . . . . . . . . . . . . . . .4 pin square

Power . . . . . . . . . . . . . . . . . . . . . . . .Screw terminals

Electrical

Voltage . . . . . . . . . . . . . . . . . . . . . . .24 VAC ±20%

50 Hz CCIR

60 Hz EIA

Power Consumption . . . . . . . . . .4.0 watts

Mechanical

Lens Mount . . . . . . . . . . . . . . . . . .CS standard with C adapter included

Camera Mount . . . . . . . . . . . . . . .1/4-inch - 20 (top or bottom)

Dimensions (H x W x L) . . . . . . .55 x 55 x 120 mm

(2.16 x 2.16 x 4.72 in)

Unit Weight . . . . . . . . . . . . . . . . . .400 g (0.9 lbs)

Shipping Weight . . . . . . . . . . . . . .680.4 g (1.5 lbs)

Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray

Environmental

Operating Temperature . . . . . . . .-10˚ to 50˚ C (14˚ to 122˚ F)

Humidity . . . . . . . . . . . . . . . . . . . . .85% RH (non-condensing)

Storage Temperature . . . . . . . . . .-30˚ to 60˚ C (-22˚ to 140˚ F)

Regulatory

Emissions . . . . . . . . . . . . . . . . . . . .FCC: Part 15, Class A

CE: EN55022

Immunity . . . . . . . . . . . . . . . . . . . .CE: 50130-4

Safety . . . . . . . . . . . . . . . . . . . . . . . .UL2044

Recommended Housings*

AD1301, AD1303, AD1305, AD1314, AD1315

AD1317, AD1335, AD1337, AD1348

*Dependent on lens dimensions.

Recommended Camera Mounts

ADMC1361, ADMC1362, ADMC1363, ADMC1365,

ADMC1366, ADCM100T

AMERICAN DYNAMICS ADC531 AND ADC531X 1/3-INCH BLACK & WHITE CCD CAMERA

VS246-02 01/03 L

Product specifications and availability subject to

change without notice.

Certain product names mentioned herein may be trade

names and/or registered trademarks of other companies.

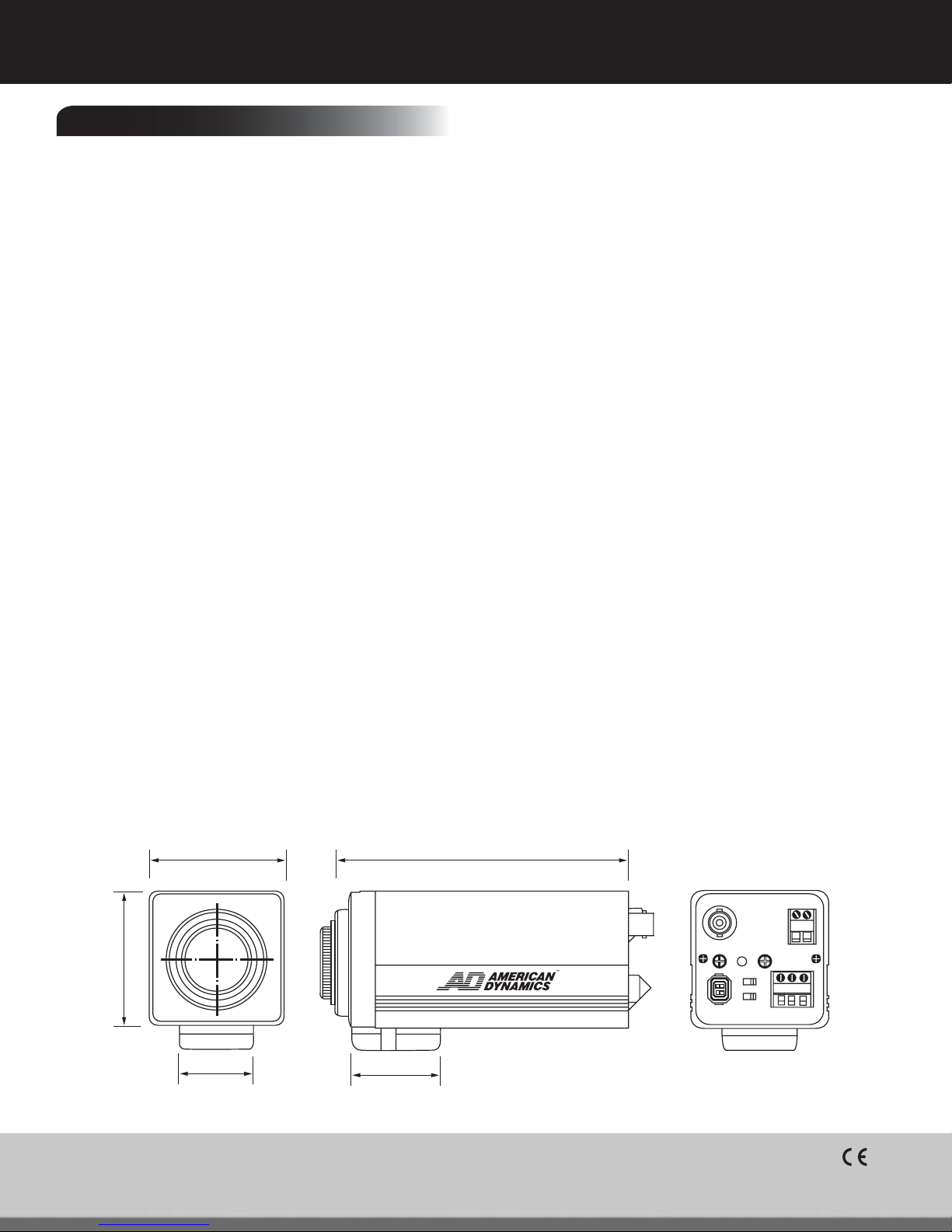

Front View Rear ViewSide View

VIDEO 24V AC

POWER

V.PHASE LEVEL

G + SIG

BLC

EE A1

OFF ON

LENS-1

LENS-2

30 mm

(1.18 in) 37 mm

(1.45 in)

120 mm

(4.72 in)

55 mm

(2.16 in)

55 mm

(2.16 in)
