FEATURES

SpeedDome®Ultra

INDOOR DOME HOUSING

The SpeedDome Ultra indoor dome housing allows

the SpeedDome Ultra dome to be installed indoors

using the same design as found in the SpeedDome

Ultra outdoor housing. It is available in standard and

vandal resistant options.

The housing is made of a reinforced fiberglass high

impact polycarbonate material along with a UV

stabilized trim ring and top cover. The bubble

assembly is affixed to the top via tamper-proof screws.

For applications where vandalism is a concern, a

vandal resistant model is available which includes an

aluminum sunshield cover and a high impact bubble

which meets ANSI-87.1 impact safety standards. For

additional protection a stainless steel bubble cage is

provided.

Simply add an interface board, plug in the video

cable, connect power and data, and install any

SpeedDome Ultra. Diagnostic power and

communications LEDs confirm proper connection

and aid in troubleshooting. A variety of mounts

accommodate the housing, making it easy to install.

The housing supports both the RUPTB and RUIOB

dome bases (not included) and is supplied with either

a choice of a clear or smoked bubble.

www.americandynamics.net

ADSDUPIVRC

Vandal Resistant Indoor

Dome Housing

ADSDUPIHC

Indoor Dome Housing

Front side – Single sheet – Letter size – print 4/c

SpDome Ultra I_VS335_L.qxd 2/19/04 3:31 PM Page 1

AMERICAN DYNAMICS SPEEDDOME®ULTRA INDOOR DOME HOUSING

Product specifications and availability subject to

change witout notice.

Certain product names mentioned herein may be trade

names and/or registered trademarks of other companies.

Tyco Fire & Security Video Systems

6795 Flanders Drive, San Diego, CA 92121 USA

www.tycovideo.com

VS335-01 08/03 L

Product specifications and availability subject to

change without notice.

Certain product names mentioned herein may be trade

names and/or registered trademarks of other companies.

Model Numbers

ADSDUPIHC . . . . . . . . . . . . . . . . .Indoor Ultra Housing with clear bubble

(f0)

ADSDUPIHS . . . . . . . . . . . . . . . . .Indoor Ultra Housing with smoked bubble

(f1.0)

ADSDUPIVRC . . . . . . . . . . . . . . . .Vandal Resistant Indoor Ultra Housing

with high-impact clear bubble (f0)

ADSDUPIVRS . . . . . . . . . . . . . . . .Vandal Resistant Indoor Ultra Housing

with high-impact smoked bubble (f1.0)

Mechanical

ADSDUPIHC, ADSDUPIHS

Construction

Enclosure . . . . . . . . . . . . . . . . . . .Aluminum

Sun Shade, Trim Ring,

Top Cover . . . . . . . . . . . . . . . . . .UV stabilized polycarbonate

Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray

Height . . . . . . . . . . . . . . . . . . . . . . .321 mm (12.64 in)

Diameter . . . . . . . . . . . . . . . . . . . . .244 mm (9.61 in)

Bubble . . . . . . . . . . . . . . . . . . . . . . .Acrylic

Bubble Diameter . . . . . . . . . . . . . .75.3 mm (6.93 in)

Weight

Without Dome . . . . . . . . . . . . . .1.6 kg (3.50 lbs)

With Dome . . . . . . . . . . . . . . . . . .2.8 kg (6.20 lbs)

Shipping Weight of Housing . . .3.3 kg (7.30 lbs)

Mechanical Connection . . . . . . .1.5 in NPT

ADSDUPIVRL, ADSDUPIVRS

Construction

Enclosure . . . . . . . . . . . . . . . . . . .Aluminum

Sun Shade, Trim Ring,

Top Cover . . . . . . . . . . . . . . . . . .UV stabilized, polycarbonate

Sun Shade Cover . . . . . . . . . . . . .Aluminum with high gloss power coating

Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray

Height . . . . . . . . . . . . . . . . . . . . . . .321 mm (12.64 in)

Diameter . . . . . . . . . . . . . . . . . . . . .244 mm (9.61 in)

Bubble . . . . . . . . . . . . . . . . . . . . . . .High impact acrylic

Bubble Diameter . . . . . . . . . . . . .75.3 mm (6.93 in)

Bubble Cage . . . . . . . . . . . . . . . . . .Stainless steel, painted flat black

Height . . . . . . . . . . . . . . . . . . . . . . .87.7 mm

Width . . . . . . . . . . . . . . . . . . . . . . . .212 mm

Weight

Without Dome . . . . . . . . . . . . . .2.30 kg (5.10 lbs)

With Dome . . . . . . . . . . . . . . . . . .3.50 kg (7.70 lbs)

Shipping Weight of Housing . . .4.00 kg (8.80 lbs)

Mechanical Connection . . . . . . .1.5 inch NPT

Environmental

Operating Temperature . . . . . . . .10° to 50° C (16° to 122° F)

Humidity . . . . . . . . . . . . . . . . . . . . .0 to 95% RH (non-condensing)

Storage Temperature . . . . . . . . . .20° to 65° C (-4° to 149° F)

SPECIFICATIONS

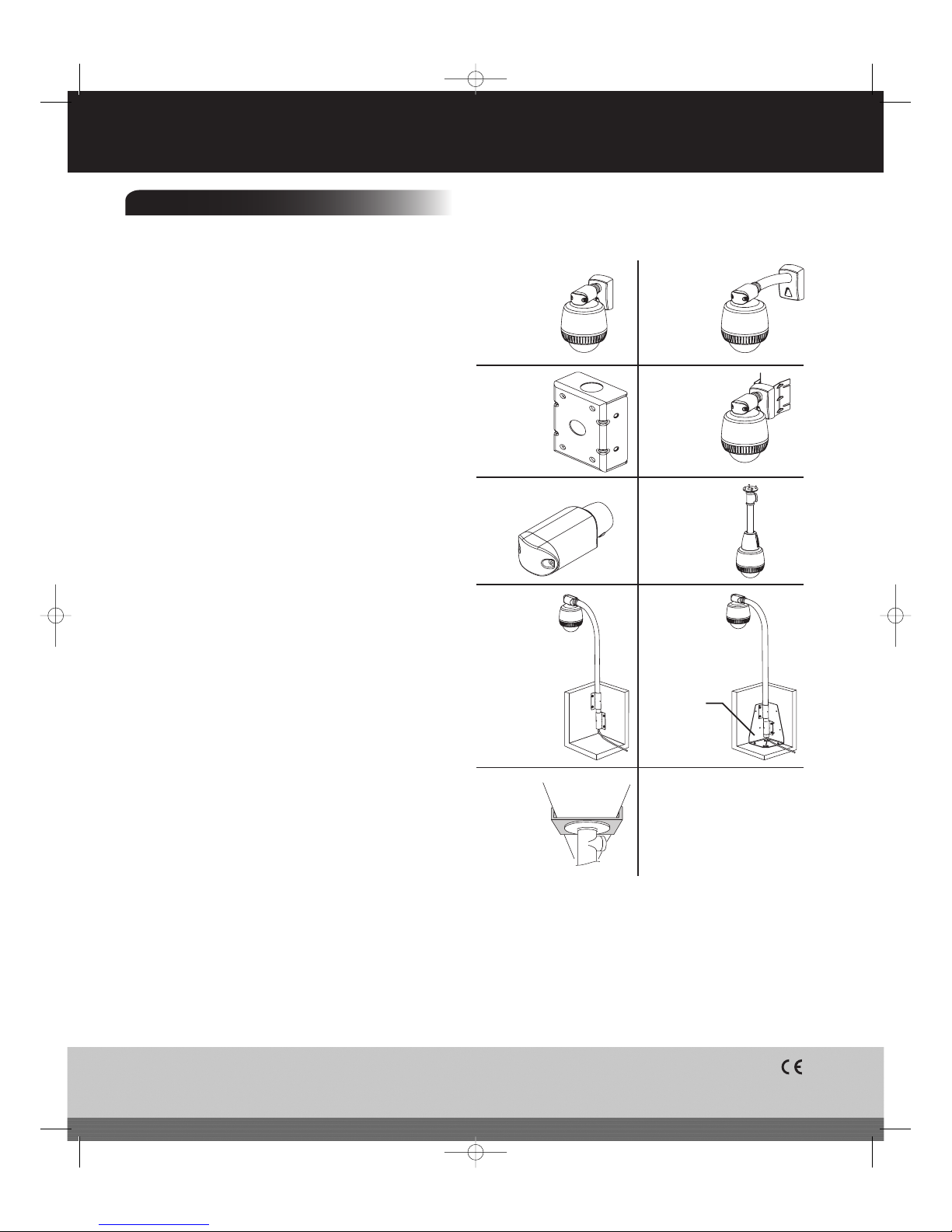

Mounts and Adapters

RHOSW

Indoor/outdoor

short wall mount

with end cap assembly

RHOWPA

Indoor/outdoor pole

strap adapter for

RHOSW and

RHOLW

RHOTR

Outdoor over-the-roof

mount with end cap

assembly

ROENDC

Indoor/outdoor

end cap assembly

adapter

RHIUIB

Indoor I-beam

clamp

RHOLW

Indoor/outdoor

long wall mount

with end cap

assembly

RHOWCA

Indoor/outdoor corner

bracket adapter for

RHOSW and

RHOLW

RHOPN

Indoor/outdoor

pendant mount

ROTRF

Outdoor floor adapter

for RHOTR

ROTRF

Back side – Single sheet – Letter size – print b/w
