American Dynamics ADC723PIR Manuale utente

8200-0206-12 Rev. A

ADC723PIR

COLOR CCTV CAMERA

OPERATING INSTRUCTIONS

Note: All ADC520/ADC720 Series cameras ship with a 120VAC to 12VDC UL listed power supply with a

6-foot (1.8m) cord. 12VDC cameras will not line-lockand are not recommended for use in a matrix

switcher environment.

Thank you for choosing this high quality camera.

Before connecting or operating this product, please read all of these instructions.

1. Please use a regulated 12VDC power adaptor to operate this unit. The power tolerance of

this unit is 12VDC ± 10% (10.8VDC~13.2VDC); a power input of more than 13.2VDC will

damage this unit.

2. The video output (BNC connector) of this unit should only be connected to a non-powered

device. Please check the wiring of the video output before applying power to this unit. If the

power is applied through the video output cable, the unit will be damaged.

CAUTION

8200-0206-12 Rev. A

Specification

General

This Color CCD video camera employs a 1/4" Sony charge-coupled solid-state imaging device that provides

extremely long life and high reliability. The camera, which can be easily mounted in any location, can monitor

a wide area.

Features

1. 380 TV lines of horizontal resolution and high quality picture.

2. Built in Auto Electronic Shutter.

3. Minimum illumination of 1Lux / F2.0

4. Signal-to-noise ratio of 48dB.

5. High reliability under long time operation.

Pick up Element 1/4” Sony Color CCD image sensor

Number of Pixel 512(H) x 492(V) <NTSC> / 512(H) x 582(V) <PAL>

Resolution 380 TV lines

Min. Illumination 1 Lux / F2.0

S/N Ratio More than 48dB(AGC off)

Electronic Shutter 1/60 (1/50) to 1/100,000 sec.

Load Impedance 75 Ohms

Standard Board Lens f3.7mm / F2.0

Lens Angle (Diagonal) 67.5°

Power Source DC12V ± 10%

Current Consumption 90mA

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Dimension (mm) 70(W) x 110(H) x 49(D)

Weight 230g

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

8200-0206-12 Rev. A

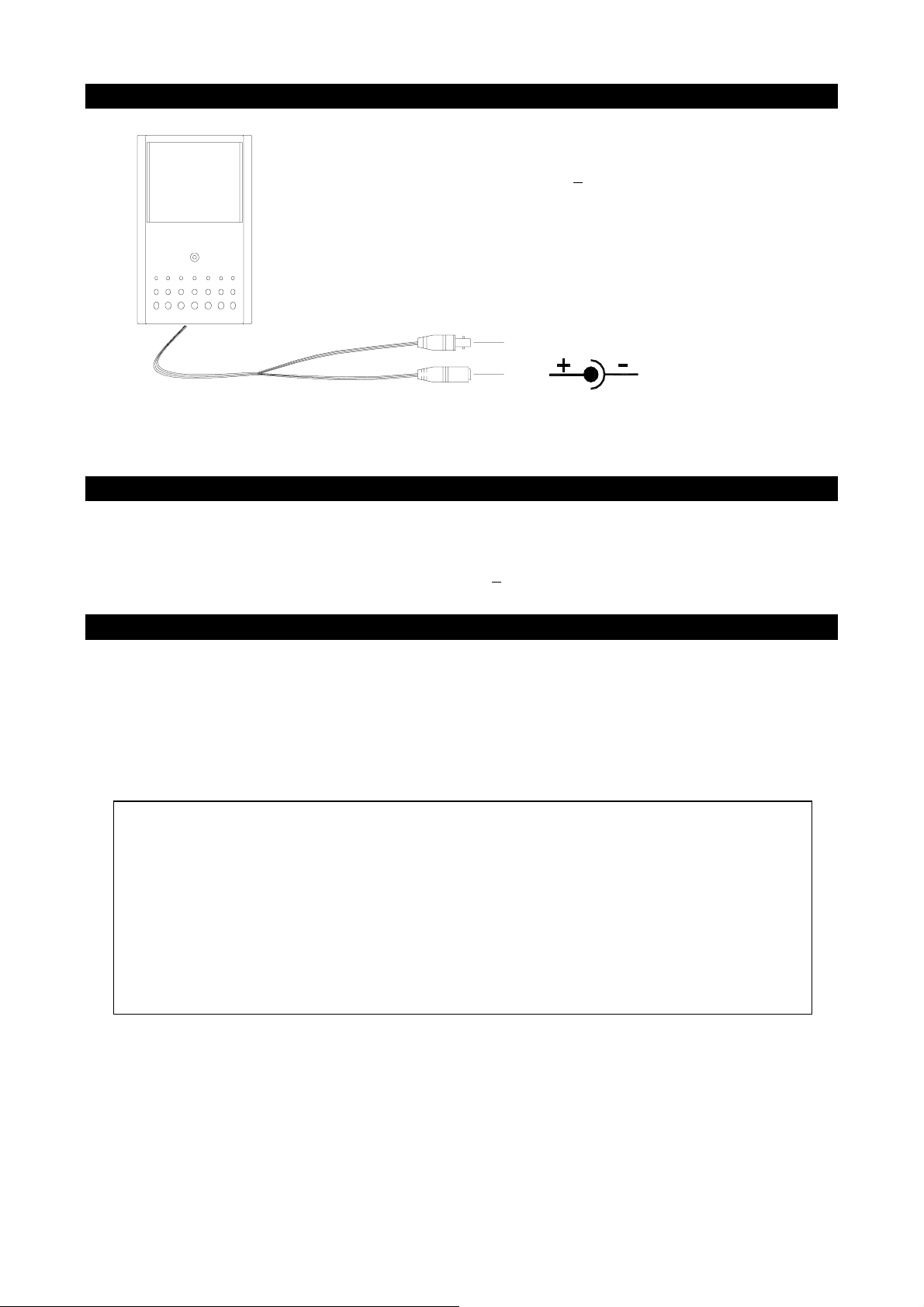

Major operating controls and functions

1. 12Vdc Input Terminal

2. Video Output Connector (VIDEO OUT)

Connections

1. Connect the video terminal of the camera (VIDEO) and the video input terminal of the video monitor with

a 75-ohm coaxial cable.

2. Connect the power terminal of the camera to a 12VDC + 10% regulated power supply.

Standard Accessories

1. Main Body * 1

2. DC-BNC Connector * 1

3. Instruction Manual * 1

1. 12Vdc Input Terminal -Connection to the power cord:

To connect camera to a 12Vdc+ 10% regulated power supply.

2. Video Output Connector (VIDEO OUT) - Connect ion to video input:

To connect camera to 75-Ohm video terminal with standard 75-Ohm

coaxial cable

Warning -- This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Canadian ICES-003 and part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

American Dynamics

Tyco Safety Products

6600 Congress Ave.

Boca Raton, Florida 33487

Telephone: 561-912-6000
