American Dynamics AD715LS Series Istruzioni di installazione e manutenzione

Installation and Service Guide

8000-2708-01, REV. B

DeltaDome™II

Programmable

Surveillance Camera

AD716LS and AD715LS Series

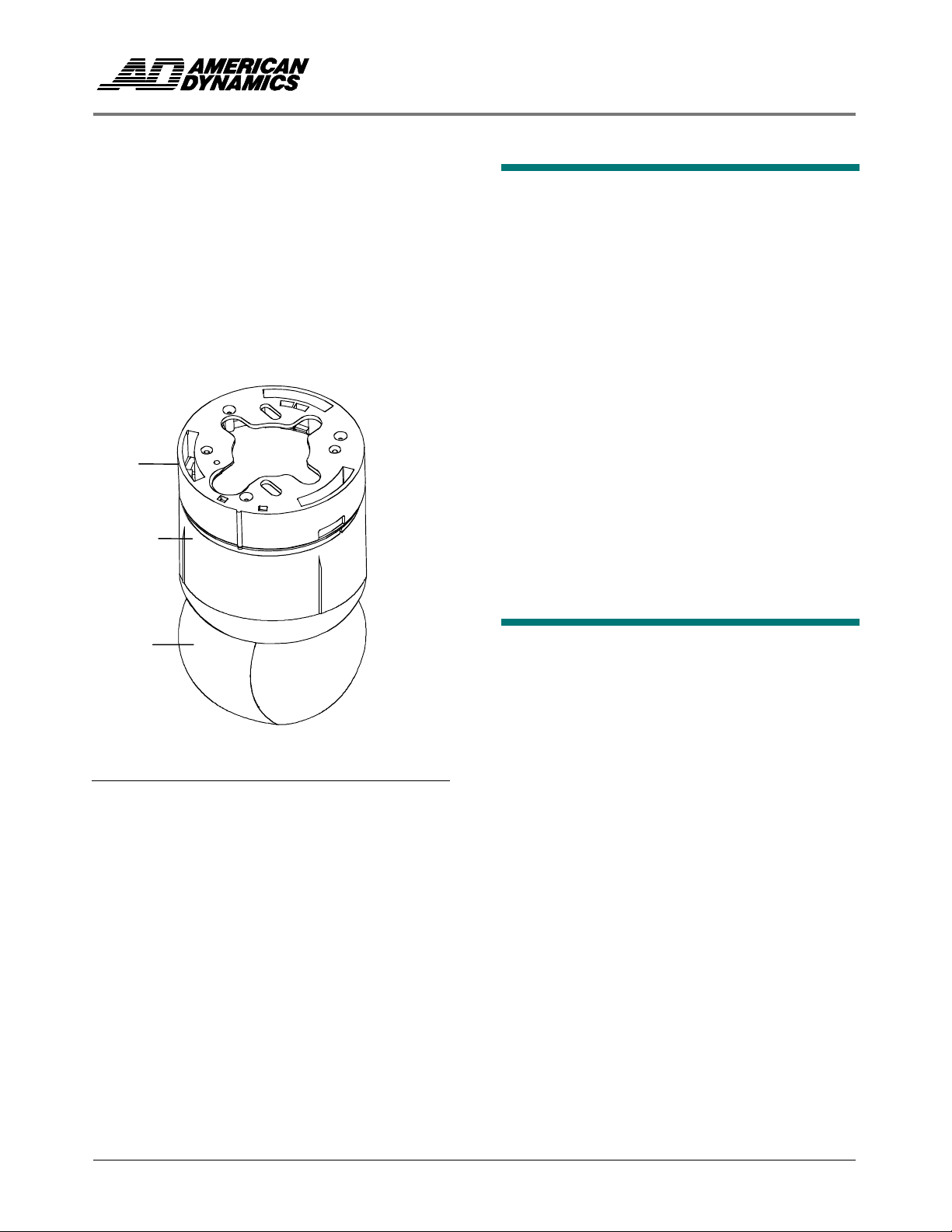

Figure 1. SpeedDome Ultra camera dome

American Dynamics, DeltaDome, and the AD logo are

registered trademarks of Sensormatic Electronics Corporation.

Other product names (if any) mentioned herein may be

trademarks or registered trademarks of other companies.

No part of this guide may be reproduced in any form without

written permission from Sensormatic Electronics Corporation.

MDR 6/00

Contents

About this Guide....................................................1

About the Camera Dome ......................................2

Data Cable Requirements.....................................8

Install/Removal Tool for ADIOB Base...................8

Power-Up Routine.................................................9

Synchronizing Domes ...........................................9

Diagnostic LEDs....................................................9

Warnings and Cautions.......................................10

Indoor Installation................................................12

Using the Install/Removal Tool ...........................20

Troubleshooting Indoor Domes...........................22

Ordering Parts.....................................................34

Specifications-Indoor Dome................................36

Specifications-Outdoor Housing..........................37

Specifications-22X Camera.................................37

Declarations ........................................................38

About this Guide

This guide explains how to connect the camera

dome to a mounting base and how to service it.

It does not explain how to:

•Determine a mounting location for the camera

dome. The mounting location is determined by

customer requirements; therefore, this

information is provided separately.

•Attach the mounting base. There are two types

of mounting bases. See information shipped

with the base.

•Assemble housings and structures used with

this dome. See information shipped with the

housing and structure.

•Program the dome. See operator's guide

shipped with the dome.

Mounting

Base

Housing

Eyeball

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

About the Camera Dome

The DeltaDome II programmable surveillance

camera (Figure 1) mounts indoors or outdoors,

and can communicate with the video controller

over a SensorNet 485, RS422, or Manchester

network. The dome consists of a mounting base,

and a housing and rotating eyeball assembly.

Mounting Base

The housing and eyeball assembly connects to the

base using a twist and lock action, which enables

the dome to be easily moved from one location to

another. The base attaches directly to a hard or tile

ceiling, or indirectly to walls or ceilings using one of

many optional housings and mounting structures.

As shown in Figure 2, two base types are offered:

an ADUPTB standard base and an ADIOB base

with I/O board.

•ADPTB Base. With this base, video, data, and

power cables are inserted through the base and

attached to the top of the housing and eyeball

assembly, which is then connected to the base.

A lanyard connects between the base and the

housing and eyeball assembly to prevent cables

from being pulled during disassembly.

•ADIOB Base. With this base, video, data, and

power cables are pre-connected to an I/O PC

board. A spring-finger connector on the board

makes electrical contact with the housing and

eyeball assembly as it connects to the base.

Housing and Eyeball Assembly

The housing and eyeball assembly consists

of the following:

•Housing. The housing contains the dome's

power supply, pan motor, and electronics used

to operate the eyeball. The housing provides

one alarm input and one alarm output using the

ADPTB base, or four alarm inputs and four

alarm outputs using the ADIOB base.

•Eyeball. Gloss black and 120mm (4.75") in

diameter, the eyeball contains a camera, tilt

motor, and associated electronics. The eyeball

enables the camera to pan and tilt to track a

target moving in any direction even as it moves

under the dome.

Two slot covers in the eyeball facilitate access

to the camera, one of which incorporates a

camouflaged lens. Remove both covers to

improve ventilation when the dome is to be

used outdoors.

As shown in Table 1, the housing and eyeball

assembly can be ordered:

•With no base for existing indoor installations or

for mounting outdoors.

•With a ADPTB standard base or ADIOB base

with I/O board for new indoor installations.

•With one of four CCD cameras

−Color NTSC

−Black & White EIA

−Color PAL

−Black & White CCIR.

Each camera has 22X optical zoom with cont-

inuous auto focus and back light compensation.

Electronic zoom provides selectable

magnification up to 176X.

Table 1. Product codes for housing and eyeball assembly configurations

Color NTSC B & W EIA Color PAL B & W CCIR

No Base AD716LS AD715LS AD716LS-1 AD715LS-1

RUPTB Base AD716LSP AD715LSP AD716LSP-1 AD715LSP-1

RUIOB Base AD716LSI AD715LSI AD716LSI-1 AD715LSI-1

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

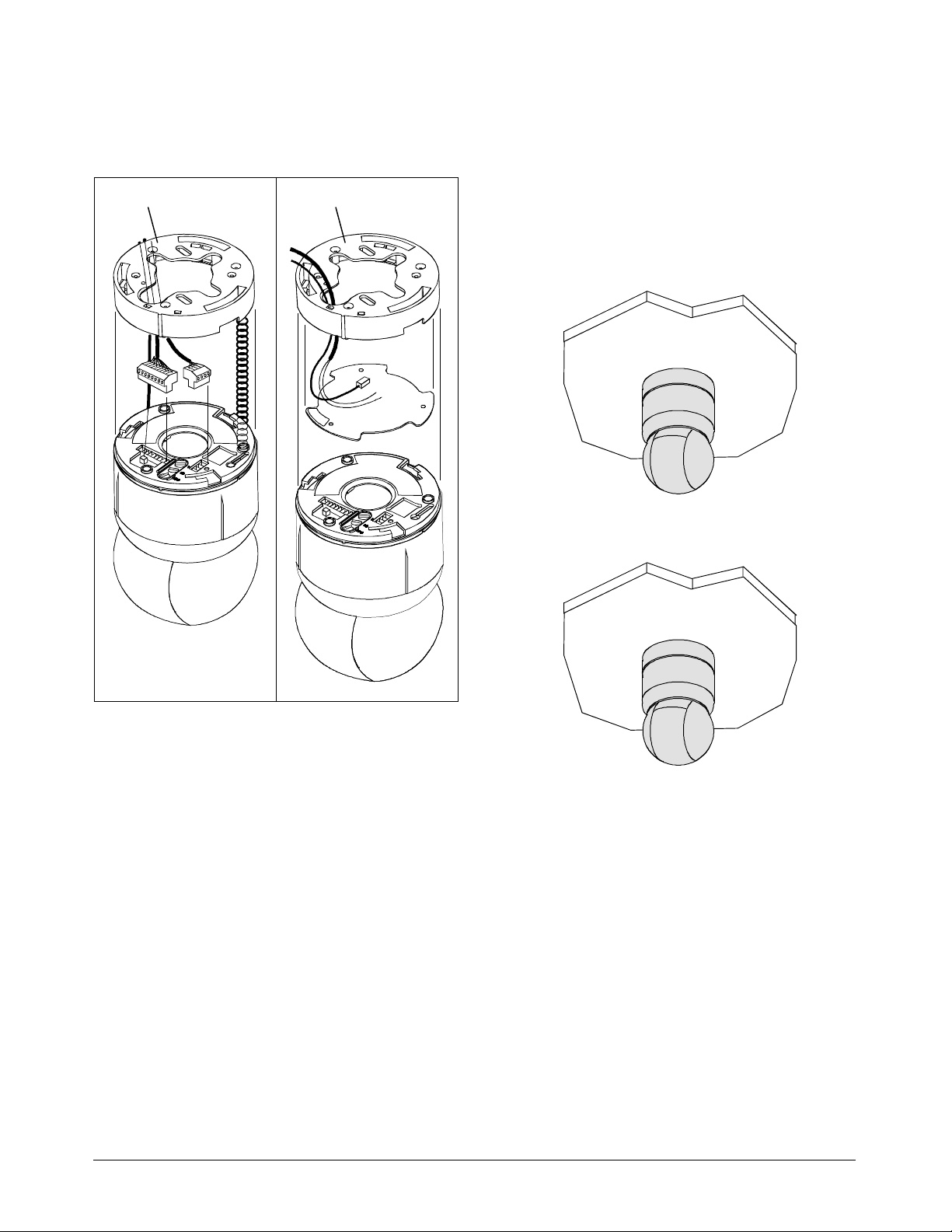

Figure 2. Mounting base and housing and

eyeball assembly

ADPTB Mounting Base ADIOB Mounting Base

Indoor Ceiling Mounting

Using hardware shipped with the base, the dome

attaches directly to indoor ceilings made of sheet

rock, wood, metal, or concrete (Figure 3), or to tile

ceiling T-bars where they intersect (Figure 4).

Figure 3. Surface mounting to hard ceilings

Figure 4. Surface mounting to tile ceilings

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

Indoor Ceiling/

Wall Mounting (Optional)

The camera dome attaches to one of the following

optional indoor mounting structures (Figure 5).

Sheet Rock, Plaster or Wood Ceilings

RHIUTH Top hat housing with trim ring

This housing attaches to a ceiling or

to most indoor mounting structures. A

bubble and trim ring provide

concealment. Optional bubbles:

RUCLR (clear), RUSLV (silver),

RUSMK (smoked), or RUGLD (gold).

Plenum adapter RHPLA may be

required to meet local fire codes.

RHIUHC Hard ceiling bracket

Enables top hat housing to be

recessed in ceiling (requires top hat

RHIUTH).

RHIUFB* Fixed bracket

Enables top hat housing to be

recessed in ceiling (requires top hat

RHIUTH).

RHIUPNDT† Pendant mount

Suspends dome from a hard ceiling.

Electrical Box in Ceiling

RHIU3X3† 3 X 3 mounting plate

Attaches dome to a standard

3.5 x 3.5 duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage

mains.

RHIU4X4† 4 X 4 mounting plate

Attaches dome to a standard

4 x 4 duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage

mains.

Structural I-Beams

RHIUIB† I-beam mount

Enables dome to suspend from an I-

beam.

Tile Ceilings

RHIUFB Fixed bracket

Enables top hat housing to be

recessed in a 2x2 tile (requires

top hat RHIUTH).

RHIUAB Adjustable bracket

Enables top hat housing to be

recessed in a 2x4 tile (requires

top hat RHIUTH).

RHIU2X2* 2 X 2 tile mount

Enables top hat housing to be

recessed in 2x2 openings

(incorporates top hat housing).

RHIU2X2P* 2 X 2 tile pendant mount

Enables dome to be suspended

from 2x2 openings.

Wall Mounting

RHIUWM* Wall mount

Attaches dome to a flat vertical

surface.

RHIUCM* Wall mount with corner feature

Attaches dome to attach to a wall,

inside corner, or outside corner.

RHIULWM*† Long .6m (24") wall mount

Positions dome away from wall to

enable it to see over furniture,

shelving, and displays. This mounting

structure attaches to the wall, inside

corner, or outside corner.

* Option in white, but can be painted to match decor.

† Top hat housing/dome assembly also mounts to structure.

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

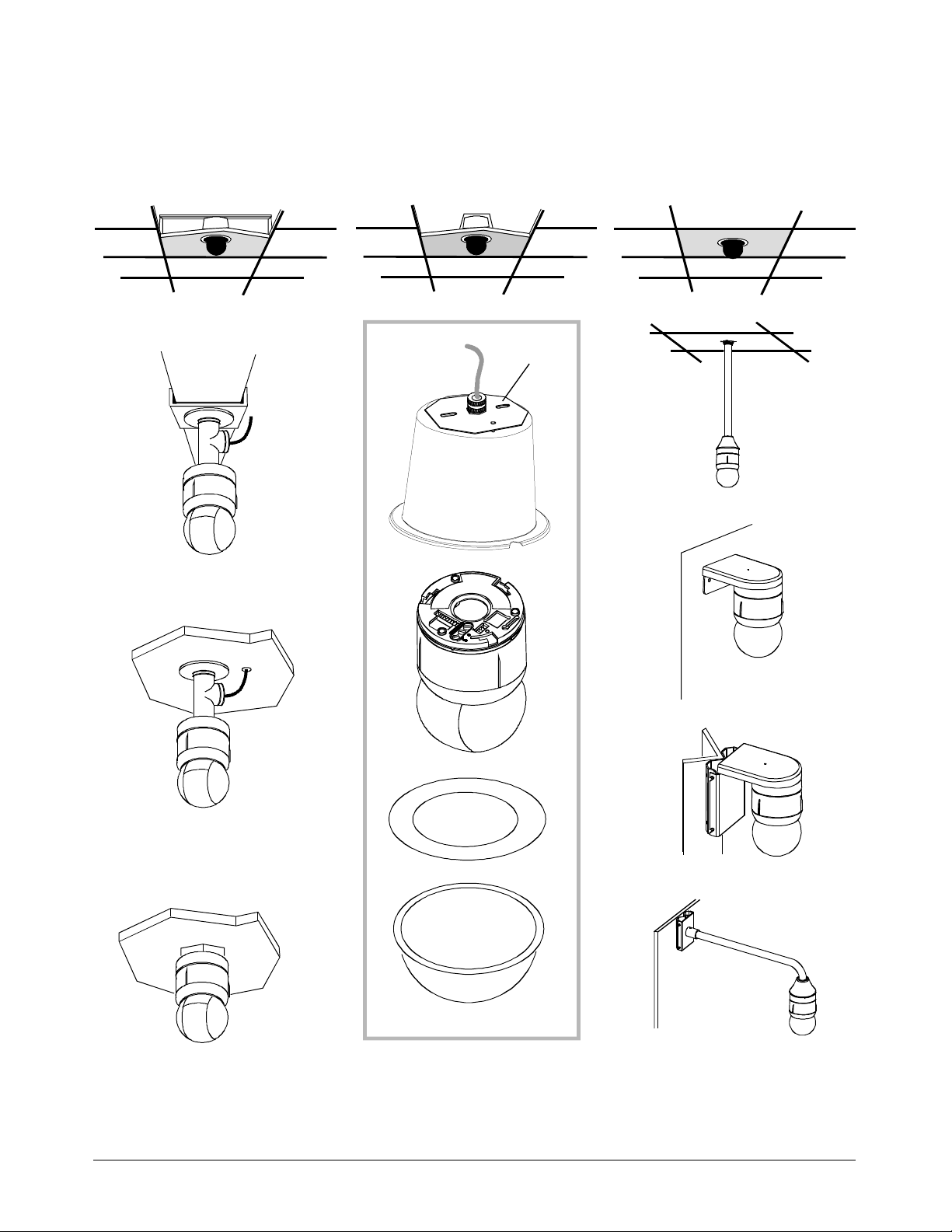

Figure 5. Indoor mounting structures (optional)

RHIUFB

RHIUAB RHIUHC RHIU2X2

RHIUTH

RHIUTR

RUCLR

RUSLV

RUSMK

RUGLD

RHIULWM

RHIUCM

RHIUWM

RHPLA

RHIU3X3

RHIU4X4

RHIUPNDT

RHIUIB

RHIU2X2P

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

Outdoor Mounting (Optional)

Note: This document does not include outdoor

installation and service instructions. For these

instructions, see Installing the RHODUL Outdoor

Housing, 8000-2573-04.

The camera dome attaches to outdoor walls and

ceilings using an RHODUL outdoor housing

(Figure 6) and one of the following optional

mounting structures (Figure 8):

•RHORM Over Roof Mount

•RHOCM Ceiling Mount

•RHOPM Pole Mount

•RHOWM Wall Mount

•RH170 Corner Bracket.

The outdoor housing contains a pre-installed

mounting base, a cooling fan for hot weather, a

heater for cool weather and to prevent icing, and

surge protection circuitry to protect against

lightning strikes.

An environmental PC board is used to pre-wire

cables. A round spring-finger connector on the

board makes electrical contact with the housing

and eyeball assembly as it connects to the base.

Note: Do not use the I/O board (designed for

indoor use) in place of the environmental board.

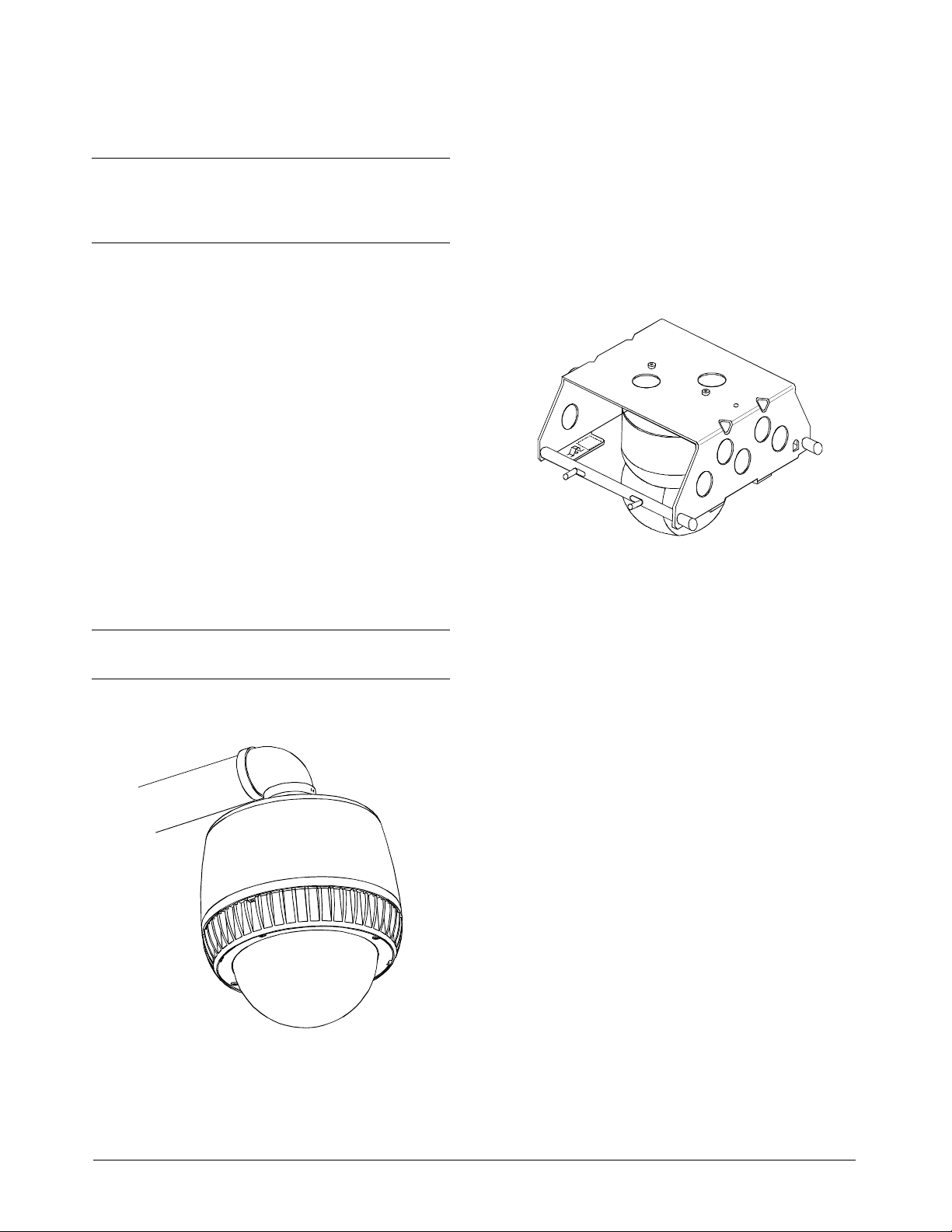

Figure 6. ADODH outdoor housing (optional)

SpeedDome Housing Adapter

Bracket (Optional)

An RHSDA adapter bracket (Figure 7) enables the

dome to fit into SpeedDome indoor and outdoor

housings. Locking pins in the bracket enable the

dome to swing out for servicing or removal.

Figure 7. RHSDA adapter bracket (optional)

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

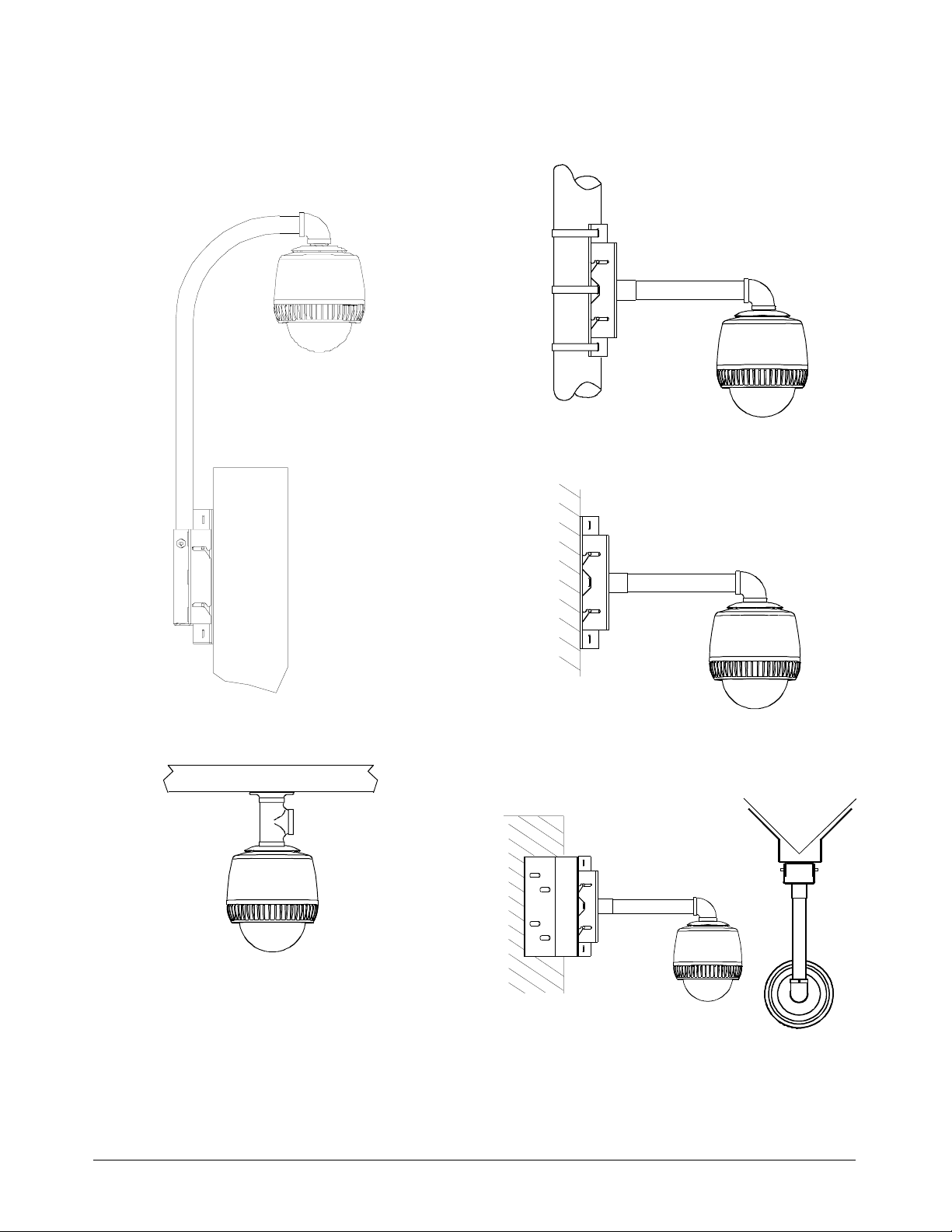

Figure 8. Outdoor mounting structures

(optional)

RHORM over roof mount

RHOCM ceiling mount

RHOPM pole mount

RHOWM wall mount

RH170 corner bracket (shown with RHOWM mount)

Top View

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

Data Cable Requirements

Table 2 shows the data cable requirements for

SensorNet, RS422, and Manchester networks. For

more information about communication protocols

and cable networks, see Communication Protocols

and Cable Networks, 8000-2573-19.

Table 2. Data cable requirements

SensorNet RS422 Manchester

Cable

type 1

unshielded,

twisted

pair*

shielded,

twisted

pair*

shielded

twisted pair**

Wire

gauge 22 AWG 22 AWG 18 AWG

Con

nection Non-

polarized Polarized Polarized

Max.

devices

on line

32 10 3

* Power, data, and video cables can be ordered

separately or within a composite cable that can be

ordered in various lengths. Plenum-rated cables

must be used in indoor ceilings used for environ-

mental air return (called "other air space" in the

National Electrical Code). Order parts through

your distribution network.

Note: If you order cable from an outside

source, wire colors may be different.

** Belden 88760 (plenum), or Belden 8760 cable

(non-plenum) cable is recommended. Plenum-

rated cables must be used in indoor ceilings used for

environmental air return (called "other air space" in

the National Electrical Code). Order cable directly

from Belden by calling 1-800-235-3361.

Install/Removal Tool for

RUIOB Base

The install/removal tool (Figure 9) enables you to

connect or disconnect the housing and eyeball

assembly from the RUIOB base with I/O board,

and to attach/detach skirts and bubbles to a top hat

housing, without the need for a ladder. The tool

attaches to a telescopic pole (purchased

separately). See page 20.

CAUTION: Do not use this tool to connect the

dome the RUPTB base.

Figure 9. RHIRT indoor install/removal tool

RHIRT Removal Tool

Teslescopic Pole 08140

by Recreational Water

Products. See page 20

to order.

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

Power-Up Routine

After power is connected to the dome, the dome

performs the following homing routine.

1. After a few seconds, the camera lens tilts up

into the housing and eyeball assembly.

2. The lens tilts downs until it looks at the floor.

3. Eyeball pans slowly.

4. Lens tilts up 90° (home position).

Once the lens is in its home position, you can

then use the controller to call up the camera

and control it.

Synchronizing Domes

To prevent picture rolling when switching from

camera to camera, all domes can be synchronized

to a 50Hz or 60Hz ac source. A V-phase

adjustment at the control console enables the

dome to sync to any line phase.

Diagnostic LEDs

If ADPTB standard base is used, LEDs in the

housing and eyeball assembly enable you to check

for power and data.

If ADIOB base with I/O board is used, LEDs on the

underside of the mounting base enable you to

check for power and data. If an RS422 network is

used, other LEDs on the board indicate that wiring

is correct, reversed, open, or grounded.

INSTALLATION AND SERVICE GUIDE DeltaDome II Camera Dome

8000-2708-01, REV. B

Warnings and Cautions

Please review the following warnings and cautions

before you begin installation or service.

WARNINGS

WARNING!

ALWAYS USE:

•Proper safety equipment for the location and

type of installation.

•Proper lift equipment to reach the installation.

•Safety features of the lift equipment.

BE SURE:

•Electrical power is not connected to the dome

when connecting wires. Dome will move when

power is applied.

•Electrical power is not connected to nearby

fixtures that you might touch during installation.

WARNING! DO NOT install this camera dome in

hazardous areas where highly combustible or

explosive products are stored or used.

WARNING! This dome runs on 24Vac. DO NOT

connect line voltage to this dome.

North America power requirements: In North

America, this device is intended to be supplied

from a Class 2 power supply. For outdoor

installations, use Class 3 wiring techniques, liquid-

tight conduit, or liquid-tight pipe.

This installation should be made by a qualified

service person and should conform to all local

codes.

WARNING!

EU power requirements: This product runs on

24Vac. In the EU, it is intended to be powered from

a Limited Power Source. A limited power source is

a certified source of SELV, and if inherently limited,

with 8 amps maximum output current, and a

maximum of 100VA available; or if not inherently

limited, fused with a maximum value of 3.3 Amps,

meeting section 2.11 of IEC950, and a maximum of

250VA available. The power supply can be

obtained through Sensormatic or through another

source where the provider can furnish the

verification. This is required to assure electrical

safety in the product.

Stromanforderungen in der EU: Dieses Produkt

wird mit 24 V Wechselstrom betrieben. In der EU

ist es für den Betrieb durch eine begrenzte

Stromquelle vorgesehen. Eine begrenzte

Stromquelle ist eine zertifizierte SELV-Quelle

(Schutzkleinspannung), bei inhärenter Begrenzung

mit einem maximalen Ausgangsstrom von 8 A und

100 VA maximaler Verfügbarkeit, bei nicht

inhärenter Begrenzung mit einer maximalen

Sicherung von 3,3 A gemäß Abschnitt 2.11 der

IEC950 und 250 VA maximaler Verfügbarkeit. Das

Netzteil kann über Sensormatic oder eine andere

Quelle bezogen werden, wobei der Anbieter den

Nachweis der Konformität bereitstellen sollte. Dies

ist zur Gewährleistung der elektrischen Sicherheit

des Produktes erforderlich.

Altri manuali per AD715LS Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics Tyco ADC770 Manuale utente

American Dynamics

American Dynamics ADCPBW Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra 8 22x Manuale utente

American Dynamics

American Dynamics SensorRail AD2079 Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics RASOPPC-1 Manuale utente

American Dynamics

American Dynamics ADODHCL Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics AD615 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Manuale

American Dynamics

American Dynamics illustra 400 Manuale utente

American Dynamics

American Dynamics ADCI625-P221 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VIIE Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Tyco ADC520 Series Manuale utente

American Dynamics

American Dynamics Tyco ADC770 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Drone III Manuale utente

American Dynamics

American Dynamics VideoEdge IP Indoor Mini-dome 8200-2646-02... Istruzioni operative originali

American Dynamics

American Dynamics ADCIPE3712OCN Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Drone II Manuale utente

American Dynamics

American Dynamics ADCA330CN Manuale utente

American Dynamics

American Dynamics ADC660 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra 8 35x Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics ADC 660N Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
