ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 1 of 11

ADC780 Series Indoor/Outdoor

Vandal-Resistant Cameras

Installation and Setup Guide

The ADC780 series camera is for use in areas

subject to vandalism such as subway stations,

parking garages, prisons, police stations, corridors,

supermarkets, and elevators. This camera, which

comes in NTSC and PAL versions:

•Is contained in a cast aluminum housing with a

polycarbonate window or dome. Three versions

are offered: corner, flush, or surface mount.

•Has 480 lines of resolution to produce a sharp

picture with true color and has a 2.6–6mm

variable focal auto iris lens.

•Is protected by tamper-resistant hardware.

•Meets weather resistance standards:

−Surface Mount: NEMA 4, IP43

−Corner Mount: NEMA 3R, IP43

−Flush Mount: NEMA 1, IP40.

Outdoor Applications

Except when used in the flush mount, the camera

can be mounted outdoors using an optional heater

and thermostat that maintains the operating

temperature between –40°C to +50°C.

Features

•Adjustable camera mount

•Indoor/Outdoor installation (except flush mount)

•¾- and ½-inch conduit holes

•24Vac hookup

•2.6–6mm variable focal color camera with dc

auto-iris adjustment

Parts Supplied

Caution: Installation should be performed by

qualified service personnel and in accordance with

all local and federal electrical and building codes.

•Housing and associated hardware

•Mounting screws (4)

•Anchors, plastic (4)

•Screws, M6x35 (4)

•Washers, metal (4)

•O-rings, rubber (4)

•Desiccant (for corner mount, surface mount)

•Mounting Plate (for flush mount, surface mount)

•Screws, M4 x 8 pan head (4) – flush and

surface mounts only (for connection to electrical

box mounting plate)

Parts not Supplied

•Teflon®plumbers tape

•UL-listed electrical tape

•Silicone caulk

(for corner and surface mounts only)

•Threaded conduit

IMPORTANT! Threaded rigid type conduit must

be used for the corner and surface mount

versions.

Tools Required

•Torx wrench

•Small Phillips screwdriver

•Small slotted screwdriver

Corner Mount Flush Mount

Surface Mount

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 2 of 11

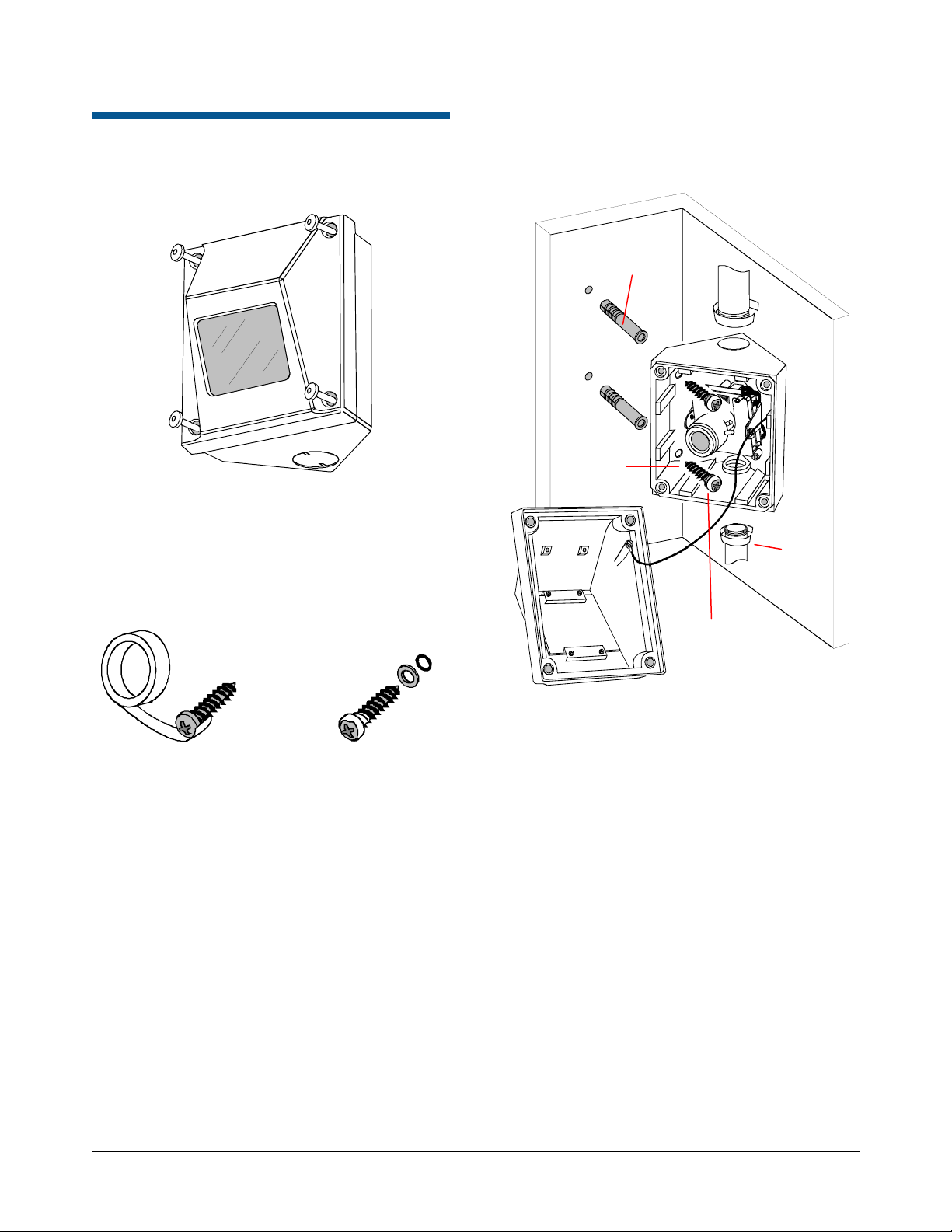

Corner Mount Installation

1. Loosen (DO NOT REMOVE) four captive Torx

screws to remove the cover from enclosure.

2. Prepare the four mounting screws. In extreme

environments: Wrap the screw head in Teflon®

tape with the tape going ¼ inch down the body

of the screw (A) and insert the washer and O-

ring (B). Otherwise, just use the washer and

O-ring (B). The O-ring goes on last.

3. Using the four mounting screws, attach the

enclosure to the corner. Use Teflon®tape to

wrap the ends of the conduit before connecting

it to the enclosure.

M6x35 Screws

(

)

Teflon

Tape

Rubber

Washers

(4x)

M4 Plastic

Anchors (4x)

A B

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 3 of 11

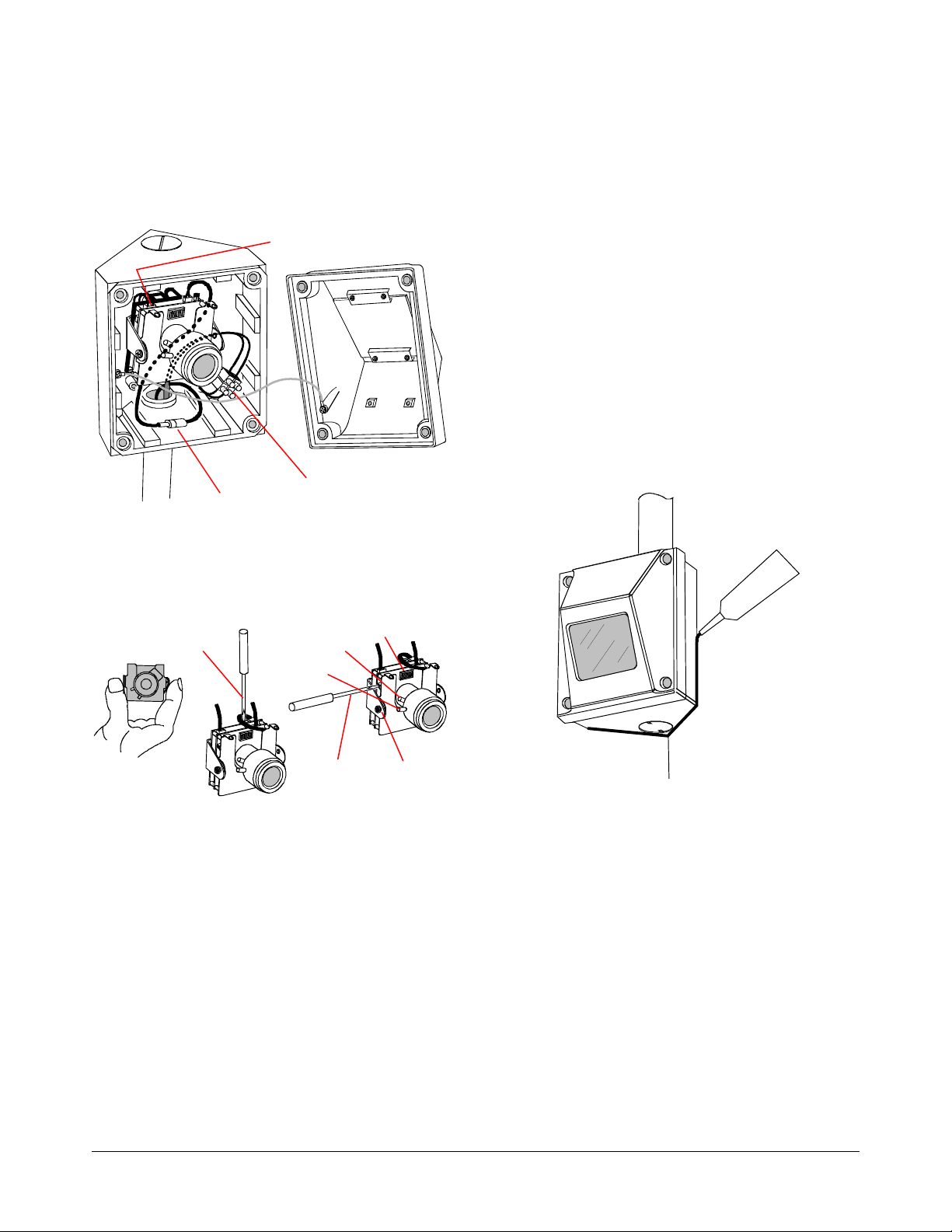

4. If using the camera outdoors, see “Heater

Installation”, page 7.

5. Run 24vac and video cables to the enclosure.

Connect cables where shown and apply power

to the camera.

6. Holding the yoke (not the camera lens barrel),

swivel the camera to adjust (using a small

screwdriver) the auto-iris level control on the

edge of the top board.

7. Swivel the camera to adjust the ac phase

control on the edge of the bottom board.

8. Select DIP switch settings (page 8).

9. Holding the yoke (not the camera lens barrel),

swivel the camera to the desired view.

Caution: DO NOT point the camera directly at

the sun’s path.

10. Adjust zoom and focus arms on the lens barrel

to the desired setting and tighten them in place.

11. Tighten the two yoke screws.

12. If the humidity is high at the time of installation,

place the bag of desiccant inside the enclosure.

13. Reattach the cover on the enclosure using the

four Torx screws.

14. Place a bead of Silicone caulk everywhere

where the corner mount meets the wall.

Swivel camera

holding yoke

Auto-Iris Level

Adjustment

AC Phase

Adjustment

Focus

Zoom

DIP Switch

Yoke

Screws (2x)

Video Connection

AC Terminal Block

AC Camera

Connection

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 4 of 11

Flush Mount Installation

(In a wall or ceiling)

1. Loosen (DO NOT REMOVE) four captive Torx

screws to remove the cover from enclosure.

2. Using the mounting plate as a template, cut a

round opening in the wall or ceiling. Then, using

the four anchors and screws supplied, center

the gasket over the opening and attach it to the

ceiling.

3. Run 24vac and video cables through the

opening in the ceiling. Then attach the

enclosure to the gasket using screws shown.

Apply power to the camera.

4. Holding the yoke (not the camera lens barrel),

swivel the camera to adjust (using a small

screwdriver) the auto-iris level control on the

edge of the top board.

5. Swivel the camera to adjust the ac phase

control on the edge of the bottom board.

6. Select DIP switch settings (page 8).

7. Holding the yoke (not the camera lens barrel),

swivel the camera to the desired view.

Caution: DO NOT point the camera directly at

the sun’s path.

8. Adjust zoom and focus arms on the lens barrel

to the desired setting and tighten them in place.

9. Tighten the two yoke screws and reattach the

cover on the enclosure using the four Torx

screws.

M4 x 8 Pan Head

Screws

(

)

Rubber

Washers

(

)

FC1 M4 x 20 Flat

Head Screws (4x)

M4 Plastic

Anchors (4x)

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 5 of 11

Surface Mount Installation

1. Loosen (DO NOT REMOVE) four captive Torx

screws to remove the cover from enclosure.

2. Prepare the four mounting screws. In extreme

environments: Wrap the screw head in Teflon®

tape with the tape going ¼ inch down the body

of the screw (A) and insert the washer and O-

ring (B). Otherwise, just use the washer and

O-ring (B). The O-ring goes on last.

3. Using the four mounting screws, attach the

enclosure to the ceiling. Use Teflon tape to

wrap the ends of the conduit before connecting

it to the enclosure.

4. If connecting to an electrical box, see “Electrical

Box Attachment”, page 5. If using the camera

outdoors, see “Heater Installation”, page 7. If

humidity is a factor, see “Heater/Fan”

installation, page 7.

5. Run 24vac and video cables to the enclosure.

Connect cables where shown and apply power

to the camera.

6. Holding the yoke (not the camera lens barrel),

swivel the camera to adjust (using a small

screwdriver) the auto-iris level control on the

edge of the top board.

Screw Assembly (4x)

Teflon

Tape

Plastic Anchors (4x)

Swivel camera

holding yoke

Auto-Iris Level

Adjustment

AC Phase

Adjustment

Focus

Zoom

DIP Switch

Yoke

Screws (2x)

AC Terminal Block

Video Connection

AC Camera

Connection

A B

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 6 of 11

7. Swivel the camera to adjust the ac phase

control on the edge of the bottom board.

8. Select DIP switch settings (page 8).

9. Holding the yoke (not the camera lens barrel),

swivel the camera to the desired view.

Caution: DO NOT point the camera directly at

the sun’s path.

10. Adjust zoom and focus arms on the lens barrel

to the desired setting and tighten them in place.

11. Tighten the two yoke screws.

12. If the humidity is high at the time of installation,

place the bag of desiccant inside the enclosure.

13. Reattach the cover on the enclosure using the

four Torx screws.

14. Place a bead of Silicone caulk everywhere

where the surface mount meets the wall.

Electrical Box Attachment

Flush Mount

1. Attach the mounting plate to the electrical box

using four 8-32 screws shown.

2. Attach the enclosure to the mounting plate

using four M4 x 8 screws.

Note: Due to mounting hole locations on the

cover plate, the enclosure will be oriented 45° to

the electrical box.

Surface Mount

Connect enclosure to an electrical box using

screws shown.

M4 x 8 Pan Head

Screws (4x)

8-32 x 0.75 Flat

Head Screws (4x)

Electrical Box

Cover Plate

8-32 x 0.75 Flat

Head Screws (4x)

M4 x 8 Pan Head

Screws (4x)

Electrical Box

Cover Plate

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 7 of 11

Heater Installation

Corner Mount

Remove the ac terminal block and wiring to the AC

camera connection and replace it with the thermo-

stat PC board and heater element. Each compon-

ent is held in place by two screws. For wiring

details, see ac/heater wiring diagram on page 8.

Surface Mount

Remove the ac terminal block and wiring to the AC

camera connection and replace it with the thermo-

stat PC board and heater element. Each compon-

ent is held in place by two screws. For wiring

details, see ac/heater wiring diagram on page 8.

Heater/Fan

Installation

(Surface Mount only)

Remove the ac terminal block and wiring to the AC

camera connection and replace it with the thermo-

stat PC board and the heater/fan assembly. Each

component is held in place by two screws. For

wiring details, see ac/heater/fan wiring diagram on

page 8.

AC Terminal Block

Heater

Element

Thermostat

PC Board

AC Camera Connection

Thermostat

PC Board

Heater

Element

AC Terminal Block

AC Camera

Connection

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 8 of 11

DIP Switch Default Settings

1. Automatic White Balance (On)

2. Gamma (On)

3. Automatic Gain Control (On)

4. Electronic Sensitivity Control (Off)

5. Back Light Compensation (Off)

6. Flicker Less (On)

7. AE (On)

8. Not Used (Don’t Care)

87654321

OFF

AC/Heater Wiring Diagram

(Corner Mount or

Surface Mount only)

J3 J1

SW1

SW1 (Thermostat)

J1J3

Heater AC to Camera

AC In

AC/Heater/Fan

Wiring Diagram

(Surface Mount only)

Note:

•Red wire from the fan goes to the J3 terminal

marked “+”.

•“AC In” and “AC to the Camera” both connect

to the J1 terminal.

SW1 (Thermostat) 24Vac

Reg.

12Vac

Reg.

Heater AC In

AC to Camera

J2 J1 J3

–+

Fan

SW1

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 9 of 11

Dimensions

Corner Mount

PT 3/4"

PT 1/2"

124.2mm

4.9"

75mm

2.95"

120mm

4.73"

104.6mm

4.12"

86mm

3.39"

100mm

3.94"

Flush Mount

91.5mm

3.6"

86.0mm

3.39"

85.0mm

3.35"

52.5mm

2.07"

40.0mm

1.57"

120.0mm

4.72"

120.0mm

4.72"

Surface Mount

91.5mm

3.60"

86.0mm

3.39"

120.0mm

4.72"

120.0mm

4.72"

ADC780 SERIES VANDAL-RESISTANT CAMERA 8000-2811-01, REV. C1

INSTALLATION AND SETUP GUIDE 10 of 11

Specifications

Models

NTSC

ADC780CM-24 ...........................................Corner Mount

ADC780SD-24.......................................... Surface Mount

ADC780FD-24 ..............................................Flush Mount

PAL

ADC780CM-24X .........................................Corner Mount

ADC780SD-24X........................................ Surface Mount

ADC780FD-24X............................................Flush Mount

Electrical

Power input* ..................24Vac (+20%, –15%)

60Hz NTSC

50Hz PAL

Power consumption .......3W

Connectors

Input power....................Screw terminal block

Composite video ............BNC on cord

Controls

AES ...............................On/Off

AGC...............................On/Off

Synchronization .............Line lock w/phase adjust.

DC iris............................Level control

Environmental

Operating temp.

(no heater) .....................–10°C to +50°C

(–14°F to +122°F)

Operating temp.

(with heater)...................–40°C to +50°C

(–40°F to +122°F)

Humidity.........................90% non-condensing

Storage temp. ................–20°C to +60°C

(–4°F to +140°F)

* North America: Listed Class 2 power supply required.

European Union: Certified limited power source

required.

Mechanical

Dimensions ............ (see page 9)

Weight ................... Flush Mount: 450g (1 lbs)

Surface Mount: 590g (1.3 lbs)

Corner Mount: 590g (1.3 lbs)

Color ...................... Light beige

Operational

Imager .......................... ¼" interline transfer CCD

Video output ................. 1.0Vp-p / 75-ohm composite

Active pixel count

NTSC......................... 768- (H) x 494 (V)

PAL............................ 752 (H) x 582 (V)

Lens .............................. 2.6–6mm variable focal,

auto iris lens

Sync system.................. Line lock

Minimum scene

illumination .................... 3.0 Lux at F1.4

Horizontal resolution ..... 480 TV line

Light compensation

modes ........................... Auto. electronic shutter On/Off

(NTSC 1/60–1/100,000 sec)

(PAL 1/50–1/100,000 sec)

Auto Iris Drive................ DC

Back light

Compensation............... On/Off selectable

Synchronization

modes ........................... Line lock with phase adjustment

White balance ............... Automatic

Geometric distortion ...... None

S/N ratio ........................ –50dB

Altri manuali per ADC780

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Ultra 8 22x Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VII EIS Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics ADC780 Manuale utente

American Dynamics

American Dynamics Illustra Flex Series ADCi600F-W012** Manuale utente

American Dynamics

American Dynamics Tyco ADC770 Manuale utente

American Dynamics

American Dynamics ADCA7BWO7RP Manuale utente

American Dynamics

American Dynamics ADCPBW Manuale utente

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuale utente

American Dynamics

American Dynamics Tyco ADC770 Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VIIE Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics ADC721B Manuale utente

American Dynamics

American Dynamics ADC 660N Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale

American Dynamics

American Dynamics ADCIPE3312ISN Manuale utente

American Dynamics

American Dynamics AD715LS Series Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Tyco ADC520 Series Manuale utente

American Dynamics

American Dynamics RT3300MC Manuale utente

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics Discover Indoor Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Drone III Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
