American Dynamics Illustra Flex Series Manuale utente

Illustra Flex Series

1MP & 3MP Outdoor Dome

Quick Start Guide

8200-1027-10 B0

Illustra Flex 1MP & 3MP Outdoor Dome

Notice

Please read this manual thoroughly and save it for future use before attempting to connect or operate this unit.

The information in this manual was current when published. The manufacturer reserves the right to revise and

improve its products. All specifications are therefore subject to change without notice.

Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or

reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of

American Dynamics

6600 Congress Avenue

Boca Raton, FL 33487 U.S.A.

Customer Service

Thank you for using American Dynamics products. We support our products through an extensive worldwide

network of dealers. The dealer through whom you originally purchased this product is your point of contact if you

need service or support. Our dealers are empowered to provide the very best in customer service and support.

Dealers should contact American Dynamics at (800) 507-6268 or (561) 912-6259 or on the Web at

www.americandynamics.net.

Trademarks

The trademarks, logos, and service marks displayed on this document are registered in the United States [or

other countries]. Any misuse of the trademarks is strictly prohibited and Tyco Security Products. will

aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal

prosecution wherever necessary. All trademarks not owned by Tyco Security Products. are the property of their

respective owners, and are used with permission or allowed under applicable laws.

Product offerings and specifications are subject to change without notice. Actual products may vary from photos.

Not all products include all features. Availability varies by region; contact your sales representative.

Illustra Flex 1MP & 3MP Outdoor Dome

Table of Contents

WARNING ........................................................................................................................................................4

Preface.............................................................................................................................................................5

1. Product Overview....................................................................................................................................6

1.1 Physical Characteristics.......................................................................................................................6

2. Installation and Connection ................................................................................................................9

2.1 Unpack Everything...............................................................................................................................9

2.2 Installation............................................................................................................................................9

2.2.1 Checking Appearance............................................................................................................. 9

2.2.2 Disassembling the Camera................................................................................................... 10

2.2.3 Connecting the wires............................................................................................................. 10

2.2.4 Mounting the camera............................................................................................................. 12

2.2.5 Adjusting the camera position............................................................................................... 14

2.2.6 Locking the camera............................................................................................................... 15

2.2.7 Network Topology.................................................................................................................. 15

2.2.8 System Requirements........................................................................................................... 16

2.3 Connection.........................................................................................................................................17

2.3.1 Default IP address................................................................................................................. 17

2.3.2 Connecting from a computer & Viewing Preparation............................................................ 17

2.4 Using the illustra Connect Tool to Manage Cameras.........................................................................20

Illustra Flex 1MP & 3MP Outdoor Dome

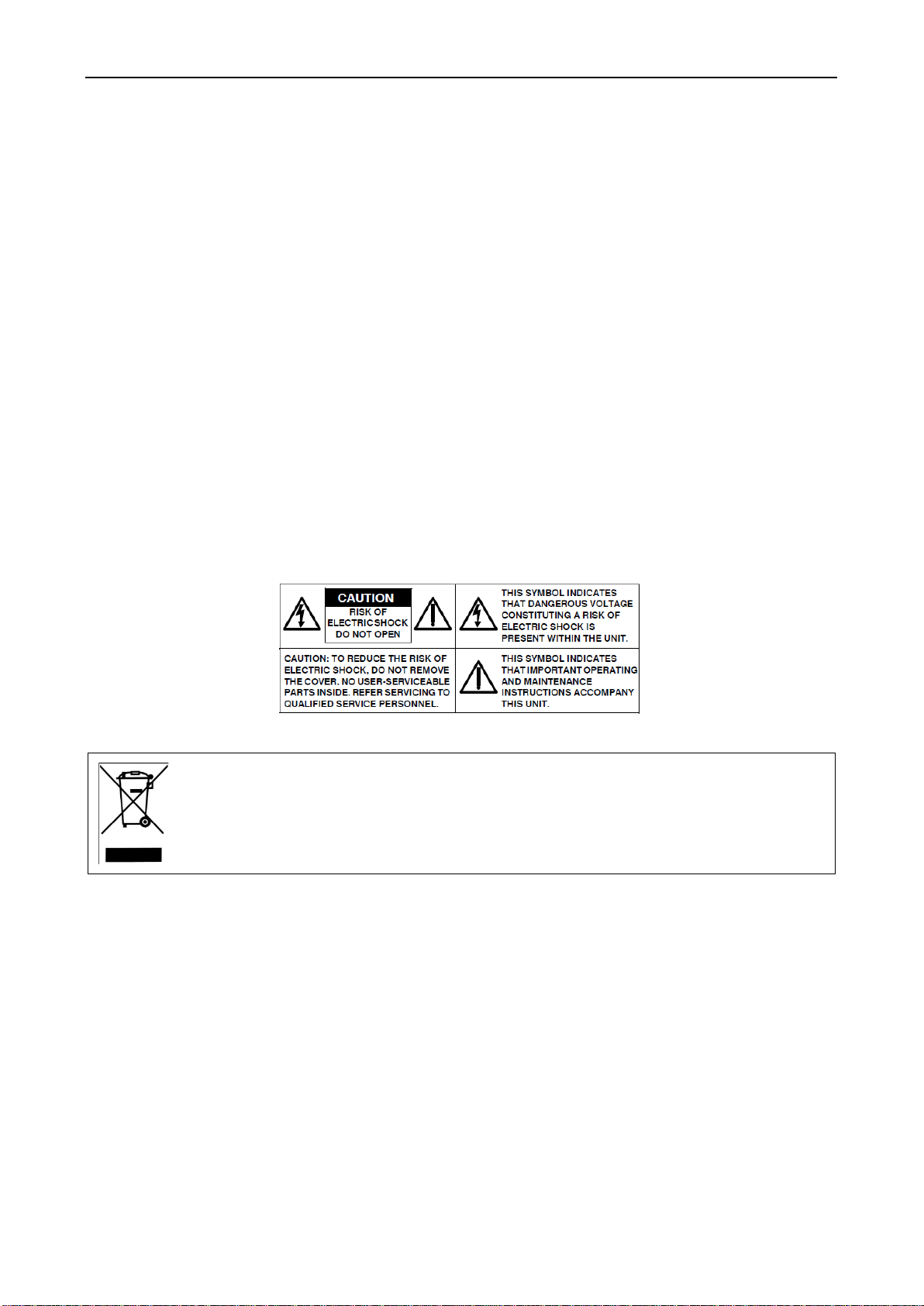

WARNING

This unit operates at AC 24V/ PoE.

Installation and service should be performed only by qualified and experienced technicians and comply

with all local codes and rules to maintain your warranty.

To reduce the risk of fire or electric shock, do not expose the product to rain or moisture.

Wipe the camera with a dry soft cloth. For tough stains, slightly apply with diluted neutral detergent and

wipe with a dry soft cloth.

Do not apply benzene or thinner to the camera, which may cause the surface of the unit to be melted or

lens to be fogged.

Avoid aligning the lens to very bright objects (example, light fixtures) for long periods of time.

Avoid operating or storing the unit in the following locations:

Extremely humid, dusty, or hot/cold environments (recommended operating temperature: -40°C to

+50°C) (PoE does not support heater.)

Close to sources of powerful radio or TV transmitters

Close to fluorescent lamps or objects with reflections

Under unstable or flickering light sources

WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this product

(applicable in the European Union and other European countries with separate collection

systems). This product should be disposed of, at the end of its useful life, as per applicable

local laws, regulations, and procedures.

Illustra Flex 1MP & 3MP Outdoor Dome

Preface

This user manual is designed as a reference for the installation and manipulations of the unit including the

camera’s features, functions, and detailed explanation of the menu tree. The reader is supposed to be able to

get following information in the manual.

Product Overview: the main functions and system requirements of the unit.

Installation and Connection: instructions on unit installation and wire connections.

Administration and Configuration: the main menu navigation and controls explanations.

Illustra Flex 1MP & 3MP Outdoor Dome

1. Product Overview

1.1 Physical Characteristics

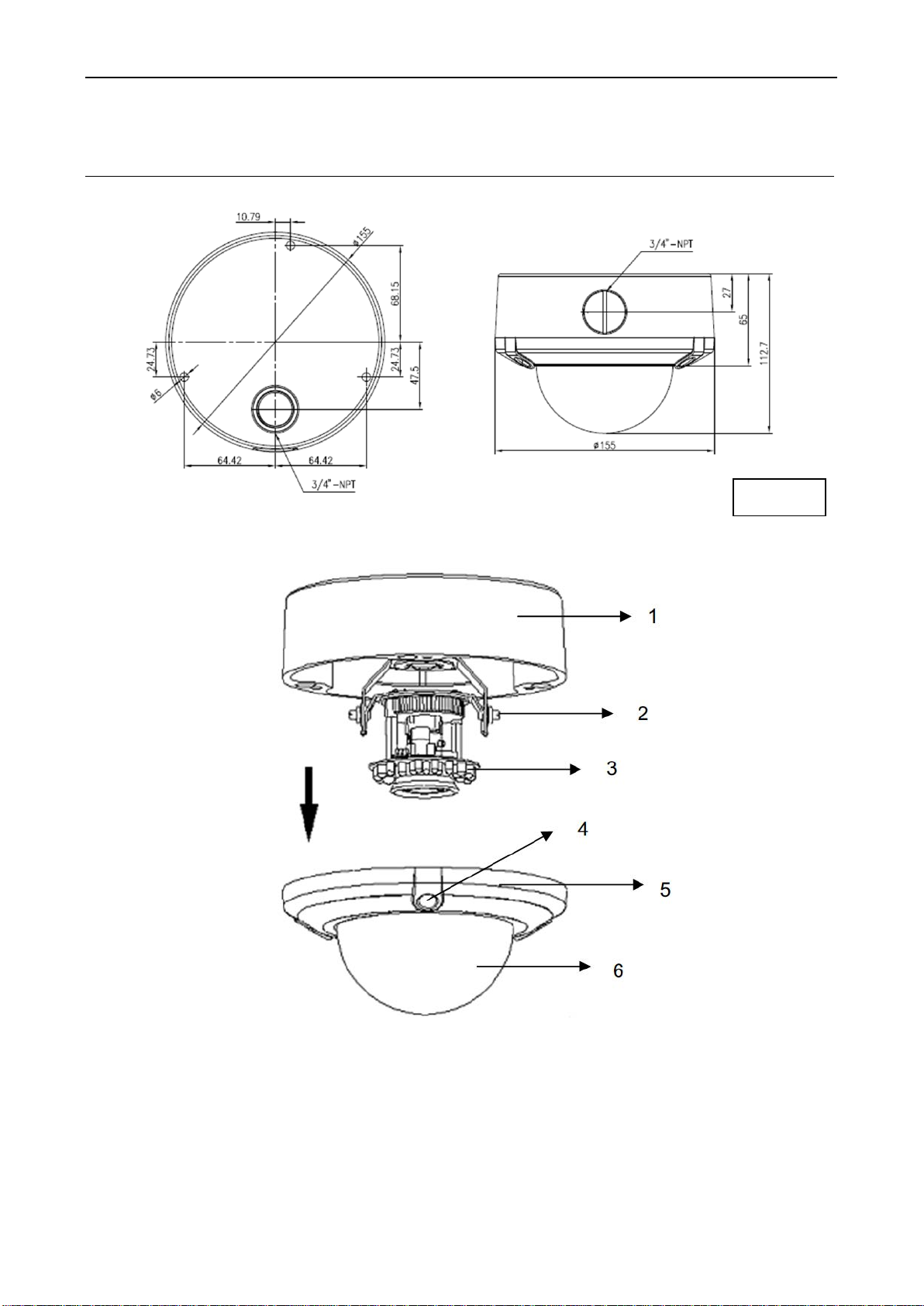

FIGURE 1-1: PHYSICAL DIMENSION A

FIGURE 1-2: PICTORIAL INDEX*

* Refer to table 1-1 for definitions

Unit: mm

Illustra Flex 1MP & 3MP Outdoor Dome

TABLE 1-1: PICTORIAL INDEX DEFINITION

Index #

Name

1 Camera bottom case

2 Tilt adjustment bracket and thumbnuts, notches(X2),

3 IR board

4 Loosen the screw to take off camera housing

5 Camera top case

6 Dome cover

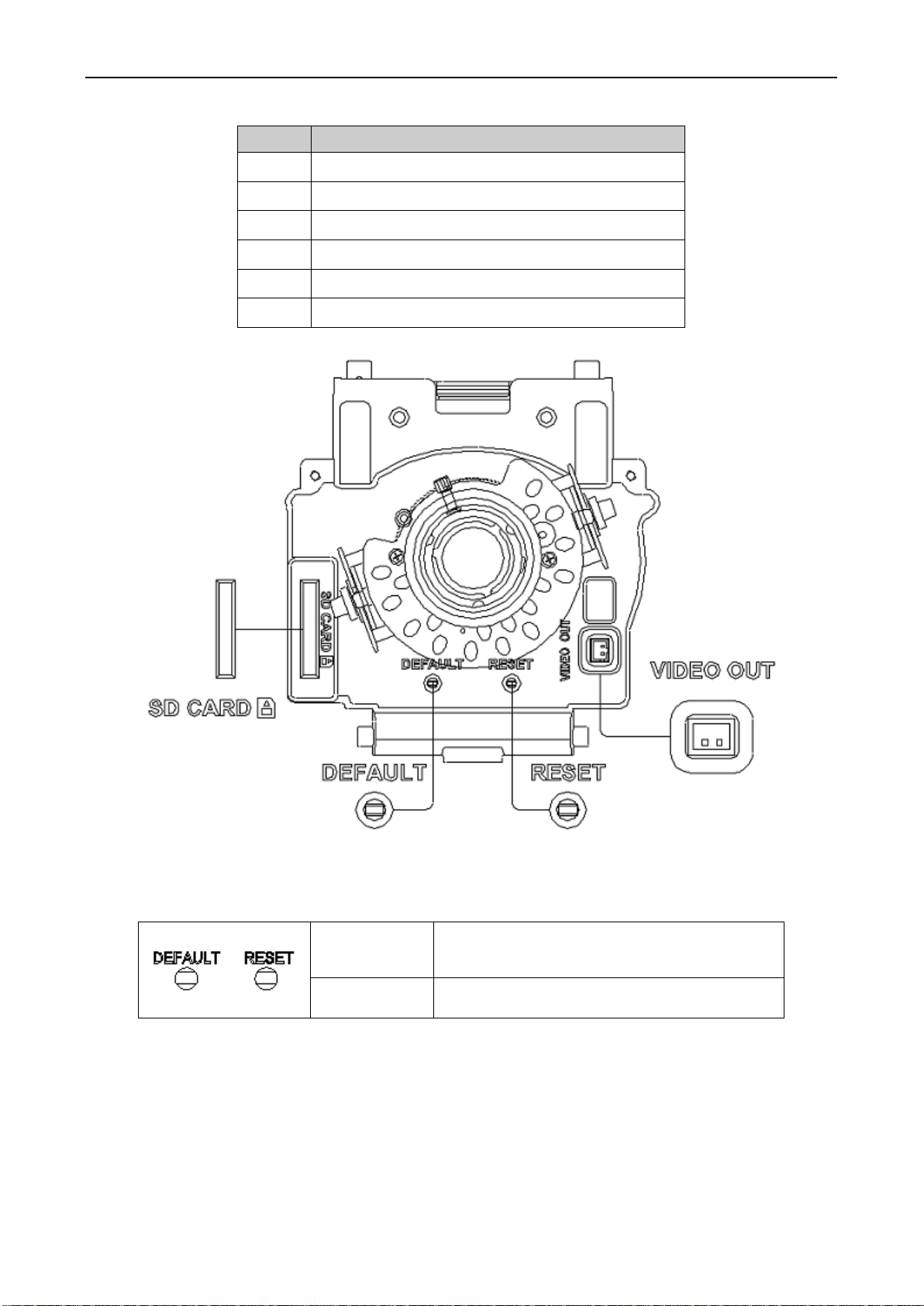

FIGURE 1-3: PIN DEFINITIONS 1/2

TABLE 1-2: PIN DEFINITIONS 1/3

DEFAULT return to factory default by press button for 5

seconds

RESET system restart

Illustra Flex 1MP & 3MP Outdoor Dome

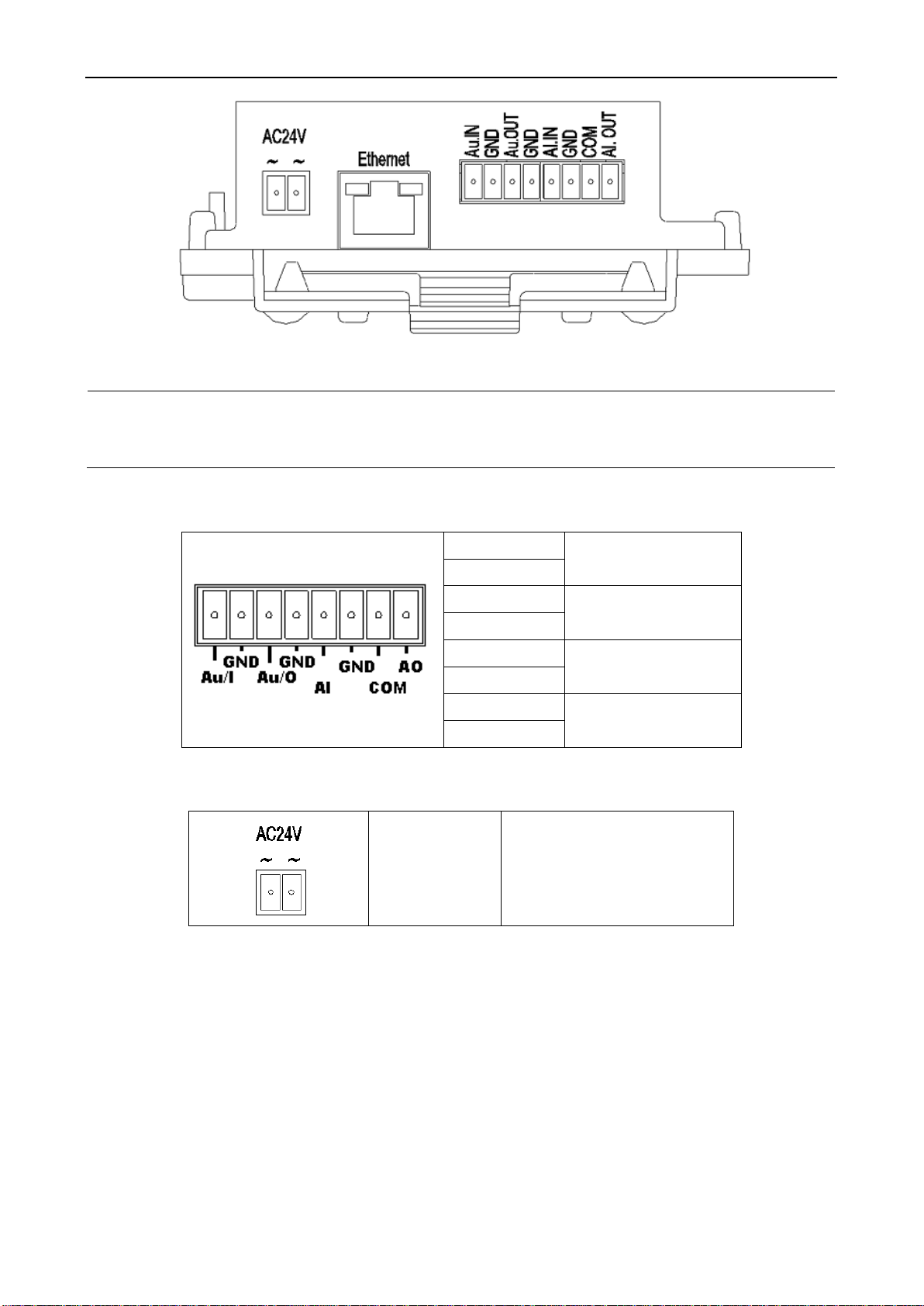

FIGURE 1-4: PIN DEFINITIONS 2/2

Note Connectors and field wiring terminal for external Class 2 circuits provided with marking

indicating minimum Class of wiring to be used. Class 2 shall be marked adjacent to the field

wiring terminals.

TABLE 1-3: PIN DEFINITIONS 2/3

Au/I Audio in

GND

Au/O Audio out

GND

AI Alarm in

GND

AO Alarm out

COM

TABLE 1-4: PIN DEFINITIONS 3/3

AC 24V Network IR vandal dome

camera can operate at AC 24V

only

Illustra Flex 1MP & 3MP Outdoor Dome

2. Installation and Connection

2.1 Unpack Everything

Check everything in the packing box matches to the order form and the packing slip. In addition to this

manual, items below are included in the packing box.

One Network IR vandal dome Camera

2-pin terminal block for power input, and 8-pin terminal block for alarm input/output

One CD containing Illustra Connect, user manual and quick installation guide.

One printed quick installation guide

One monitor out cable

One mounting template

One hexagon screw driver

3 screw anchors

3 screws

Please contact your dealer if any item missing.

2.2 Installation

Following tools might help you complete the installation:

a drill

screwdrivers

wire cutters

2.2.1 Checking Appearance

When first unboxing, please check whether if there is any visible damage to appearance of the unit and its

accessories. The protective materials used for the packaging should be able to protect the unit from most of

accidents during transportation.

Please remove the protective film of the unit when every item is checked in accordance with the list

in 2.1 Unpacking Everything.

Illustra Flex 1MP & 3MP Outdoor Dome

2.2.2 Disassembling the Camera

Gently remove the screw to take off camera housing (3).

Set the camera housing (4) aside.

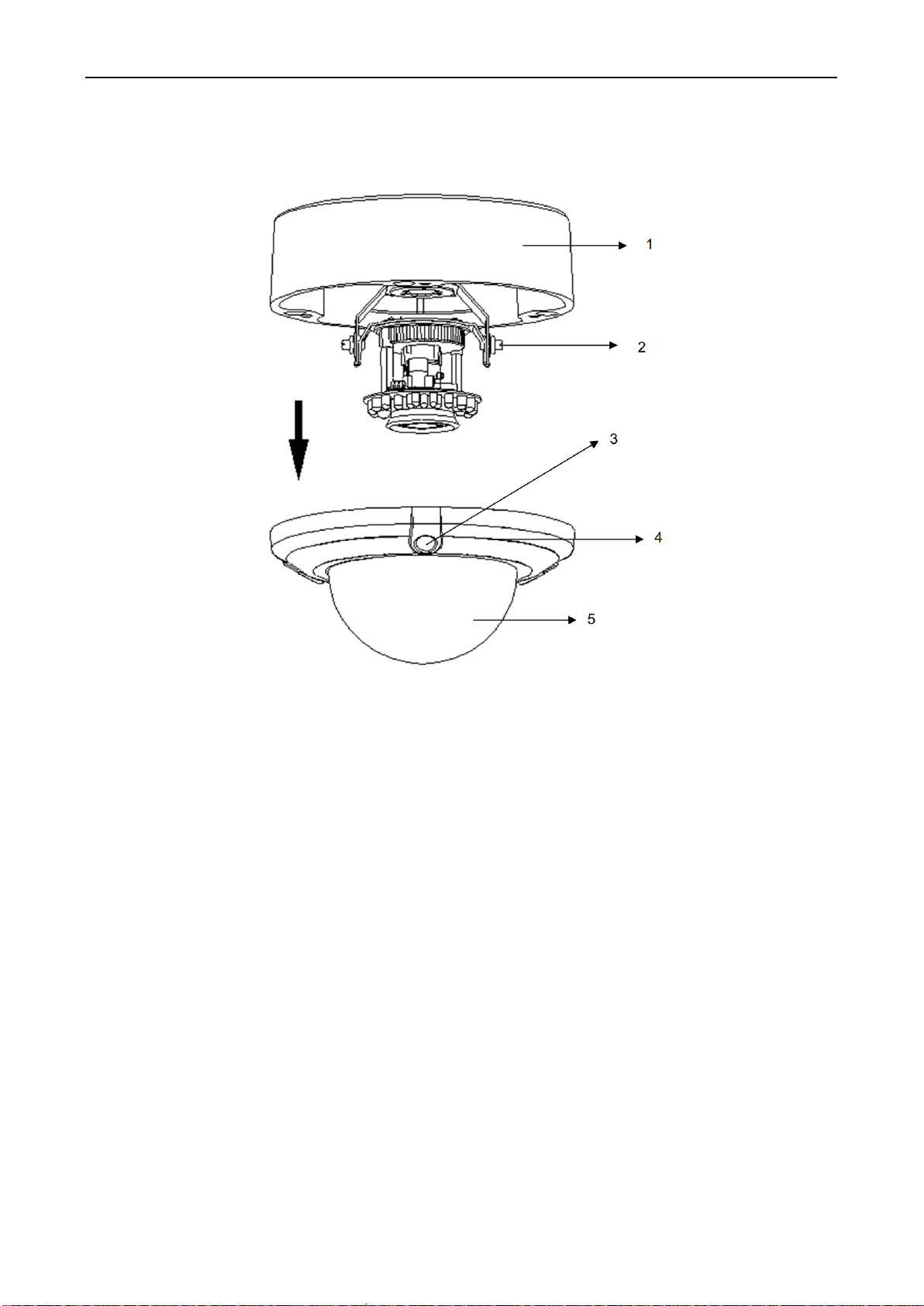

FIGURE 2-1: DISASSEMBLING THE CAMERA

2.2.3 Connecting the wires

1. Connect the power cable to the power plugs with one of the following options.

Inset power cable for AC 24V, Connect 24 V (~) cables to terminals ~AC 24V.

PoE: Connect the RJ-45 jack to a PoE compatible network device that supplied power through the

Ethernet cable.
