FEATURES

This low-profile fixed drone, with its pre-installed

camera, can be surface mounted to any indoor

ceiling or wall, and provides a low-cost alternative

for users who require fixed camera coverage. The

330 line color camera has a 1/4-inch vari-focal

3.0 - 6.0 mm lens with an auto iris.

The 355° pan and 75° tilt mechanism enables the

internal camera to be manually positioned in

virtually any orientation for flexible viewing

requirements. The set screw holds the camera in

that fixed position, pointing at the desired camera

view.

The compact, lightweight housing is available in

two colors: black or white. The drone is easy to

install; just connect power and video, and mount

the unit via its two mounting screws (provided).

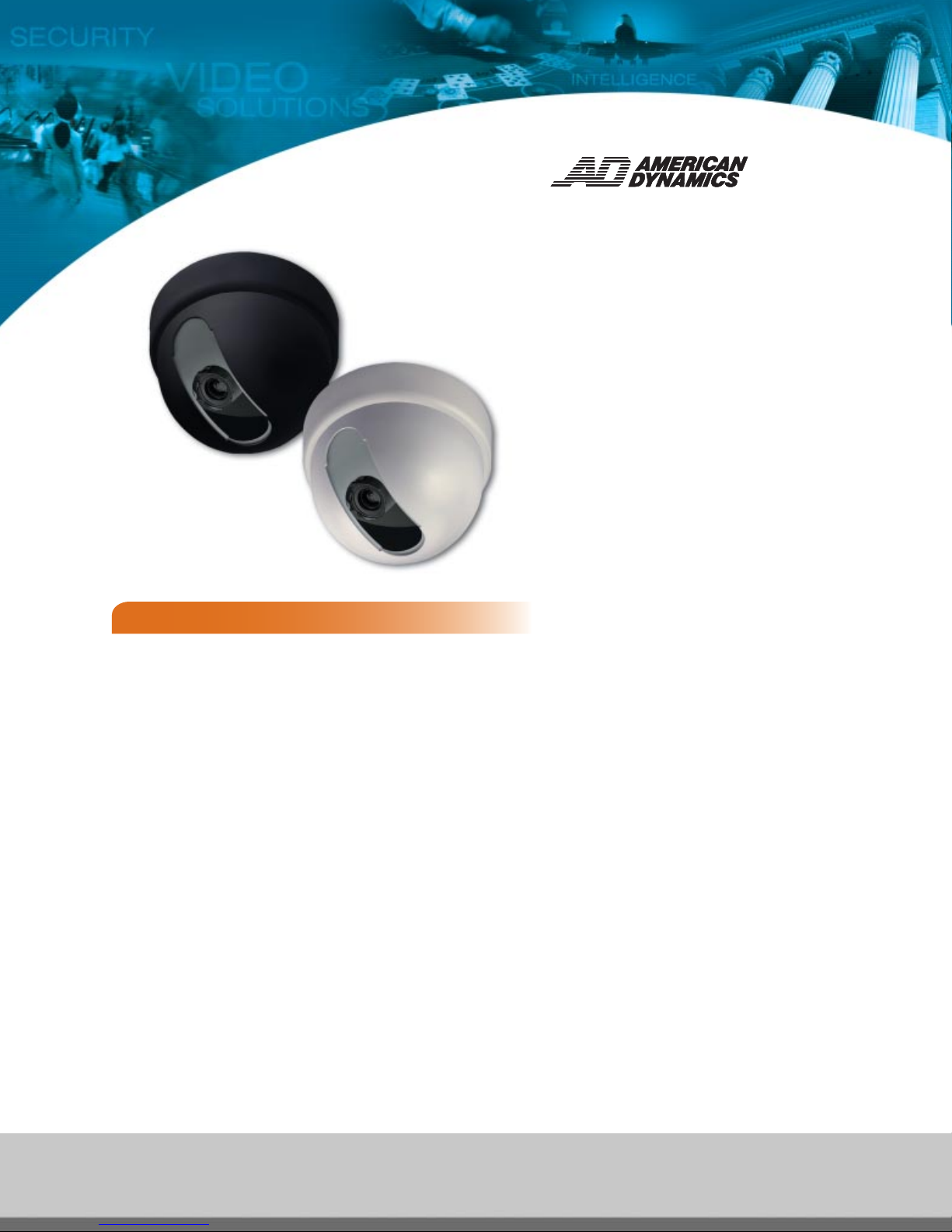

RT3300MC

MINI-CAMERA PRE-PACK

•Attractive, unobtrusive

alternative to standard fixed

cameras

•Compact, lightweight

design

•Pre-installed camera/lens

combination

•1/4-inch vari-focal

3.0 - 6.0 mm lens

•Auto iris

•330 TV lines resolution

•Automatic electronic

shutter

•Automatic gain control

•Manually adjustable pan

and tilt viewing angles

•Choice of camera housing

color: black or white

•12 VDC input

•Low power consumption

www.americandynamics.net

SPECIFICATIONS

Model Numbers

RT3300MC-VARI . . . . . . . . . . .NTSC Camera, 1/4-inch 3.0 - 6.0 mm

vari-focal lens, black housing

RT3300MC-VARIW . . . . . . . . .NTSC Camera, 1/4-inch 3.0 - 6.0 mm

vari-focal lens, white housing

Operational

Pan Travel . . . . . . . . . . . . . . . . . .355° with end stop

Tilt Travel . . . . . . . . . . . . . . . . . .15° to 90°

Internal Synchronization . . . .Built-in sync generator

Video Output Connector . . . .Female BNC

Camera

Imager . . . . . . . . . . . . . . . . . . . . .Interline transfer 1/4-inch CCD array

Scanning System . . . . . . . . . . .2:1 interlace

Video Output . . . . . . . . . . . . . .1.0 Vp-p, 75 Ω, composite

S/N Ratio . . . . . . . . . . . . . . . . . .>46 dB (AGC off)

Horizontal Resolution . . . . . .330 lines at center

Minimum Illumination . . . . .0.8 lux at 40 IRE

White Balance . . . . . . . . . . . . . .Automatic, 2500°K to 7500°K

AES . . . . . . . . . . . . . . . . . . . . . . . .1/60 to 1/100,000 sec

Effective Pixels . . . . . . . . . . . . . .510 (H) x 492 (V)

Horizontal . . . . . . . . . . . . . . . . .15.734 kHz

Vertical . . . . . . . . . . . . . . . . . . . .59.9 Hz

Lens

Design . . . . . . . . . . . . . . . . . . . . .Vari-focal, auto iris

Focal Length . . . . . . . . . . . . . . .3.0 - 6.0 mm

Aperture . . . . . . . . . . . . . . . . . . .f1.4

Viewing Angle

Horizontal . . . . . . . . . . . . . .105.1° - 53.2°

Vertical . . . . . . . . . . . . . . . . . .77.4° - 39.8°

Electrical

Input Voltage . . . . . . . . . . . . . . .12 VDC (±20%)

Power Consumption . . . . . . . .2.2 watts, maximum

Mechanical

Dimensions (D x H) . . . . . . . . .114 x 77.5 mm (4.49 x 3.05 in)

Unit Weight

(camera/lens/housing) . . .0.06 kg (0.13 lbs)

Shipping Weight . . . . . . . . . . . .0.82 kg (1.80 lbs)

Housing Material . . . . . . . . . . .ABS plastic

Housing Color . . . . . . . . . . . . . .Black or White

Environmental

Operating Environment . . . . .Indoor

Operating Temperature . . . . .-10˚ to 50˚C (14˚ to 122˚F)

Humidity . . . . . . . . . . . . . . . . . .85% RH (non-condensing)

Storage Temperature . . . . . . . .-20˚ to 70˚C (-4˚ to 158˚F)

Regulatory

Emissions . . . . . . . . . . . . . . . . . .FCC: Part 15, Class A

Safety . . . . . . . . . . . . . . . . . . . . . .UL: UL2044

cUL: C22-2, No. 1-98

AMERICAN DYNAMICS RT3300MC MINI-CAMERA PRE-PACK

Product specifications and availability subject to

change without notice.

Certain product names mentioned herein may be trade

names and/or registered trademarks of other companies. VS315-02 04/03 L

Camera Housing

Camera

Set Screws (2)

Power and

Video Cables
