American Dynamics SpeedDome Ultra VII EIS Istruzioni di installazione e manutenzione

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 1 of 37

SpeedDome®Ultra VII EIS

Day/Night Camera Dome

Installation and Service Guide

Figure 1. SpeedDome Ultra VII EIS Day/Night

Camera Dome

Camera Dome Product Codes

Product Description

RAS918LS DAY/NIGHT, EIS, 60HZ, 23X, NO BASE,

BLACK

RAS918LSP DAY/NIGHT, EIS, 60HZ, 23X, STD BASE,

BLACK (RUPTB)

RAS918LSI DAY/NIGHT, EIS, 60HZ, 23X, I/O BASE,

BLACK (RUIOB)

Contents

About this Guide ....................................................1

About the Camera Dome.......................................2

Cable Requirements..............................................7

Install/Removal Tool for Base with I/O Board........8

Power-Up Routine..................................................9

Synchronizing Domes............................................9

Diagnostic LEDs ....................................................9

Warnings and Cautions .........................................9

Indoor Installation.................................................11

Using the Install/Removal Tool............................20

Troubleshooting Indoor Domes ...........................22

Parts List for Authorized Users............................32

Specifications-Indoor Dome.................................34

Specifications-23X Camera with EIS...................35

Declarations.........................................................36

Appendix A: Vicon Wiring Configurations............37

About this Guide

This guide explains how to connect the camera

dome to a mounting base and how to service it.

It does not explain how to:

•Determine a mounting location for the camera

dome. The mounting location is determined by

customer requirements; therefore, this

information is provided separately.

•Attach the mounting base. There are two types

of mounting bases. See information shipped

with the base.

•Assemble housings and structures used with

this camera dome. See information shipped with

the housing and structure.

•Program the camera dome. See operator's

guide shipped with the dome.

Mounting

Base

Housing

Eyeball

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 2 of 37

About the Camera Dome

The SpeedDome Ultra VII EIS day/night camera

dome (Figure 1) comes in black, mounts indoors or

outdoors (with accessory outdoor enclosure), and

can communicate with the video controller over a

SensorNet 485, RS-422, Manchester, or UTC (up-

the-coax) network. The dome consists of a

mounting base, housing, and rotating eyeball

assembly.

Mounting Base

The housing and eyeball assembly connects to the

base using a twist and lock action, enabling it to be

moved easily from one location to another. The

base attaches directly to a hard or tile ceiling, or

indirectly to walls or ceilings using one of many

optional housings and mounting structures. As

shown in Figure 2, two base types are offered: a

standard base (without I/O board) and a base with

I/O board.

•Base without I/O board. With this base, video,

data, and power cables are inserted through the

base and attached to the top of the housing and

eyeball assembly, which is then connected to

the base. A lanyard connects between the base

and the housing and eyeball assembly to

prevent cables from being pulled during

disassembly.

•Base with I/O Board. With this base, video,

data, and power cables are pre-connected to an

I/O PC board. A spring-finger connector on the

board makes electrical contact with the housing

and eyeball assembly as it connects to the

base.

Housing and Eyeball Assembly

The housing and eyeball assembly consists of the

following:

•Housing. The housing contains the dome's

power supply, pan motor, and electronics used

to operate the eyeball. The housing provides

one alarm input and one alarm output using the

base without I/O board, or four alarm inputs and

four alarm outputs using the base with I/O

board.

•Eyeball. With a diameter of 120mm (4.75in),

the eyeball contains a camera, tilt motor, and

associated electronics. The eyeball enables the

camera to pan and tilt to track a target moving

in any direction even as it moves under the

dome.

Two slot covers in the eyeball facilitate access

to the camera, one of which incorporates an

opening for the camera lens. Remove both

covers to improve ventilation when the dome is

to be used outdoors.

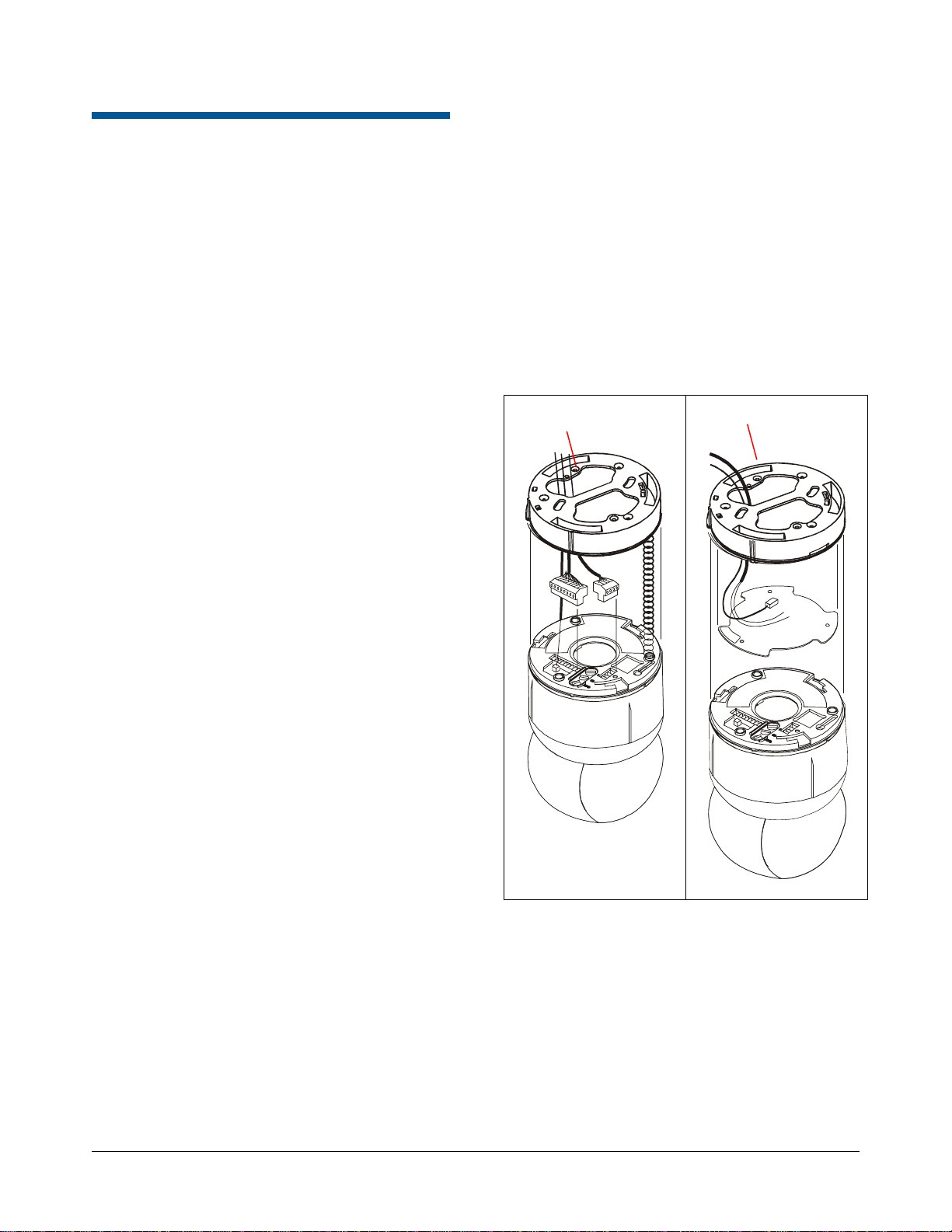

Figure 2. Mounting base and housing and

eyeball assembly

Base without I/O Board

Base with I/O Board

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 3 of 37

Indoor Ceiling Mounting

Using hardware shipped with the base, the camera

dome attaches directly to indoor ceilings made of

sheet rock, wood, metal, or concrete (Figure 3).

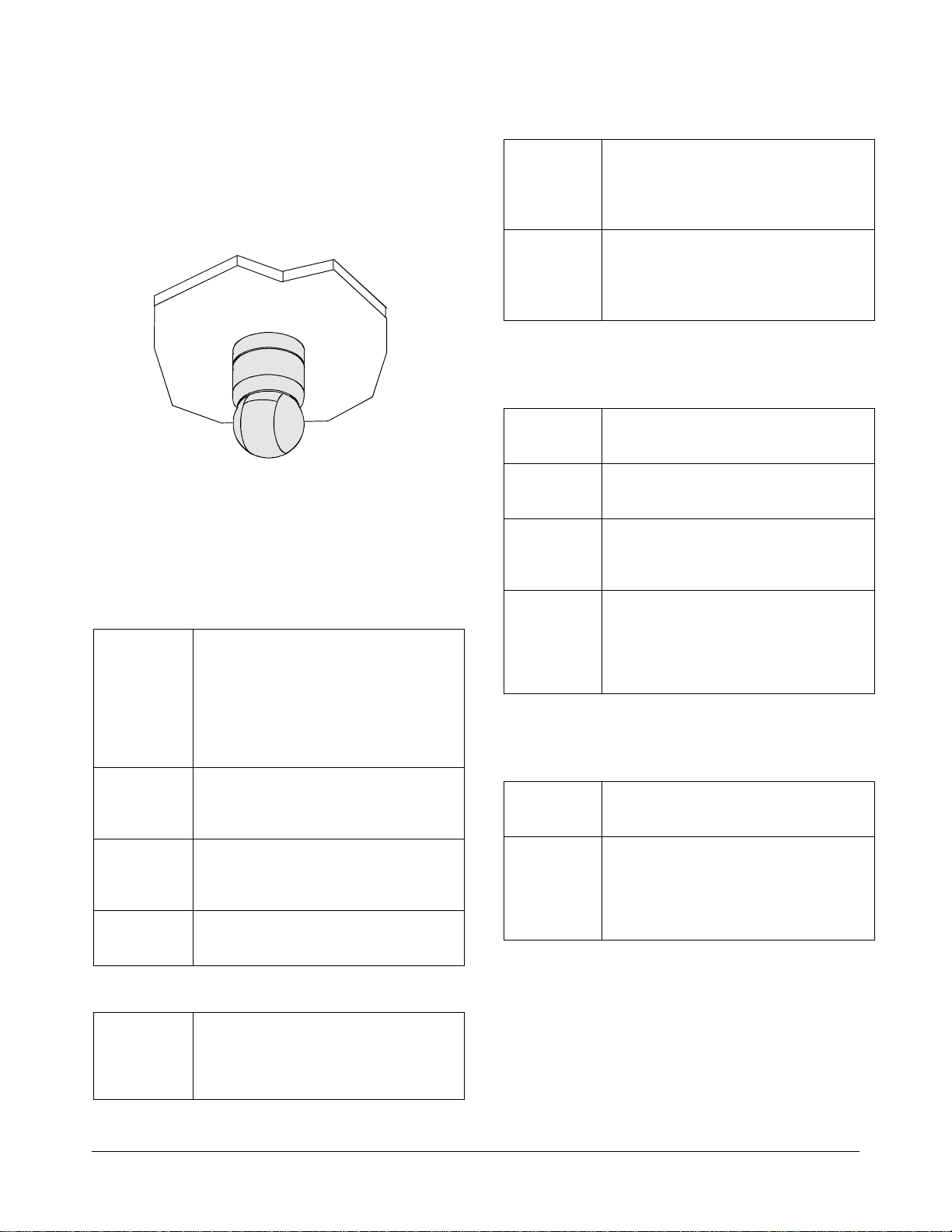

Figure 3. Surface mounting to hard ceilings

Indoor Ceiling/Wall Mounting

(Optional)

The camera dome attaches to one of the following

optional indoor mounting structures (Figure 4).

Sheet Rock, Concrete, Plaster or Wood Ceilings

RHIUTH Top hat housing with trim ring

This housing attaches to a ceiling or to

most indoor mounting structures. A trim

ring and optional magnetic bubble

provide concealment. Optional bubbles:

RUCLR (clear), RUSLV (silver), RUSMK

(smoked), or RUGLD (gold).

Dome base included.

RHIUHC Hard ceiling bracket

Enables top hat housing to be recessed

in ceiling (requires top hat RHIUTH).

Can be installed from below ceiling.

RHIUFB Fixed bracket

Enables top hat housing to be recessed

in ceiling (requires top hat RHIUTH).

Requires access from above ceiling.

RHIUPNDT† Pendant mount

Suspends dome from a hard ceiling with

3.2cm (1 1/4in) NPT pipe fittings.

Structural I-Beams

RHIUIB /

RHIUIBM† I-beam mount only.

Enables dome suspension from an

I-beam. RHIUIBM version has all related

accessories to suspend from I-beam,

except 3.2cm (1 1/4in) NPT pipe.

Electrical Box in Ceiling

RHIU3X3 3 X 3 mounting plate

Attaches dome to a standard

3.5 x 3.5 duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage mains.

RHIU4X4 4 X 4 mounting plate

Attaches dome to a standard 4 x 4

duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage mains.

* Option in white, but can be painted to match decor.

† Top hat housing/dome assembly also mounts to structure.

Tile Ceilings

RHIUFB Fixed bracket

Enables top hat housing to be recessed

in a 2x2 tile (requires top hat RHIUTH).

RHIUAB Adjustable bracket

Enables top hat housing to be recessed

in a 2x4 tile (requires top hat RHIUTH).

RHIU2X2M* 2 X 2 metal tile mount

Enables top hat housing to be recessed

in 2x2 openings (includes top hat

housing).

RHIU2X2P* 2 X 2 metal tile pendant mount

Enables dome to be suspended from 2x2

openings. Requires 3.2cm (1 1/4in) NPT

pipe (allow 3m (10ft) max. length)

Accepts the following housings:

RHIOTH, Dome base.

* Option in white, but can be painted to match decor.

† Top hat housing/dome assembly also mounts to structure.

Wall Mounting

RHIUCM* Wall mount with corner feature

Enables dome to attach to a flat wall,

inside corner, or outside corner.

RHIULWM*† Long 0.6m (24in) wall mount

Positions dome away from wall to enable

it to see over furniture, shelving, and

displays. This mounting structure

attaches to the flat wall, inside corner, or

outside corner.

* Option in white, but can be painted to match decor.

† Top hat housing/dome assembly also mounts to structure.

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 4 of 37

Figure 4. Indoor mounting structures (optional)

RHIUFB

RHIUAB RHIUHC RHIU2X2

RHIUTH

RHIUTR

RUCLR

RUSLV

RUSMK

RUGLD

RHIULWM

RHIUCM

RHIUWM

RHIU3X3

RHIU4X4

RHIUPNDT

RHIUIBM RHIU2X2P

DSDUPIHC

DSDUPIHS

DSDUPIVRC

DSDUPIVRS

ADSDUPIHC

ADSDUPIHS

ADSDUPIVRC

ADSDUPIVRS

andal Resistant

Bubble

Vandal Resistant

Bubble RD500A

RD500A

RHIUTH

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 5 of 37

Outdoor Mounting (Optional)

Note: This document does not include outdoor

installation and service instructions. For these

instructions, see RHODUL Outdoor Housing Install

Guide 8200-0492-01.

The camera dome attaches to outdoor walls and

ceilings using an RHODUL outdoor housing

(Figure 5) and an ROENDC end cap connected to

one of the following optional mounting structures

(Figure 7)

•RHOTR Over Roof Mount

•RHOTRF Over Roof Floor Mount

•RHOPN Pendant Mount

•RHOWPA Pole Mount

•RHOSW/RHOLW Wall Mount

•RHOWCA Corner Bracket.

The outdoor housing contains a pre-installed

mounting base, a cooling fan for hot weather, a

heater for cool weather and to prevent icing, and

surge protection circuitry.

An environmental PC board is used to pre-wire

cables. A round spring-finger connector on the

board makes electrical contact with the housing

and eyeball assembly as it connects to the base.

Note: Do not use the I/O board (designed for

indoor use) in place of the environmental board.

Figure 5. RHODUL outdoor housing (optional)

SpeedDome Housing Adapter

Bracket (Optional)

An RHSDA adapter bracket (Figure 6) enables the

dome to fit into SpeedDome indoor housings

(RD500A). Locking pins in the bracket enable the

dome to swing out for servicing or removal.

Figure 6. RHSDA adapter bracket (to used with

the RD500A housing)

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 6 of 37

Figure 7. Outdoor mounting structures

(optional).

Note: Housing is shown for reference only.

RHOTR over roof mount comes with the ROENDC

end cap (shown with RHOTRF bracket)

RHOPN pendant mount

ROENDC end cap

RHOWPA pole mount comes with the ROENDC

end cap

RHOSW/RHOLW wall mount comes with the

ROENDC end cap

RHOWCA corner bracket only (shown with RHOLW

mount)

RHOSW RHOLW

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 7 of 37

Cable Requirements

Data Cable

The table below shows requirements for

SensorNet, RS-422, and Manchester networks. For

more information about communication protocols

and cable networks, see Communication Protocols

and Cable Networks, 8000-2573-19.

Data cable requirements

SensorNet RS-422 Manchester

Cable type 1

unshielded,

twisted

pair*

shielded,

twisted

pair*

shielded

twisted

pair**

Wire gauge 22 AWG 22 AWG 18 AWG

Connection Non-

polarized Polarized Polarized

Max.

devices on

line

32 10 3

* Power, data, and video cables can be ordered

separately or within a composite cable that can be

ordered in various lengths. Plenum-rated cables must

be used in indoor ceilings used for environmental air

return (called "other air space" in the National Electrical

Code). Order parts through your distribution network.

Note: If you order cable from an outside source, wire

colors may be different.

** Belden 88760 (plenum), or Belden 8760 cable (non-

plenum) cable is recommended. Plenum-rated cables

must be used in indoor ceilings used for environmental

air return (called "other air space" in the National

Electrical Code). Order cable directly from Belden by

calling 1-800-235-3361.

Power Cable

For the camera dome to operate properly, line

voltage must not go below the worst-case low line

voltage shown in the following table. Make cable

lengths as short as possible to minimize affects of

low line voltages. As shown in the table, maximum

cable length depends on the Class 2 LPS (low

voltage) ac source (such as a J-box) and the worst-

case low line voltage. These lengths are for

Sensormatic composite cables, which use 18 AWG

ac power wires.

Note: Typically, distances are used that provide

a 15% margin between nominal and low line

conditions. For example, if the nominal voltage is

120Vac, restrict cable length to that associated

with 100Vac (0.85 x 120).

Worst-case ac line voltages

Indoor Dome Worst-Case Meters

AC Power Source Low Line V (Feet)

28 VA 117 180 (600)

Transformer 100 130 (430)

5604-0006-01 90 80 (270)

50 VA 117 180 (600)

Transformer 100 150 (500)

5604-0044-01 90 90 (300)

1-position SensorNet 117 210 (700)

RJ1SNUD 100 130 (430)

90 100 (325)

1-position SensorNet 117 210 (700)

RJ1SNUD-1 100 130 (430)

90 100 (325)

117 300 (1000)

6-position SensorNet 100 230 (750)

Indoor J-Box 90 160 (530)

RJ6SN 240 300 (1000)

200 230 (750)

180 160 (530)

10-Position RS-422 117 275 (900)

Indoor 120V/60Hz J-Box 100 200 (650)

RJ860AP 90 130 (430)

10-Position RS-422 240 275 (900)

Indoor 240V/60Hz J-Box 200 200 (650)

RJ860AP1 180 130 (430)

Universal Transformer 117 200 (650)

0300-0914-01 100 130 (430)

90 90 (300)

Universal Transformer 240 200 (650)

0300-0914-03 200 130 (430)

180 90 (300)

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 8 of 37

Twisted Pair Adapter

Figure 8. Twisted Pair Adapter

The supplied ADACTP01BNC Twisted Pair

Adapter (Figure 8) is used to transmit video or

video with UTC (up-the-coax) dome control signals

over unshielded twisted pair (UTP) cables, point-to-

point, up to 300m (1000ft).

The adapter mounts directly to the video source or

receiver without additional cabling and uses

Category 2-6 twisted pair wires to transmit the

video and dome control signals. The adapter does

not require power.

One adapter is supplied. If used, another adapter

must be ordered for the connection at the other

end of the cable. Figure 9 shows twisted pair cable

connections. See installation guide 8200-0298-01

for details.

Figure 9. Cabling overview

Install/Removal Tool for Base

with I/O Board

The install/removal tool (Figure 10) enables you to

connect or disconnect the housing and eyeball

assembly from the base with I/O board, and to

attach/detach skirts and bubbles to a top-hat

housing, without the need for a ladder. The tool

attaches to a telescopic pole (purchased

separately). See page 20.

CAUTION: Do not use this tool to connect the

dome to the base without I/O board.

Figure 10. RHIRT indoor install/removal tool

RHIRT Removal Tool

Telescopic Pole 08140

by Recreational Water

Products. See page 20

to order.

Video Switcher/

Controller

Cat 2-6 UTP Cable

Twisted Pair Adapter

(Switcher/Controller End)

American Dynamics

Dome o

Fixed Camera

Twisted Pair Adapter

(Fixed Camera End)

Twisted Pair Adapter

(Dome End)

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 9 of 37

Power-Up Routine

After power is connected to the dome, the dome

performs the following homing routine.

1. After a few seconds, the camera lens tilts up

into the housing and eyeball assembly.

2. The lens tilts downs until it looks at the floor.

3. Eyeball pans slowly.

4. Lens tilts up 90° (home position).

Once the lens is in its home position, you can then

use the controller to call up the camera and control it.

Synchronizing Domes

To prevent picture rolling when switching from

camera to camera, all domes can be synchronized

to a 50Hz or 60Hz ac source. A V-phase

adjustment at the control console enables the

dome to sync to any line phase.

Diagnostic LEDs

If a base without I/O board is used, LEDs in the

housing and eyeball assembly enable you to check

for power and data.

If a base with I/O board is used, LEDs on the

underside of the mounting base enable you to

check for power and data. If an RS-422 network is

used, other LEDs on the board indicate that wiring

is correct, reversed, open, or grounded.

Warnings and Cautions

Please review the following warnings and cautions

before you begin installation or service.

WARNINGS

!WARNING!

ALWAYS USE:

•Proper safety equipment for the location and

type of installation.

•Proper lift equipment to reach the installation.

•Safety features of the lift equipment.

BE SURE:

•Electrical power is not connected to the dome

when connecting wires. Dome will move when

power is applied.

•Electrical power is not connected to nearby

fixtures that you might touch during installation.

!WARNING!

DO NOT install this camera dome where highly

combustible or explosive products are stored or

used.

!WARNING!

This dome runs on 24Vac. DO NOT connect line

voltage to this dome.

North America power requirements: In North

America, this device is intended to be supplied

from a Class 2 power supply. For outdoor

installations, use Class 3 wiring techniques, liquid-

tight conduit, or liquid-tight pipe.

This installation should be made by a qualified

service person and should conform to all local

codes.

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A

INSTALLATION AND SERVICE GUIDE 10 of 37

!WARNING!

EU power requirements: This product runs on

24Vac. In the EU, it is intended to be powered from

a Limited Power Source. A limited power source is

a certified source of SELV, and if inherently limited,

with 8 amps maximum output current, and a

maximum of 100VA available; or if not inherently

limited, fused with a maximum value of 3.3 Amps,

meeting section 2.11 of IEC950, and a maximum of

250VA available. The power supply can be

obtained through Sensormatic or through another

source where the provider can furnish the

verification. This is required to assure electrical

safety in the product.

Stromanforderungen in der EU: Dieses Produkt

wird mit 24 V Wechselstrom betrieben. In der EU

ist es für den Betrieb durch eine begrenzte

Stromquelle vorgesehen. Eine begrenzte

Stromquelle ist eine zertifizierte SELV-Quelle

(Schutzkleinspannung), bei inhärenter Begrenzung

mit einem maximalen Ausgangsstrom von 8 A und

100 VA maximaler Verfügbarkeit, bei nicht

inhärenter Begrenzung mit einer maximalen

Sicherung von 3,3 A gemäß Abschnitt 2.11 der

IEC950 und 250 VA maximaler Verfügbarkeit. Das

Netzteil kann über Sensormatic oder eine andere

Quelle bezogen werden, wobei der Anbieter den

Nachweis der Konformität bereitstellen sollte. Dies

ist zur Gewährleistung der elektrischen Sicherheit

des Produktes erforderlich.

CAUTIONS

Cables

- Do not run data and power cables adjacent

to or in the same conduit as line voltage

mains power.

- SensorNet 485 networks require 22 AWG

unshielded cable. Do not exceed 32 devices

per cable run.

- RS-422 networks require 22 AWG shielded

cable. Do not exceed 10 devices per cable

run.

- Manchester networks require 18 AWG

shielded cable. Do not exceed 3 devices per

cable run.

- Always terminate the dome’s CPU board

(JW1), if the camera dome is connected at

the end of a cable run or is connected to an

I/O base.

- When using the base without I/O board and

wiring cables directly to the dome, ALWAYS

connect the video cable to the dome before

you connect the 9-pin cable (which contains

power). If you connect the 9-pin cable first,

you risk shorting delicate electronics near the

connector.

I/O PC board (when used).

−If a cable clamp is on this board, remove it,

as it could damage cable connectors in the

housing during assembly.

−Use a jeweler's 2.5mm (0.1in) slotted

screwdriver to tighten connector screws. Do

not over tighten these screws.

−Keep the dust cover to protect contacts

should the environmental PC board need to

be removed from the housing.

When connecting the housing and eyeball

assembly to an outdoor housing:

−Remove both slot covers to keep the camera

from overheating.

Note: For further information, see installation

instructions shipped with the outdoor housing.

If disassembling the dome:

−Dome contains electrostatic-sensitive

devices! Use a ground strap when handling

PC boards.

−Once disassembled, parts of housing and

eyeball assembly are "extremely fragile" and

may break. Use extreme care!

−Install a new desiccant bag (Desiccant Bag

Kit 0352-0207-02) every time the bubble is

removed.

Altri manuali per SpeedDome Ultra VII EIS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics ADC521B Manuale utente

American Dynamics

American Dynamics SpeedDome RHODULP-01 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VIIE Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics ADSDUHOC Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale utente

American Dynamics

American Dynamics SpeedDome RASEL Series Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics ADC520D Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics ADC700 Manuale utente

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuale utente

American Dynamics

American Dynamics ADC860 Manuale utente

American Dynamics

American Dynamics ADCDW Series Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VIIE Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Ultra Drone II Manuale utente

American Dynamics

American Dynamics Tyco ADC770 Manuale utente

American Dynamics

American Dynamics illustra 600 Istruzioni operative originali

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale

American Dynamics

American Dynamics ADCA330CN Manuale utente

American Dynamics

American Dynamics Camera Accessories Manuale utente

American Dynamics

American Dynamics ADCA330CN Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
