•Color camera with up to

242x zoom (22x optical,

11x digital)

•470 lines horizontal

resolution

•Zoom adjusted

programming

•Auto focus and auto iris

•Auto white balance

•Automatic gain control

•Line-lock

•Supports RS-422,

Manchester and SensorNet

protocols

•Unshielded Twisted Pair

(UTP) wiring video

transmission enabled as

standard

•Up to 96 user-definable

presets

•Three user-definable

patterns

•Power-on functional tests

•LED diagnostics

•Easy to install and service

•Priced comparably to a PTZ,

with more features and

easier to install

•Stepper motors with

micro-step control

•Selectable home position

FEATURES

SpeedDome Optima LT delivers the standard features

of a programmable dome, but is priced comparably to

a PTZ camera. This provides an alternative for

customers who prefer the convenience and

programmability of a dome, but previously considered

domes to be price-prohibitive.

Choose from hard ceiling, pendant and 2X2 tile

indoor mounting options. And because the dome

contains all of the necessary install components,

installation is a breeze – just 15 minutes from box to

ceiling for the hard ceiling mount. The dome’s power-

on diagnostics and functional tests assist with fault

isolation during install and service.

The dome accommodates RS-422, Manchester and

SensorNet protocols, making it compatible with most

American Dynamics controller or matrix

switcher/controller systems.

The dome features a color camera with 22x optical

zoom (11x digital) and 470 TV lines resolution,

providing a quality, high-resolution picture. The

dome also provides user-programmable presets and

patterns.

SpeedDome®Optima LT

PROGRAMMABLE DOME CAMERAS

Front Page – letter spread-folded – Print 4/C

www.americandynamics.net

SpDomeOptimaLT_VS305.qxd 9/10/04 1:10 PM Page 2

•Integral 22x optical zoom (11x digital) and 470 lines

horizontal resolution provide a quality, high-resolution

picture.

•Advanced third generation Digital Signal Processing

(DSP) CCD camera delivers sharp, detailed images.

•Zoom Adjusted Program (ZAP) automatically adjusts pan

and tilt speeds in proportion to zoom position, even at

22x magnification.

• Automatic white balance allows the camera to

automatically adjust the white balance of the image,

providing optimal image quality.

•The automatic focus provides clear images without the

need for manual adjustments.

•The auto iris provides visible scenes without the user

having to manually compensate for diverse lighting

conditions.

•The dome supports up to 96 user-definable presets and

three user-definable patterns.

•The dome incorporates an automatic flip feature. This

feature enables the dome to automatically turn 180°

when the camera tilts to its lower limits and stays in that

position for a brief speed-proportional delay.

•Vertical sync phase adjustment is provided to help

compensate for different phases of power when line-lock

is enabled, making it ideal for single and multi-phase

power installations.

•Surge protection.

•The dome contains a series of diagnostic LEDs for power,

communication, network type and failure mode.

•The fully isolated power supply helps eliminate ground

loops.

•Sensing of 50/60 Hz line is automatic and does not

require manual adjustment.

•Allows daisy chain configuration of control wiring.

– For SensorNet: 32 devices at a maximum distance of

1 km (3,000 ft) on one 22 AWG unshielded twisted pair

(UTP).

– For Manchester: 3 domes at a maximum distance of

1.5 km (5,000 ft) on one 18 AWG shielded twisted pair

(STP).

– For RS-422/RS-485: 10 domes at a maximum distance

of 1 km (3,000 ft) on two 22 AWG shielded twisted pairs

(STP).

•Selectable (on/off) home position.

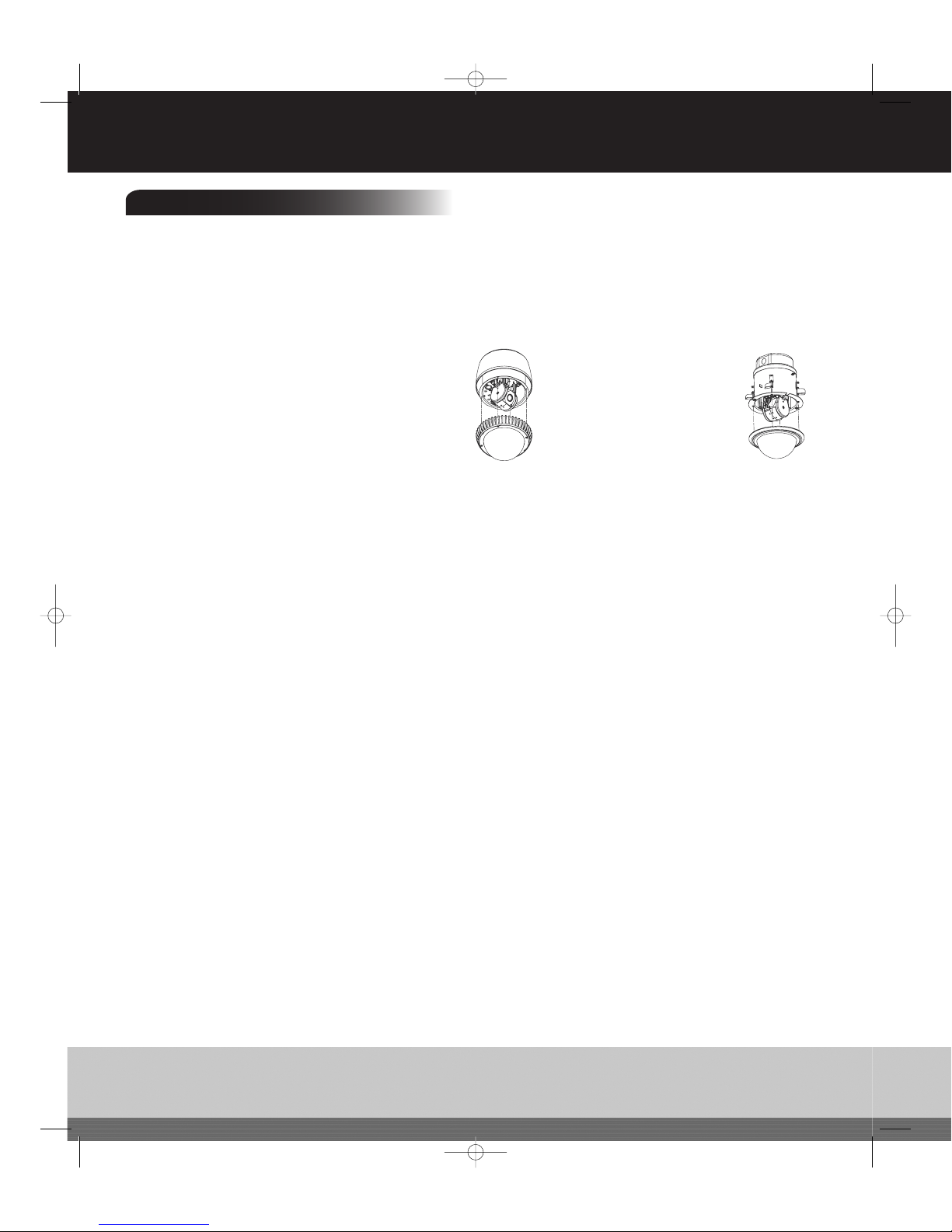

Housing Options

The in-ceiling model is designed with swing-out tabs that

grasp ceiling material, ensuring a secure and easy installation.

The SpeedDome Optima LT is for indoor applications only.

FEATURES

Inside left– letter spread-folded – Print B/W

Integrated Housing

Camera block

Bubble and trim ring

assembly

Integrated Aluminum

Top Hat Enclosure

Camera block

Bubble and trim ring

Assembly

Integral Housing Model In-Ceiling Model

SpDomeOptimaLT_VS305.qxd 9/10/04 1:10 PM Page 3

Operational

Manual Pan/Tilt Speed . . . . . . . . . . . . . . . . . .1°to 50° per second (based

on zoom position)

Preset Pan/Tilt Speed . . . . . . . . . . . . . . . . . . . .100° per second, maximum

Pan Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .360° continuous

Tilt Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .> 90°

Pan/Tilt Accuracy . . . . . . . . . . . . . . . . . . . . . . .± 0.5°

Zoom/Focus Accuracy . . . . . . . . . . . . . . . . . . .± 0.5%

Optical Zoom . . . . . . . . . . . . . . . . . . . . . . . . . .22X

Digital Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . .11X

Bubble Density . . . . . . . . . . . . . . . . . . . . . . . . .Clear (f0.0) or smoked (f1.0)

Programmable Patterns . . . . . . . . . . . . . . . . .3

Auto Synchronization

Line-Locked . . . . . . . . . . . . . . . . . . . . . . . . . .Remote V-phase adjustment

Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Built-in sync generator

Address Range

Manchester . . . . . . . . . . . . . . . . . . . . . . . . . .1 to 64

SensorNet . . . . . . . . . . . . . . . . . . . . . . . . . . .1 to 255

RS-422/RS-485 . . . . . . . . . . . . . . . . . . . . . . .1 to 99

Electrical

Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .24 to 30 VAC, Class 2 LPS

Design Tolerance . . . . . . . . . . . . . . . . . . . . . . .16 to 36 VAC

Line Frequency . . . . . . . . . . . . . . . . . . . . . . . . .50/60 Hz

Power Consumption

Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 watts maximum

Power-on In-rush current . . . . . . . . . . . . . . . .3 amps

Allowable Drop-out . . . . . . . . . . . . . . . . . . . . .33 ms

Surge Protection

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Low-capacitance Zener

suppressor of 6.5 V, 1500 watts

SensorNet/Manchester . . . . . . . . . . . . . . .Isolation transformer coupled,

2000 Vrms; PTC resettable fuse

protects transformer; TVS rated

at 5.6 V, 40 A, 0.1 joules; 10 kA

impulse rated gas tube, 8/20

µsec impulse

Power Line . . . . . . . . . . . . . . . . . . . . . . . . . . .TVS rated at 60 V, 250 A,

1.5 joules; 10 kA impulse rated

gas tube, 8/20 µsec impulse

RS-422/RS-485 . . . . . . . . . . . . . . . . . . . . . . . . . .TVS rated at 5.6 V, 40 A, 0.1

joules; 10 kA impulse rated gas

tube, 8/20 µsec impulse

Camera

Imager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Interline transfer 1/4 inch

CCD array

Scanning System . . . . . . . . . . . . . . . . . . . . . . . .2:1 interlace

Video Output . . . . . . . . . . . . . . . . . . . . . . . . . . .1.0 Vp-p, 75 Ωcomposite

S/N Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 dB (typical)

Horizontal Resolution . . . . . . . . . . . . . . . . . .470 lines at center

Minimum Illumination . . . . . . . . . . . . . . . . .1.5 lux (20 IRE, AGC on)

Gain Control . . . . . . . . . . . . . . . . . . . . . . . . . . .Automatic (AGC)

White Balance . . . . . . . . . . . . . . . . . . . . . . . . . .Through the Lens (TTL)

Automatic Tracing White

Balance (ATW)

NTSC

Pickup Device . . . . . . . . . . . . . . . . . . . . . . . .768 (H) x 494 (V) pixels

Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . .525 lines, 60 fields, 30 frames

Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . .15.734 kHz

Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59.9 Hz

PAL

Pickup Devices . . . . . . . . . . . . . . . . . . . . . . .752 (H) x 582 (V) pixels

Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . .625 lines, 50 fields, 25 frames

Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . .15.625 kHz

Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Hz

Lens

Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Aspherical

Aperture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . f1.6

4 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47.0° (H) x 35.2° (V)

88 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0° (H) x 3.0° (V)

Focal Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 to 88 mm

Field of View Formulas

Horizontal View = (.8 x A)/B

Vertical View = (.6 x A)/B

A = distance from camera in meters or feet

B = zoom power (e.g. 1-242x)

SPECIFICATIONS

Inside right – letter spread-folded – Print b/w

Programmable Presets

Controller SensorNet Manchester RS-422

ADTT16E 96 N/A N/A

ADTT16E via

RCSN422 N/A N/A 4

MegaPower 48 96 64 96

MegaPower 168

via CCM 64 64 64

MegaPower 168

via AD2091 N/A 64 N/A

MegaPower 168

via AD2083-02B N/A N/A 16

MegaPower 1024

via AD2091 N/A 64 N/A

MegaPower 1024

via AD2083-02B N/A N/A 16

AD2150 N/A 64 N/A

AD2150

via AD2083-02B N/A N/A 16

VM96 Unlimited N/A Unlimited

SpDomeOptimaLT_VS305.qxd 9/10/04 1:10 PM Page 4

Model Numbers

RASELHS* . . . . . . . . . . . . . . . . . . .Indoor Hard Ceiling LT, Smoked Bubble

(NTSC)

RASELHS-1* . . . . . . . . . . . . . . . . .Indoor Hard Ceiling LT, Smoked Bubble (PAL)

RASELHC* . . . . . . . . . . . . . . . . . . .Indoor Hard Ceiling LT, Clear Bubble (NTSC)

RASELHC-1* . . . . . . . . . . . . . . . . .Indoor Hard Ceiling LT, Clear Bubble (PAL)

RASELPS . . . . . . . . . . . . . . . . . . . . .Indoor Pendant LT, Smoked Bubble (NTSC)

RASELPS-1 . . . . . . . . . . . . . . . . . . .Indoor Pendant LT, Smoked Bubble (PAL)

RASELPC . . . . . . . . . . . . . . . . . . . .Indoor Pendant LT, Clear Bubble (NTSC)

RASELPC-1 . . . . . . . . . . . . . . . . . . .Indoor Pendant LT, Clear Bubble (PAL)

*Optional RH2X2 mount for 2x2 tile ceilings.

Mechanical

Dimensions (H x D)

In-Ceiling Model

Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .301 x 190.5 mm (11.9 x 7.5 in)

Above Ceiling . . . . . . . . . . . . . . . . . . . . . . . .207.4 x 190.5 mm (8.2 x 7.5 in)

Below Ceiling . . . . . . . . . . . . . . . . . . . . . . . .92.7 x 178 mm (3.65 x 7.0 in)

Integral Housing Model . . . . . . . . . . . . . . .303 x 243.5 mm (11.9 x 9.60 in)

Weight

In-Ceiling Model . . . . . . . . . . . . . . . . . . . . .2.5 kg (5.50 lbs)

Integral Housing Model . . . . . . . . . . . . . . .2.7 kg (6.10 lbs)

Environmental

Operating Temperature

Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-10° to 50° C (14° to 122° F)

Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to 95% RH (non-condensing)

Storage Temperature . . . . . . . . . . . . . . . . . . . .-20° to 65° C (-4° to 149° F)

Regulatory

Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .FCC: 47 CFR Part 15,

Subpart B Class A

CE: EN55022 Class B

CE: EN6100-3-2

CE: EN6100-3-3

AS/NZS 3548, Class A

CISPR22

ICES-003

Immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CE: EN50130-4

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .UL: UL1950

CUL: CSA 22.2 No. 950

CE: EN60950

IEC950

AMERICAN DYNAMICS SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERAS

VS305-08 09/04 L

Product specifications and availability subject to

change without notice.

Certain product names mentioned herein may be trade

names and/or registered trademarks of other companies.

Back Page –letter spread-folded – Print B/W

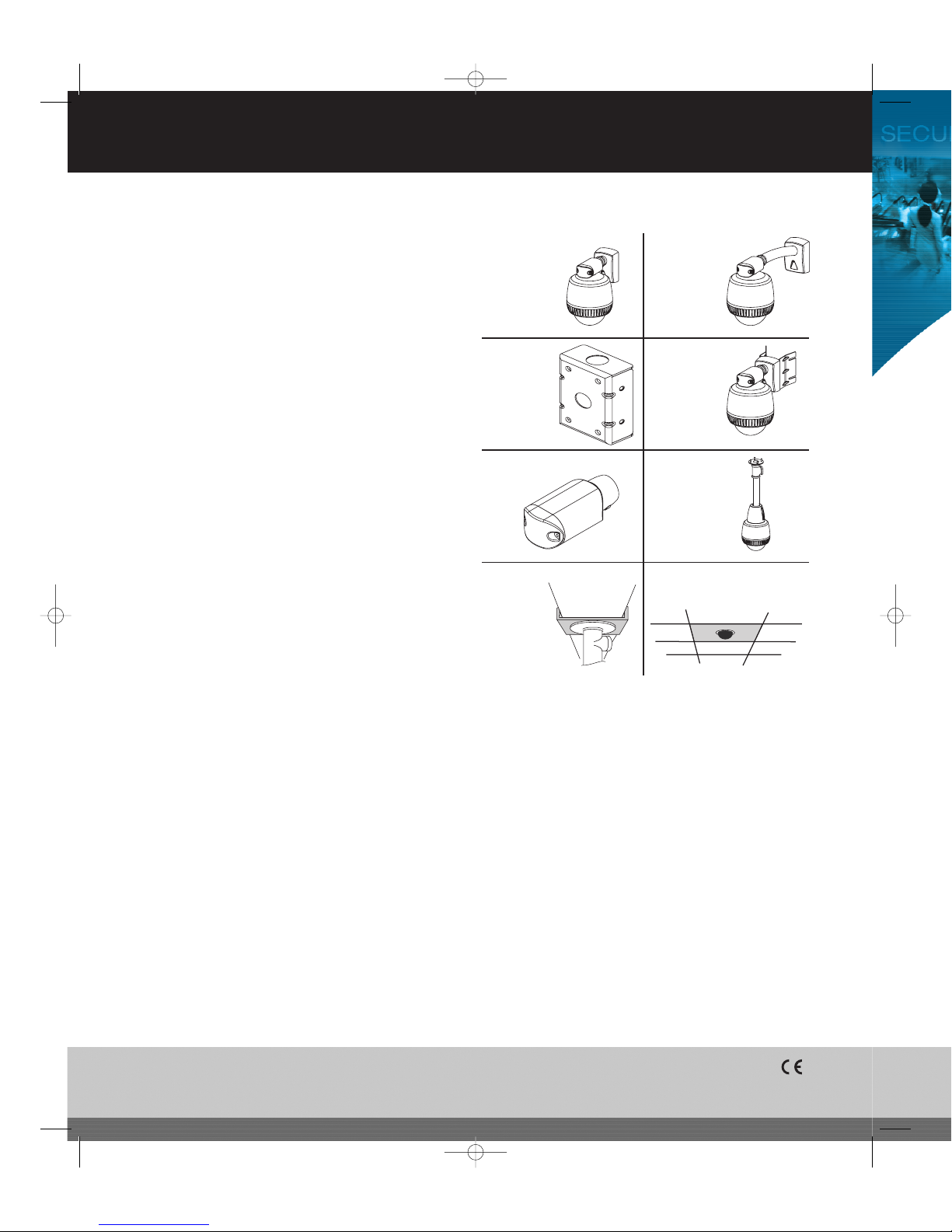

RHOSW

Indoor/Outdoor

Short wall mount

with end cap assembly

RHOWPA

Indoor/Outdoor Pole

strap adapter for

RHOSW and

RHOLW

ROENDC

Indoor/Outdoor

End cap assembly

adapter

RHIUIB

Indoor I-beam

clamp

RHOLW

Indoor/Outdoor

Long wall mount

with end cap

assembly

RHOWCA

Indoor/Outdoor Corner

bracket adapter for

RHOSW and

RHOLW

RHOPN

Indoor/Outdoor

pendant mount

RH2X2

Indoor 2'x 2'

Tile mount plate

SpDomeOptimaLT_VS305.qxd 9/10/04 1:10 PM Page 1

Altri manuali per SpeedDome Optima LT

Questo manuale è adatto per i seguenti modelli

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics ADC721B Manuale utente

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale utente

American Dynamics

American Dynamics SpeedDome RHODULP-01 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics Camera Accessories Manuale utente

American Dynamics

American Dynamics SpeedDome Optima Manuale utente

American Dynamics

American Dynamics ADCTDN0230P Manuale utente

American Dynamics

American Dynamics ADC521B Manuale utente

American Dynamics

American Dynamics ADC660 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VI Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics ADC522WP Manuale utente

American Dynamics

American Dynamics ADCSHR2412N Manuale utente

American Dynamics

American Dynamics ADC733 Manuale utente

American Dynamics

American Dynamics illustra 600 Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale

American Dynamics

American Dynamics ADC780 Istruzioni per il montaggio

American Dynamics

American Dynamics ADCA330CN Manuale utente

American Dynamics

American Dynamics RASOPPC-1 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra 8 22x Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VII Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics ADODHCL Istruzioni di installazione e manutenzione

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
