8200-0206-04 Rev. A

ADC720D

COLOR CCTV CAMERA

OPERATING INSTRUCTIONS

1. Please use a regulated 12VDC power adaptor to operate this unit. The power tolerance of this

unit is 12VDC

10% (10.8VDC~13.2VDC); a power input of more than 13.2VDC will damage

this unit.

2. The video output (BNC connector) of this unit should only be connected to a non-powered

device. Please check the wiring of the video output before applying power to this unit. If the

power is applied through the video output cable, the unit will be damaged.

Note: All ADC520/ADC720 Series cameras ship with a 120VAC to 12VDC UL listed power supply with a

6-foot (1.8m) cord. 12VDC cameras will not line-lockand are not recommended for use in a matrix

switcher environment.

CAUTION

8200-0206-04 Rev. A

Thank you for choosing this high quality camera. Before connecting or operating this product, please read all

of these instructions.

Specifications

Pick-up Element 1/4" Sony Color CCD image sensor

Number of Pixels 512(H) x 492(V) <NTSC> / 512(H) x 582(V) <PAL>

Resolution 330 TV lines

Minimum Illumination 1 Lux / F2.0

S/N Ratio >48dB (AGC MAX)

Electronic Shutter 1/60 (1/50) to 1/100,000 sec.

Gamma Correction 0.45

White Balance Auto white balance

AGC Yes

Standard Board Lens f3.6mm / F2.0

Lens Angle (Diagonal) 70°

Video Output 1.0 Vp-p composite, 75 ohms

Power Source DC12V+ 10%

Current Consumption 90mA

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Dimension (mm) 87(Ø) x 57(H)

Weight 180g

General

This Color CCD video camera employs a 1/4" Sony CCD (charge coupled device) solid-state imaging device

that provides extremely long life and high reliability. This flexible super mini camera can be easily installed in

a variety of locations.

Features

1. 330 TV lines of horizontal resolution and high quality picture.

2. Built in Auto Electronic Shutter.

3. Minimum illumination of 1 Lux/F2.0

4. Signal-to-noise ratio of 48dB.

5. High reliability under long time operation.

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

8200-0206-04 Rev. A

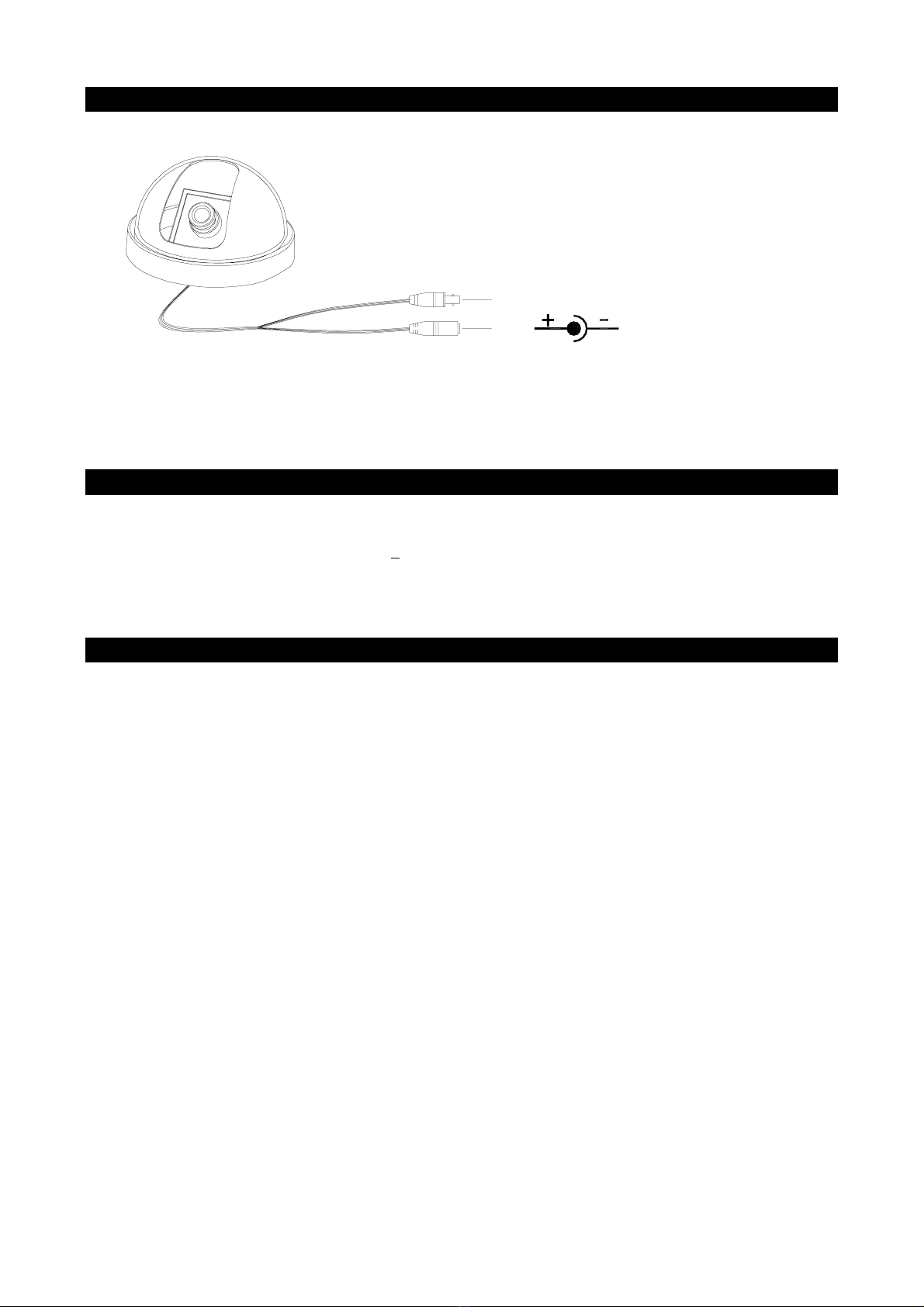

Major operating controls and functions

1. 12VDC Input Terminal: connects to the power supply.

2. Video Output Connector (VIDEO OUT): connects to the video terminal.

Connections

1. Connect to the power cord:

This connects the camera to a 12VDC + 10% regulated power supply.

2. Connect to video input:

This connects the camera to a 75-ohm video terminal with a standard 75-ohm coaxial cable.

Standard Accessories

Main Body—quantity 1

Power and Video cable

Instruction Manual—quantity 1

Warning -- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Canadian ICES-003 and part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

American Dynamics

Tyco Safety Products

6600 Congress Ave.

Boca Raton, Florida 33487

Telephone: 561-912-6000
