American Dynamics SpeedDome Optima LT Manuale

SpeedDome®LT

Camera Dome

Installation and Service

Manual

8000-1686-01, Rev. A

SpeedDome®LT

Camera Dome

Installation and Service Manual

8000-1686-01, Rev. A

SH 7/97

FCC COMPLIANCE

This equipment has been tested and found to comply with Part 15

of the FCC Rules. Operation is subject to the following two

conditions: 1) this device may not cause harmful interference, and

2) this device must accept any interference received, including

interference that may cause undesired operation.

EQUIPMENT MODIFICATION CAUTION

Equipment changes or modifications not expressly approved by

Sensormatic Electronics Corporation, the party responsible for

FCC compliance, could void the user's authority to operate the

equipment.

WARRANTY DISCLAIMER

Sensormatic Electronics Corporation makes no representation or

warranty with respect to the contents hereof and specifically

disclaims any implied warranties of merchantability or fitness for

any particular purpose. Further, Sensormatic Electronics

Corporation reserves the right to revise this publication and make

changes from time to time in the content hereof without obligation

of Sensormatic Electronics Corporation to notify any person of

such revision or changes.

No part of this manual may be reproduced in any form without

written permission from Sensormatic Electronics Corporation.

SpeedDome is a trademark of Sensormatic Electronics Corpora-

tion. Other product names (if any) mentioned herein may be

trademarks or registered trademarks of other companies.

TABLE OF CONTENTS

iii

PREFACE....................................................................................................................................................................V

CHAPTER 1 INTRODUCTION ............................................................................................................................1-1

PRODUCT OVERVIEW..................................................................................................................................................1-2

Main Components..................................................................................................................................................1-2

Camera Options......................................................................................................................................................1-2

Basic Genealogy.....................................................................................................................................................1-2

Indoor Mounting Methods .....................................................................................................................................1-4

Features..................................................................................................................................................................1-6

SPECIFICATIONS..........................................................................................................................................................1-9

CHAPTER 2 INSTALLATION..............................................................................................................................2-1

BEFORE YOU BEGIN ...................................................................................................................................................2-2

Safety .....................................................................................................................................................................2-2

Verifying and Unpacking.......................................................................................................................................2-2

Tools and Equipment Required..............................................................................................................................2-2

Parts Check ............................................................................................................................................................2-2

INSTALLATION PROCEDURE ........................................................................................................................................2-2

How to Use this Section.........................................................................................................................................2-2

Hard/Tile Ceiling Mounting...................................................................................................................................2-2

Pendant Mount Installation ....................................................................................................................................2-6

Chassis Installation.................................................................................................................................................2-8

Bubble and Skirt Installation................................................................................................................................2-10

CHAPTER 3 SERVICE ..........................................................................................................................................3-1

BEFORE YOU BEGIN .............................................................................................................................................3-2

Tools and Equipment Required..............................................................................................................................3-2

TROUBLESHOOTING ....................................................................................................................................................3-2

DOME DISASSEMBLY TECHNIQUES.............................................................................................................................3-5

How to Remove the Unicard Board.......................................................................................................................3-6

How to Remove the Pan Motor..............................................................................................................................3-7

How to Remove the Power Supply Module...........................................................................................................3-8

How to Remove the Clock-Spring Cable Assembly...............................................................................................3-9

How to Remove the Camera Assembly................................................................................................................3-10

How to Remove the Camera/Lens Board.............................................................................................................3-11

How to Remove the Tilt Motor............................................................................................................................3-12

How to Remove the Slip-Ring Assembly.............................................................................................................3-13

How to Remove the Eyeball Assembly................................................................................................................3-14

DOME MAINTENANCE...............................................................................................................................................3-15

Setting Communications Jumpers ........................................................................................................................3-15

Setting the Dome Address....................................................................................................................................3-15

Preface

Who should use this manual

Customer Engineers and Dealers who want to install and service

the camera dome.

How this manual is organized

This manual contains the following three chapters:

1 INTRODUCTION provides a product overview and specifi-

cations.

2 “INDOOR” INSTALLATION provides procedures required to

mount the dome indoors.

3 SERVICE provides troubleshooting and maintenance

information.

Related Documents

Installation and service of this camera dome does not require

detailed knowledge of how it works or its circuits. However, if this

information is required, order the following document.

Theory for SpeedDome LT Camera Domes, document number

8000-1692-01.

Questions?

For technical support or questions that this manual does not

address:

Customer Engineers call: 1-800-543-9740

Dealers call: 1-800-442-2225

CHAPTER 1

SPEEDDOME LT

1-1

SpeedDome LT

CHAPTER 1 INTRODUCTION

νProduct Overview .....................................................................1-2

Describes how the dome works, its mounting methods,

major components, and features.

νSpecifications............................................................................1-9

Lists electrical, environmental, regulatory, and

mechanical specifications for the dome.

INTRODUCTION

SPEEDDOME LT

1-2

Product Overview

The SpeedDome LT camera dome (Figure Chapter 1-1)

is part of a programmable network of camouflaged cam-

eras. These devices enable security personnel, from a

remote console, to track programmed targets (presets),

near or far, even in low light. Small and unobtrusive, the

dome can be used in facilities such as retail stores,

casinos, manufacturing facilities, hotels, and hospitals,

especially where appearance is important.

Main Components

The dome consists of the following assemblies:

•Carriage assembly. This assembly mounts directly

into the housing. The carriage assembly contains the

dome’s power supply and pan motor; the power

supply provides regulated dc power to the eyeball

assembly. The Unicard PC board is the interface

between the dome and the console and receives all

video, ac, and data. This board also provides the

dome address and transient protection and is the

central controller for all dome functions, controlling

360° pan movement and storing targets and patterns.

An LED indicator on the Unicard enables the

installer to verify when power and data are available.

•Eyeball assembly. This assembly fits into the

carriage assembly and contains the dome’s tilt motor

and electronics used to operate the eyeball, storing

automatic camera patterns and directing camera

video to the composite cable via the Unicard. The

rotating eyeball, gloss black and 190cm (7.5”) in

diameter, houses the 1/4” CCD camera assembly. A

clear, acrylic “contact lens” mounts flush with the

contour of the eyeball to prevent detection of the

camera’s viewing position.

Camera Options

The dome, as shipped, contains one of four different

CCD cameras.

•Color NTSC (60Hz)

•Color PAL (50Hz)

•Monochrome EIA (60Hz)

•Monochrome CCIR (50Hz)

These cameras have 12X optical zoom with continuous

auto focus and backlight compensation. The color

camera is fully digital, has no field adjustments, and has

better light sensitivity and picture resolution (430 TV

lines) due to Digital Signal Processing (DSP).

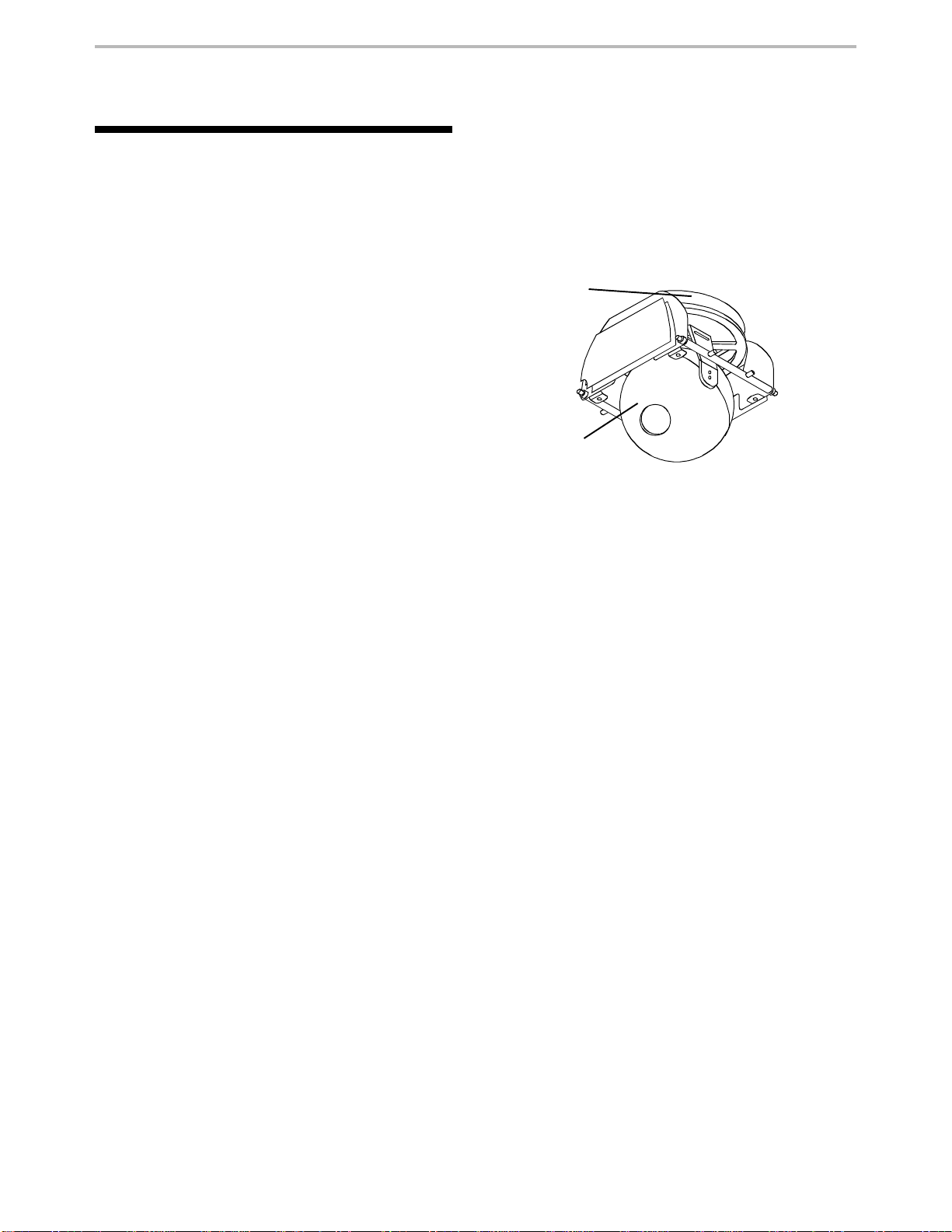

Figure Chapter 1-1. SpeedDome LT chassis

Basic Genealogy

The dome is available in the four versions listed below.

Basic parts are listed under each version. An exploded

view is shown in Figure Chapter 1-2.

•RAS588LP Color NTSC (60Hz)

−0100-1326-01 Chassis, Top-Level Assy.

−0300-1742-01 Chassis Assy.

−0300-1743-01 Carriage Assy.

−0300-1740-01 Eyeball Assy.

−0400-0507-01 Skirt Assy. Eyeball

−0351-0558-01 Install Kit

•RAS588LP-1 Color PAL (50Hz)

−0100-1326-02 Chassis, Top-Level Assy.

−0300-1742-02 Chassis Assy.

−0300-1743-01 Carriage Assy.

−0300-1740-02 Eyeball Assy.

−0400-0507-01 Skirt Assy. Eyeball

−0351-0558-01 Install Kit

•RAS587LP Monochrome EIA (60Hz)

−0100-1326-03 Chassis, Top-Level Assy.

−0300-1742-03 Chassis Assy.

−0300-1743-01 Carriage Assy.

−0300-1740-03 Eyeball Assy.

−0400-0507-01 Skirt Assy. Eyeball

−0351-0558-01 Install Kit

Carriage

Assembly

Eyeball

Assembly

INTRODUCTION

SPEEDDOME LT

1-3

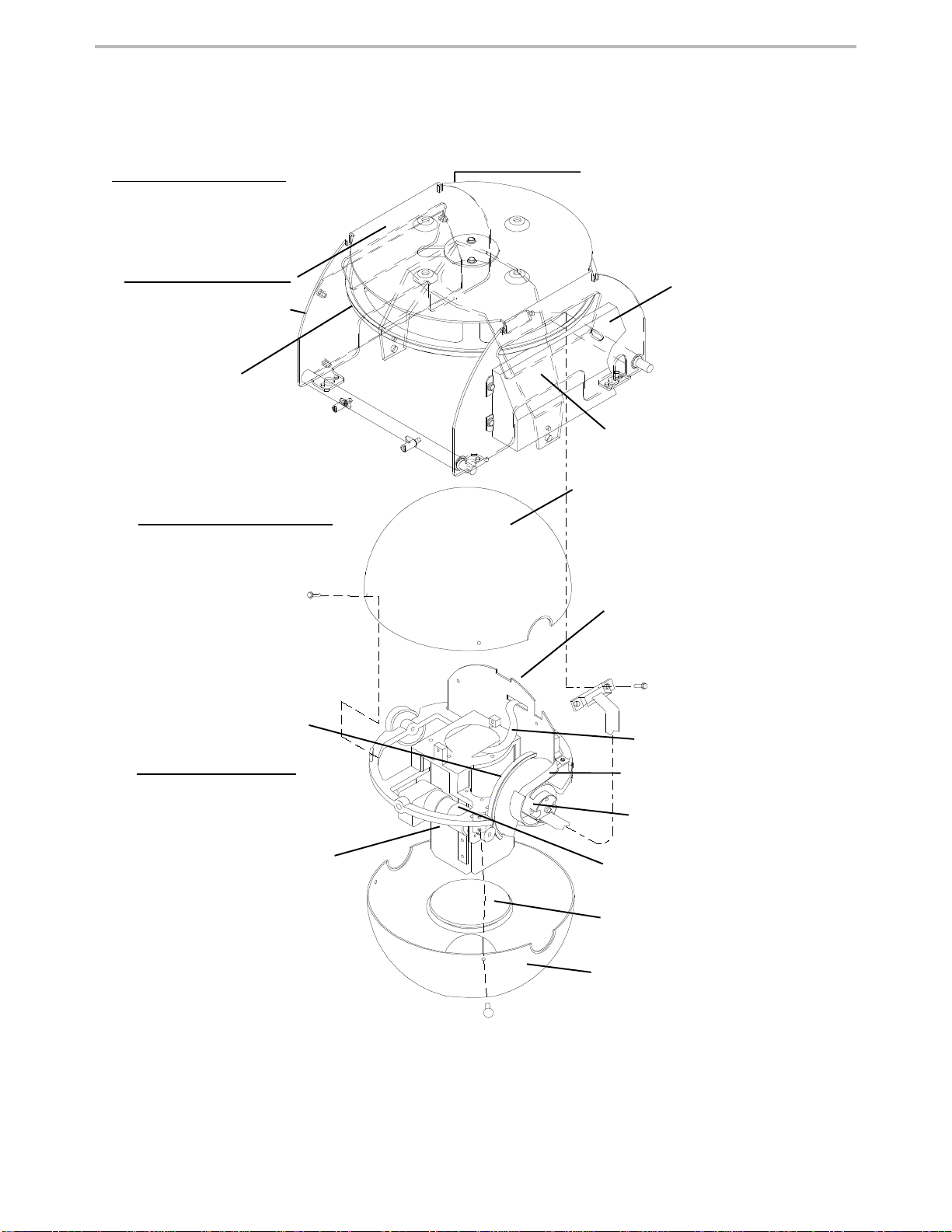

Figure Chapter 1-2. Chassis components

Pan Motor (not shown)

3501-0009-01

Unicard Board (hidden)

0301-0518-03

0400-0507-01 Skirt Assy., Eyeball

0300-1743-01 Carriage Assy.

0300-1740-00 Eyeball Assy.

-01 Color NTSC camera

-02 Color PAL camera

-03 BW EIA camera

-04 BW CCIR camera

0300-1742-00 Chassis, Indoor

-01 Color NTSC camera

-02 Color PAL camera

-03 BW EIA camera

-04 BW CCIR camera

Camera/Bracket Assy.

0300-1754-00

-01 Color NTSC camera

-02 Color PAL camera

-03 BW EIA camera

-04 BW CCIR camera

Tilt Motor

3501-0010-01

Acrylic Lens

0500-4131-01

Camera Cable,

integral to camera assy.

Lens Shroud

0500-3796-01

Spool Cable Retainer

0500-3841-01

Cable Assy., Slip Ring Interface

0650-0623-01

Yoke Bracket

0500-3844-01

Camera/Lens Board (hidden)

0301-0832-01

Camera Shroud

0500-3795-01

Sector Gear

0500-3817-01

Pan Gear

0500-3869-01

Power Supply

5606-0002-02

INTRODUCTION

SPEEDDOME LT

1-4

•RAS587LP-1 Monochrome CCIR (50Hz)

−0100-1326-04 Chassis, Top-Level Assy.

−0300-1742-04 Chassis Assy.

−0300-1743-01 Carriage Assy.

−0300-1740-04 Eyeball Assy.

−0400-0507-01 Skirt Assy. Eyeball

−0351-0558-01 Install Kit

Indoor Mounting Methods

The dome’s housing mounts directly to indoor hard or

tile ceilings using hardware supplied with the dome or

to one of several optional mounting structures. These

methods facilitate quick installation after site prep-

aration, enabling wiring to be done during rough

building construction.

Hard/Tile Ceiling Mounting

The dome’s housing can be surface mounted directly to

sheet rock ceilings, wood ceilings, or ceilings with spe-

cial finishes (Figure Chapter 1-3). The housing can also

be mounted in a section of tile ceiling using a ceiling T-

bar among other components (Figure Chapter 1-4).

Mounting hardware varies with the type of installation

kit.

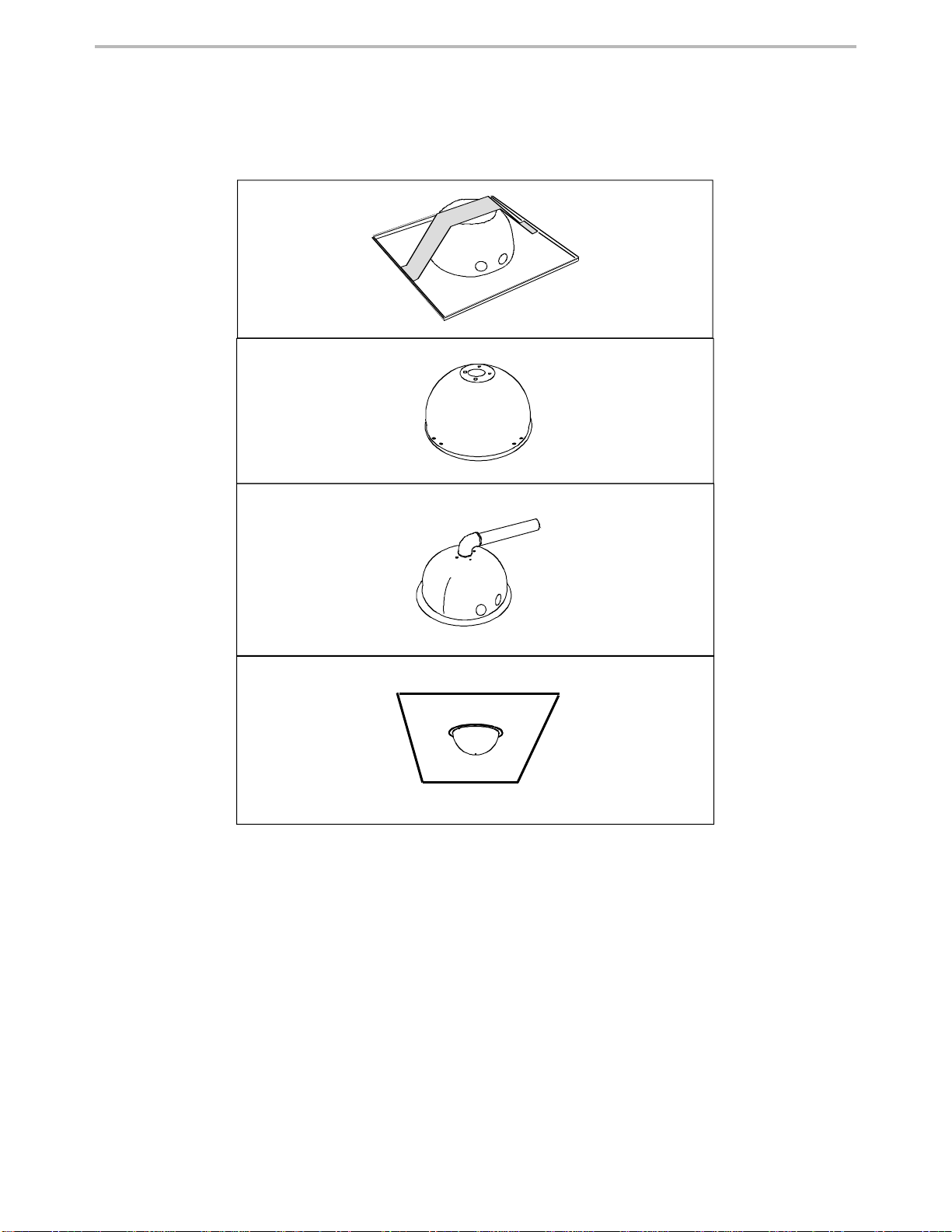

Figure Chapter 1-3. Surface mounting to hard

ceilings

Figure Chapter 1-4. Surface mounting to tile

ceilings

Mounting Structures (Optional)

The dome’s chassis can be mounted to several indoor

ceiling mounting structures (Figure Chapter 1-5). These

structures are as follows:

Product

Code Mounting Structure

RH105-8 Bubbles. The following bubbles are available:

RU105 Clear bubble

RU106 Silver bubble

RU107 Smoked bubble

RU108 Gold bubble

RHI2X2*Drop ceiling 2x2 mount. Allows chassis to be

recessed into dome housing that fits a 2x2

opening.

RHICM*Hard ceiling mount with adjustable ceiling

kit. For sheet rock, wood, or ceilings with

special finishes, a hard ceiling housing is

available. The 20mm lip of this housing

enhances the appearance of the dome in well

designed ceilings.

RHIPM*Pendant mount with I-beam clamp. For direct

installation to hard ceilings, an I-beam, or other

support structure. A section of 38mm pipe is

added to the hard ceiling housing to form a

pendant mount.

RH400*2x2 plenum dome shroud. Covers electrical

cables within plenum.

RH530*T-bar molding kit. Permits installing a dome to

a hard ceiling using hardware that a “Drop

Ceiling 2x2 Mount” mounts to.

* These options come in white but can be easily painted to

match decor.

Side View

INTRODUCTION

SPEEDDOME LT

1-5

Figure Chapter 1-5. Indoor mounting structures (optional)

RHI2X2

RHICM

RHIPM

RH530

Altri manuali per SpeedDome Optima LT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VII Manuale utente

American Dynamics

American Dynamics ADSDUPIHC Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra III Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Ultra Drone III Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics ADC720D Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VI Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Optima LT Manuale utente

American Dynamics

American Dynamics Illustra 1MP Manuale utente

American Dynamics

American Dynamics Discover 600 Series Manuale utente

American Dynamics

American Dynamics ADC522WP Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Ultra 8 22x Manuale utente

American Dynamics

American Dynamics ADCA470CAFN Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics Illustra 625 PTZ Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics ADCPBW Manuale utente

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuale utente

American Dynamics

American Dynamics SpeedDome RHODULP-01 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics Tyco Discover Series Manuale utente

American Dynamics

American Dynamics Tyco ADC520 Series Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
