American Dynamics ADC500 Manuale utente

FEATURES

The ADC500 and ADC500X black & white

1/3-inch CCD cameras are an excellent choice

for value driven, entry level applications.

Featuring sensitivity of 0.5 lux (f1.2), along

with automatic electronic shutter and

automatic gain control, the camera will operate

in a wide range of lighting conditions. For more

extreme lighting conditions, the camera also

supports the use of EE-type auto iris lenses.

With 380 lines of resolution and other

advanced features, the camera delivers clean,

sharp pictures.

These cameras are sensitive to infrared light

and are suitable for use in covert surveillance

applications when used in conjunction with IR

illuminators.

ADC500 and ADC500X

1/3-INCH BLACK & WHITE CCD CAMERA

•1/3-inch interline black &

white CCD

•380 TV lines resolution

•0.5 lux light sensitivity

•Sensitive to IR

illumination

•Supports EE-type auto

iris lenses

•CS lens mount with

C adapter

•Automatic electronic

shutter

•Automatic gain control

•12 VDC input

•Low power consumption

www.americandynamics.net

SPECIFICATIONS

Model Numbers

ADC500 . . . . . . . . . . . . . . . . . . . . . .EIA RS-170 Camera

ADC500X . . . . . . . . . . . . . . . . . . . .CCIR Camera

Operational

Imager . . . . . . . . . . . . . . . . . . . . . . .Interline transfer 1/3-inch CCD array

Video Output . . . . . . . . . . . . . . . . .1.0 Vp-p / 75 Ω, composite

Active Pixel Count

EIA . . . . . . . . . . . . . . . . . . . . . . . .510 (H) x 492 (V) pixels

CCIR . . . . . . . . . . . . . . . . . . . . . .500 (H) x 582 (V) pixels

Minimum Scene

Illumination . . . . . . . . . . . . . . .0.5 lux (f1.2 lens)

Horizontal Resolution . . . . . .380 TV lines

Light Compensation

Modes . . . . . . . . . . . . . . . . . . . . . . .Automatic electronic shutter, On/Off

(EIA 1/60 -1/100,000 sec)

(CCIR 1/50 - 1/100,000 sec)

Auto Iris Drive . . . . . . . . . . . . . . . .EE-type

Synchronization Modes . . . . . . .Internal

Geometric Distortion . . . . . . . . .None

S/N Ratio . . . . . . . . . . . . . . . . . . . .-48 dB

Controls

AES/Auto Iris . . . . . . . . . . . . . . . . .Selectable

Back Focus . . . . . . . . . . . . . . . . . . .Flange with locking screw

Connectors

Input Power . . . . . . . . . . . . . . . . . .Standard 2.0 mm,

jack-center pin positive

Composite Video . . . . . . . . . . . . . .BNC

Auto Iris . . . . . . . . . . . . . . . . . . . . .EE-type, 4 pin square connector

Electrical

Voltage . . . . . . . . . . . . . . . . . . . . . . .12 VDC (±10%)

Power Consumption . . . . . . . . . .3.0 watts (maximum)

Mechanical

Lens Mount . . . . . . . . . . . . . . . . . .CS standard with C adapter included

Camera Mount . . . . . . . . . . . . . . .1/4-inch - 20 (top and bottom) embedded

Dimensions (H x W x L) . . . . . . .50 x 62 x 108 mm

(1.96 x 2.44 x 4.25 in)

Unit Weight . . . . . . . . . . . . . . . . . .360 g (0.79 lbs)

Shipping Weight . . . . . . . . . . . . . .526 g (1.4 lbs)

Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray

Environmental

Operating Temperature . . . . . . . .0˚ to 50˚C (32˚ to 122˚F)

Humidity . . . . . . . . . . . . . . . . . . . . .85% RH (non-condensing)

Storage Temperature . . . . . . . . . .-30˚ to 60˚C (-22˚ to 140˚F)

Regulatory

Emissions . . . . . . . . . . . . . . . . . . . .FCC: Part 15, Class B

CE: EN55022

Immunity . . . . . . . . . . . . . . . . . . . .CE: 50130-4

Safety . . . . . . . . . . . . . . . . . . . . . . . .UL2044

Recommended Housings*

AD1301, AD1303, AD1305, AD1314, AD1315

AD1317, AD1335, AD1337, AD1348

*Dependent on lens dimensions.

Recommended Camera Mounts

ADMC1361, ADMC1362, ADMC1363

ADMC1365, ADCM100T, ADMC1366

Accessories

ADC112 . . . . . . . . . . . . . . . . . . . . . .120 VAC to 12 VDC regulated power

supply

ADC112X . . . . . . . . . . . . . . . . . . . .230 VAC to 12 VDC regulated power

supply

AMERICAN DYNAMICS ADC500 AND ADC500X 1/3-INCH BLACK & WHITE CCD CAMERA

VS247-02 01/03 L

Product specifications and availability subject to change without notice.

Certain product names mentioned herein may be trade names and/or

registered trademarks of other companies.

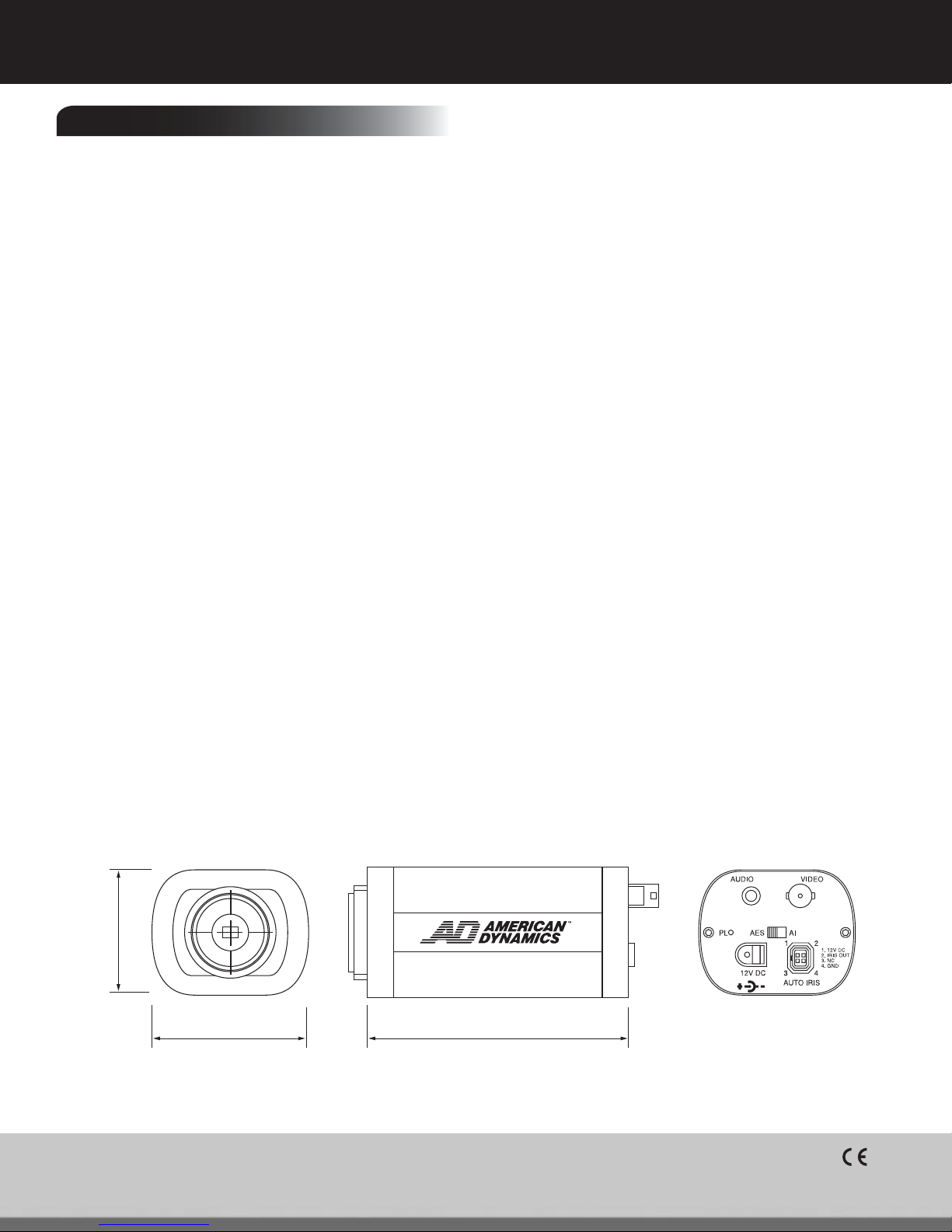

Rear ViewSide View

Front View

62 mm

(2.44 in) 108 mm

(4.26 in)

50 mm

(1.97 in)
