American Dynamics ADC733 Manuale utente

www.americandynamics.net

FEATURES

The ADC733 and ADC733X 1/3-inch color CCD

cameras offer a compact solution to your video

surveillance needs. Solid, sturdy and easy to use,

these cameras are engineered for optimal

performance.

Equipped with built-in Automatic White

Balance Tracking (ATW) and One-Touch White

Balance (AWB), they can produce clear, accurate

color pictures in a broad range of lighting

conditions. The One-Touch feature makes these

one of the easiest cameras in the industry to

adjust for manual white balance.

Low light sensitivity renders sharp images in

scenes as dim as 0.5 lux. Digital Signal

Processing (DSP) combines with 330 TV lines of

resolution to deliver picture quality typically

available only from more expensive models.

The ADC733 and ADC733X cameras feature

phase-adjustable line-lock for “roll-free”

switching, and a fully isolated power supply that

allows you to connect multiple cameras to a

single 24 VAC source with minimal interference

from ground loops.

These energy efficient cameras are suited for a

multitude of applications and save you money in

operational costs.

ADC733 and ADC733X

1/3-INCH COLOR DIGITAL CCD CAMERA

•1/3-inch interline color

CCD

•Digital Signal Processing

(DSP)

•330 TV lines resolution

•0.5 lux low light

sensitivity

•Exceptional Auto White

Balance (2,300º K to

10,000º K)

•Supports DC-type auto

iris lenses

•C/CS lens mount

•Automatic Electronic

Shutter (AES)

•Dual (H&V) edge

enhancement

•Automatic Gain Control

(AGC)

•Backlight Compensation

(BLC)

•Phase adjustable Line-

lock

•24 VAC or 12 VDC input

•Internal isolation

transformer

•Low 3.6 watt power

consumption

SPECIFICATIONS

Model Numbers

ADC733 . . . . . . . . . . . . . . . . . . . . . . .Camera, 1/3-inch, Color, 330 TVL,

0.5 Lux, NTSC, 24 VAC/12 VDC

ADC733X . . . . . . . . . . . . . . . . . . . . .Camera, 1/3-inch, Color, 330 TVL,

0.5 Lux, PAL, 24 VAC/12 VDC

Operational

Imager . . . . . . . . . . . . . . . . . . . . . . . .Interline transfer 1/3-inch CCD array

Video Output . . . . . . . . . . . . . . . . . .1.0 Vp-p / 75 Ω, composite

Active Pixel Count

NTSC . . . . . . . . . . . . . . . . . . . . . . . .510 (H) x 492 (V) pixels

PAL . . . . . . . . . . . . . . . . . . . . . . . . . .500 (H) x 582 (V) pixels

Minimum Scene Illumination . . .0.5 lux (f1.2 lens)

Horizontal Resolution . . . . . . . . . .330 TV lines

Automatic Electronic Shutter . . .On/Off selectable

(NTSC 1/60 -1/100,000 sec)

(PAL 1/50 -1/100,000 sec)

Auto Iris Drive Lens . . . . . . . . . . . .DC type

Backlight Compensation . . . . . . .On/Off selectable

Aperture Correction . . . . . . . . . . . .Yes - Horizontal & vertical

Synchronization Modes . . . . . . . .Internal or Line-lock with 360º phase

adjustment

White Balance . . . . . . . . . . . . . . . . .Auto or One-Touch modes

(2,300º K to 10,000º K)

Geometric Distortion . . . . . . . . . . .None

S/N Ratio . . . . . . . . . . . . . . . . . . . . .-50 dB

Controls

AGC . . . . . . . . . . . . . . . . . . . . . . . . . .On/Off

AES . . . . . . . . . . . . . . . . . . . . . . . . . . .On/Off

BLC . . . . . . . . . . . . . . . . . . . . . . . . . . .On/Off

White Balance . . . . . . . . . . . . . . . . .Auto (ATW)/One-Touch (AWB)

(2,300º K to 10,000º K)

Synchronization . . . . . . . . . . . . . . .Int./LL with phase adjustment

DC Iris . . . . . . . . . . . . . . . . . . . . . . . .Level control

Back Focus . . . . . . . . . . . . . . . . . . . .Adjustment ring with lock

Connectors

Input Power . . . . . . . . . . . . . . . . . . .Screw terminals

Composite Video . . . . . . . . . . . . . . .BNC

DC Iris . . . . . . . . . . . . . . . . . . . . . . . .4 pin square connector

Electrical

AC Voltage . . . . . . . . . . . . . . . . . . . .24 VAC (+33% -15%)

60 Hz (NTSC)

50 Hz (PAL)

DC Voltage . . . . . . . . . . . . . . . . . . . .12 VDC (+15% -10%)

Power Consumption . . . . . . . . . . .3.6 watts

Mechanical

Lens Mount . . . . . . . . . . . . . . . . . . .C or CS type

Camera Mount . . . . . . . . . . . . . . . .1/4 inch x 20 (top or bottom)

Dimensions (H x W x L) . . . . . . . .58 x 50 x 126 mm

(2.28 x 1.97 x 4.96 in)

Unit Weight . . . . . . . . . . . . . . . . . . .360 g (0.79 lbs)

Shipping Weight . . . . . . . . . . . . . . .500 g (1.10 lbs)

Color . . . . . . . . . . . . . . . . . . . . . . . . .Light gray

Environmental

Temperature

Operating . . . . . . . . . . . . . . . . . . . .-10° to 50° C (14° to 122° F)

Storage . . . . . . . . . . . . . . . . . . . . . . .-20° to 60° C (-4° to 140° F)

Humidity . . . . . . . . . . . . . . . . . . . . . .90% RH (non-condensing)

Regulatory

Emissions . . . . . . . . . . . . . . . . . . . . .FCC: Part 15, Class B

ICES-003

EN61000-6-3

EN61000-3-2

EN61000-3-3

Immunity . . . . . . . . . . . . . . . . . . . . .EN50130-4

Safety . . . . . . . . . . . . . . . . . . . . . . . . .UL2044

ADC733 AND ADC733X 1/3-INCH COLOR DIGITAL CCD CAMERA

VS371-01 07/04 A4

Product specifications and availability subject to

change without notice.

Certain product names mentioned herein may be trade

names and/or registered trademarks of other companies.

42

52

50

32,5

7,5

34-R

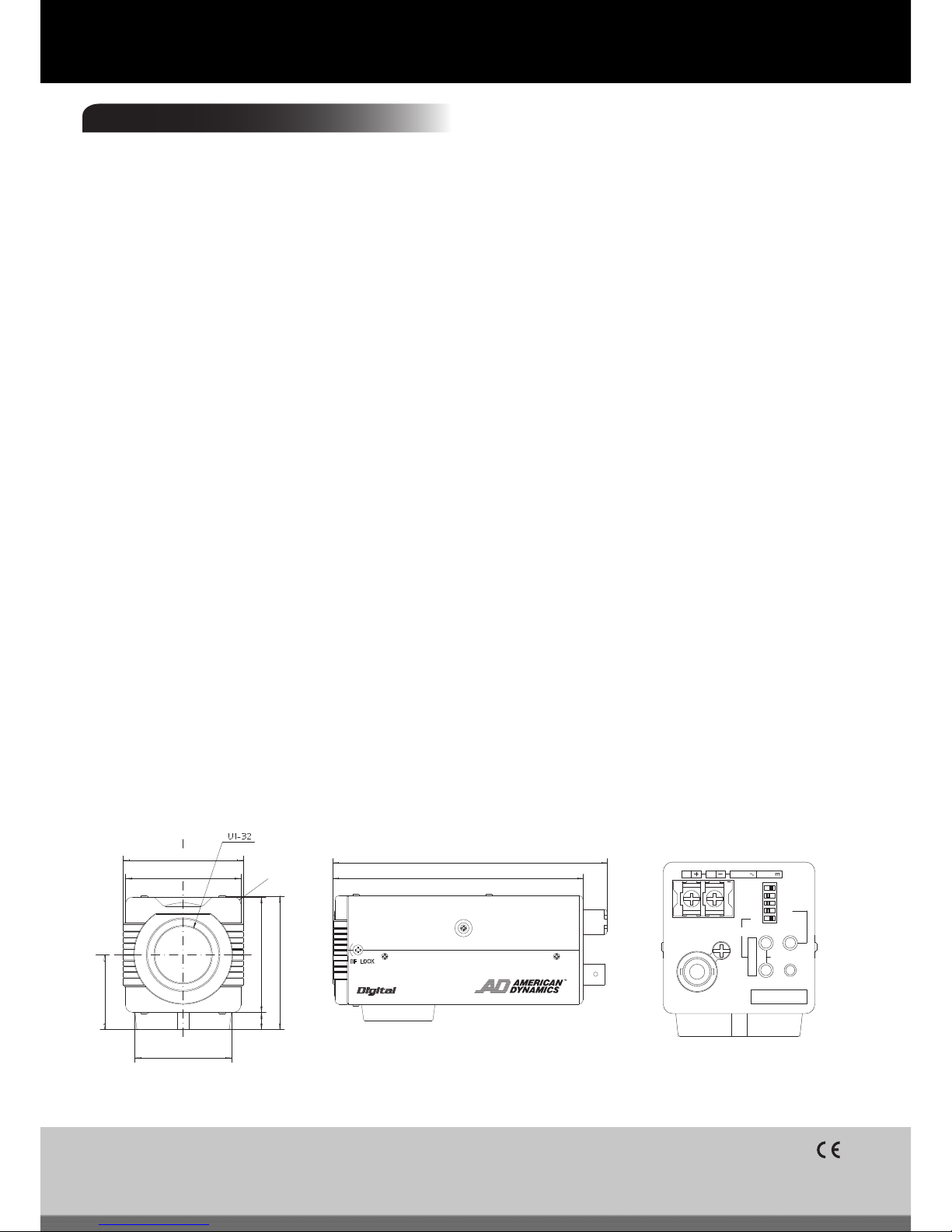

Front View Rear View

Side View

115

126

DC12VAC24V

VIDEO OUT

PHASE

SEE INSTRUCTION

MANUAL

POWER

RESET

SET

INT

ON-AES

ON-BLC

AWB

ATW

LL

OFF

ISOLATED POWER ONLY

(E TYPE)

CLASS 2 ONLY(U TYPE)

ON-AGCOFF
