American Dynamics IP speedDome Ultra 8 Manuale utente

Part Number 8200-0885-01 A0

Installation Guide

IP SpeedDome Ultra 8

Version 1.0

ii Installation Guide

Notice The information in this manual was current when published. The manufacturer reserves the right to revise and improve its

products. All specifications are therefore subject to change without notice.

Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or reduced to

any electronic medium or machine-readable form, in whole or in part, without prior written consent of Tyco International Ltd.

American Dynamics

6600 Congress Avenue

Boca Raton, FL 33487 U.S.A.

Customer Service

Thank you for using American Dynamics products. We support our products through an extensive worldwide network of

dealers. The dealer through whom you originally purchased this product is your point of contact if you need service or

support. Our dealers are empowered to provide the very best in customer service and support. Dealers should contact

American Dynamics at (800) 507-6268 or (561) 912-6259 or on the Web at www.americandynamics.net.

Trademarks

Intellex®is a registered trademark of Sensormatic Electronics Corporation. Windows®is a registered trademark of

Microsoft Corporation. PS/2®is a registered trademark of International Business Machines Corporation. Sony®is a

registered trademark of Sony Corporation.

Trademarked names are used throughout this manual. Rather than place a symbol at each occurrence, trademarked

names are designated with initial capitalization. Inclusion or exclusion is not a judgment on the validity or legal status of the

term.

iii

Warnings

To reduce risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to

qualified service personnel.

Do not expose this appliance to rain or moisture.

Do not install this product in hazardous areas where highly combustible or explosive products are stored or

used.

The lightning flash/arrowhead symbol, within an equilateral triangle, alerts the user to the presence of a shock

hazard within the product’s enclosure.

Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security or signaling aspects

of this product. UL has only tested for fire, shock or casualty hazards as outlined in the UL's Standard for Safety UL

60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of

this product. UL makes no representations, warranties or certifications whatsoever regarding the

performance or reliability of any security or signaling related functions of this product.

Note to Camera System Installer - This reminder is provided to call the camera system installer's attention to

Section 820.93 of the National Electrical Code, ANSI/NFPA 70: 2005, which provides guidelines for proper grounding

and, in particular, specifies that the coaxial cable shield shall be connected to the grounding system of the building,

as close to the point of cable entry as practical.

This equipment has been tested and found to comply with the limits for a Class “A” digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at their own expense.

Changes or modifications not expressly approved by Tyco International, the party responsible for FCC compliance,

could void the user’s authority to operate the equipment.

This product was FCC verified under test conditions that included the use of shielded I/O cables and connectors

between system components. To be in compliance with FCC regulations, the user must use shielded cables and

connectors for all except power and alarm cables.

This class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

iv Installation Guide

Table of Contents

About this guide

The SpeedDome Ultra 8 can be installed using the following mounts. . . . . . . 1-1

General Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Save Packaging Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Introduction

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Installing IP SDU8 with an Indoor Hardmount

Preparing and installing the Indoor Hardmount Housing. . . . . . . . . . . . . . . . . 3-1

Parts Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Mounting Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Installing IP SpeedDome Ultra 8 with a RHOPN Pendant Mounting

Assembly of the RHOPN Pendant Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Parts Supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Parts to Be Purchased . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Preparing the Pendant Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Parts required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Attaching the Bubble to the IP SpeedDome Ultra 8 Unit . . . . . . . . . . . . . . . . . 4-8

Installing IP SDU8 with a ROENDC End Cap

Preparing and installing the SDU8 Camera in an End Cap Assembly. . . . . . . 5-1

Parts Supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Parts Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Preparing and installing the SDU8 Camera in an End Cap Assembly. . . . . . . 5-2

Attaching the Bubble to the IP SDU8 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Restoring factory defaults

Resetting the IPSDU8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Restoring factory defaults on the IPSDU8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Table of Contents

vi Installation Guide

Technical Specifications

Diagnostic LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Diagnostic LED Status Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Power LED (green). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Video/Alarm LED (yellow). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Client LED (orange) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Pin Outs for the IP SpeedDome Ultra 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

3 wire 24VAC supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

RJ-45 Ethernet interface (with female to female adaptor) . . . . . . . . . . . . . . . . 7-2

Alarm connector pin-out for Indoor I/O base . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Alarm Out Connector is Black and Alarm in is White . . . . . . . . . . . . . . . . . . 7-3

Alarm connector pin-out for Outdoor I/O base. . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Alarm Out Connector is Black and Alarm in is White . . . . . . . . . . . . . . . . . . 7-3

List of Procedures

Procedure 3-1 Preparing and installing the Indoor Hardmount Housing. . . . . . . 3-2

Procedure 3-2 Attaching the Bubble to the IP SDU8 Unit . . . . . . . . . . . . . . . . . 3-6

Procedure 4-1 Assembly of IP SpeedDome Ultra

Camera 8 RHOPN Pendant Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Procedure 4-2 Preparing the Pendant Housing and

attaching the SpeedDome Ultra 8 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Procedure 4-3 Attaching the Bubble to the IP SpeedDome Ultra 8 Unit . . . . . . 4-8

Procedure 5-1 Preparing and installing the SDU8 Camera

in an End Cap Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Procedure 5-2 Attaching the Bubble to the IP SDU8 Unit . . . . . . . . . . . . . . . . . 5-7

Procedure 6-1 Restoring the IPSDU8 factory defaults . . . . . . . . . . . . . . . . . . . . 6-2

1-1

1 About this guide

This guide explains how to:

• Prepare and assemble the IP SpeedDome Ultra 8 for installation.

• Install the IP SpeedDome Ultra 8 into the supported housing structures.

• Install the supported housing structures.

This guide supersedes any existing SpeedDome Ultra 8 Install documentation.

This guide assumes that correct data and power points are available to allow connection of the IP

SpeedDome Ultra.

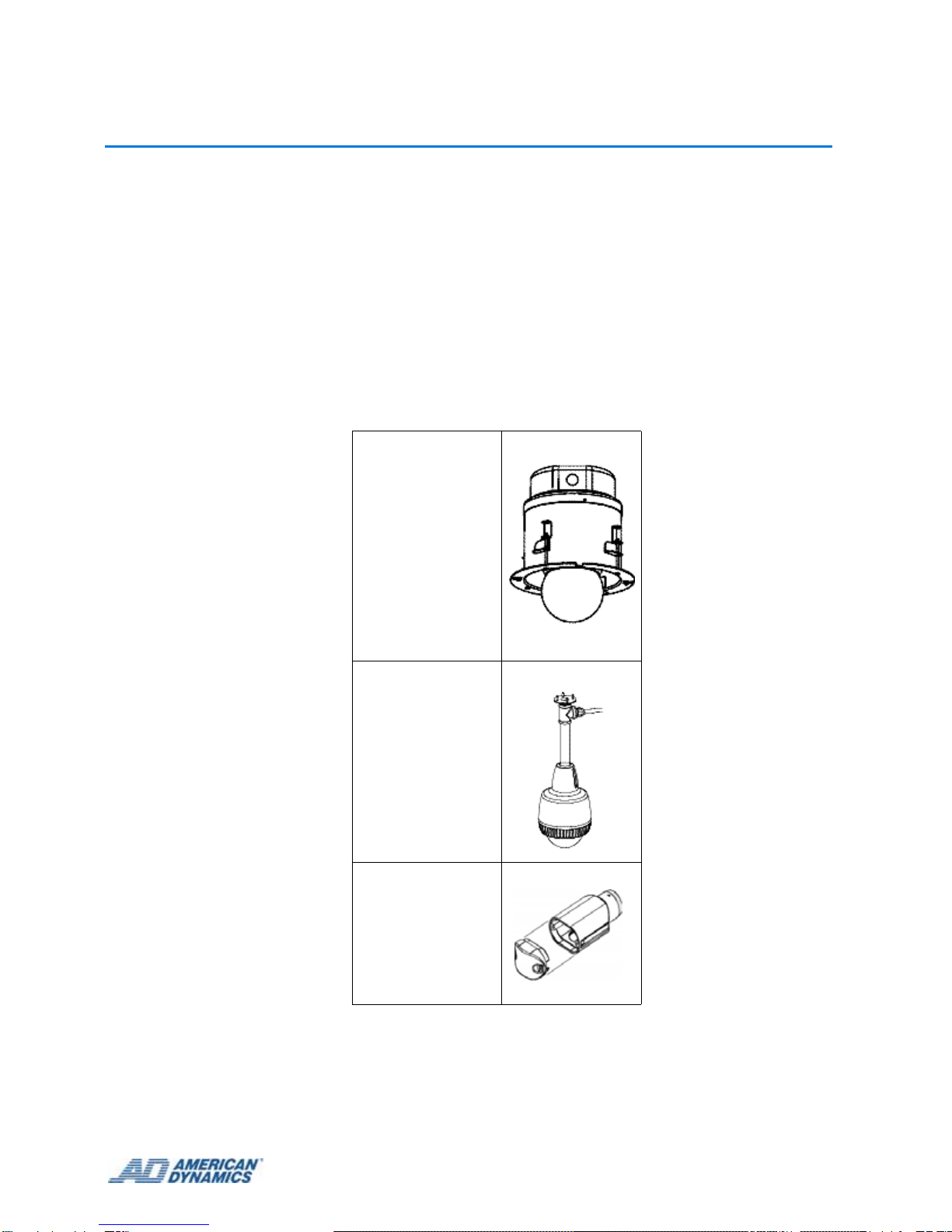

The SpeedDome Ultra 8 can be installed using the following mounts

To ensure a smooth and successful installation, observe the following requirements.

Indoor Hard Mount

RHOPN

Indoor/Outdoor

Pendant Mount

ROENDC

End Cap

Indoor/Outdoor

1-2

General Requirements

Have electrical work comply with all applicable local codes and ordinances.

Verify existing site conditions and coordinate with the owner's representative and appropriate

utilities as required.

Obtain copies of all related plans, specifications, shop drawings and addenda to schedule and

coordinate related work.

Thoroughly review the project to ensure that all work meets or exceeds the above requirements.

Bring alleged discrepancies to the attention of the CCTV Project Coordinator.

Save Packaging Material

Should the camera dome need to be sent to a repair center, use the packaging that the dome was

shipped in.

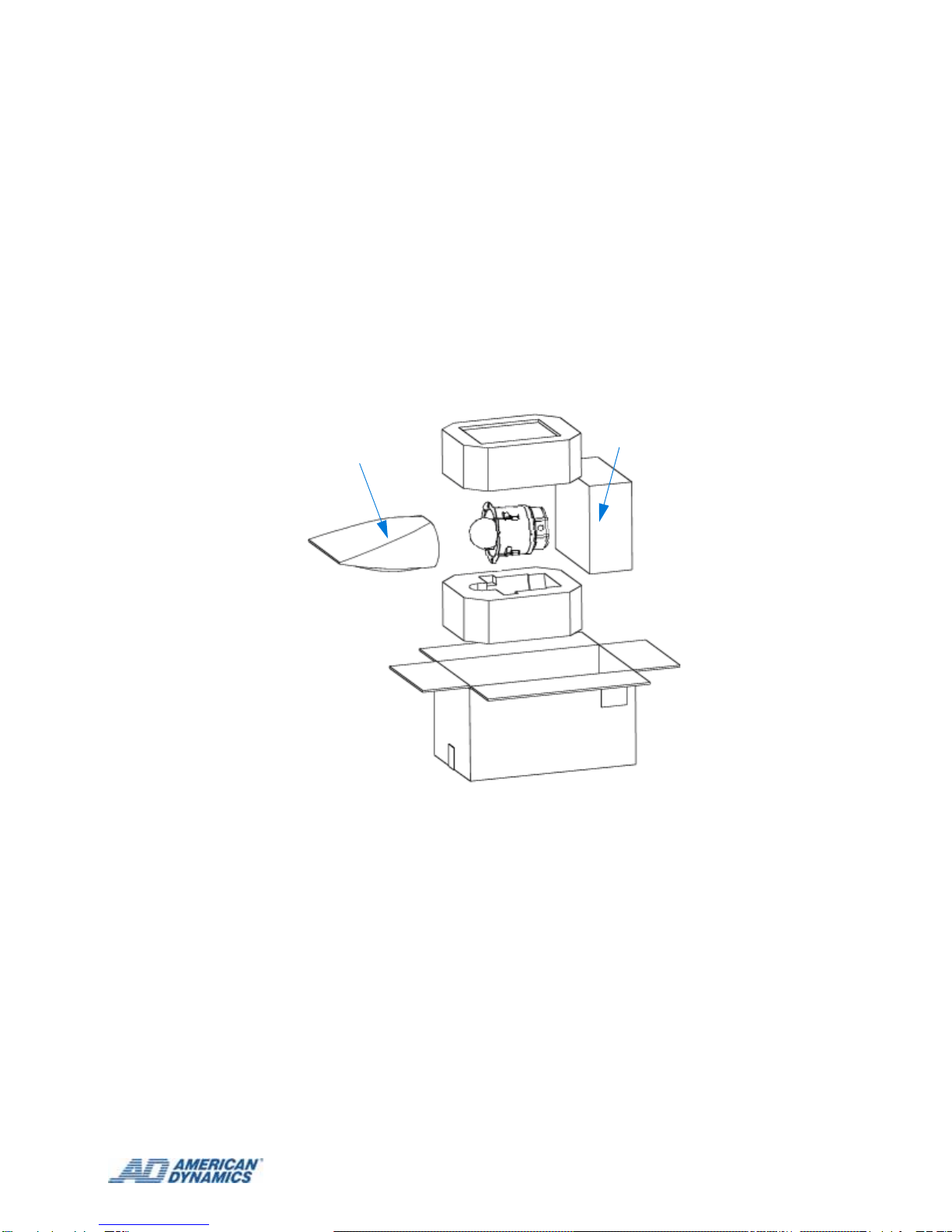

Figure 1-1 Example of Packaging material

Plastic Bag

Box for

Bubble

2-1

2 Introduction

Installation

The IPSDU8 can be installed in the following ways: Indoor Hardmount, using a RHOPN pendant

mount, and using a ROENDC End Cap assembly.

Up to 16 IPSDU8s, supplying a maximum of 16 video inputs, can be connected to one Intellex IP

unit, or up to 128 IPSDU8 units can be connected to one VideoEdge™ NVR unit, depending on

the licensing.

Note

More than four domes moving at one time may result in lost frames.

The basic steps involved in installing this product are outlined below:

• Install the hardware

• Configure the software and camera settings.

Note

As all the IPSDU8s have the same IP address, to avoid IP conflicts, each camera must either have

its TCP/IP settings pre-configured, or be installed to the network one at a time.

The full installation process is detailed in the flowchart on the next page.

Introduction

2-2 Installation Guide

Installation process

Figure 2-2 Installation process flowchart

Referring to the IPSDU8 Installation Guide (8200-0885-01) install

the following:

•Mount (which has PCB and cables installed)

•SDU8

•Bubble

Remove the IPSDU8, dome camera and corresponding mount from

Refer to the Intellex/VideoEdge™ NVR Setup Guide and follow the

procedure for adding a IPSDU8.

Refer to Web Configuration (Chapter 3) and configure the following

•TCP/IP settings

•Video Input (if applicable)

•Event Inputs (if applicable)

their packaging.

Ensure the required power, network and alarm cables are

installed and the network cable is labelled and disconnected at

the network patch panel or access point.

settings on the IPSDU8:

Within the browser window navigate to the Live video page and follow

the Web Configuration chapter to access the SDU8 dome configuration

menu, then using the SDU8 User Manuals, configure the required

dome settings.

Connect a laptop to the

NO YES

IPSDU8 Ethernet cable

located at the patch

panel or access point.

Connect the IPSDU8

Ethernet cable into

the network patch

panel or access point.

Open a browser window and enter the IP address of the IPSDU8,

192.168.1.80.

as the Intellex or

Is the IPSDU8 on the

same subnet address

VideoEdge™ NVR?

If a laptop was used to configure the IPSDU8, disconnect the laptop

and connect the IPSDU8 Ethernet cable into the network patch panel

or access point.

Altri manuali per IP speedDome Ultra 8

Indice

Altri manuali American Dynamics Telecamera di sicurezza

American Dynamics

American Dynamics AD615 Manuale utente

American Dynamics

American Dynamics ADC780 Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VIIE Manuale utente

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuale

American Dynamics

American Dynamics ADCIPE3312ISN Manuale utente

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics Discover 600 Series Manuale utente

American Dynamics

American Dynamics ADCSHR2412N Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra Manuale

American Dynamics

American Dynamics ADC720D Manuale utente

American Dynamics

American Dynamics SpeedDome Optima Manuale utente

American Dynamics

American Dynamics ADC720D Manuale utente

American Dynamics

American Dynamics DeltaDrone II Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VII Manuale utente

American Dynamics

American Dynamics ADC780 Istruzioni per il montaggio

American Dynamics

American Dynamics Illustra Flex Series Manuale utente

American Dynamics

American Dynamics SpeedDome RHODULP-01 Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Ultra Drone II Manuale utente

American Dynamics

American Dynamics ADCDH Manuale utente

American Dynamics

American Dynamics DeltaDome II Istruzioni per l'installazione e il funzionamento

American Dynamics

American Dynamics ADC722WP Manuale utente

American Dynamics

American Dynamics ADCTDN0230P Manuale utente

American Dynamics

American Dynamics SpeedDome Ultra VIIE Istruzioni di installazione e manutenzione

American Dynamics

American Dynamics SpeedDome Ultra III Istruzioni di installazione e manutenzione

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
