American Standard SELECTRONIC 6065.521 Manuale utente

1M965646 REV. 1.9 (9/18)

NOTE TO INSTALLER: Please give this manual to the customer after installation.

To learn more about American Standard Selectronic®Products visit our website at: www.americanstandard-us.com

or e-mail us at: CRTTEAM@americanstandard.com

For Parts, Service, Warranty or other Assistance,

please call (844) CRT-TEAM / (844) 278-8326 (In Canada: 1-800-387-0369)

(In Toronto Area only: 1-905-306-1093))

SELECTRONIC®

DC POWERED PROXIMITY EXPOSED

TOILET FLUSH VALVE

1.1, 1.28, 1.6, 1.6/1.1 & 1.28/1.1 GPF

Installation Instructions

Certied to comply with ASME A112.19.2

CAUTION: Use only American Standard supplied

transformers and cable sets. Using non-AS supplied

cables, or cutting, splicing or modifying any components

will void the warranty.

Exposed Flushometer

for 1-1/2"Top Spud Bowls

MODEL NUMBERS

6065.111 6065.521

6065.121 6065.525

6065.161 6065.561

6065.721 6065.565

6065.761

2M965646REV.1.7(7/17)

Thank you for selecting American-Standard...the benchmark of ne quality for over 100 years.To ensure that your

installation proceeds smoothly--please read these instructions carefully before you begin.

Remove the Flush Valve items from the carton. The illustration below shows all items after they have been

removed from the carton. Some items may be packaged partially assembled to other items.

UNPACKING All American Standard Products Are Water Tested At Our Factory.

Some Residual Water May Remain In The Valve During Shipping.

1. Installation Instructions

2. Flush Valve Body Assembly

3. Vacuum Breaker Tube

4. Spud Coupling Nut and Washers

5. Spud Flange

6. Wall Escutcheon

7. Cover Tube

8. Sweat Adapter

9. Stop Valve

CARE INSTRUCTIONS:

DO: CLEAN THE PRODUCT WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.

DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A

CLOTH WITH A COARSE SURFACE.

DO NOT REMOVE PROTECTIVE FILM FROM SENSOR

EYE UNTIL INSTALLATION IS COMPLETE.

Installation Instructions

Certified to comply with ASMEA112.19.2

Exposed Flushometer

for 1-1/2"Top Spud Bowls

CAUTION: Use only American Standard

supplied cable sets. Using non-AS supplied

cables, or cutting, splicing or modifying any

components will void the warranty.

DC POWERED PROXIMITY EXPOSED

TOILET FLUSH VALVE

1.1, 1.28, 1.6,

1.6 / 1.1, & 1.28/1.1 GPF

SELECTRONIC®

6065.111

6065.121

6065.161

6065.721

6065.761

6066.565

6065.521

6065.525

6065.561

6065.565

6066.525

6066.561

MODEL NUMBERS

NOTE TO INSTALLER: Please give this manual to the customer after installation.NOTE TO INSTALLER: Please give this manual to the customer after installation.

To learn more about American Standard Selectronic®Products visit our website at: www.americanstandard-us.com

or e-mail us at: CRTTEAM@americanstandard.com

For Parts, Service,Warranty or other Assistance,

please call (844) CRT-TEAM / (844) 278-8326 (In Canada: 1-800-387-0369)

(In Toronto Area only: 1-905-306-1093)

M965646 REV. 1.9 (9/18)

1. Installation Instructions

2. Flush Valve Body Assembly

3. Vacuum Breaker Tube

4. Spud Coupling Nut and Washers

5. Spud Flange

6. Wall Escutcheon

7. Cover Tube

8. Sweat Adapter

9. Stop Valve

GENERAL DESCRIPTION:

SELECTRONIC® PROXIMITY TOILET FLUSH VALVE

Exposed Flushometer for 1-1/2” Top Spud Fixtures

419 mm

(16-1/2")

292 mm

(11-1/2")

127 mm

(5")

73 mm

(2-7/8")

(NPT de 1")

15˚

170 mm MÁX.

(6-11/16") MÁX.

406 mm

(16")

292 mm

(11-1/2")

114 mm

(4-1/2")

73 mm

(2-7/8")

(NPT de 1")

15˚

170 mm MÁX.

(6-11/16") MÁX.

*Note: The Critical Line (-C-L-) on Vacuum

Breaker must typically be 6"(152mm) above

fixture. Consult Codes for details.

-C-L-

SUPPLY

(1" NPT.)

FINISHED WALL

108mm-134mm

(4-1/4" TO 5-1/4")

FOR 1-1/2" TOP

SPUD FIXTURES

MANUAL

OVERRIDE

BUTTON

DETECTION ZONE

400mm-800mm

(15-3/4 TO 31-1/2)

*-C-L-

152mm MIN.

(6") MIN.

108mm-134mm

(4-1/4" TO 5-1/4")

FOR 1-1/2" TOP

SPUD FIXTURES

152mm MIN.

(6") MIN.

MANUAL

OVERRIDE

BUTTON

Fig. 1 (Before November 2017)

Roughing-in Dimensions

Right or Left Hand Installation

See (Section 5) for converting Flush Valve to Left Hand Installation.

Fig. 1A (After November 2017)

FINISHED WALL

ø51 mm

(ø2") GRAB BAR (Max.)

FINISHED

FLOOR

406 mm

(16")

914 mm

(36")

GRAB BAR

HEIGHT

38 mm

(1-1/2")

419 mm

(16-1/2")

TO RIM

ADA WATER CLOSET INSTALLATION:

AFWALL®TOILET SHOWN

293 mm

(11-1/2")

-C-L-

4M965646 REV. 1.9 (9/18)

RECOMMENDED TOOLS; Fig. 2.

1. Teon Tape

2. Flat Blade Screwdriver

3. Adjustable Wrench

4. Tape Measure

5. Hacksaw

6. Tubing Cutter

7. File

8. For Sweat Connection; Solder and Torch

9. 2.5 mm Hex Wrench

10. 1.5 mm Hex Wrench

PRIOR TO INSTALLATION

Note: Prior to installing the Selectronic™Flush

Valve the following items must be installed.

1. Toilet

2. Drain line

3. Water supply line

IMPORTANT:

• All plumbing and electrical wiring should be

installed in accordance with applicable codes

and regulations.

• The use of water hammer arrestors is strongly

recommended for commercial applications. All piping

behind the walls should be properly secured and

fastened.

• Water supply lines must be sized to provide an

adequate volume of water for each xture.

• Flush all water lines prior to operation. Dirt and debris

can cause ush valve to run continuously.

• With the exception of Stop Valve Inlet, DO NOT

use pipe sealant or plumbing grease on any

valve component or coupling!

• Protect the chrome or special nish on the Flushometer.

DO NOT USE toothed tools on nished surfaces to install

or service these valves. Also see “Care and Cleaning”

section of this manual.

• This product contains mechanical and/or electrical

components that are subject to normal wear. These

components should be checked on a regular basis and

replaced as needed to maintain the valve’s performance.

Fig. 2

123

7 9 10

10'

5M965646 REV. 1.9 (9/18)

CENTER LINE OF

FIXTURE SPUD

FINISHED WALL

FILE EDGES

SOLDER

ADAPTER

Fig. 3

ADAPTER

32mm

(1-1/4")

(A-B)= B

CLEAN

Fig. 4a

Fig. 4b

Fig. 4c

Fig. 4

TEFLON TAPE

FINISHED WALL

Fig. 5

1-1/2" TOP SPUD

FLUSH VALVE INSTALLATION

1INSTALL SWEAT ADAPTER; Fig. 3

Note: Install Optional Sweat Adapter (Supplied) for

copper pipe supply line.

1. Measure the distance (A) from the nished wall to the

center of the inlet spud on the xture.

2. Cut the supply pipe 1-1/4" (A-B=C) shorter than the

measurement taken in Step 1. File any rough edges

off the end of the supply pipe.

3. Clean the end of the supply pipe. Push the threaded

Adapter until it is seated against the internal stop.

Sweat the Adapter to the pipe.

INSTALL COVER TUBE, WALL

ESCUTCHEON and STOP VALVE;

Fig. 4

1. Measure from nished wall to rst thread of Adapter or

threaded supply pipe (dimension “X”). Cut COVER TUBE

(1) to length (X). Apply Teon Tape to the threaded end of

the Adapter or supply pipe.

2. Push WALL ESCUTCHEON (2) onto the COVER TUBE (1).

Slide both onto the SUPPLY PIPE (3).

3. Push the COVER TUBE (1) in to expose the threads of

the supply pipe. With a wrench thread the STOP VALVE

(4) onto the SUPPLY PIPE (3). Align and tighten.

4. Pull COVER TUBE (1) against STOP VALVE (4) and push

WALL ESCUTCHEON (2) against nished wall.

3INSTALL VACUUM BREAKER

TUBE; Fig. 5

1. Place the SPUD FLANGE (1) over the spud on

the Fixture.

2. Place FRICTION WASHER (3) and SEAL WASHER

(4) inside SPUD COUPLING NUT (2) and thread

onto Spud. Do not tighten fully.

3. Insert the VACUUM BREAKER TUBE (5) into the

SPUD COUPLING NUT (2) and push it down.

Note: If cutting VACUUM BREAKER TUBE (5) to size, note

that Critical Line (C/L) on Vacuum Breaker must typically

be 6” (152mm) above xture. Consult Code for details.

CAUTION Turn water supplies off before

beginning

6M965646 REV. 1.9 (9/18)

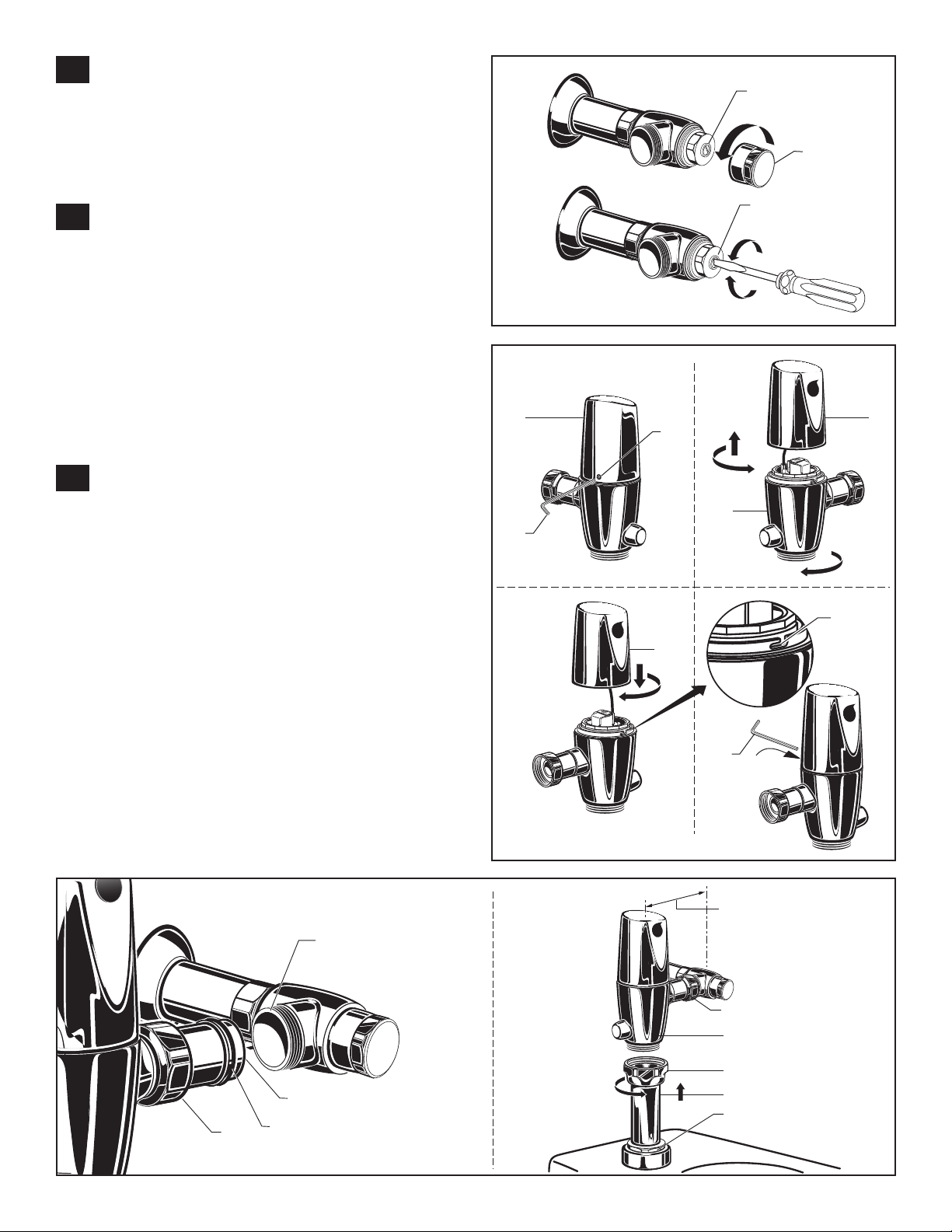

4FLUSH OUT SUPPLY LINES; Fig. 6

1. Remove STOP VALVE COVER (1) from STOP VALVE (2).

2. Open STOP VALVE (2) with a at blade screwdriver.

3. Tu r n on water supply to ush line of any debris or sediment.

4. Close STOP VALVE (2) and replace STOP VALVE COVER (1).

5LEFT OR RIGHT HAND

INSTALLATION; Fig. 7

The unit is shipped with adjustable tailpiece on the

right side. If needed, the orientation can be modied

by following the steps below.

1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (4)

in back of FLUSH VALVE COVER (2).

2. Rotate FLUSH VALVE COVER (2) to the right and pull off.

3. Rotate FLUSH VALVE BODY (3) 180˚.

4. Replace COVER (2) and rotate until key engages.

Tighten SET SCREW (1).

6INSTALL FLUSH VALVE; Fig. 8, 8a

1. Insert ADJUSTABLE TAILPIECE (1) into the STOP

VALVE (2). Lubricate the O-RING (3) with water if

necessary. Lightly tighten COUPLING NUT (4). Fig. 8.

Important: Do not use lubricants (other than water) or

any type of thread sealing paste or tape

2. Align the FLUSH VALVE BODY (5) directly above the

VACUUM BREAKER TUBE (7) and VACUUM BREAKER

COUPLING NUT (6). Fig. 8a.

Note: There is a +13mm, -6mm (+1/2, -1/4) tolerance for

the 121mm (4-3/4) dimension. Fig. 8a.

3. Pull the VACUUM BREAKER TUBE (7) up to meet the

threaded FLUSH VALVE BODY (5), hand tighten the

VACUUM BREAKER COUPLING NUT (6). Align all

components of the ush valve assembly. Fig. 8a.

4. Lightly tighten the COUPLING NUT (4) connection rst,

then the VACUUM BREAKER COUPLING NUT (6) and

nally the SPUD COUPLING NUT (8). Once alligned

correctly, use a wrench to tighten couplings to make

water tight connections. Fig. 8a.

CLOCKWISE CLOSES

STOP VALVE

COUNTER-CLOCKWISE

OPENS STOP VALVE

REMOVE COVER

Fig. 6 2

Fig. 7

KEY

180˚

121mm,+13mm, -6mm

(4-3/4)(+1/2, -1/4)

Fig. 8 Fig. 8a

7M965646 REV. 1.9 (9/18)

AADJUST STOP VALVE; Fig. 9

IMPORTANT: To avoid overowing, the STOP VALVE (3)

must never be opened to the point where the ow from

the valve exceeds the ow capacity of the xture.

1. After installation is complete, peel off the PROTECTIVE

FILM (1) from the sensor. Standing to one side, block the

sensor with your hand for 10 seconds. Remove your hand

and listen for audible “click” from within the valve.

2. Remove STOP VALVE COVER (2) from STOP VALVE (3).

Turn on water supply 1/4 turn to 1/2 turn(CCW) and test

for leaks.

Note: Unit may ush for approximately 5 to 10 sec.

when water is rst turned on. If ow persists, turn

water off and repeat step #1 above.

3. Actuate the FLUSH VALVE:

A) Cover sensor with hand for 10 seconds.

NOTE: Stand outside of sensor detection area.

B) Remove hand from in front of the sensor; unit will ush

in approximately 3 seconds.

4. Adjust STOP VALVE (3) after each ush until the stated

ush volume is achieved, no splashing occurs and the

xture is properly cleansed.

5. When adjustment is complete, replace STOP VALVE

COVER (2) and tighten to ensure vandal-resistance.

BRETROFITING WITH SELECTRONIC

VALVE; Fig. 10

(Replaces Industry Standard Manual and

Electronic Valves)

Note: In most Retrots the wall escutcheon, stop valve,

cover tube and vacuum breaker do not have to be

replaced. If these items do need replacement they must

be purchased separately or order the complete ush

valve assembly from American Standard.

1. Remove STOP VALVE COVER (1) from STOP VALVE (2).

2. Tu r n water supply off.

3. Loosen SPUD COUPLING NUT (3). Unthread COUPLING

NUT (4) and VACUUM BREAKER COUPLING NUT (5).

Remove FLUSH VALVE (6).

4. Clean all threaded connections before installing the new

ush valve.

5. Refer to Sections 4, 5 and 6to complete the retrot

installation.

Fig. 9

REMOVE COVER

CLOCKWISE CLOSES

STOP VALVE

COUNTER-CLOCKWISE

OPENS STOP VALVE

MAINTENANCE

CLEAN

CONNECTIONS

Fig. 10

8M965646 REV. 1.9 (9/18)

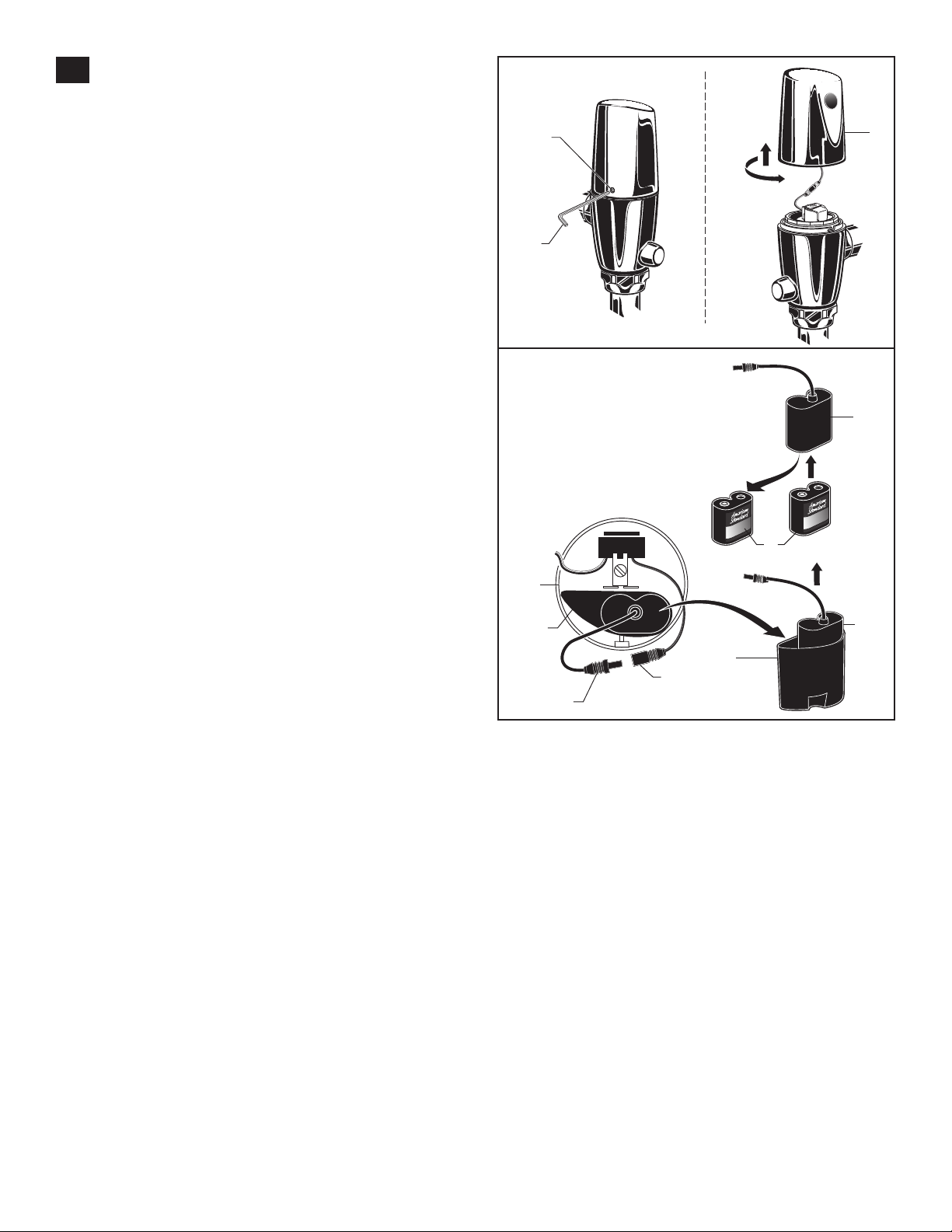

CREPLACE BATTERY; Fig. 11, 11a

1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (2) in

back of FLUSH VALVE COVER (3). Fig. 11.

2. Rotate COVER (3) to the right and pull off. Fig. 11.

3. Tu r n COVER (3) over and disconnect the SENSOR (4)

from the BATTERY HOLDER (5). Remove the BATTERY

CONTAINER (6) with BATTERY HOLDER (5) and

BATTERY (7) inside. Fig. 11a.

4. Remove BATTERY HOLDER (5) from BATTERY

CONTAINER (6). Fig. 11a.

5. Remove old BATTERY from BATTERY HOLDER (5).

Install the new BATTERY (7) making sure the shape

of the BATTERY follows the shape of the BATTERY

HOLDER (5). Fig. 11a.

6. Insert BATTERY HOLDER (5) with BATTERY into

BATTERY CONTAINER (6). Instert BATTERY

CONTAINER (6) into ush valve COVER (3). Fig. 11a.

7. Connect BATTERY HOLDER (5) to SENSOR (4) and

reverse the above steps to assemble ush valve. Fig. 11a.

Fig. 11

Fig. 11a

Fig. 11b

REMOVE OLD

BATTERY

REMOVE

BATTERY

HOLDER

INSTALL

NEW

BATTERY

CR-P2

REMOVE OLD

LONG LIFE

POWER PACK

LONG LIFE POWER PACK

STANDARD BATTERY

INSTALL NEW

LONG LIFE

POWER PACK

9M965646 REV. 1.9 (9/18)

Fig. 13

VIEW “A”

STANDARD BATTERY

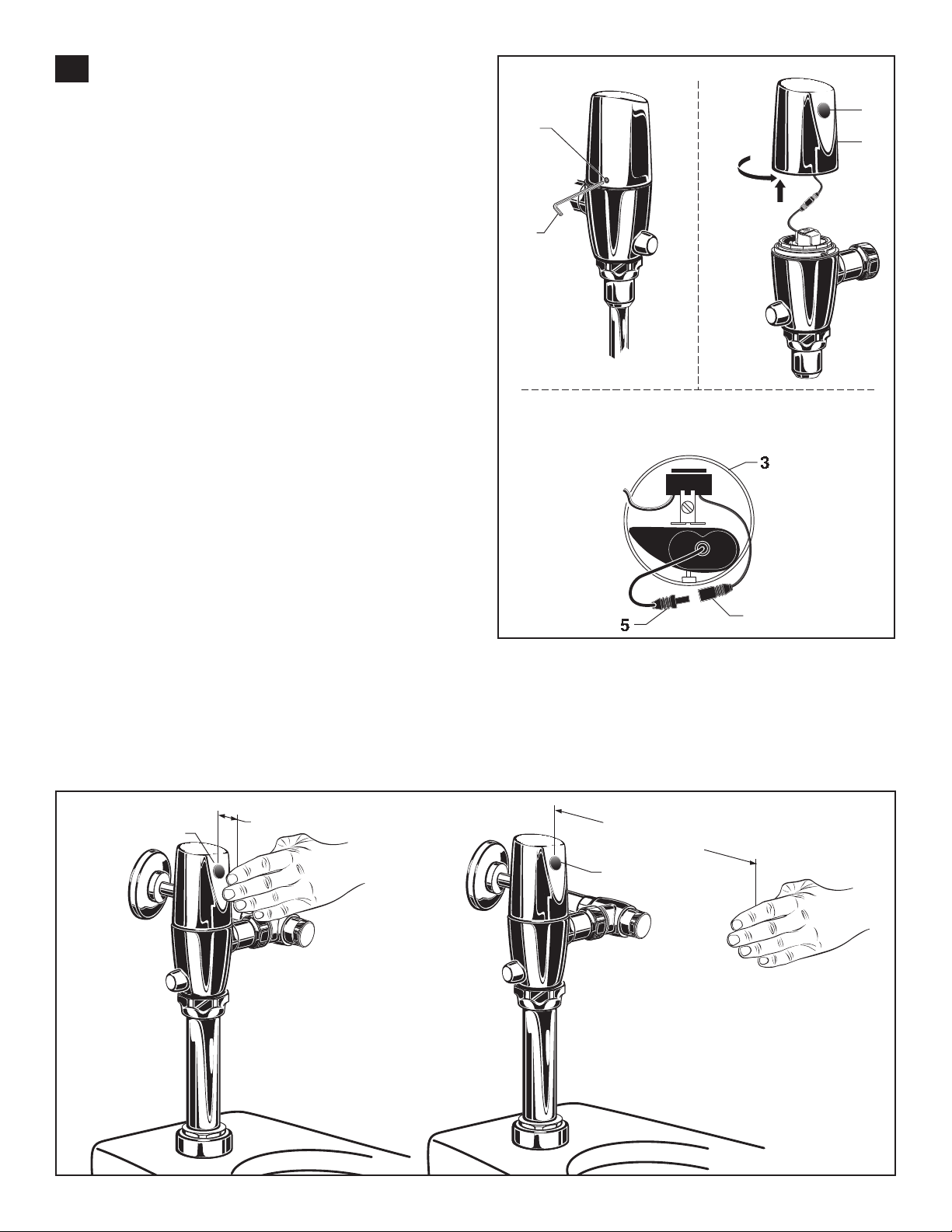

DSET DETECTION RANGE

(If Required); Fig. 13 y 14

Note: The detection distance is preset and ideal for most

installations. Should an adjustment be required, follow

the steps below.

1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (2) in

back of FLUSH VALVE COVER (3). Fig. 13a.

2. Rotate COVER (3) to the right and pull off. Fig. 13b.

3. Tu r n COVER (3) over and disconnect CABLE (4) from

BATTERY HOLDER (5). Fig. 13.

4. Keeping hands away from the sensor detection area,

reconnect the SENSOR (4) and quickly place the COVER

(3) on the valve. Do not secure the COVER (3) at this time.

Note: You have 5 seconds to begin entering the program

code after power connection is made.

5. While the SENSOR CONTROL LED (1) is blinking slowly,

place your hand 1 to 2 in. (30-50mm.) in front of the sensor.

Fig. 14.

6. When the LED (1) stops blinking and stays “ON”, move your

hand to the desired position and hold in place until the LED

(1) begins to blink again. Fig. 14.

Note: Detection Zone is 400mm - 800mm.

(Factory Setting: 400mm)

7. Once the SENSOR CONTROL LED (1) begins to blink

again, remove your hand from the detection zone.

When the ashing stops, the detection distance is set.

8. Replace and secure COVER (3) onto valve.

9. Actuate the FLUSH VALVE:

A) Cover sensor with hand for 10 seconds.

NOTE: Stand outside of sensor detection area.

B) Remove hand from in front of the sensor; unit will

ush in approximately 3 seconds.

1" - 2" (30mm - 50mm

BLINKING LED

Fig. 14

DETECTION ZONE

400mm TO 800mm

(Factory Setting: 400mm)

TROUBLESHOOTING FLOW CHARTS

NNOO

YYEESS

NNOO

YYEESS

NNOO

YYEESS

NNOO

YYEESS

NNOO

UNIT DOES NOT FUNCTION

NNOO

YYEESS

NNOO

YYEESS

UNIT WILL ONLY FLUSH MANUALLY

YYEESS

NNOO

YYEESS

UNIT IS CONTINUOUSLY FLUSHING

OPEN VALVE

CRITICALLY LOW BATTERY . INSTALL

NEW BATTERY

DEAD BATTERY. INSTALL NEW

BATTERY. REPEAT.

DAMAGED SENSOR WIRE. REPLACE

SENSOR. (ONLY IF ABSOLUTELY NEEDED)

DAMAGED SOLENOID. REPLACE

SOLENOID

DAMAGED MANUAL OVERRIDE

BUTTON. REPLACE MANUAL

OVERRIDE BUTTON

DEAD BATTERY. INSTALL NEW

BATTERY. REPEAT.

DAMAGED SENSOR WIRES. REPLACE

SENSOR. (ONLY IF ABSOLUTELY NEEDED)

DAMAGED SENSOR WIRES. REPLACE

SENSOR. (ONLY IF ABSOLUTELY NEEDED)

CRITICALLY LOW BATETRY. INSTALL

NEW BATTERY

IS ANGLE STOP OPEN?

REPEATED DOUBLE

FLASH ON SENSOR?

RECONNECT BATTERY TO SENSOR.

FLASH ON SENSOR FOR 5

SECONDS?

PUSH MANUAL OVERRIDE

BUTTON; WILL THE UNIT FLUSH?

REPLACE PISTON ASSEMBLY.

CLOSE ANGLE STOP AND OPEN

AGAIN TO PRIME THE VALVE.

DOES FLUSHING STOP?

PUSH MANUAL OVERRIDE

BUTTON. DOES IT RETURN TO ITS

ORIGINAL POSITION FREELY?

RECONNECT BATTERY TO SENSOR.

FLASH ON SENSOR FOR 5

SECONDS?

REPLACE PISTON & SOLENOID

ASSEMBLY.

REPEATED DOUBLE

FLASH ON SENSOR?

RECONNECT BATTERY TO SENSOR.

FLASH ON SENSOR FOR 5

SECONDS?

REPLACE SOLENOID.

DEAD BATTERY. INSTALL NEW

BATTERY. REPEAT.

HOT LINE FOR HELP

For toll-free information and answers to your questions, call:

(844) CRT-TEAM / (844) 278-8326

IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

Weekdays 8:00 a.m. to 7:00 p.m. EST

IN MEXICO 01-800-839-1200

To learn more about American Standard Selectronic® Products visit our website at:

www.americanstandard-us.com or e-mail us at: [email protected]

Mon. - Fri. 8:00 a.m. to 8:00 p.m. EST Saturday 10:00 a.m. to 4:00 p.m. EST

M965646 REV. 1.9 (9/18)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Standard Unità di controllo

American Standard

American Standard Ultima 6147SM Manuale utente

American Standard

American Standard BORNEO Manuale utente

American Standard

American Standard 6047.8 Series Manuale utente

American Standard

American Standard R910 Flash Manuale utente

American Standard

American Standard R127 Manuale utente

American Standard

American Standard Selectronic 606B.X10 Manuale utente

American Standard

American Standard SELECTRONIC 605XTMV1070 Manuale utente

American Standard

American Standard Ultima 6145SM Manuale utente

American Standard

American Standard R129 Manuale utente

American Standard

American Standard SELECTRONIC 6067.111 Manuale utente

American Standard

American Standard ACONT401AN21MA Manuale utente

American Standard

American Standard 7017 Series Manuale utente

American Standard

American Standard SELECTRONIC 6590.525 Manuale utente

American Standard

American Standard Ultima 6045.051 Manuale utente

American Standard

American Standard SELECTRONIC 606B.111 Manuale utente

American Standard

American Standard 6047.800 Manuale utente

American Standard

American Standard 6045.101 Manuale utente

American Standard

American Standard SELECTRONIC 6066.111 Manuale utente

American Standard

American Standard R111 Manuale utente

American Standard

American Standard 50A65-475 Manuale utente

American Standard

American Standard BAYSPEK047A Istruzioni per il montaggio

American Standard

American Standard Ultima Selectronic 6064.013 Manuale utente

American Standard

American Standard R110 Manuale utente

American Standard

American Standard AccuLink Platinum 1050 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
