American Time Wi-Fi Clocks Manuale utente

Wi-Fi Installation Manual

Installation and Operation Manual

Part # H004768

Rev. 1

January 2014

Wi-Fi Clocks

Wi-Fi Installation Manual

Safety Precautions

The Wi-Fi clock(s) should be installed in a secure location protected from:

—Physical damage

—Water, including condensation

Operation of this product in a manner inconsistent with the instructions in the manual may result in damage to the product and

will void the warranty.

Wi-Fi Installation Manual

Table of Contents

Introduction ..............................................................................................................................................................................4

Specifications ...........................................................................................................................................................................5

Installation................................................................................................................................................................................6

Button operation.......................................................................................................................................................................7

Conguration............................................................................................................................................................................8

Limited Access Point Mode ................................................................................................................................................8

Clock .................................................................................................................................................................................9

Wi-Fi................................................................................................................................................................................10

Administrator Settings......................................................................................................................................................14

Homing clock (check hand position) ........................................................................................................................................15

Firmware update.....................................................................................................................................................................16

Factory Defaults restore..........................................................................................................................................................17

Troubleshooting ......................................................................................................................................................................18

Appendix A - SNTP Time Servers ............................................................................................................................................19

Appendix B- Supported Time Zones........................................................................................................................................20

American Time

140 3rd Street South

PO Box 707

Dassel, MN 55325-0707

Phone: 866 -748-3796

Fax: 800-789-1882

atsclock.com

Wi-Fi Installation Manual

Introduction

Appendix Troubleshooting

ConfigurationHoming ClockFirmware

Update

Factory Defaults

Restore

Button

Operation

Installation IntroductionSpecifications

Wi-Fi is a popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio

waves. Wi-Fi and Simple Network Time Protocol (SNTP) are used to make installation and setup as simple as possible. All you

need to do is power your precongured clock in an area where the intended wireless local area network (WLAN) signal strength

is sufficient.

Each Wi-Fi clock is factory-congured to receive the precise time signal from your network time server. They also automatically

correct for the Daylight Saving Time changes and require no maintenance for up to 5+ years. These Wi-Fi clocks only require

synchronization twice per day using SNTP and create very little network traffic.

Network

These precongured Wi-Fi Clocks are plug and play on networks with Dynamic Hosting Conguration Protocol (DHCP). A limited

access point mode is also available for clocks that are not precongured at American Time as recommended.

Wi-Fi Installation Manual Specifications

AppendixTroubleshooting

Configuration Homing Clock Firmware

Update

Factory Defaults

Restore

Button

Operation

InstallationIntroduction Specifications

Optional Product:

Security Bracket (part number varies by size)

Features

• Up to 5 years battery life using AA Lithium batteries

• Supports 2 SNTP servers for redundancy

• 802.11b (802.11b/g/n compatible); Rates Supported: 11, 5.5, 2 and 1 Mbps (CCK/QPSK/BPSK Modulation); Wireless security

using WEP and WPA/WPA2 (AES and TKIP)

• DHCP or Static IP addressing

• Limited Access point operation for configuration

• Clocks may be precongured (SSID, Passphrase, time zone, time servers) for plug-n-play installation

• Status LED

• Staggered wake times for reduced network load

• Wi-Fi Alliance Radio/FCC/ICC certified

• RoHS Compliant

Specifications

Dimensions: Varies by model

Weight: Varies by model

Operating Humidity: 0% to 95%, non-condensing

Operating Temperature: 41˚F to 131˚F

Storage Temperature: 41˚F to 131˚F

Accuracy: ±1 second

Wi-Fi Installation Manual

Clock Installation

Appendix Troubleshooting

ConfigurationHoming ClockFirmware

Update

Factory Defaults

Restore

Button

Operation

Installation IntroductionSpecifications

Before installing verify:

• Dynamic Host Conguration Protocol (DHCP) settings

• Firewall port 123 is open for UDP data

• Good Wi-Fi coverage at intended installation location.

• Green gear locking pin (A) is removed from the movement

1. Adjustments/Conguration via limited access Point mode

If clock was precongured at American Time as recommended, skip to step 2.

Otherwise, refer to Button Operation and Conguration (Limited Access Point mode) sections to congure clock manually.

2. Apply power to the clock by inserting the barrel plug (C) of the battery pack into the left side of the Wi-Fi module where the

power connection is located.

nNote: If green gear locking pin (A) has not been removed, remove it prior to applying power.

i. Verify the LED (B):

1. Flashes red when power is applied to the clock.

2. Flashes green within 60 seconds.

3. Green ash stops within 120 seconds.

ii. Verify the clocks hands begin to spin rapidly within 6 minutes after applying power.

iii. Verify the correct time on the clock within 20 minutes of applying power.

3. Place the clock on the wall using the hanger on the back of the clock or the optional security bracket (sold separately).

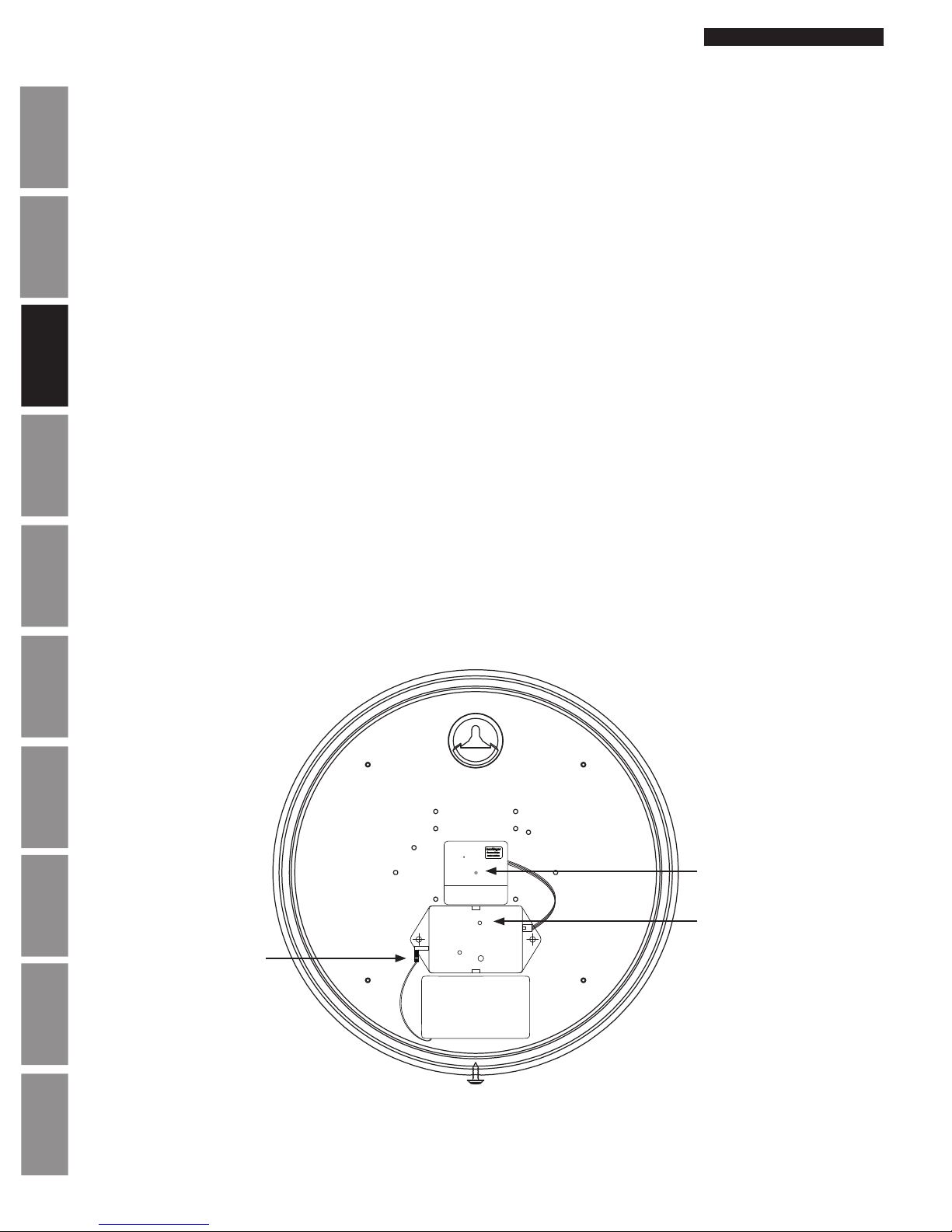

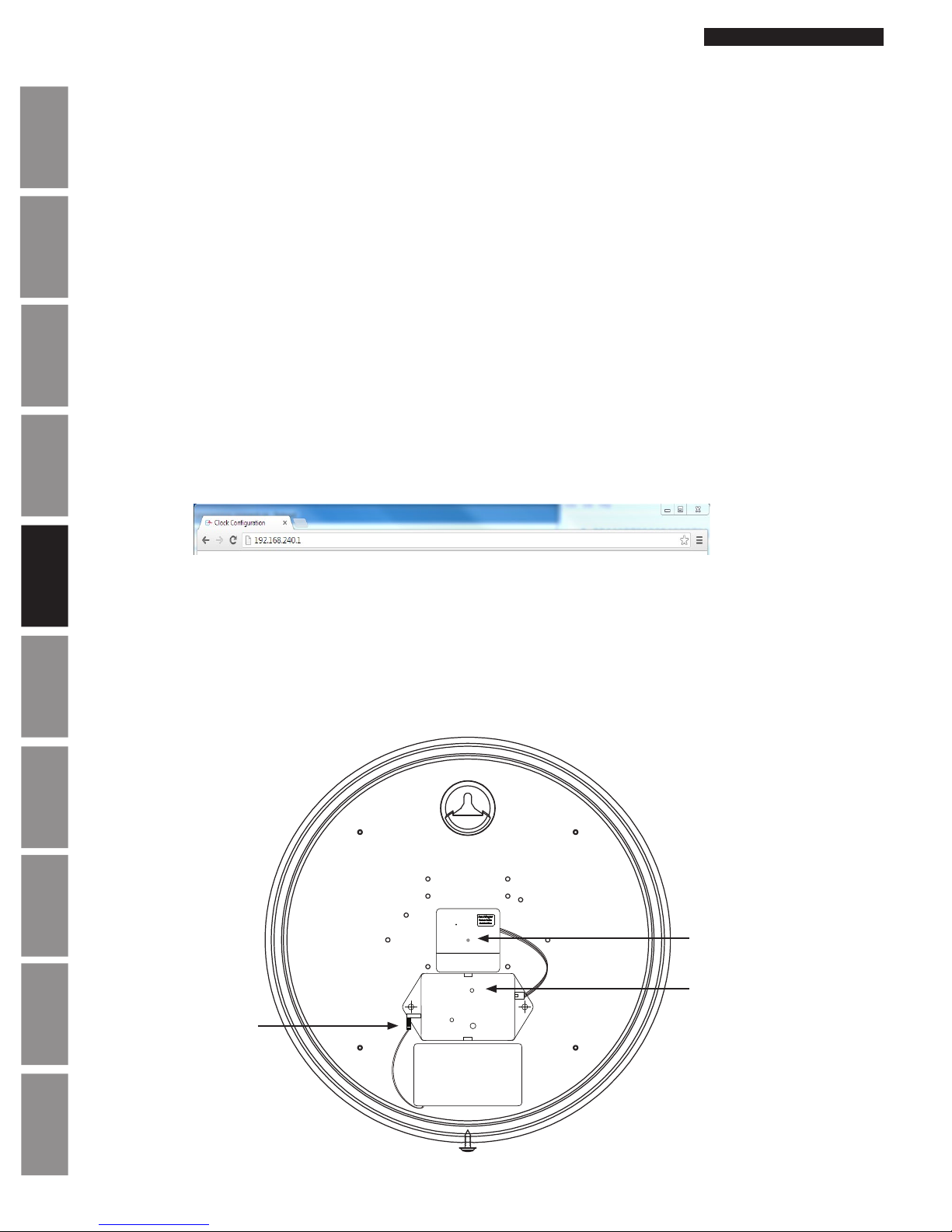

A - Green gear

locking pin

C - Battery pack

power input

B - LED

Wi-Fi Installation Manual Button Operation

AppendixTroubleshooting

Configuration Homing Clock Firmware

Update

Factory Defaults

Restore

Button

Operation

InstallationIntroduction Specifications

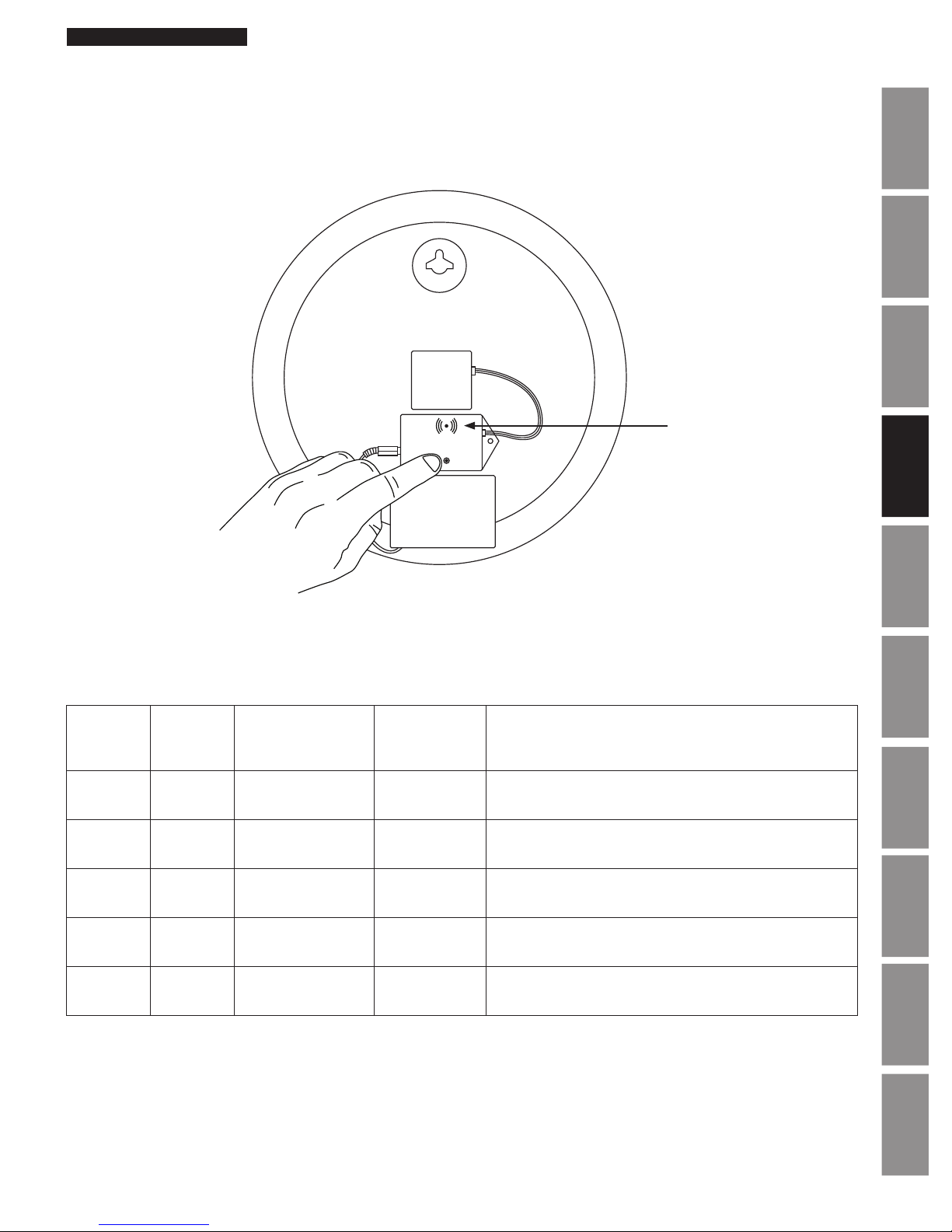

A recessed push button is located in the lower central part of the Wi-Fi module. It can be used to initiate 4 different operations:

1. Conguration (via Limited Access Point) .

2. Clock homing (sending clock hands to 12 O’clock).

3. Firmware updates (internet access is required).

4. Factory defaults restore (restores to the conguration that the clock was shipped).

Each operation is proceeded by a number of orange ashes. If the button is released after the operational ash count (see list

below) it will attempt the specic operation listed.

Orange

LED Flash

Count

Button

Press

Duration Operation LED Indication Description

0< 1 second Wi-Fi Module Sleep OFF Wi-Fi module will immediately go back to sleep

1 - 5

seconds Conguration Solid RED

Wi-Fi Limited Access Point is available for clock and Wi-

Fi conguration

5-10

seconds Clock Homing

Flash GREEN/

ORANGE

Send clock hands to 12 O'clock position then stop until

power is reset

10-15

seconds Firmware Update

Flash GREEN/

RED Update the rmware from the internet (port 80)

15+

seconds

Factory Defaults

Restore

Flash ORANGE/

RED Reset conguration to factory settings

LED

Wi-Fi Installation Manual

Conguration (Limited Access Point Mode)

Appendix Troubleshooting

ConfigurationHoming ClockFirmware

Update

Factory Defaults

Restore

Button

Operation

Installation IntroductionSpecifications

The clock will act as a limited access point for direct Wi-Fi communication to complete conguration. After connecting to the

clock with a wireless device it can be congured with a web browser.

nNote: If your clock was precongured by American Time this process is unneeded unless changes are required.

To enter conguration (limited access point mode) complete the following process:

Apply power to Wi-Fi module by inserting the barrel plug (C) of the battery pack into the left side of the Wi-Fi module where the

power connection is located.

nNote: If green gear locking pin (A) has not been removed, remove it prior to applying power.

1. Verify the LED (B) starts ashing red.

2. Press and hold the button located on the middle of the Wi-Fi module.

a. The LED (B) should turn solid green to indicated the button press (continue holding the button).

b. Wait for the LED (B) to ash orange one time. This will take about 2 seconds (additional ashes indicate other modes).

3. Release the button.

a. Verify the LED (B) turns solid red indicating Limited Access Point mode is active.

4. Connect to the clock with a Wi-Fi enabled device (SSID will show up as AT_Prov_xxxxxx under available wireless

networks, where xxxxxx is the last 6 digits of the mac address.

5. Enter 192.168.240.1 into the URL of a web browser of the Wi-Fi enabled device.

6. Refer to Clock Conguration (page 9) to congure clock settings and Wi-Fi Conguration (page 10) to congure Wi-Fi

settings.

7. When adjustments/conguration are complete, the LED (B) should begin ashing again.

8. Disconnect power from the Wi-Fi module by disconnecting the barrel plug (C) of the battery pack from the left side of the

Wi-Fi module where the power connection is located.

nNote: Power should be applied at the intended installation location to verify good Wi-Fi coverage.

A - Green gear

locking pin

C - Battery pack

power input

B - LED

Wi-Fi Installation Manual Clock Configuration

AppendixTroubleshooting

Configuration Homing Clock Firmware

Update

Factory Defaults

Restore

Button

Operation

InstallationIntroduction Specifications

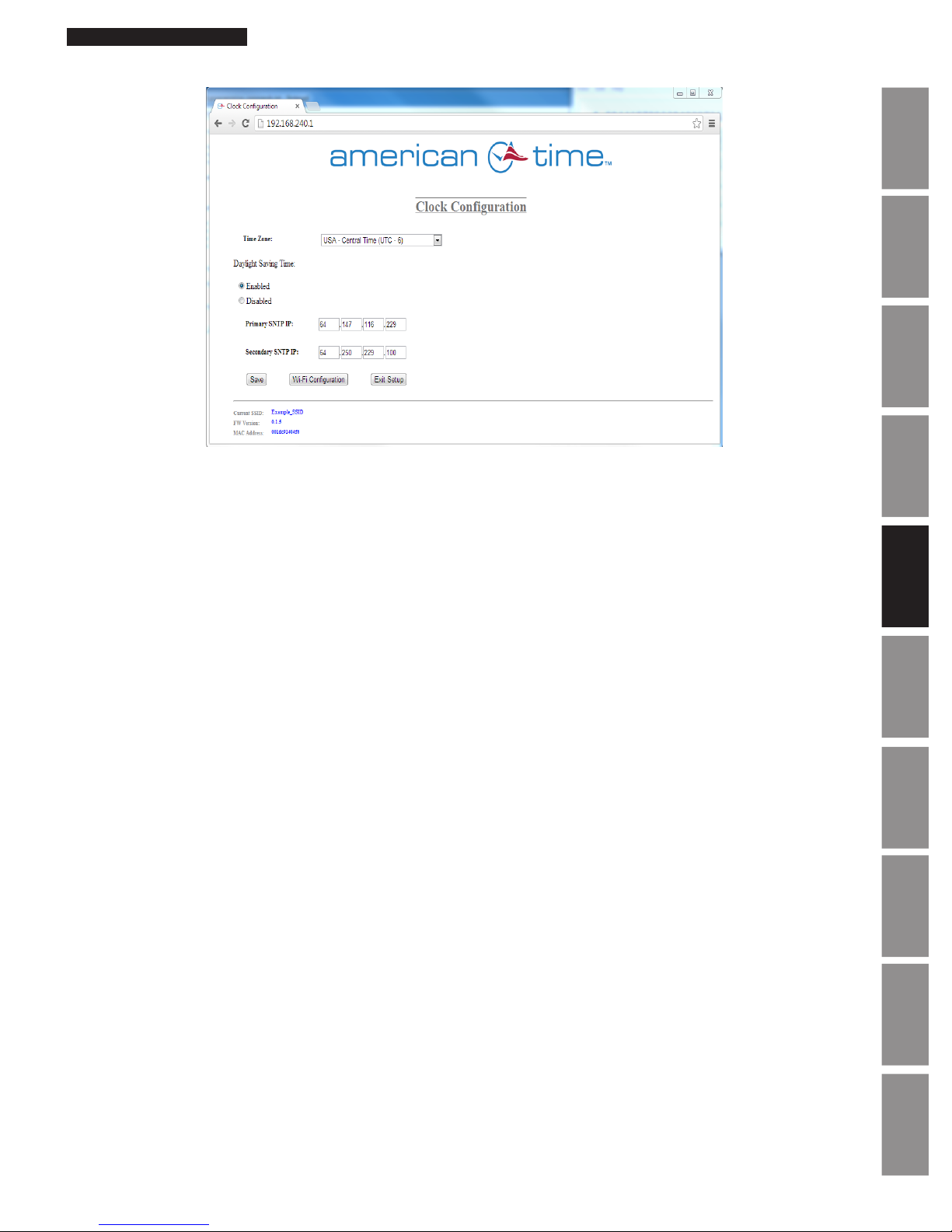

1. Time Zones – the Time Zone entry sets the time zone. Reference Appendix B for a list of all available time zone configurations.

2. Daylight Saving Time – When Daylight Saving Time is enabled United States Daylight Saving Time dates and bias are used.

3. Primary SNTP IP – This is the rst SNTP time server from which the Wi-Fi clock will receive time. This server will be attempted rst. If

it fails to provide a valid time the secondary server is tried next.

4. Secondary SNTP IP – This is the second SNTP time server from which the Wi-Fi clock will receive time. This server is attempted only

after the Primary SNTP server IP fails.

5. Save button – This button is used to save on screen settings.

6. Wi-Fi Conguration – This button moves to client settings menu page. Through the client settings menu page wireless network

conguration pages can also be reached.

7. Exit Setup – This button exits limited Access Point mode and returns to normal operation.

8. Current SSID – The current Service Set Identier (SSID) is the name of the wireless network the Wi-Fi clock will attempt to use if

left unchanged.

9. FW Version – The current rmware version used on the Wi-Fi clock.

10. MAC Address – The Media Access Control (MAC) address is a unique identier assigned to the Wi-Fi clock network hardware for

communications.

Wi-Fi Installation Manual

Wi-Fi Configuration

Appendix Troubleshooting

ConfigurationHoming ClockFirmware

Update

Factory Defaults

Restore

Button

Operation

Installation IntroductionSpecifications

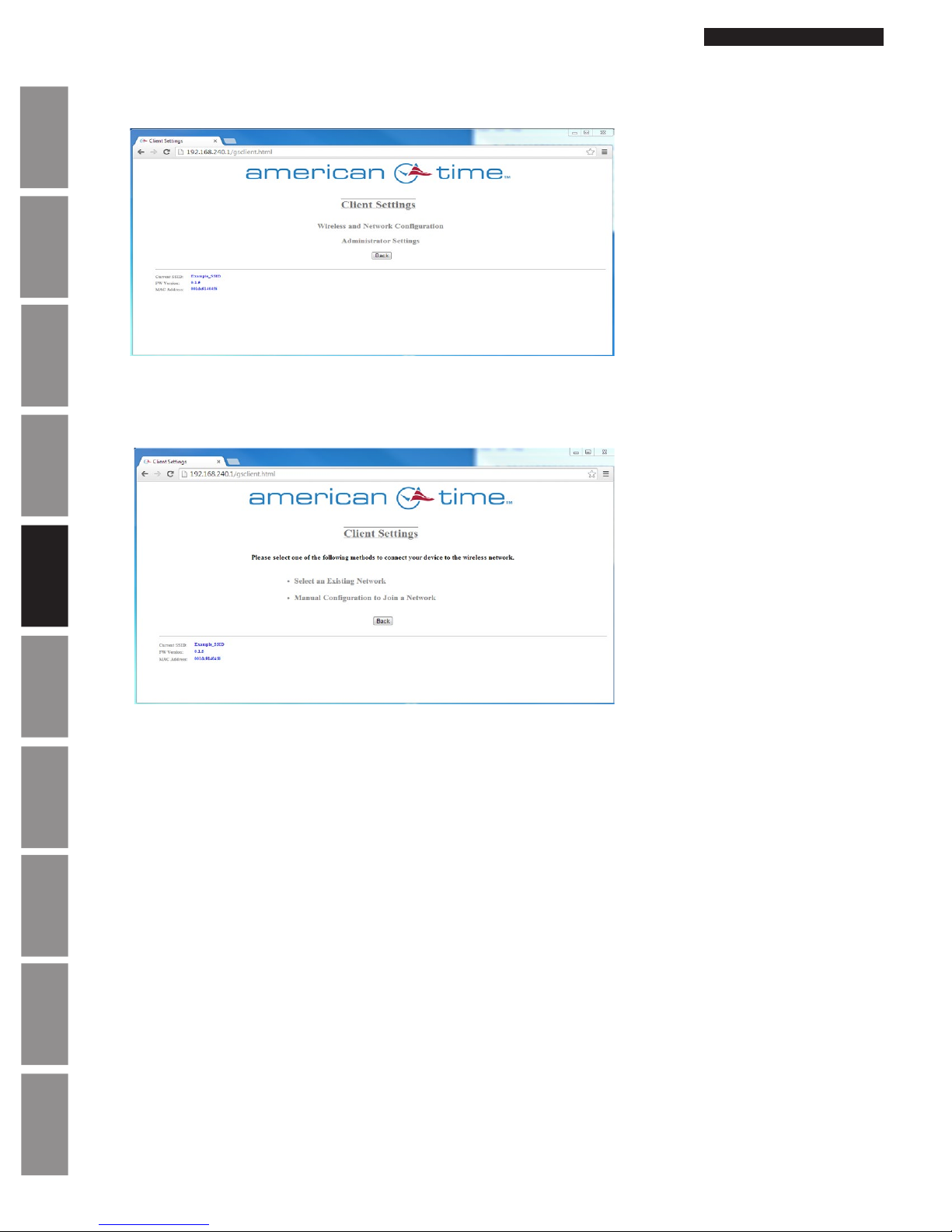

1. Click on “WiFi Conguration” button from clock conguration pages.

2. Click on “Wireless and Network conguration”.

3. Select Wi-Fi conguration entry method.

a. Click on “Select an Existing Network if beckon is active and available (this is normally the case) from

desired network. Go to page 11 if you select this option.

b. Click on “Manual Conguration to Join a Network” if beckon is not active or is unavailable. Go to page 13 if you

select this option.
