Ameriwood HOME 6048412COM Manuale utente

6048412COM

Fireplace / TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B346048412COM

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

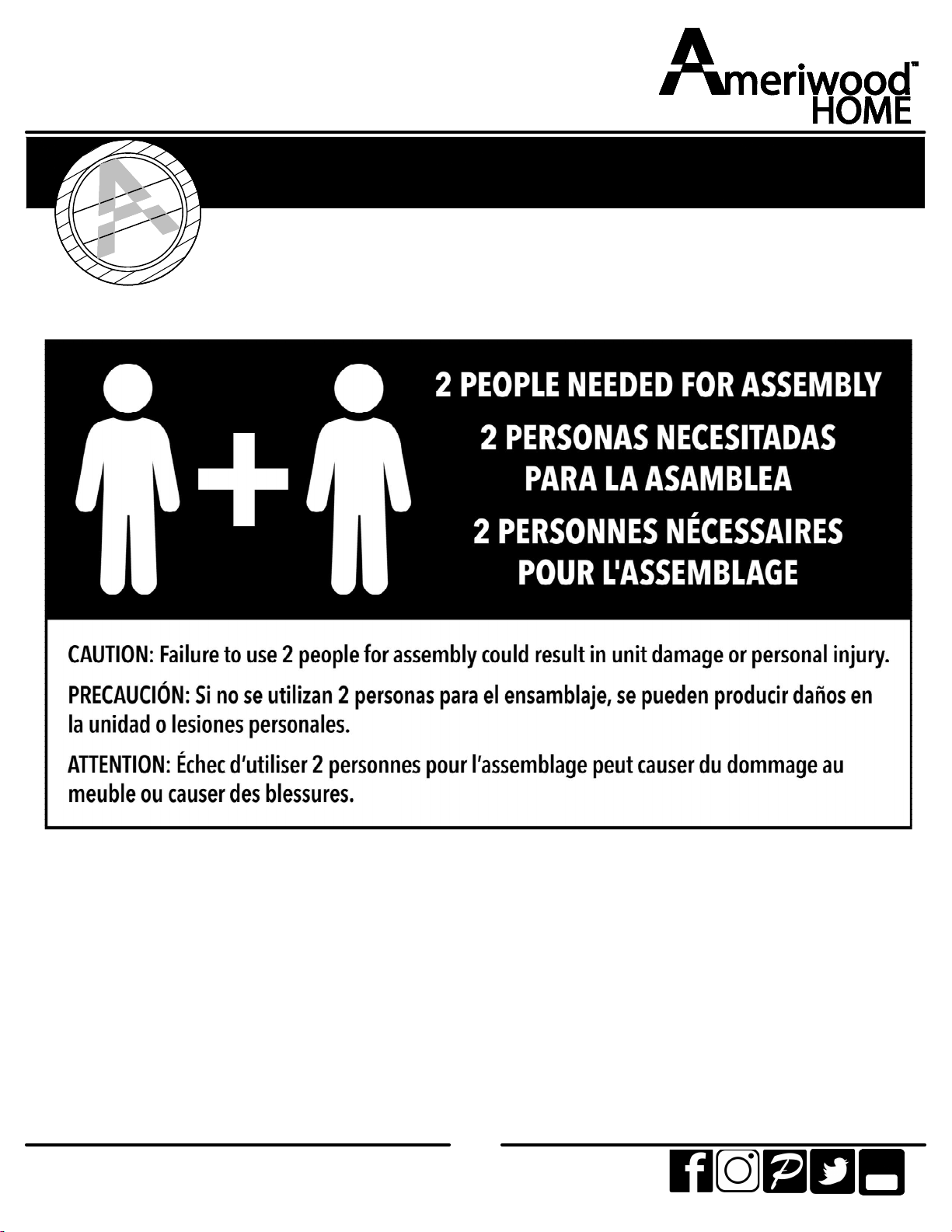

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

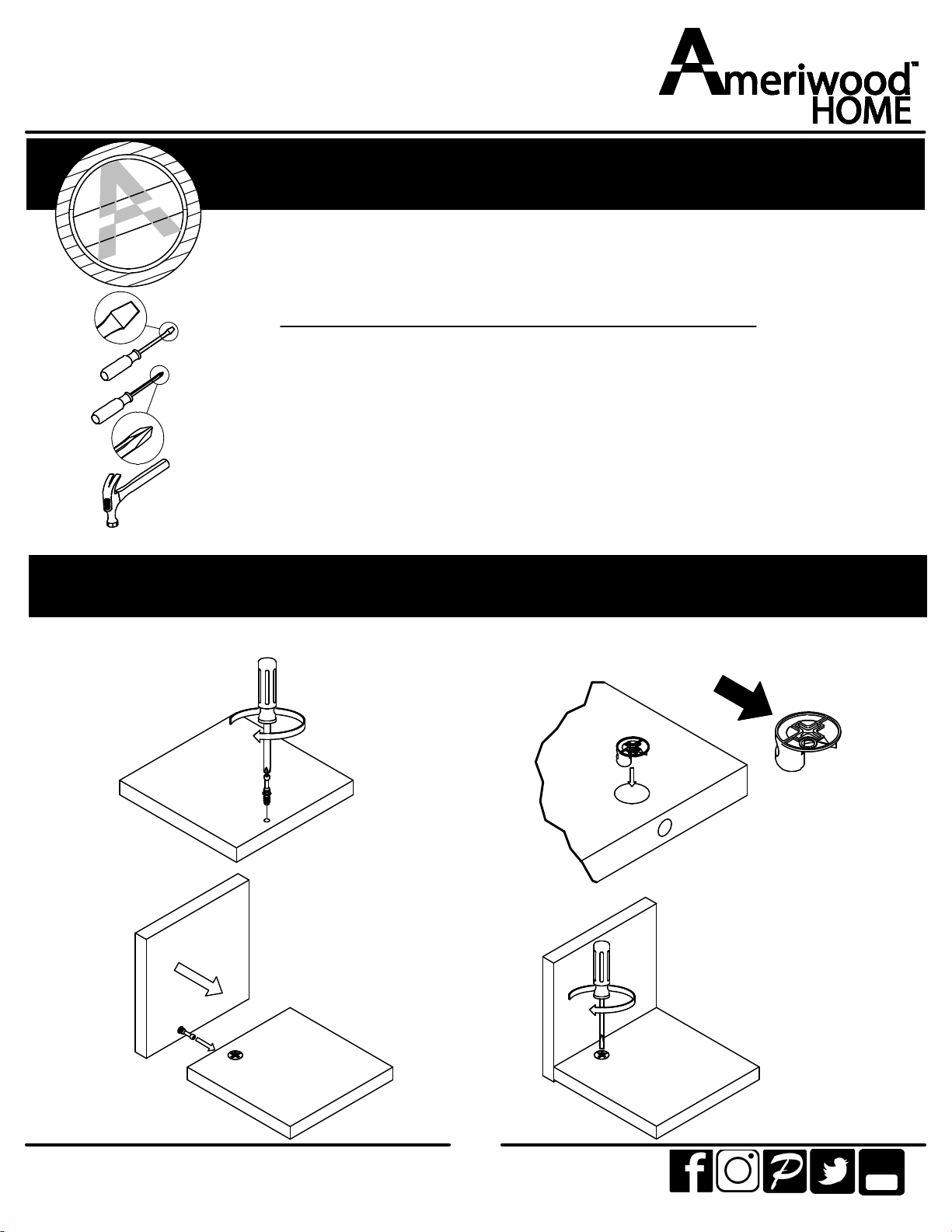

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Tube

You

ameriwoodhome.com

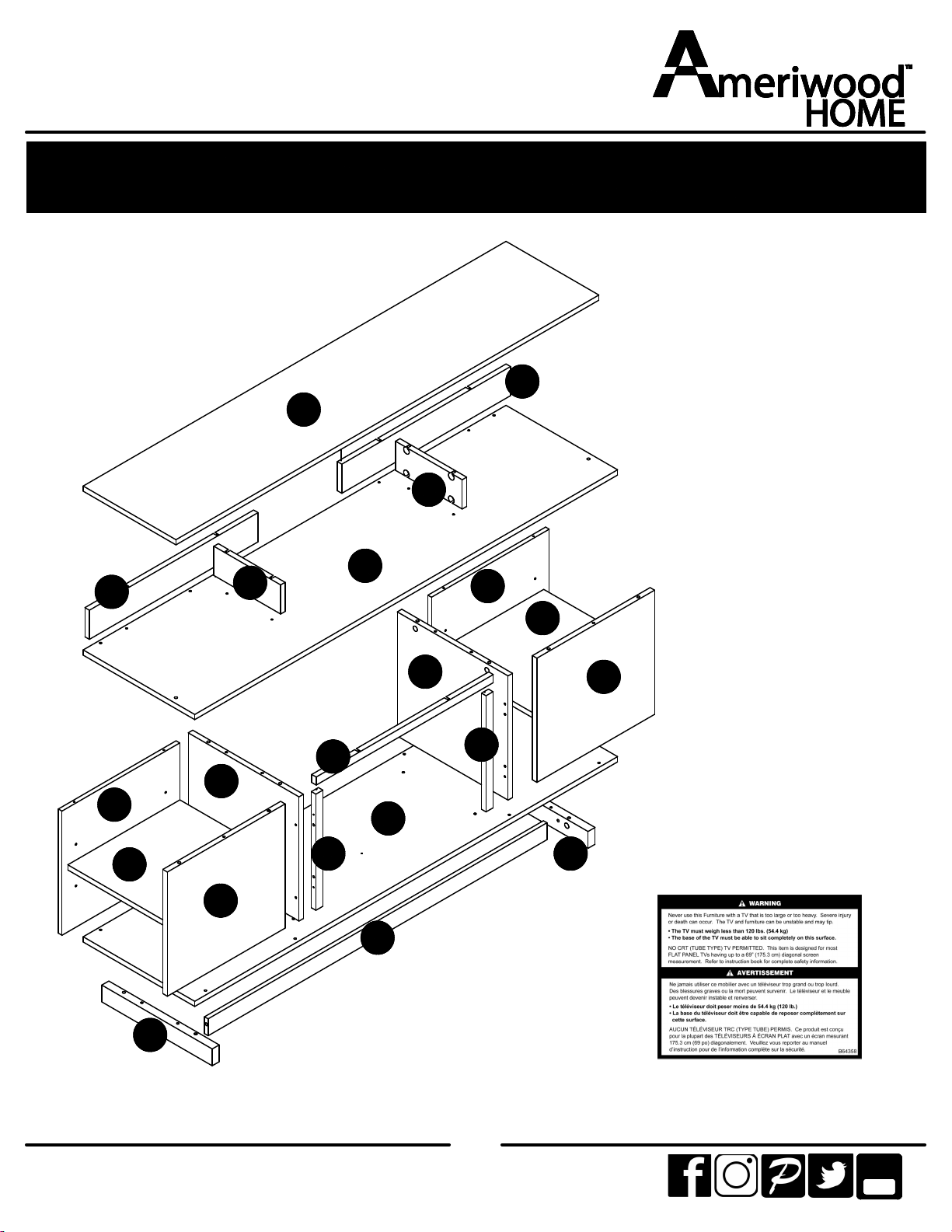

Board Identification

Not actual size

Tube

You

Left Partition

36048412010 Right Partition

36048412020 Front Panel (x2)

36048412030 Back Panel (x2)

36048412040

Bottom

36048412070

Top

36048412050 Shelf

36048412060

Upper Partition (x2)

36048412080

Bottom Support

36048056150

Horizontal Rail

36048412110

Front Rail (x2)

36048412120

ABCD

EFG

Upper Back Panel (x2)

36048412090

Adjustable Shelf (x2)

36048412100

LNO

Left Bottom Support

36048056130 Right Bottom Support

36048056140

ameriwoodhome.com

Board Identification

Tube

You

#B64358

TV warning label

ameriwoodhome.com

Part List

Actual Size

Tube

You

Not Actual Size

(x14)

#A22610

cam bolt

(x14)

#A22620

cam lock

(x14)

#A21670

wood dowel

(x18)

#A22920

connector

(x18)

#A22910

connector bolt

(x16)

#A23030

confirmat

(x8)

#A80250

shelf support

(x11)

#A12120

7/16" screw

(x3)

#A53510

angle bracket

(x2)

#A20360

insert nut

(x2)

#A19420

bolt

(x4)

#A13215

1-1/2" screw

(x2)

#A95340

metal tube

(x2)

#A20610

threaded rod

(x1)

#A53655

bracket

(x1)

#A95030

fireplace

(x1)

#A23110

hex key

ameriwoodhome.com

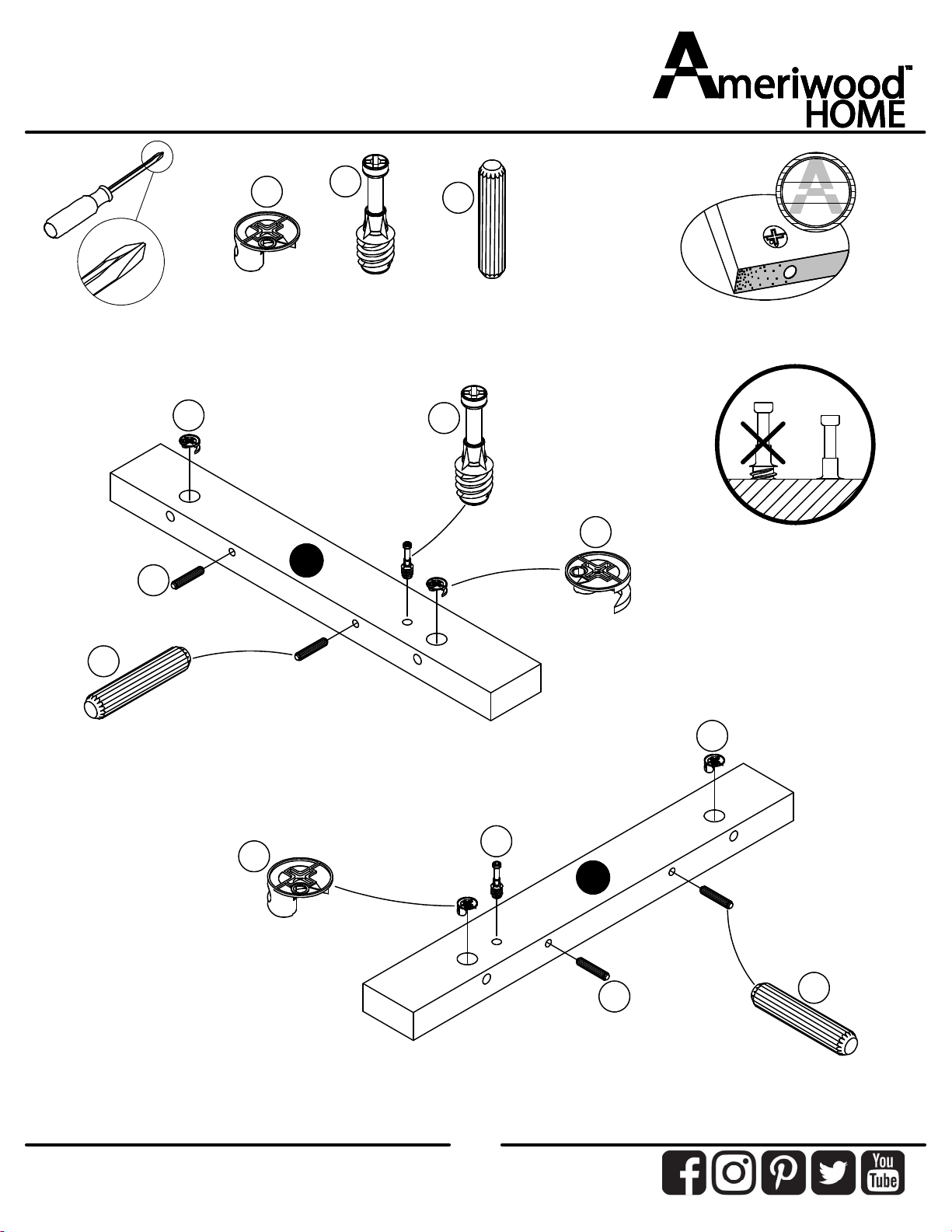

STEP1

(x4)

ameriwoodhome.com

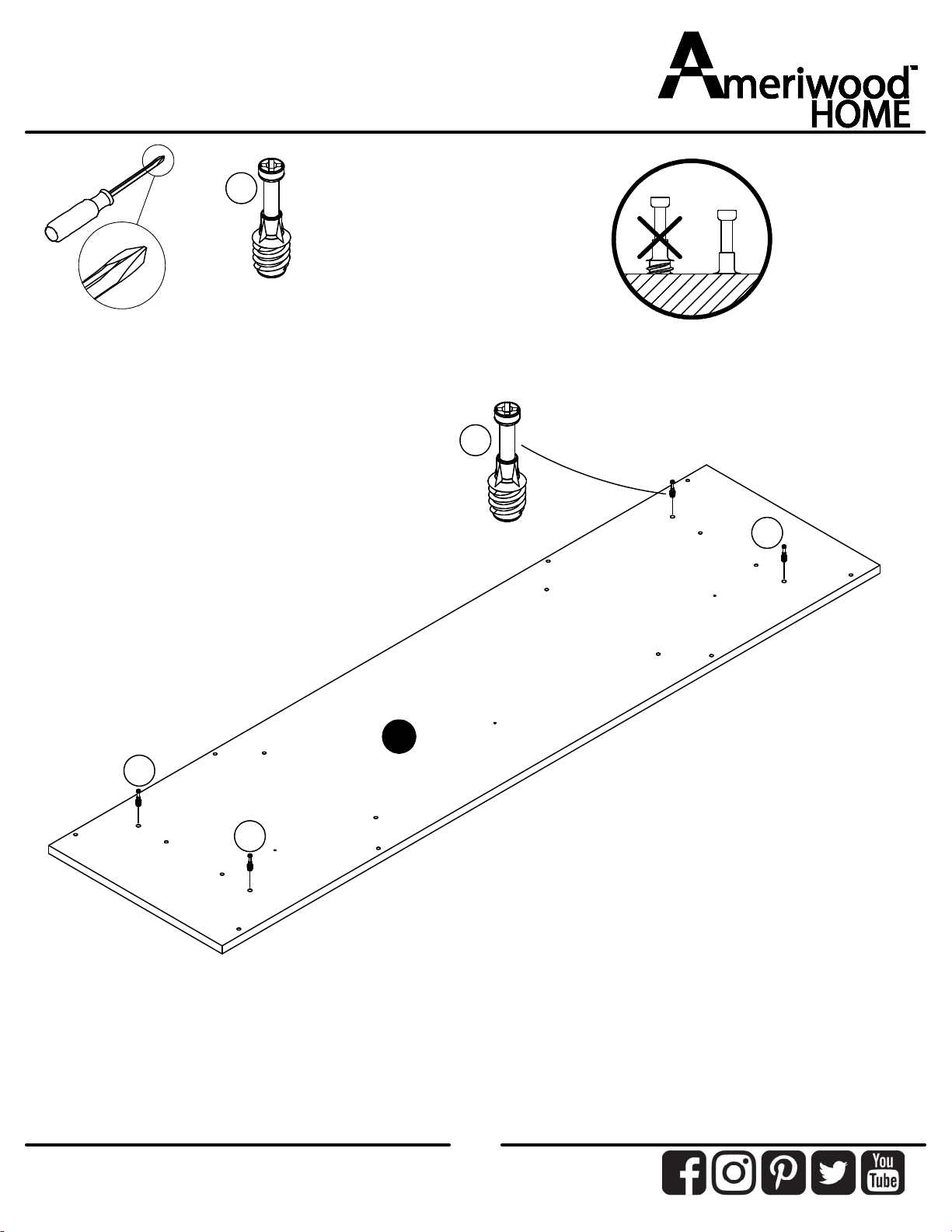

STEP2

(x2)

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4) (x4)

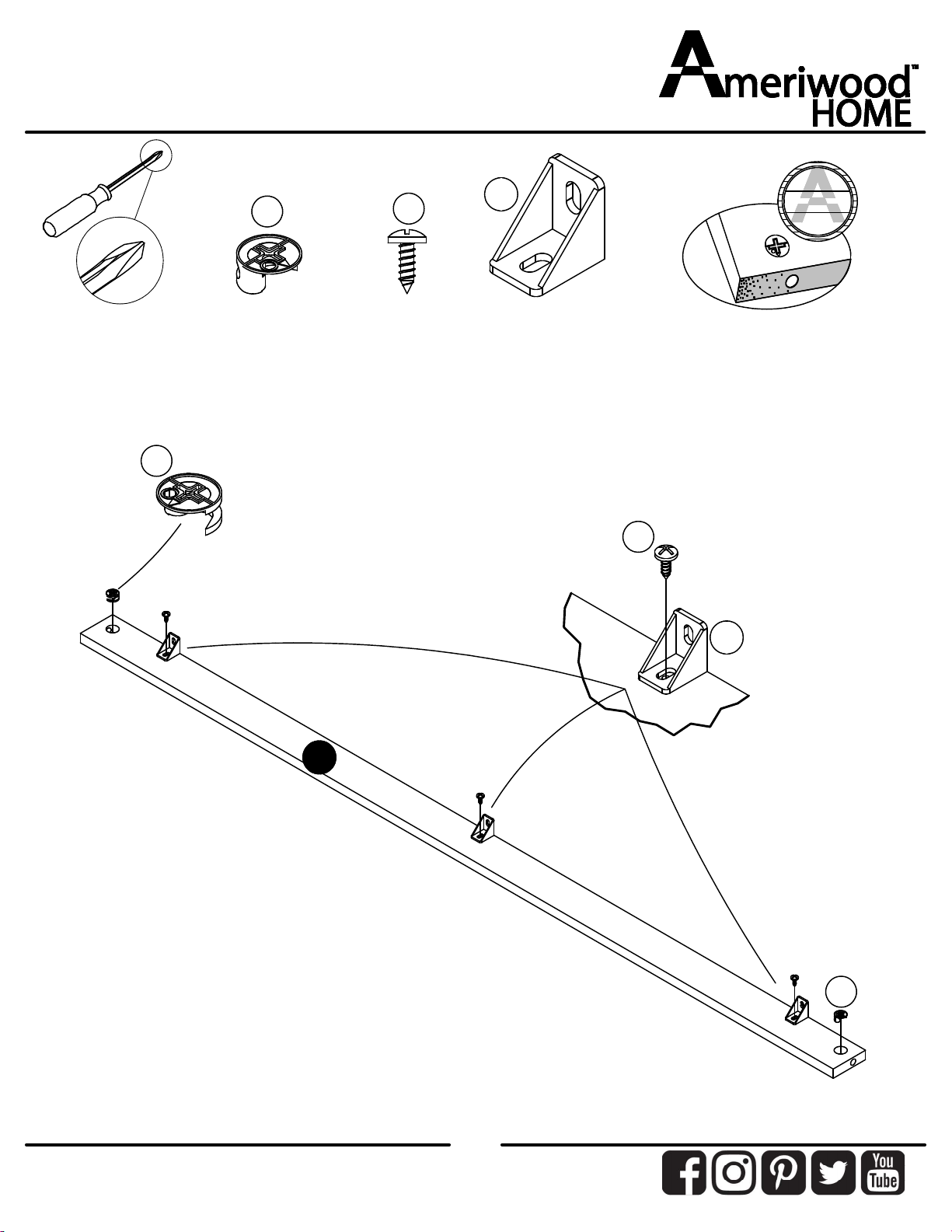

ameriwoodhome.com

STEP3

(x2)

(x3) (x3)

Proper orientation of CAM LOCK

Tip

Assembly

Quick
