Ameriwood HOME Mr.Kate 2613408COM Manuale utente

2613408COM

Widedresser -Graphite

WARNING

DoNot ReturnThisProduct!

Contact our customer service teamfor help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday9am-5pmCST

Visit: www.ameriwoodhome.com

Date of Purchase ___ / ___ / ___

Lot Number:

AssemblyDifficultyMeter

Easy Tough

ameriwoodhome.com

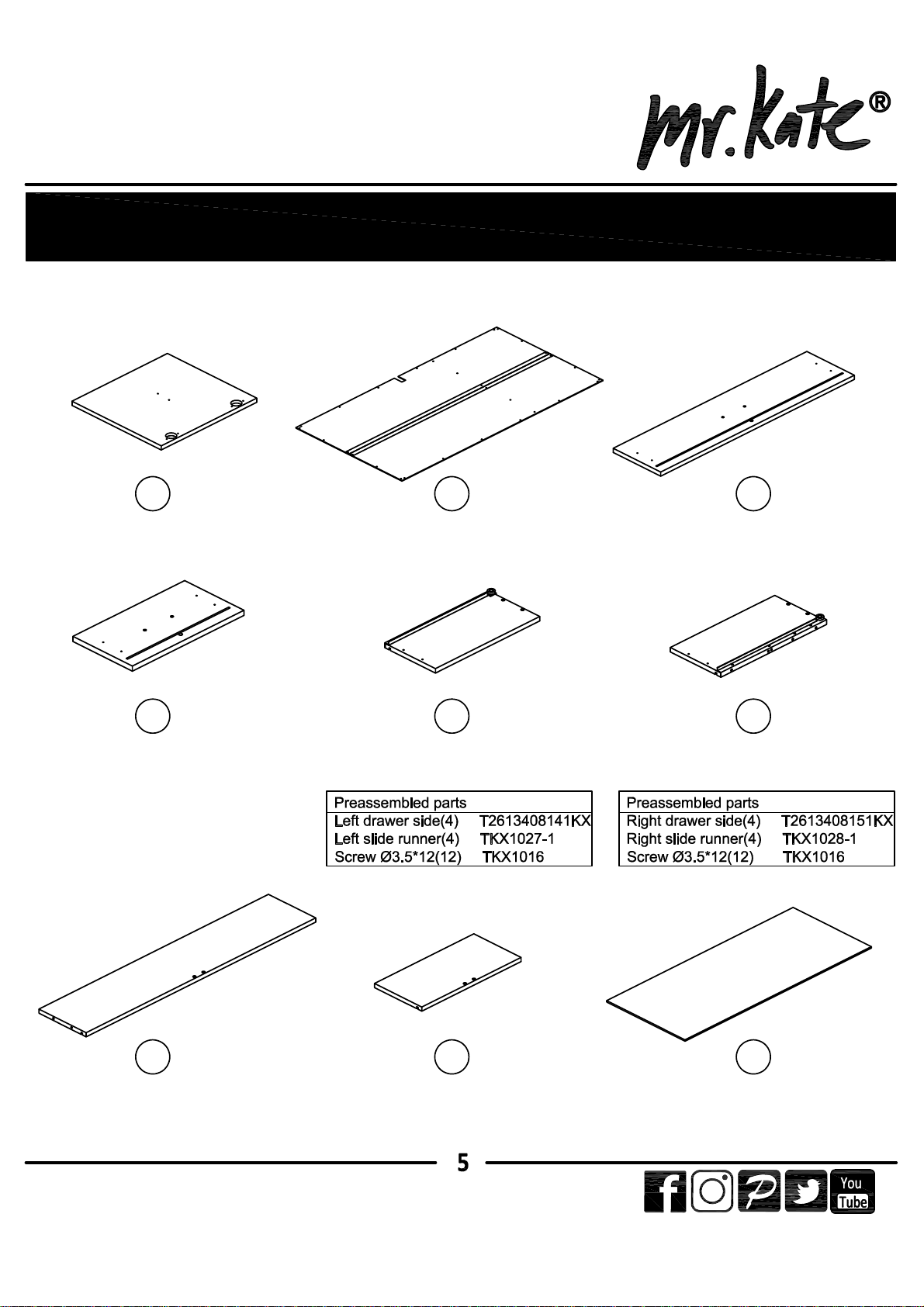

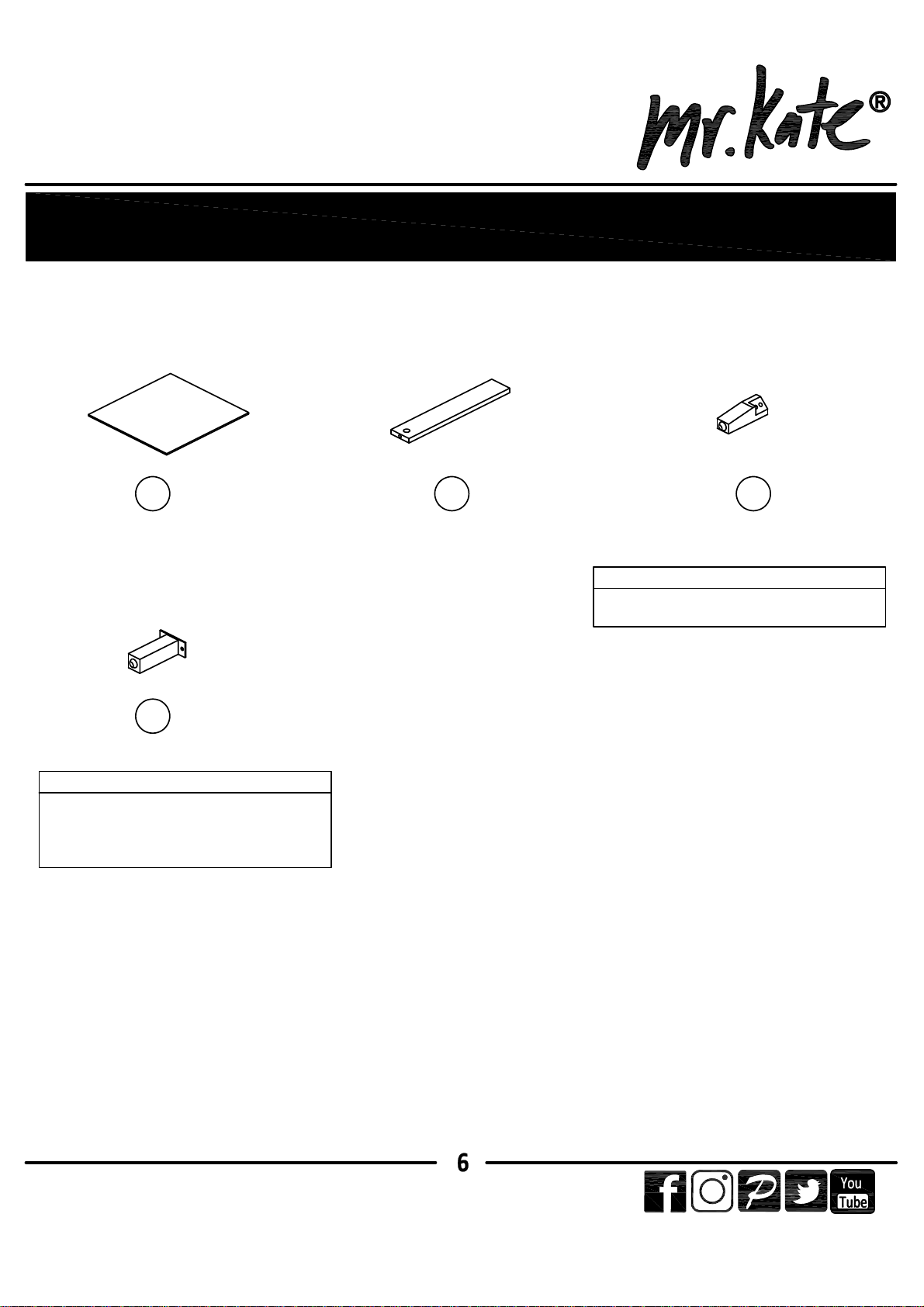

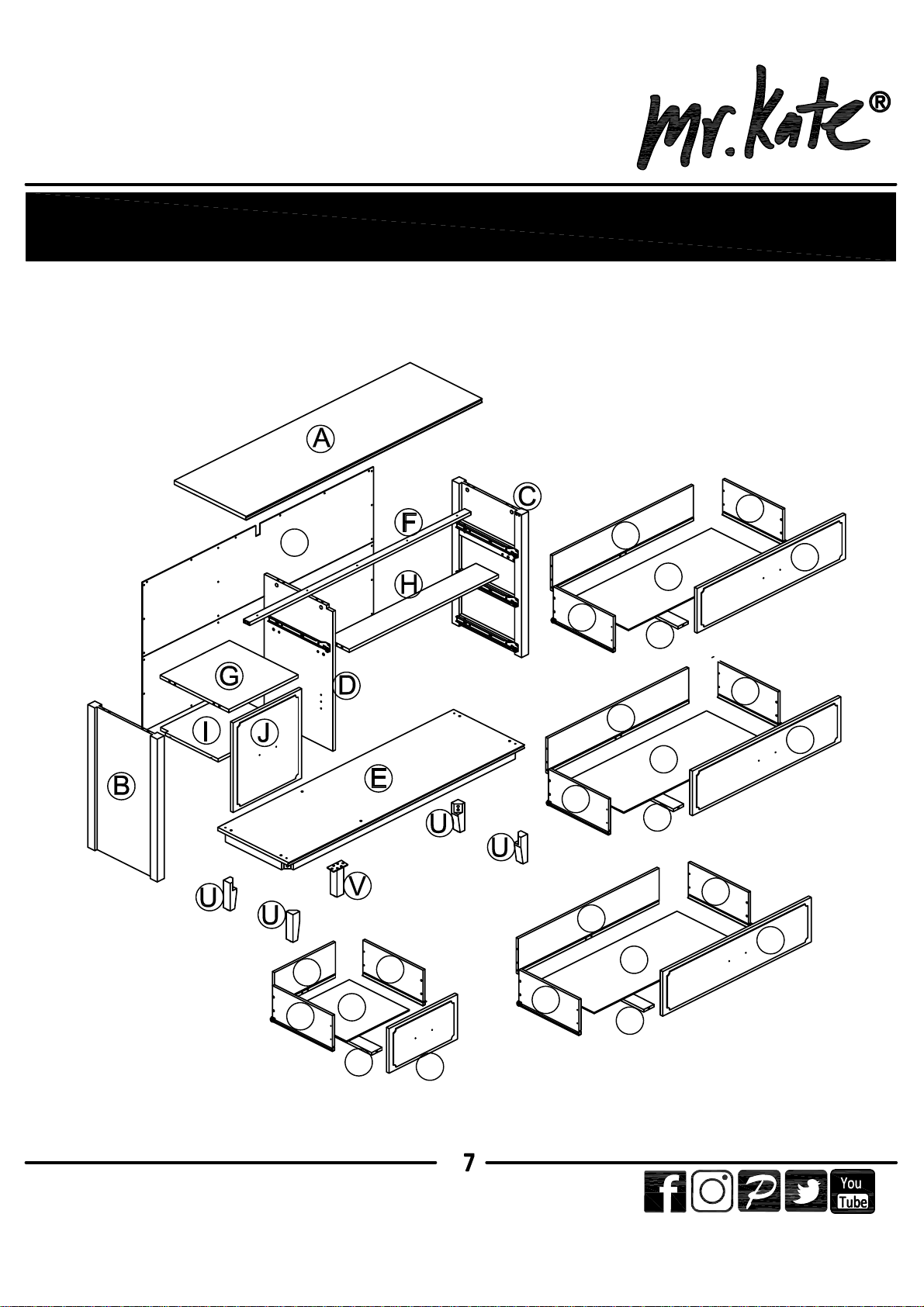

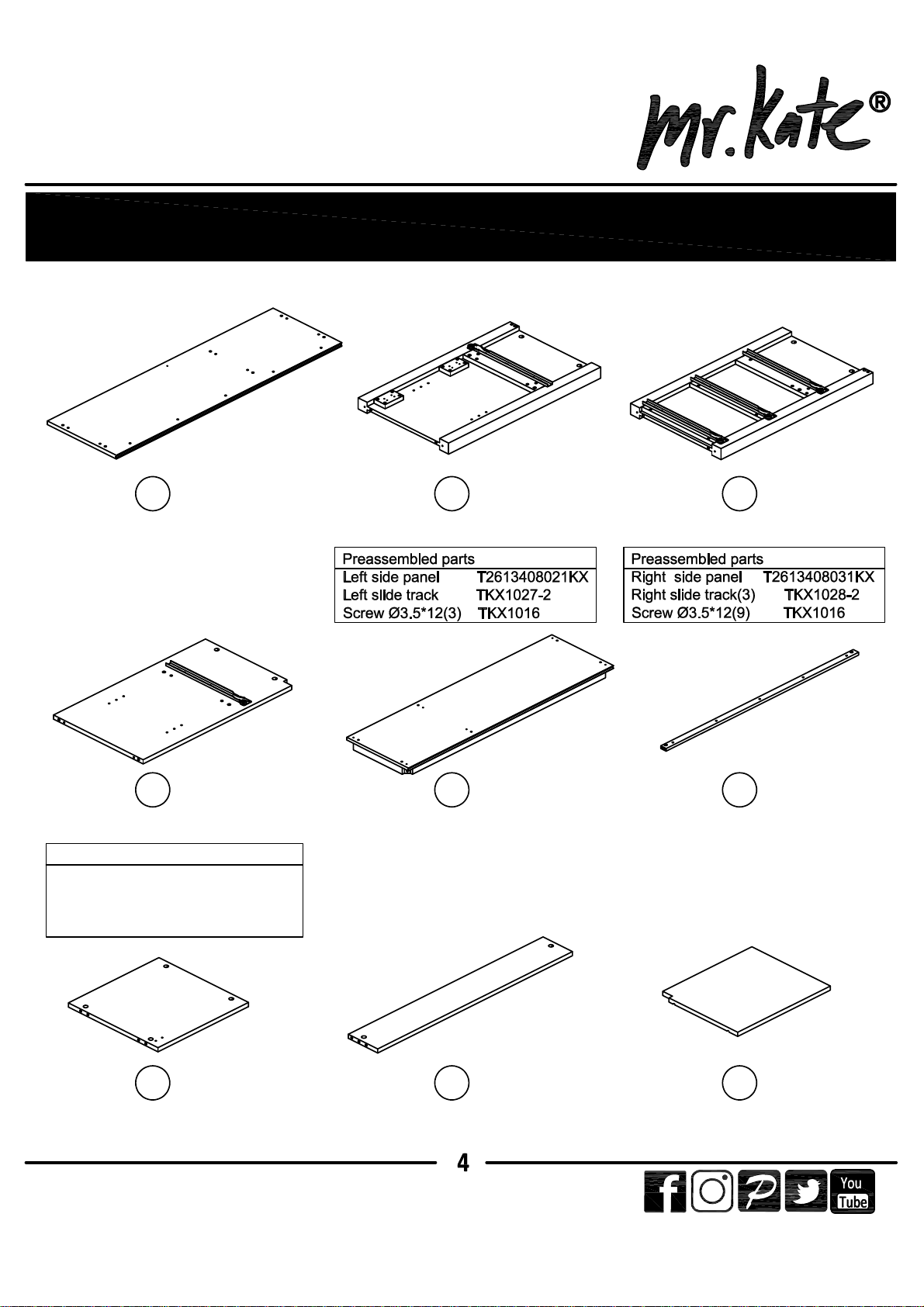

Board Identification

NotActualSize

Top panel

T2613408010KX

Left side panel

T2613408020KX

Right side panel

T2613408030KX

Partition

T2613408040KX

Bottom panel

T2613408050KX

Upper front rail

T2613408060KX

Fixed shelf

T2613408070KX

Adjustableshelf

T2613408090KX

Fixed shelf

T2613408080KX

Preassembled parts

Partition T2613408041KX

Left slide track TKX1027-2

Right slide track(3) TKX1028-2

Screw 3.5*12(12) TKX1016

ameriwoodhome.com

Board Identification

NotActualSize

Door

T2613408100KX

Back panel

T2613408110KX

Drawer front

T2613408120KX

QTY:3PCS

Drawer front

T2613408130KX

Left drawer side

T2613408140KX

QTY:4PCS

Right drawer side

T2613408150KX

QTY:4PCS

Drawerback

T2613408160KX

QTY:3PCS

Drawer bottom

T2613408180KX

QTY:3PCS

Drawerback

T2613408170KX

ameriwoodhome.com

Board Identification

NotActualSize

Drawer bottom

T2613408190KX

Drawer bottomsupport

T2613408200KX

QTY:4PCS

Leg

T2613408210KX

QTY:4PCS

Center leg

T2613408220KX

Preassembled parts

Leg(4) T2613408211KX

Adjustablefoot 19(4)TKX1035

Preassembled parts

Center leg T2613408221KX

Iron TKX1395

Adjustablefoot 19TKX1035

Screw 4*25(4) TKX1396

ameriwoodhome.com

Board Identification

NotActualSize

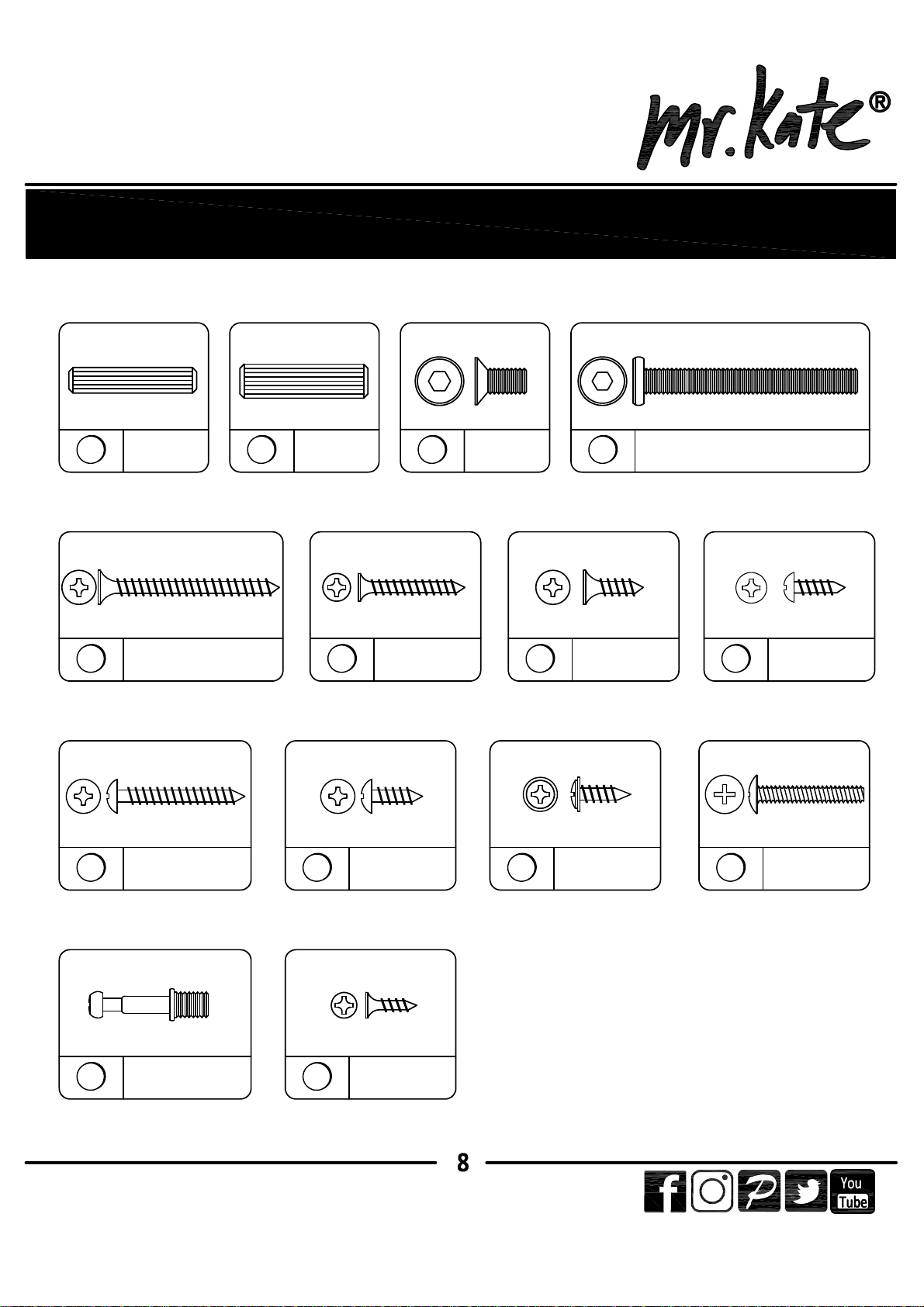

PartList

ameriwoodhome.com

Actual Size

HardwareBag ReferenceNumber:

22613408COM0KX

×32

6X30mm

×8

Wooddowel

TKX1006

8X30mm

×14

Wooddowel

TKX1005

2×8

Bolt

TKX1102

1/4"X50mm

Screw

TKX1410

×29

3.5X25 mm

Screw

TKX1145

4X14mm

×12

Screw

TKX1374 Screw

TKX1083

3.5X12 mm

×1 ×10

912

Screw

TKX1039

×1

Screw

TKX1037

×30

Screw

TKX1141 Screwbolt

TKX1387

4X30mm 4X12mm 3.5X12 mm 5/32"X25 mm

×18

Cambolt

TKX1270

M6X20mm

×6

4X38mm

×2

3X12mm

Screw

TKX1300

×2

1/4"X12mm

Bolt

TKX1132

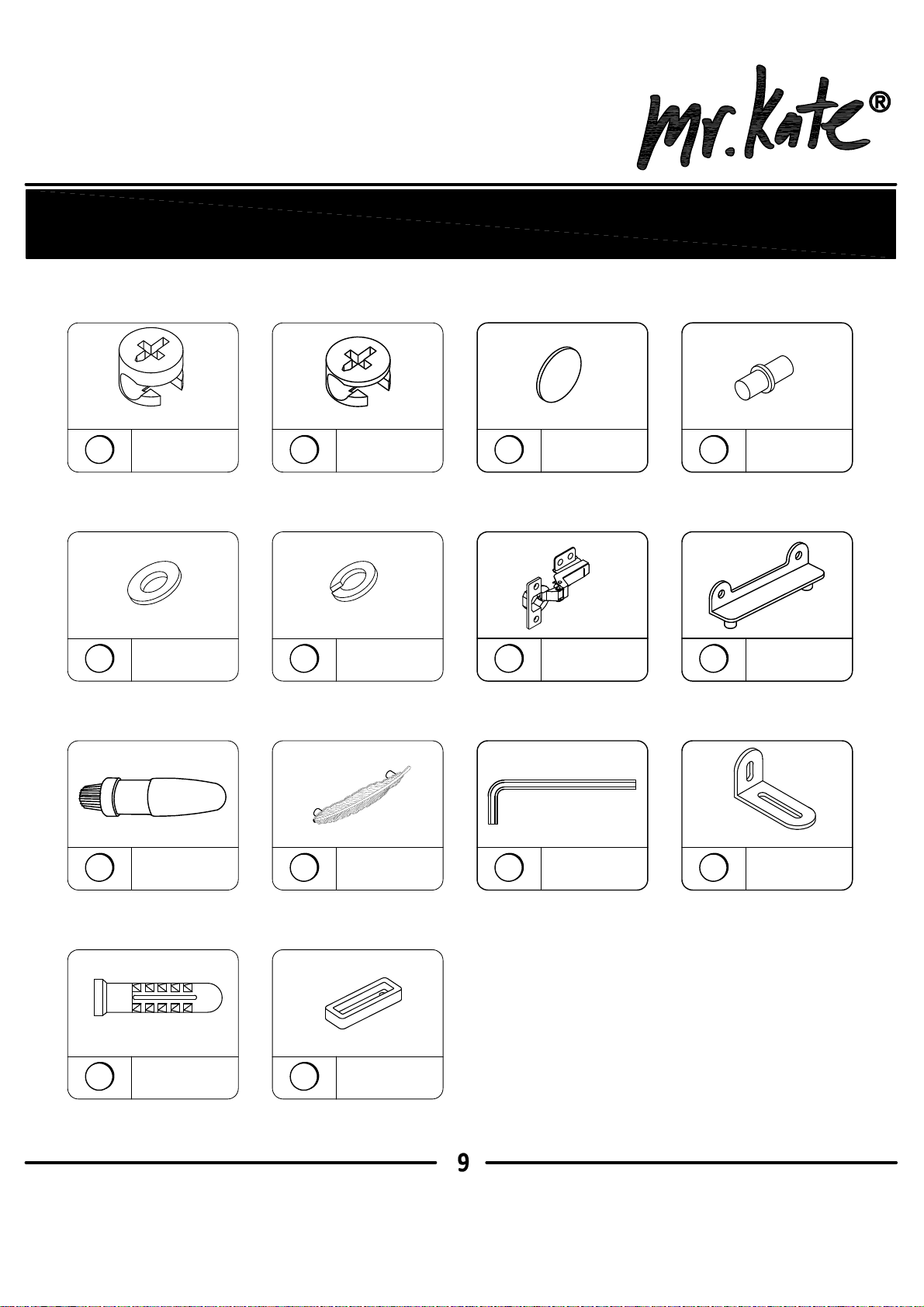

PartList

NotActual Size

15X12mm

×10 ×8

15X 9mm

Camlock

TKX1010 Camlock

TKX1011

×4

Camcover

TKX1388

×4

Shelfsupport

TKX1254

×8

Washer

TKX1397 Springwasher

TKX1398 Euro hinge

TKX1084

×8

Anglecode

TKX1312

15 16 17 18

1/4"X12mm 1/4"X12mm

×8

20 ×2

35 mm

×1

Glue

TKX1014 Handle

TKX1385 Hex key

TKX1140

×1

23 ×1

25 2624 ×5

Wall bracket

TKX1026

35*50*15mm

×1

8.5 ×30mm

Wall anchor

TKX1042

28 ×1

Stop

TKX1392

ameriwoodhome.com

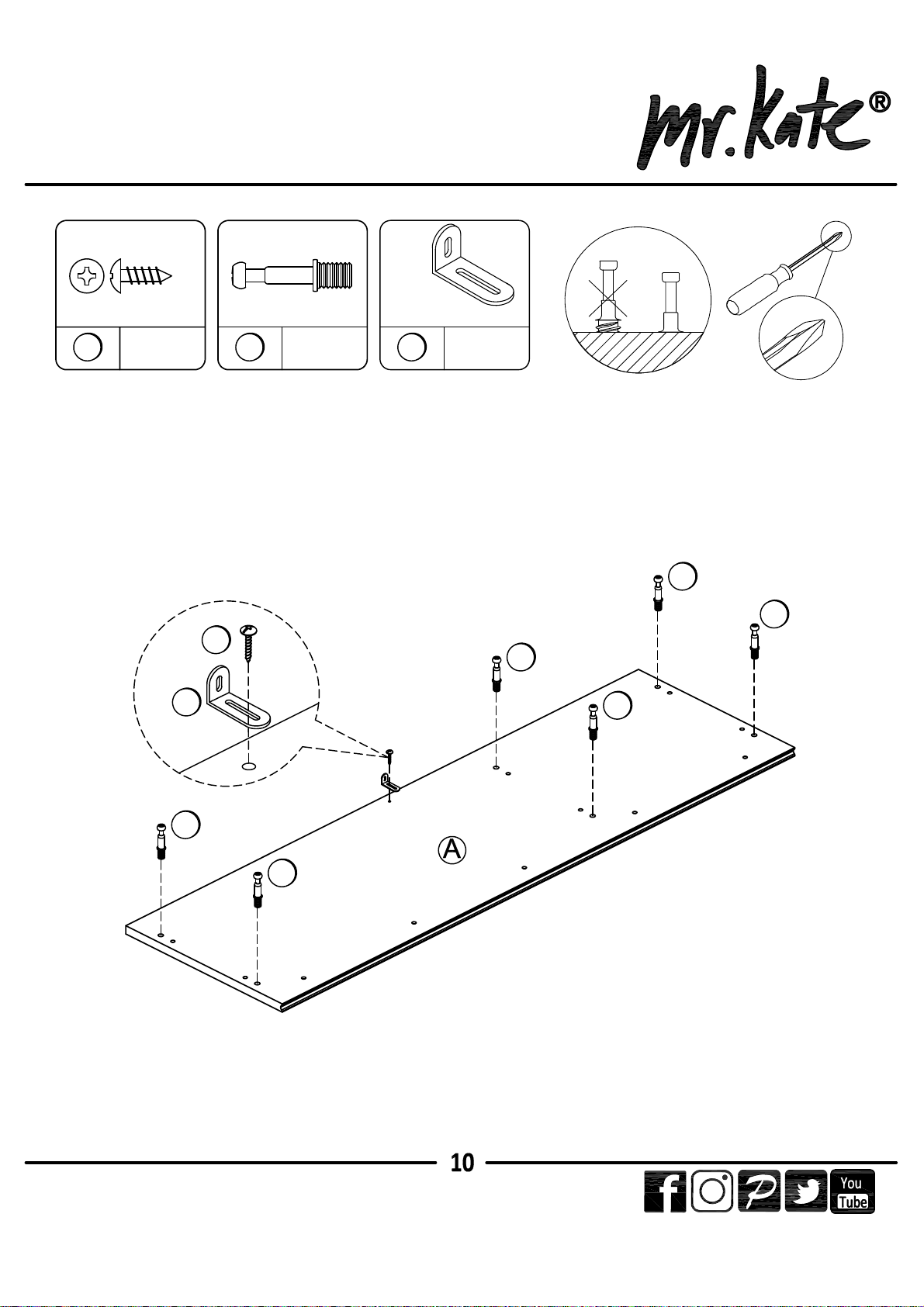

STEP 1

×1

4X12mm

×6

M6X20mm

×1

35*50*15mm

1.1Attach(26) to(A)with(10) asillustrated.

1.2Attach(13) to(A)asillustrated.

ameriwoodhome.com

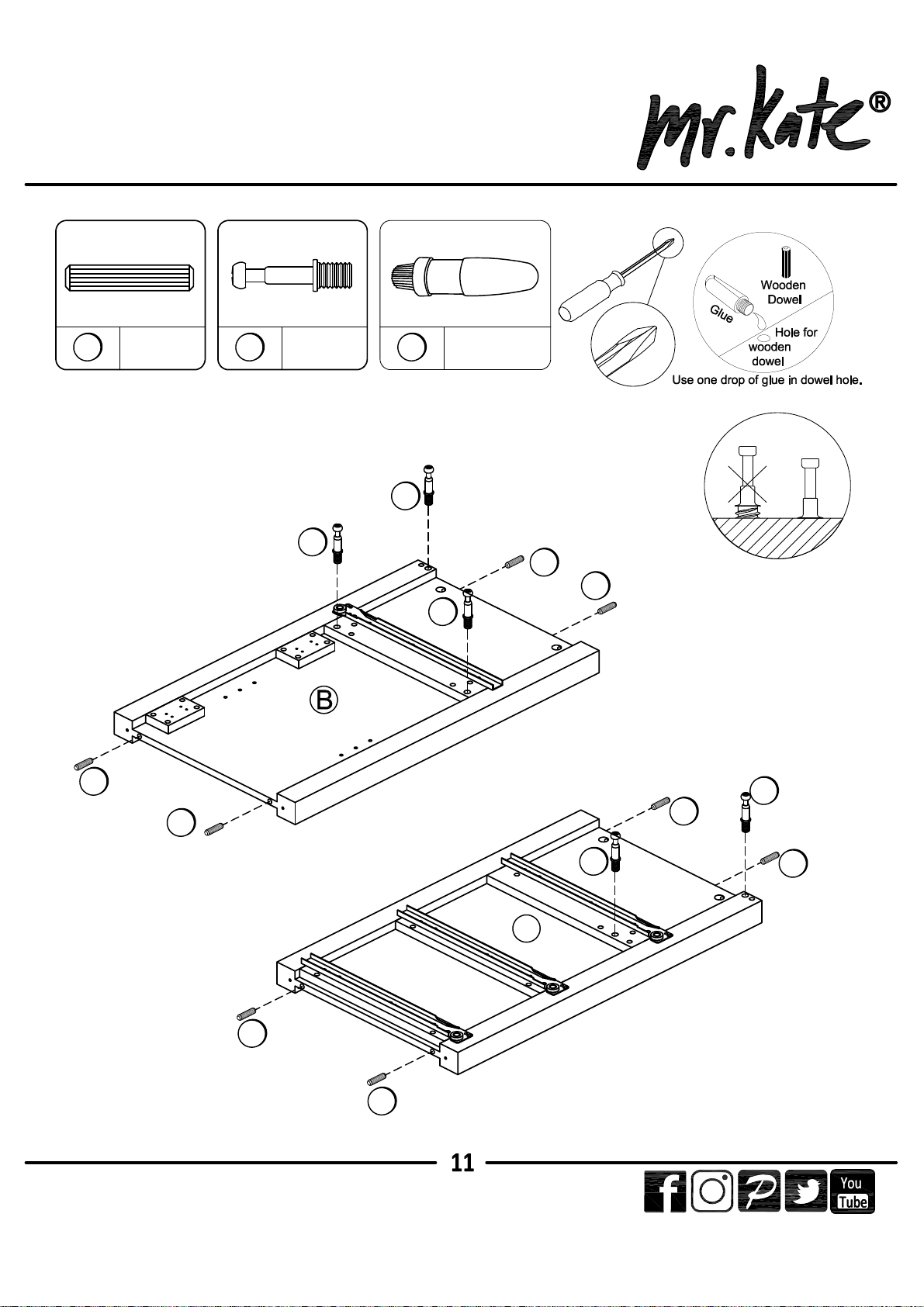

STEP 2

6X30mm

×8

1×5

M6X20mm

2.1Useone drop glue on the dowel hole.

2.2Attach(1),(13) to(B),(C) asillustrated.

ameriwoodhome.com

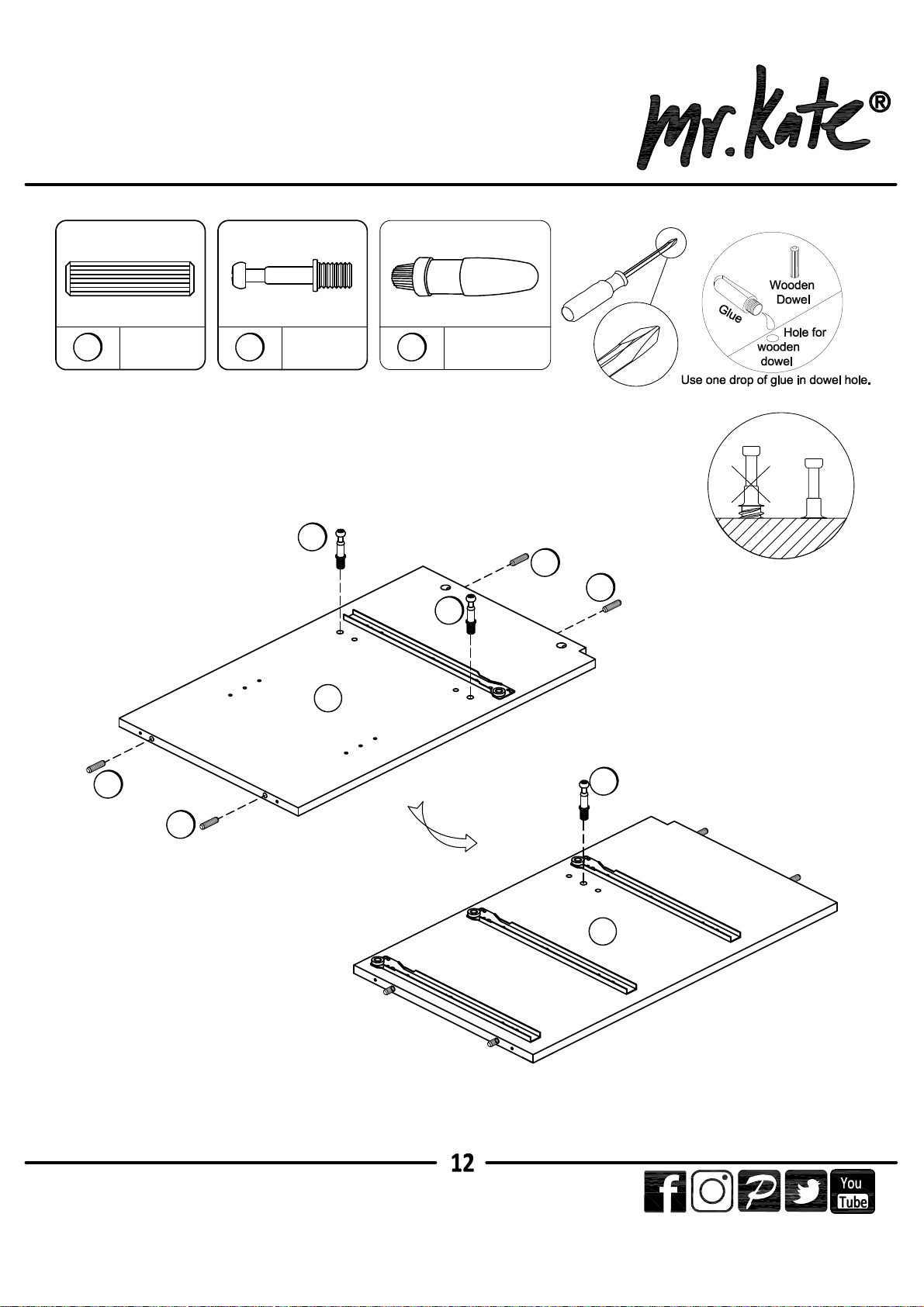

STEP 3

×3

M6X20mm

3.1Useone drop glue on the dowel hole.

3.2Attach(2),(13) to(D) asillustrated.

8X30mm

×4
