Ameriwood HOME Armada 5987837COM Manuale utente

B345987837COM00PK

Do Not Return This Product!

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

Armada 6 Drawer Dresser

5987837COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Before You Start

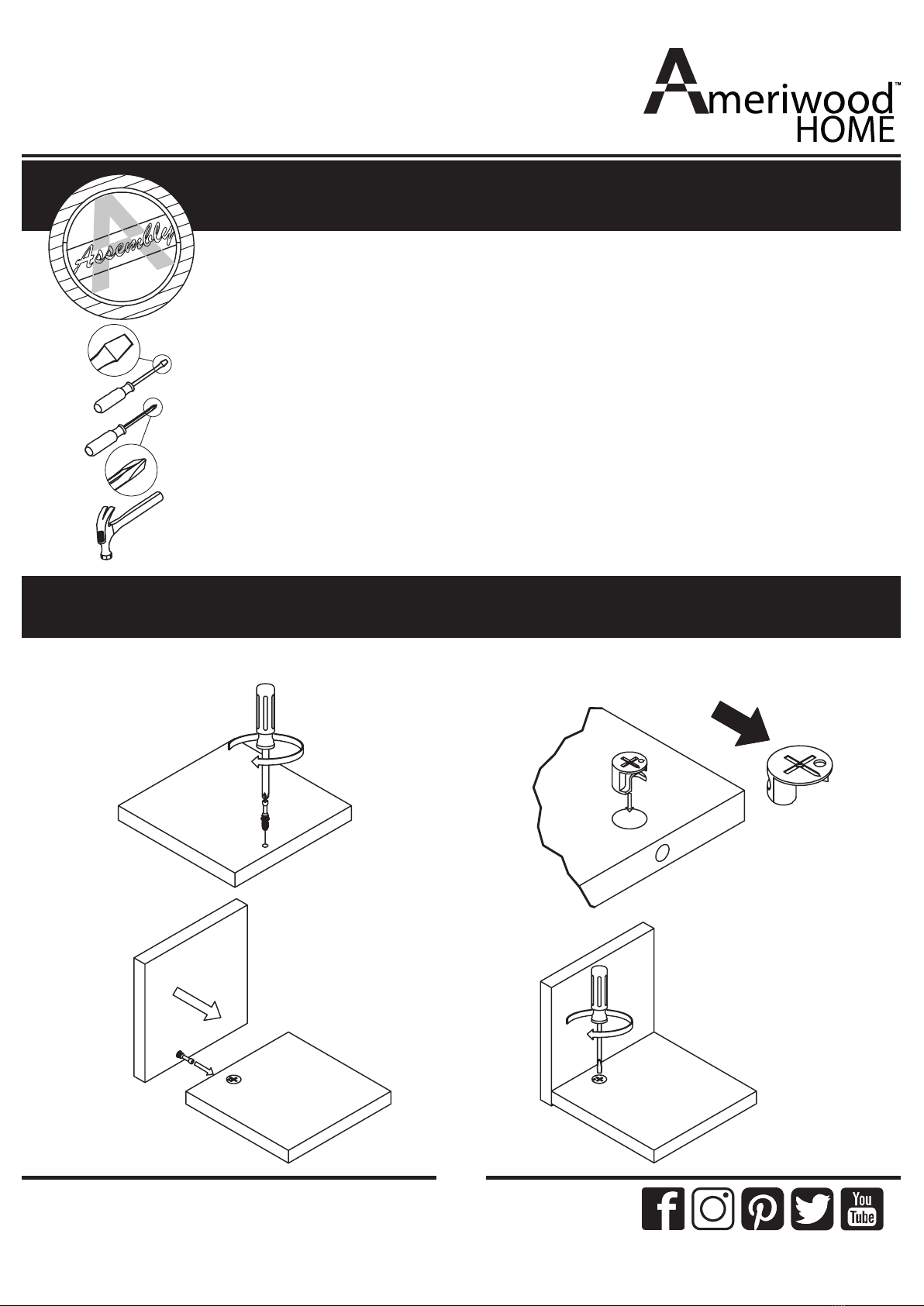

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Identification

Not actual size

ameriwoodhome.com

T5987837010PK

TOP PANEL

T5987837020PK

LEFT SIDE PANEL

T5987837030PK

RIGHT SIDE PANEL

T5987837040PK

BOTTOM PANEL

T5987837050PK

TOP MOLDING

2 3

T5987837060PK

LEFT DRAWER SIDE

T5987837070PK

RIGHT DRAWER SIDE

T5987837080PK

FRONT DRAWER

T5987837090PK

BACK DRAWER

Board Identifica�on

Not actual size

ameriwoodhome.com

T5987837100PK

DRAWER BOTTOM

T5987837110PK

SIDE RAIL

T5987837120PK

LEG

T5987837130PK

FRONT RAIL

T5987837160PK

BACK RAIL

T5987837170PK

CENTER LEG

T5987837180PK

CENTER RAIL

T5987837150PK

BACK PANEL

T5987837140PK

DRAWER SUPPORT

T5987837190PK

PARTITION

Part List

Actual Size

ameriwoodhome.com

x12

TPK3005

PH M4 X 18

x25

TPK0015

NAIL

x48

TPK0001

CAM BOLT

x47

TPK0008

CBS 4 x 38

x48

TPK0002

CAM LOCK

15-9

x24

TPK0004

DOWEL 8 X 30

x116

TPK0007

CBS 3.5 x 16

TPK2008

L-BRACKET

Hardware Bag Reference Number:

25987837COM0PK

Part List

Not Actual Size

ameriwoodhome.com

x1 set

TPK2004

ANTI TIPPING KIT

x6 SET

TPK1001

DRAWER SLIDE 12”

TPK3014

HANDLE (GOLD)

TPK2011

STOPPER 35MM

TPK2010

STOPPER 15MM

Hardware Bag Reference Number:

25987837COM0PK

ameriwoodhome.com

* raw edges are shaded

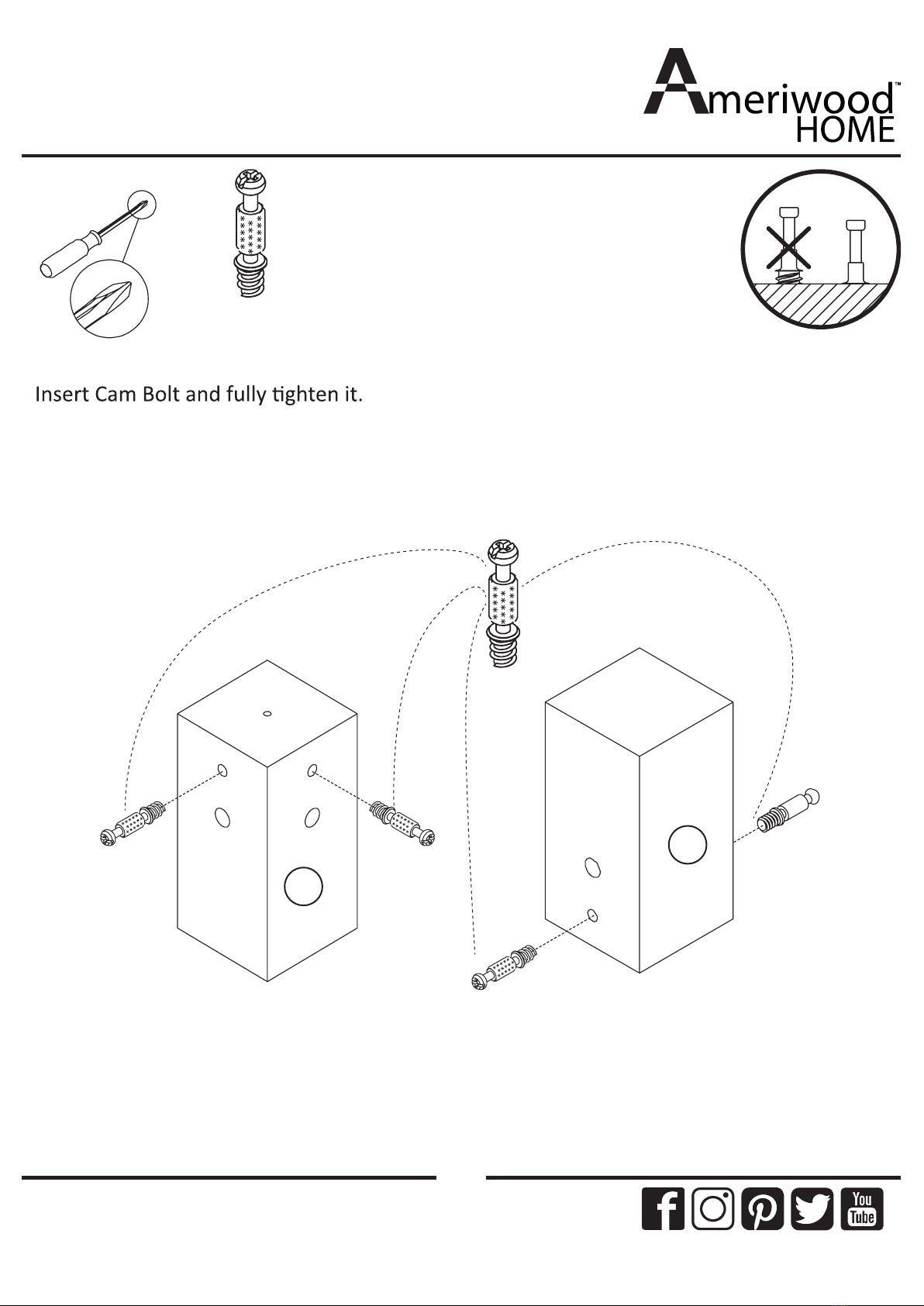

Step 1

TPK0001

ameriwoodhome.com

* raw edges are shaded

Step 2

TPK0008 x1

TPK2004

Coated Edges

ameriwoodhome.com

* raw edges are shaded

Step 3

x10

TPK0001
