AMP Lighting LocketPro Mini Hanging Light Istruzioni operative e di sicurezza

INSTALLATION & MAINTENANCE GUIDE

Help Hotline:

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

www.amplighting.com

AMP®Low Voltage Landscape Lighting

AMP® LocketPro Mini Hanging Light (Lamp-Ready)

ASI-9007-4036-B-BZ

AMP® LocketPro Mini Hanging Light (Lamp-Ready)

ASI-9007-4036-B-BZ

INSTALLATION & MAINTENANCE GUIDE

www.amplighting.com

–2–

[email protected] • 813.978.3900

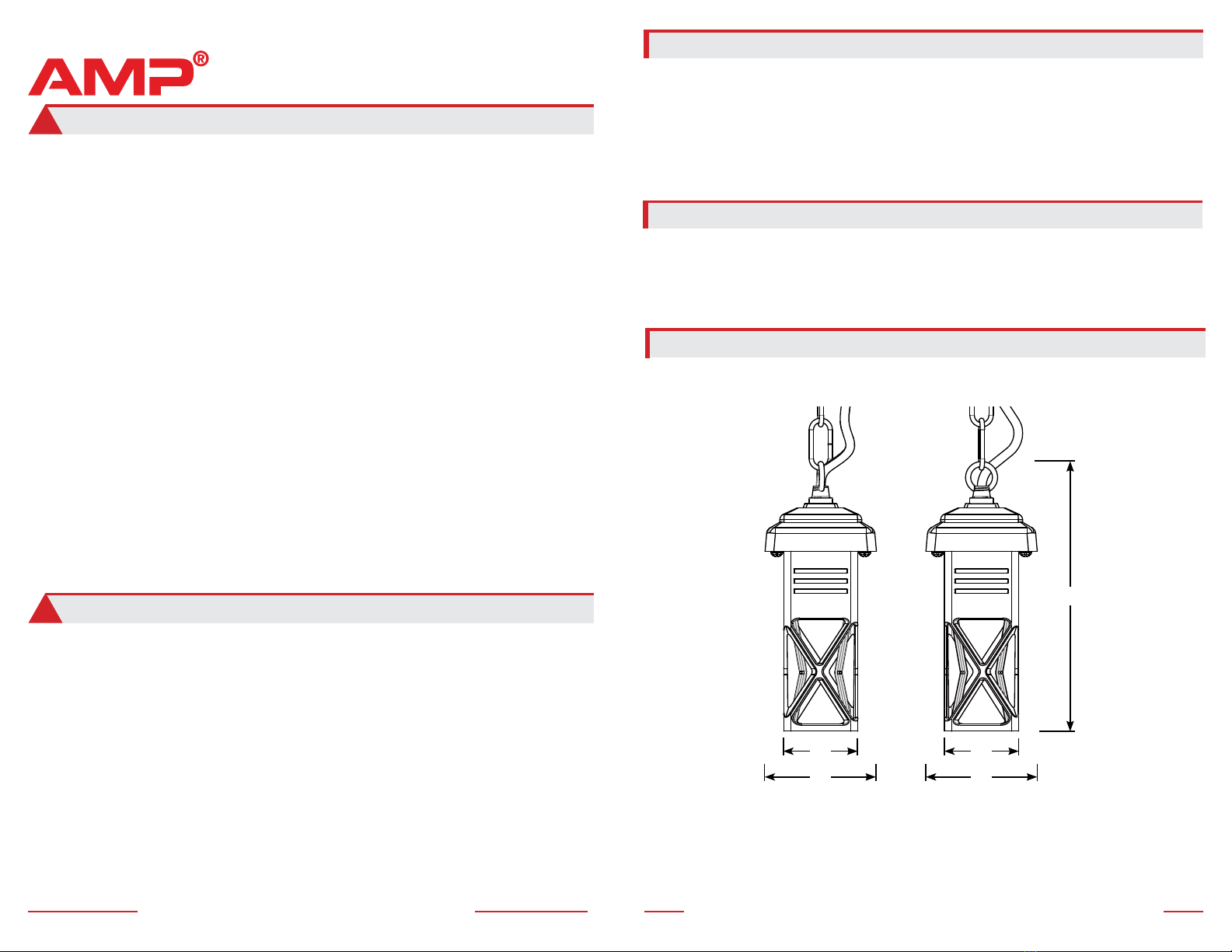

Product Dimensions

–3–

Important Safety Instructions: Read Before Installation

Important Safety Instructions

Package Contents

Parts Required (Sold Separately)

This xture is intended for installation in accordance with local codes and the

National Electric Code (NEC). Failure to adhere to these codes and instructions

may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, opera-

tion maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (trans-

former) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. The unit low voltage cable should:

a. Be protected by routing in close proximity to the luminaire or tting,

or next to a building structure such as a house or deck;

a. Not be buried except for a maximum 6 inches (15.2 cm) in order to

connect to the main low voltage cable; and

a. Have the length cut o so that it is connected to a connector within 6

inches (15.2 cm) from the building structure, a luminaire, or tting.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before reducing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may dam-

age lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

A. (1) Fixture

B. (1) Fixture Chain

C. (1) Chain Link

D. (1) Mounting Bracket

E. (3) Self-tapping Screws

F. (3) Flat Washers

A. (1) Bi-Pin Brass Puck Light

2” 2”

3” 3”

7.32”

INSTALLATION & MAINTENANCE GUIDE

–4–

www.amplighting.com

–4–

[email protected] • 813.978.3900

–5–

AMP® LocketPro Mini Hanging Light (Lamp-Ready)

ASI-9007-4036-B-BZ

Remove Shade

Install Bi-Pin Brass Puck Light

Fixture

Bottom Shade

Screw

Use a screwdriver to remove

the screws from under the

xture. Then take o the

bottom shade.

Fixture

Insert the Bi-Pin brass puck light

into the socket and secure with the

two screws provided. Tighten with a

screw driver.

CAUTION: This xture is for LED use

only. Do not exceed maximum watt-

age marked on luminaire label.

NOTE: DO NOT touch the Bi-Pin brass

puck light with bare hands. Use soft

cloth to handle the puck light.

Socket

Screw

Bi-Pin Puck Light

Bi-pin Puck Light

Holes on Bi-pin Puck Light

Holes on

Mounting

Plate

ROTATE

TIPS: If the holes on the Bi-Pin

puck light do not align to the

holes on the mounting plate

after installation, rotate the

Bi-Pin puck light slightly to

line the holes up and then

secure with screws.

Re-install Shade

Fixture

Bottom

Shade

Screw

Place the bottom back onto the x-

ture and secure with the previously

removed screws. Tighten with a

screw driver.

Install Mounting Bracket

Wall Anchor

(not included)

Flat Washer

Self-tapping Screw

Mounting

Bracket

Ceiling Attach the mounting bracket onto

the desired ceiling surface. Secure

with the at washers and self-tap-

ping screws.

Note: Wall anchors are required

for certain installation conditions

(concrete or brick walls). Mark on

the desired ceiling surface for wall

anchors by using the holes on the

mounting bracket. Remove the

mounting bracket and drill proper

holes on the desired ceiling surface

and then insert the wall anchors.

INSTALLATION & MAINTENANCE GUIDE

–6–

www.amplighting.com

–6–

[email protected] • 813.978.3900

–7–

AMP® LocketPro Mini Hanging Light (Lamp-Ready)

ASI-9007-4036-B-BZ

Attach Fixture to Mounting Bracket

Supply Wires Fixture Chain

Fixture

Mounting

Bracket

Chain Link

Ceiling Loop

Adjust the xture chain to the desired

length by removing the links if needed.

(Note: Pliers are required for this step).

With the xture chain unattached to the x-

ture loop on top of the xture body; or the

ceiling loop on the underside of the mount-

ing bracket, pull the supply wires through

the xture chain alternating between the

links.

After the wires are through the xture

chain, pull the supply wires up and around

the backside of the mounting bracket.

Attach one end of the xture chain to the

xture loop at the top of the xture body.

Lift the xture body and xture chain up

and attach the other end of the xture chain

onto the ceiling loop on the bottom of the

mounting bracket with the chain link.

The xture will now hang safely. Close the

chain loop at the ceiling loop.

Adjust Fixture

Adjust the xture chain to the desired length by removing the links if

needed. (Note: Pliers are required for this step).

With the xture chain unattached to the ceiling loop remove the links

to create the length needed. Then, pull the supply wire from the xture

through the chain alternating between the links.

After the wire is through the chain, pull the additional wire through the

mounting bracket.

Attach the xture chain to the ceiling loop using the chain link.

Wire Connections

Fixture

Pigtail

Transformer

(Sold Separately)

Supply Wire

Strip both leads from the luminaire

pigtail. Connect the leads from the

luminaire supply cable to the trans-

former (sold separately).

INSTALLATION & MAINTENANCE GUIDE

Help Hotline:

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

www.amplighting.com
